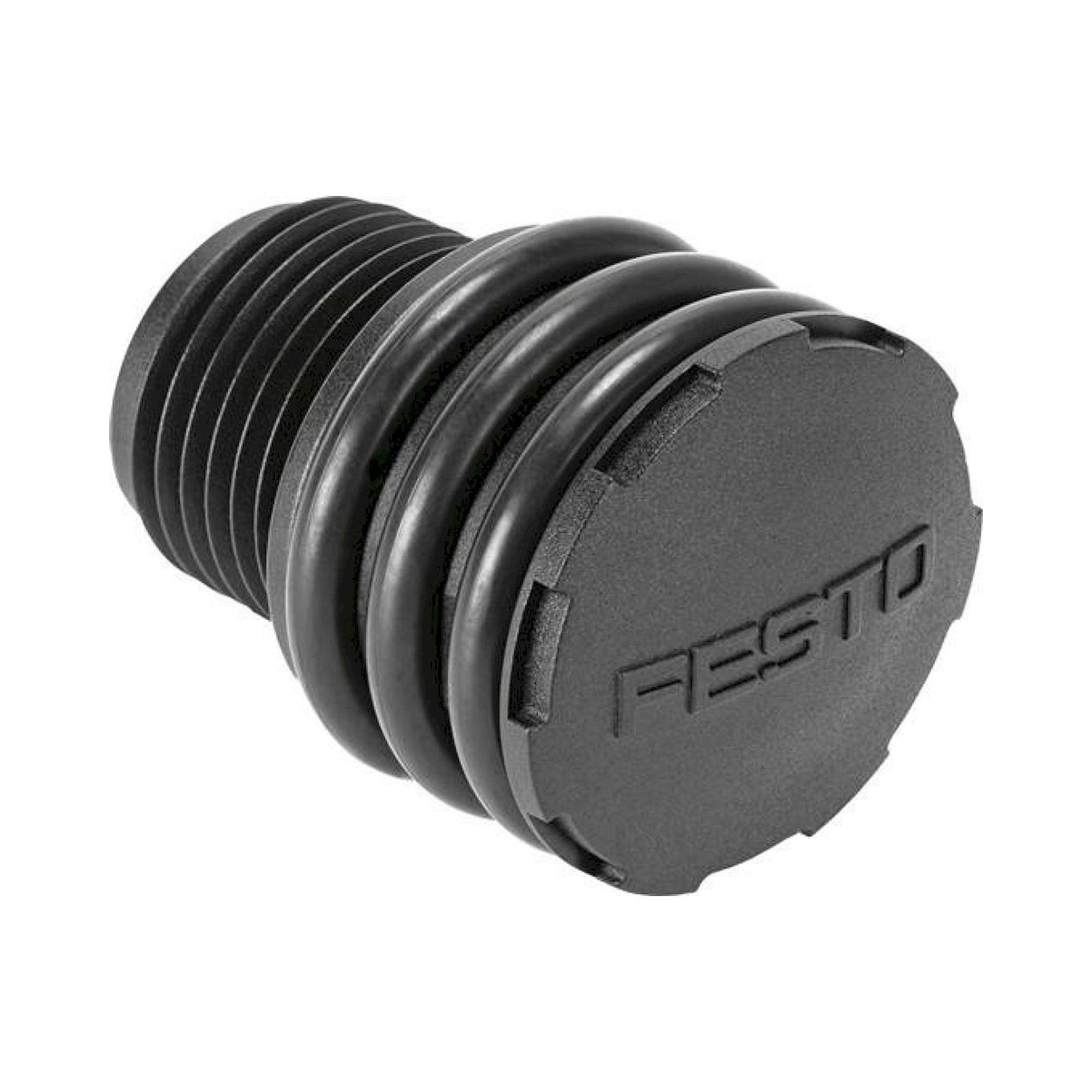

CPV gaskets like CPV18-VI-P.1/4-150 provide static sealing between valve manifold sections and are supplied in bulk quantities for maintenance efficiency, while VABD separation elements such as VABD-10-B create physical barriers within valve blocks to prevent cross-contamination between pressure zones. PRSV closure plugs including PRSV-1/4 and PRSV-1/8 serve as permanent port sealing solutions for unused valve connections, preventing internal contamination and maintaining system pressure integrity. CPV18-DZP separation plates offer rigid structural separation for complex manifold assemblies, whereas VABD entlüftungsschutz elements like VABD-D3-SN-N12 provide specialized venting protection in applications requiring controlled atmosphere release.

What installation requirements apply to Festo sealing and separation elements in pneumatic valve systems?

Installation of Festo sealing elements requires clean, dry compressed air systems with filtration to ISO 8573-1 Class 2 purity levels and operating pressures typically ranging from 2 to 10 bar depending on valve specifications. CPV gaskets must be installed with proper compression using manufacturer-specified torque values to prevent over-compression damage, while VABD separation elements require precise alignment within valve bores to maintain sealing effectiveness. Thread compatibility verification is essential for PRSV closure plugs with standard 1/4 inch and 1/8 inch NPT connections, and separation plates like CPV18-DZP demand flat surface preparation and uniform bolt tightening patterns. System compatibility extends to media temperature ranges from -10°C to +60°C for standard elastomer compounds in typical industrial compressed air applications.

What are the operating pressure and temperature ratings for Festo pneumatic sealing elements?

Festo pneumatic sealing elements are rated for continuous operation at pressures up to 16 bar with burst pressure capabilities exceeding 32 bar, suitable for industrial compressed air systems operating at standard 6 bar working pressure. Temperature ratings span from -20°C to +80°C for standard NBR elastomer compounds, with specialized high-temperature variants available for applications up to +150°C in thermal processing environments. The elements maintain IP65 ingress protection when properly installed in valve manifolds, preventing moisture and particulate contamination in industrial environments. VABD separation elements provide additional chemical resistance for applications involving inert gases or specific process media, while maintaining pressure integrity across temperature cycling and vibration loads typical in automated manufacturing systems.

What maintenance intervals and service life expectations apply to Festo sealing and separation elements?

Festo sealing elements typically require inspection every 12 months or 1 million operating cycles in standard compressed air applications, with replacement intervals extending to 24 months under optimal operating conditions with proper filtration and pressure regulation. CPV gaskets should be replaced during valve manifold servicing or when visual inspection reveals compression set exceeding 25% of original thickness, while VABD separation elements require replacement when pressure drop across the seal increases beyond specified system parameters. Service life expectations range from 2 to 5 years depending on operating pressure, temperature cycling, and media cleanliness, with bulk packaging like 150-piece gasket sets enabling cost-effective preventive maintenance programs. Inspection protocols should include leak testing at 1.5 times normal operating pressure and visual examination for elastomer degradation, cracking, or permanent deformation indicators.

Sealing and separating elements

Accessories for valves

Festo sealing and separating elements are components for pneumatic sealing and pressure zone separation within valve terminals and valve blocks. The 48-article range divides into four product groups: blanking discs NSC (ISO standard, G1/8 to G3/4 and VDMA), separator plates CPV (CPV10, CPV14, CPV18 each in DZP and DZPR), seals for VMPA1 valve terminals (VMPA1-DP, VMPA1-DPU and -PRS, -RS variants), as well as CD seals for cassette valves and blanking plugs CDVI5.0-B.

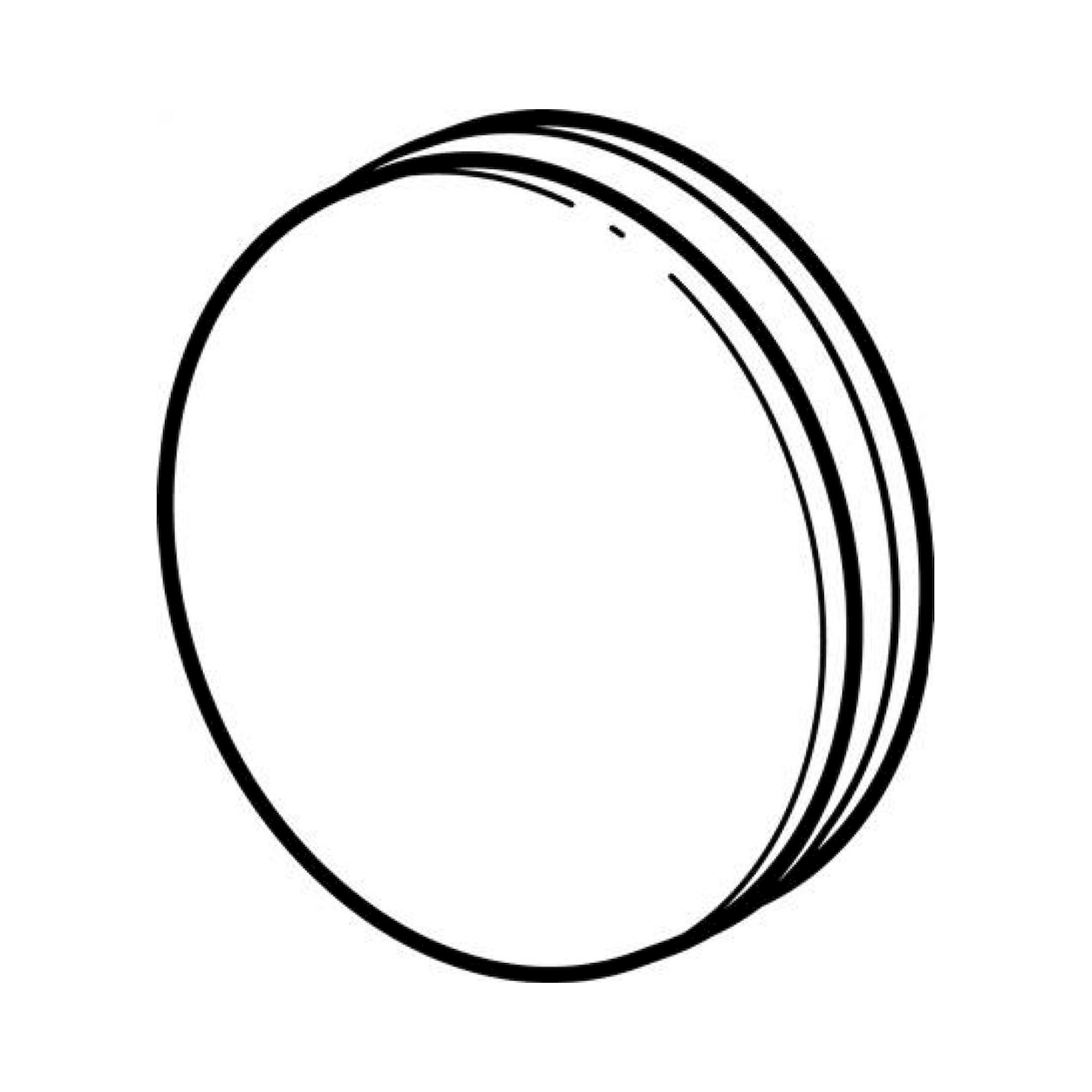

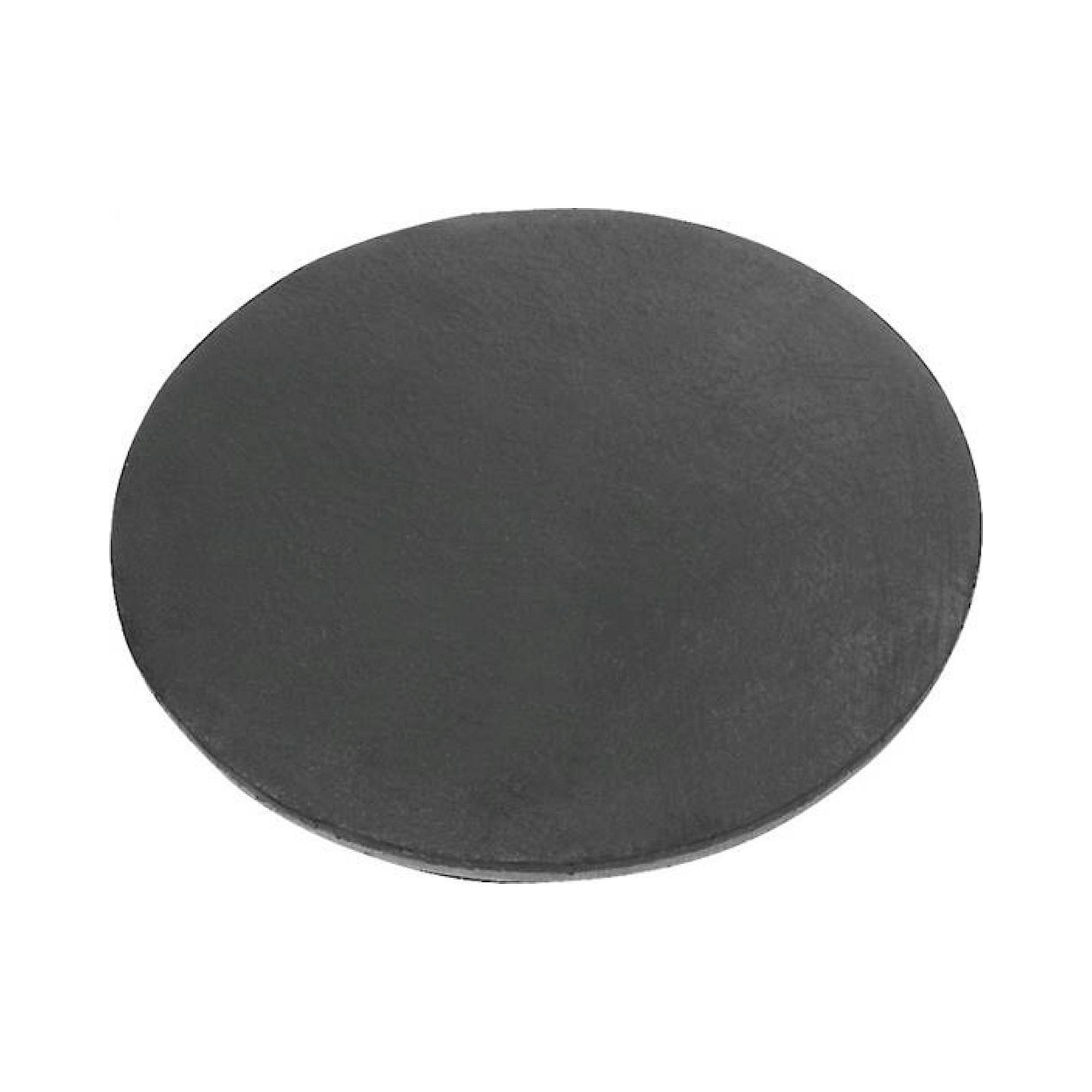

NSC blanking discs are placed at the end of a sub-base plate chain to seal the compressed-air channel pressure-tight. CPV separator plates (DZP without, DZPR with pressure regulator) allow pressure zone separation within a CPV valve terminal.

⚙ NSC blanking discs, G1/8-G3/4 - ISO-standard closure for sub-base plate chains

✓ CPV separator plates DZP/DZPR - pressure zone separation in CPV10/14/18 terminals, DZPR with integrated pressure regulator

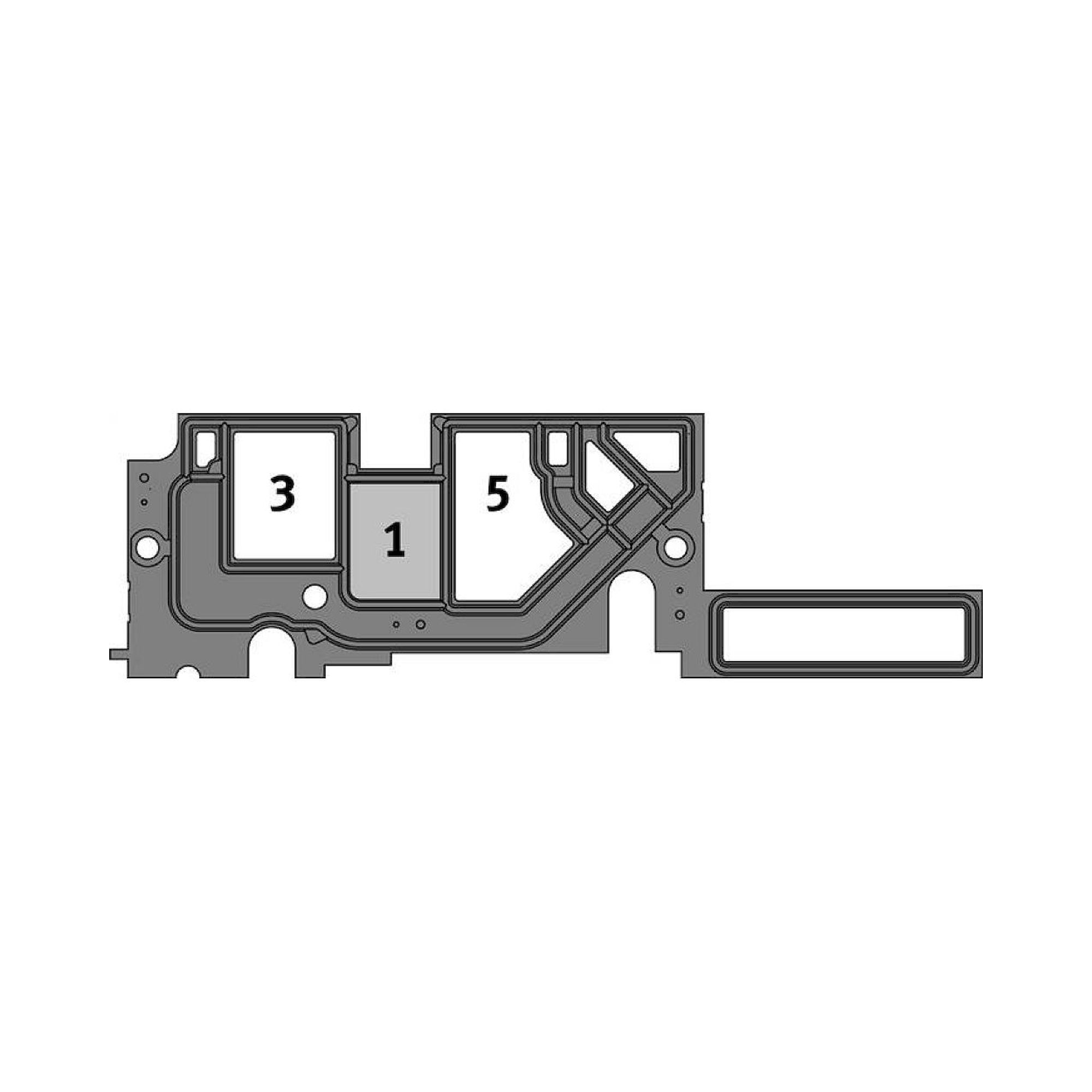

⚡ VMPA1-DP seals - DPU (universal seal), P (with pilot channel), RS (with pilot channel and check valve), PRS combined

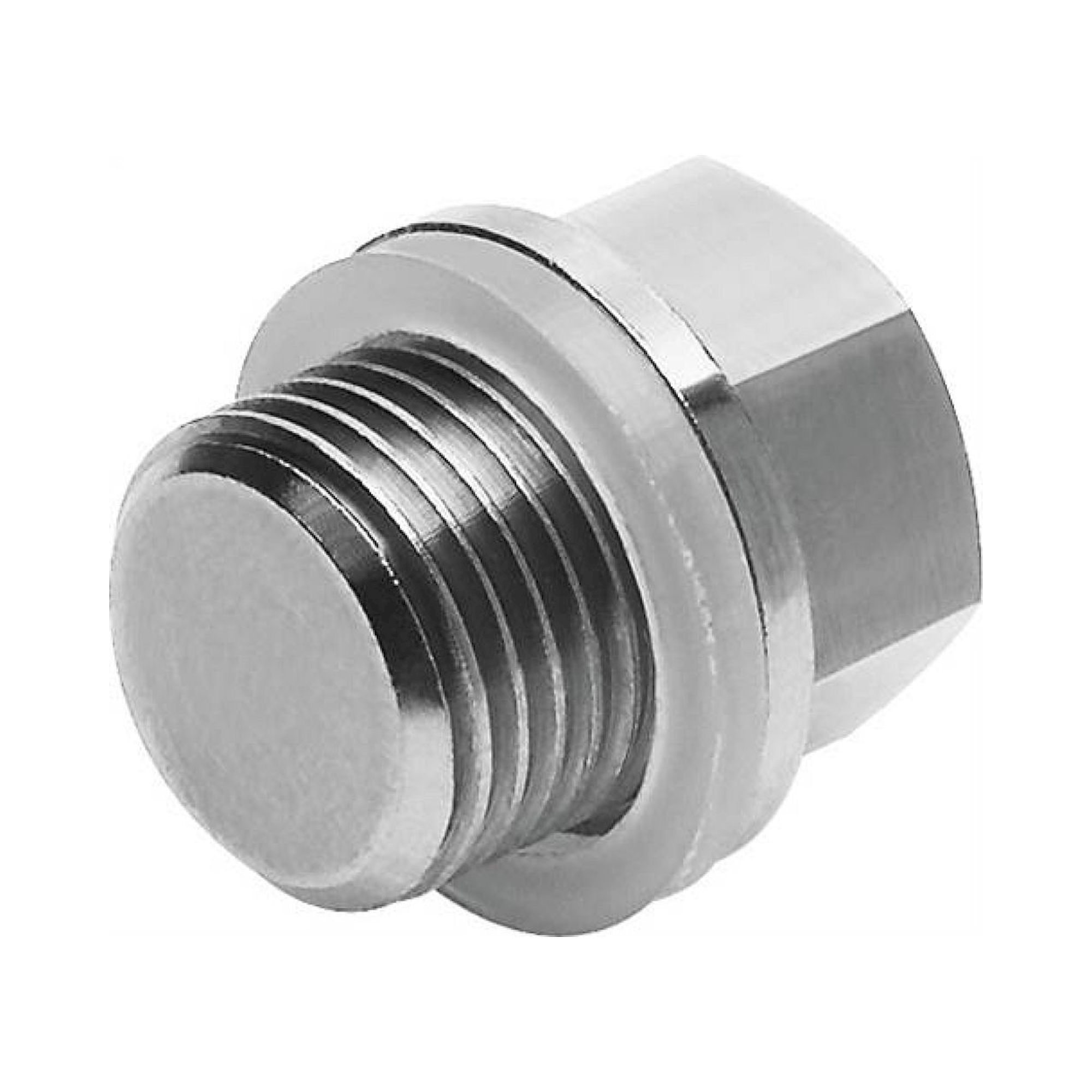

📦 CD seals and CDVI blanking plugs - for cassette valves (1/4, 3/8) and CDVI5.0 blanking plugs G1/8 and G3/8

Group	Types	Compatible with
NSC blanking discs	NSC-1/8, -1/4-1, -3/8-2, -1/2-3, -3/4-4, VDMA	NAS/NAU sub-base plates ISO 5599-1

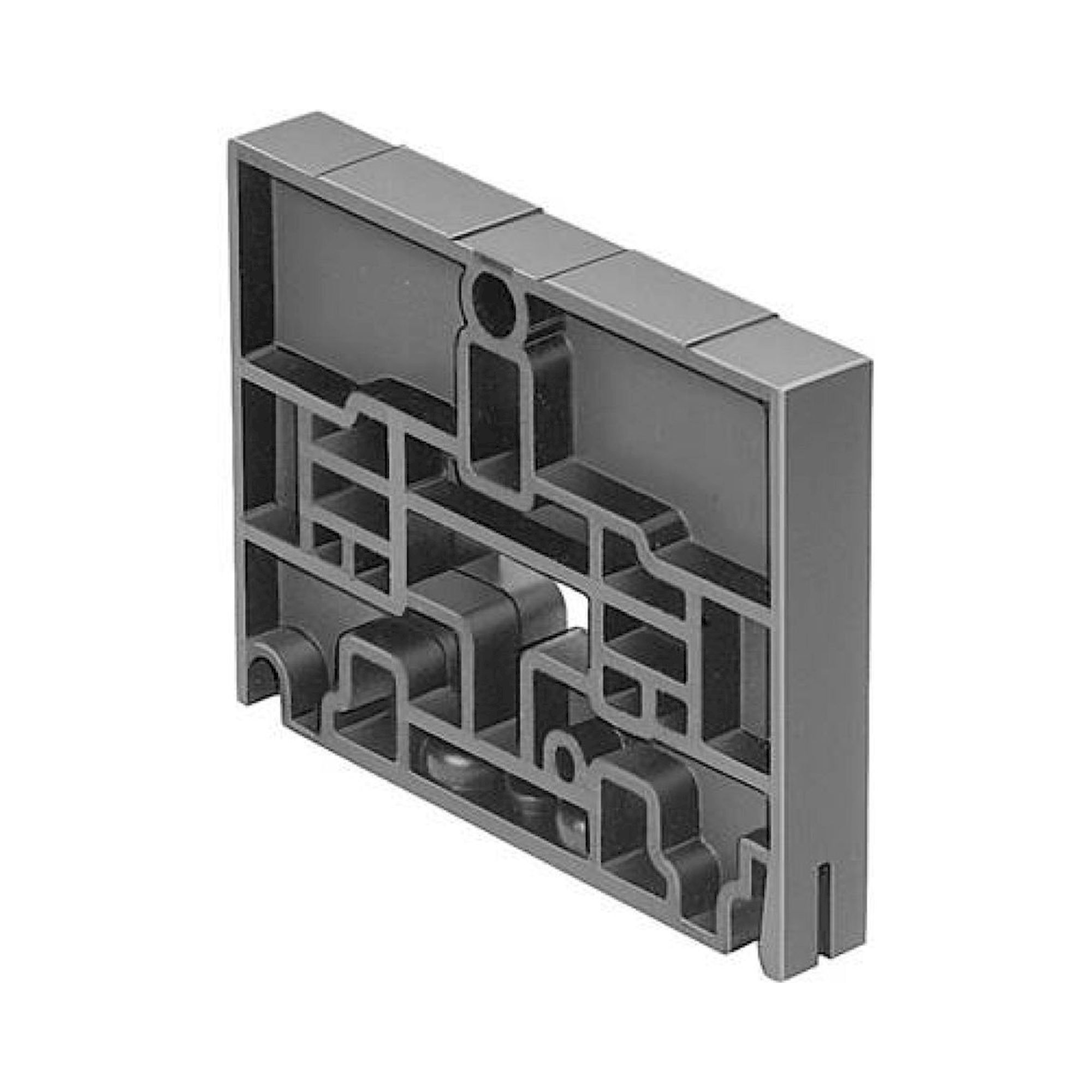

CPV separator plates	CPV10-DZP/-DZPR, CPV14-DZP/-DZPR, CPV18-DZP/-DZPR	CPV valve terminal platform

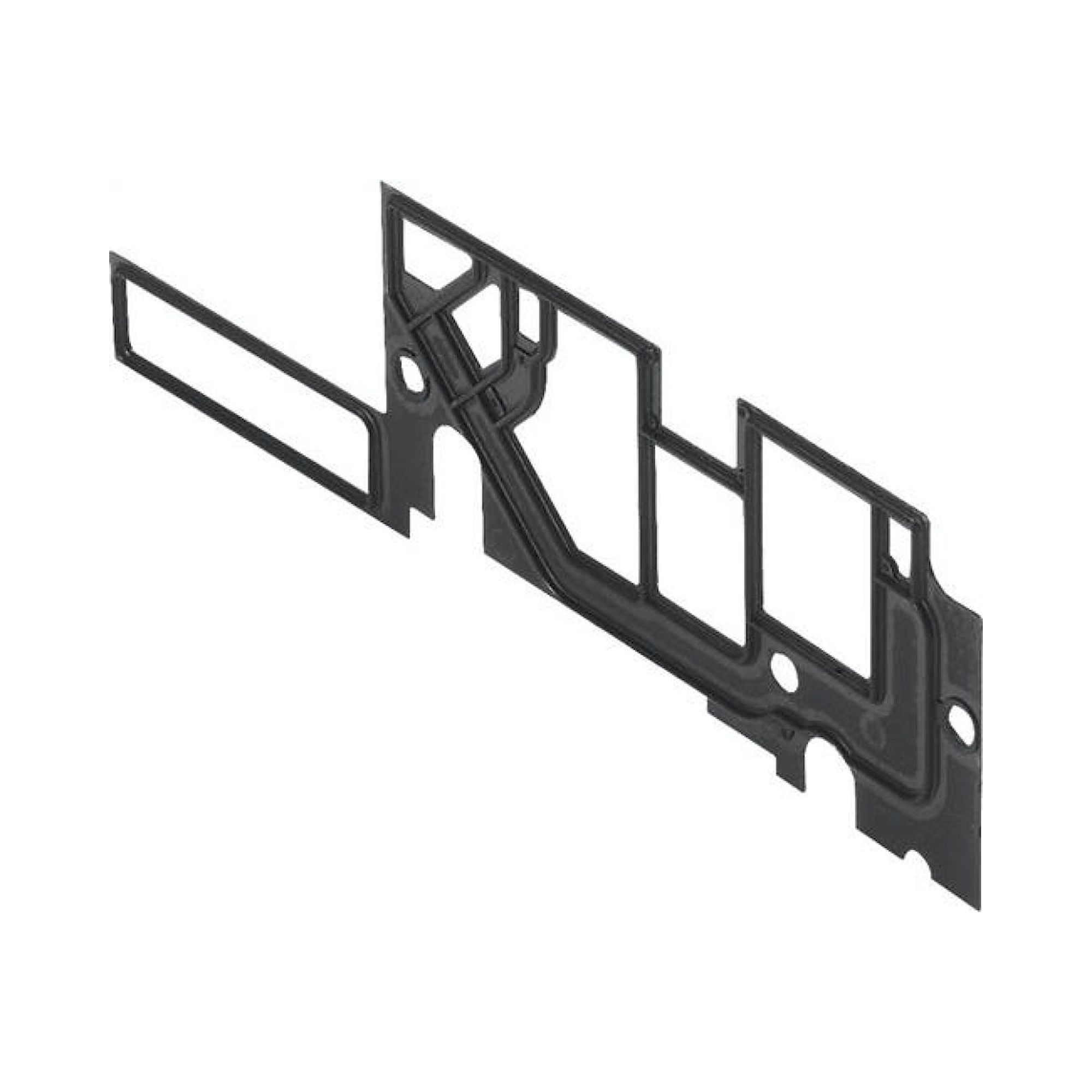

VMPA1 seals	VMPA1-DP, -DPU, -DP-P, -DP-PRS, -DP-RS, -DPU-P, -DPU-PRS, -DPU-RS	VMPA1 valve terminal platform

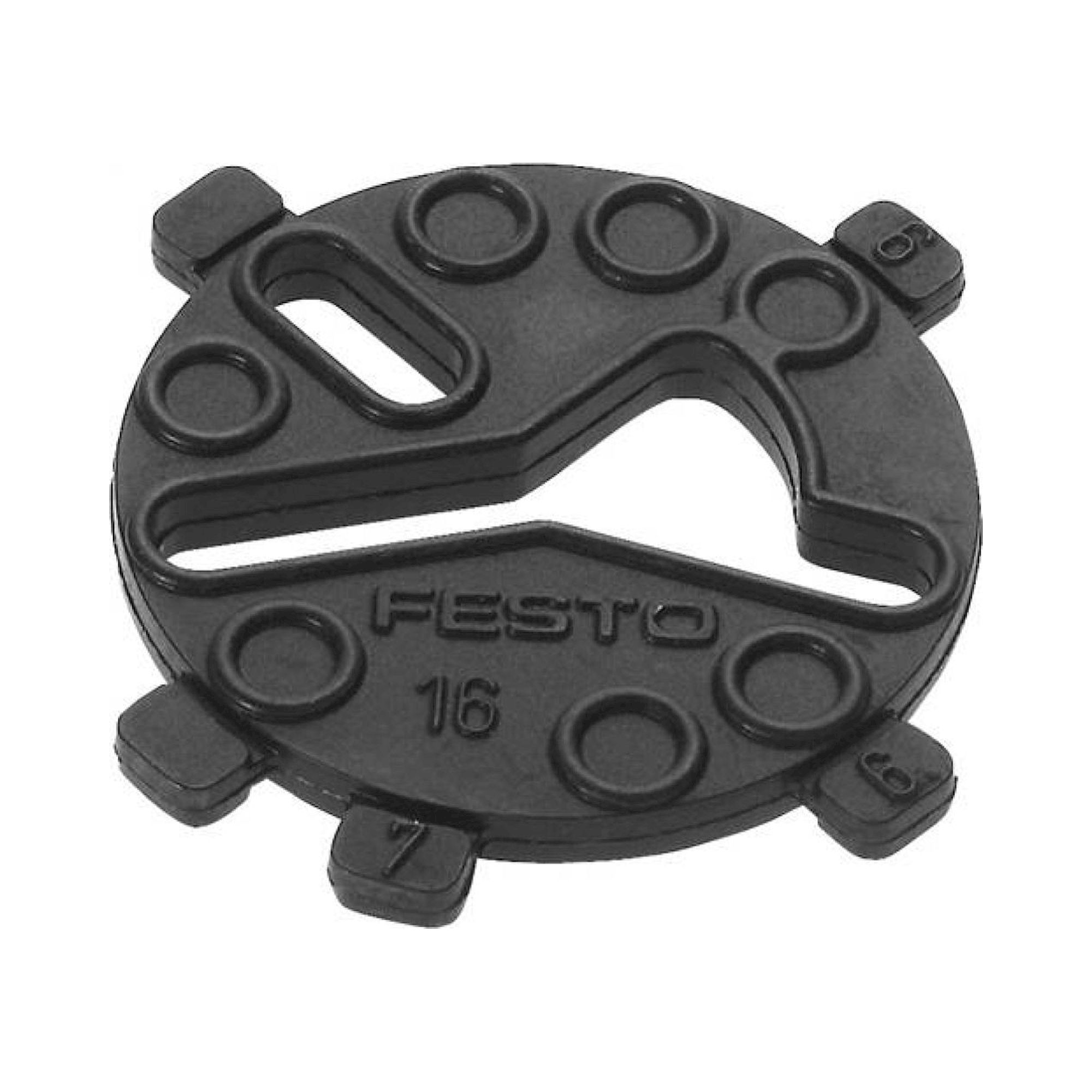

CD seals	CD-1/4-1, CD-1/4-3	Cassette valves C, CJ, CJM, CM
CDVI5.0 blanking plugs	CDVI5.0-B-G1/8, -B-G3/8	CDVI5.0 valve body

Typical applications: Closing ISO 5599-1 sub-base plate chains with NSC discs, pressure zone separation in CPV valve terminals for independent circuit supply, sealing and port separation in VMPA1 terminals for separate pilot air circuits, and blanking unused CDVI5.0 ports.
