End plates
Accessories for valves

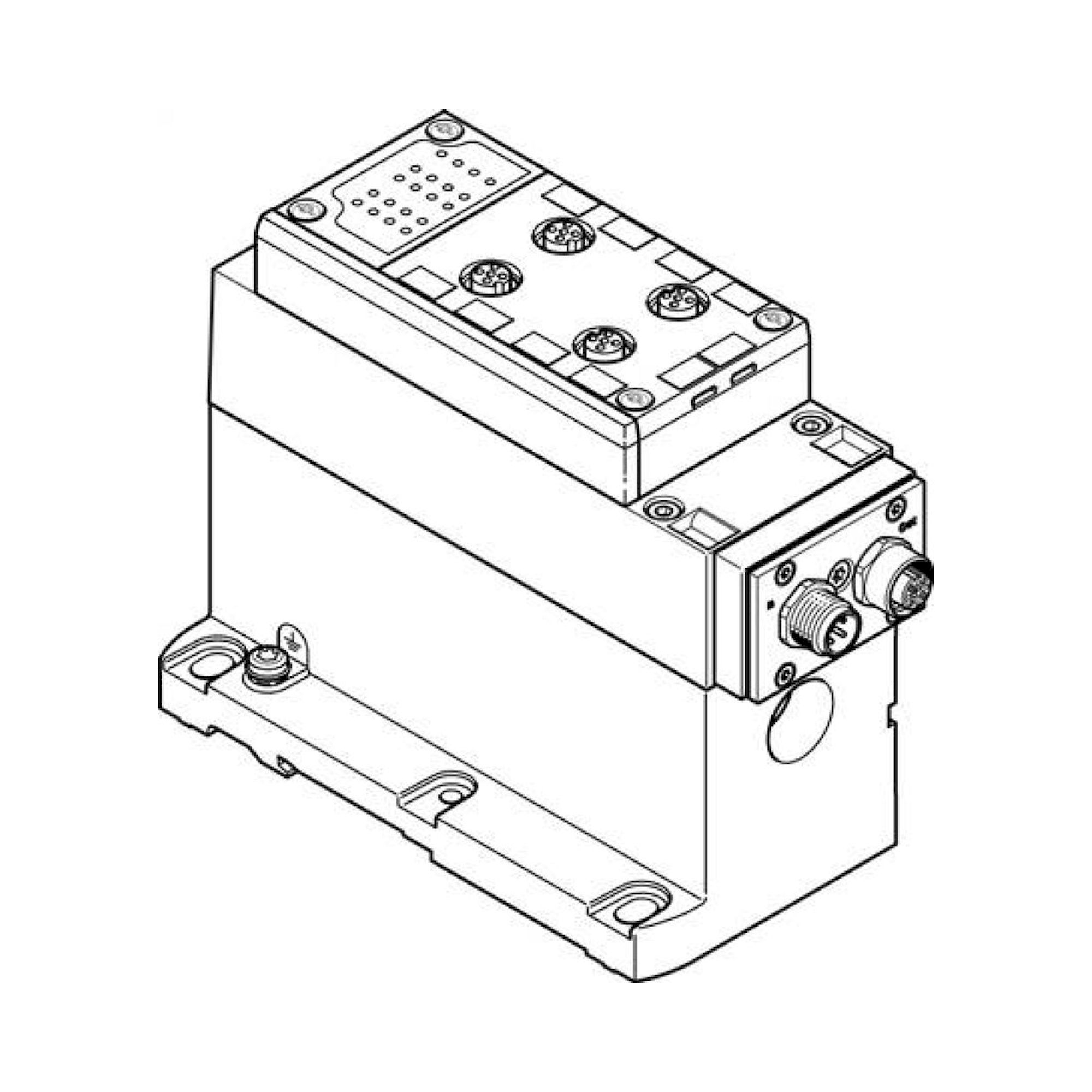

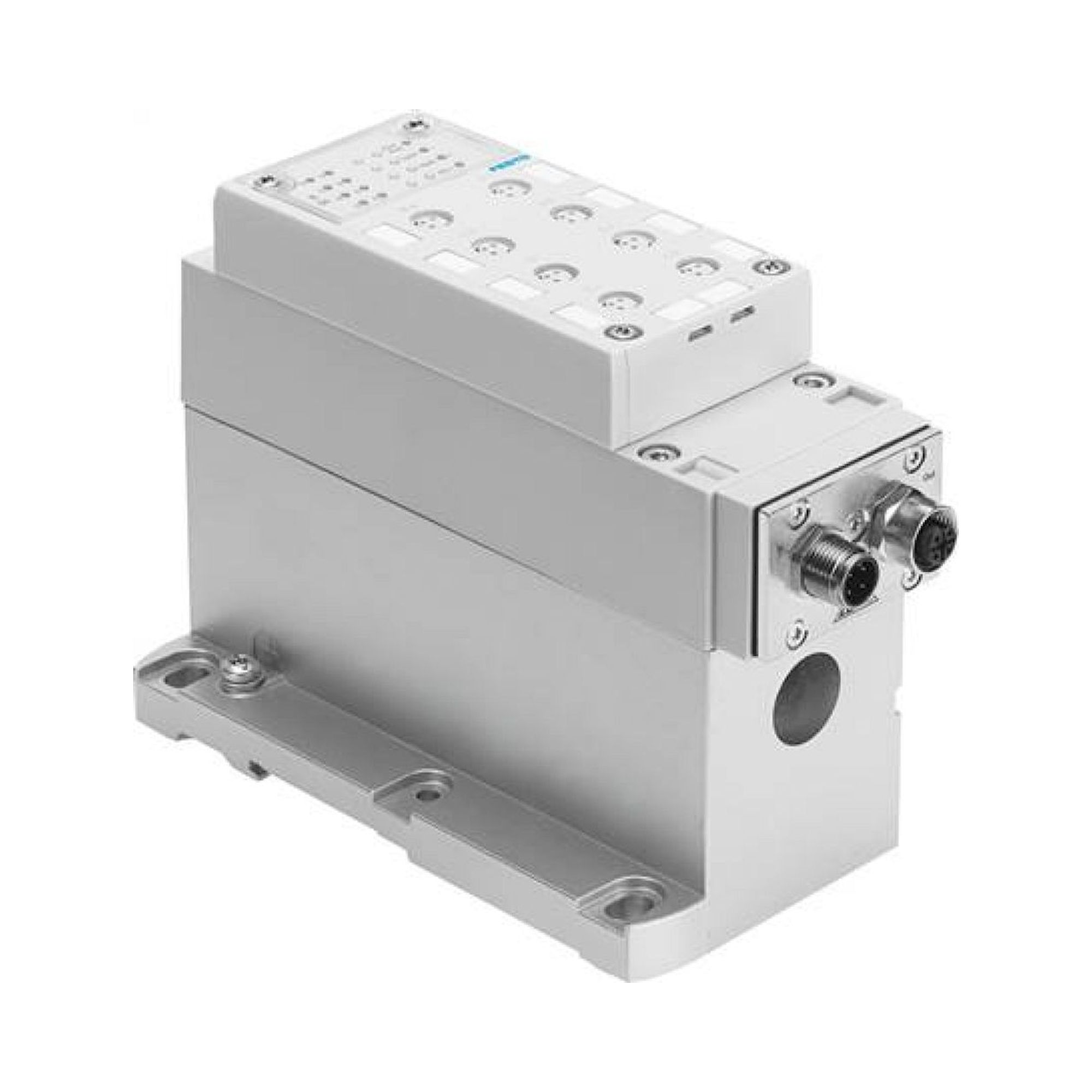

Festo end plates seal valve terminals pressure-tight on both ends and simultaneously integrate the electrical connection. The 23-article range covers two main groups: end plates for CPE valve terminals (CPE10-PRS-EP, CPE14-PRS-EP, CPE18-PRS-EP) and the extensive VABE-S6 family for VABE terminals, which includes basic end plates (VABE-S6-1R, -1RZ, -2R, -2RZ), electrical connection modules (-A8-E, -A4-E) and multipole nodes (-LF, -LT) for IO-Link, M8 and R connectors.

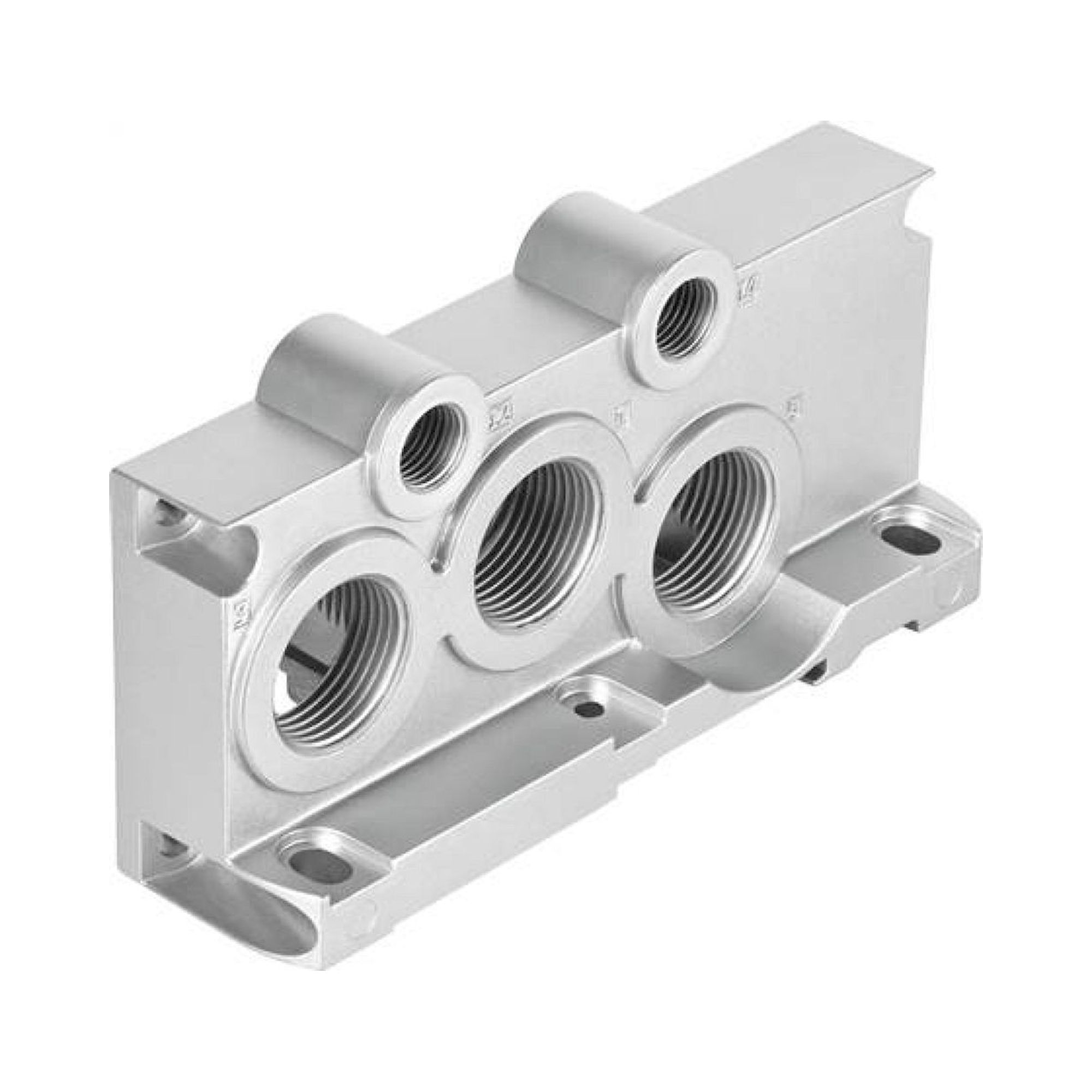

The -Z variants (VABE-S6-1RZ, -2RZ) integrate a spring-sealed pneumatic outlet. The CEPB-1/4-B end plate kit allows custom configuration of the end plate format.
| Type | Platform | Connection | Note |
|---|---|---|---|

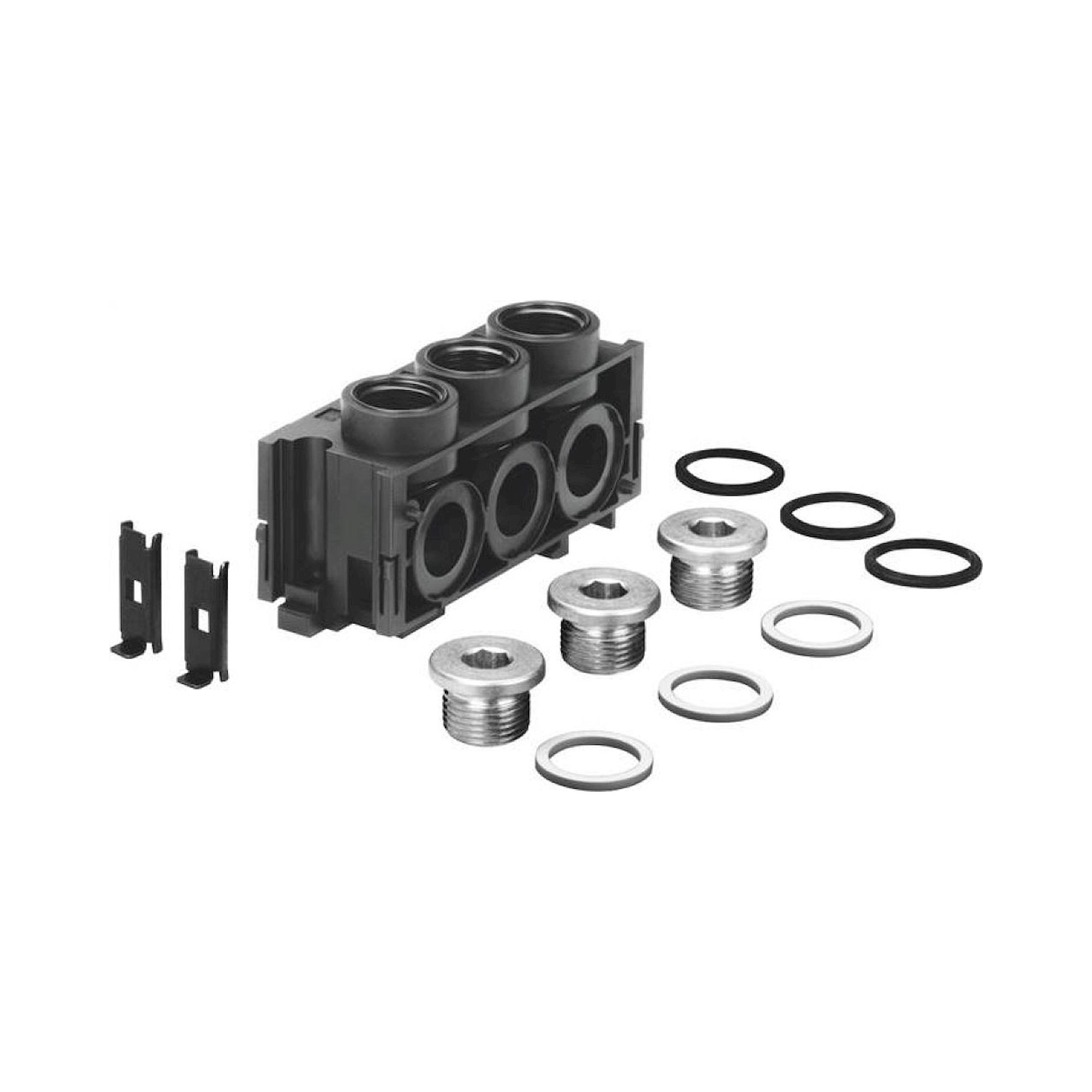

| CPE10/14/18-PRS-EP | CPE valve terminal | G1/8-G1/4 | Pressure-tight terminal closure |

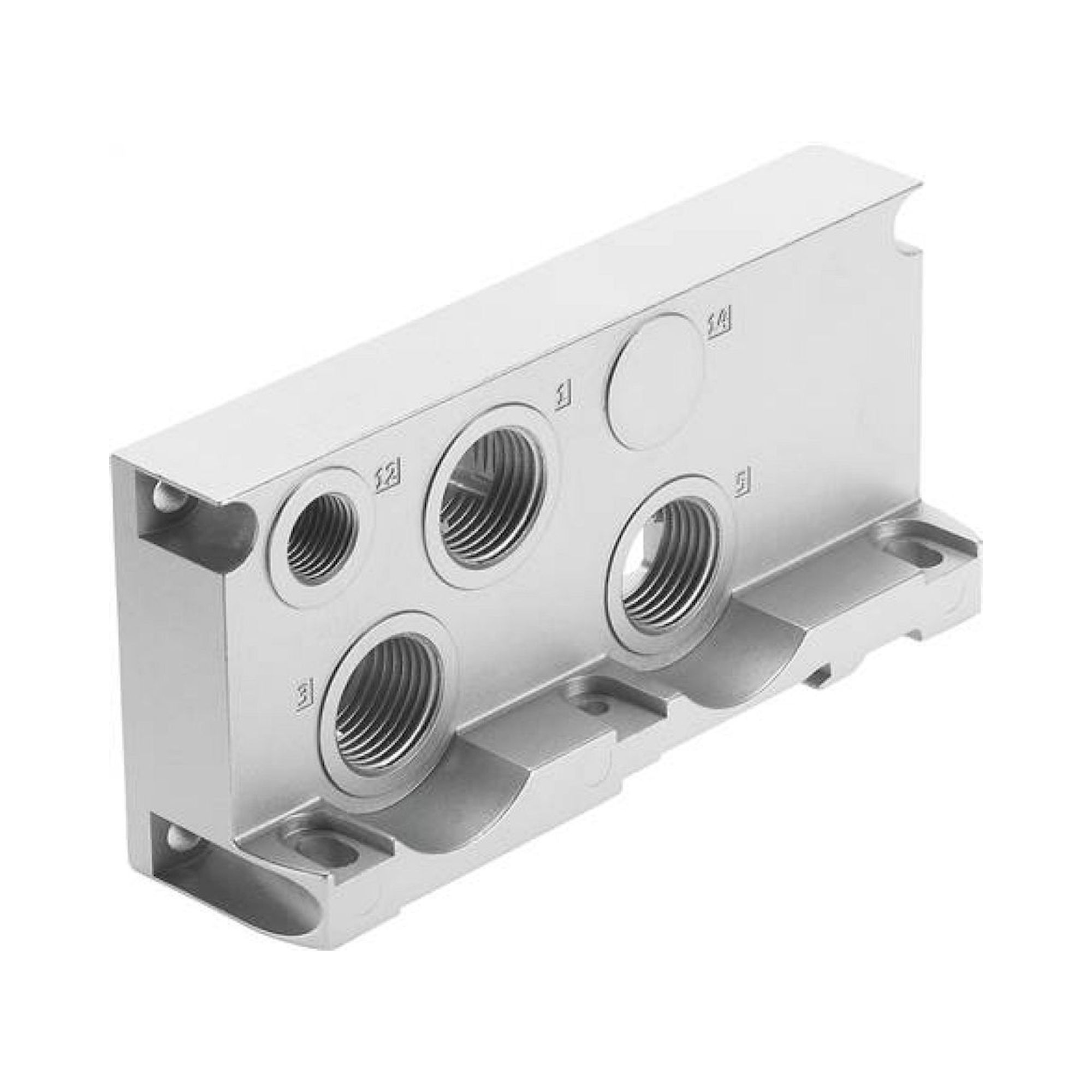

| VABE-S6-1R-G12 / -N12 | VABE valve terminal | M12 | Single end plate with M12 connector |

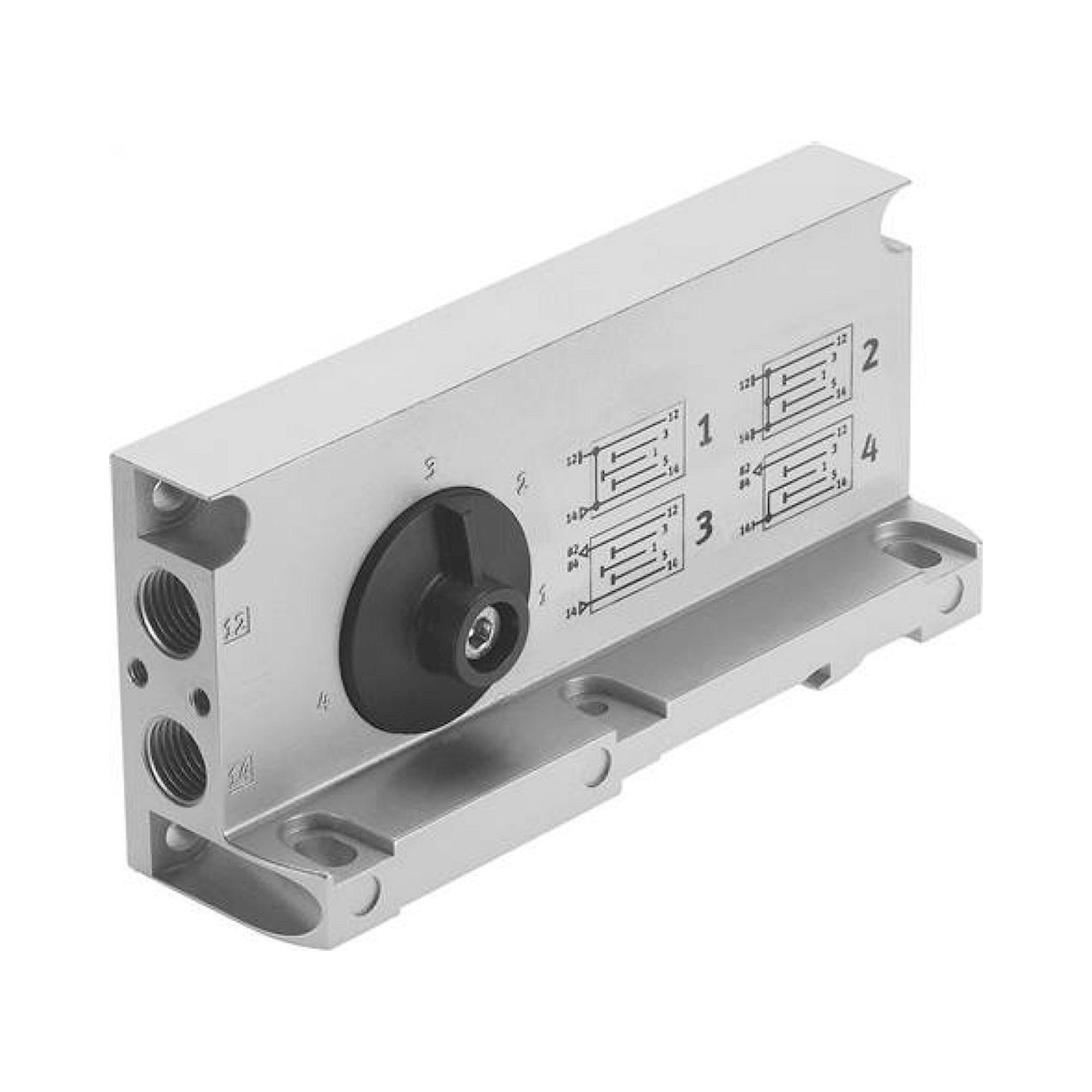

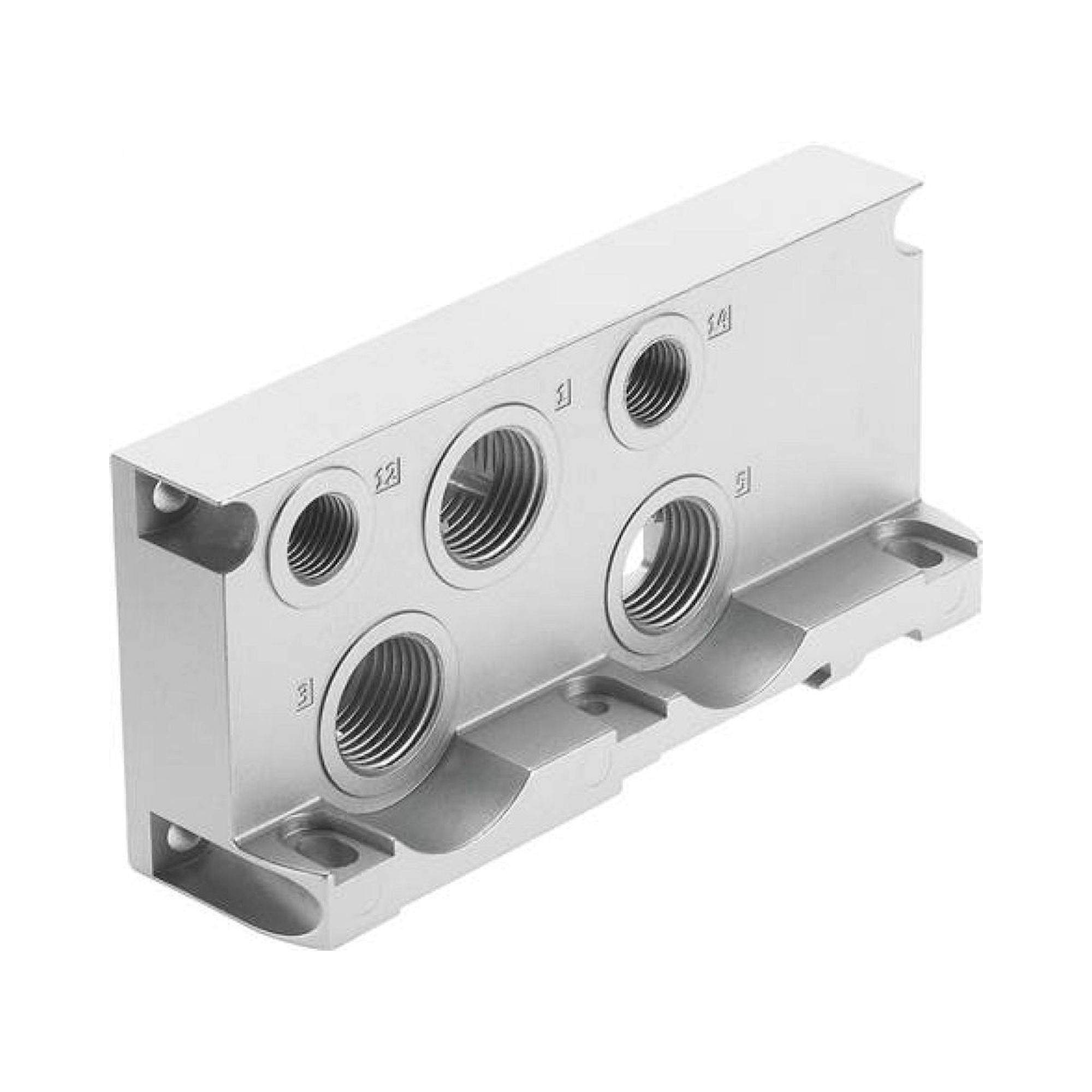

| VABE-S6-1RZ-G12 / -N12 | VABE valve terminal | M12 | With ZT spring-sealed outlet |
| VABE-S6-2R-G34 / -N34 | VABE valve terminal | M12 | Double end plate |

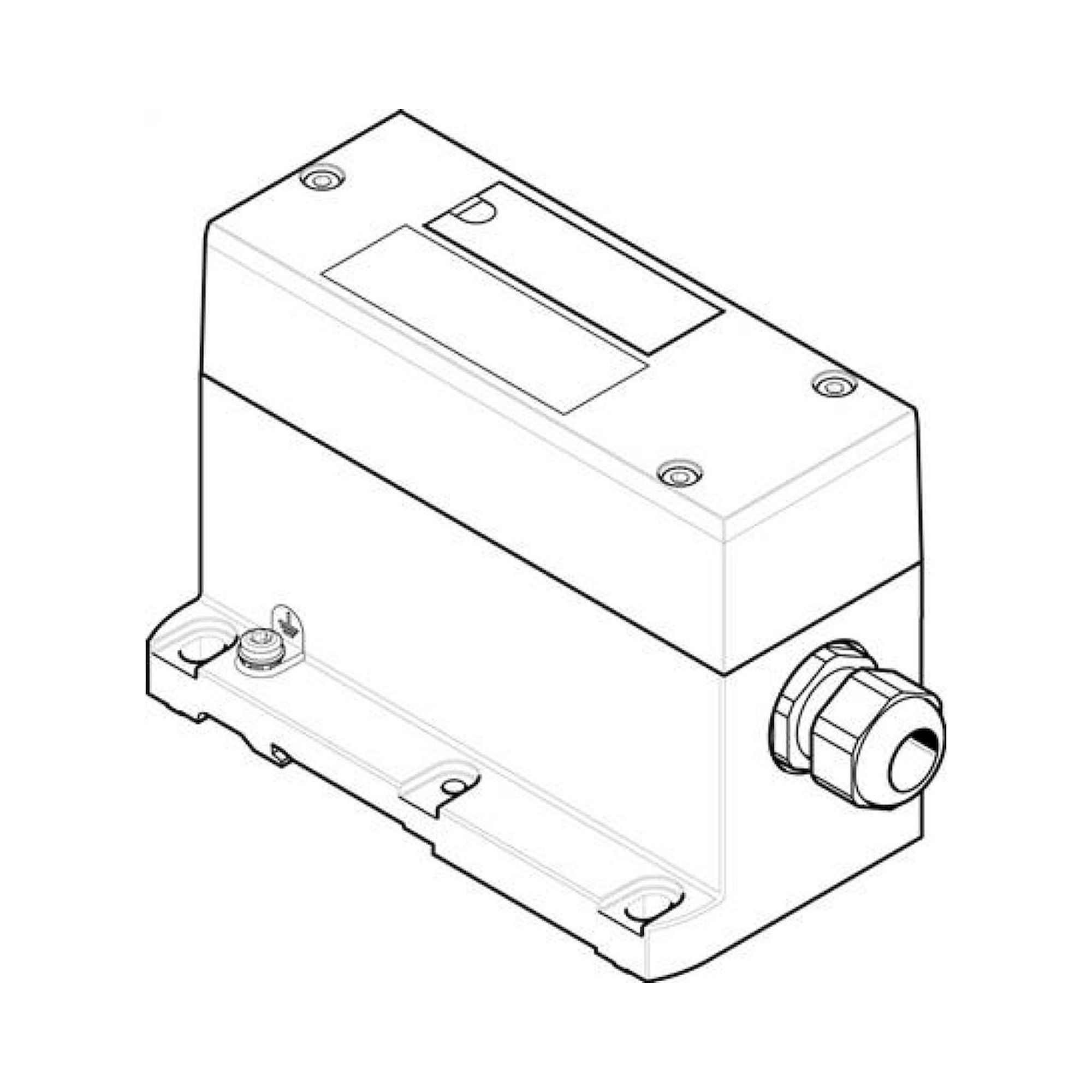

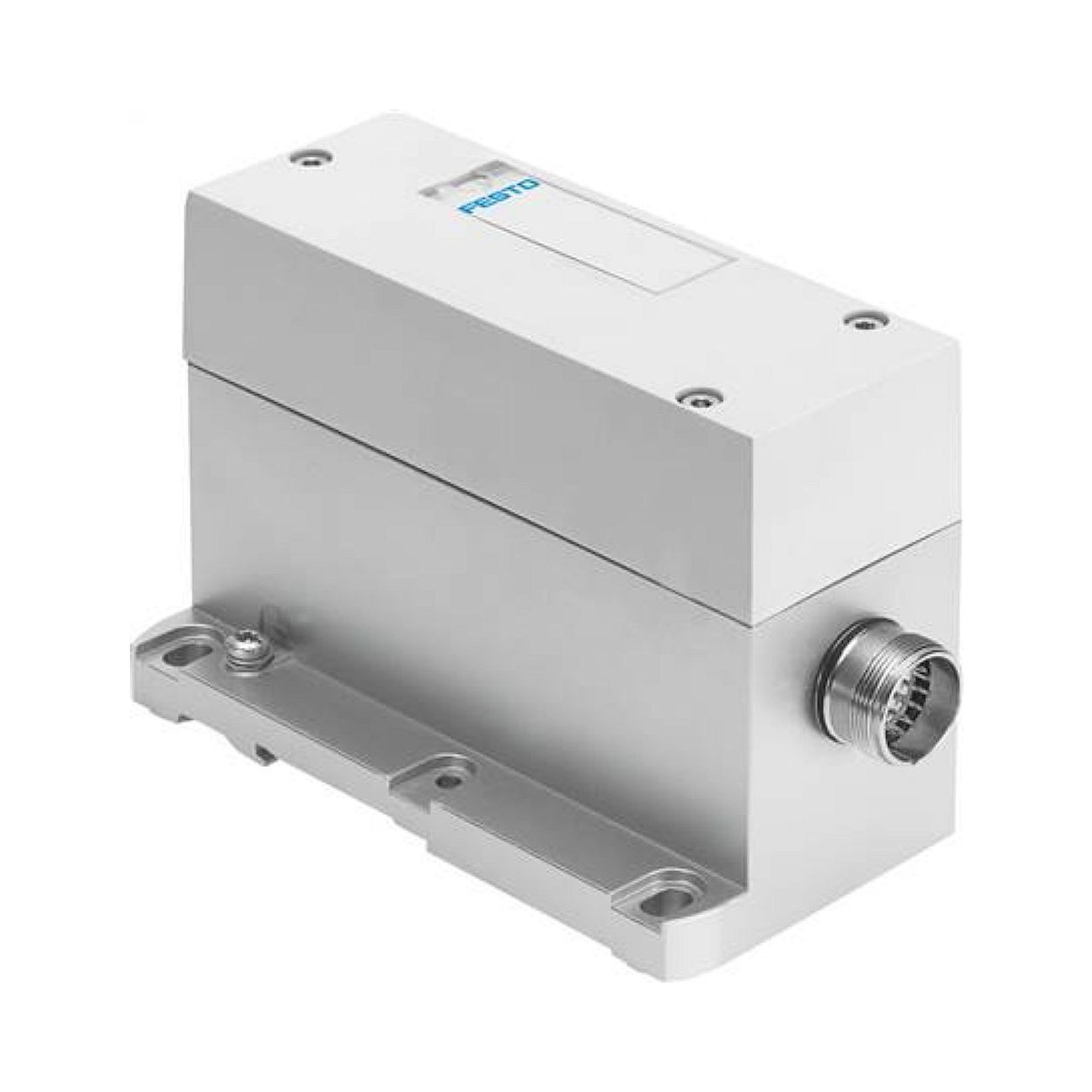

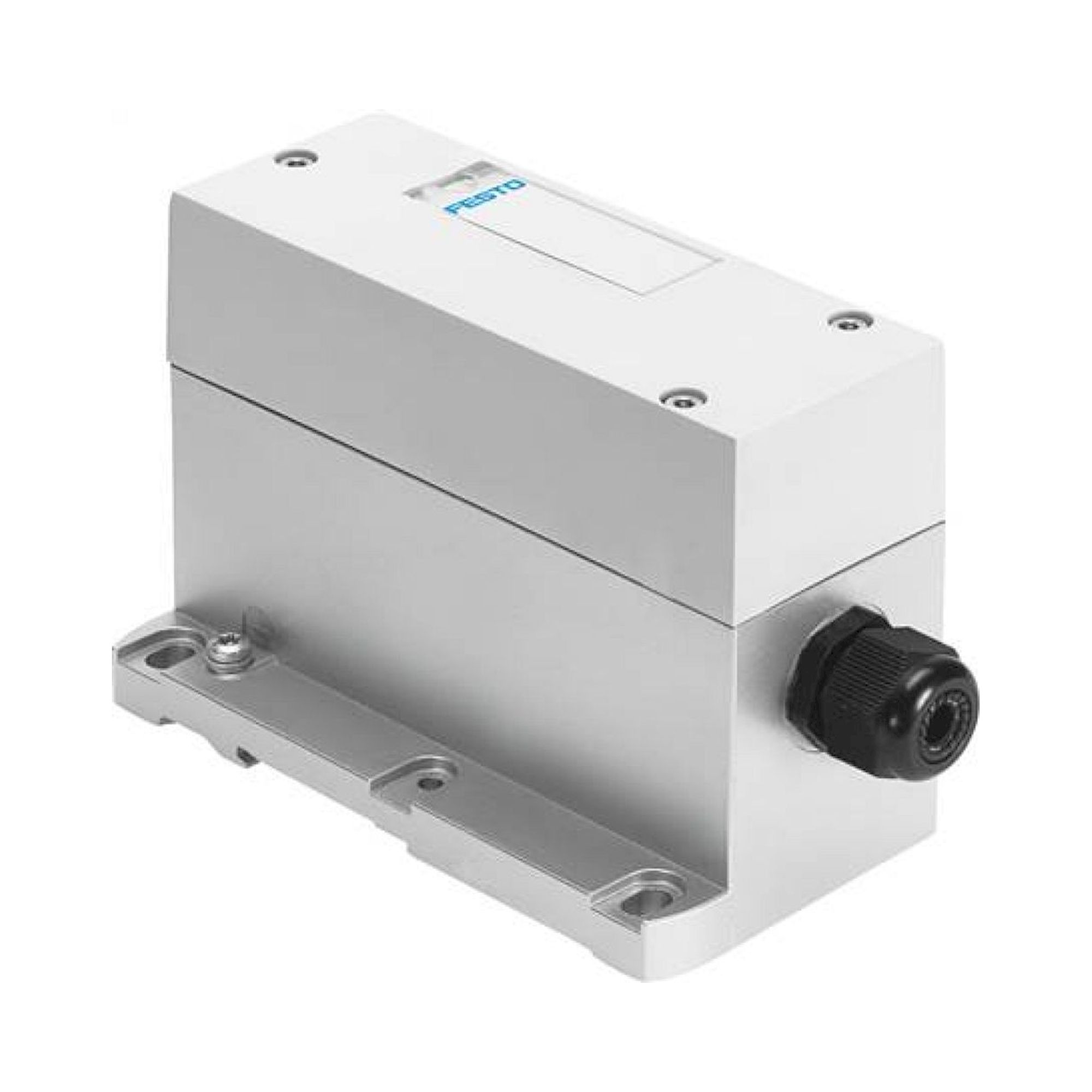

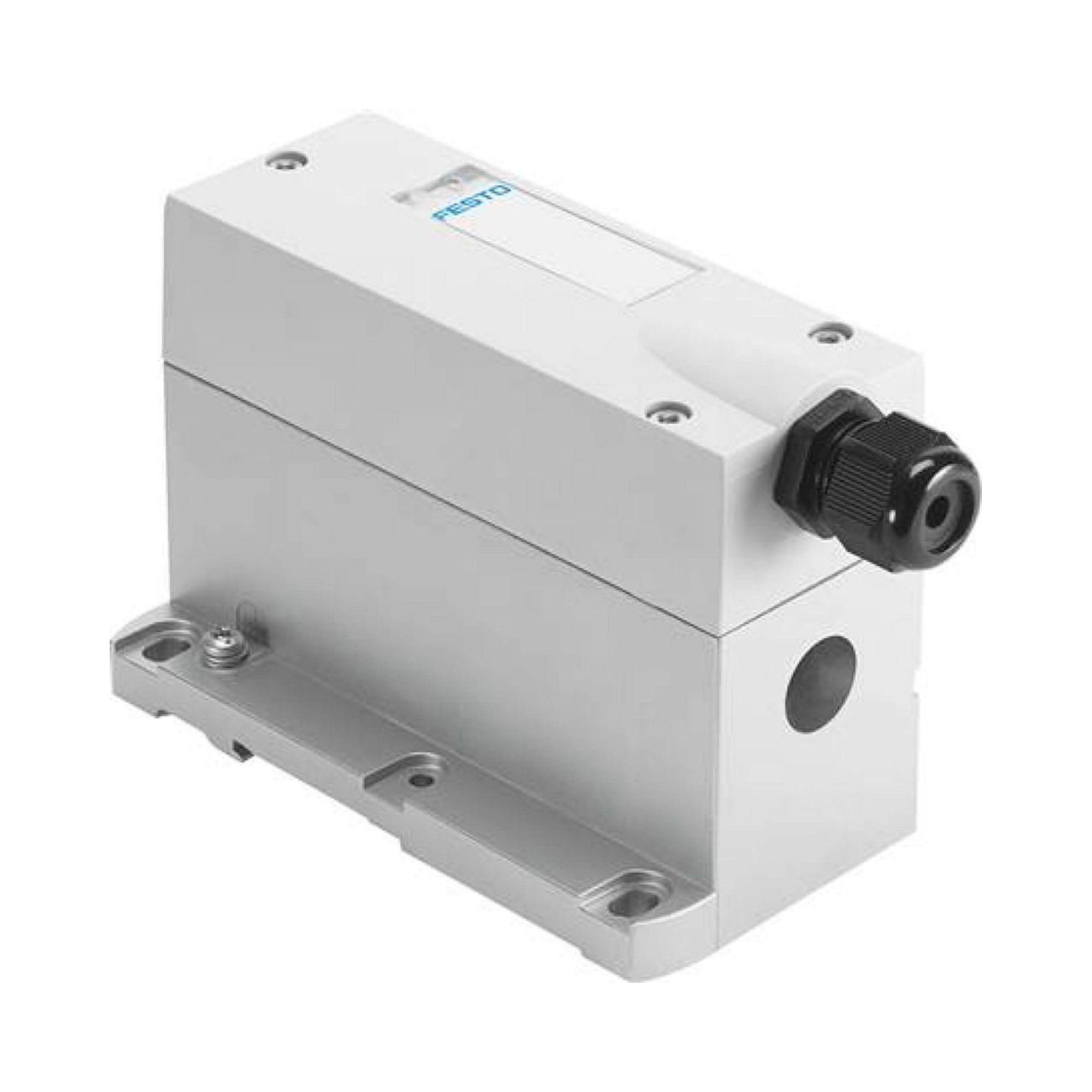

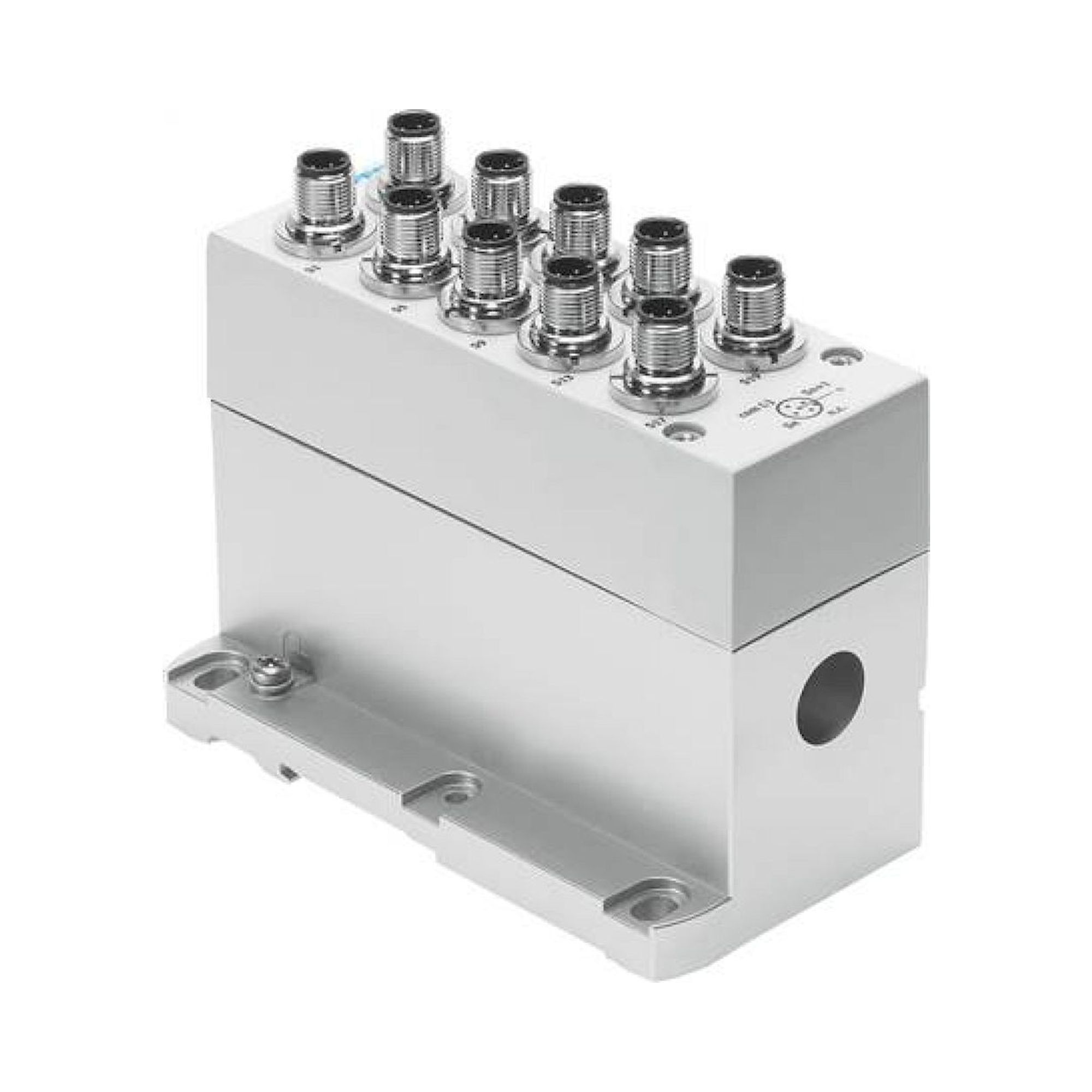

| VABE-S6-1LF/LT-C-M1-... | VABE valve terminal | IO-Link, M8, R | Multipole node for fieldbus |
| CEPB-1/4-B | Universal | G1/4 | End plate kit, individually configurable |
Typical applications: Closure and electrical connection of CPE valve terminals in automation systems, VABE-S6 terminal assembly with IO-Link communication via multipole nodes in Industry 4.0 architectures, extending existing valve terminals with decentralised fieldbus connectivity, and custom terminal configuration with CEPB end plate kits.
