Valve specific accessories

Accessories for valves

Festo valve-specific accessories cover electrical connection plates (VAVE-L1 series) and adapters (VAVE-C8) that extend the electrical signal interface at Festo valve islands and individual valves. VAVE-L1 plates are available in longitudinal (LR) and face-end mounting (LP) configurations, spanning connector variants from H2 through K9. 41 articles allow adaptation of the electrical interface to different cable routing directions and connector geometries.

Type	Mounting	Connector variants

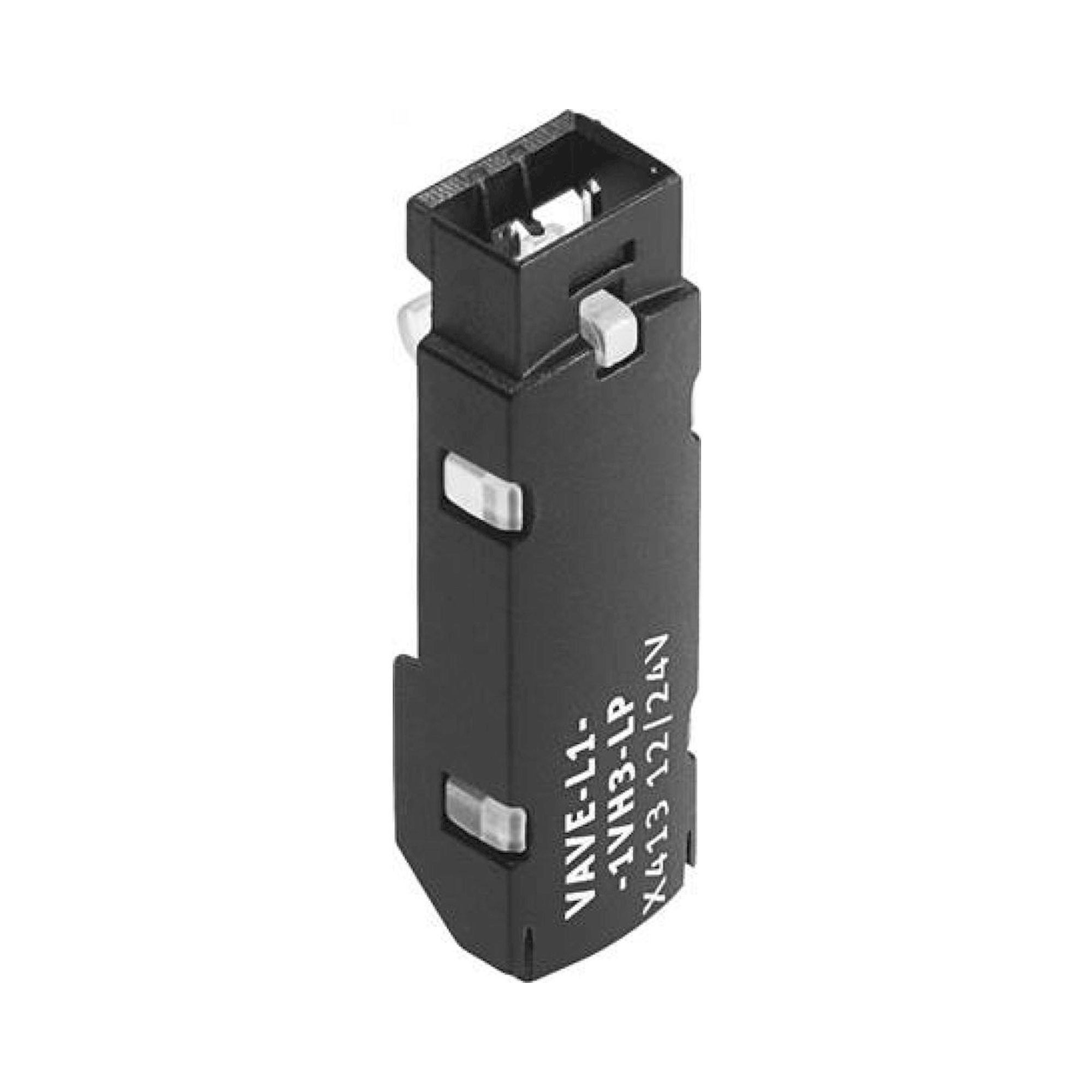

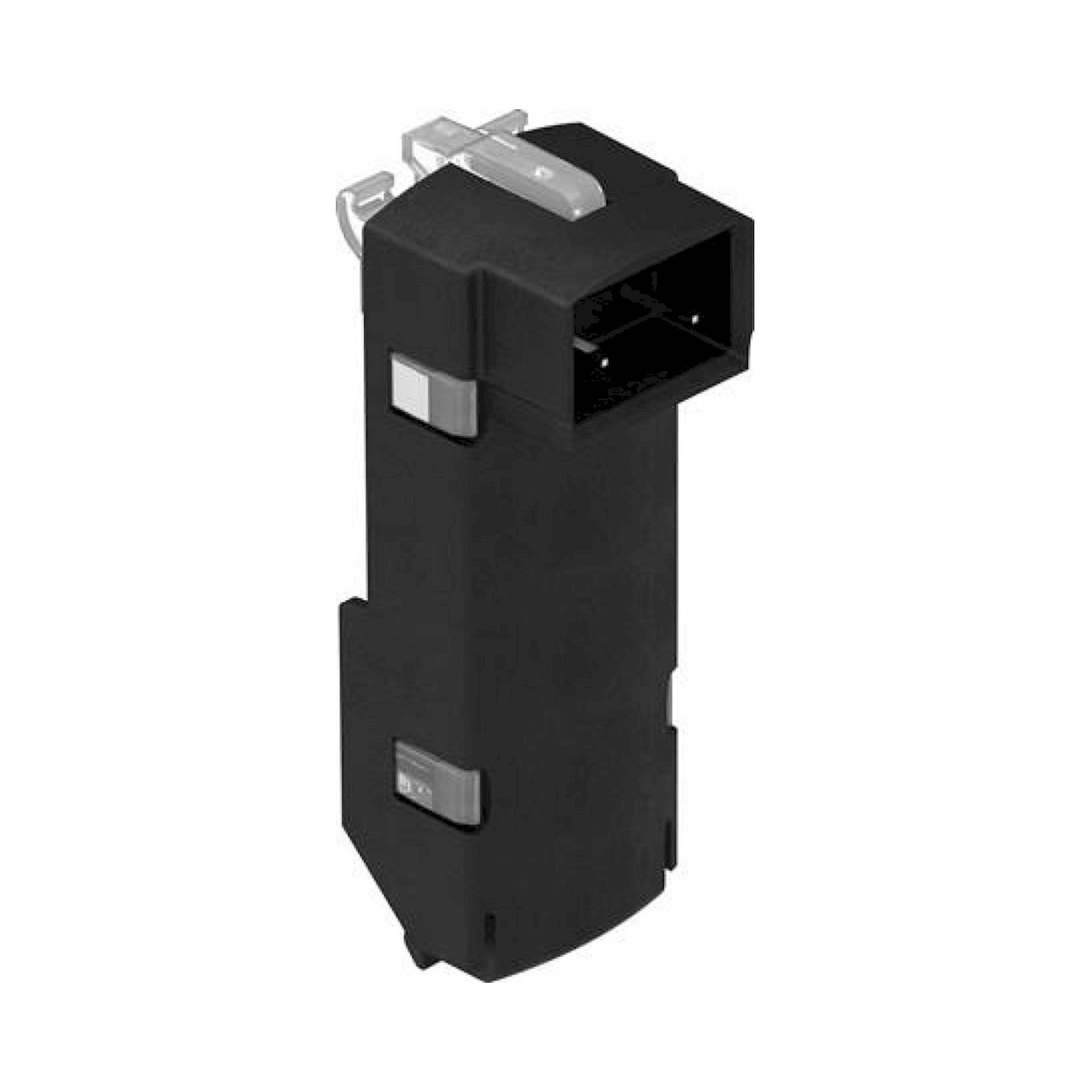

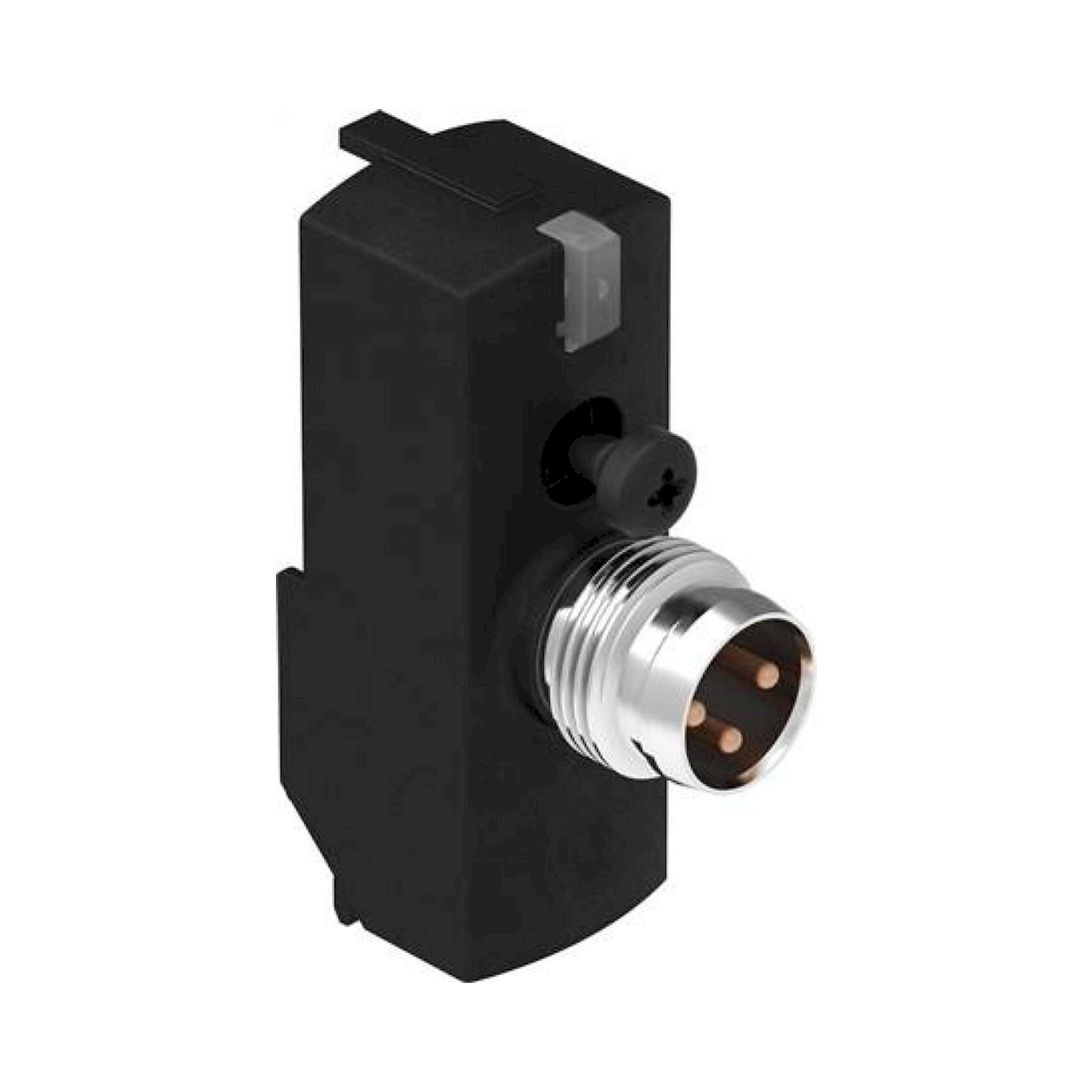

VAVE-L1-1H..-LR	Longitudinal (LR)	H2, H3 - standard connector with 2 or 3 pins
VAVE-L1-1VH..-LP	Face-end (LP)	VH2, VH3 - vertical connector, 2 or 3 pins

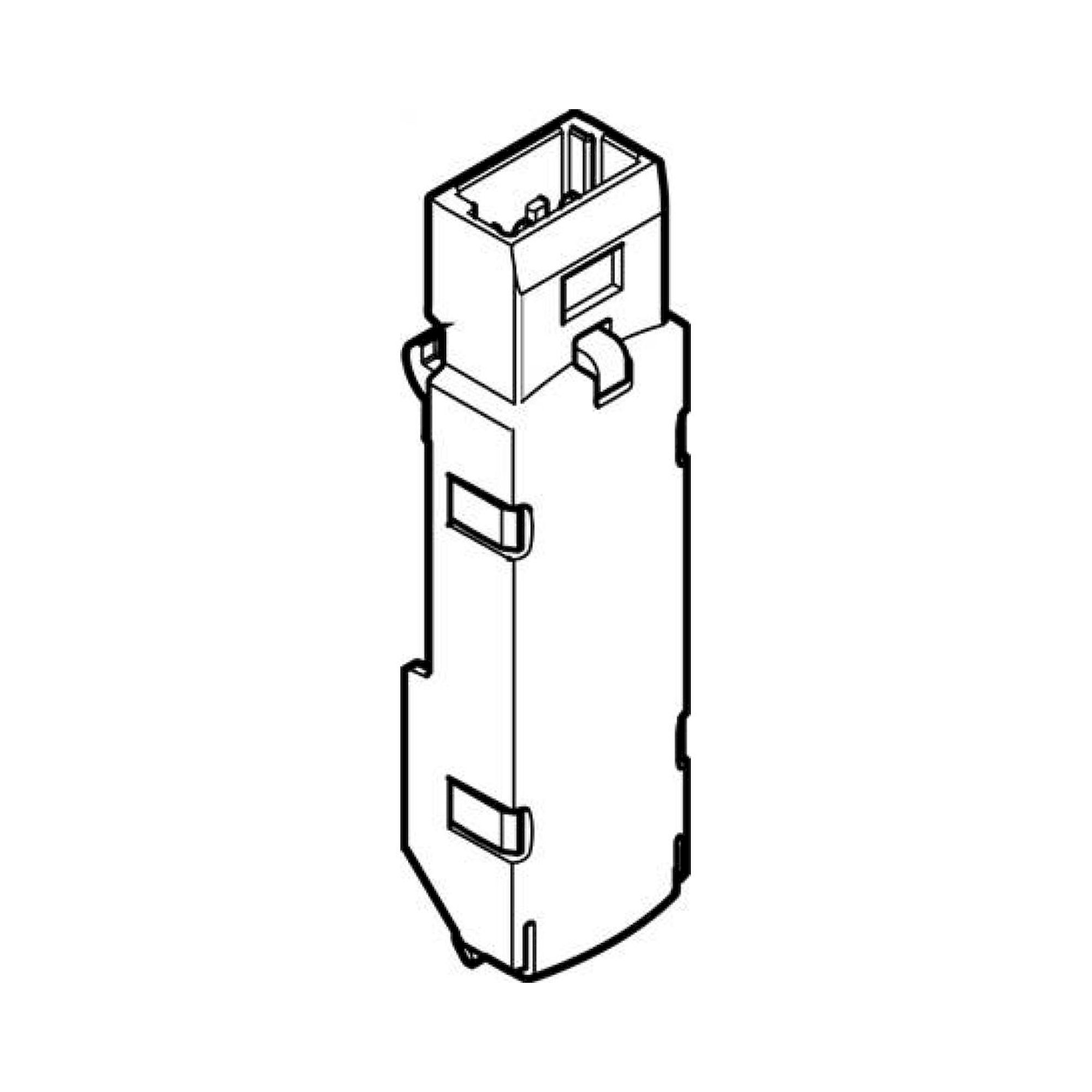

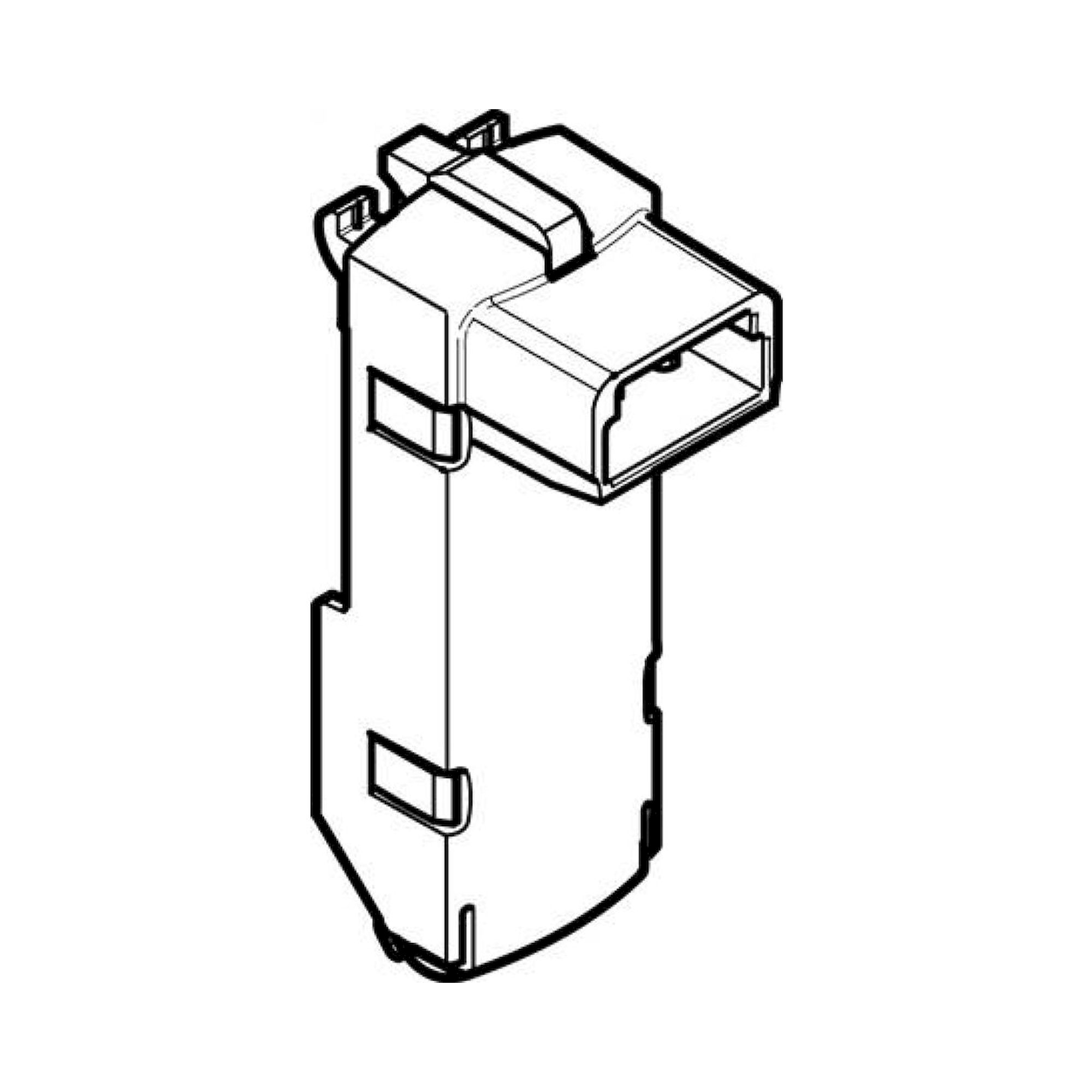

VAVE-L1-1S..-LR	Longitudinal	S2, S3 - slim-profile connector
VAVE-L1-1L..-LR	Longitudinal	L1-L4 - LED variants with status indicator

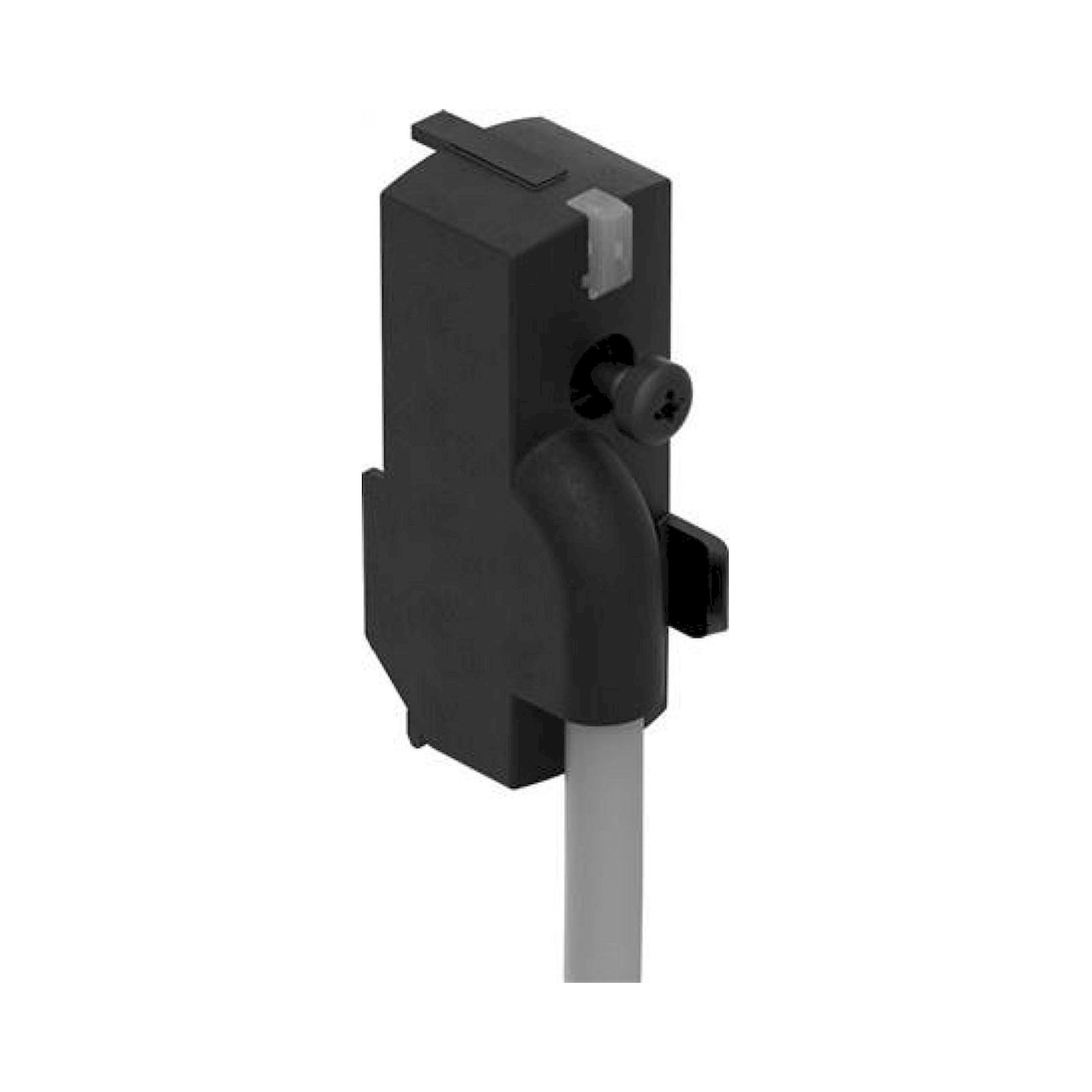

VAVE-L1-1K..-LR	Longitudinal	K6-K9 - compact connectors of varying form factor

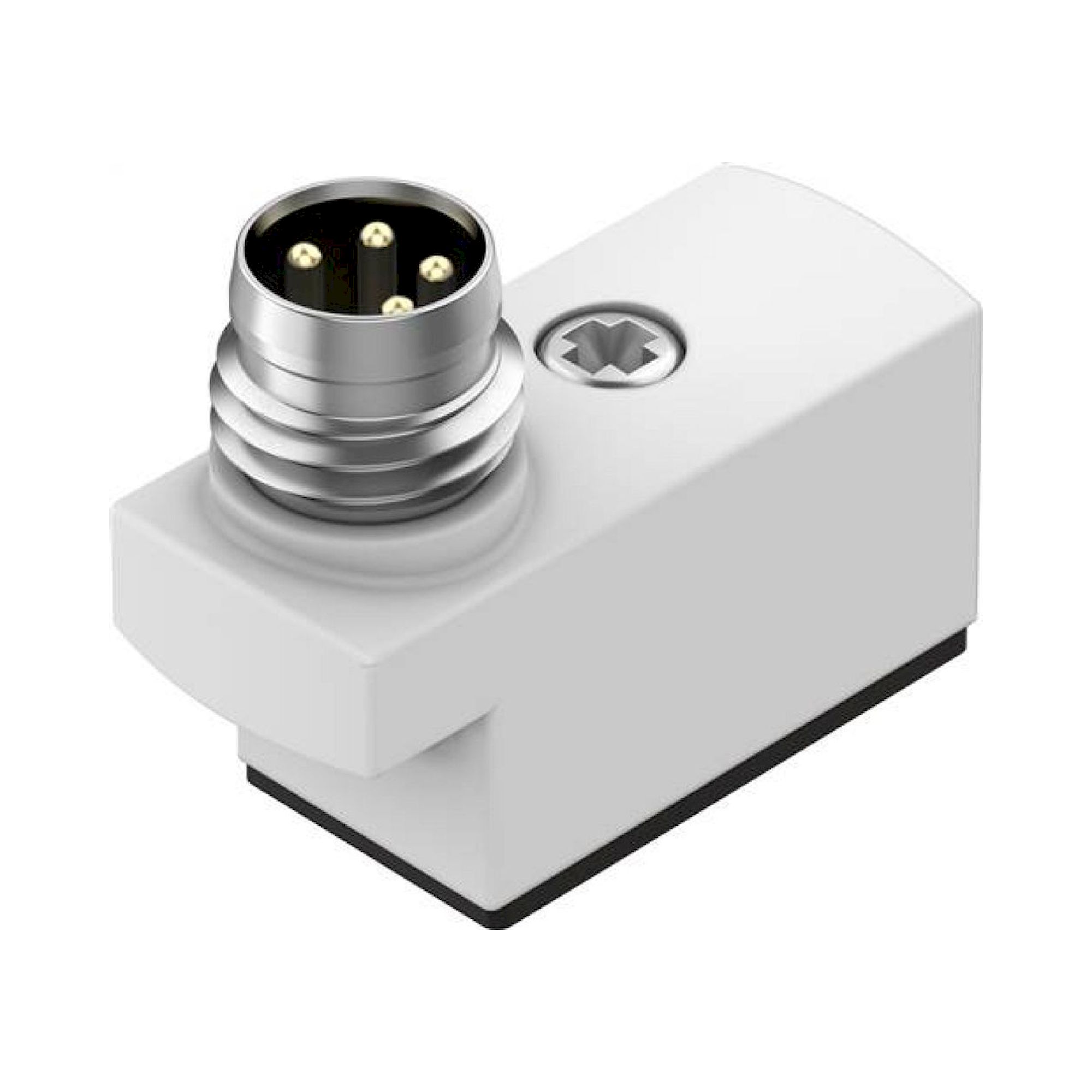

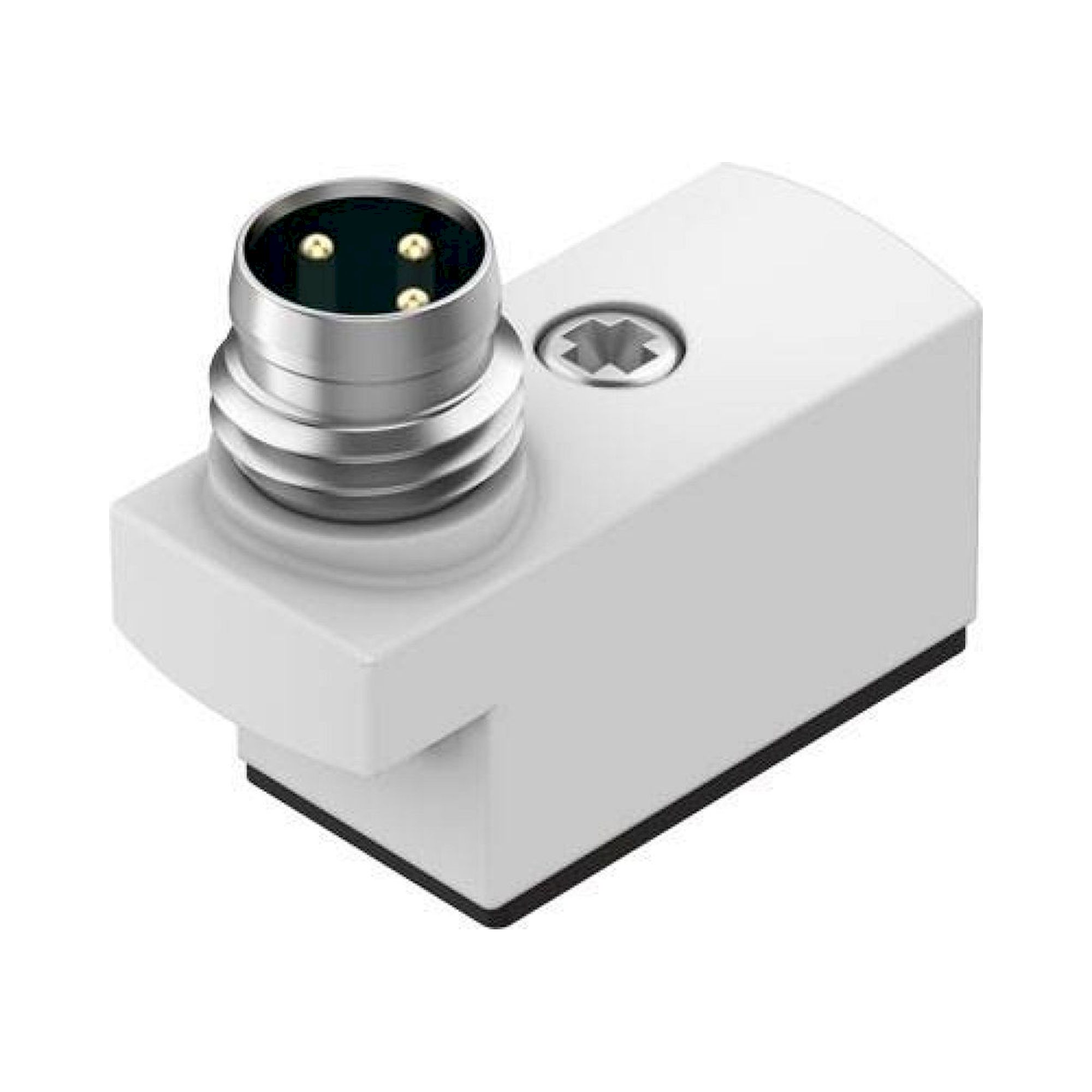

VAVE-C8-1R1, -1R8	Direct adapter C8	Interface adapter for valve island C8 bus connection

VAVE-L1 plates determine how the electrical cable exits the valve. LR (longitudinal) routes the cable parallel to the valve axis; LP (face-end) routes it perpendicular. The letter code after the hyphen (H, S, L, K, R, V...) describes the connector form and pin assignment. LED variants (L1-L4) provide a visual indication of valve switching status, simplifying fault diagnosis in control cabinets. VAVE-C8 adapters create the interface for C8 bus node systems and require correct selection of the bus node variant (R1 or R8).

Typical applications: Adapting cable exit direction to confined installation spaces, retrofitting valves with LED status indication for maintenance and diagnostics, integrating valve islands into bus systems via C8 adapter plates, and replacing damaged connection plates without dismantling the entire valve island.
