The product may differ from the illustration
Festo pneumatic cylinder for precise linear motion and defined force in automation.

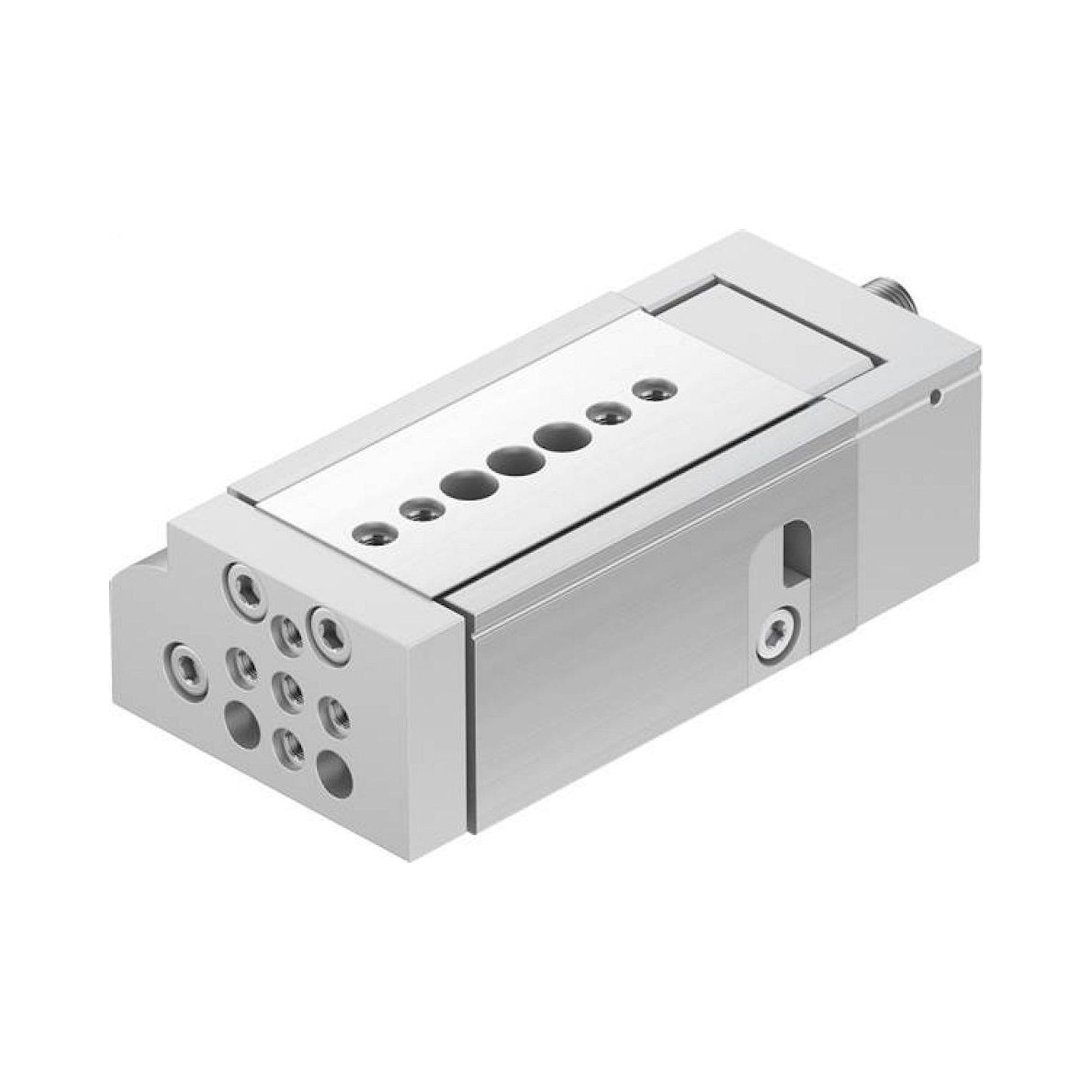

Mini Slide DGST-6-10-PA - Festo 8085105
FESTO
Original product
Net price (excl. VAT)
€287.36
Excl. 19% VAT ,
excl. Shipping Cost
Available
Fast shipping
Item
FES-8085105
Manufacturer no.
DGST-6-10-PA
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.DGST-6-10-PA
EAN4052568449933
Customs tariff number84123100
ConditionNew
Article
FES-8085105
Frequently Bought Together
-
This Item:
€287.36Excl. 19% VAT , excl. Shipping Cost
-
Mini Slide DGSL-6-50-EA - Festo 570165
€540.90Excl. 19% VAT , excl. Shipping Cost
-
Mini Slide DGST-25-30-PA - Festo 8085151
€475.51Excl. 19% VAT , excl. Shipping Cost
Total price
Festo pneumatic cylinder for precise linear motion and defined force in automation. The key technical data of this genuine Festo article are listed below.
| Stroke [mm] | 10 |
| Piston diameter | 6 mm |
| Operating mode actuator unit | Joch |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Doppelkolben<br>Joch<br>Kolbenstange<br>Schlitten |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1.5 to 8 |
| Max. speed [m/s] | 0,5 |
| Repeatability | <= 0,3 mm |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -10 to 60 |
| Impact energy at the end positions [J] | 0,018 |
| Dampening length [mm] | 0,9 |
| Max. force Fy [N] | 200 |
| Max. force Fz [N] | 200 |
| Max. torque Mx [Nm] | 1,1 |
| Max. torque My [Nm] | 0,7 |
| Max. torque Mz [Nm] | 0,7 |
| Theoretical force at 6 bar, Return flow [N] | 25 |
| Theoretical force at 6 bar, flow [N] | 34 |
| Moving mass [g] | 54,0 |
| Product weight [g] | 100,0 |
| Fastening type | With throughway bores |
| Pneumatic connection | M3 |
| Material information | Copper and PTFE-free<br>RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | HNBR |
| Werkstoff Führung | POM<br>TPE-E<br>hochlegierter Stahl |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Alignable end position range / Length front [mm] | 12,1 |
| Alignable end position range / Length rear [mm] | 12,1 |
| Manufacturer Nr. | DGST-6-10-PA |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568449933 |
| Weight | 0.100000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Werkstoff | Aluminium |
| Bohrung (mm) | 6.000000 |
| Betriebsdruck max [bar] | 8.000000 |
| Hub [mm] | 10.000000 |
| Pneumatischer Anschluss | M3 |
