Festo Elga-Bs-Kf-120-600-0H-2& (8041848) Spindle Axis
€297,065.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8041848
Manufacturer Nr.
ELGA-BS-KF-120-600-0H-25P-ML
Spindle Axis
Frequently Bought Together
-
This Item:
€297,065.00Excl. 19% VAT , excl. Shipping Cost
-
Festo Elgr-Tb-45-100-0H (8083776) Toothed Belt Axis
€46,082.00Excl. 19% VAT , excl. Shipping Cost
-
Festo Elgc-Tb-Kf-45-500 (8062770) Toothed Belt Axis
€53,694.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Working stroke [mm] | 600 |
| size | 120 |
| Stroke reserve [mm] | 0 |
| Spindle diameter [mm] | 25 |
| Spindle pitch [mm/U] | 25 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Electro-mechanical linear axis With Ball screw |
| Motor type | Step motor Servo motor |
| Spindle type | Ball screw |
| Measurement principle travel measurement system | Incremental |
| Max. acceleration [m/s²] | 15 |
| Max. speed [1/min] | 3.600 |
| Max. speed [m/s] | 1,5 |
| Repeatability | ±0.02 mm |
| Protection category | IP40 |
| ambient temperature [°C] | -10 to 60 |
| Flat torque 2nd grade ly [mm4] | 1.24e+006 |
| Flat torque 2nd grade lz [mm4] | 3.8e+006 |
| Empty run torque at maximum movement speed [Nm] | 1,64 |
| Empty run torque at minimum movement speed [Nm] | 1,00 |
| Max. force Fy [N] | 5.500 |
| Max. force Fz [N] | 6.890 |
| Fy for theoretical lifetime of 100 km (pure guide observation) [N] | 20.240 |
| Fz for theoretical lifetime of 100 km (purely management observation) [N] | 25.355 |
| Max. torque Mx [Nm] | 104 |
| Max. torque My [Nm] | 680 |
| Max. torque Mz [Nm] | 680 |
| Mx for theoretical lifetime of 100 km (Purely management observation) [Nm] | 383 |
| My for theoretical lifetime of 100 km (Purely management observation) [Nm] | 2.502 |
| Mz for theoretical lifetime of 100 km (Purely management observation) [Nm] | 2.502 |
| Max. radial force on drive shaft [N] | 500 |
| Max. feed force Fx [N] | 3.400 |
| Torsional moment of inertia to [mm4] | 247.000 |
| Mass inertia JH per metre stroke [kg/cm²] | 2,756 |
| Mass inertia JL per kg usable load [kg/cm²] | 0,1583 |
| Mass inertia JO [kg/cm²] | 1,038 |
| Feed constant [mm/U] | 25 |
| Moving mass [g] | 4.459 |
| Additional carriage weight [g] | 3.600 |
| Weight supplement per 10 mm stroke [g] | 101,0 |
| Dynamic bending (load moved) | 0.05% of the axis length, maximum 0.5 mm |
| Static bending (load at standstill) | 0.1 % of the axis length |
| Closing cover material | Aluminium wrought alloy anodized |
| Profile material | Aluminium wrought alloy anodized |
| Material information | LABS containing materials included RoHs compliant |
| Actuator cover material | Aluminium wrought alloy anodized |
| Carriage guide material | Steel |
| Guide carriage material | Steel |
| Carriage material | Aluminium wrought alloy anodized |
| Spindle nut material | Steel |
| Spindle material | Steel |
| Manufacturer Nr. | ELGA-BS-KF-120-600-0H-25P-ML |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568286491 |
| Weight | 0.100000 |
| HS-Code | 84799070 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought

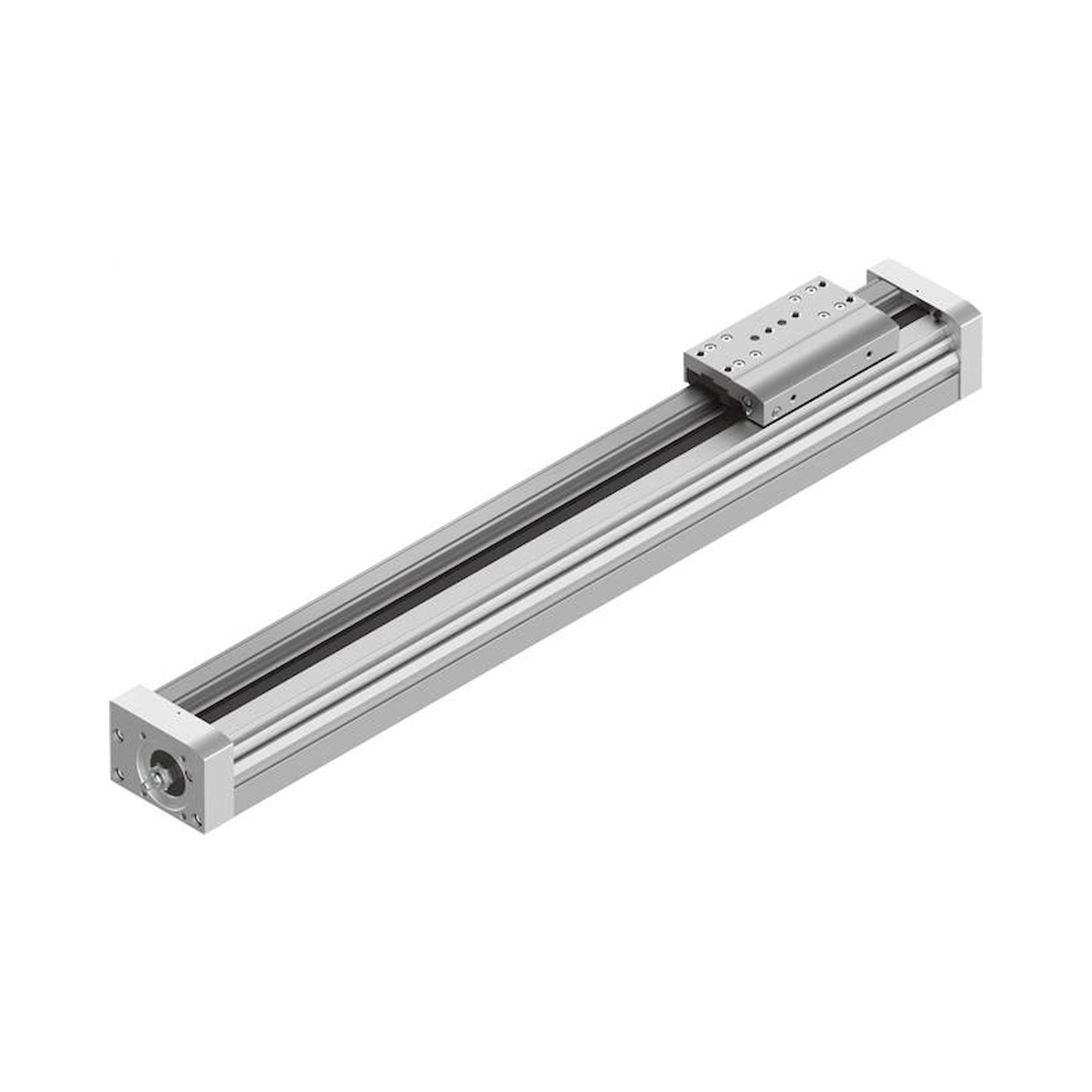

Festo Egc-70-400-Bs-10P-Kf-0H& (3013391) Spindle Axis
€151,488.00
Excl. 19% VAT ,
excl. Shipping Cost
Festo Elga-Bs-Kf-80-600-0H-10& (8041827) Spindle Axis
€210,856.00
Excl. 19% VAT ,
excl. Shipping Cost
Festo Elga-Bs-Kf-80-400-0H-10& (8041825) Spindle Axis
€196,156.00
Excl. 19% VAT ,
excl. Shipping Cost

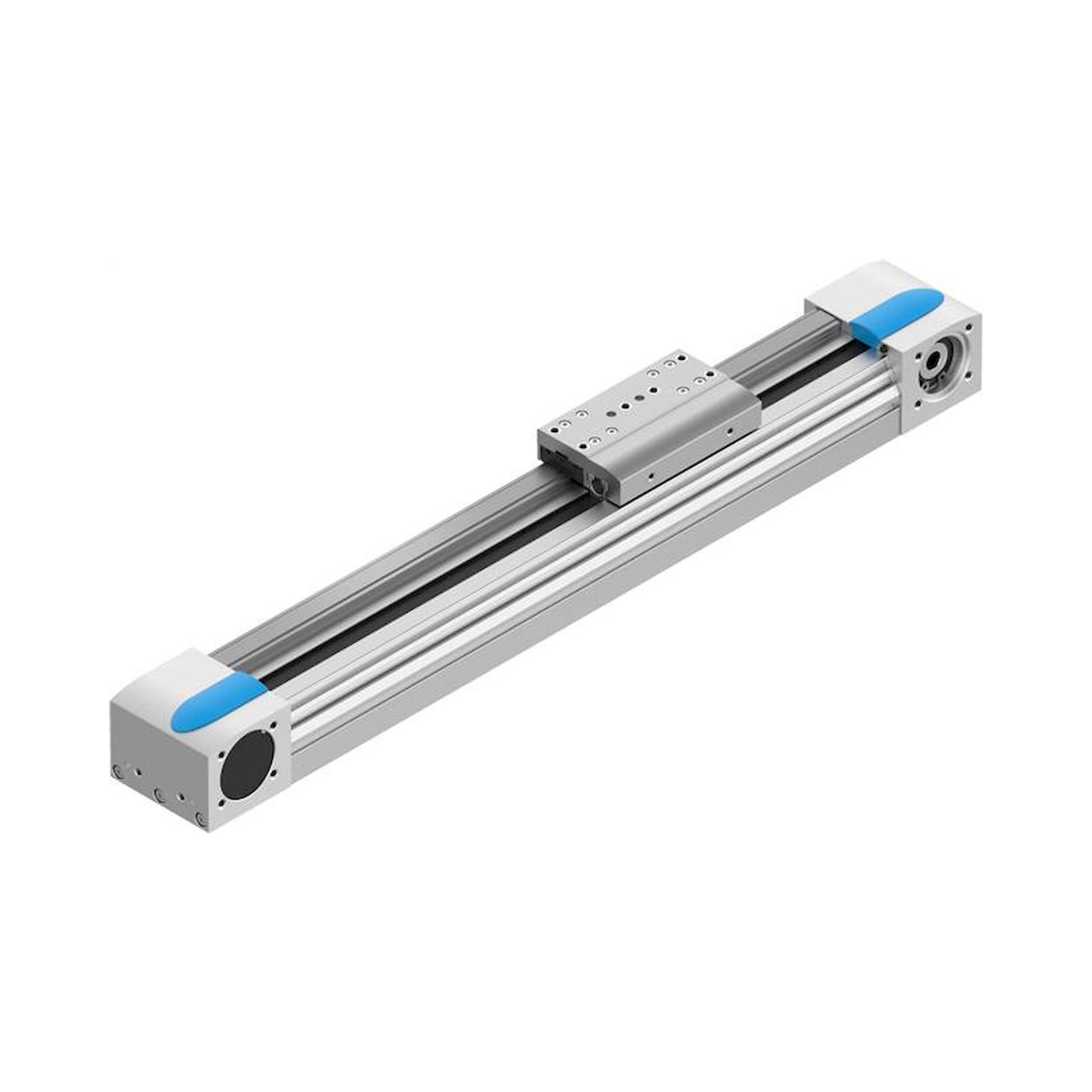

Festo Egc-70-300-Tb-Kf-0H-Gk (3012492) Toothed Belt Axis
