Electric drives
Festo pneumatics
Festo electric drives provide motor-driven linear motion, swivel functions, and combined rotary-linear movements for automation technology. The range extends from electric toothed belt and spindle axes of the EGC series through electric slides EGSK and electric rotary actuators ERMB/ERMO to compact rotary-linear modules EHMB. Couplings of the EAMC series and motor flanges EAMF complete the programme for connection to servo and stepper motors.
Unlike pneumatic drives, electric axes and slides allow programmable intermediate positions, force control, and process-data-based feedback. The components are matched to common motor variants and controllers and can be integrated into Festo-specific as well as standardised automation platforms.
Electric axesToothed belt axes EGC-70/80/120, spindle axes, stroke up to 1500 mm

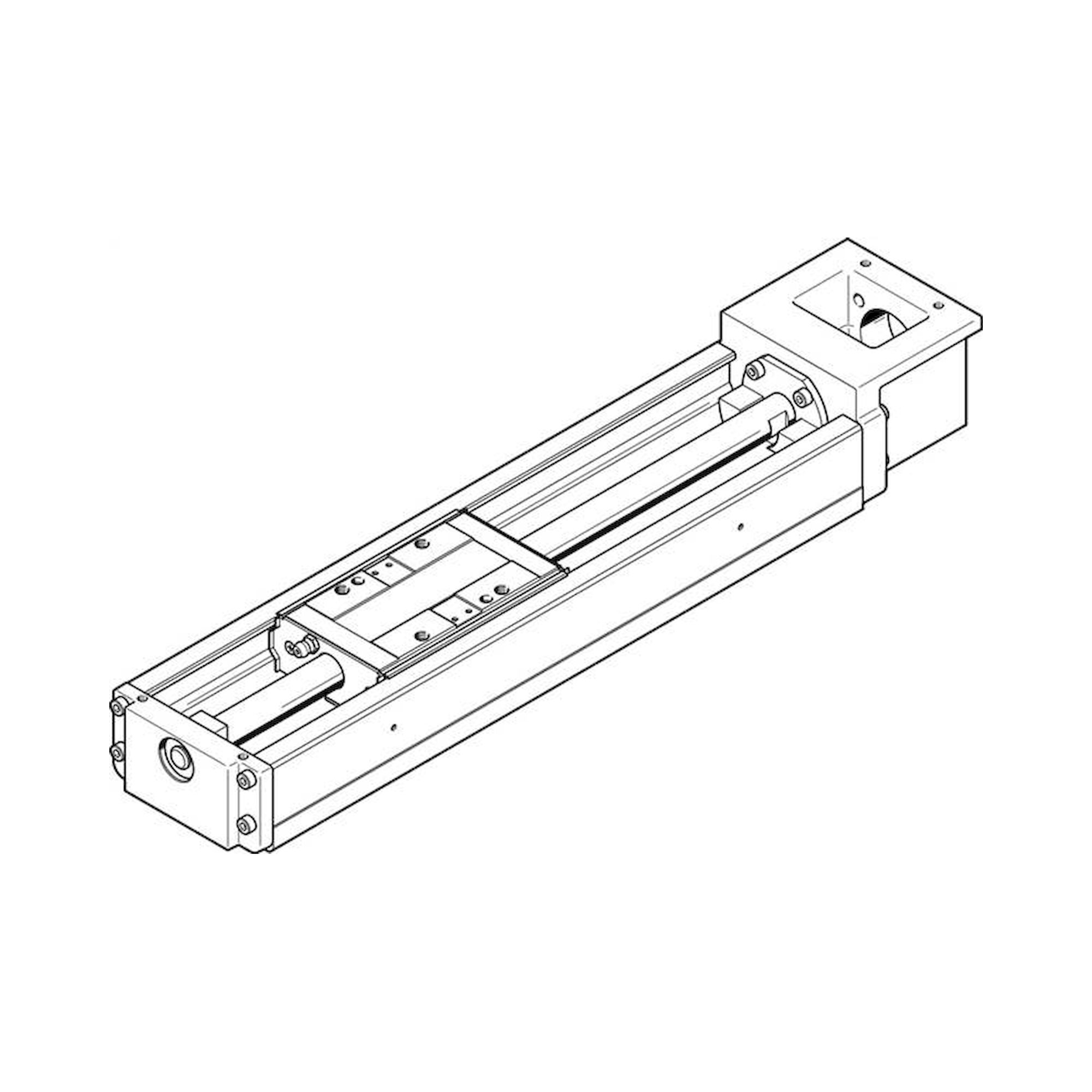

Electric cylinders and slidesElectric slides EGSK-26/33/46, stroke 100-800 mm
Rotary actuatorsRotary modules ERMB/ERMO, sizes 20-32

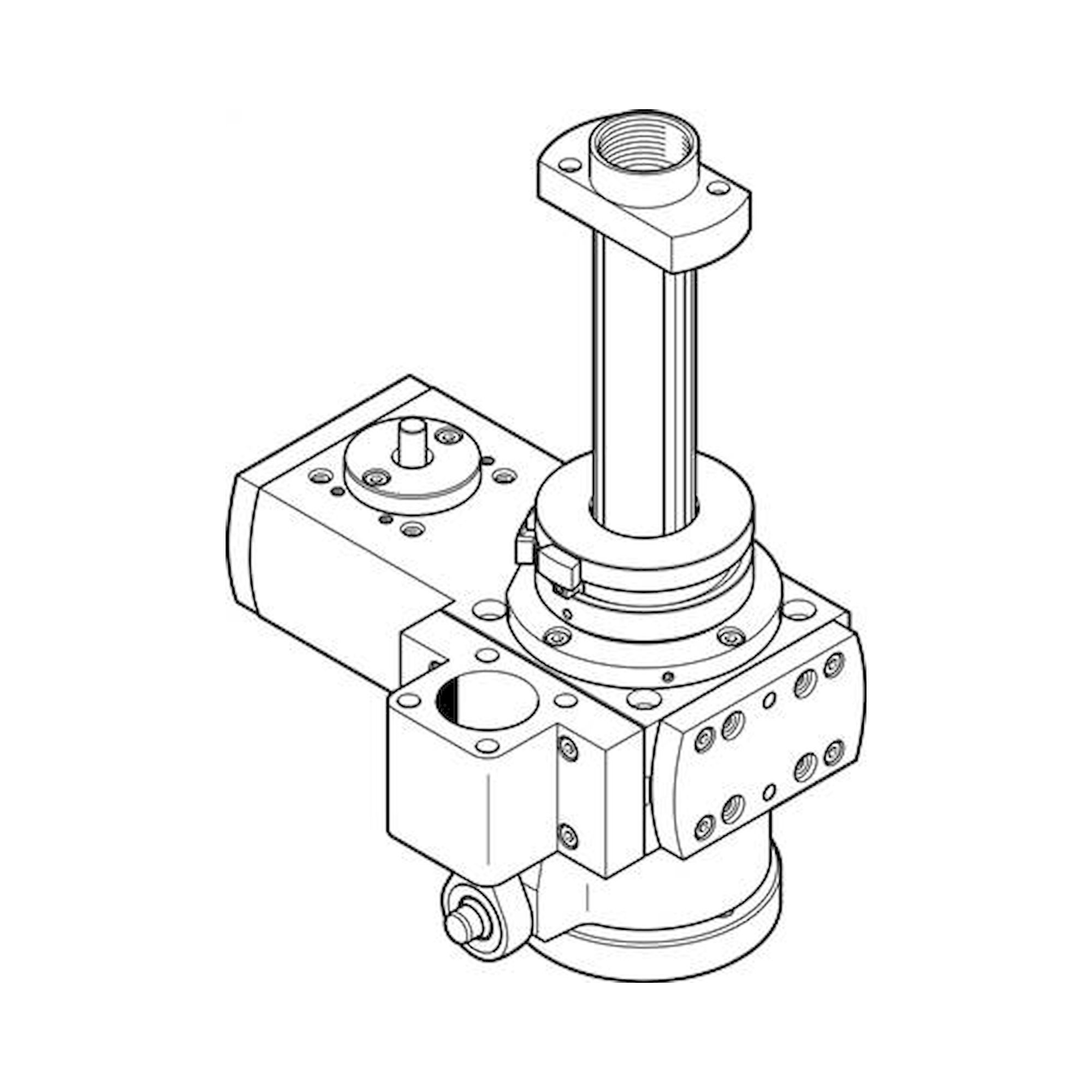

Electric handling modulesRotary-linear modules EHMB, combined rotation and linear stroke
Accessories for electromechanical drivesCouplings EAMC, motor flanges EAMF, over 1300 variants
| Category | Typical series | Feature |
|---|---|---|

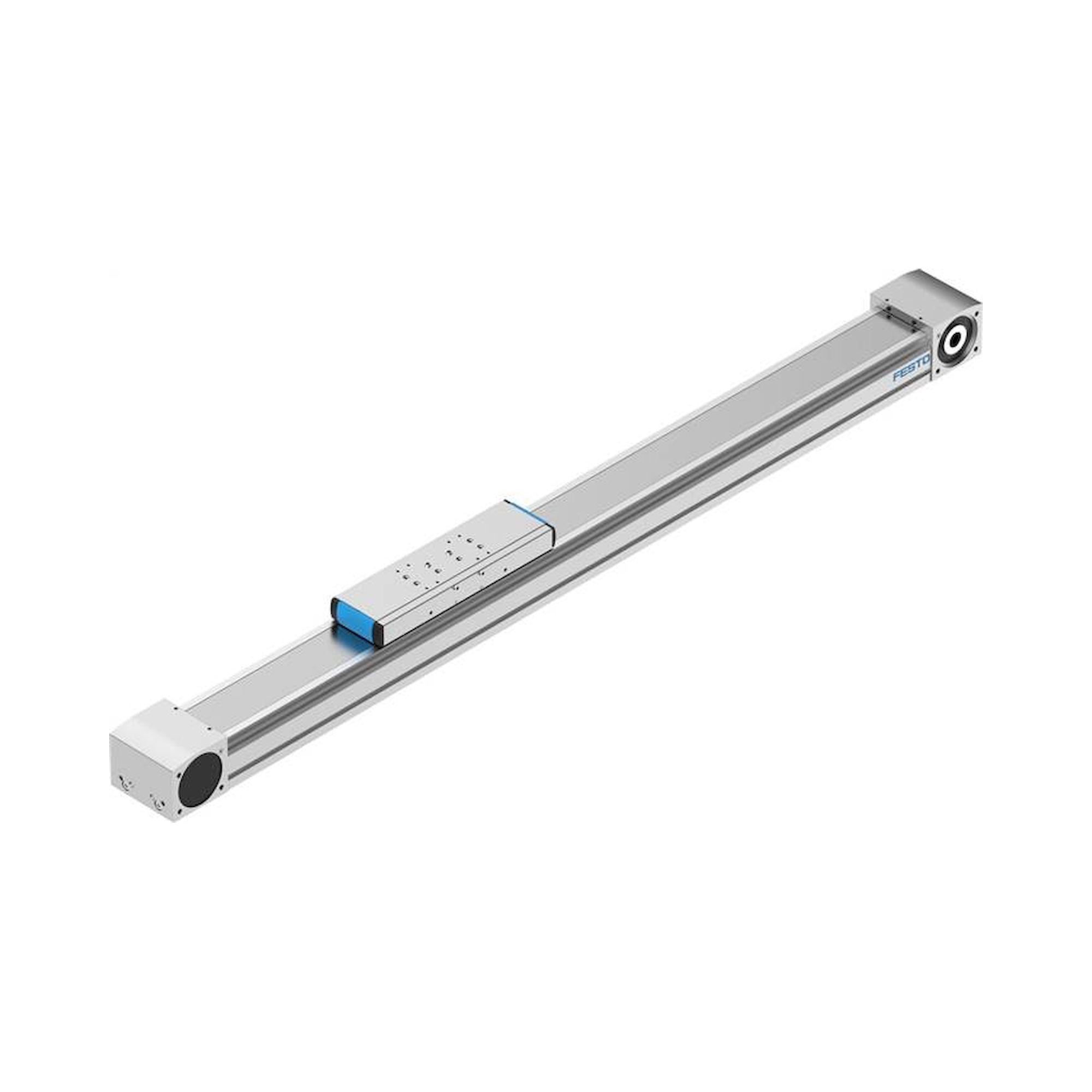

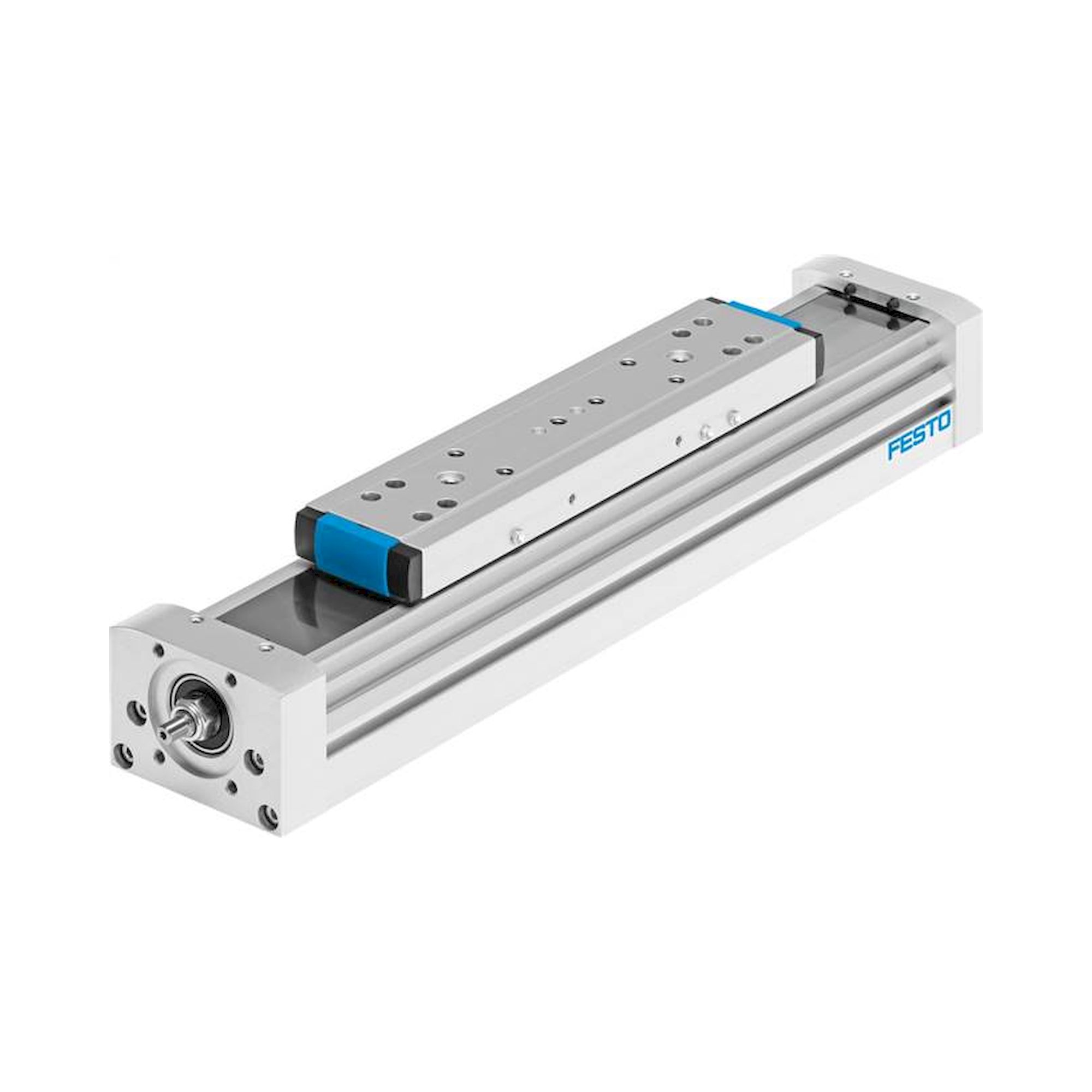

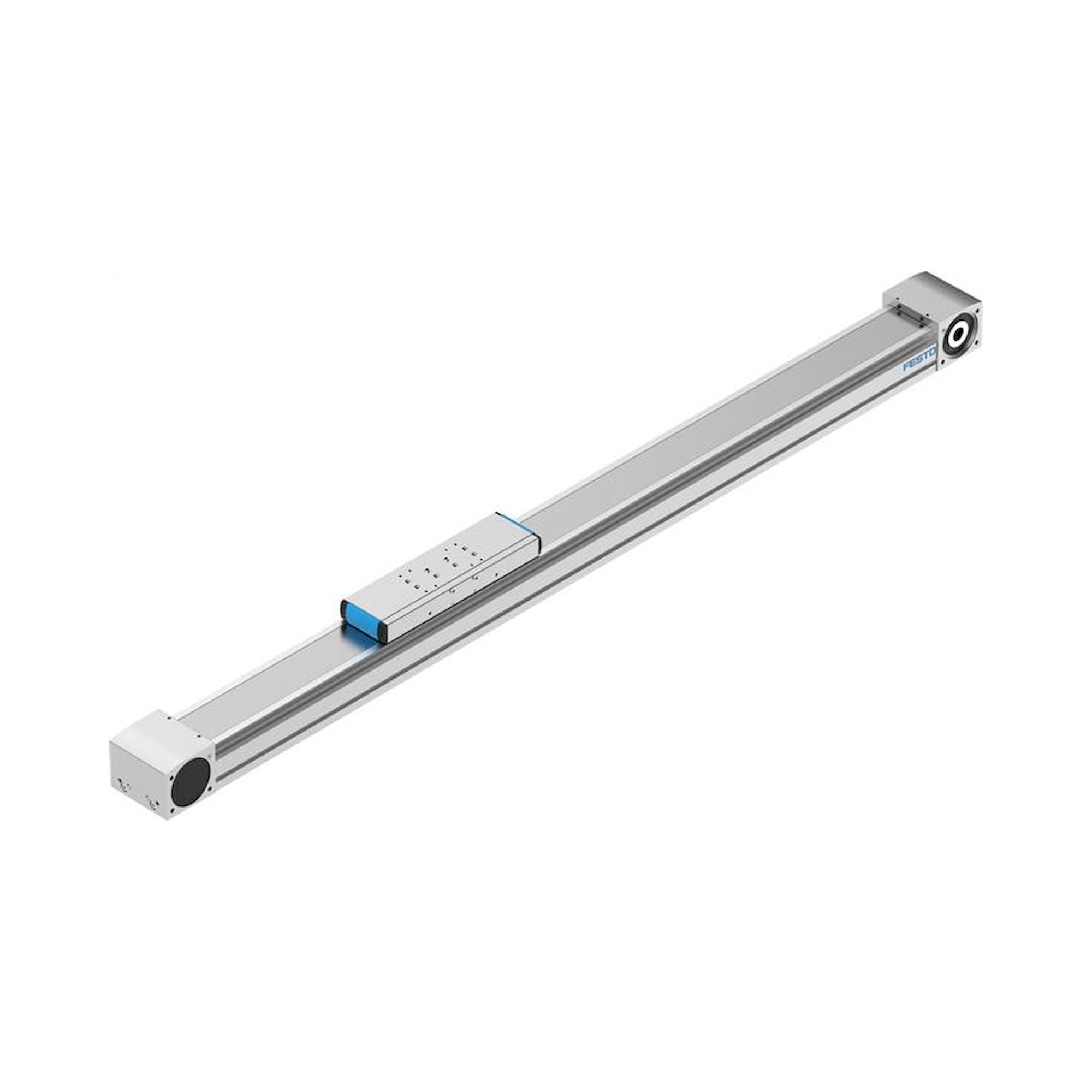

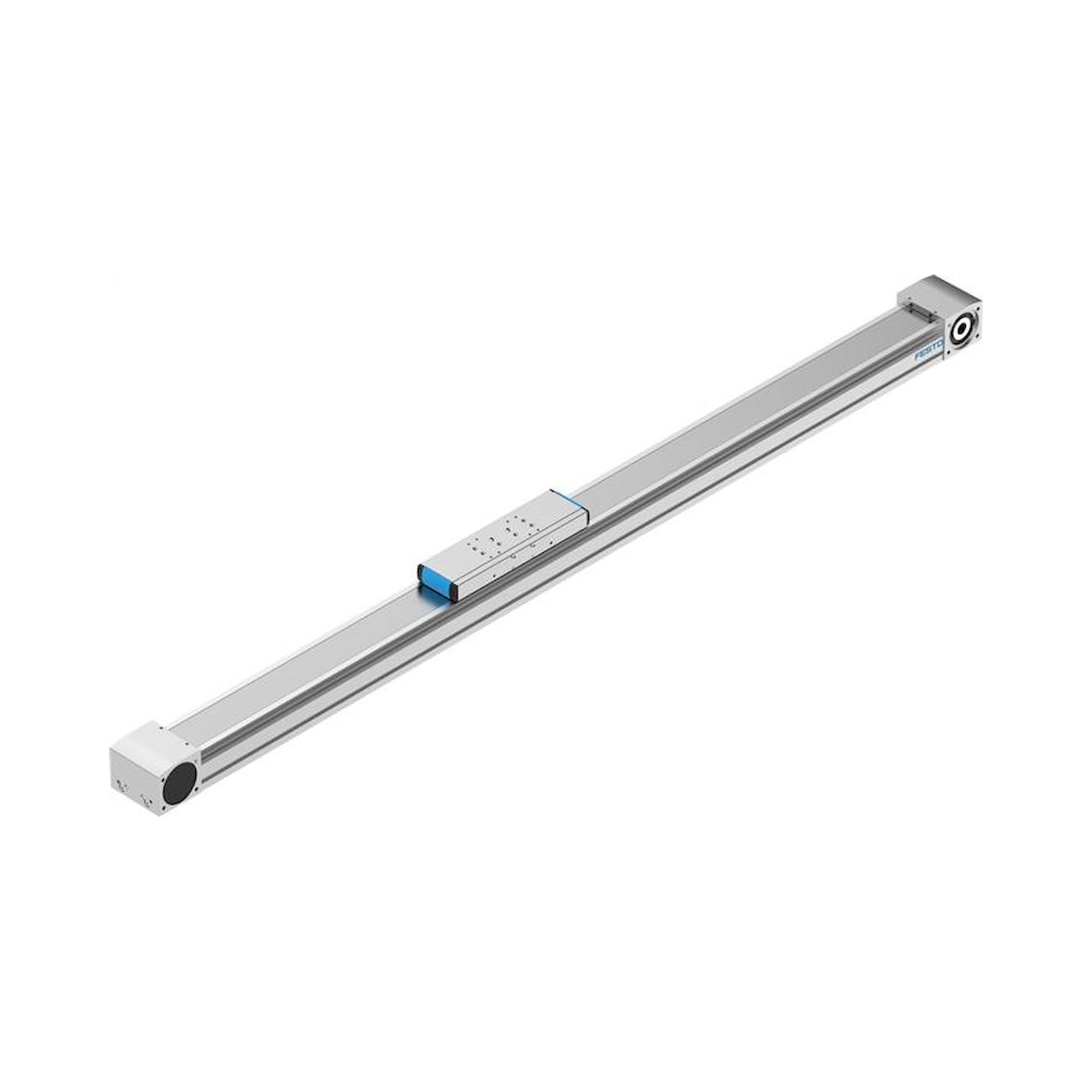

| Electric axes | EGC-70, EGC-80, EGC-120 (TB/BS) | Toothed belt and spindle drive, stroke 100-1500 mm |
| Cylinders and slides | EGSK-26, -33, -46 | Flat design, force 6-20 N per variant, stroke up to 800 mm |
| Rotary actuators | ERMB-20/25/32, ERMO-12-32 | Electric, defined rotation angle |
| Handling modules | EHMB-20/25/32 | Rotary-linear combination in one unit |
| Accessories | EAMC, EAMF | Couplings and flanges for motor connection |
Typical applications: Precision positioning in assembly machines and laboratory automation, pick-and-place systems with programmable intermediate positions in electronics manufacturing, multi-axis gantry systems in metalworking, and test and measurement technology with defined force control profiles.
