Festo Elgc-Bs-Kf-60-300-12P (8061493) Spindle Axis
€68,721.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-8061493
Manufacturer Nr.
ELGC-BS-KF-60-300-12P
Spindle Axis
Frequently Bought Together
-
This Item:
€68,721.00Excl. 19% VAT , excl. Shipping Cost
-
Festo Elgc-Tb-Kf-80-500 (8062788) Toothed Belt Axis
€57,278.00Excl. 19% VAT , excl. Shipping Cost
-

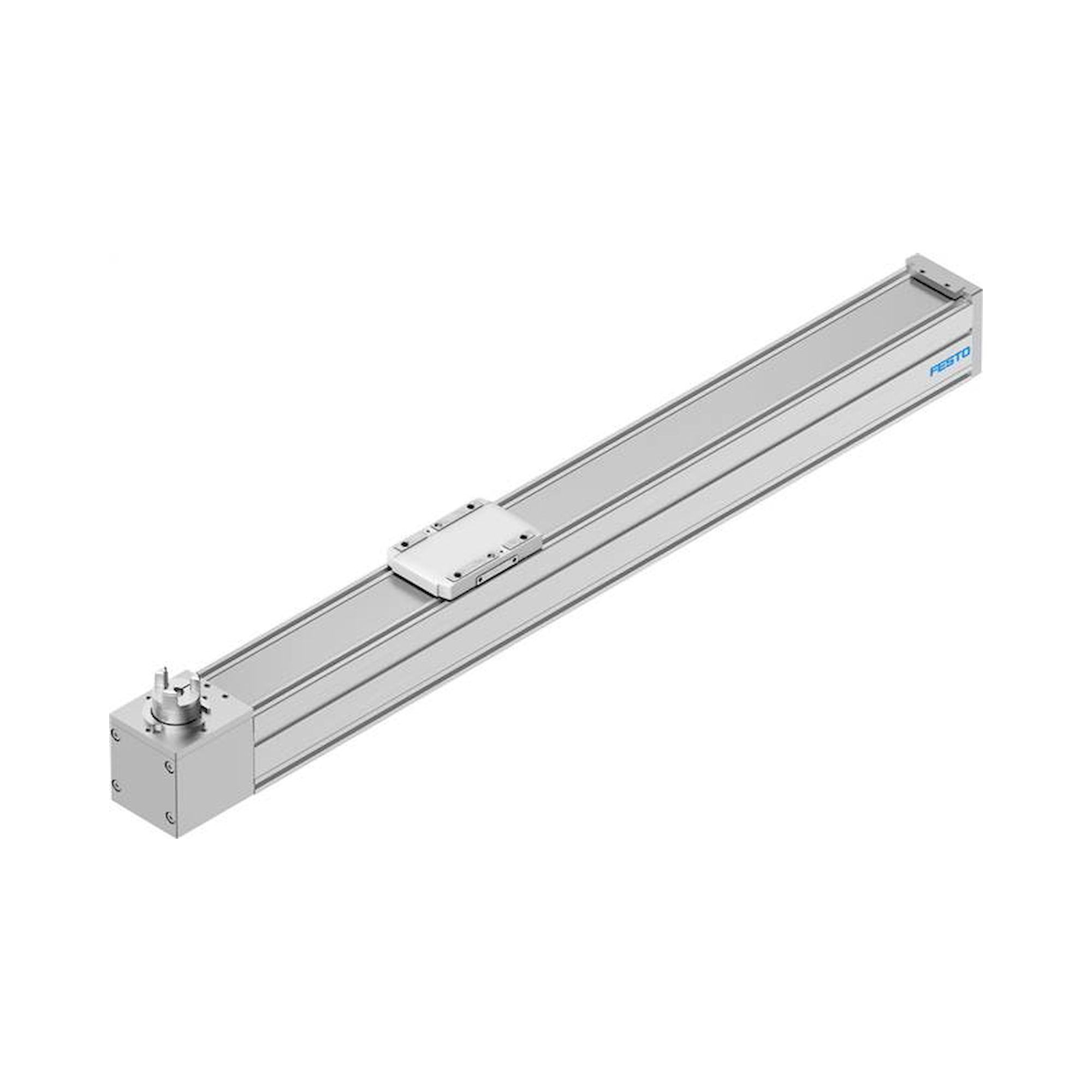

Festo Elgc-Tb-Kf-60-500 (8062778) Toothed Belt Axis
€55,703.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Working stroke [mm] | 300 |
| size | 60 |
| Stroke reserve [mm] | 0 |
| Spindle diameter [mm] | 12 |
| Spindle pitch [mm/U] | 12 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Electro-mechanical linear axis With Ball screw |
| Motor type | Step motor Servo motor |
| Spindle type | Ball screw drive |
| Max. acceleration [m/s²] | 15 |
| Max. speed [1/min] | 4.000 |
| Max. speed [m/s] | 0,8 |
| Repeatability | ±0.01 mm |
| Protection category | IP40 |
| ambient temperature [°C] | 0 to 50 |
| Flat torque 2nd grade ly [mm4] | 441000 |
| Flat torque 2nd grade lz [mm4] | 542000 |
| Empty run torque at maximum movement speed [Nm] | 0,246 |
| Empty run torque at minimum movement speed [Nm] | 0,042 |
| Max. force Fy [N] | 600 |
| Max. force Fz [N] | 1.800 |
| Fy for theoretical lifetime of 100 km (pure guide observation) [N] | 2.208 |
| Fz for theoretical lifetime of 100 km (purely management observation) [N] | 6.624 |
| Max. torque Mx [Nm] | 29,1 |
| Max. torque My [Nm] | 31,8 |
| Max. torque Mz [Nm] | 31,8 |
| Mx for theoretical lifetime of 100 km (Purely management observation) [Nm] | 107 |
| My for theoretical lifetime of 100 km (Purely management observation) [Nm] | 117 |
| Mz for theoretical lifetime of 100 km (Purely management observation) [Nm] | 117 |
| Max. feed force Fx [N] | 200 |
| Torsional moment of inertia to [mm4] | 29.800 |
| Mass inertia JH per metre stroke [kg/cm²] | 0,10779 |
| Mass inertia JL per kg usable load [kg/cm²] | 0,036476 |
| Mass inertia JO [kg/cm²] | 0,02235 |
| Feed constant [mm/U] | 12 |
| Moving mass [g] | 525,0 |
| Weight supplement per 10 mm stroke [g] | 51 |
| Dynamic bending (load moved) | 0.05% of the axis length, maximum 0.5 mm |
| Static bending (load at standstill) | 0.1 % of the axis length |
| Interface code actuator | T42 |
| Closing cover material | Die cast aluminium, painted |
| Profile material | Aluminium wrought alloy, anodised |
| Material information | LABS containing materials included RoHs compliant |
| Masking tape material | High-alloyed stainless steels |
| Actuator cover material | Die cast aluminium, painted |
| Carriage guide material | Steel |
| Guide carriage material | Steel |
| Carriage material | Aluminium die casting |
| Spindle nut material | Steel |
| Spindle material | Steel |
| Manufacturer Nr. | ELGC-BS-KF-60-300-12P |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568295820 |
| Weight | 3.200000 |
| HS-Code | 84799070 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Festo Elga-Bs-Kf-120-500-0H-1& (8041840) Spindle Axis
€286,254.00
Excl. 19% VAT ,
excl. Shipping Cost

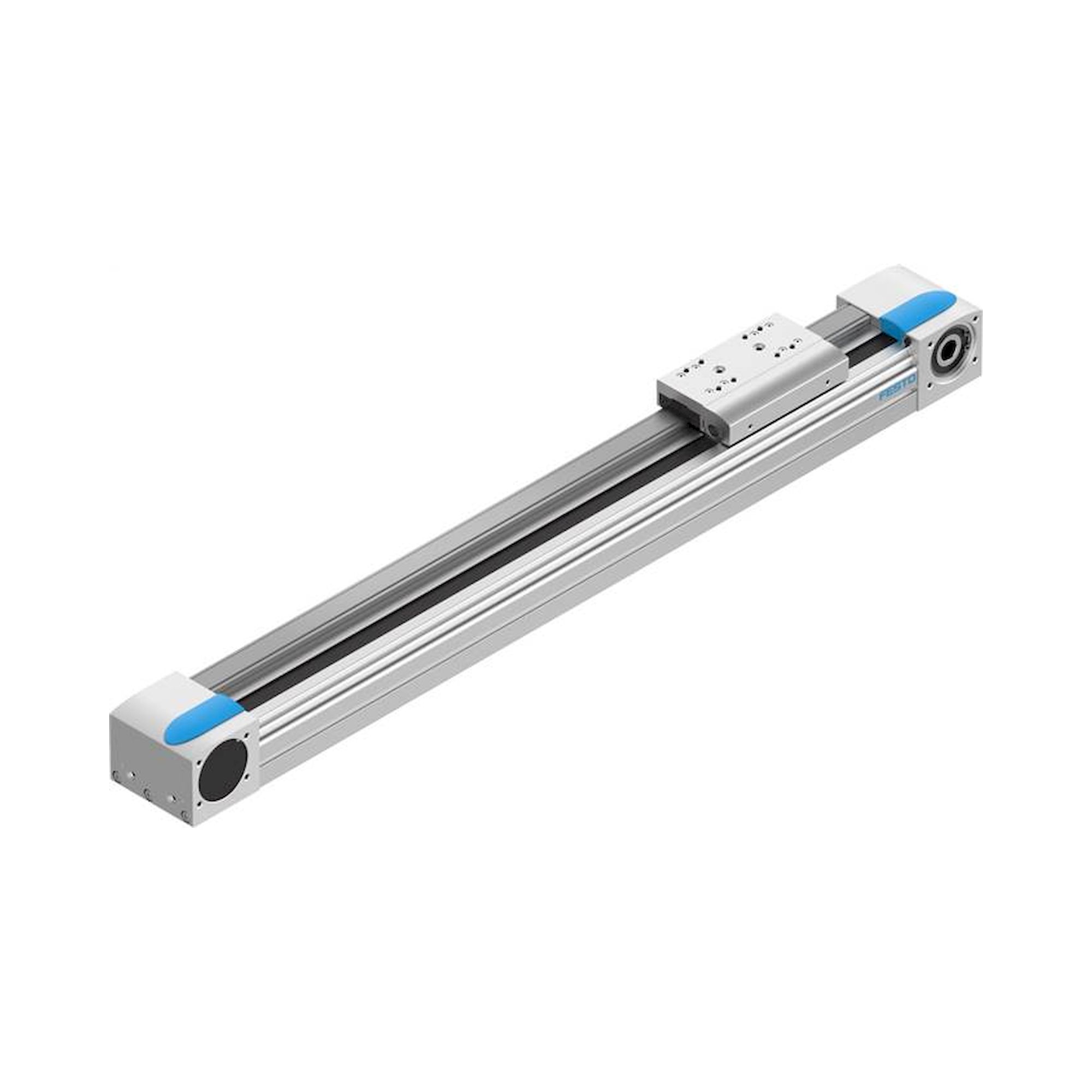

Festo Egc-80-500-Tb-Kf-0H-Gk (3013354) Toothed Belt Axis
