Festo pneumatic cylinder for precise linear motion and defined force in automation.

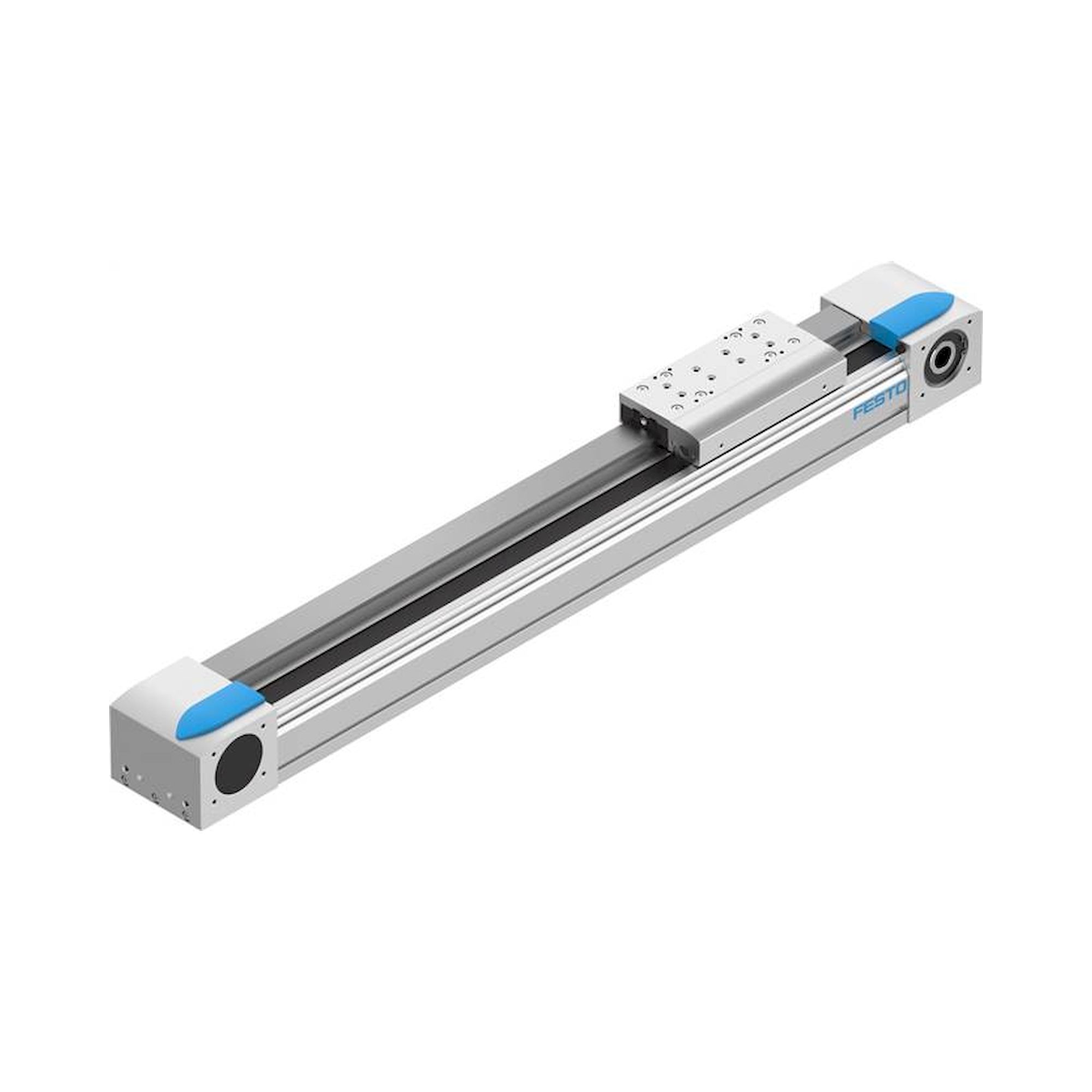

Toothed Belt Axis ELGC-TB-KF-45-1200 - Festo 8062774
FESTO
Original product
Net price (excl. VAT)
€682.16
Item
FES-8062774
Manufacturer no.
ELGC-TB-KF-45-1200
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.ELGC-TB-KF-45-1200
EAN4052568296032
Customs tariff number84799070
ConditionNew
Article
FES-8062774
Frequently Bought Together
-
This Item:
€682.16
-
Spindle Axis ELGA-BS-KF-120-100-0H-25P-ML - Festo 8041843
€2,537.83
-
Spindle Axis ELGC-BS-KF-45-300-10P - Festo 8061486
€650.06
Total price
Festo pneumatic cylinder for precise linear motion and defined force in automation. The key technical data of this genuine Festo article are listed below.
| Actuator pinion effective diameter [mm] | 19,10 |
| Working stroke [mm] | 1.200 |
| size | 45 |
| Stroke reserve [mm] | 0 |
| V-belt bending [%] | 0,187 |
| V-belt separation [mm] | 2 |
| installation position | arbitrary |
| Guide | ball guide |
| Construction set up | Electro-mechanical linear axis<br>With V-belt |
| Motor type | Step motor<br>Servo motor |
| Measurement principle travel measurement system | Incremental |
| Max. acceleration [m/s²] | 15 |
| Max. speed [m/s] | 1,2 |
| Repeatability | ±0.1 mm |
| Power-on time | 100 % |
| Protection category | IP40 |
| ambient temperature [°C] | 0 to 50 |
| Flat torque 2nd grade ly [mm4] | 140000 |
| Flat torque 2nd grade lz [mm4] | 170000 |
| Max. actuator torque [Nm] | 0,716 |
| Max. force Fy [N] | 300 |
| Max. force Fz [N] | 600 |
| Max. empty run shift resistance [N] | 7,8 |
| Max. torque Mx [Nm] | 5,5 |
| Max. torque My [Nm] | 4,7 |
| Max. torque Mz [Nm] | 4,7 |
| Max. feed force Fx [N] | 75 |
| Empty run actuator torque [Nm] | 0,075 |
| Torsional moment of inertia to [mm4] | 8.500 |
| Mass inertia JH per metre stroke [kg/cm²] | 0,0281 |
| Mass inertia JL per kg usable load [kg/cm²] | 0,9119 |
| Mass inertia JO [kg/cm²] | 0,1862 |
| Feed constant [mm/U] | 60 |
| Moving mass [g] | 169 |
| Moving mass at 0 mm stroke [g] | 169 |
| Carriage weight [g] | 55 |
| Weight supplement per 10 mm stroke [g] | 23 |
| Base weight at 0 mm stroke [g] | 760 |
| Product weight [g] | 3.510 |
| Interface code actuator | V32 |
| Closing cover material | Die cast aluminium, painted |
| Profile material | Aluminium wrought alloy, anodised |
| Material information | LABS containing materials included<br>RoHs compliant |
| Masking tape material | Rust-free stainless steel band |
| Actuator cover material | Die cast aluminium, painted |
| Carriage guide material | Quenched and tempered steel |
| Guide carriage material | Quenched and tempered steel |
| Belt pulley material | High-alloyed stainless steels |
| Carriage material | Aluminium die casting |
| V-belt material | Polychloroprene with glass fibre |
| Manufacturer Nr. | ELGC-TB-KF-45-1200 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568296032 |
| Weight | 7.000000 |
| HS-Code | 84799070 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Temperature (max.) | 50 |
| Protection rating | IP40 |
| Series | ELGC |
| Mounting position | arbitrary |
| Design | Electro-mechanical linear axis, With V-belt |
| Position sensing | No |
