Festo VUVG-L18-P53C-ZT-G14-1P3 (574440) Solenoid Valve
€9,075.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-574440
Manufacturer Nr.
VUVG-L18-P53C-ZT-G14-1P3
Solenoid Valve
Frequently Bought Together
-
This Item:
€9,075.00Excl. 19% VAT , excl. Shipping Cost
-

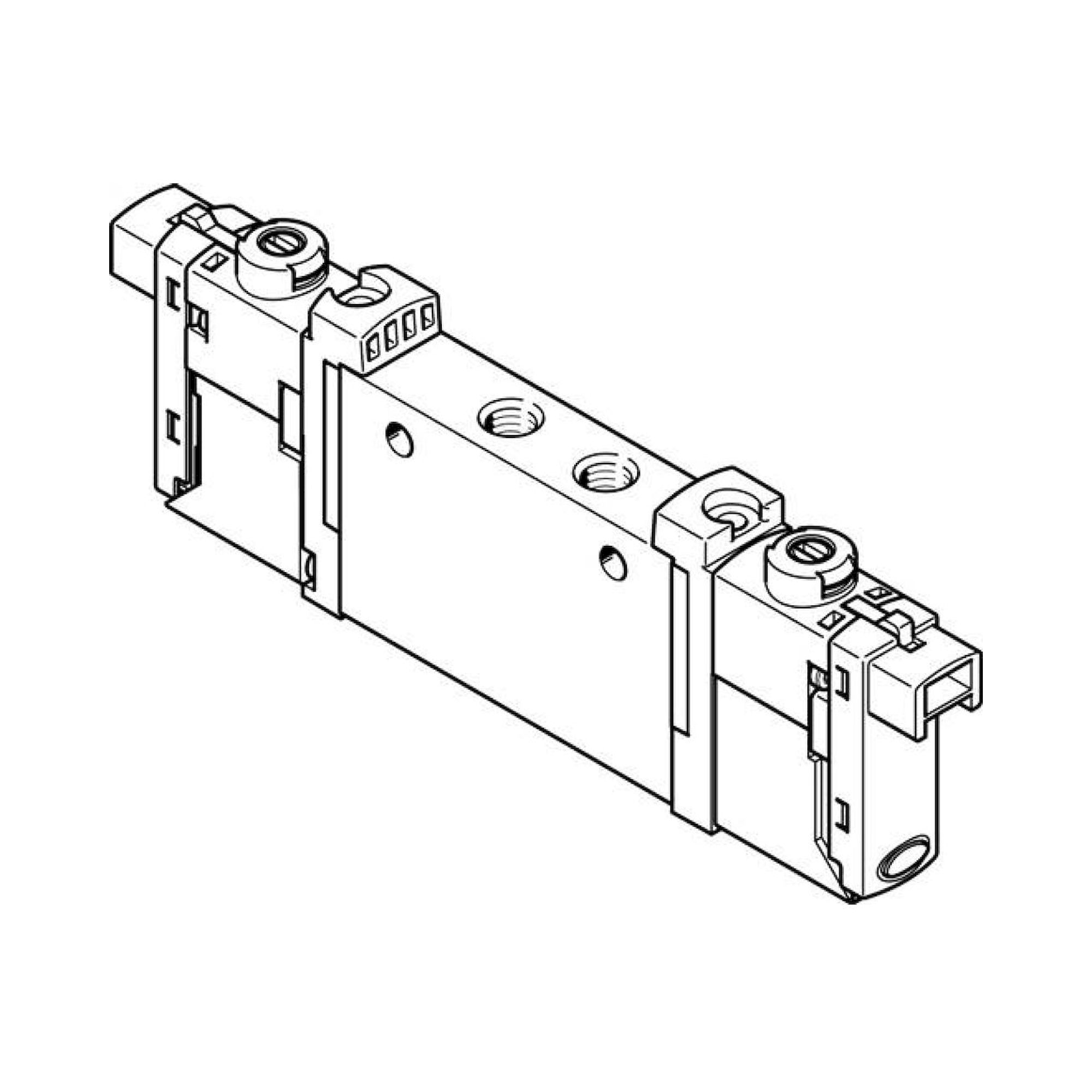

Festo VUVG-L10-B52-T-M5-1H2L-W1 (577317) Solenoid Valve
€7,664.00Excl. 19% VAT , excl. Shipping Cost
-
Festo VUVG-L18-T32U-MZT-G14-1P3 (574435) Solenoid Valve
€8,738.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | 5/3 closed |
| Actuation type | Electrical |
| Valve size [mm] | 18 |
| Normal nominal flow [l/min] | 1200 |
| Operating pressure [bar] | -0.9 to 10 |
| Construction set up | Piston pusher |
| Reset mode | Mechanical spring |
| Permission | RCM mark c CSA us (OL) c UL us - Recognized (OL) |
| Protection category | IP40 IP65 With Socket |
| Nominal width [mm] | 6,5 |
| Exhaust function | Can be throttled |
| Sealing principle | Soft |
| installation position | arbitrary |
| Hand assist actuation | Ratcheting Covered tentative |
| Control type | pilot operated |
| Control air supply | external |
| Überdeckung | positive Überdeckung |
| Control pressure [bar] | 3 to 8 |
| Shifting time off [ms] | 31 |
| Shifting time on [ms] | 15 |
| Power-on time | 100 % |
| Max. positive test impulse at 0 signal [µs] | 700 |
| Max. negative test impulse for 1 signal [µs] | 900 |
| Coil characteristic value | 24 V DC: Low current phase 0.3 W, high current phase 1,0 W 24 V DC: 1 W |
| Permitted voltage oscillations | ± 10 % |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Oscillation strength | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Limits ambient and media temperature | -5 - 50 °C Without holding current reduction |
| Shock resistance | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Medium temperature [°C] | -5 to 60 |
| ambient temperature [°C] | -5 to 60 |
| Product weight [g] | 160 |
| Electrical connection | Via electrical connection plate |
| Fastening type | With throughway bores Selectively: on terminal strip |
| Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G1/4 |
| Pneumatic connection 3 | G1/4 |
| Pneumatic connection 4 | G1/4 |
| Pneumatic connection 5 | G1/4 |
| Material information | RoHs compliant |
| Seals material | HNBR NBR |
| Housing material | Aluminium wrought alloy |
| control medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Support air control connection 12/14 | M5 |
| Manufacturer Nr. | VUVG-L18-P53C-ZT-G14-1P3 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568223243 |
| Weight | 0.165000 |
| HS-Code | 84812090 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
