What are Festo VUVG valves and what are their primary industrial applications?

Festo VUVG valves are universal directional solenoid valves designed for individual pneumatic connection applications where centralized valve manifolds are not required. These compact electromagnetic valves control compressed air flow in automated manufacturing systems, packaging machinery, material handling equipment, and process automation installations. The VUVG series features individual port connections ranging from M7 to G18 thread sizes, making them ideal for decentralized pneumatic control in automotive assembly lines, food processing equipment, and pharmaceutical manufacturing where space constraints demand localized valve placement rather than central manifold configurations.

What are the key technical selection criteria for Festo VUVG individual connection valves?

Festo VUVG valve selection requires evaluating port size compatibility with M7, G14, and G18 thread connections, operating voltage requirements between 24V DC configurations, and flow coefficient values for specific application demands. The valve body design varies between L-series for standard mounting and B-series for base mounting configurations, with nominal widths of 10mm, 14mm, and 18mm determining flow capacity. Coil variants include P53C normally closed, P53E normally open, P53U bistable, T32C normally closed, T32U bistable, and T32H configurations, each providing different switching characteristics for precise pneumatic circuit control requirements.

Which international standards and certifications apply to Festo VUVG pneumatic valves?

Festo VUVG valves comply with EN ISO 15218 for pneumatic fluid power components and ISO 5599-1 for interface standards ensuring compatibility across pneumatic systems. The electromagnetic compatibility meets EN 61000 series standards for industrial electromagnetic environments, while the valve construction adheres to EN 60529 for ingress protection ratings. Safety certifications include compliance with EN ISO 13849 for safety-related parts of control systems and potential ATEX certification for explosive atmosphere applications depending on specific model configurations, ensuring regulatory compliance across European industrial installations.

What are the main differences between Festo VUVG-L and VUVG-B series valve variants?

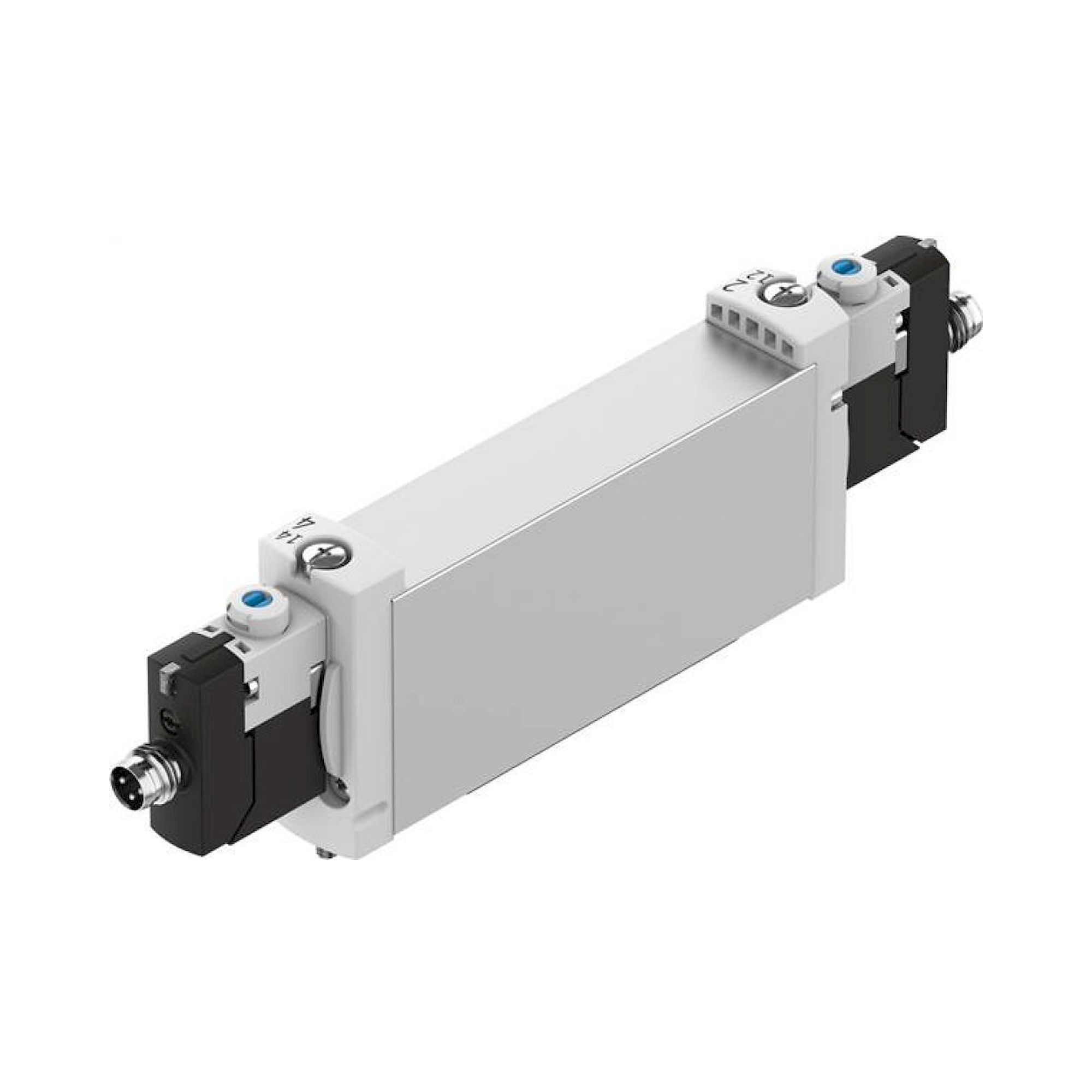

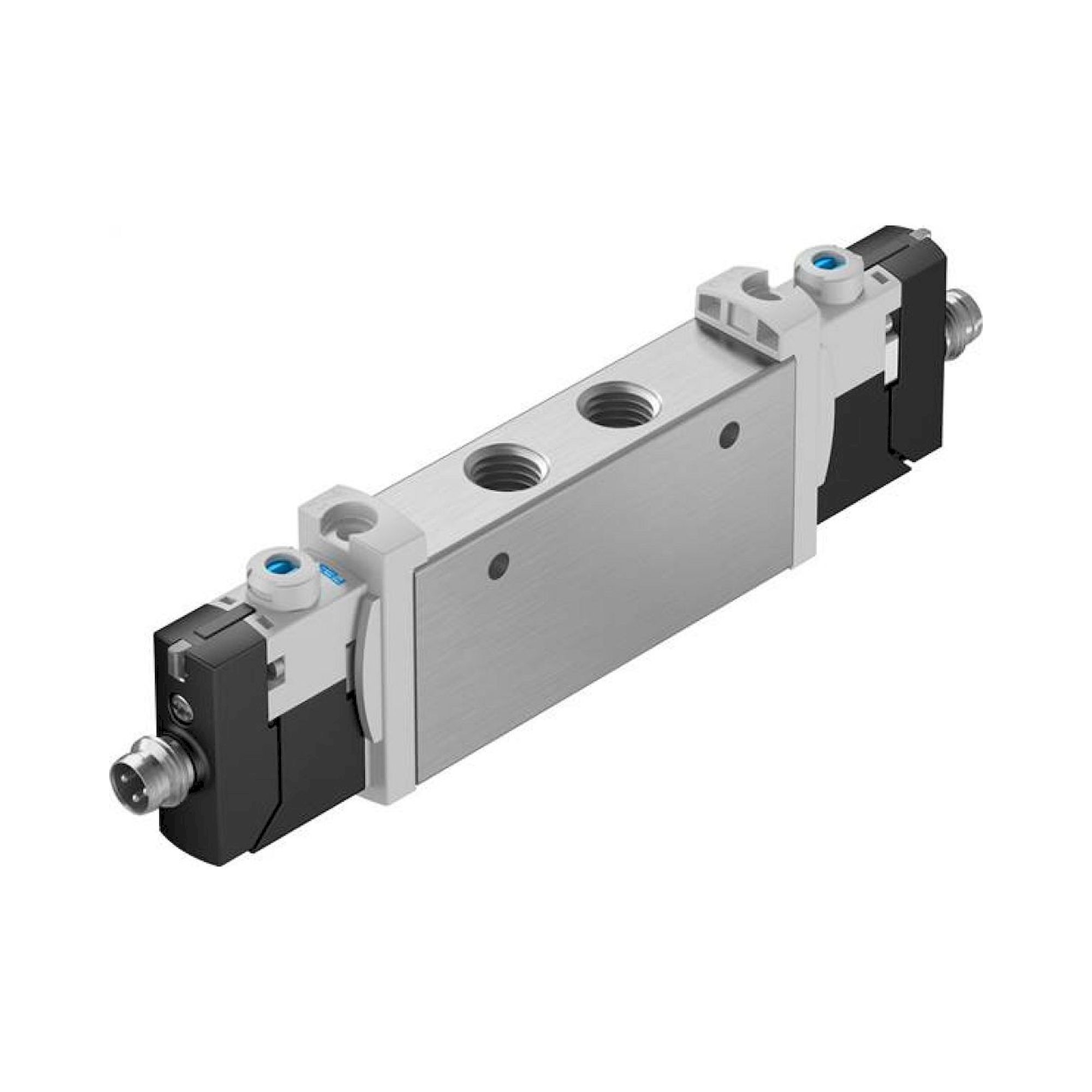

Festo VUVG-L series valves feature direct line mounting with threaded port connections and compact linear design for space-constrained installations, while VUVG-B series valves incorporate base mounting configurations with integrated mounting feet for secure panel or machine frame attachment. The L-series models like VUVG-L14-P53C-T-G18-1R8L utilize G18 connections with 14mm nominal width, whereas B-series variants such as VUVG-B18-T32C-MZT-F-1R8L offer 18mm width with enhanced mechanical stability through base plate integration. Both series maintain identical electrical specifications at 24V DC operation but differ in mounting methodology and mechanical interface requirements for specific application demands.

What are the installation requirements and system compatibility for Festo VUVG individual connection valves?

Festo VUVG valves require 24V DC power supply with appropriate electrical protection and compressed air supply between 2 to 10 bar operating pressure for optimal performance. Installation demands proper thread sealing using appropriate sealing compounds for M7, G14, and G18 connections, with ambient temperature considerations between -10°C to +50°C for standard applications. The valves integrate with standard pneumatic fittings and require electrical connections through integrated cable assemblies with 1.8m standard cable length, ensuring compatibility with industrial control systems and PLC interfaces while maintaining IP65 ingress protection ratings for harsh industrial environments.

What safety ratings and environmental specifications apply to Festo VUVG pneumatic solenoid valves?

Festo VUVG valves achieve IP65 ingress protection rating against dust ingress and water jets, ensuring reliable operation in industrial environments with exposure to cleaning procedures and contamination. Operating temperature range spans -10°C to +50°C for standard ambient conditions with compressed air media, while operating pressure capability extends from 2 to 10 bar for consistent pneumatic control performance. The electromagnetic coils feature Class F insulation with 24V DC nominal voltage and integrated surge suppression for electrical safety compliance, providing reliable switching performance across 10 million switching cycles under normal operating conditions.

What maintenance schedule and service life expectations apply to Festo VUVG individual connection valves?

Festo VUVG valves require quarterly visual inspection of external connections and annual compressed air quality verification to ensure contamination-free operation and maintain optimal switching performance. The valve design provides 10 million switching cycles service life under normal operating conditions with 2 to 10 bar compressed air pressure and appropriate filtration upstream of the valve installation. Preventive maintenance includes biannual electrical connection inspection and cable integrity verification, while seal replacement intervals depend on application duty cycle and compressed air quality, typically extending 3 to 5 years in standard industrial applications with proper air preparation and filtration systems.

Valves VUVG, for individual connection

Universal directional control valves

The Festo VUVG valves for individual connection are compact solenoid valves with direct pipe connection, used without a valve terminal. The 243-article range covers body sizes L10, L14, B10, B14 and S10 (width in mm) with M5, M7 and G1/8 ports. Functions range from 5/3-way types (P53C, P53E, P53U) through bistable 5/2-way (B52) to 3/2-way variants (M52-R). All types feature the PI suffix and 1P3 plug connection.

The individual-connection variant uses conventional pipe ports on the valve body and suits decentralised mounting directly on the actuator, without a manifold base plate.

⚙ Body sizes L10, L14, B10, B14, S10 - widths 10-14 mm, L (strip) and B (block) for different installation situations

✓ 5/3-way functions P53C / P53E / P53U - mid-position blocked, exhausted or pressurised

⚡ Ports M5, M7, G1/8 - three nominal bore sizes for graduated flow rates

📦 1P3 plug connection and ZT version - plug-in wiring for fast connection, ZT with spring-sealed outlet

Code	Function	Mid-position
P53C	5/3-way	All ports blocked (closed centre)
P53E	5/3-way	Work ports exhausted (exhaust centre)
P53U	5/3-way	All ports pressurised (pressure centre)
B52	5/2-way bistable	None (memory function)
M52-R	3/2-way	Spring return
T32C / T32H / T32U	3/2-way with manual override	C / H / U centre position variants

Typical applications: Decentralised valve mounting on cylinders or grippers in handling and assembly automation, 5/3-way control of differential cylinders in presses and clamping fixtures (depressurised mid-position provides a safe hold function), and vacuum applications using the 3/2-way variant.
