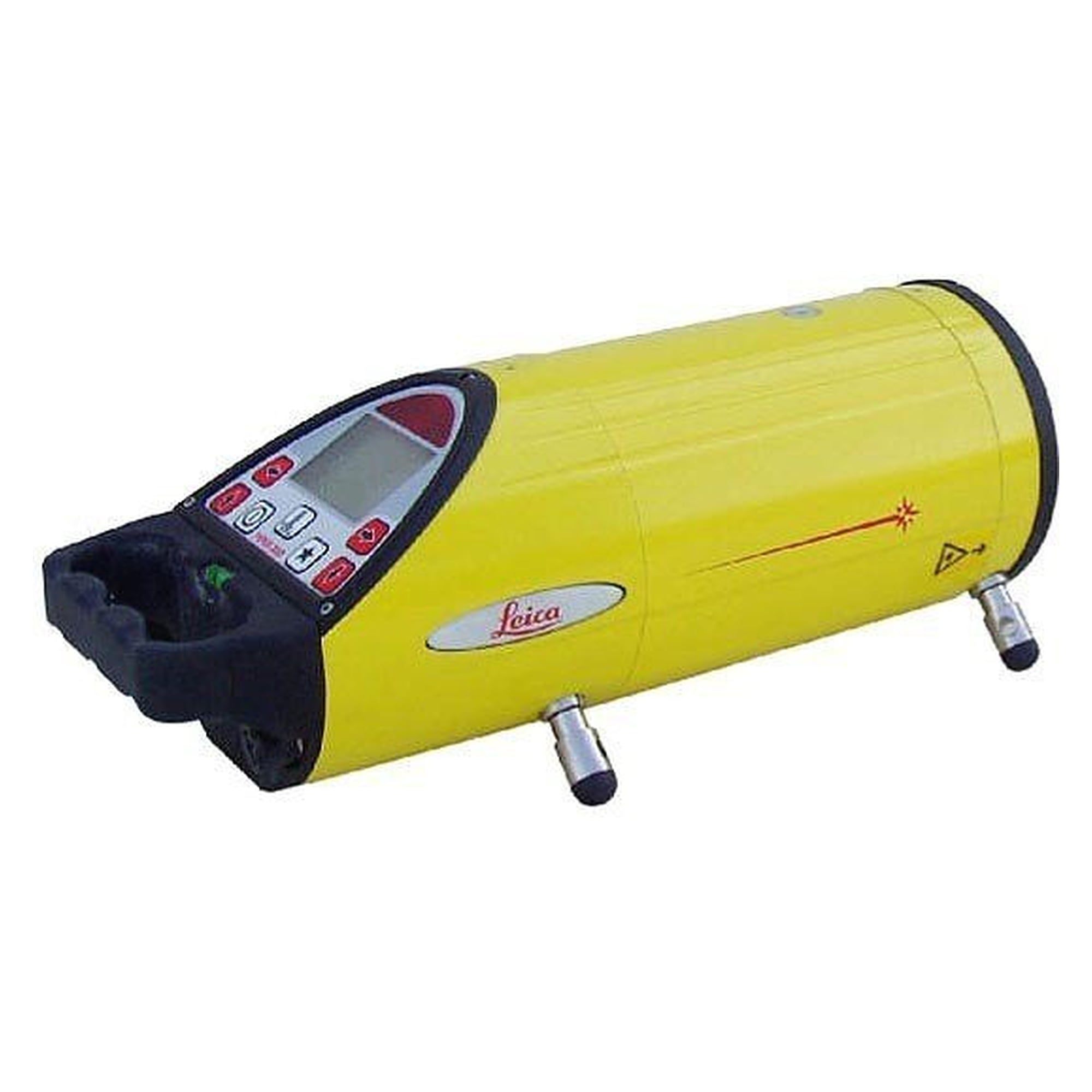

The Leica Piper 100 pipe laser sets the grade line inside the pipe that pipes, manholes and connections are laid to. It self-levels across a range of -15 % to +30 % and holds ± 1.5 mm at 30 m, with a working range of up to 200 m. A housing diameter of 96 mm lets the instrument work in pipes from 100 mm upwards.
Key benefits
- Working range of up to 200 m from a single setup, which cuts the number of moves along the trench.
- Grade entry from -10 % to +25 % covers shallow gravity sewers as well as steep house connections.
- Automatic grade compensation corrects a roll of the housing of up to ± 3° on its own, so a twist inside the pipe does not falsify the line.
- Cast aluminium housing with IPx8 protection, the instrument keeps working with water in the pipe.
- Li-ion battery with up to 40 hours of operation and a charging time of 4 hours, enough for several working days.
- Operating temperature from -20 to +50 °C for year round use.
Technical data
| Model | Leica Piper 100 |
|---|---|
| Beam colour and wavelength | red, 635 nm |
| Laser class | 3R to IEC 60825-1:2014 |
| Maximum average radiant power | 4.75 mW |
| Working range | up to 200 m |
| Grade range | -10 % to +25 % |
| Self-levelling range | -15 % to +30 % |
| Self-levelling accuracy | ± 1.5 mm at 30 m, defined at 25 °C |
| Line movement | 6 m at 30 m |
| Automatic grade compensation | a roll of the housing of up to ± 3° is compensated and corrected |
| Battery | li-ion, up to 40 h of operation |
| Charging time | 4 h |
| Operating temperature | -20 to +50 °C |
| Dimensions, diameter x length | 96 x 267 mm |
| Instrument weight | 2.0 kg |
| Housing | cast aluminium |
| Protection class | IPx8 |
| Range of the radio remote control | 150 m to the front, 10 m to the rear |
| Smallest pipe diameter | 100 mm, equal to 4 in |
| Alignmaster | not available, only on the Piper 200 and Piper 200G |
| Shipping weight | 7.360 kg |
| Shipping dimensions | 64.5 x 35.5 x 51 cm |
| EAN | 7640110696071 |
| Customs tariff number | 9015301000 |
| Country of origin | China |
Applications

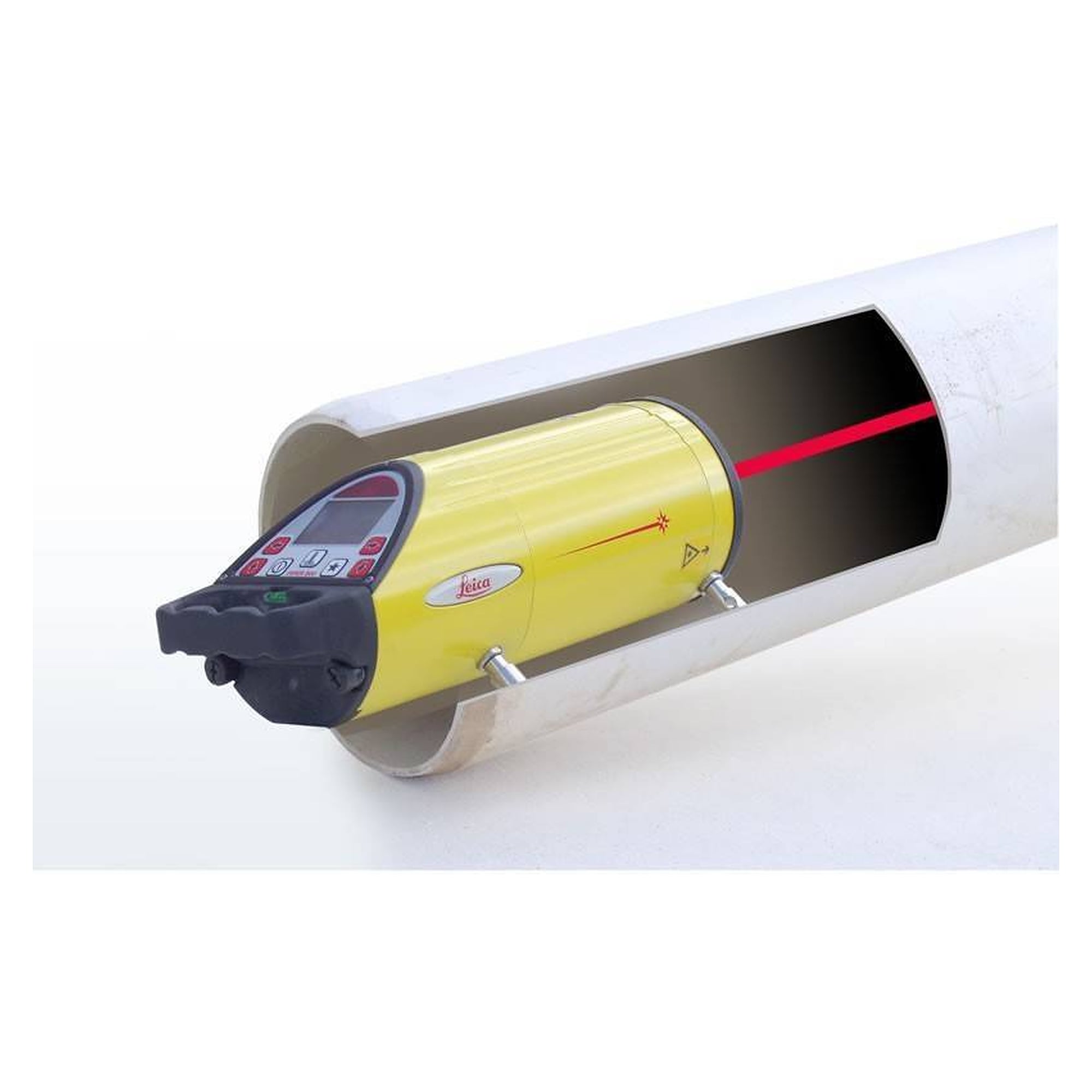

Sewer and pipeline construction, waste water lines and gravity sewers, drainage runs and house connections. The Piper 100 works inside the pipe, over the top and in the manhole, with a smallest pipe diameter of 100 mm.
Scope of delivery
- Leica Piper 100 pipe laser (laser class 3R)
- Carrying case

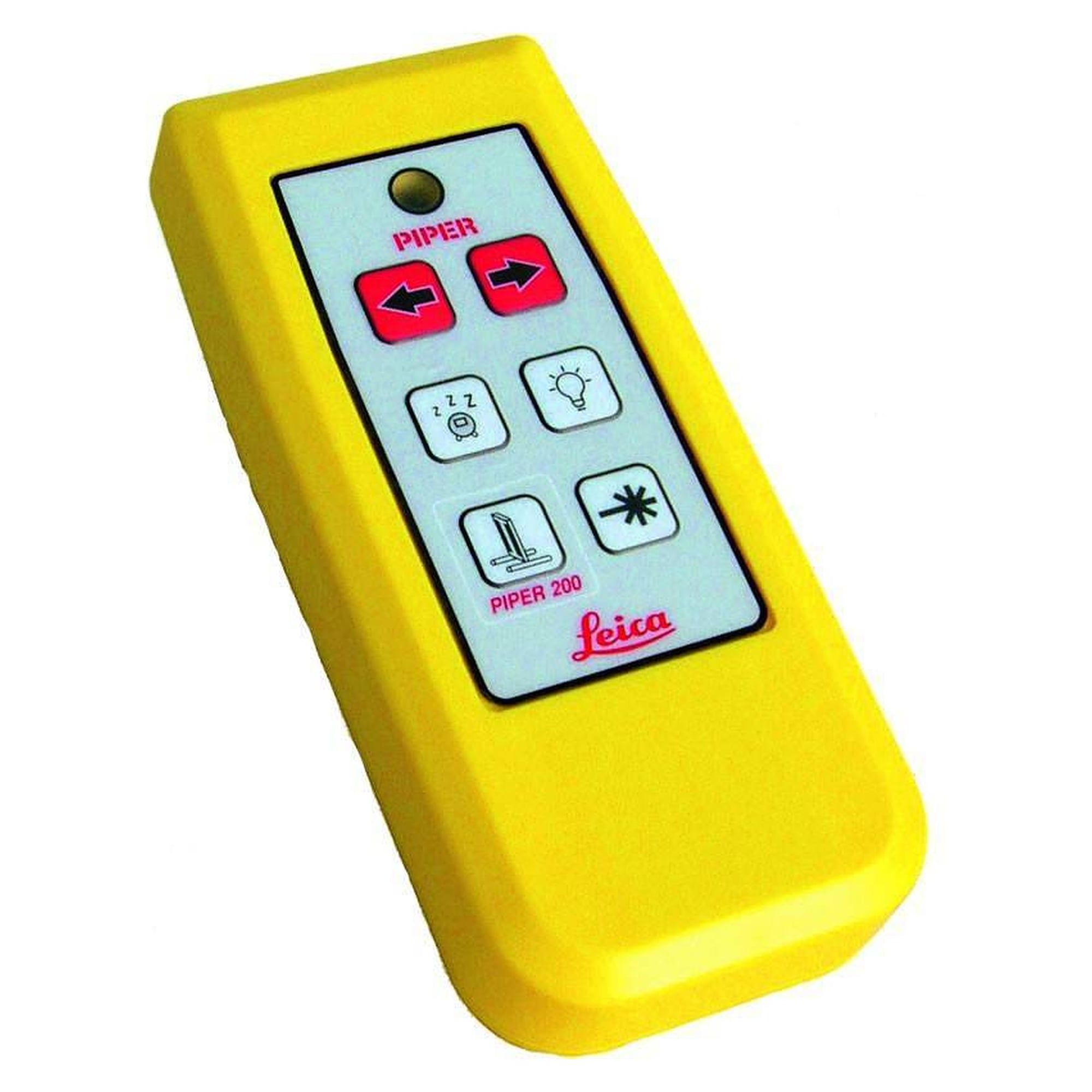

This is the instrument on its own and not a package. Battery, charger, target plates and remote control are not included and are available separately, among them the GEB221 li-ion battery rated 7.4 V and 4.4 Ah, the GKL311 single charger with the GEV192 AC/DC power supply unit, a target set and the IR remote control for Leica Piper. The remote control reaches 150 m to the front and 10 m to the rear. Anyone who already runs Leica batteries and chargers avoids buying them twice.
Standards and origin
Class 3R laser product to IEC 60825-1:2014 with a maximum average radiant power of 4.75 mW. The protection class is IPx8, the manufacturer does not state a dust rating. EAN 7640110696071, customs tariff number 9015301000, country of origin China. Shipping weight is 7.360 kg at shipping dimensions of 64.5 x 35.5 x 51 cm. The manufacturer is Leica Geosystems AG in Heerbrugg, Switzerland.
| Norm | DIN EN 60825-1 |
|---|---|
| Manufacturer Nr. | 748773 |
| Manufacturer | Leica Geosystems |
| Country of Manufacture | China |
| EAN | 7640110696071 |
| Weight | 7.360000 |
| HS-Code | 9015301000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Protection rating | IPX8 |
| Range (m) | 200.000000 |
| Operating time (h) | 40.000000 |
| Laser class | 3R |
| Laser colour | red |
