JBC Soldering tips
JBC Soldering Technology
-
- JBC C470036. Chisel shaped soldering tip, 2x1 mm, C470036€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470035. Chisel-shaped soldering tip, 4x2.5 mm, C470035€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470040. Chisel-shaped soldering tip, 4x1.3 mm, C470040€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470039. Chisel-shaped soldering tip, 8.5x2.5 mm, C470039€42.99Excl. 19% VAT , excl. Shipping Cost
-
-
- JBC C470004. Soldering tip chisel-shaped, 7.5x1.5 mm, C470004€42.99Excl. 19% VAT , excl. Shipping Cost
-
- JBC C470009. Chisel-shaped soldering tip, 5.5x1.5 mm, C470009€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470013. Chisel-shaped soldering tip, 2x0.9 mm, C470013€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470014. Chisel-shaped soldering tip, 4x1.3 mm, C470014€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470015. Soldering tip chisel-shaped, 6x1.7 mm, C470015€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C470016. Chisel-shaped soldering tip, 7.5x1.7 mm, C470016€42.99Excl. 19% VAT , excl. Shipping Cost
-
- JBC C470017. Chisel-shaped soldering tip, 5x1.2 mm, C470017€42.99Excl. 19% VAT , excl. Shipping Cost
-
- JBC C470058. Soldering tip chisel-shaped, 8x2.5 mm, C470058€42.99Excl. 19% VAT , excl. Shipping Cost
- JBC C245313. Special soldering tips, for soldering iron T245, C245313€41.99Excl. 19% VAT , excl. Shipping Cost
- JBC C245118. Special soldering tips, for soldering iron T245, C245118€41.99Excl. 19% VAT , excl. Shipping Cost
- JBC C245117. Special soldering tips, for soldering iron T245, C245117€41.99Excl. 19% VAT , excl. Shipping Cost
- JBC C245124. Special soldering tips series C245, for soldering iron T245€41.99Excl. 19% VAT , excl. Shipping Cost
-
- JBC C245163. Special tip with chrome surface for plastic rivets C245163, 2.5 mm€41.99Excl. 19% VAT , excl. Shipping Cost
JBC soldering tips are engineered with a high-purity copper core and proprietary iron-plated coating, delivering thermal recovery times under 0.5 seconds and stable tip temperatures across a working range of 50-450 °C - verified to IEC 60335-2-45 and IPC J-STD-001. The cartridge-based design (C105, C115, C130, C210, C245, C250, C470, R245, R470, W140, W440) integrates heater and thermocouple directly in the tip, achieving temperature accuracy of ±2 °C and heat transfer efficiency up to 90 W depending on the cartridge series.
As an authorized distributor, esd.equipment offers over 410 JBC soldering tip references spanning Nano (C105/C115), Micro (C130), standard (C210/C245), high-power (C470), and specialty configurations including Pulsmatic and robotic (R245/R470) series - all compliant with IPC-7711/7721 rework standards and ESD-safe handling per IEC 61340-5-1.
JBC Soldering tips for soldering irons
Universal cartridge tips, 50-450 °C, IPC J-STD-001 compatible
JBC Soldering tips C210
C210 series, for T210-A / T210-NA handpieces, fine-pitch SMD work
JBC Soldering tips C245
C245 series, for T245 handpiece, up to 130 W, general-purpose
JBC Soldering tips Pulsmatic
Pulsmatic / TB-3220, pulse-heated, connector and wire termination
JBC Special Soldering tips C245
C245 specialty geometries for T245, drag / gull-wing / chip-carrier
JBC Soldering tips C250
C250 series, for AL250-A hot-air pencil, SMD rework up to 450 °C
JBC Soldering tips C130
C130 series, for AP130-A micro pencil, tip mass <0.3 g, Micro SMD
JBC Soldering tips C470
C470 series, for T470 handpiece, up to 210 W, heavy connectors / wires
JBC Soldering tips C105
C105 Nano series, for NT105 / NP105, tip diameter from 0.08 mm
JBC Soldering tips R245
R245 robotic series, for TR245, automated soldering cells, ±2 °C

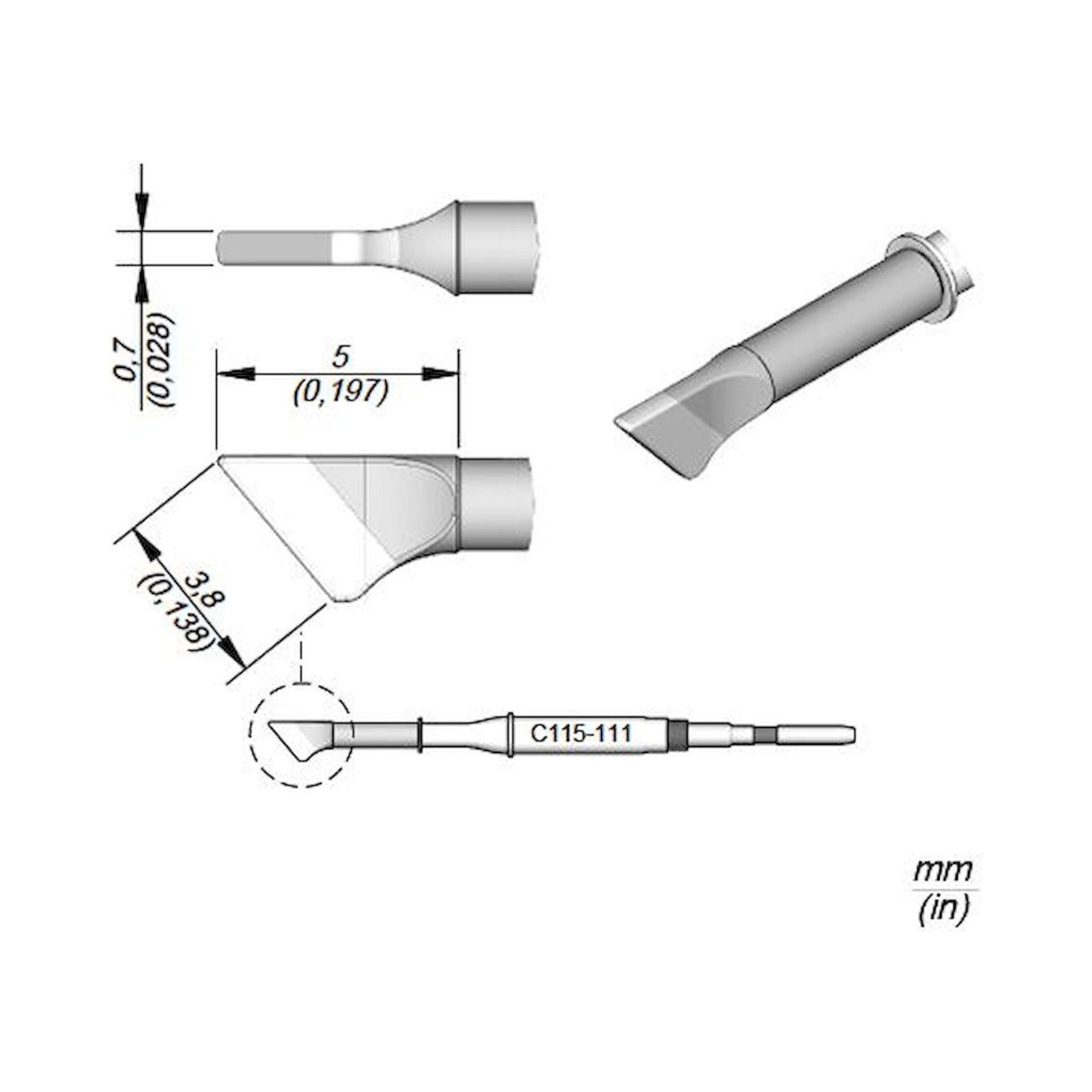

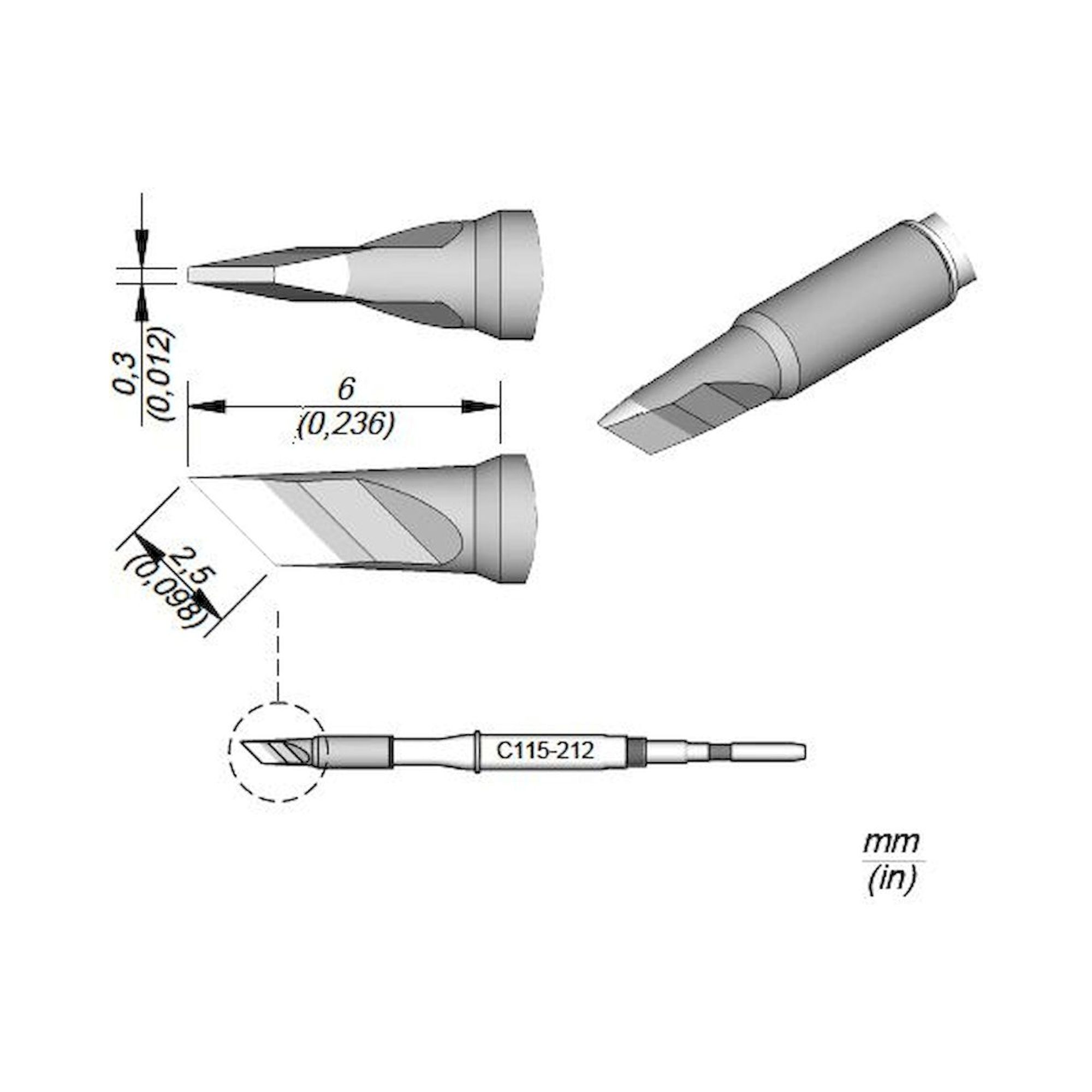

JBC Soldering tips C115
C115 Nano series, for NT115 / NP115, ultra-fine 0.1 mm tip options
JBC Soldering tips W440
W440 series, for WS440 tweezer handpiece, SMD component removal
JBC Soldering tips R470
R470 robotic series, for TR470, high-power automated lines, 210 W
JBC Soldering tips W140
W140 series, for WS140 Micro tweezer, 0201 / SOT-23 component handling
Key technical advantages - JBC Soldering Tips at a glance
⚡ 50-450 °C working range - stable temperature control per IEC 60335-2-45
↕ ±2 °C tip accuracy - integrated thermocouple in cartridge body
🛠 <0.5 s thermal recovery - copper-core cartridge, up to 90 W output (C470: 210 W)
⚙ 14 cartridge series - C105 to C470, R245/R470 robotic, W140/W440 tweezer
🛡 ESD-safe design - tip potential <2 mV, compliant with IEC 61340-5-1
✓ IPC J-STD-001 / IPC-7711 qualified - industry-standard rework and assembly certification
JBC vs. Weller vs. Hakko vs. Metcal - soldering tip technical comparison
| Criterion | JBC | Weller | Hakko | Metcal |
|---|---|---|---|---|
| Heater integration | Cartridge (heater + TC in tip) | Tip-heater separate | Tip-heater separate | SmartHeat RF cartridge |
| Temperature accuracy | ±2 °C | ±5 °C | ±3 °C | ca. ±5 °C |
| Max. tip power | 210 W (C470 / R470) | 120 W (WXP 120) | 130 W (FM-2032) | ca. 90 W (MX-H1-AV) |
| Thermal recovery | <0.5 s | ca. 3-5 s | ca. 4-6 s | ca. 1-2 s |
| Nano / Micro tip options | C105 / C115 / C130 (from 0.08 mm) | Micro series (from 0.2 mm) | FM-2032 (from 0.1 mm) | MX-RM3E (from 0.25 mm) |
| ESD tip potential | <2 mV (IEC 61340-5-1) | <5 mV | <5 mV | <2 mV |
| Robotic / automated tips | R245 / R470 dedicated series | Limited standard tips adapted | FM-2028 robotic | STTC series adapted |
| Norm compliance | IEC 60335-2-45, IPC J-STD-001, IPC-7711 | IEC 60335-2-45, IPC J-STD-001 | IEC 60335-2-45, IPC J-STD-001 | IPC J-STD-001 |
JBC Soldering Tip Series - Product overview
| Series | Compatible Handpiece | Power / Spec. | Key Feature |
|---|---|---|---|
| C105 | NT105 / NP105 (Nano) | ca. 17 W | Tip diameter from 0.08 mm, micro-BGA |
| C115 | NT115 / NP115 (Nano) | ca. 20 W | Ultra-fine 0.1 mm tip, 0201 components |
| C130 | AP130-A (Micro pencil) | ca. 30 W | Tip mass <0.3 g, fast heat-up |
| C210 | T210-A / T210-NA | up to 60 W | Fine-pitch SMD, wide geometry range |
| C245 | T245 | up to 130 W | General-purpose, broadest tip selection |
| C245 Special | T245 | up to 130 W | Drag, gull-wing, chip-carrier geometries |
| C250 | AL250-A (hot-air pencil) | up |
