Soldering tips C130
Soldering tips
JBC C130 soldering tips are designed for the AP130-A handpiece. All 12 variants are in bent configuration, making the AP130-A a specialist handpiece for restricted-access work. Conical tips are available in diameters of 0.6 mm (C130401), 0.8 mm (C130402), 1 mm (C130403), 1.7 mm (C130409), 2.2 mm (C130410), 3 mm (C130416) and 4 mm (C130417). Chisel tips cover 1.2x0.7 mm (C130404), 1.8x0.8 mm (C130405), 2.2x1 mm (C130406), 3.2x1.5 mm (C130418) and 4.8x1.5 mm (C130419).
| Geometry | Part no. | Size |
|---|---|---|

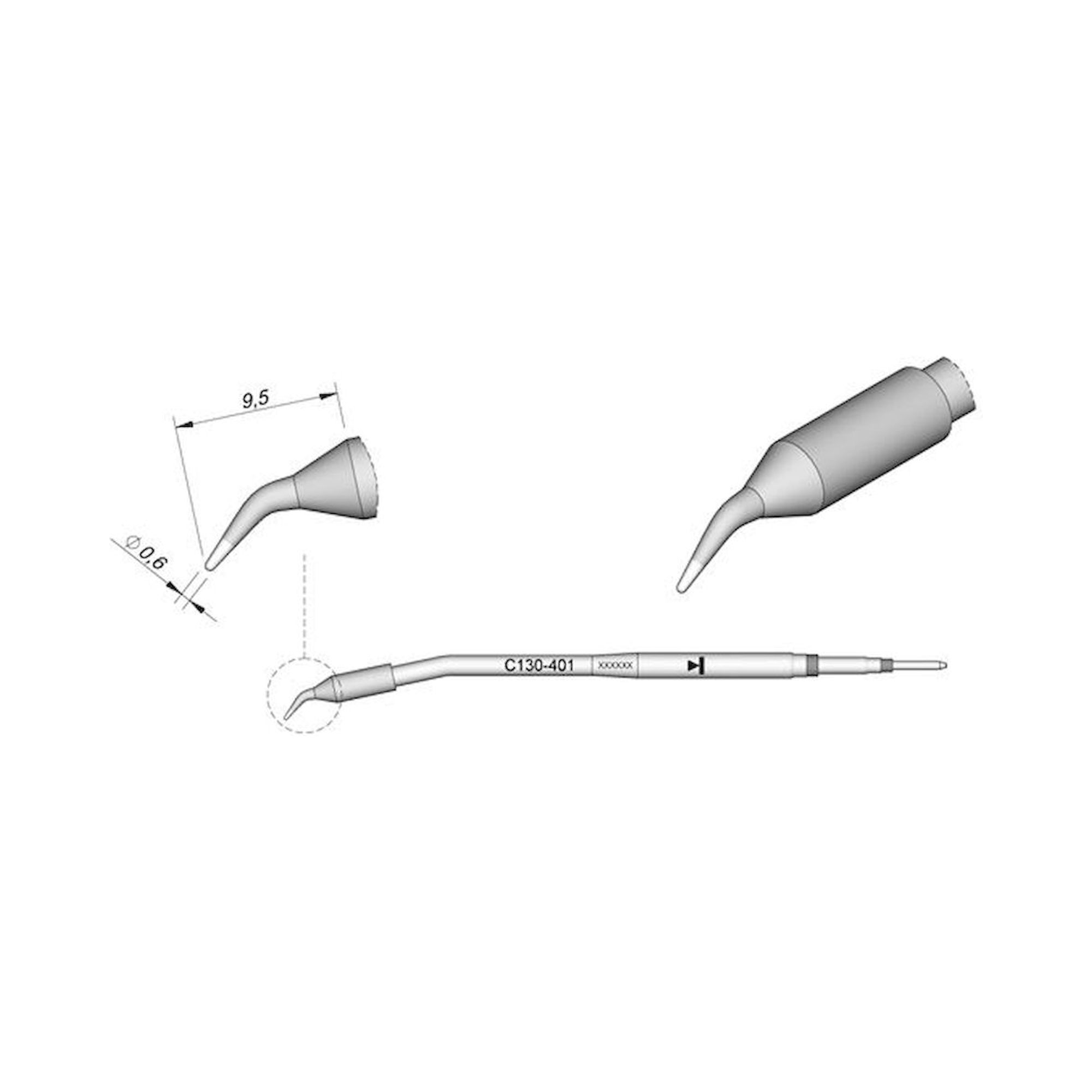

| Conical, bent | C130401 | D: 0.6 mm |

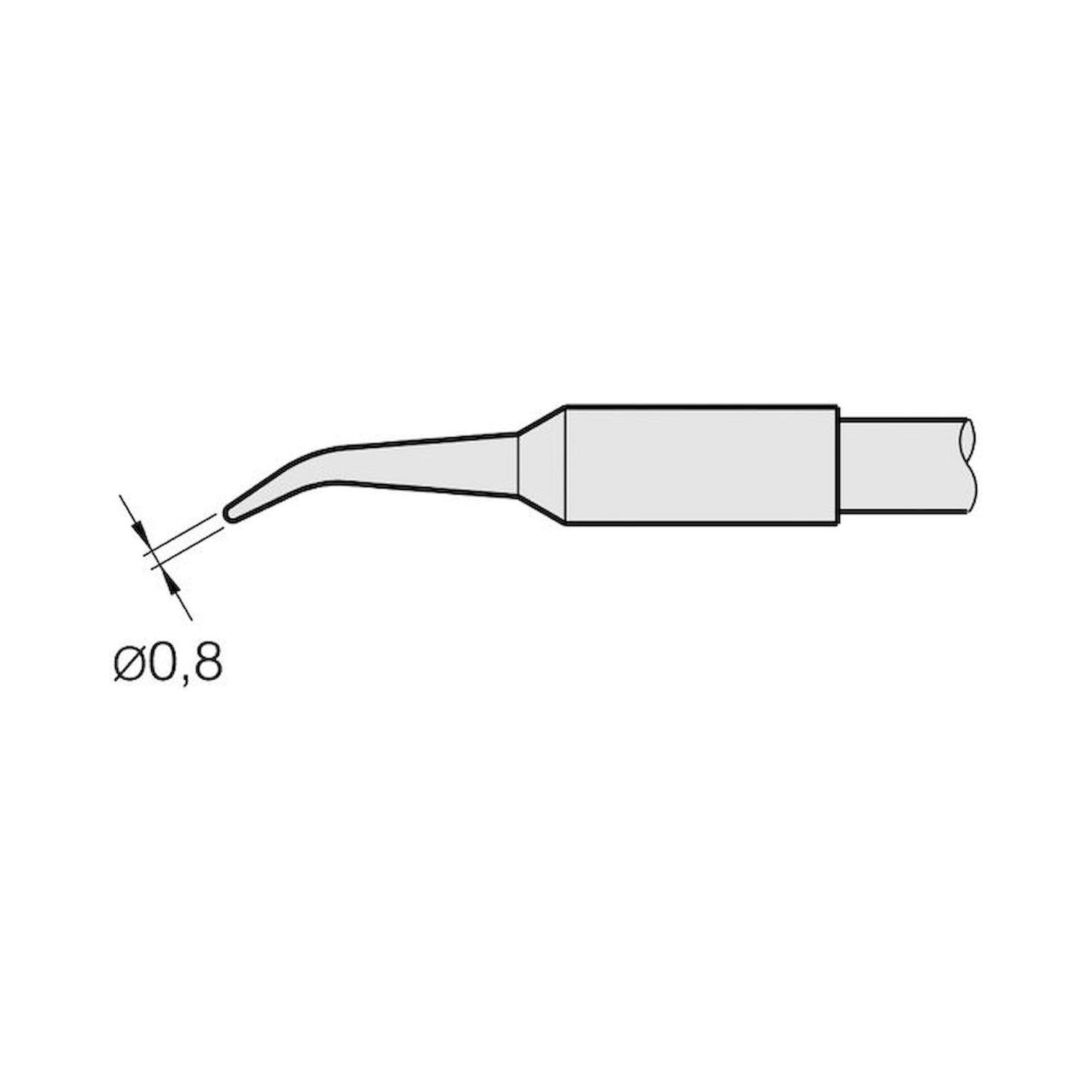

| Conical, bent | C130402 | D: 0.8 mm |

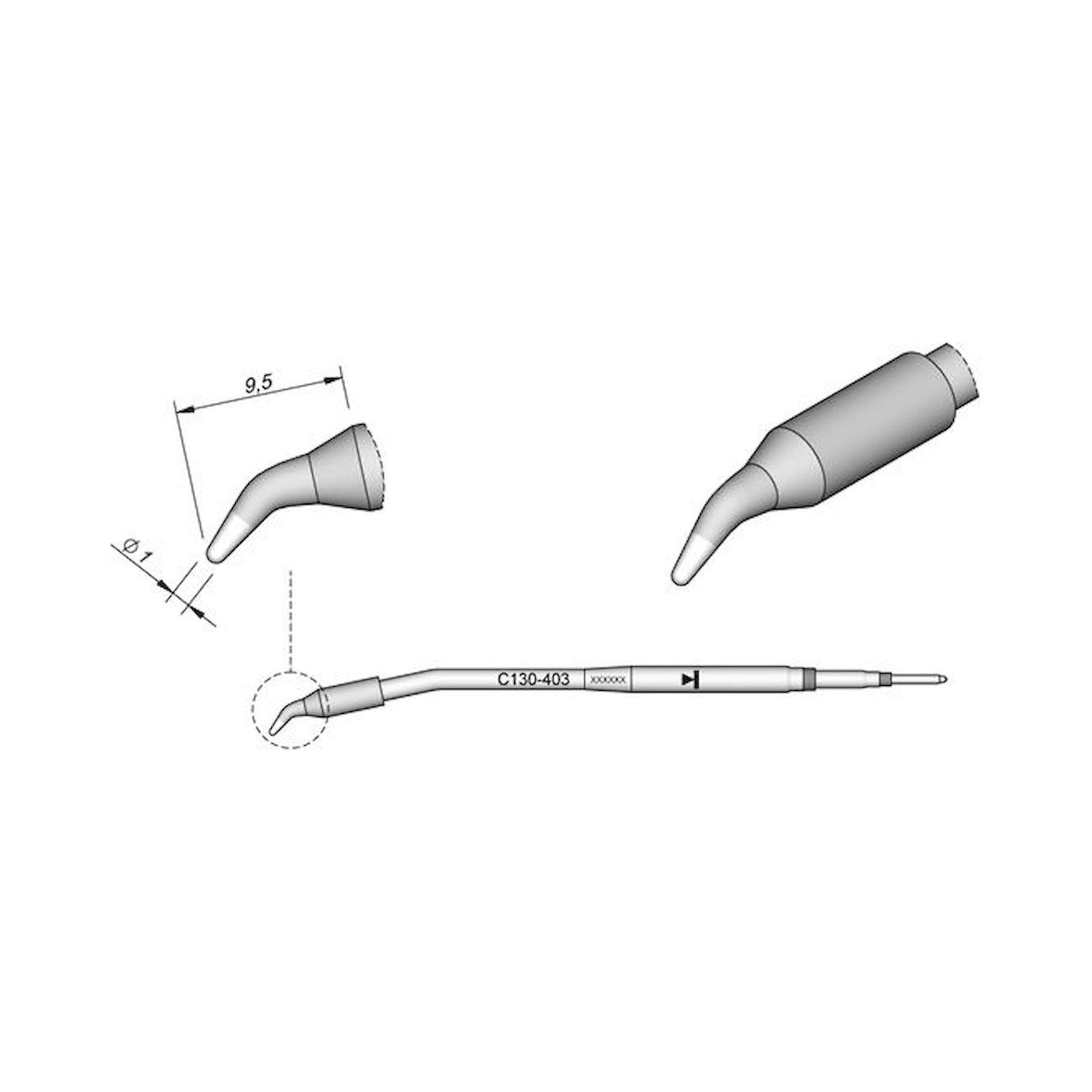

| Conical, bent | C130403 | D: 1 mm |

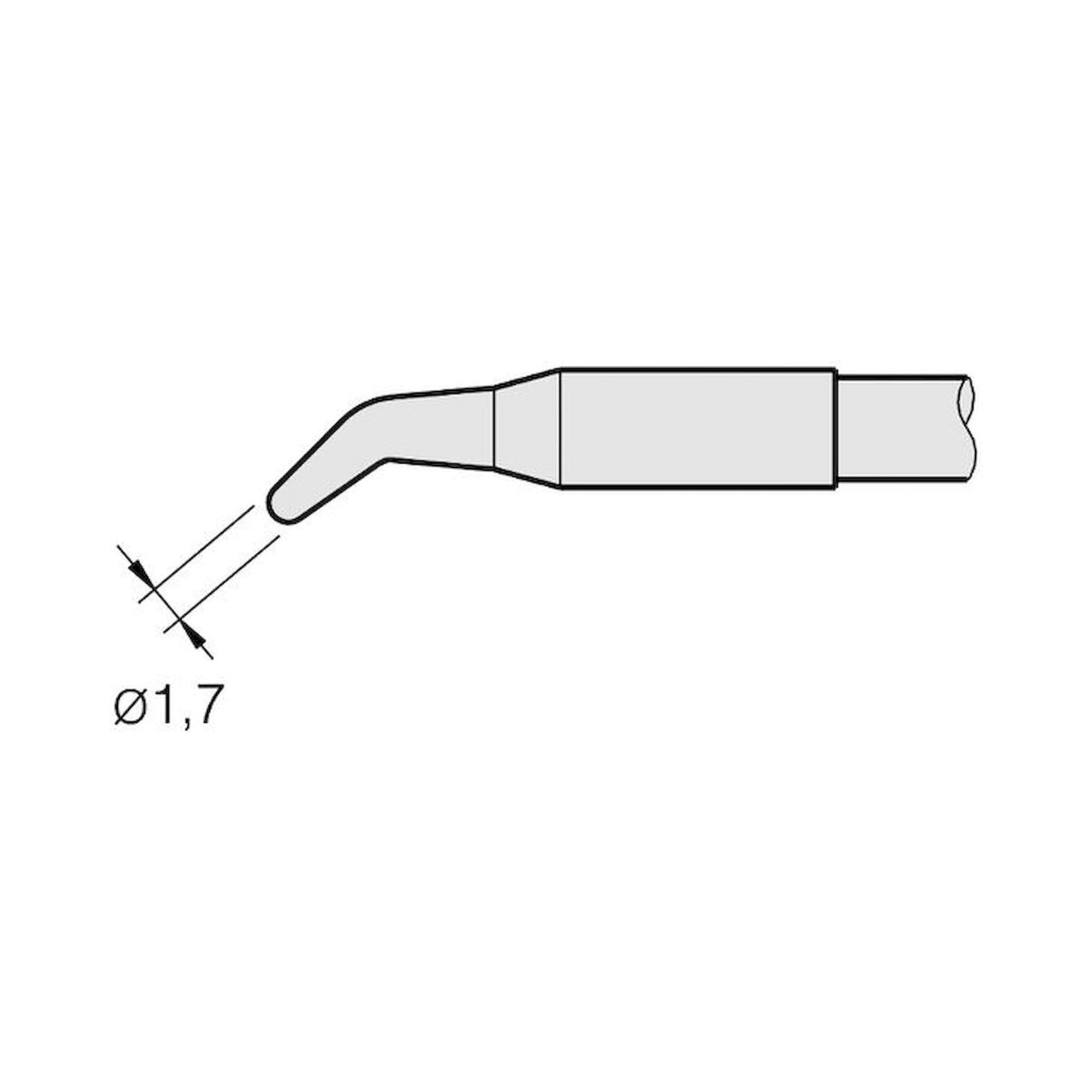

| Conical, bent | C130409 | D: 1.7 mm |

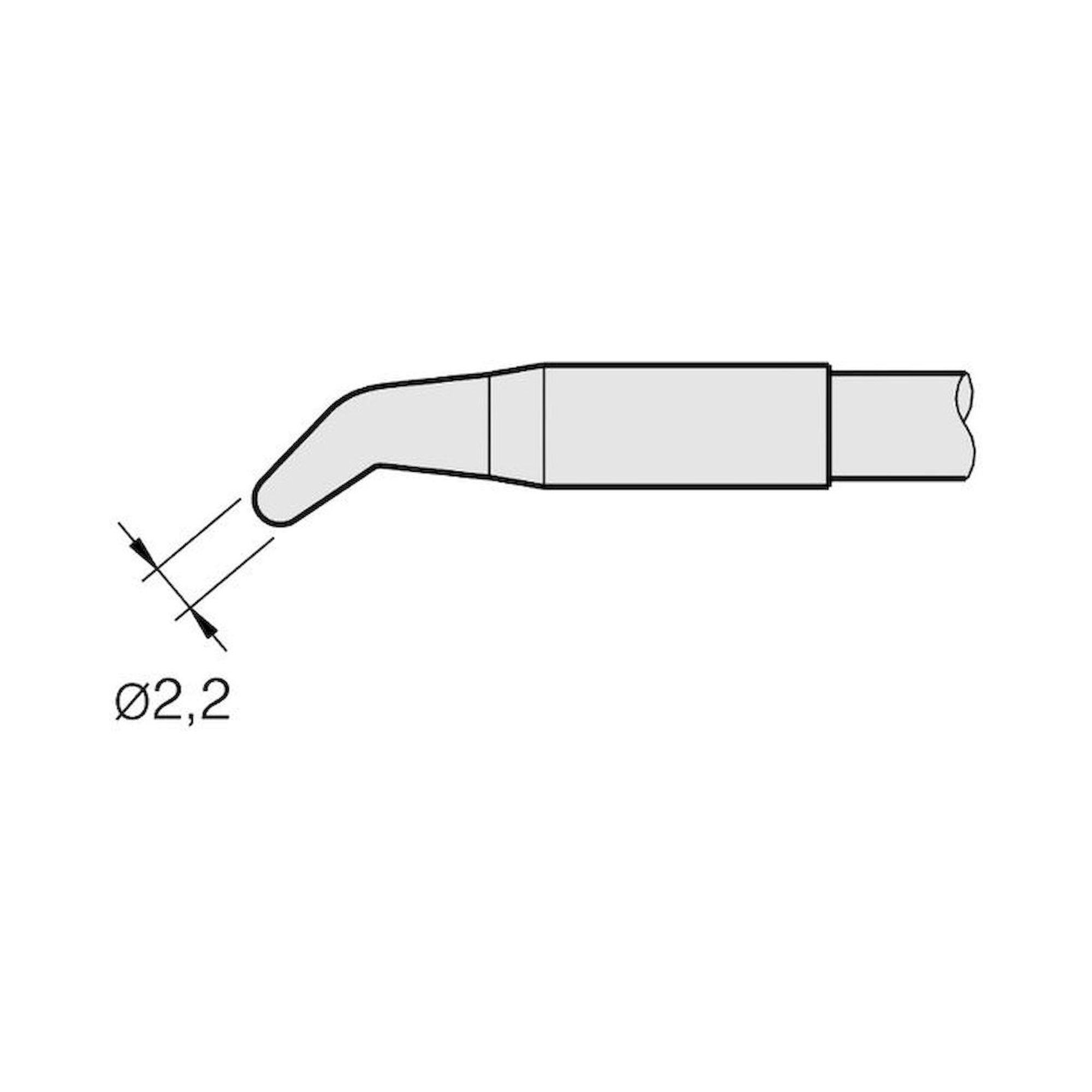

| Conical, bent | C130410 | D: 2.2 mm |
| Conical, bent | C130416 | D: 3 mm |

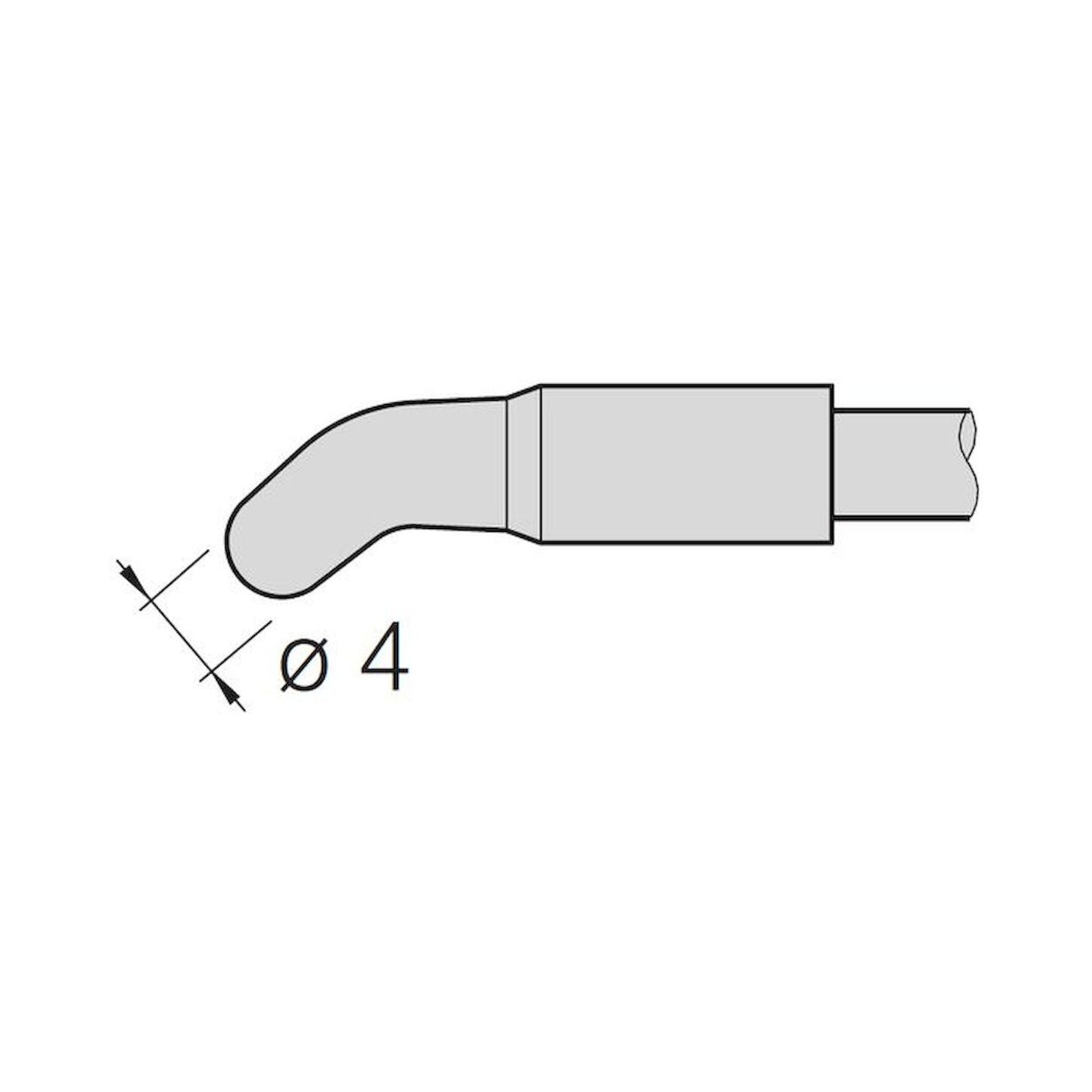

| Conical, bent | C130417 | D: 4 mm |

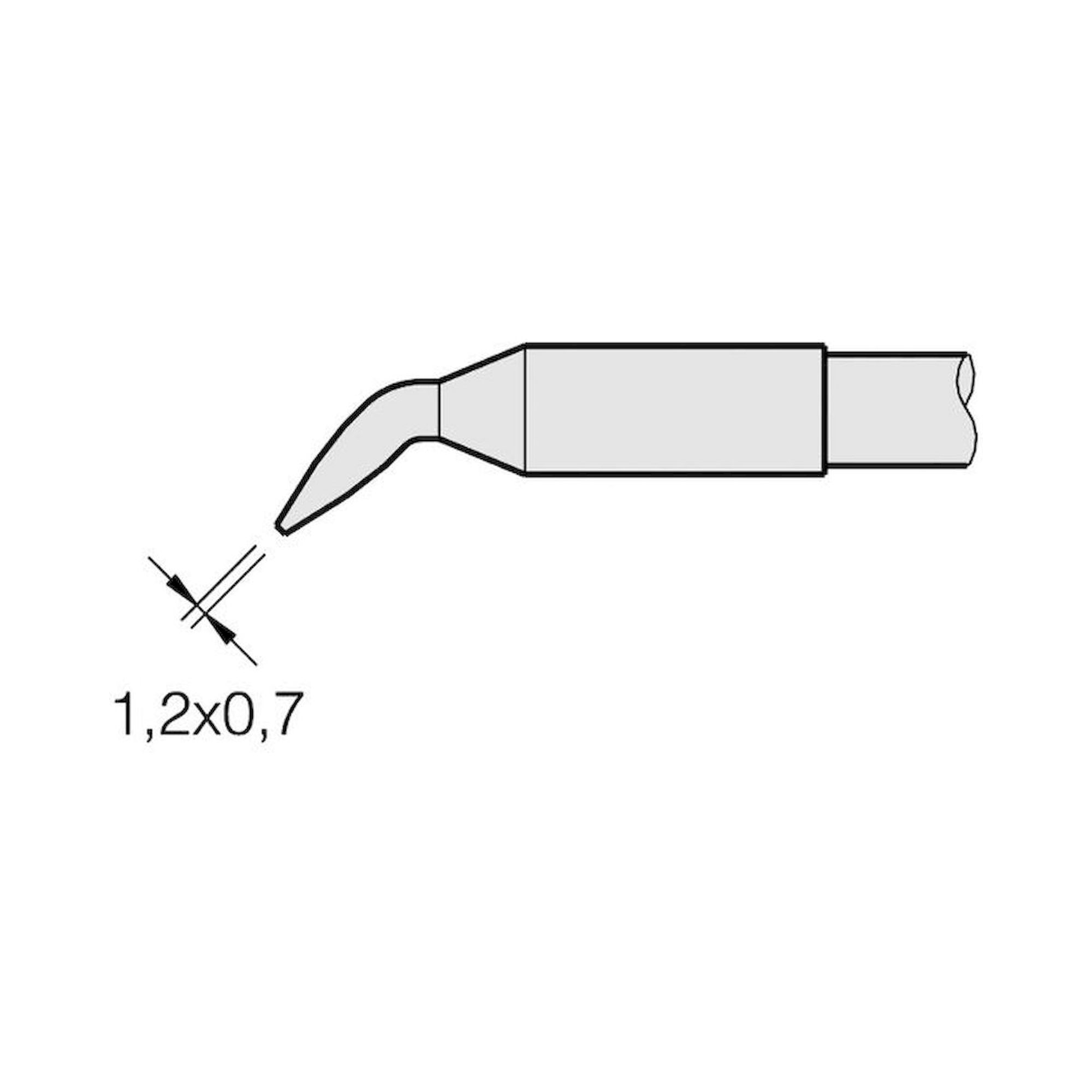

| Chisel, bent | C130404 | 1.2x0.7 mm |

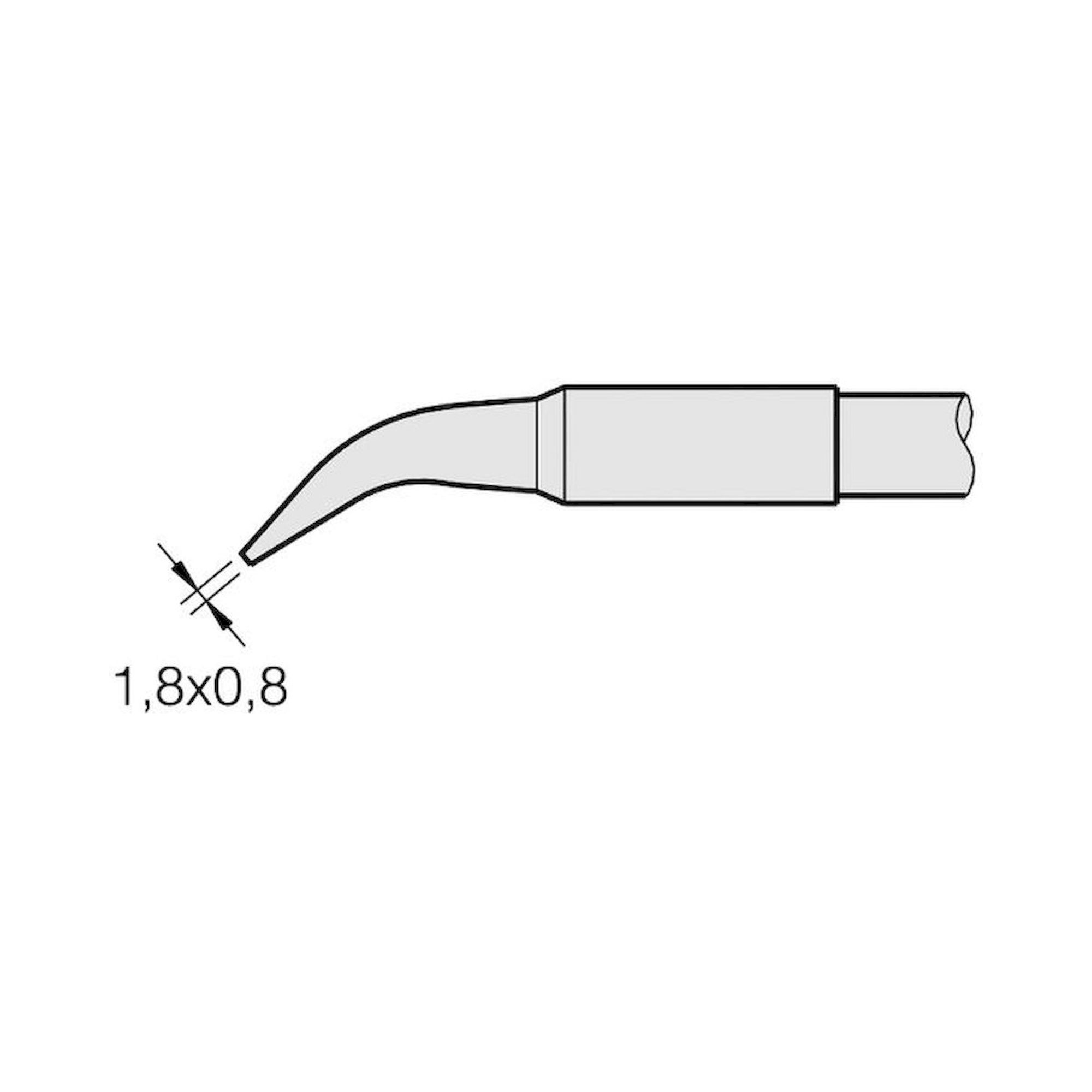

| Chisel, bent | C130405 | 1.8x0.8 mm |

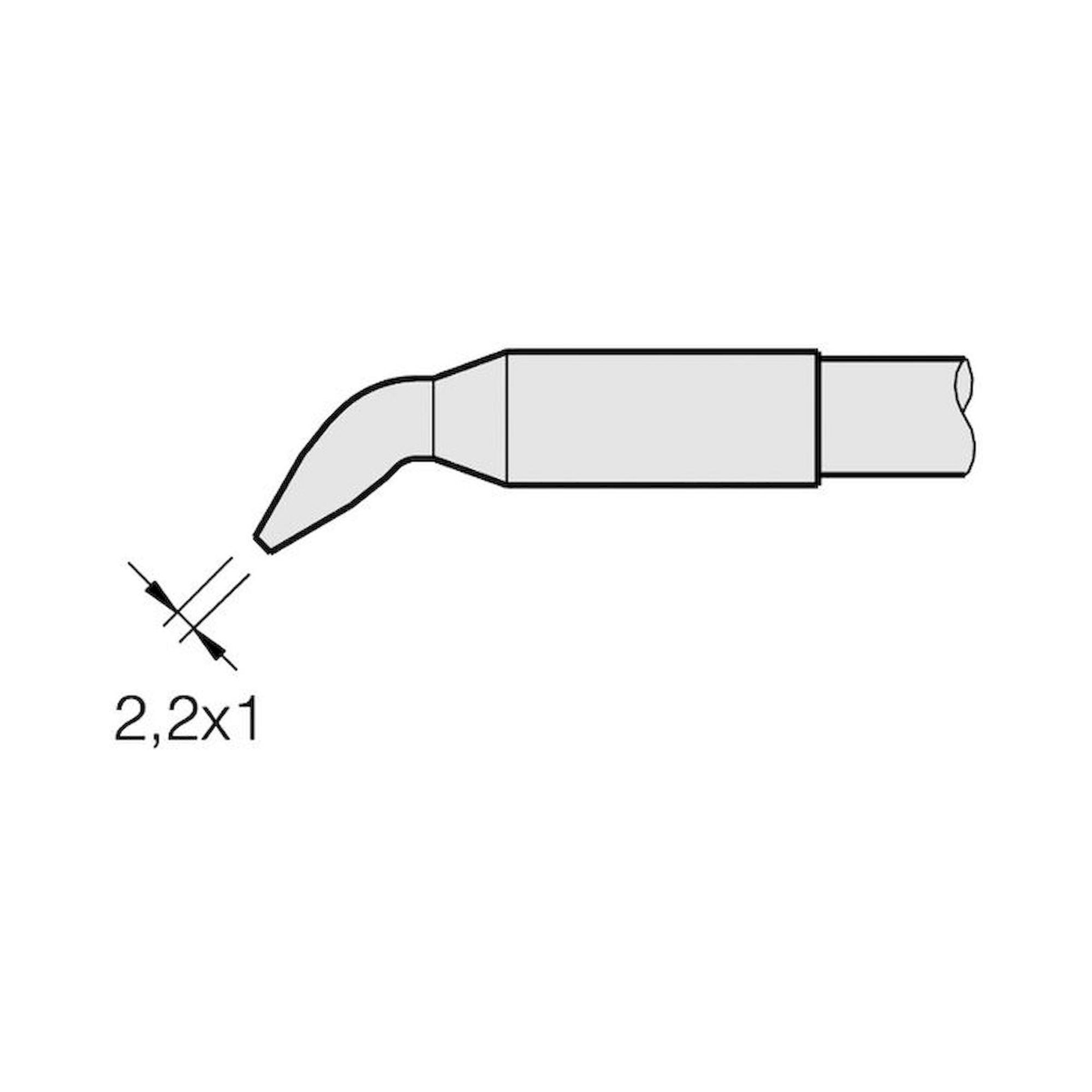

| Chisel, bent | C130406 | 2.2x1 mm |

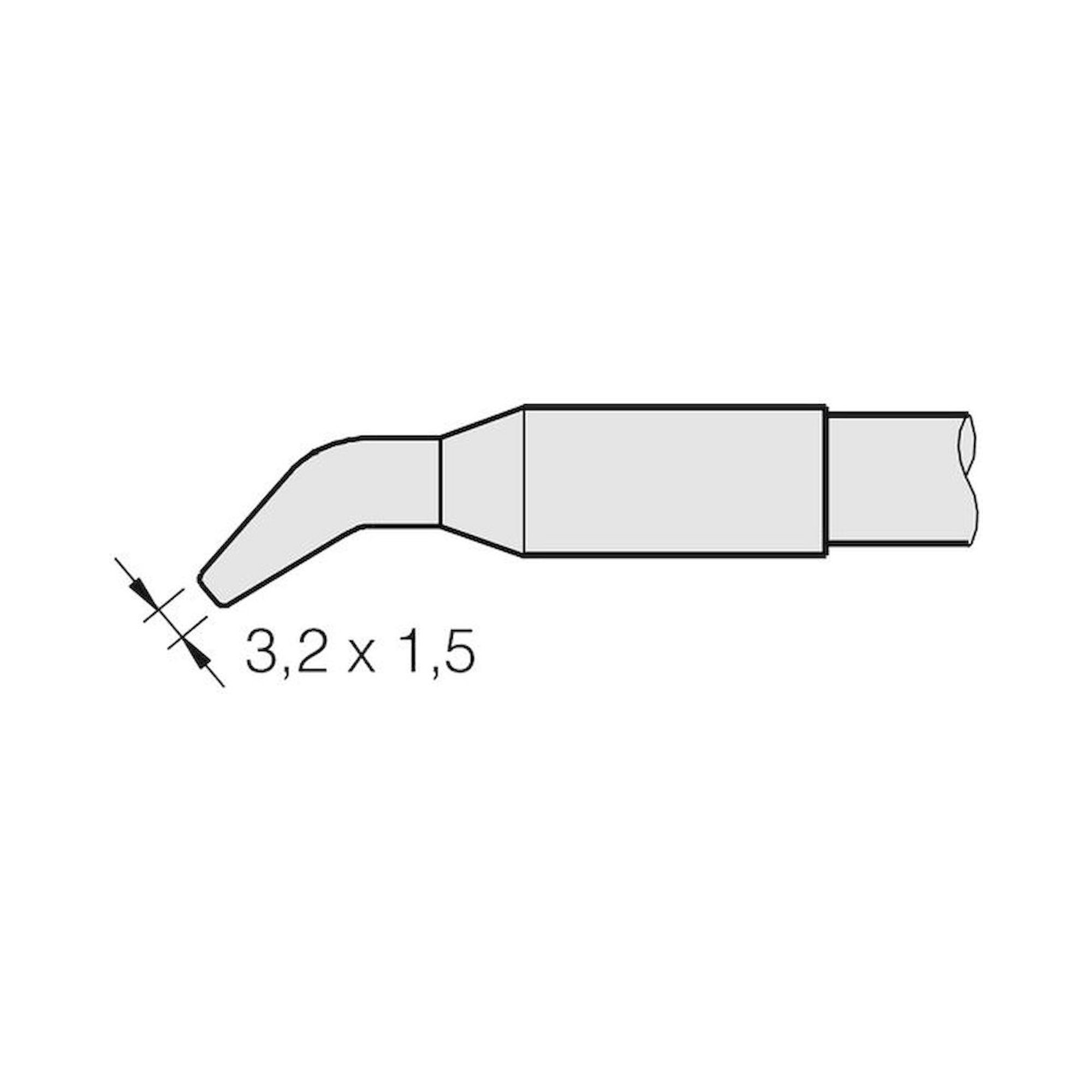

| Chisel, bent | C130418 | 3.2x1.5 mm |

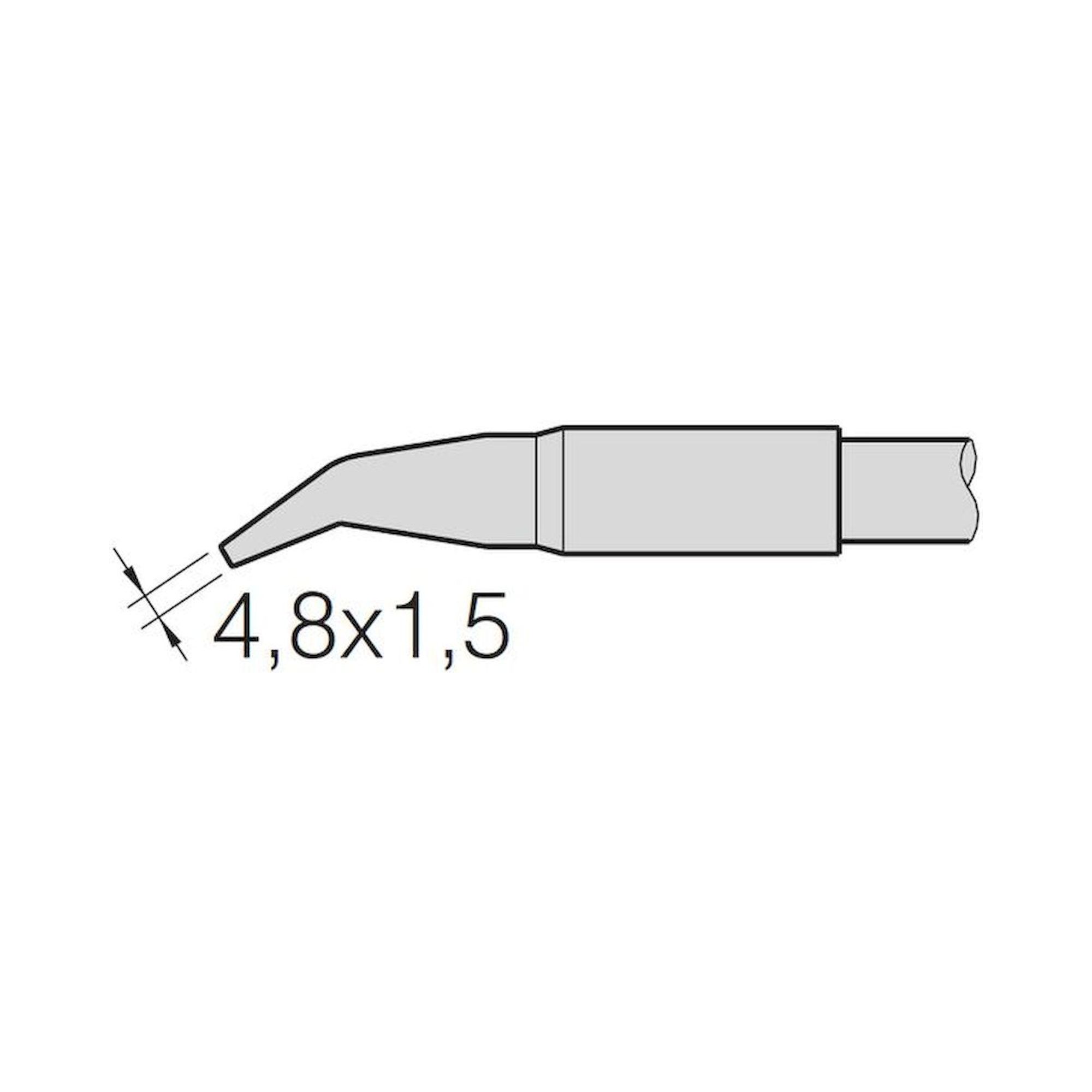

| Chisel, bent | C130419 | 4.8x1.5 mm |
AP130-A compatibility - exclusively for the AP130-A handpiece, all tips bent
Bent configuration - enables soldering in confined positions and at oblique approach angles
12 variants - conical D: 0.6-4 mm and chisel 1.2x0.7 to 4.8x1.5 mm
C130417 (D: 4 mm) - largest conical tip for power connections and ground wires
Typical applications: Soldering in spatially confined environments with the AP130-A handpiece, rework and repair on populated PCBs, SMD pad soldering and THT connections at bent approach angles, and assembly and service work inside tight enclosures.
