Soldering tips C470
The JBC C470 soldering tips for the T470 high-power iron cover 58 variants in large and medium-large geometries. Chisel tips range from 2x0.9 mm (C470013) up to 28x4 mm (C470022) and 15.5x2.5 mm (C470007). Round tips are available at D 1.7 mm (C470001) and D 15 mm (C470005, round/flat). Cylindrical tips include D 1.2 mm (C470028), D 3.65 mm (C470033) and D 5 mm (C470030). Angled tips in D 3.5 mm (C470008) and D 4.2 mm (C470011), together with a blade tip at 32.2 mm (C470023), round out the range. Special forms for cables and connectors (C470031, D 3.2 mm) are also available.
- 55 items
- 1 manufacturer
- Net prices plus VAT
Buying guide
How to choose Soldering tips C470
What matters when choosing: properties, comparison and typical applications.
Selected C470 tip geometry overview
| Geometry | Part no. | Size | Application |
|---|---|---|---|
| Chisel | C470013 | 2x0.9 mm | Medium SMD pads |
| Chisel | C470002 | 6x1.5 mm | Power pads |
| Chisel | C470006 | 10x2.5 mm | Large area, ground pads |
| Chisel | C470022 | 28x4 mm | Maximum heat transfer |
| Bevel | C470003 | D 7.5 mm | Large pad, through-hole |
| Bevel | C470019 | D 3.5 mm | Medium pads |
| Round/flat | C470005 | D 15 mm | Area soldering |

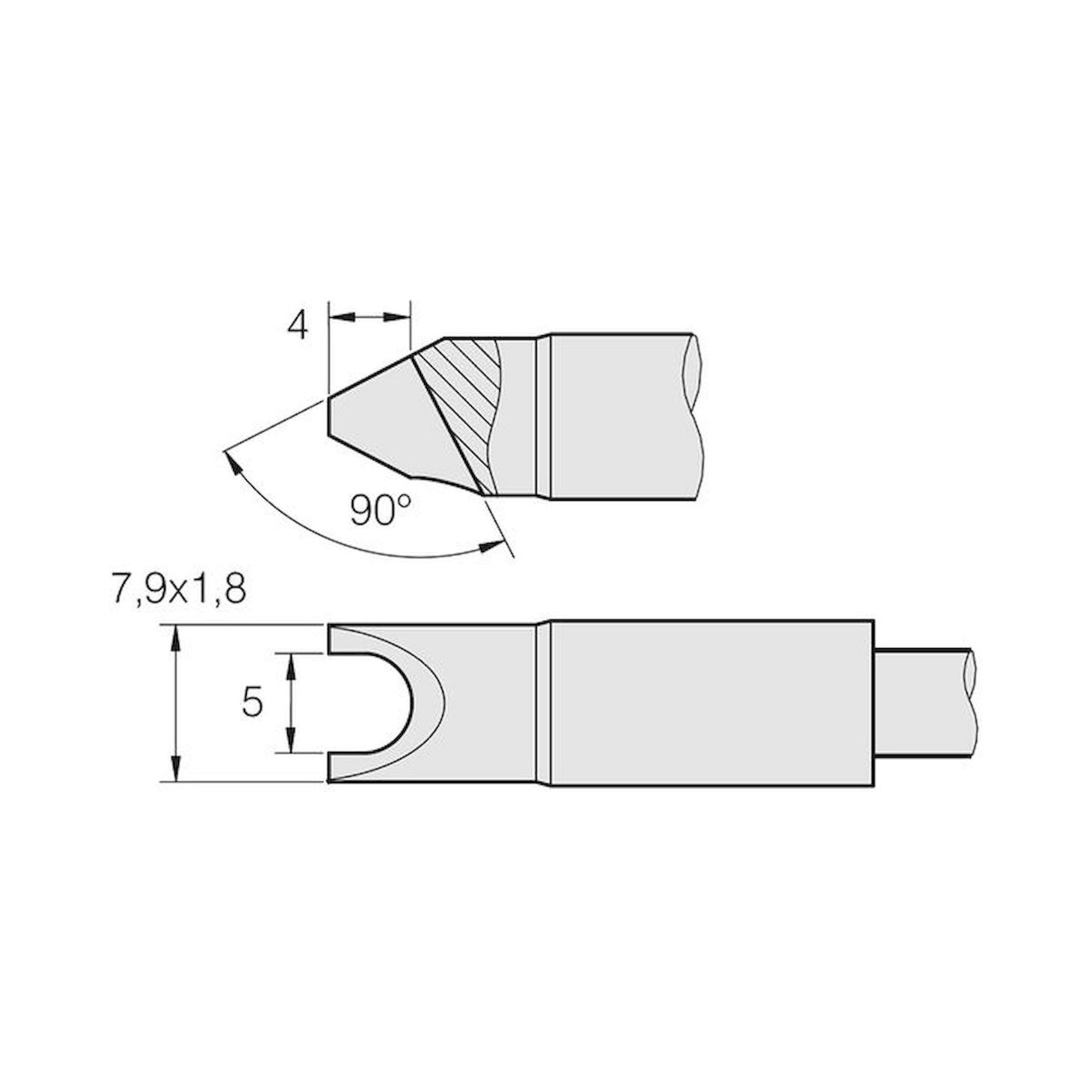

| Cylindrical | C470030 | D 5 mm | Round contacts |
| Blade | C470023 | 32.2 mm | Drag, large lead rows |

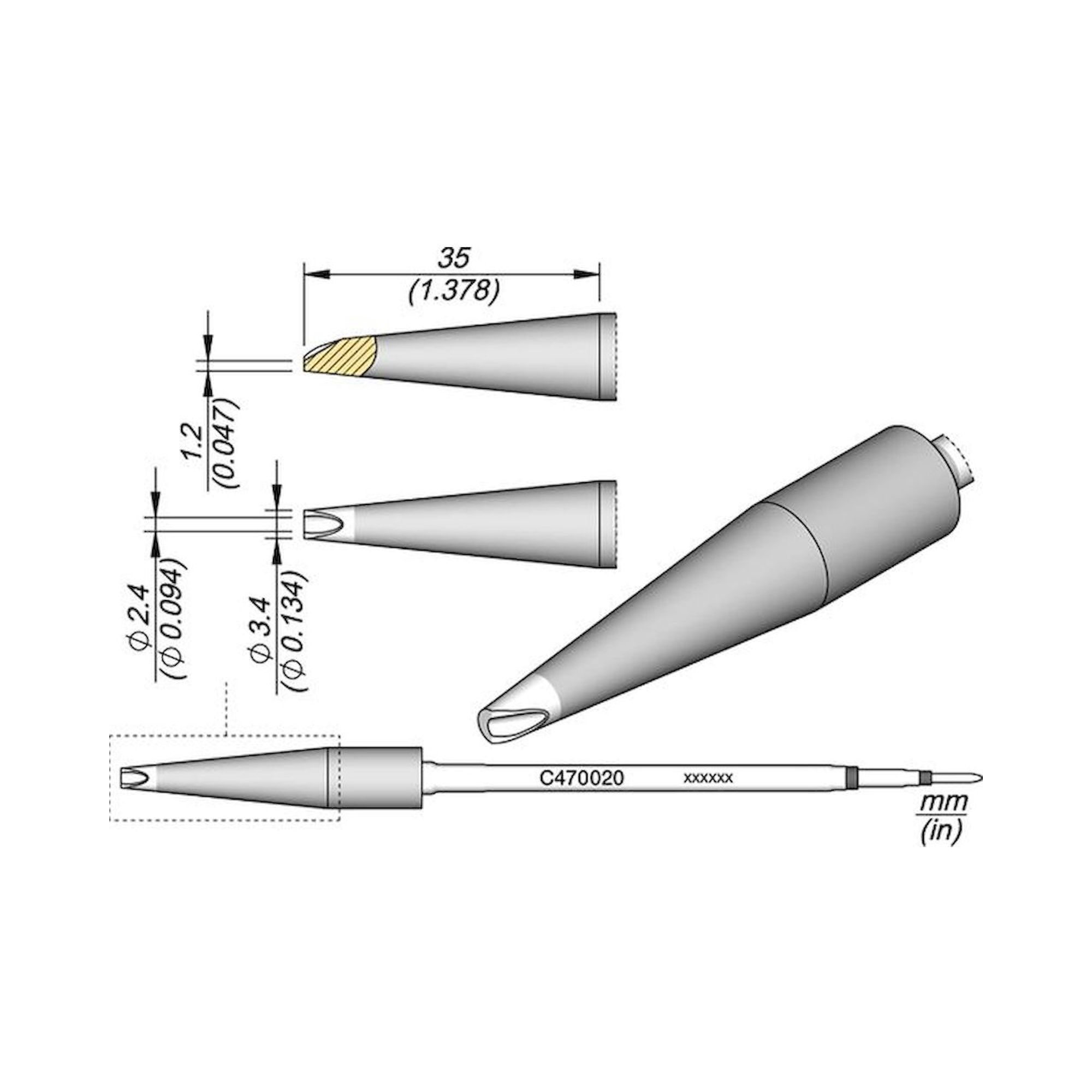

| Concave | C470020 | D 2.4 mm | Round component, coax |

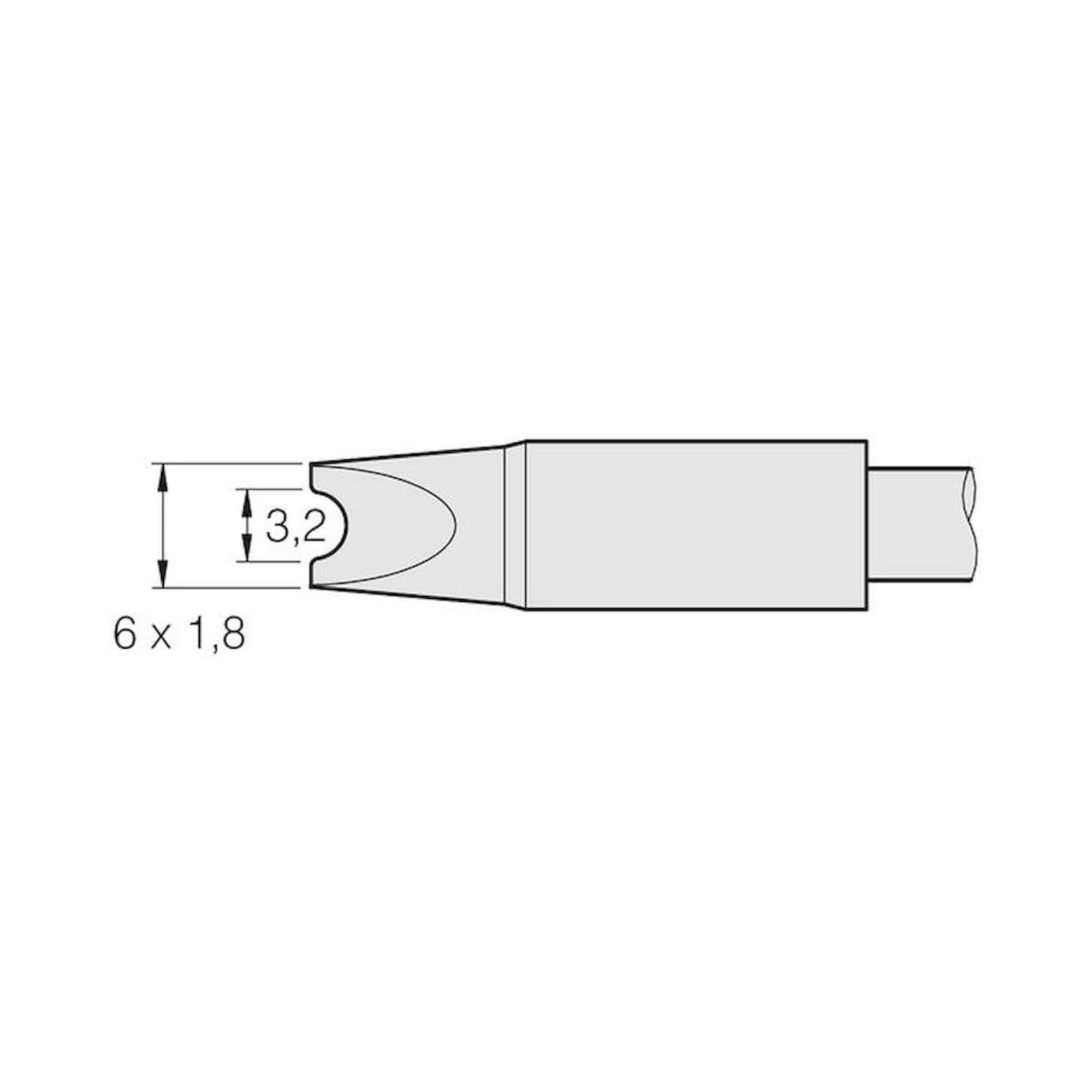

| Cable / connector | C470031 | D 3.2 mm | Cable lug, connector pin |
| Special pin/connector | C470042 | 4.8 mm | Pin and connector soldering |
Technical features
Typical applications
Typical applications: Soldering power components, ground planes and large SMD pads, cable and connector assembly (C470031, C470042), drag soldering on large lead pitches with C470023, coaxial and round-component connections with the concave C470020, and THT through-hole connections with wide bevel tips in automotive and industrial electronics.
