Soldering tips C250
Soldering tips

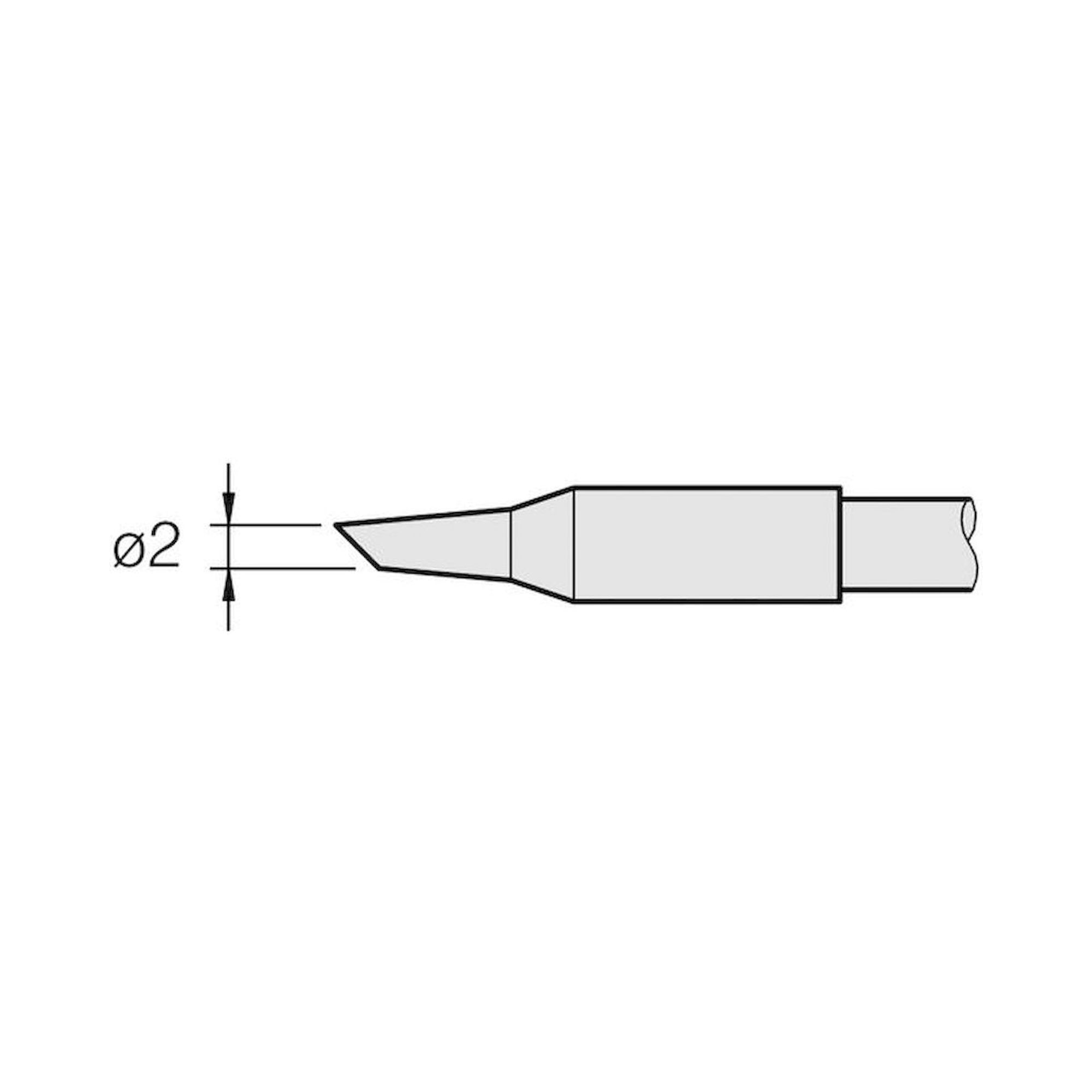

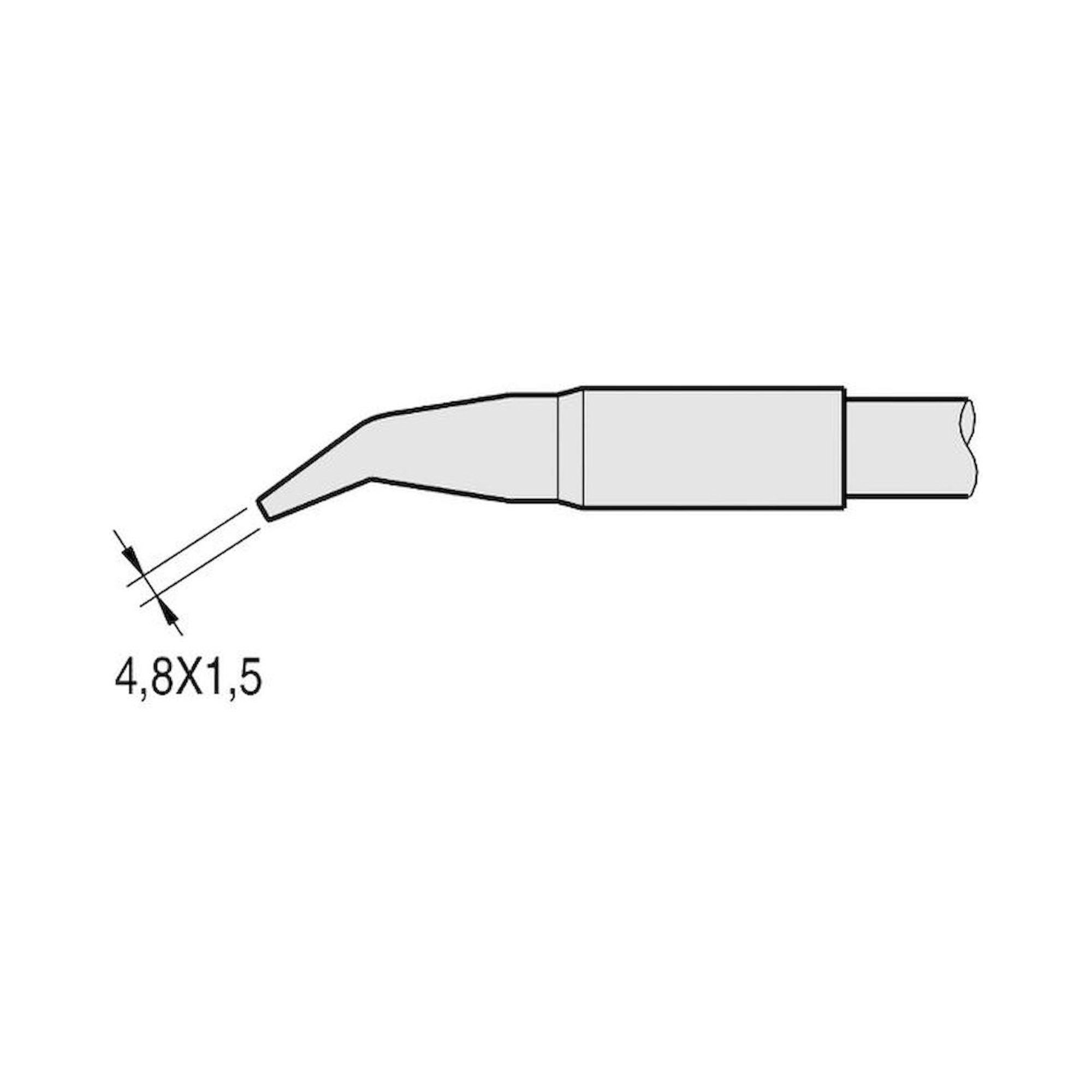

JBC C250 soldering tips are designed for the AL250-A handpiece and offer 18 variants in bent and straight versions. Conical tips are available from 0.6 mm diameter (C250401, bent) up to 2.2 mm (C250410, bent). Chisel tips in straight version range from 1.2x0.7 mm (C250407) to 4.8x1.5 mm (C250411), and in bent version from 1.2x0.7 mm (C250404) to 4.8x1.5 mm (C250412). Bevelled tips are available as C250414 (D: 2.2 mm), C250415 (D: 3.8 mm) and C250424 (3 mm, also compatible with AL250 and AP250).
| Geometry | Part no. | Size | Version |
|---|---|---|---|
| Conical | C250401 | D: 0.6 mm | bent |

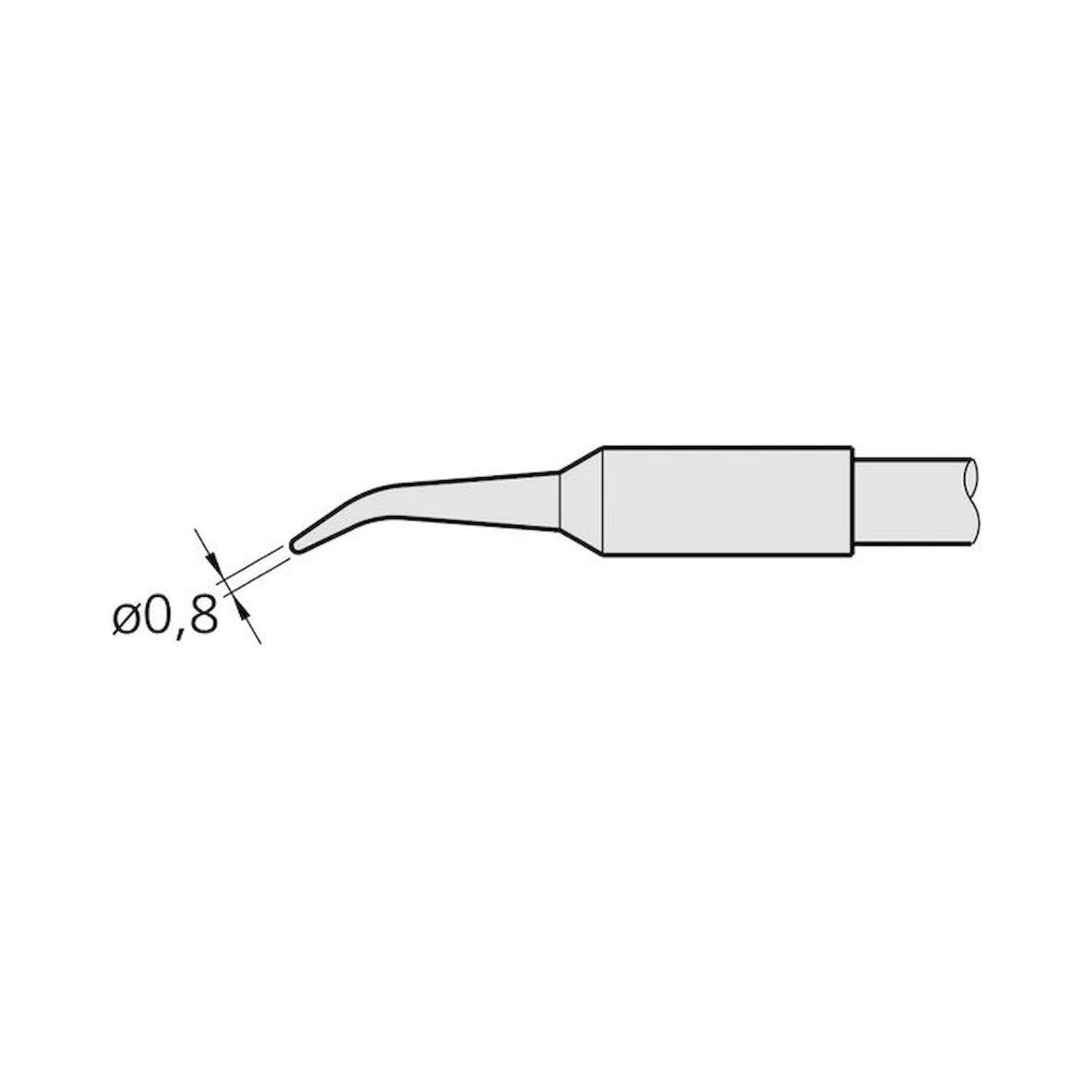

| Conical | C250402 | D: 0.8 mm | bent |

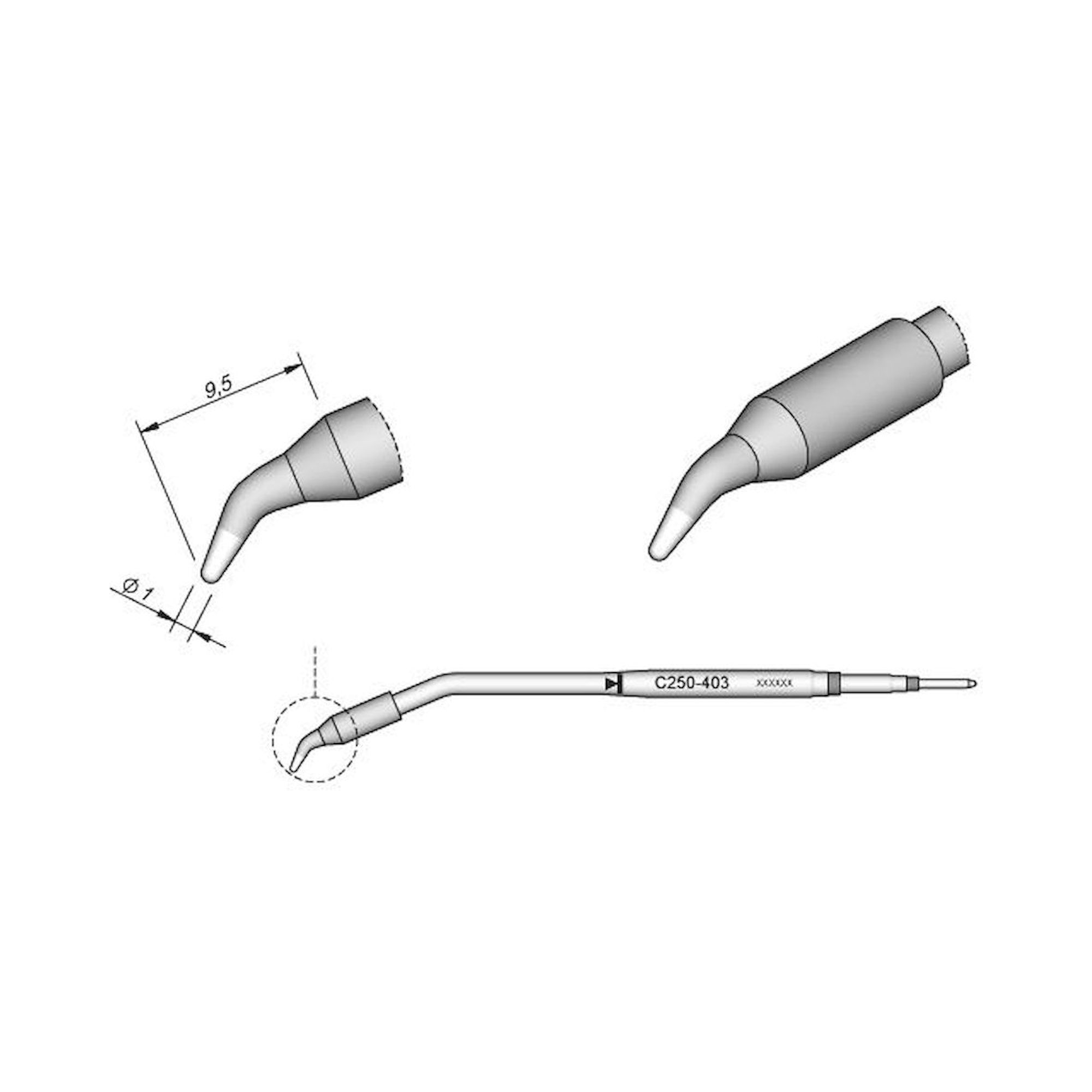

| Conical | C250403 | D: 1 mm | bent |

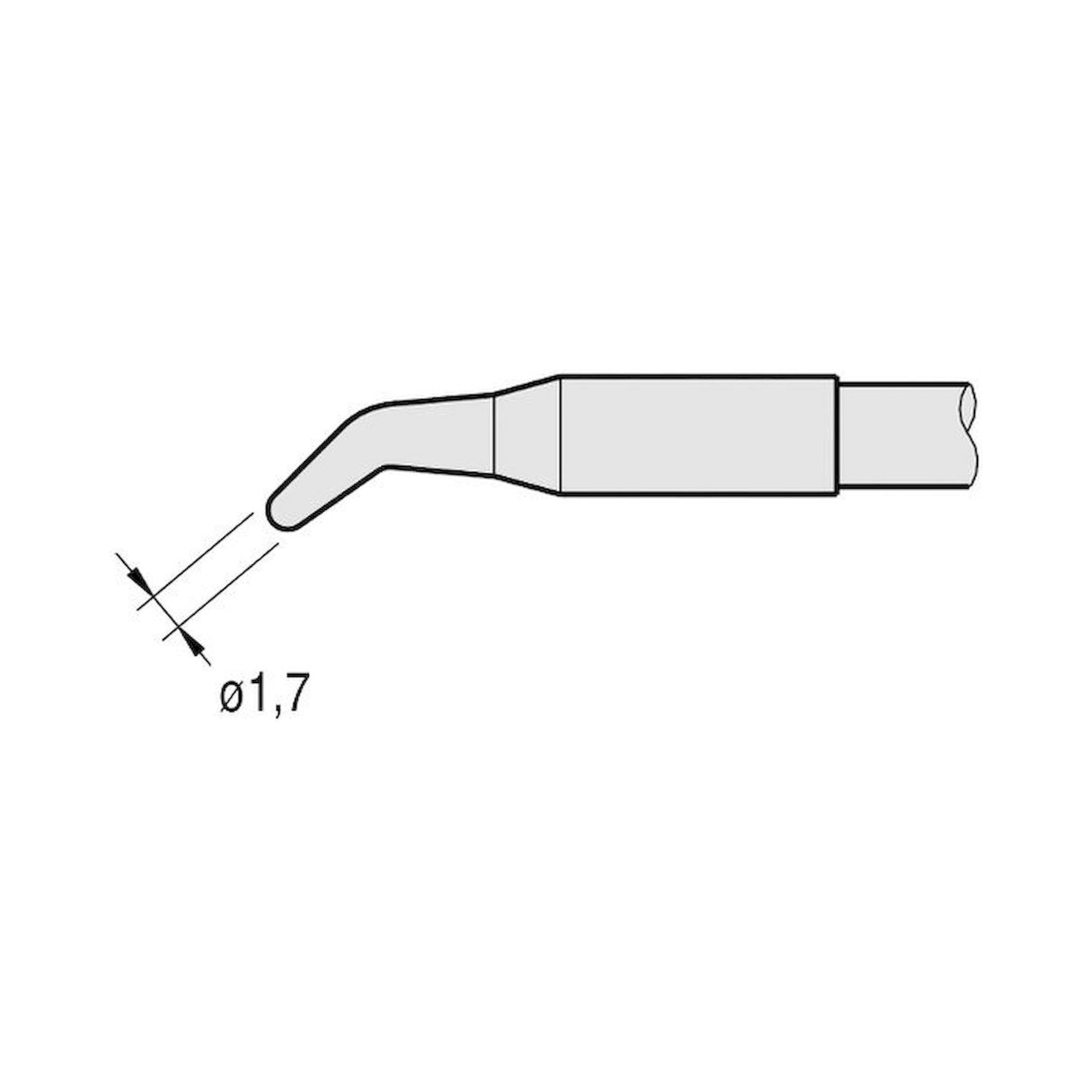

| Conical | C250409 | D: 1.7 mm | bent |

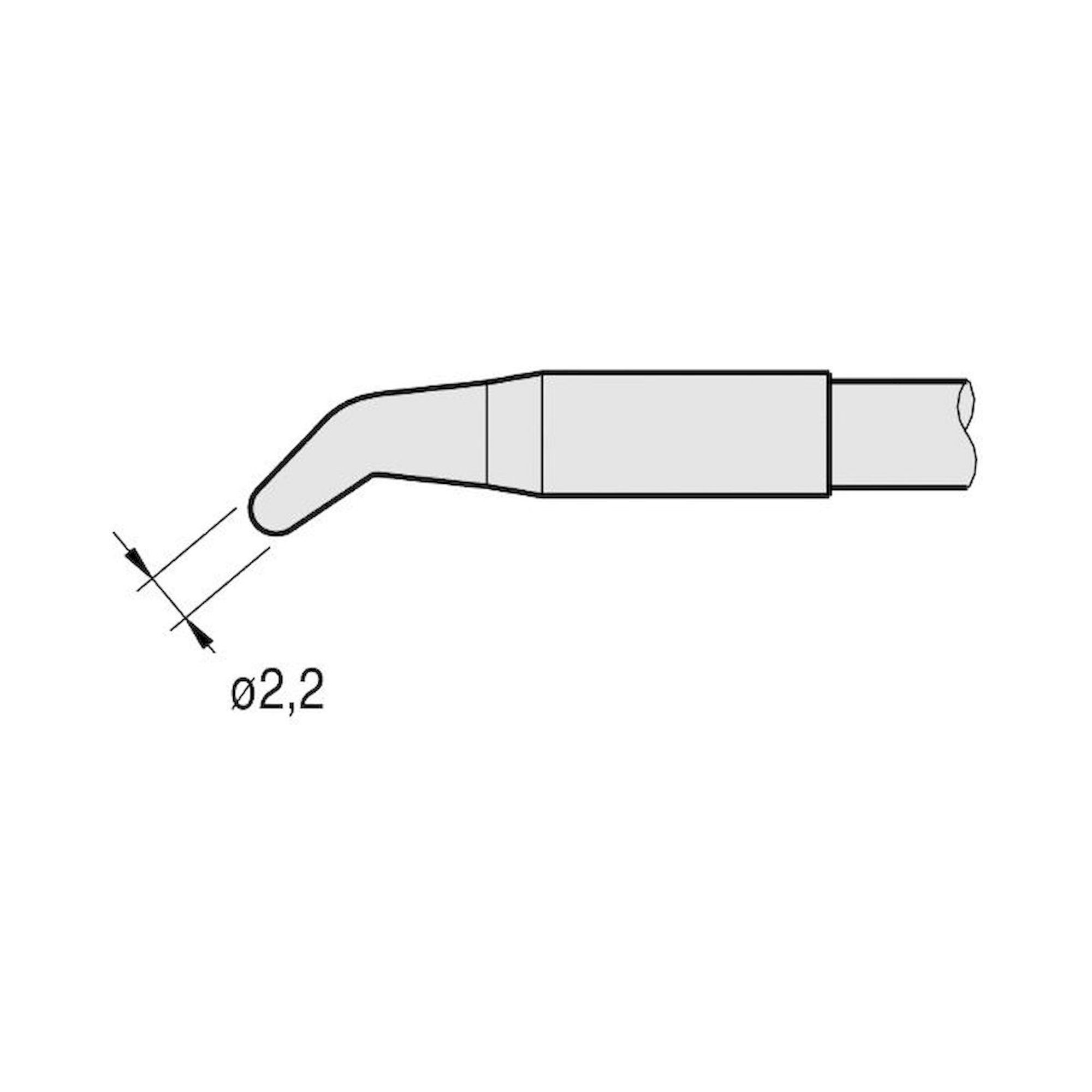

| Conical | C250410 | D: 2.2 mm | bent |

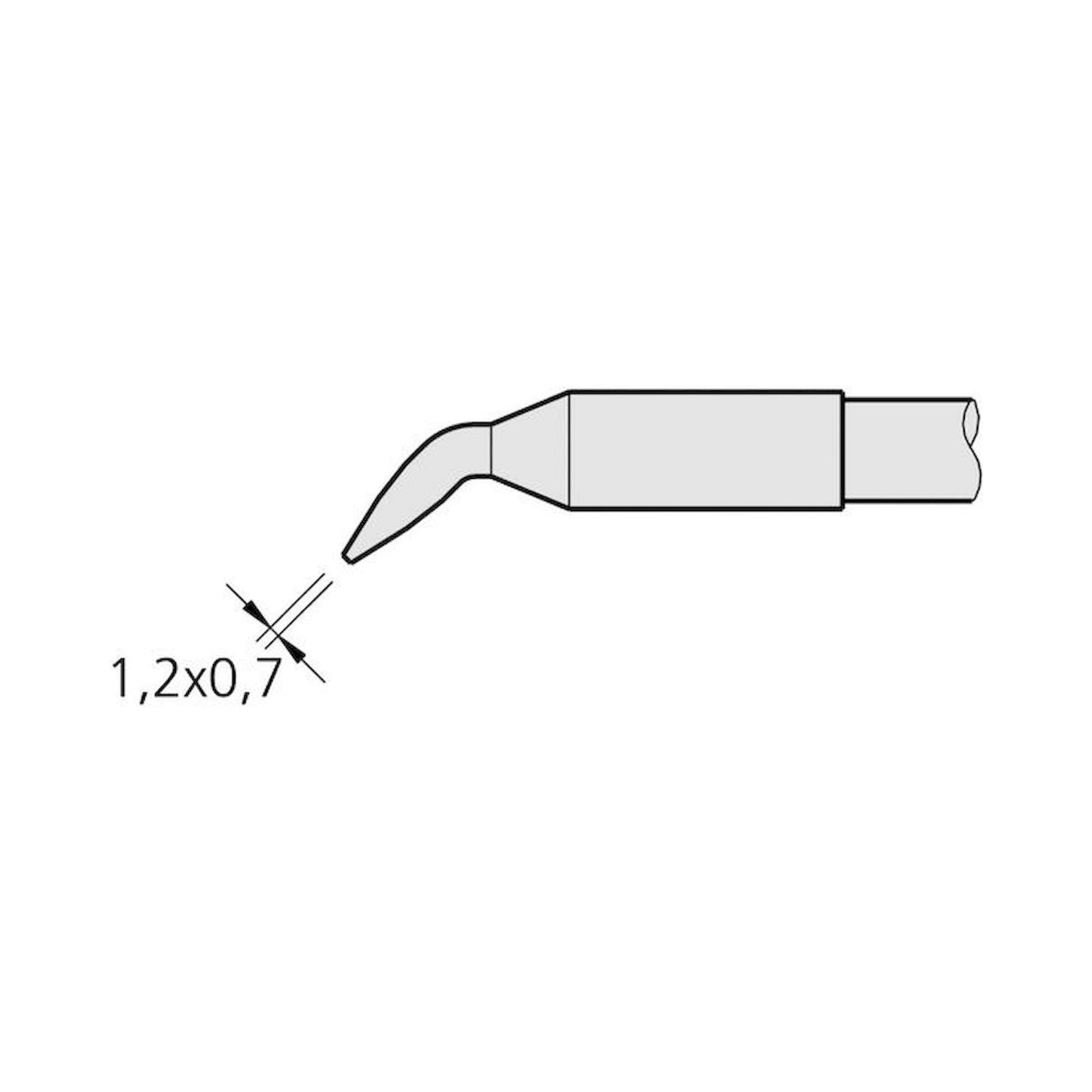

| Chisel | C250404 | 1.2x0.7 mm | bent |

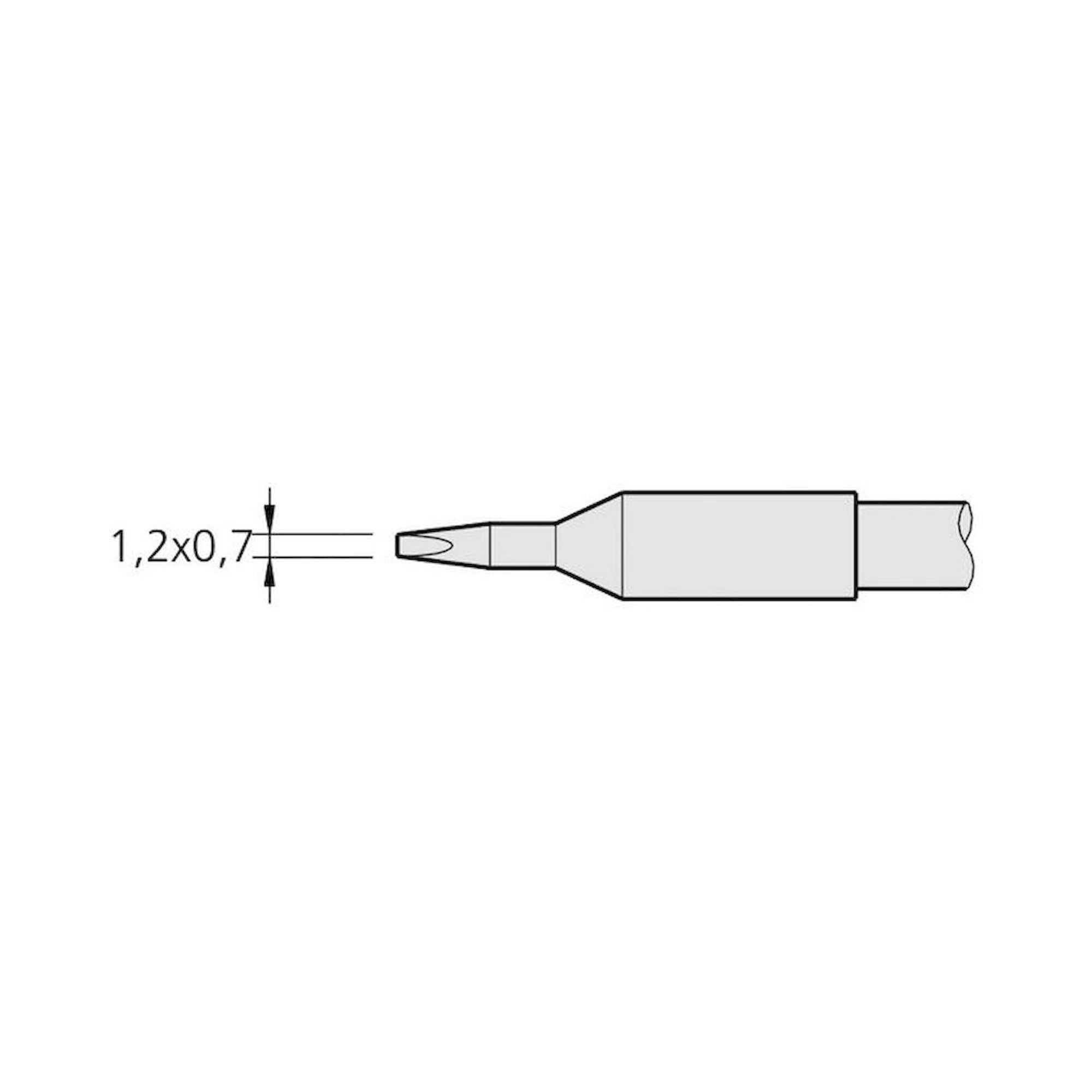

| Chisel | C250407 | 1.2x0.7 mm | straight |

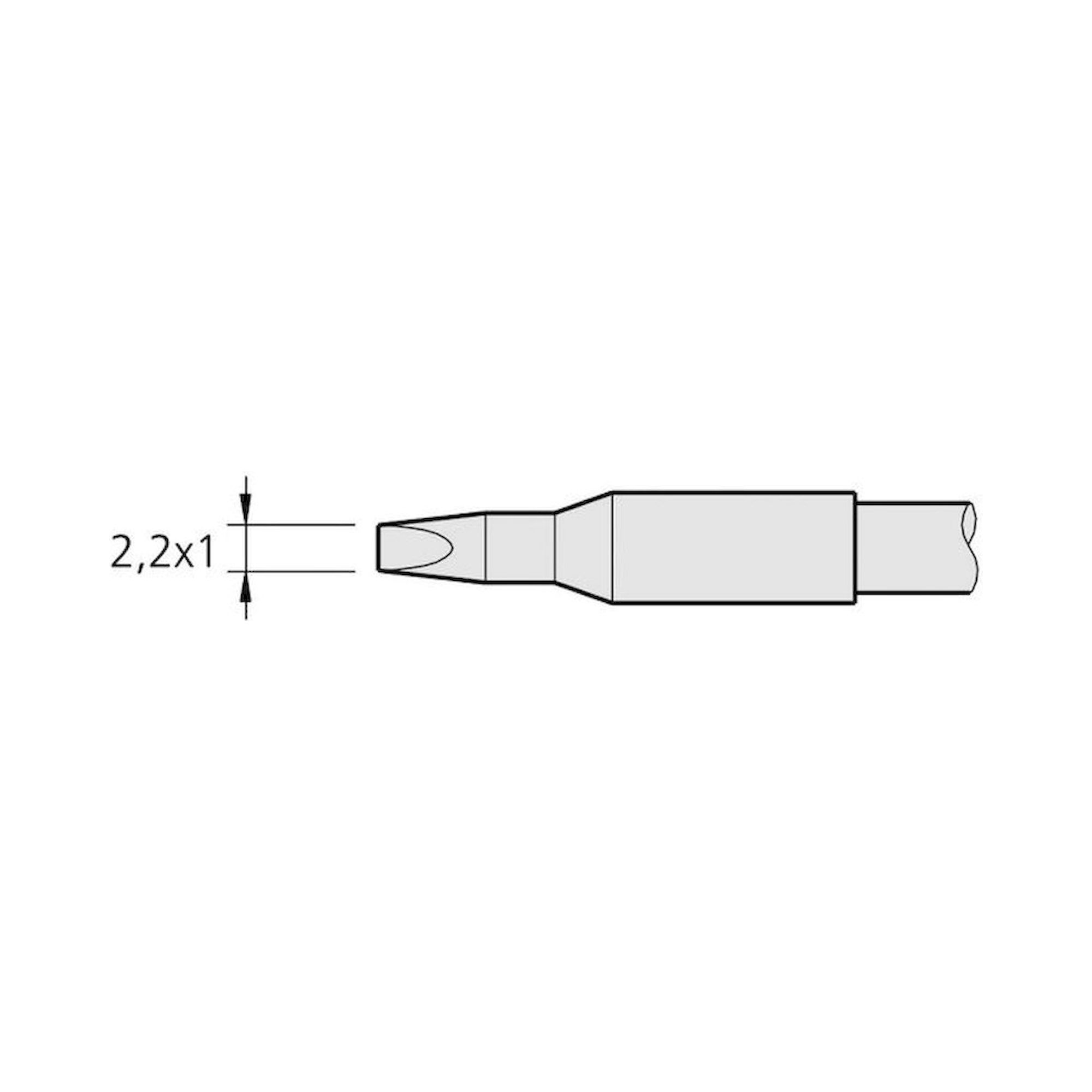

| Chisel | C250408 | 2.2x1 mm | straight |

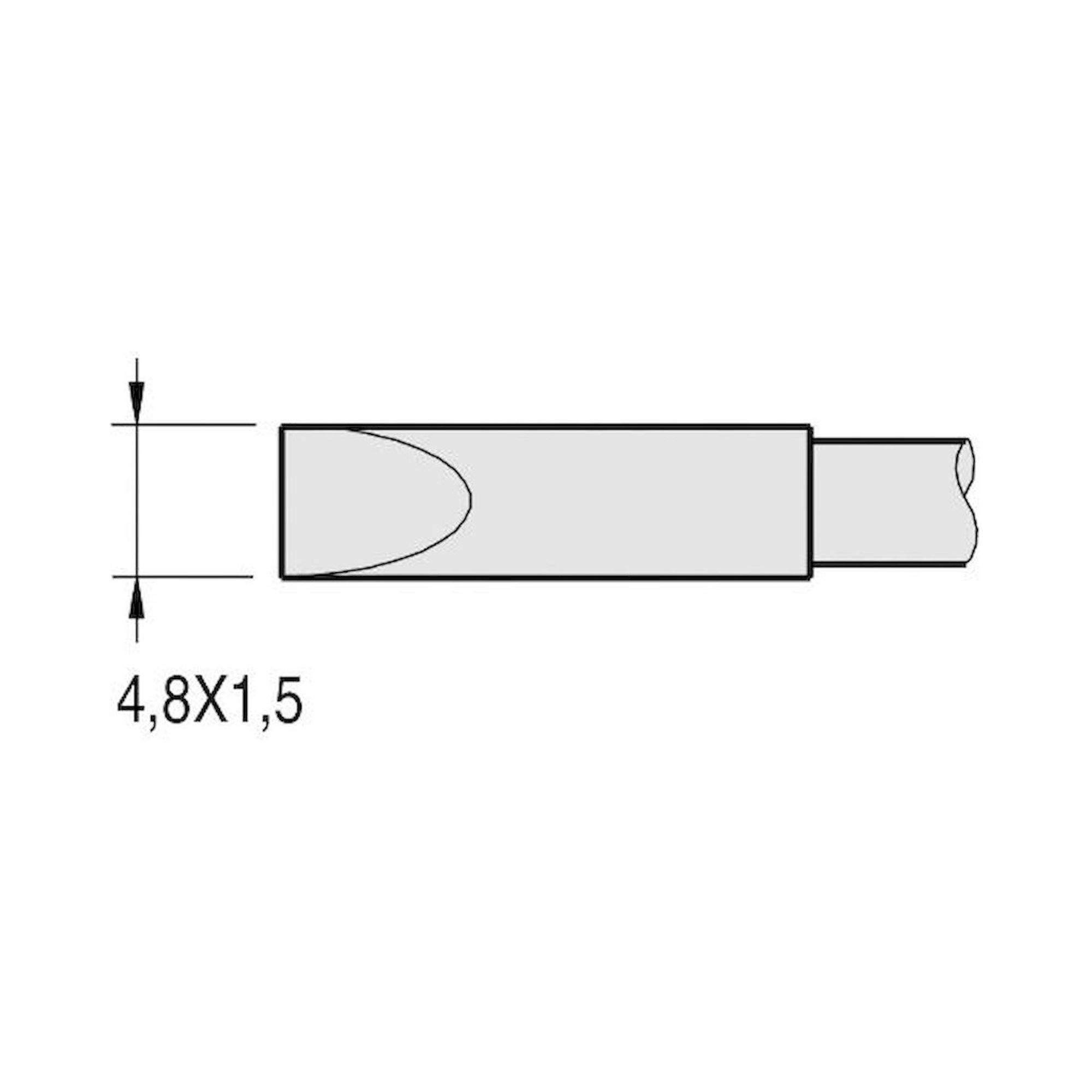

| Chisel | C250411 | 4.8x1.5 mm | straight |

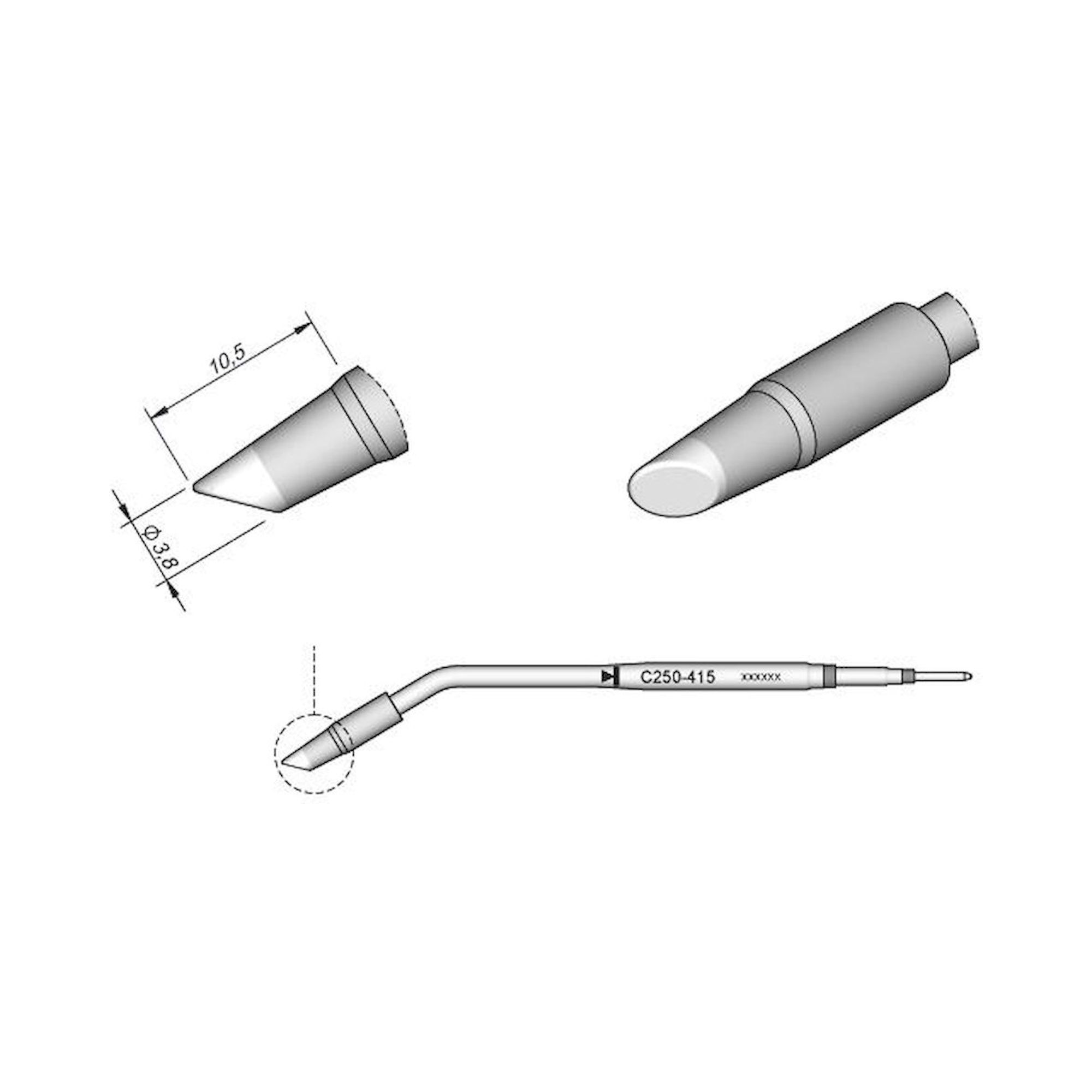

| Bevel | C250415 | D: 3.8 mm | straight |
| Bevel (also AP250) | C250424 | 3 mm | straight |
AL250-A compatibility - designed for the precision automatic soldering handpiece AL250-A
Bent and straight versions - all main tip geometries available in both orientation options

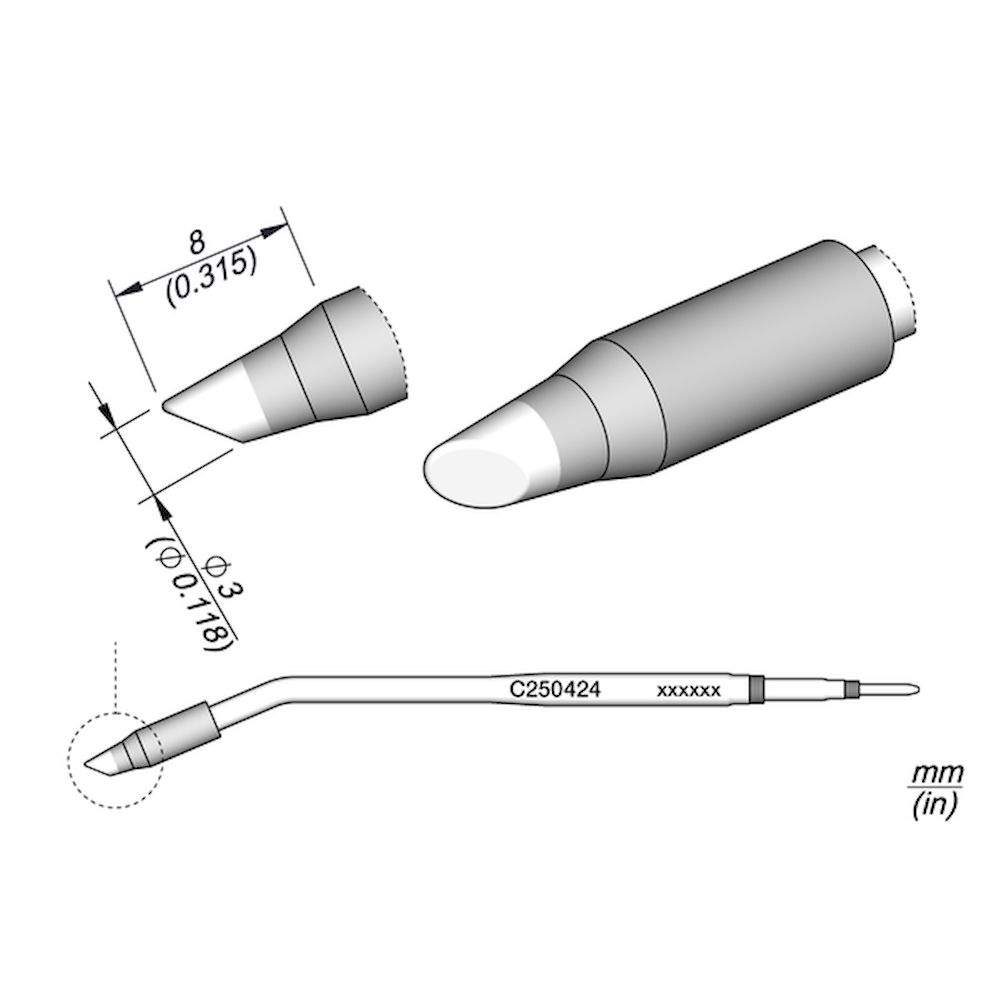

C250424 dual compatibility - bevelled 3 mm tip fits AL250 and AP250

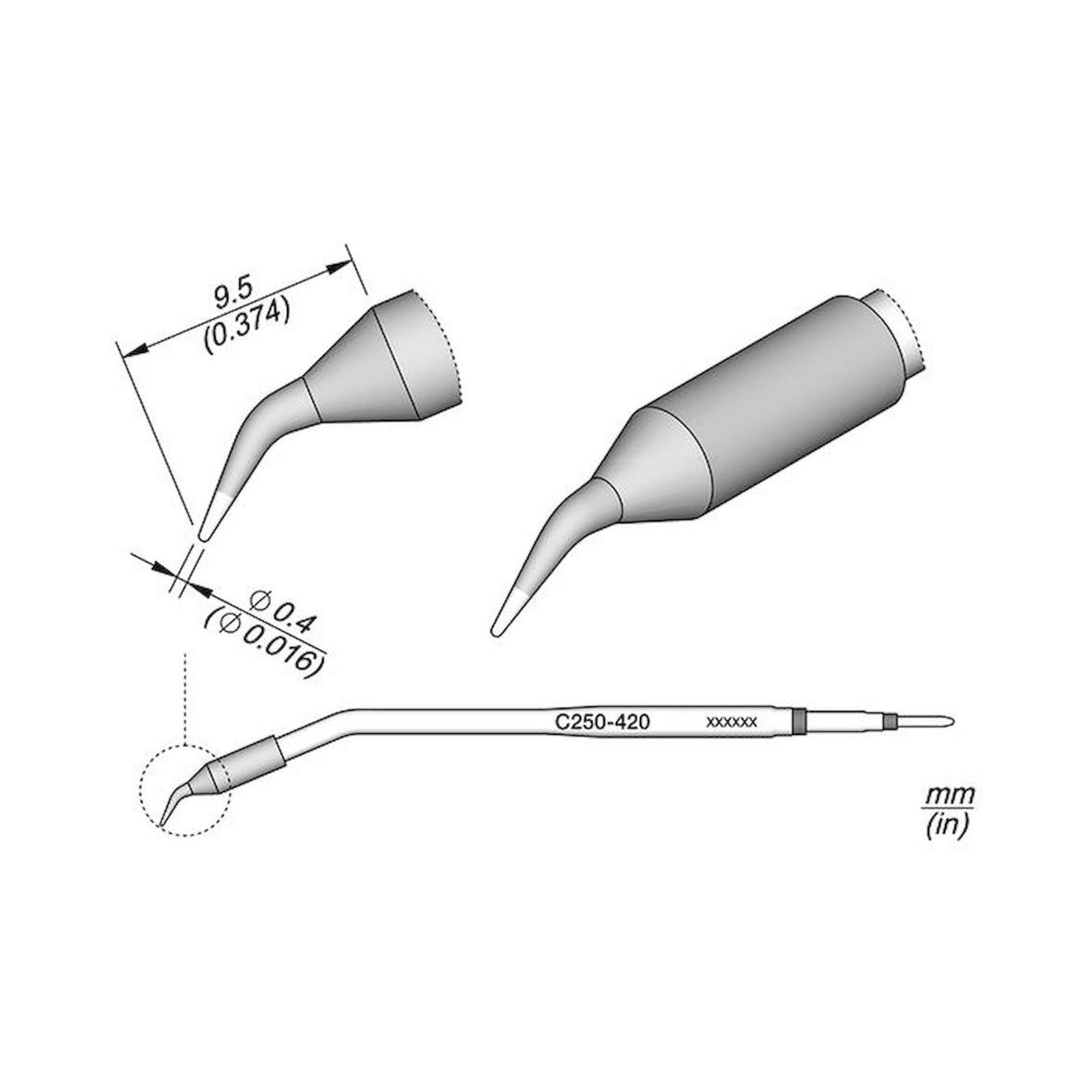

C250420 - bent chisel D: 0.4 mm for micro-soldering tasks
Typical applications: Automated and manual precision soldering with the AL250-A handpiece, SMD pad soldering and THT connections, work in spatially confined locations using bent tips, and rework and repair in electronics manufacturing.
