Soldering tips

Soldering tips C115

JBC C115 soldering tips are intended for the Nano handpieces NT115 and NP115 and cover 32 variants in the smallest possible soldering and desoldering tip geometries. Conical tips start at D: 0.1 mm (C115101, C115126) and go up to D: 0.8 mm (C115107). Chisel tips range from 0.2x0.1 mm (C115116) through 0.6x0.3 mm (C115108) to 2.4x0.6 mm (C115223). Bent conical variants are available from D: 0.1 mm (C115118, C115124) and D: 0.3 mm (C115105). Additional forms include knife (C115112: 2.5x0.3 mm, C115120: 1x0.2 mm), blade (C115211: 3.5x0.7 mm) and concave (C115128: D 0.1 mm). Bevelled tips are available as C115109 (D: 0.6 mm) and C115127 (D: 1 mm).

34 items
1 manufacturer
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Soldering tips C115

What matters when choosing: properties, comparison and typical applications.

C115 tip range overview

Geometry	Part no.	Size

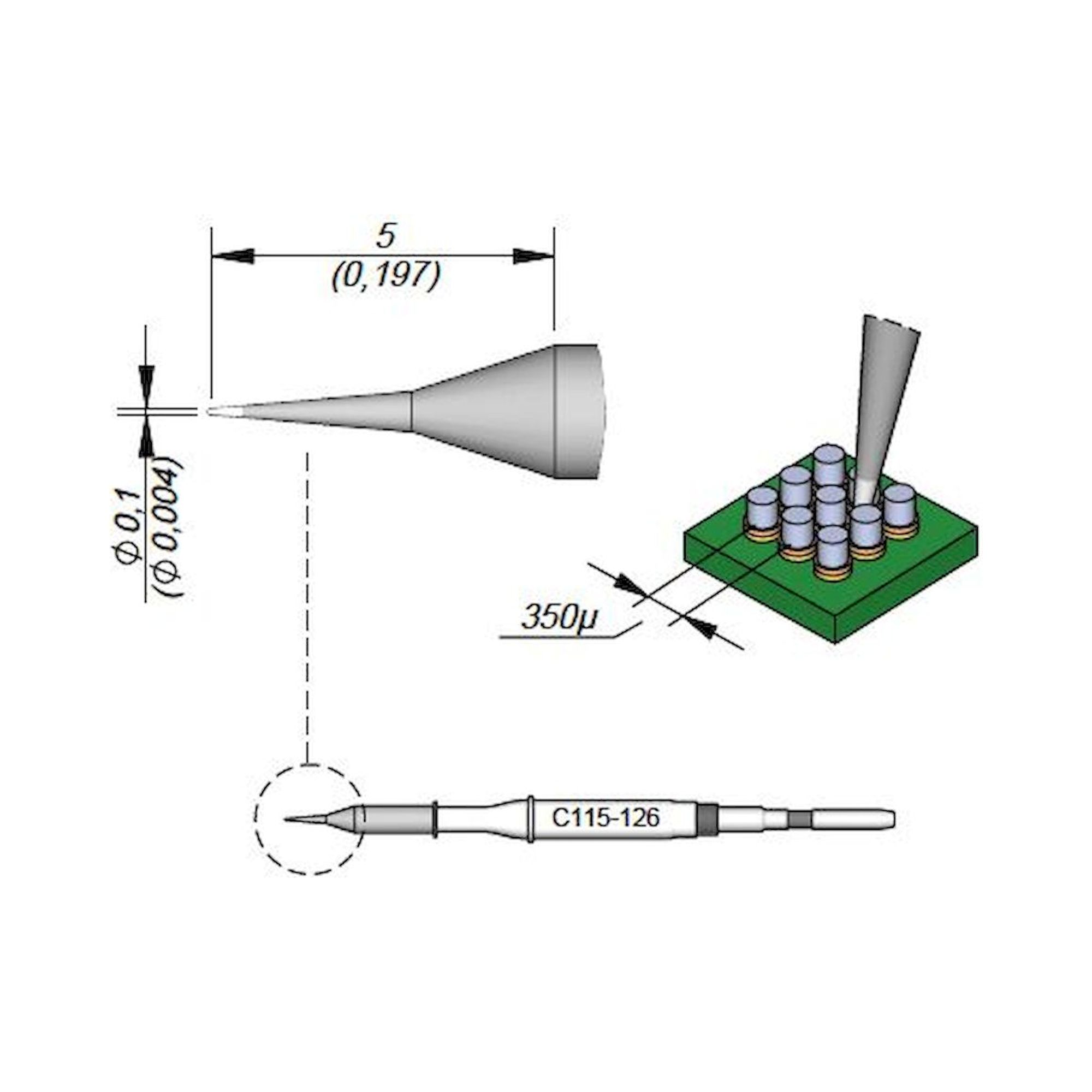

Conical, straight	C115101 / C115126	D: 0.1 mm

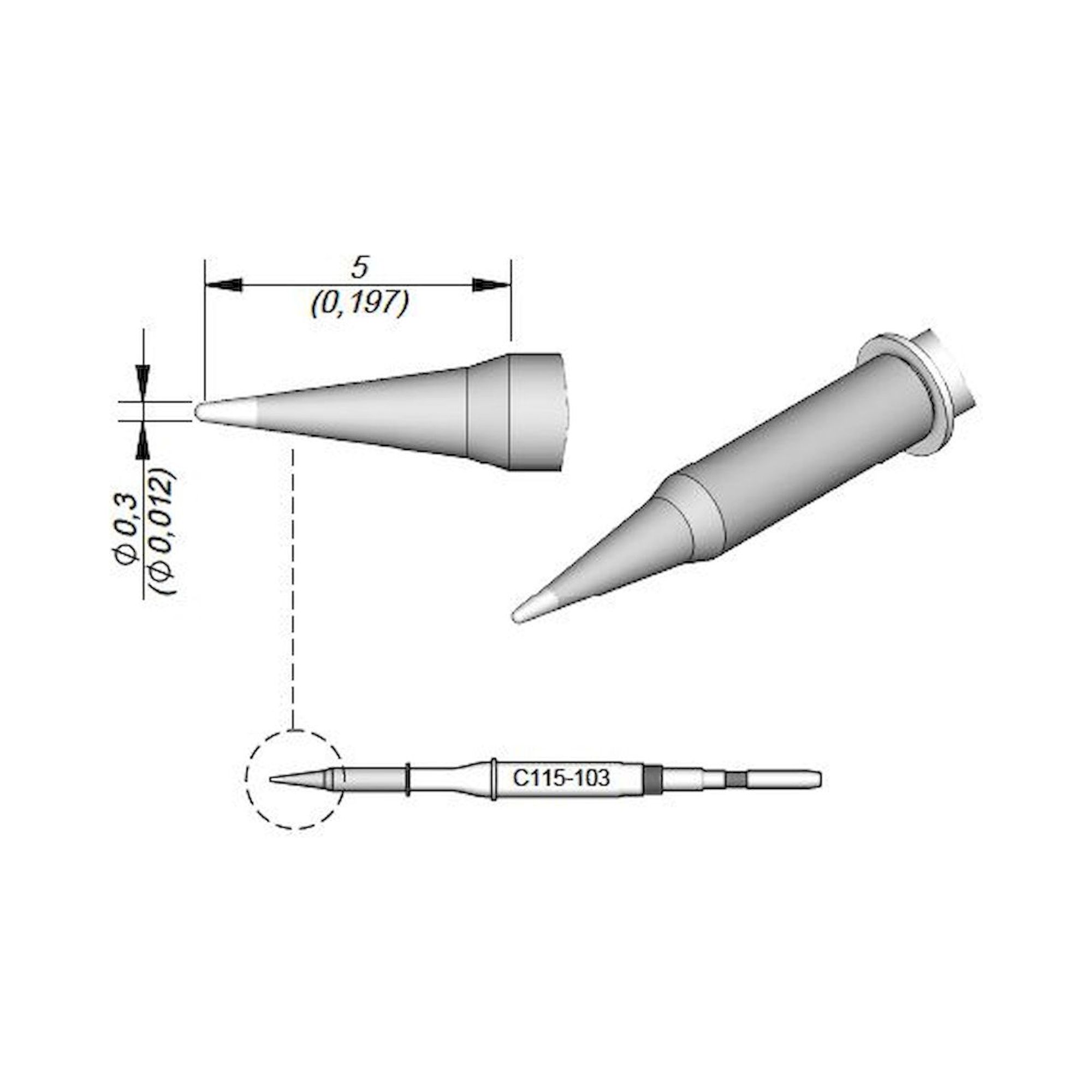

Conical, straight	C115103	D: 0.3 mm

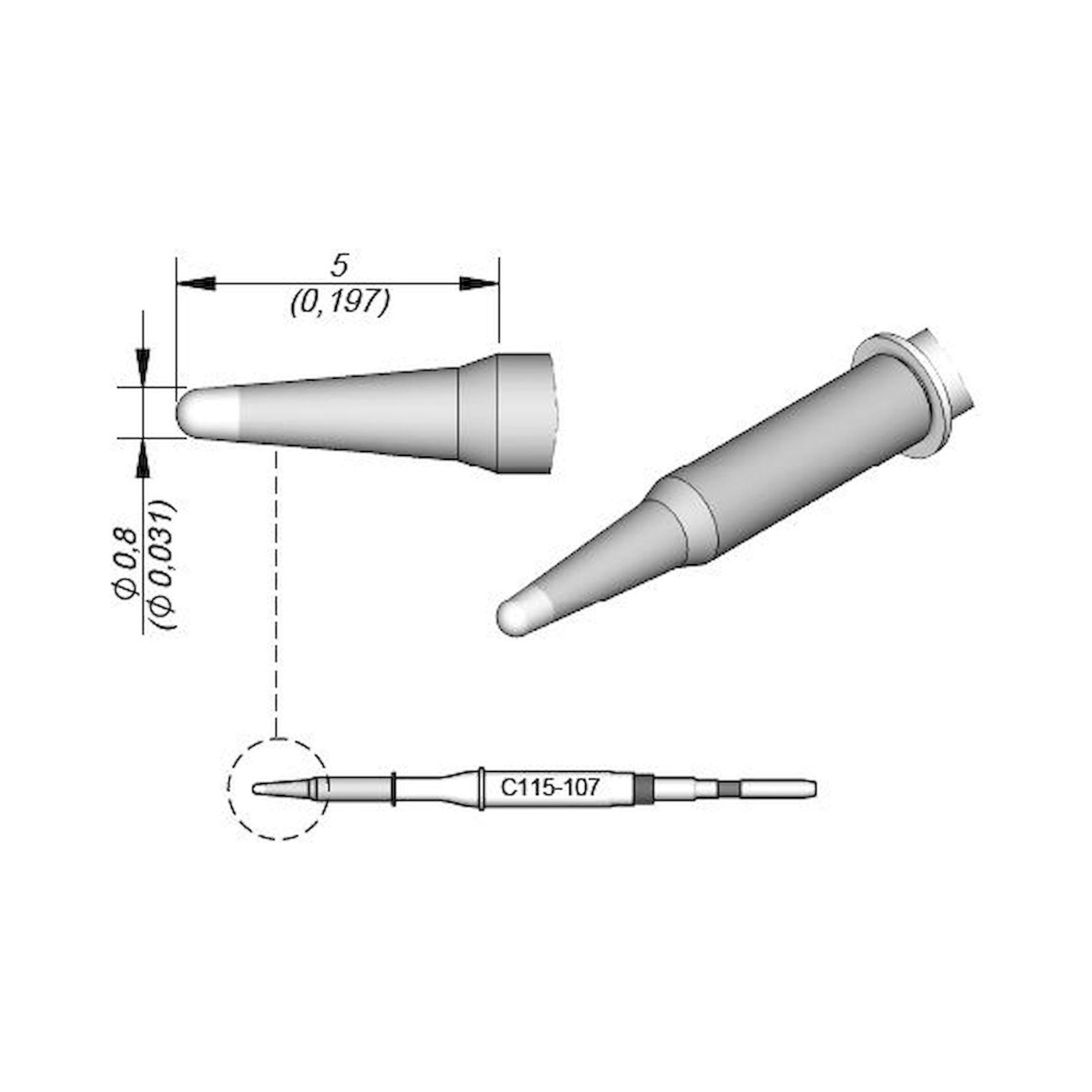

Conical, straight	C115107	D: 0.8 mm

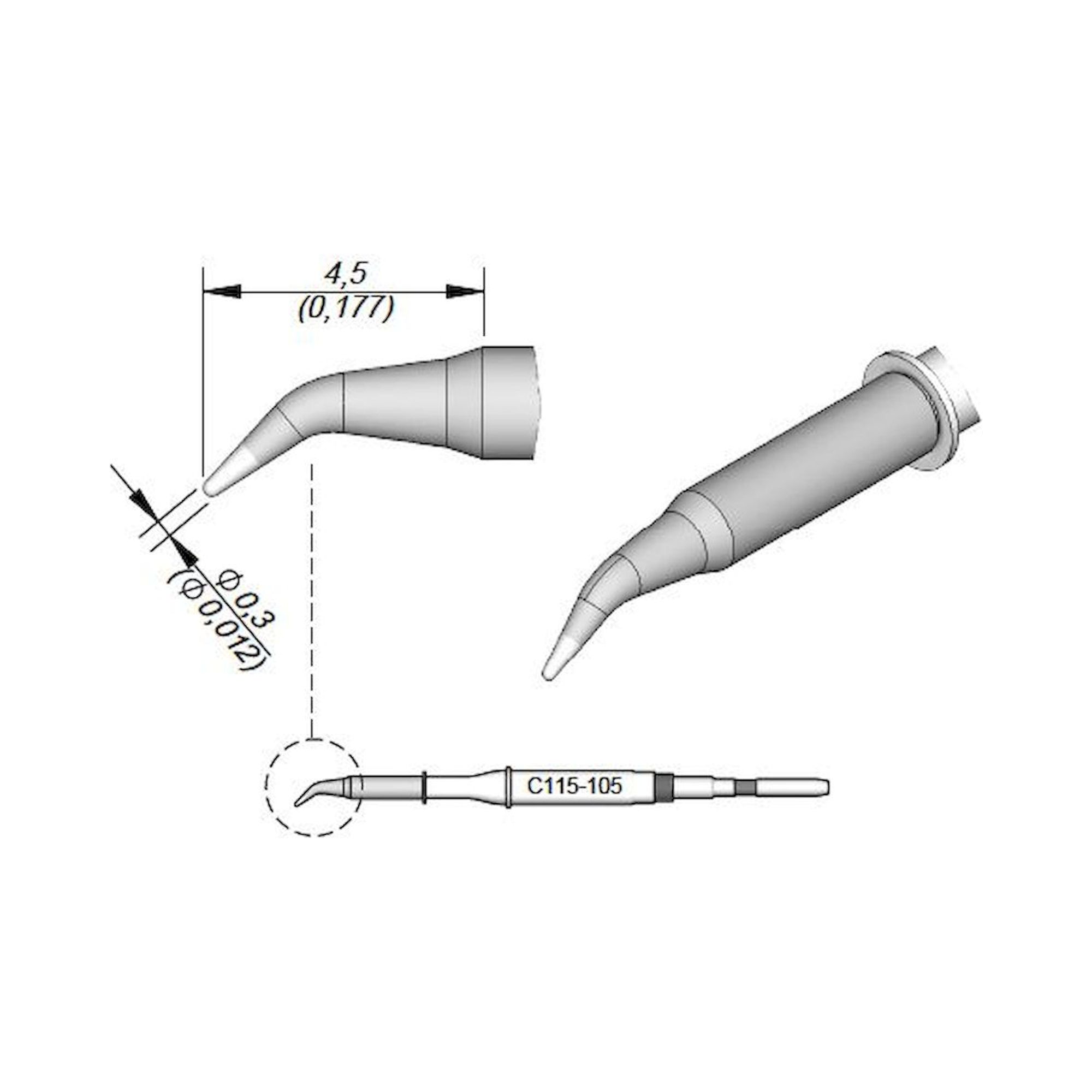

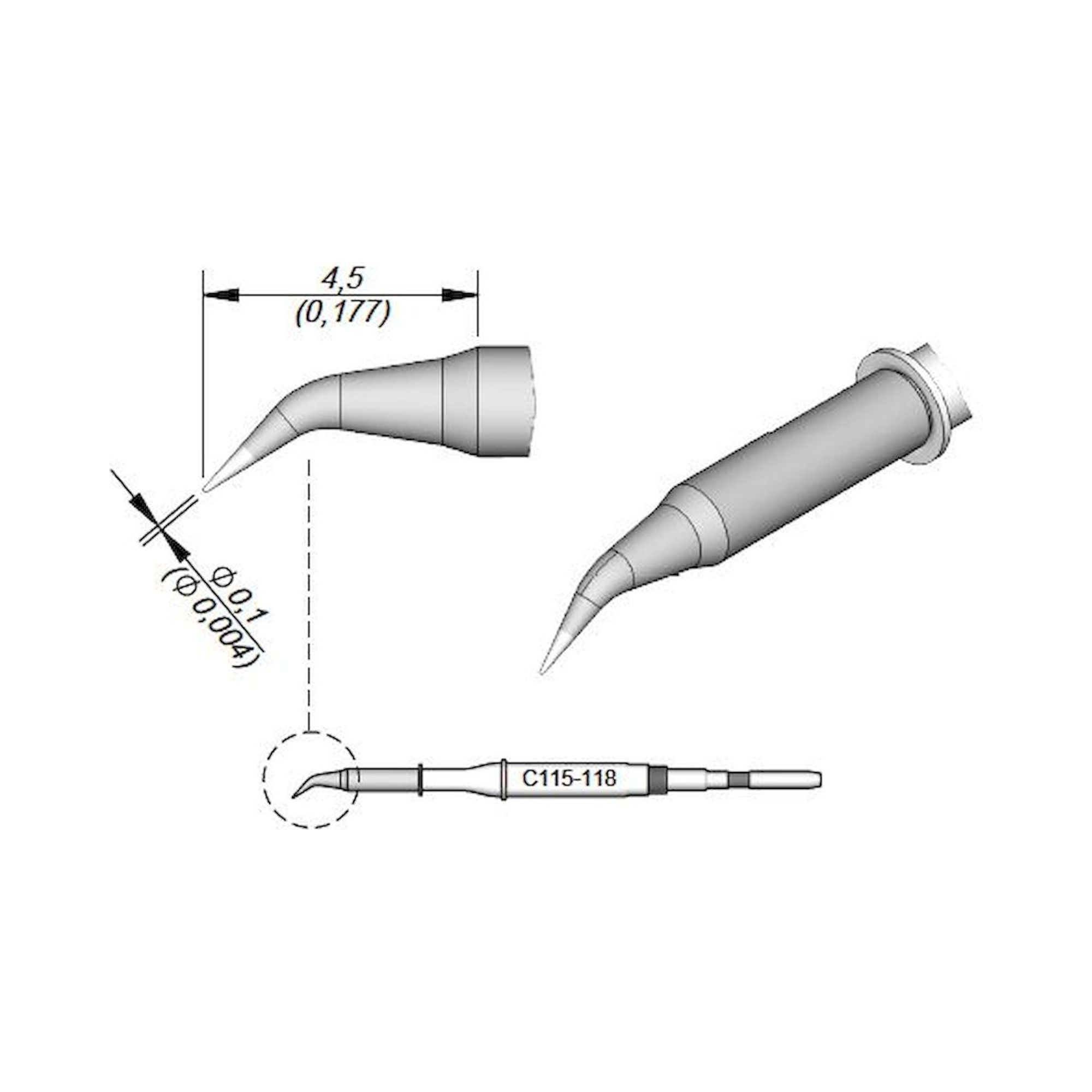

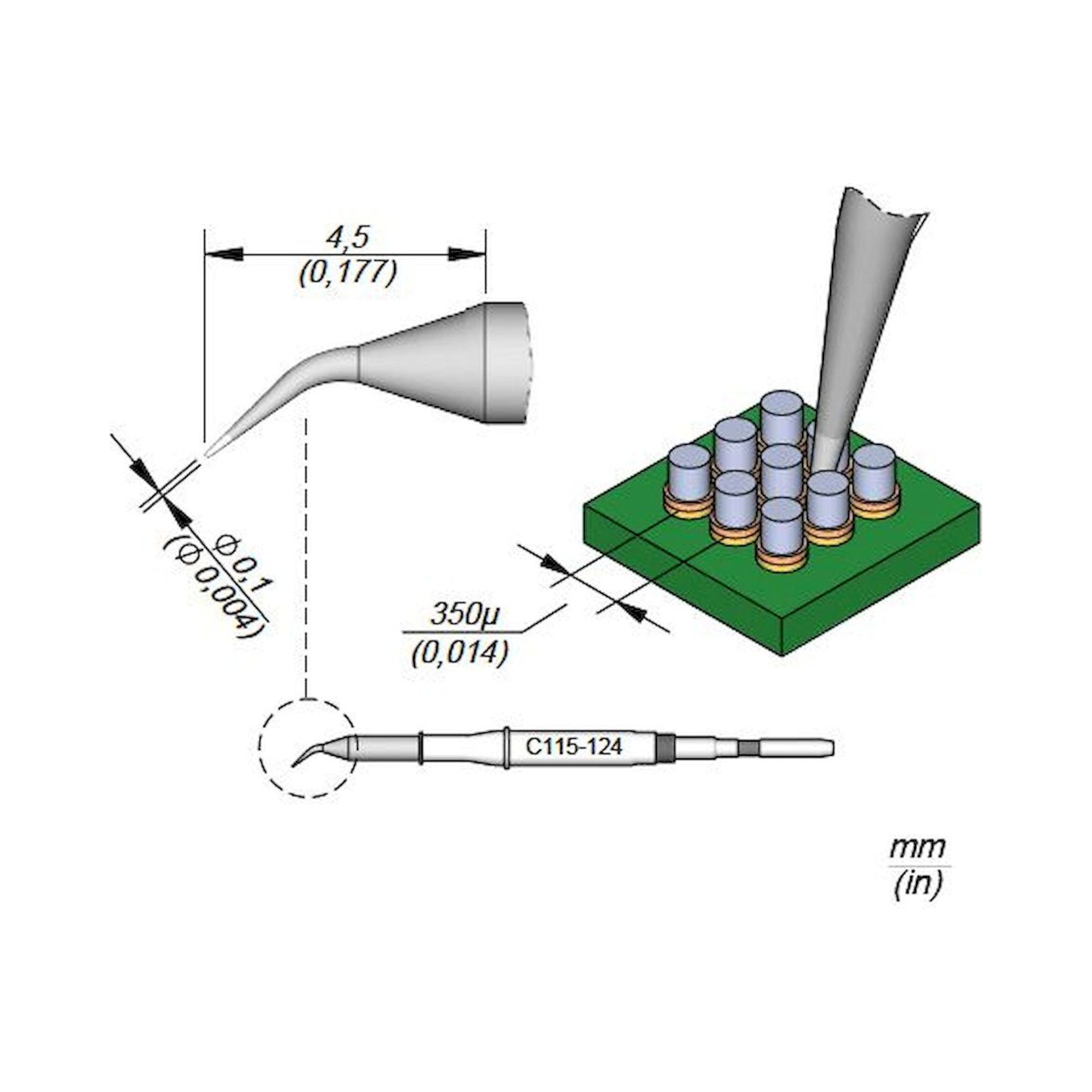

Conical, bent	C115118 / C115124	D: 0.1 mm

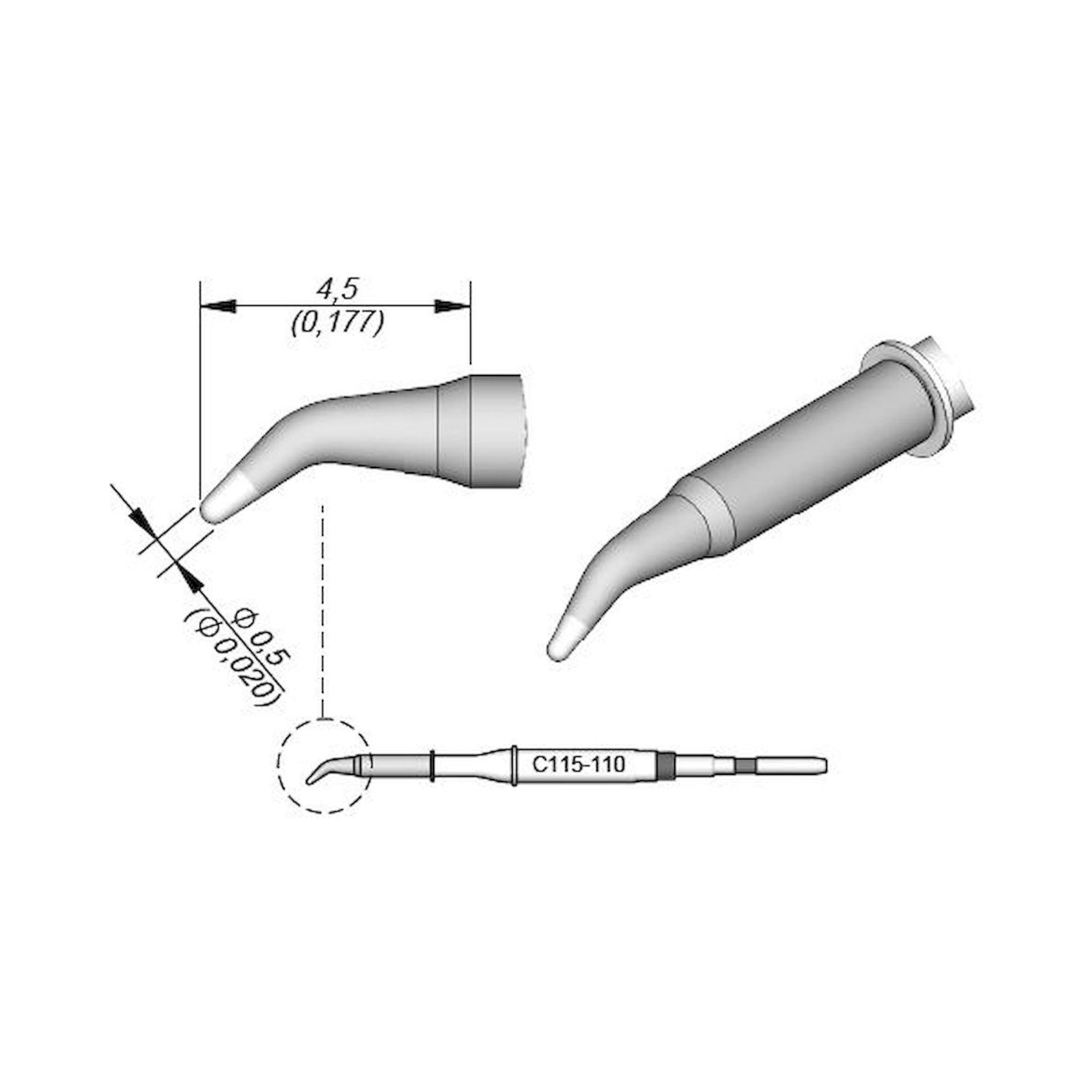

Conical, bent	C115105 / C115110	D: 0.3 / 0.5 mm

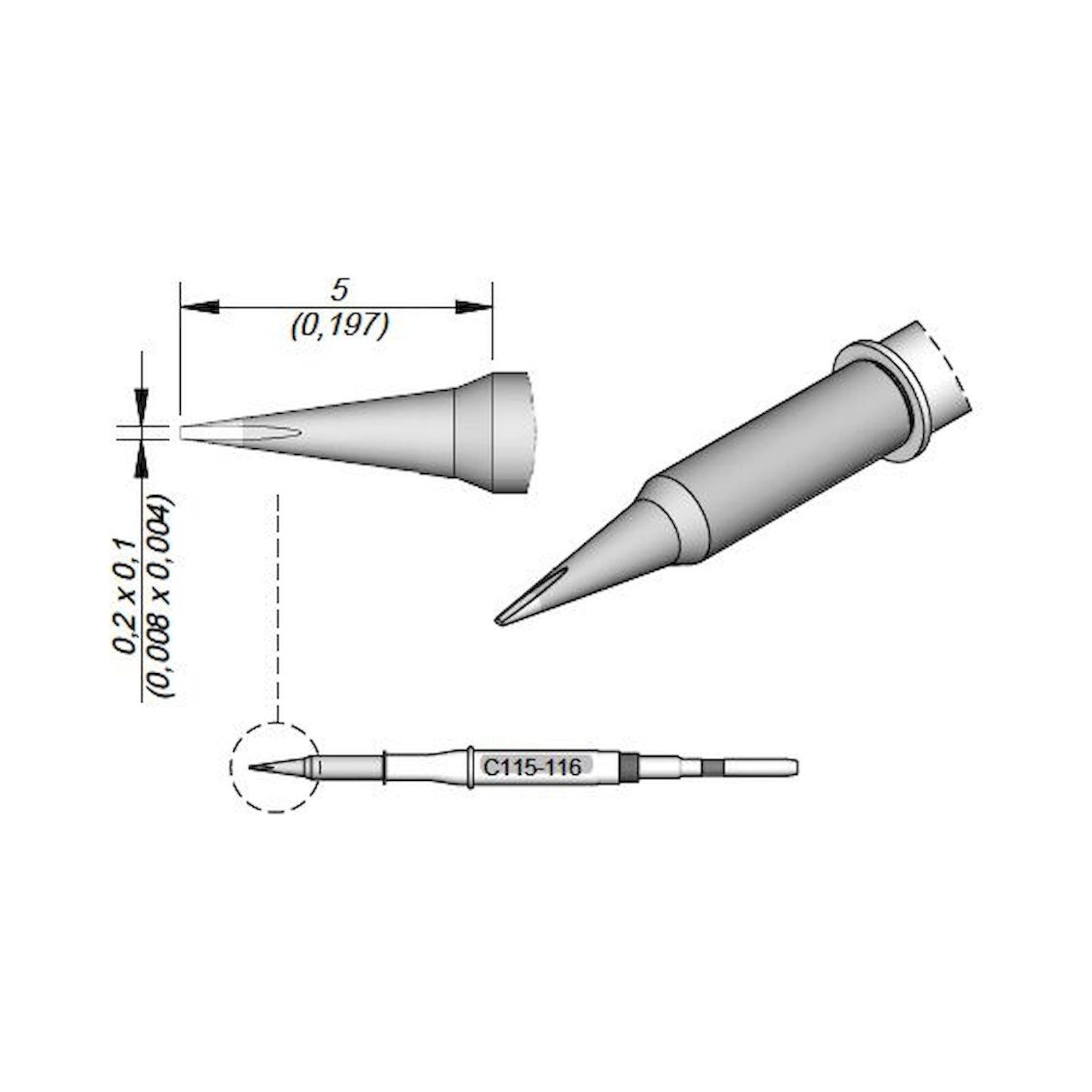

Chisel, straight	C115116	0.2x0.1 mm

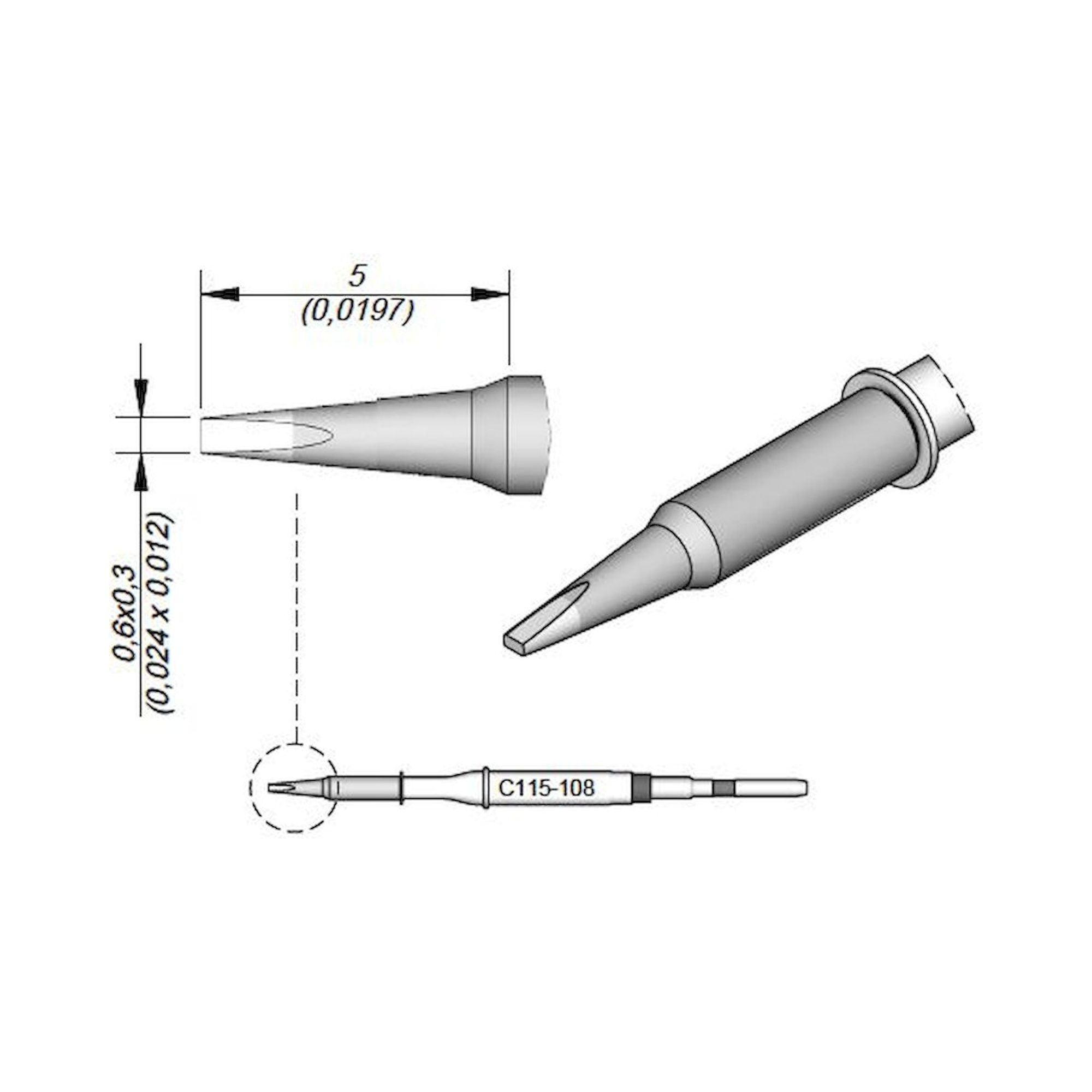

Chisel, straight	C115108	0.6x0.3 mm
Chisel, straight	C115113	1x0.3 mm
Chisel, straight	C115223	2.4x0.6 mm

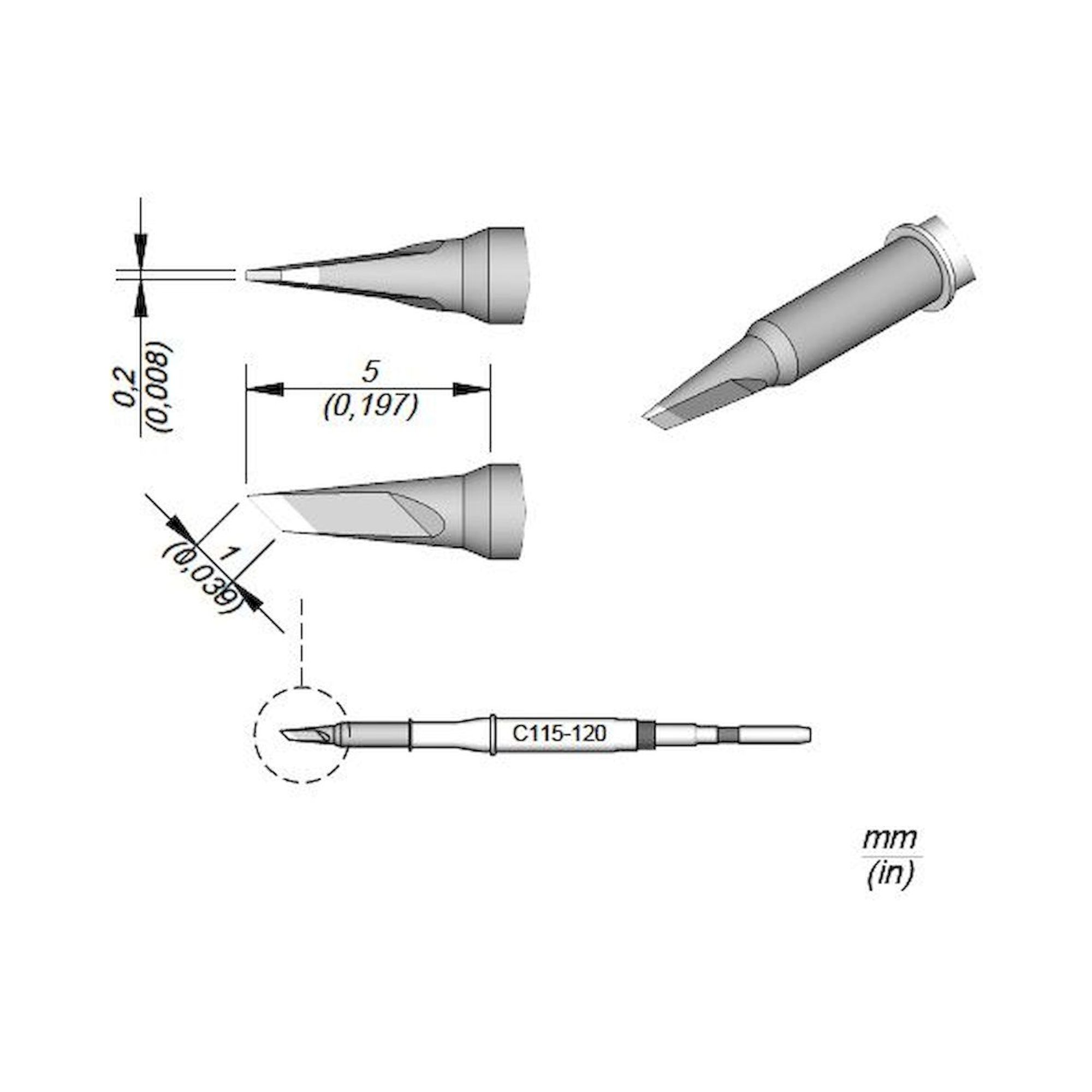

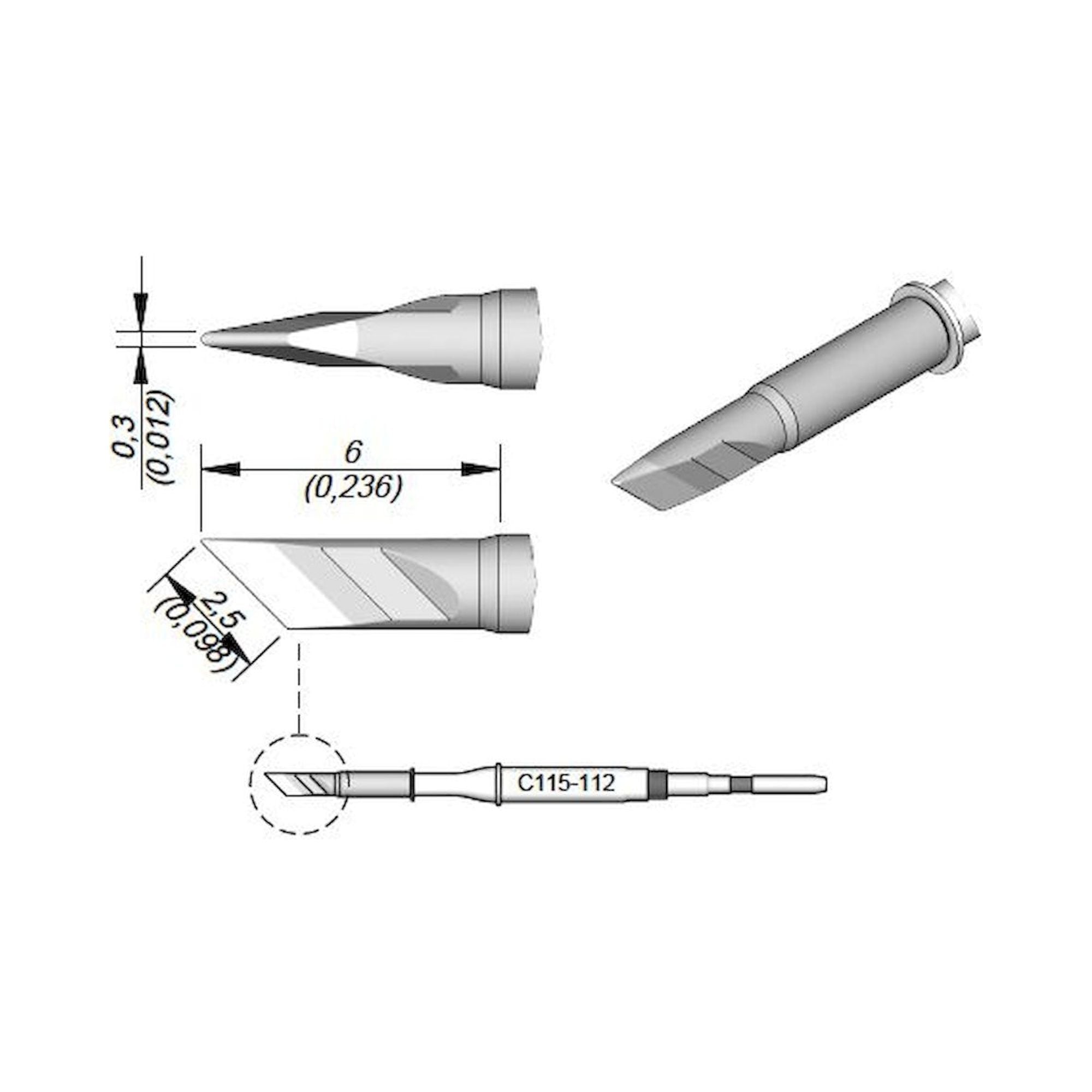

Knife	C115112 / C115120	2.5x0.3 / 1x0.2 mm

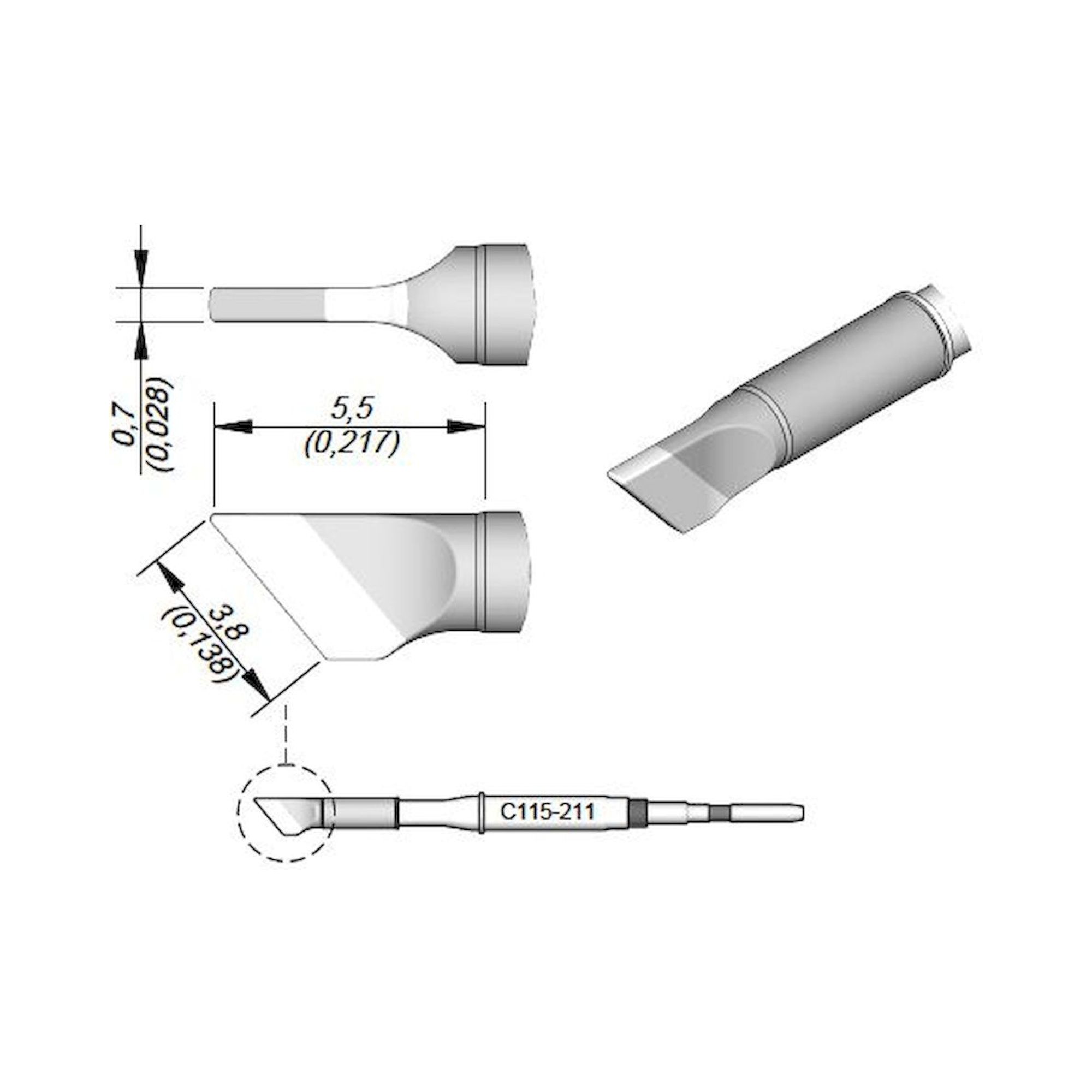

Blade	C115211	3.5x0.7 mm
Concave	C115128	D: 0.1 mm

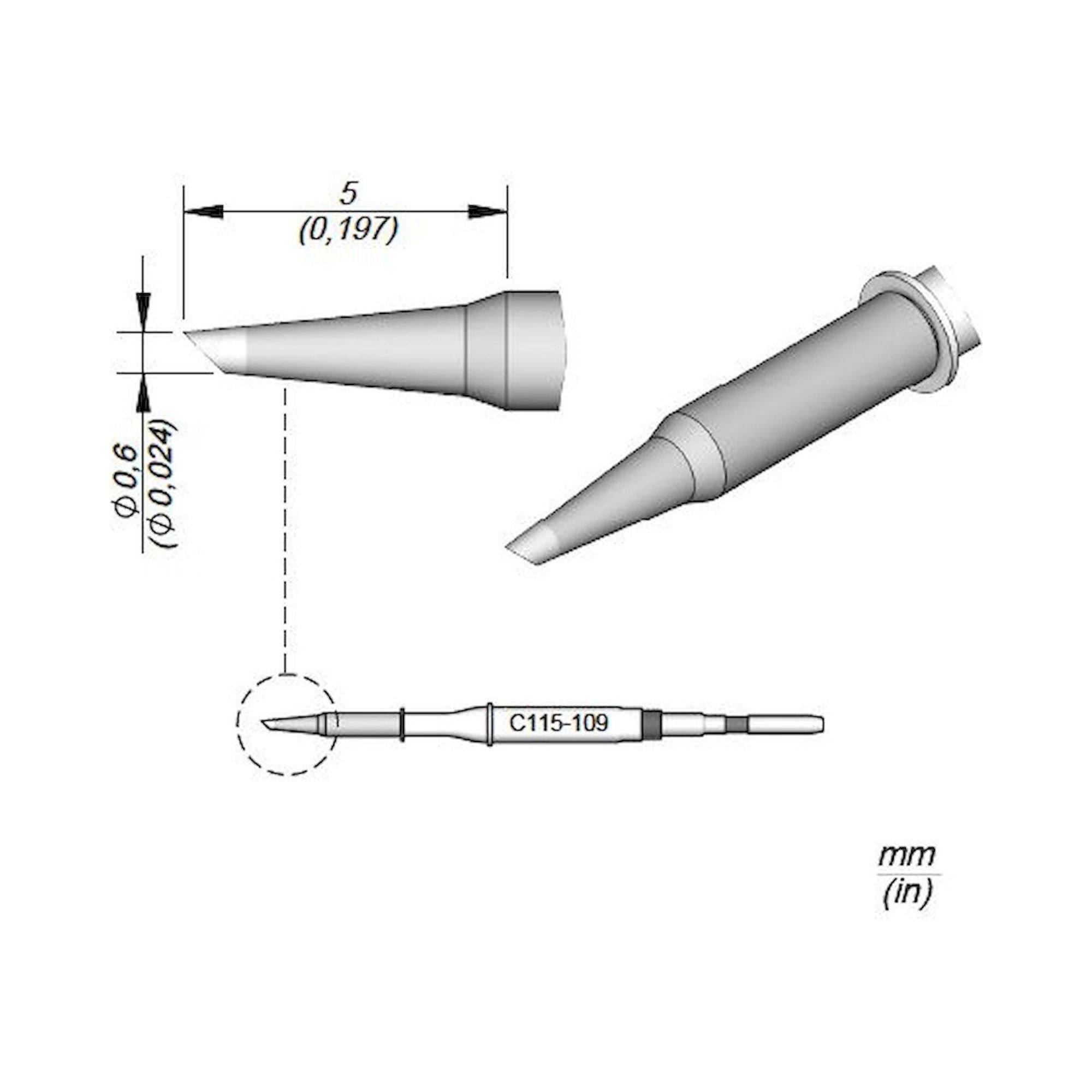

Bevel	C115109 / C115127	D: 0.6 / 1 mm

Technical features and distinction from C105

⚡ Nano handpieces NT115 / NP115 - C115 exclusively for NT115 and NP115, not compatible with C105 handpieces

✓ 32 variants - comparable geometry range to C105, directly for NT115/NP115

⚙ Smallest tip D: 0.1 mm - C115101, C115118, C115124 and concave C115128 at 0.1 mm

✦ 200 series duplicate line - C115211, C115214, C115221-C115223 mirror base geometries in an additional variant

Typical applications

Typical applications: Micro-soldering on chip-scale packages, sensor and MEMS boards and fine-pitch components with NT115/NP115, rework on SMD components with pad pitch below 0.5 mm, precision work in medical technology and sensor electronics, and laboratory applications with the NT115/NP115 Nano handpiece.
