Did you know? 217 °C

SAC305 is 96.5 percent tin, 3 percent silver and 0.5 percent copper. It melts around 217 degrees Celsius, some 34 degrees above the old eutectic tin lead alloy.

Browse soldering tips

Soldering tips Pulsmatic

Soldering tips

The five CLASSIC soldering tips for PULSMATIC 55N and TB-3220 cover the most common tip geometries for these two stations. Available references are 550300, 550400, 550509, 550608 and 550707. The numbering follows the JBC CLASSIC scheme, encoding geometry character and size.

Part numberStationSeries

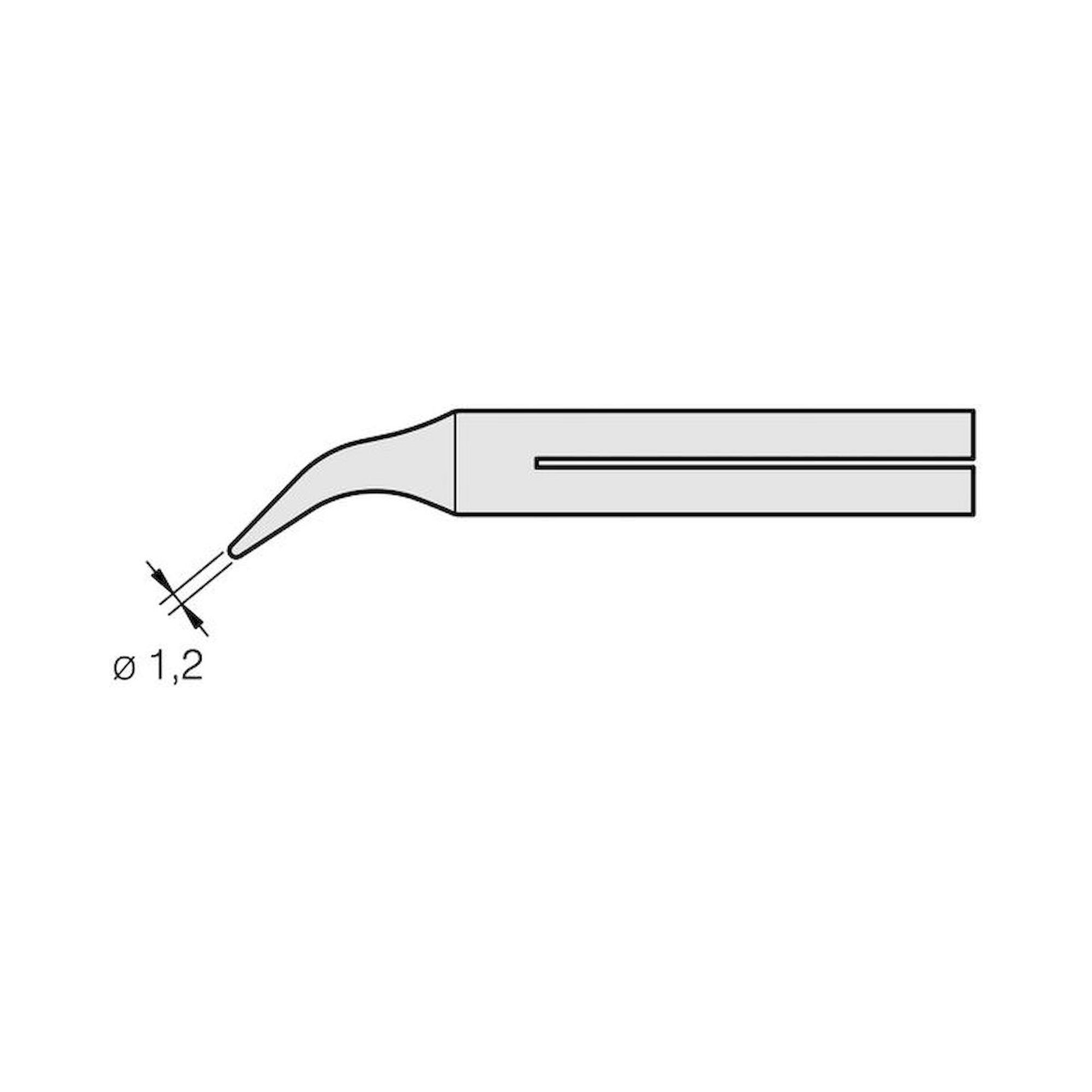

JBC 550300PULSMATIC 55N / TB-3220CLASSIC

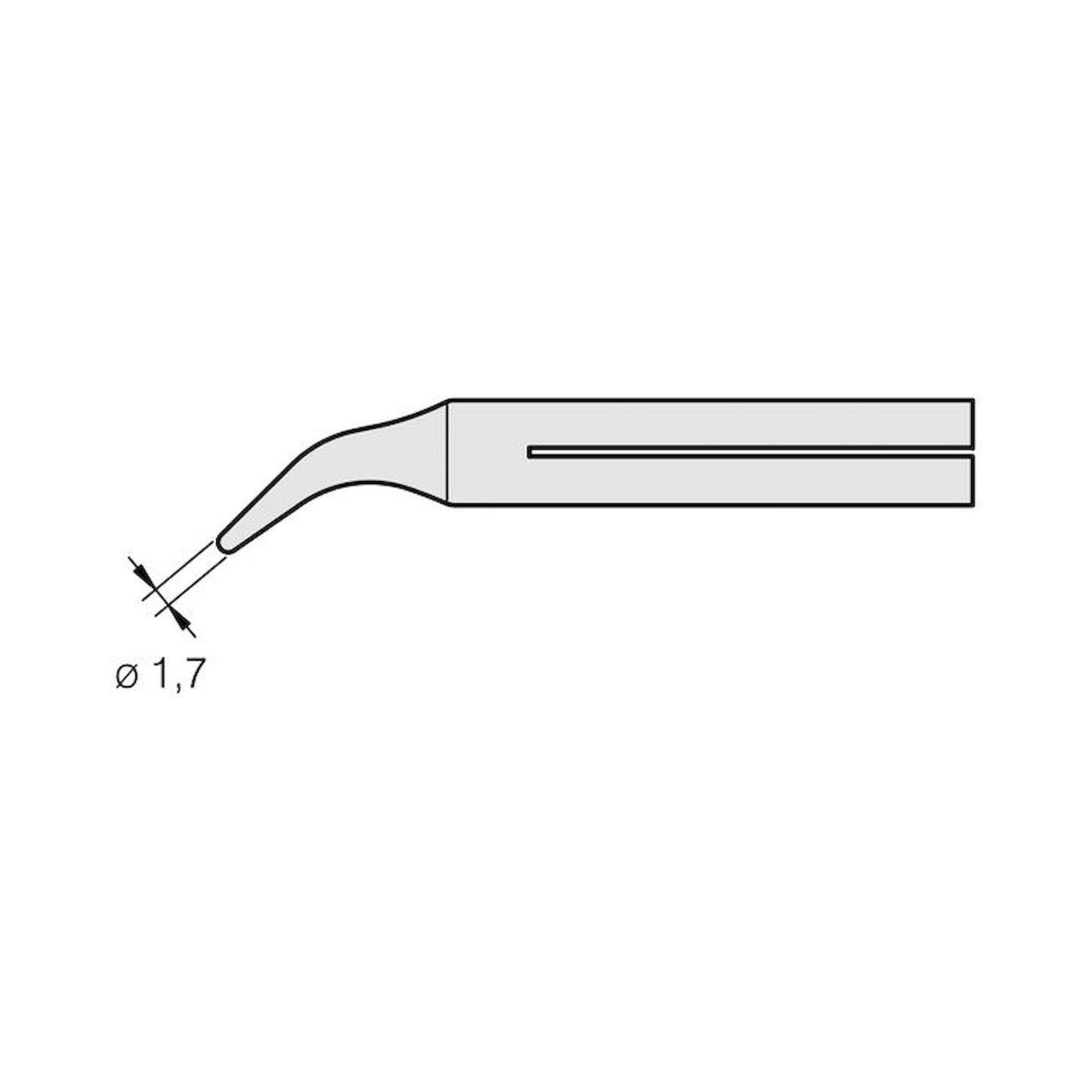

JBC 550400PULSMATIC 55N / TB-3220CLASSIC

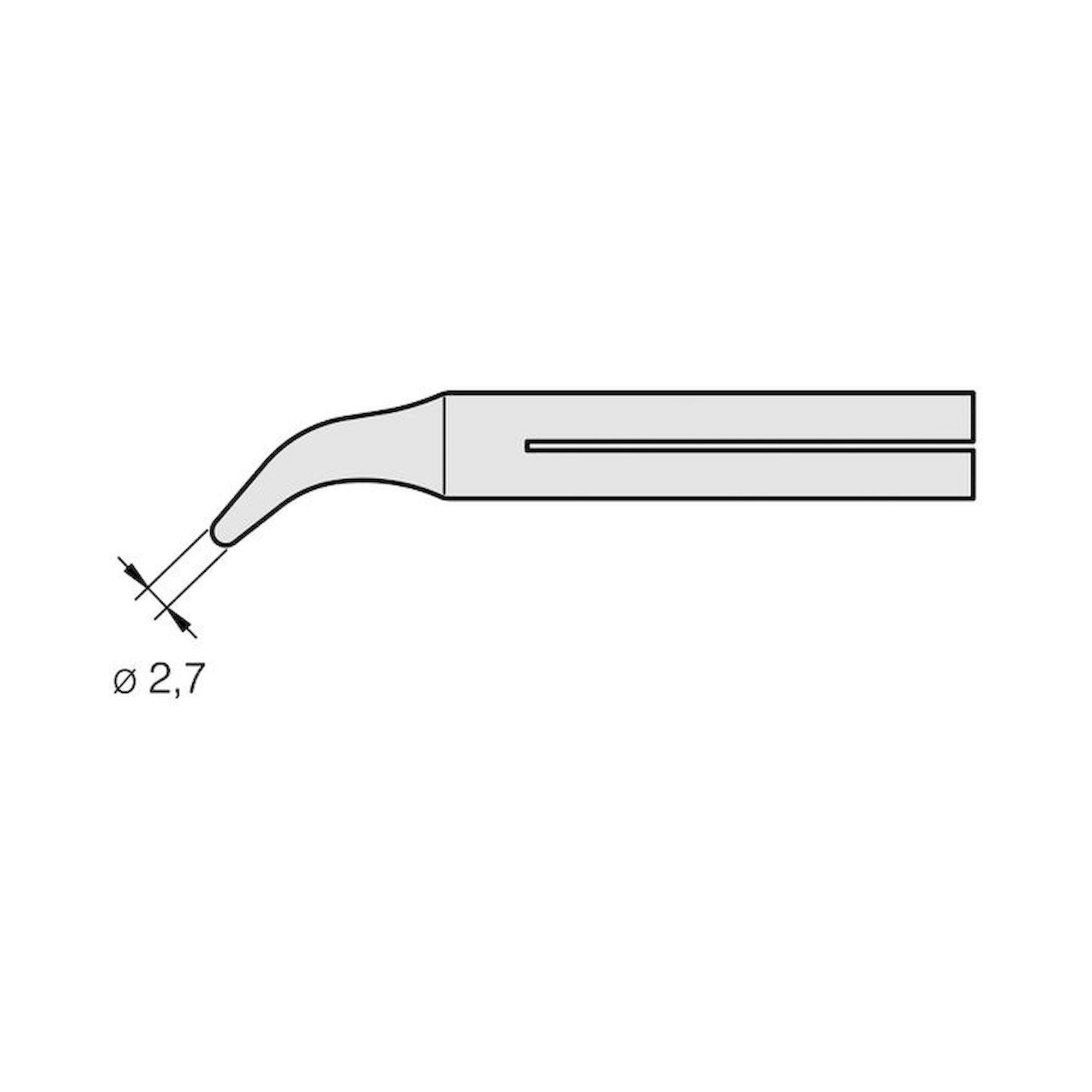

JBC 550509PULSMATIC 55N / TB-3220CLASSIC

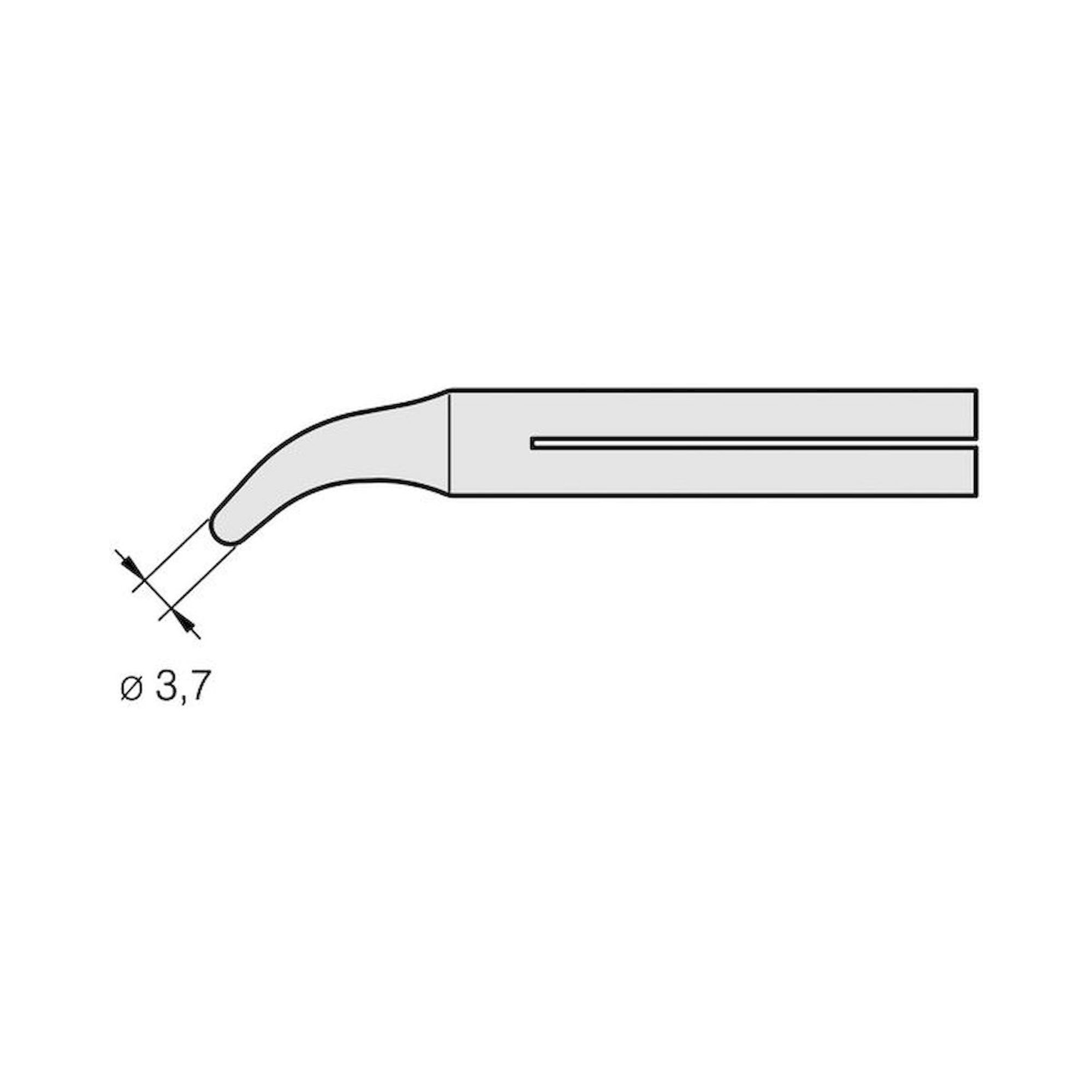

JBC 550608PULSMATIC 55N / TB-3220CLASSIC

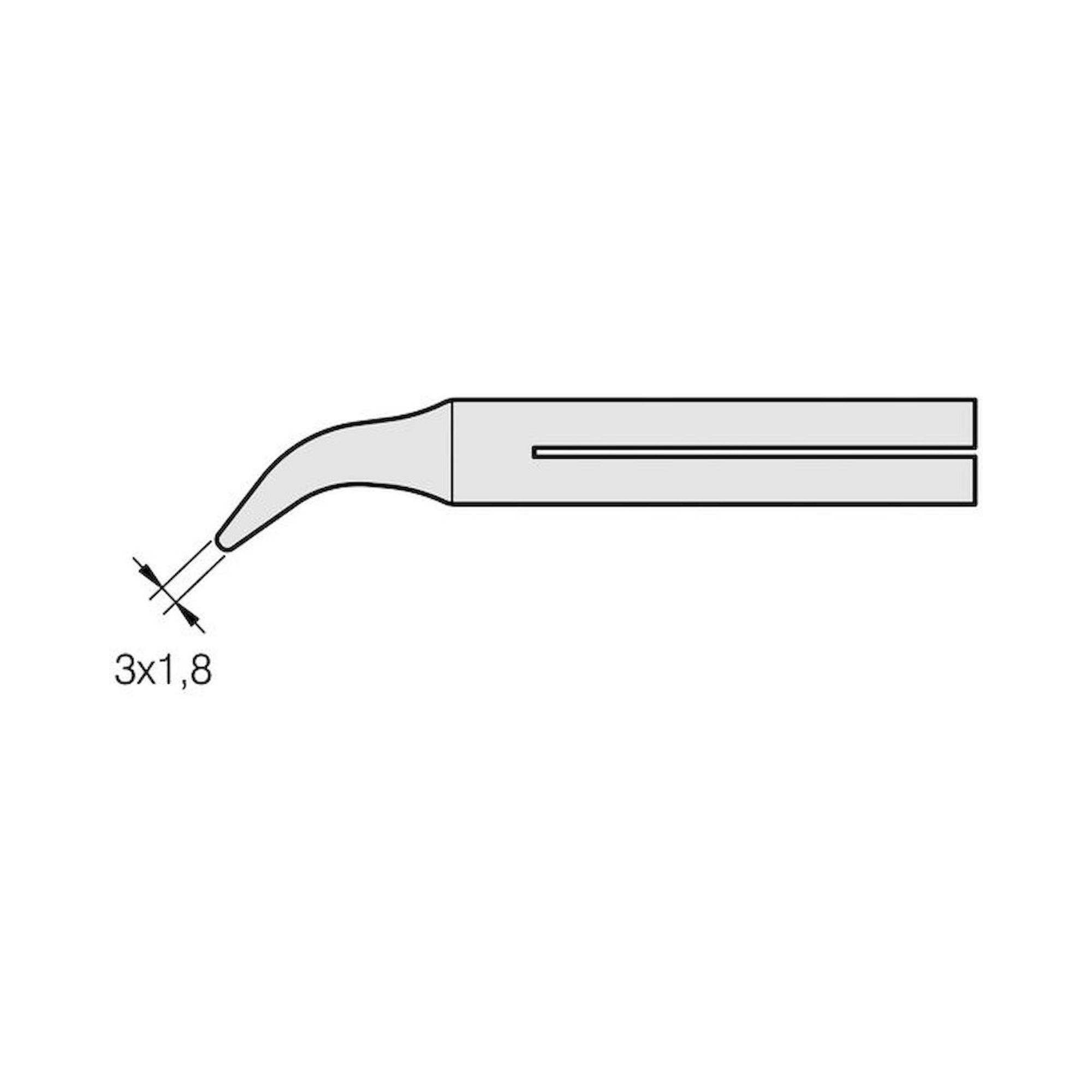

JBC 550707PULSMATIC 55N / TB-3220CLASSIC

⚙ Dual compatibility - all five tips fit both PULSMATIC 55N and TB-3220
✓ CLASSIC quality - genuine JBC tips for reliable heat transfer
📦 Service stock - compact range for spare-part requirements of older stations

Typical applications: Maintenance and servicing of PULSMATIC 55N and TB-3220 stations, spare-part supply in service environments, and manual soldering of THT and SMD components with these CLASSIC stations.

View as Grid view List view

5 Items

Set Descending Direction
per page
  1. Round soldering tip 1.2 mm bent for PULSMATIC 55N - JBC C07D
    Add to Wish List Add to Compare
    Round soldering tip 1.2 mm bent for PULSMATIC 55N - JBC C07D
    €14.41
  2. Round soldering tip 1.7 mm bent for PULSMATIC 55N - JBC C10D
    Add to Wish List Add to Compare
    Round soldering tip 1.7 mm bent for PULSMATIC 55N - JBC C10D
    €14.41
  3. Round soldering tip 2.7 mm bent for PULSMATIC 55N - JBC C20D
    Add to Wish List Add to Compare
    Round soldering tip 2.7 mm bent for PULSMATIC 55N - JBC C20D
    €14.41
  4. Chisel soldering tip 3 x 1.8 mm bent for PULSMATIC 55N - JBC CT25D
    Add to Wish List Add to Compare
    Chisel soldering tip 3 x 1.8 mm bent for PULSMATIC 55N - JBC CT25D
    €14.41
  5. Round soldering tip 3.7 mm bent for PULSMATIC 55N - JBC C30D
    Add to Wish List Add to Compare
    Round soldering tip 3.7 mm bent for PULSMATIC 55N - JBC C30D
    €14.41
What are JBC Pulsmatic soldering tips and what industrial applications do they serve?
JBC Pulsmatic soldering tips are precision-engineered copper-iron alloy tips specifically designed for Pulsmatic 55N and TB-3220 soldering stations used in electronics manufacturing, PCB assembly, and component-level repair work. These tips feature optimized thermal conductivity and controlled heat transfer characteristics essential for temperature-sensitive electronic components in automotive ECU production, medical device assembly, and telecommunications equipment manufacturing. The Classic series tips like models 550707, 550300, and 550400 provide consistent temperature profiles required for lead-free solder processing in accordance with IPC-A-610 workmanship standards.
What are the key technical selection criteria for choosing JBC Pulsmatic soldering tips?
Selection of JBC Pulsmatic soldering tips depends on tip geometry, thermal mass, and compatibility with specific solder joint requirements. The Classic series models 550509 and 550608 offer different tip configurations optimized for component pitch densities ranging from 0.4mm BGA applications to standard through-hole connections. Critical selection factors include tip diameter matching component lead spacing, thermal recovery time under 2 seconds for temperature-sensitive operations, and iron plating thickness ensuring minimum 1000-hour operational life under continuous use at 350°C working temperatures.
Which international standards and certifications apply to JBC Pulsmatic soldering tips?
JBC Pulsmatic soldering tips comply with IEC 61191-1 standards for printed board assemblies and meet RoHS 2011/65/EU material composition requirements for lead-free electronics manufacturing. The tips conform to IPC-7711/7721 rework and repair standards ensuring traceability in aerospace and medical device applications where ISO 13485 quality management applies. Manufacturing processes follow ISO 9001:2015 quality standards with material certifications meeting REACH regulation requirements for copper-iron alloy compositions used in temperature-controlled soldering applications.
What are the differences between JBC Classic series Pulsmatic soldering tip variants?
The JBC Classic series Pulsmatic tips differ primarily in tip geometry and thermal characteristics optimized for specific soldering applications. Model 550707 features a conical tip profile suitable for general-purpose work, while 550300 provides a chisel configuration for drag soldering applications on TQFP packages. Models 550400, 550509, and 550608 offer progressively specialized geometries with varying tip diameters from 0.8mm to 3.2mm and different bevel angles optimized for component densities ranging from fine-pitch surface mount to standard connector assemblies.
What are the installation requirements and system compatibility for JBC Pulsmatic soldering tips?
JBC Pulsmatic soldering tips require direct compatibility with Pulsmatic 55N and TB-3220 soldering stations featuring proprietary cartridge-style connection systems. Installation involves inserting the tip cartridge into the handpiece with proper seating confirmed by audible click mechanism and thermal sensor contact verification. The system operates on 24V DC power supply with automatic temperature feedback control maintaining ±2°C stability, requiring calibration verification using certified temperature measurement equipment before initial use and after every 100 operating hours.
What safety ratings and operating parameters apply to JBC Pulsmatic soldering tips?
JBC Pulsmatic soldering tips operate safely within temperature ranges of 200°C to 450°C with automatic overheat protection engaging at 480°C maximum threshold. The tips feature ESD-safe construction meeting IEC 61340-5-1 electrostatic discharge control standards essential for sensitive semiconductor handling. Working environment specifications include ambient temperature operation from 10°C to 40°C with maximum 80% relative humidity, while the handpiece maintains IP20 ingress protection rating suitable for standard electronics manufacturing cleanroom environments classified to ISO 14644-1 Class 10,000 or better.
What maintenance schedule and service life expectations apply to JBC Pulsmatic soldering tips?
JBC Pulsmatic soldering tips require daily cleaning with dedicated tip cleaner and inspection for oxidation or mechanical damage affecting heat transfer efficiency. Service life typically ranges from 6 to 12 months under normal production conditions, with replacement indicated when tip diameter reduction exceeds 20% of original specification or temperature recovery time increases beyond 3 seconds. Preventive maintenance includes weekly tip tinning with 63/37 rosin-core solder and monthly calibration verification using certified thermocouple measurement traceable to NIST standards, with complete documentation required for ISO 9001 quality system compliance.
