Did you know? 217 °C

SAC305 is 96.5 percent tin, 3 percent silver and 0.5 percent copper. It melts around 217 degrees Celsius, some 34 degrees above the old eutectic tin lead alloy.

Browse soldering tips

Soldering tips R470

Soldering tips

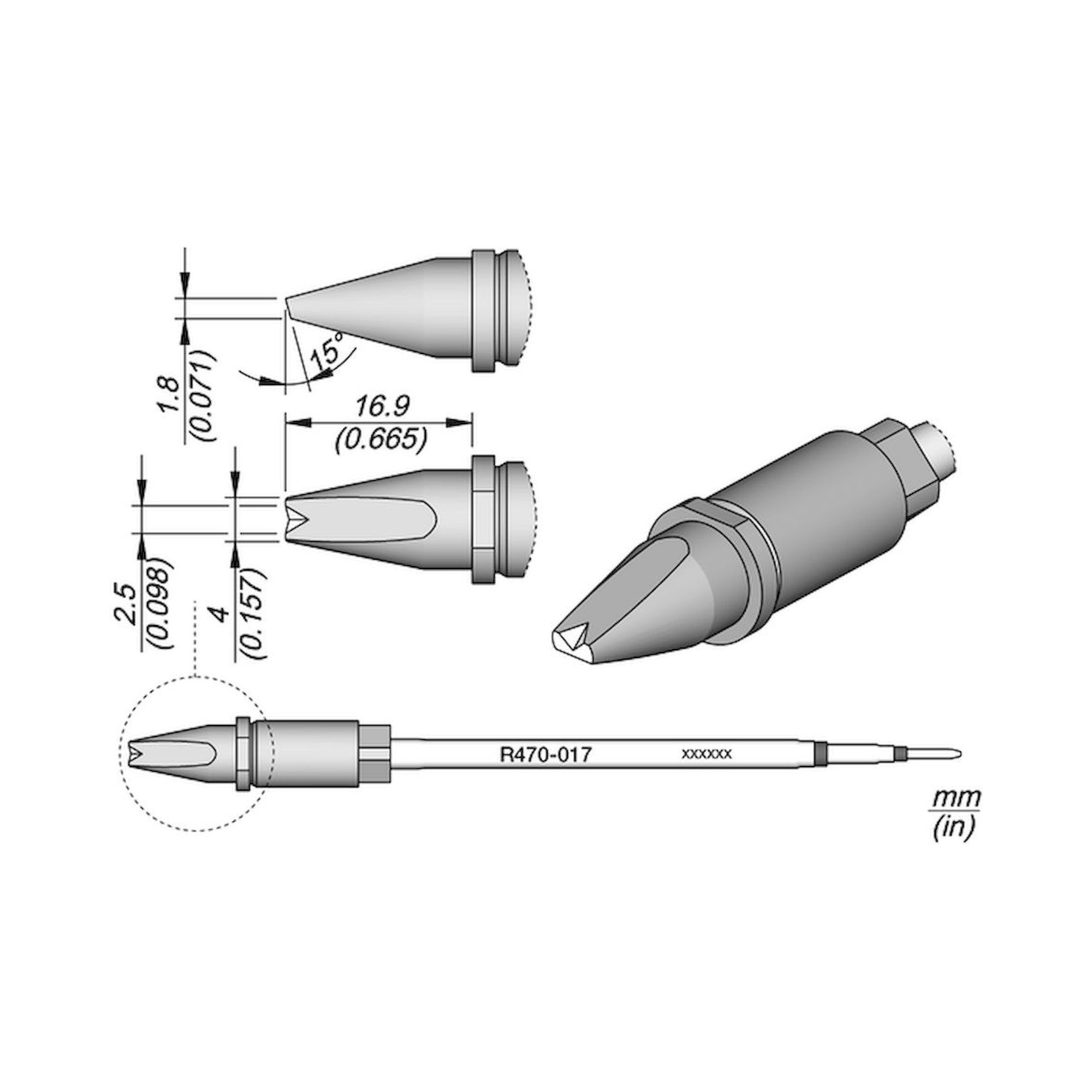

The JBC R470 soldering tip is designed for the TR470 rework handpiece. Available as reference R470017 in chisel geometry with dimensions of 4x1.8 mm. The TR470 is the rework handpiece for the T470 high-power iron class, meaning R470017 is intended for applications requiring both high heat input and directed contact heat.

FeatureValue
Part numberJBC R470017
GeometryChisel
Size4x1.8 mm
Compatible handpieceTR470
ApplicationRework and high-power connections

⚙ TR470 compatibility - exclusively for the TR470 rework handpiece of the high-power iron class
✓ Chisel 4x1.8 mm - larger contact surface than R245, for high-power rework tasks
✦ R470 nomenclature - R470 tips are the rework line of the T470 system, analogous to R245 in the T245 system

Typical applications: Directed high-power heat input during rework of power components and large SMD components with the TR470 handpiece, repair and touch-up on PCBs with thermally demanding solder joints, and laboratory applications requiring contact heat at higher wattage levels.
