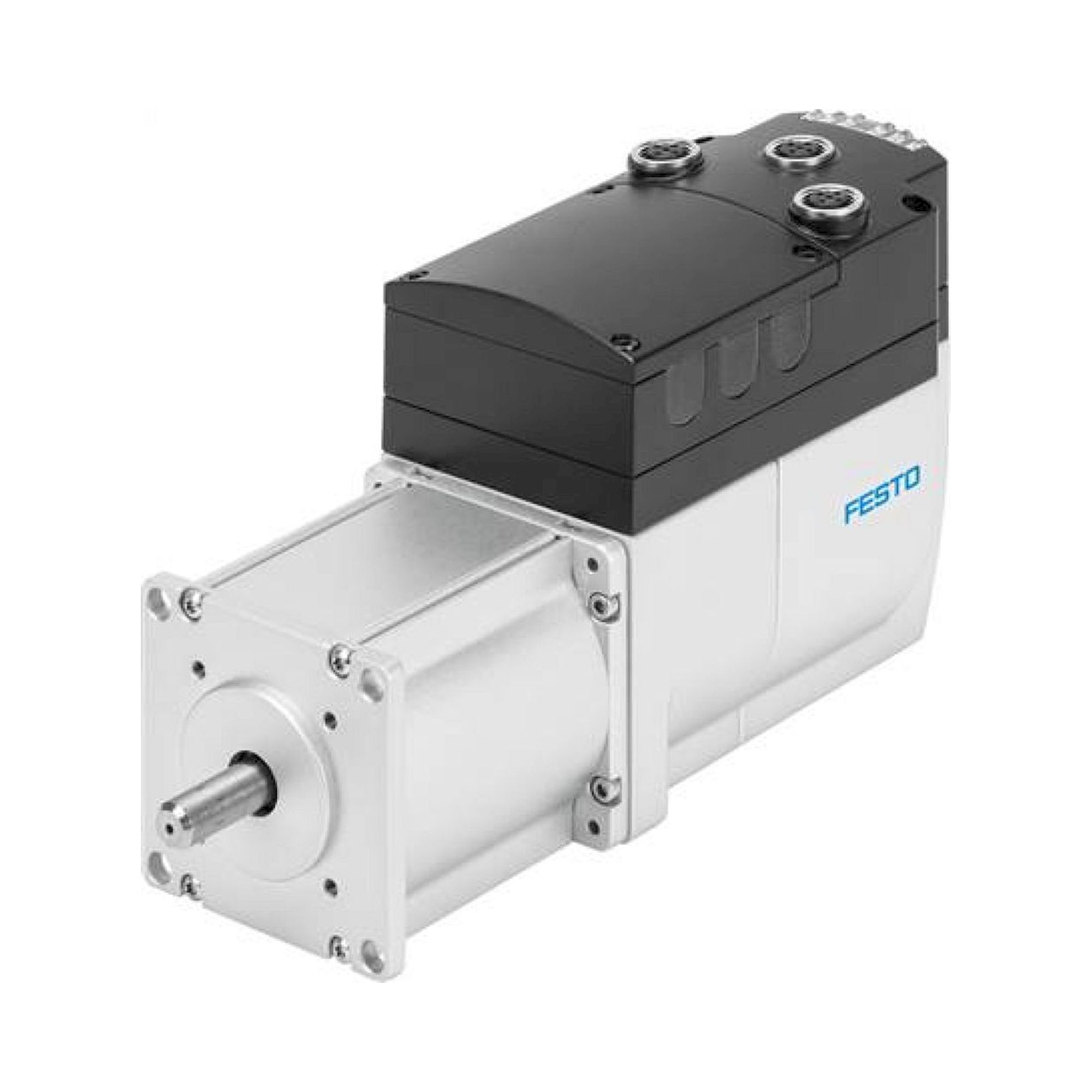

Motors with integrated controller

Festo integrated drive motors like the EMCA-EC-67 series combine servo motor, controller, and encoder in a single compact unit designed for precise positioning and motion control in industrial automation. These drives are primarily used in packaging machinery, assembly lines, material handling systems, and laboratory automation where space constraints demand integrated solutions. The EMCA-EC-67 variants provide direct EtherCAT, Profinet, or CANopen connectivity for seamless integration into existing industrial networks. Manufacturing industries including automotive, pharmaceutical, food processing, and electronics production rely on these integrated drives for applications requiring precise angular positioning within ±0.1 degrees and repeatability better than ±0.05 degrees.

When selecting Festo EMCA-EC-67 integrated drives, key technical criteria include communication protocol compatibility with EP (EtherCAT), PN (Profinet), EC (EtherCAT), CO (CANopen), or DIO (digital I/O) variants available in the series. Motor size designation S or M indicates different torque ratings, with M variants providing higher torque output for demanding applications. Connection type selection between 1TM (male connector) and 1TE (female connector) ensures proper cable management in your application. Operating voltage typically ranges from 24V DC to 48V DC depending on the specific model, while integrated controllers support position, velocity, and torque control modes. Maximum speeds reach 6000 rpm with holding torques from 0.35 Nm to 1.2 Nm across the EMCA-EC-67 product range.

Festo EMCA-EC-67 integrated drives comply with IEC 61131-2 for industrial automation systems and EN 61000-6-2 for electromagnetic compatibility in industrial environments. These drives meet ISO 14001 environmental management standards and RoHS directive 2011/65/EU for hazardous substance restrictions. Safety certifications include CE marking according to EN ISO 13849-1 for machinery safety and ATEX directive compliance for potentially explosive atmospheres when specified. Communication protocols conform to IEC 61158 for industrial fieldbus systems, with EtherCAT variants meeting IEC 61784-2 specifications. Quality management follows ISO 9001 standards throughout the manufacturing process, ensuring consistent performance and reliability in critical industrial applications.

The Festo EMCA-EC-67 series offers distinct communication protocol variants where EP models provide EtherCAT/Ethernet communication for high-speed data exchange up to 100 Mbit/s, while PN variants support Profinet industrial Ethernet with integrated web server functionality. EC designation indicates enhanced EtherCAT capability with distributed clock synchronization for precise multi-axis coordination, whereas CO models utilize CANopen protocol supporting baudrates from 125 kbit/s to 1 Mbit/s. DIO variants feature digital input/output interfaces with 8 digital inputs and 4 digital outputs for simple point-to-point control applications. Size designations S and M represent different mechanical dimensions and torque capabilities, with M variants providing approximately 40% higher continuous torque than S models. Connection types 1TM and 1TE differ in male versus female M12 connector orientation for optimal cable routing in confined spaces.

Festo EMCA-EC-67 integrated drives require mounting flange dimensions according to IEC 60072 B5 standard with M4 mounting bolts and 8 mm mounting depth for secure installation. System compatibility depends on fieldbus protocol selection, with EtherCAT variants requiring CAT5e cables supporting 100 Mbit/s data rates and maximum network segment lengths of 100 meters between nodes. Power supply specifications demand 24V DC ±10% with ripple content below 5% and sufficient current capacity typically ranging from 2A to 8A depending on motor size and load conditions. Environmental installation requirements include ambient temperatures from 0°C to +40°C during operation and relative humidity below 95% non-condensing. Proper EMC installation practices mandate shielded cables with 360-degree shield connection and separation of power and signal cables by minimum 200mm distance.

Festo EMCA-EC-67 integrated drives feature IP65 ingress protection rating ensuring complete dust protection and resistance against water jets from all directions during operation. Safety integrity level SIL 2 capability according to IEC 61508 enables integration into safety-critical applications with systematic failure rates below 10^-7 per hour. Operating temperature range spans from -10°C to +50°C ambient with internal motor temperatures monitored via integrated thermal sensors triggering protective shutdown at 120°C. Vibration resistance meets IEC 60068-2-6 standards with 10g acceleration at frequencies from 10Hz to 500Hz, while shock resistance complies with IEC 60068-2-27 specifications up to 50g peak acceleration. Electrical safety features include integrated safe torque off function meeting IEC 61800-5-2 requirements and isolation voltage ratings of 500V AC between motor windings and ground potential.

Festo EMCA-EC-67 integrated drives typically achieve 20,000 operating hours or 5 years service life under normal industrial conditions with proper maintenance according to manufacturer specifications. Preventive maintenance requires monthly visual inspection of cable connections and annual verification of mounting bolt torque to 4.5 Nm specification. Bearing lubrication intervals extend to 10,000 operating hours in standard environments, while harsh conditions may require inspection every 5,000 hours with replacement of sealed ball bearings when radial play exceeds 0.05mm. Electronic components including integrated controllers require firmware updates every 2-3 years to maintain optimal performance and security standards. Encoder calibration verification should occur annually using Festo Configuration Tool software to ensure positioning accuracy remains within ±0.1 degree specification, with complete drive replacement recommended when accumulated positioning errors exceed ±0.5 degrees consistently.
