What are Festo motor and controller accessories and which industries require them?

Festo motor and controller accessories are specialized components including brake resistors, safety modules, motor cables, network filters, and communication interfaces designed to support servo motor systems in automated manufacturing environments. These accessories are essential in automotive assembly lines, packaging machinery, food processing equipment, and semiconductor manufacturing where precise motion control and system integration are critical. Primary applications include brake energy dissipation through resistors like the CACR-KL2 series, safety circuit monitoring via CAMC-G-S3 modules, and fieldbus communication through CAMC-PB, CAMC-EC, and CAMC-F-PN interfaces that enable seamless integration with industrial control networks.

What are the key technical selection criteria for Festo motor accessories with specific power ratings?

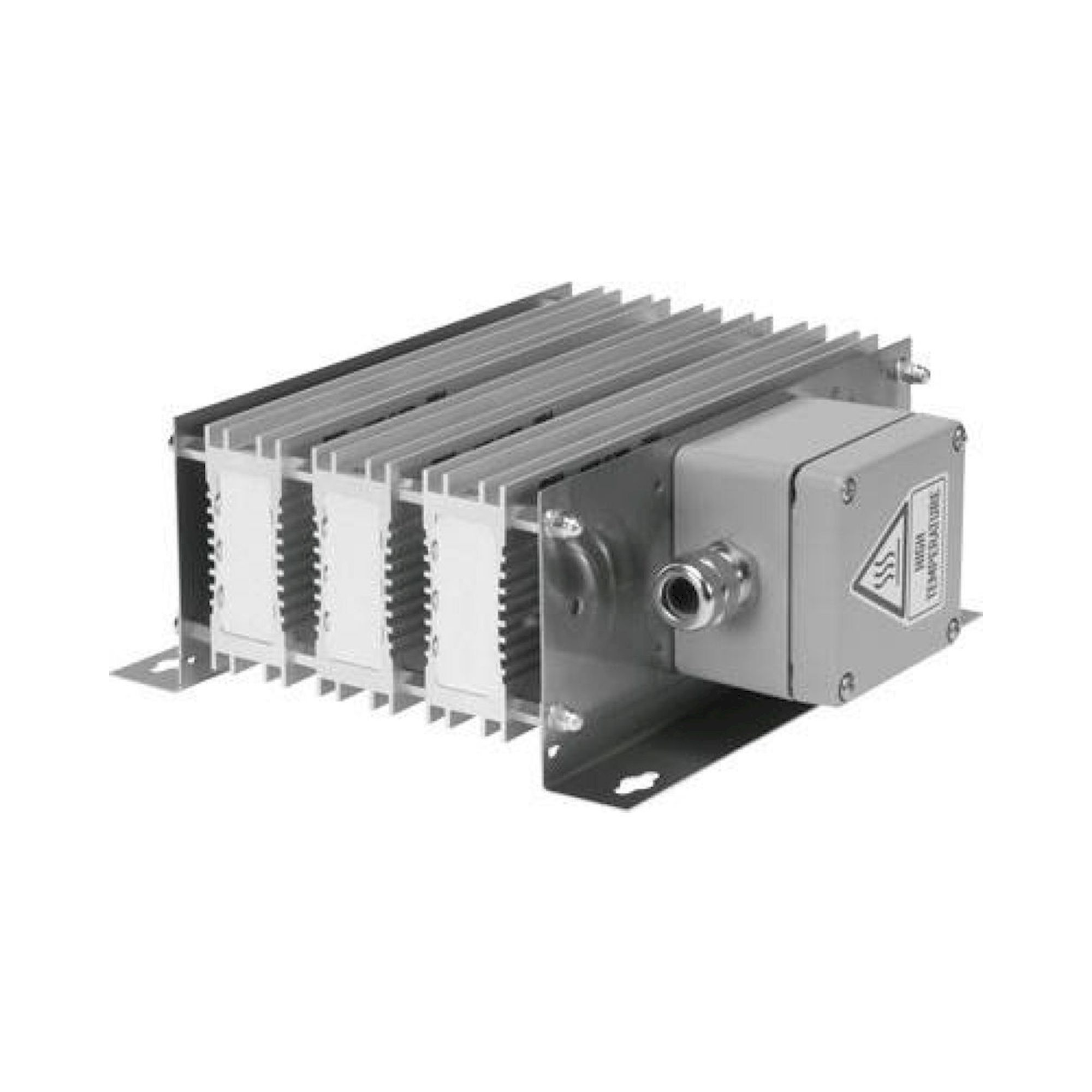

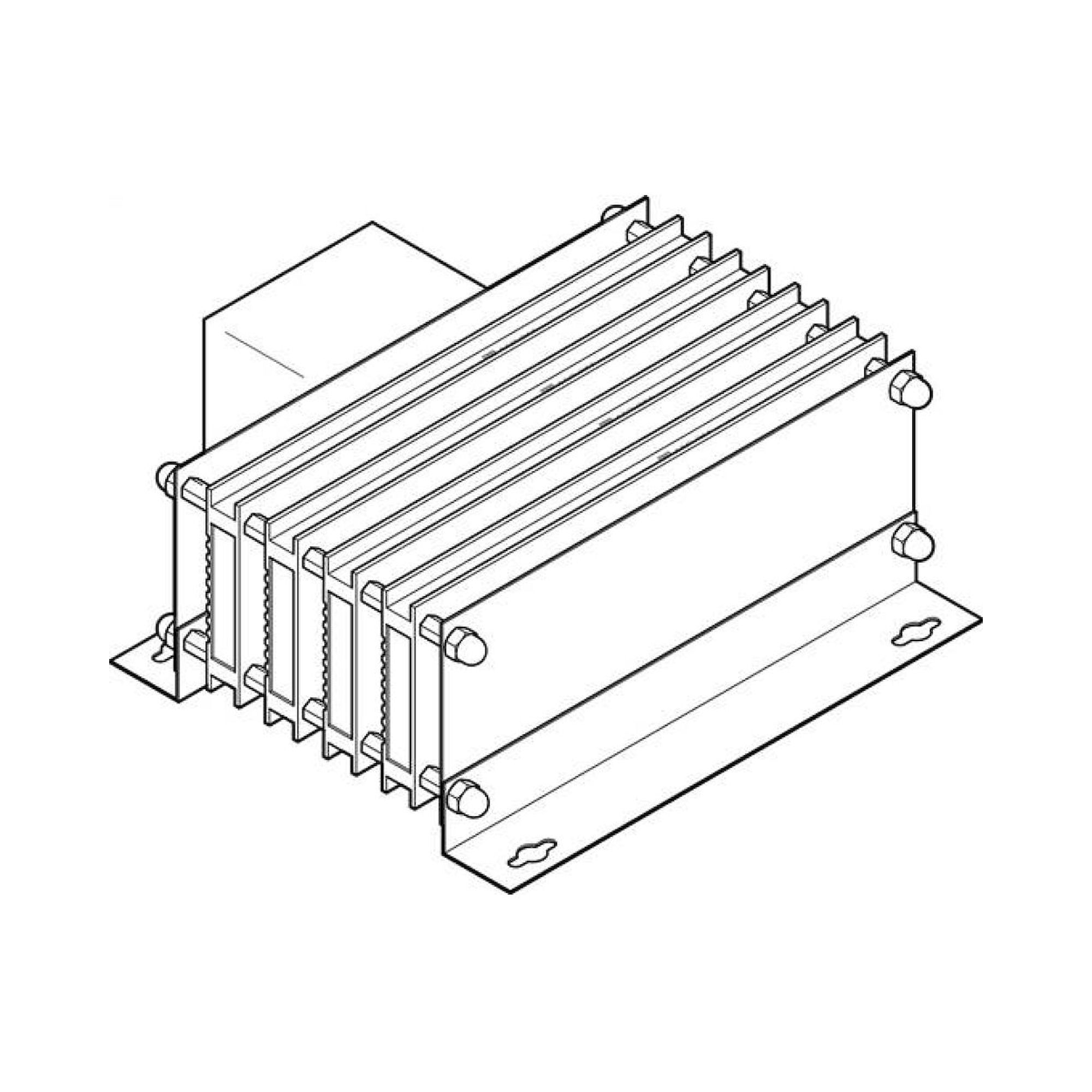

Selection of Festo motor accessories depends on power handling capacity, electrical compatibility, and communication protocol requirements specific to the servo drive system. Brake resistors must match drive power ratings, with available options ranging from 33W to 240W continuous power handling as seen in models CACR-KL2-33-W2400 through CACR-KL2-240-W1800, while resistance values span from 40Ω to 240Ω depending on drive voltage and braking torque requirements. Motor cables like NEBM-M23G15 series require matching connector types, cable length considerations from 15m to 25m, and proper shielding for electromagnetic compatibility. Communication interfaces must align with factory automation protocols, with CAMC-F-PN supporting PROFINET, CAMC-F-EP for EtherCAT, and CAMC-PB for PROFIBUS networks.

Which international standards and certifications apply to Festo motor controller accessories?

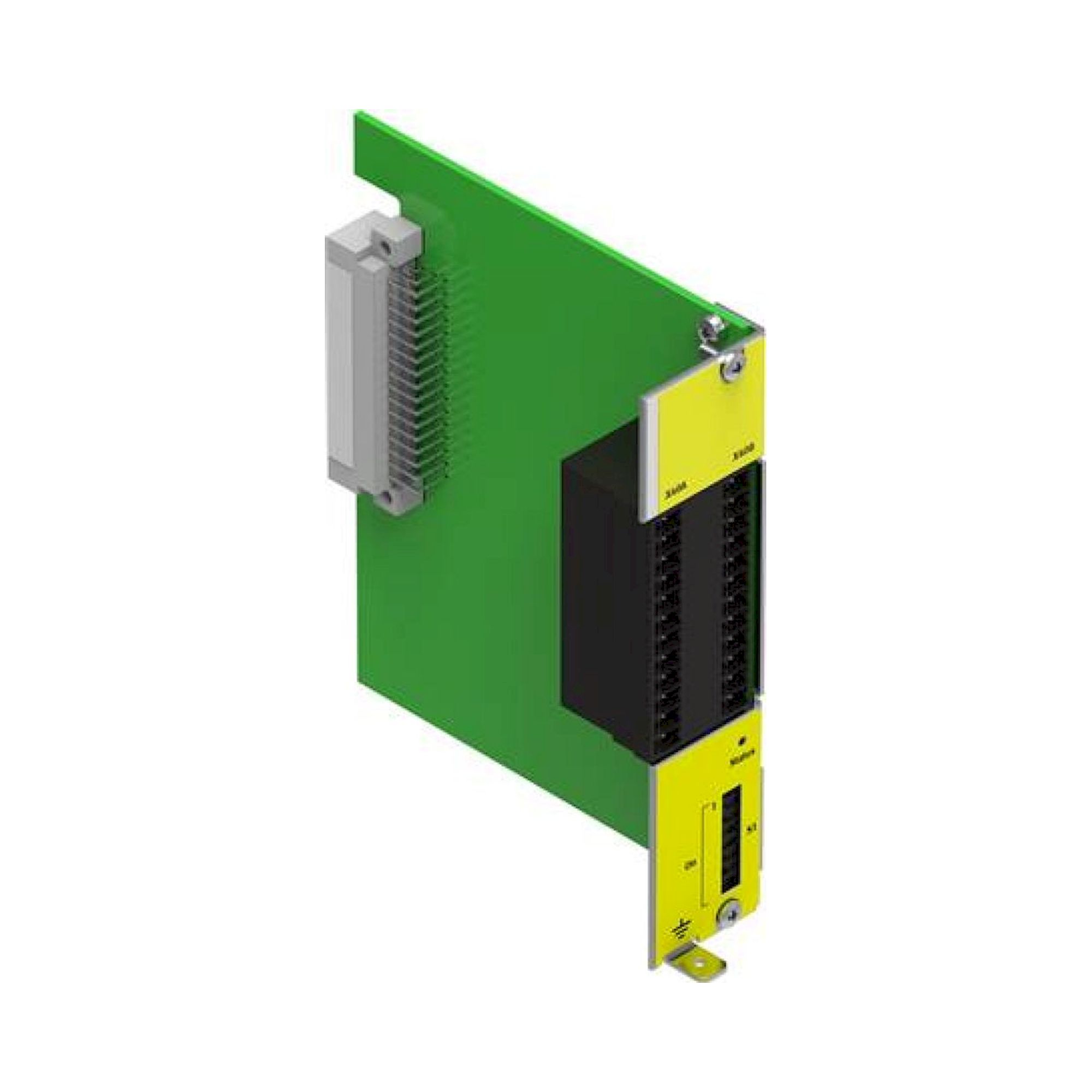

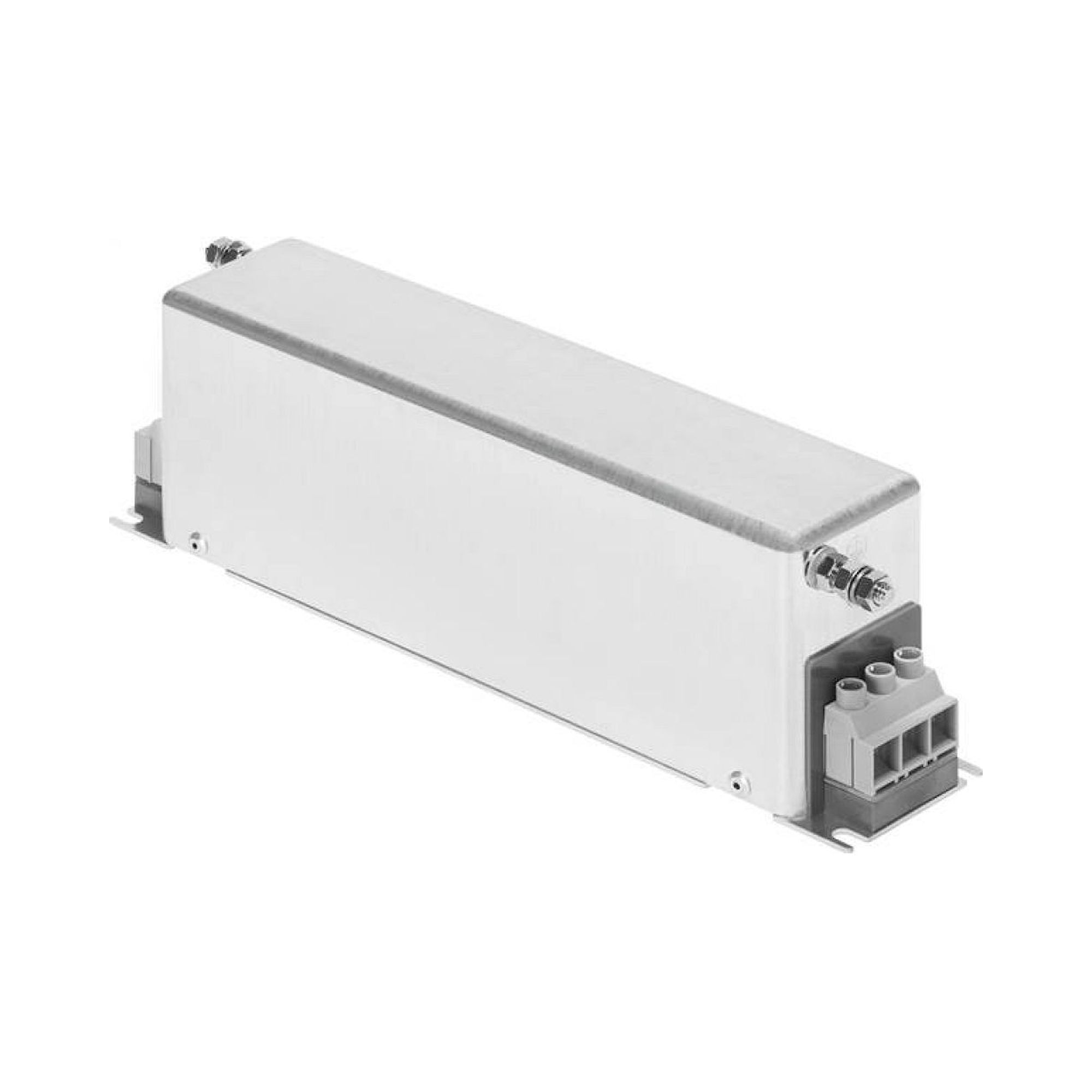

Festo motor and controller accessories comply with IEC 61800-5-2 safety standards for power drive systems, EN ISO 13849-1 for safety-related control system design, and IEC 61131-2 for programmable controller equipment requirements. Safety modules like the CAMC-G-S3 meet SIL 3 requirements according to IEC 61508 functional safety standards, while motor cables conform to IEC 60204-1 electrical safety standards for machine applications. Network filters such as the CADF-C15-11A-P3 comply with EN 55011 electromagnetic compatibility standards to suppress conducted emissions, and communication interfaces adhere to IEC 61158 fieldbus protocol standards for industrial automation networks. All components maintain CE marking compliance for European machinery directive 2006/42/EC applications.

What are the differences between Festo CAMC communication interface variants?

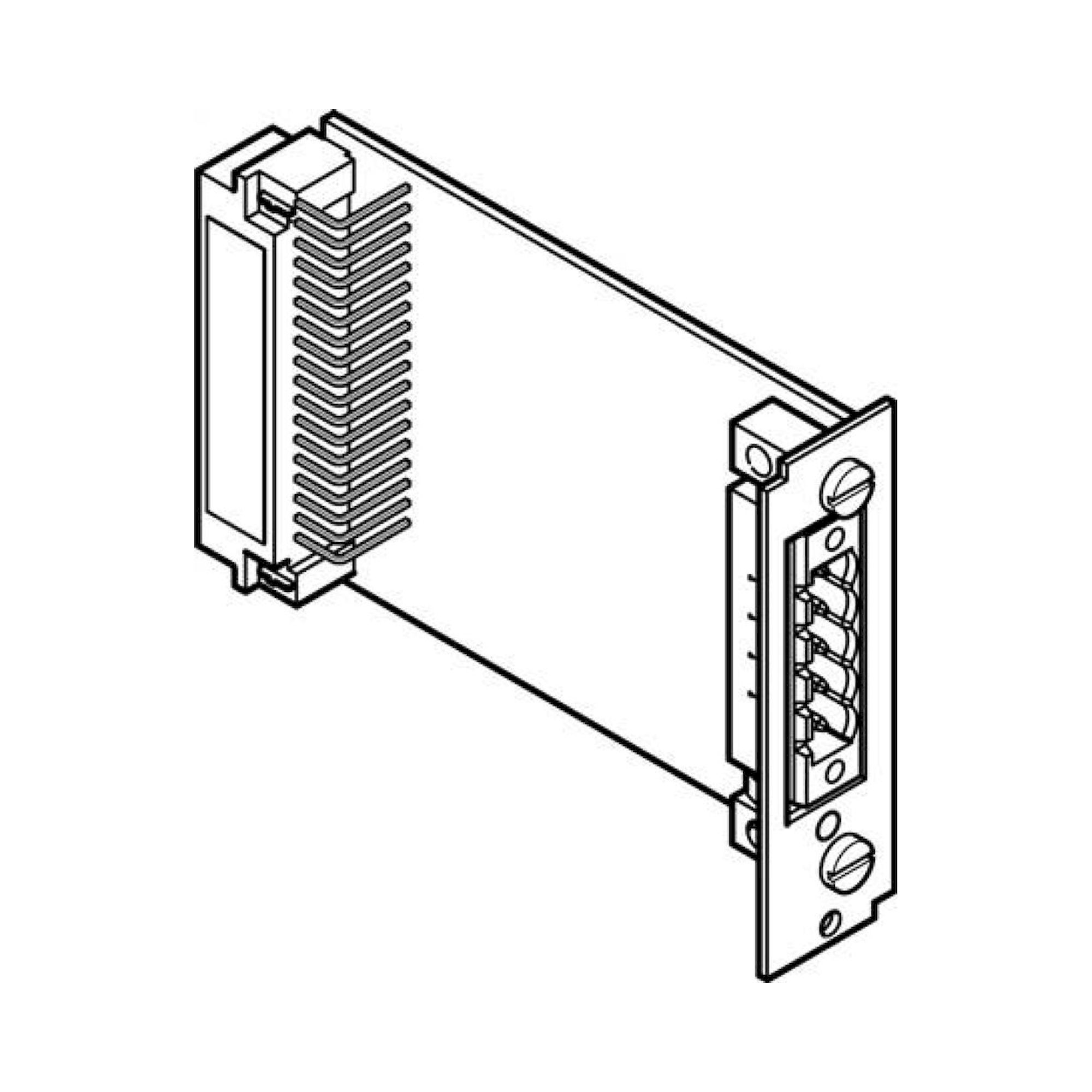

Festo CAMC interface modules differ primarily in supported communication protocols and network architectures for industrial automation integration. The CAMC-F-PN interface supports PROFINET Real-Time communication with 100Mbps Ethernet-based topology, while CAMC-F-EP enables EtherCAT protocol with microsecond-level synchronization for high-speed motion applications requiring precise timing. CAMC-PB provides PROFIBUS DP connectivity at 12Mbps maximum transmission rate for legacy automation systems, whereas CAMC-EC offers EtherNet/IP and Modbus TCP support for flexible multi-vendor network integration. The CAMC-DN variant serves as a DeviceNet interface operating at 500kbps for distributed I/O applications, with each module featuring specific connector types and configuration requirements matching the respective network topology.

What are the installation requirements and system compatibility for Festo motor accessories?

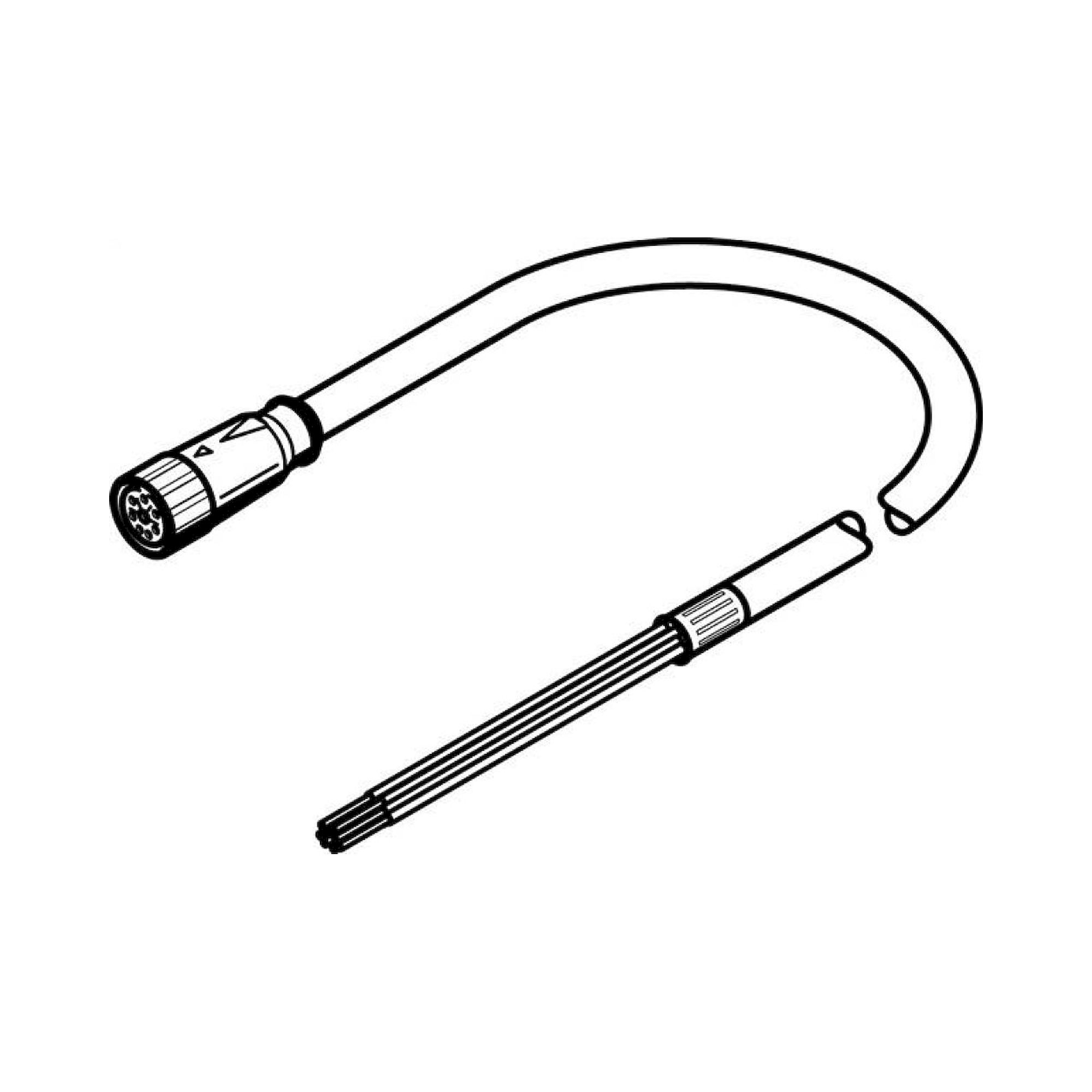

Festo motor accessories require proper mounting clearances, electrical connections matching drive specifications, and environmental considerations for reliable system integration. Brake resistors like the CACR-KL2 series need adequate ventilation spacing of minimum 50mm on all sides for heat dissipation and must be mounted on DIN rail or panel with appropriate torque specifications of 1.2Nm for terminal connections. Motor cables such as NEBM-M23G15-EH series feature M23 circular connectors with IP67 rating when mated, requiring proper cable routing with minimum bend radius of 10 times cable diameter to maintain shielding integrity. Communication interfaces mount on standard 35mm DIN rail with snap-fit retention, consuming 24VDC supply current between 150mA to 300mA depending on module type and network load conditions.

What safety ratings and environmental specifications apply to Festo motor controller accessories?

Festo motor controller accessories operate within industrial temperature ranges from -25°C to +60°C ambient, with safety modules like CAMC-G-S3 maintaining SIL 3 safety integrity level performance throughout this range. Motor cables achieve IP67 ingress protection when properly connected, withstanding temporary immersion and continuous exposure to industrial coolants and cutting fluids common in machining environments. Brake resistors handle continuous power dissipation up to 240W at 40°C ambient temperature with derating factors applied at higher temperatures, while network filters maintain conducted emission suppression performance across 0°C to +55°C operating range. All communication interfaces feature isolated galvanic separation up to 500VDC test voltage and comply with vibration resistance testing per IEC 60068-2-6 at 10-55Hz frequency range.

What maintenance schedules and service life expectations apply to Festo motor accessories?

Festo motor accessories require periodic inspection every 6 months for mechanical connections and annual testing of safety functions to maintain optimal performance and compliance with safety standards. Brake resistors have typical service life of 10 years under normal operating conditions but require quarterly visual inspection for heat damage and annual resistance measurement verification within ±10% tolerance of nominal values. Motor cables should undergo annual continuity testing and shield integrity verification, with replacement recommended after 5-7 years depending on flexing cycles and environmental exposure severity. Safety modules like CAMC-G-S3 require annual proof testing according to IEC 61508 requirements, while communication interfaces need firmware updates as released and connector cleaning every 12 months to prevent corrosion-related network faults in industrial environments.

Accessories for motors and controllers

Motors and controllers

Festo accessories for motors and controllers include all peripheral components needed for system-compliant installation of EMMS and EMCA drives. Motor and encoder cables of the NEBM series connect servo and stepper motors to the motor controller and are available in lengths from 1.5 to 15 m with M12 connectors. Mains filters MRC-NF and braking resistors CACR protect the controller against mains interference and regenerative voltage spikes.

Fieldbus adapters CAMC-DN (DeviceNet) and CAMC-PB (PROFIBUS), plus interfaces CAMC-D-8E8A (8I/8O digital), CAMC-EC (EtherCAT) and CAMC-F-EP/-PN (EtherNet/IP, PROFINET), extend the CMMP-AS controller to cover all industrial communication protocols. Safety module CAMC-G-S1 and switch module CAMC-DS-M1 complete the configuration options.

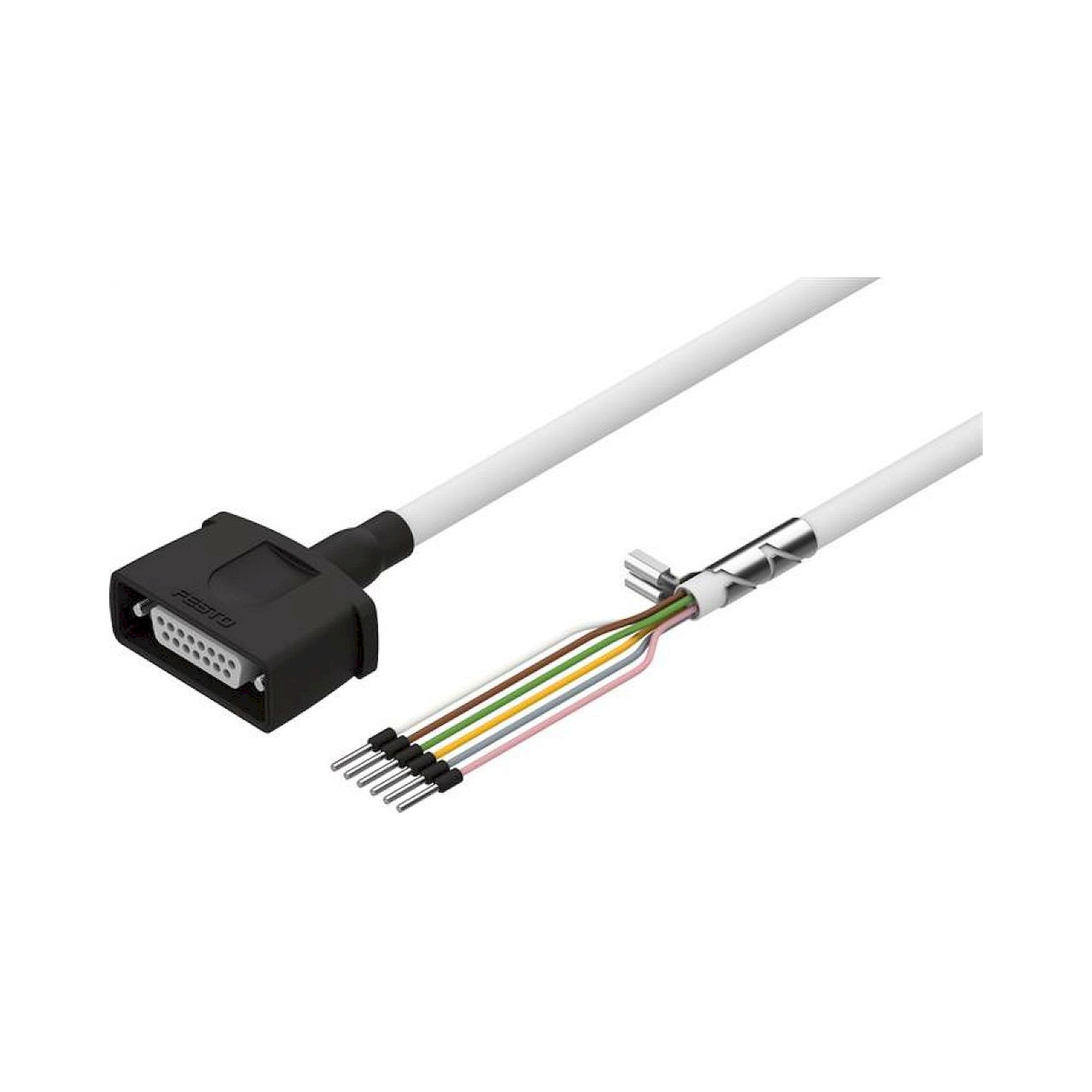

⚡ Motor cables NEBM - M12-assembled, lengths 1.5, 2.23, 5, 10, 15 m

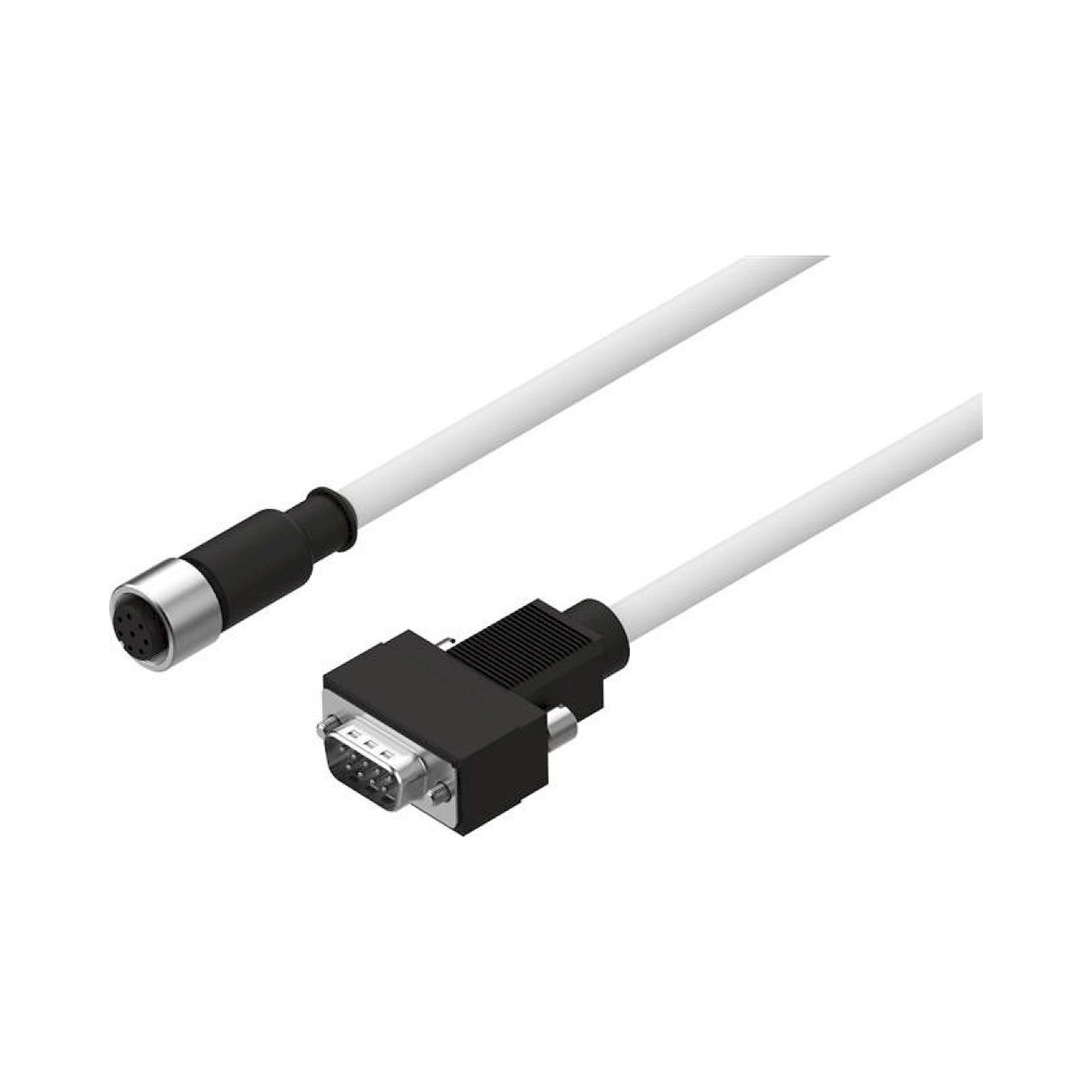

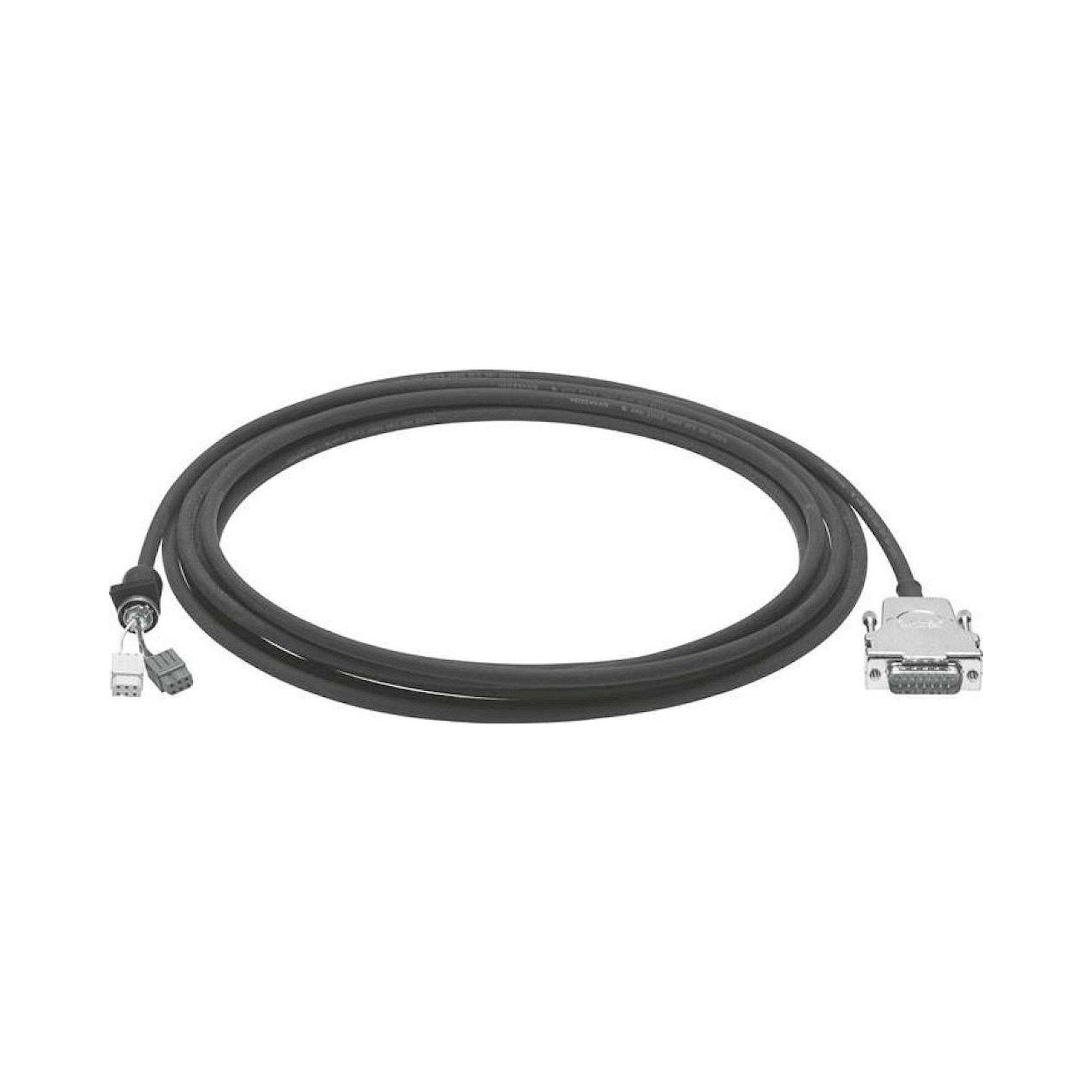

✓ Encoder cables NEBM - 8-pin and 12-pin, for incremental and absolute encoders

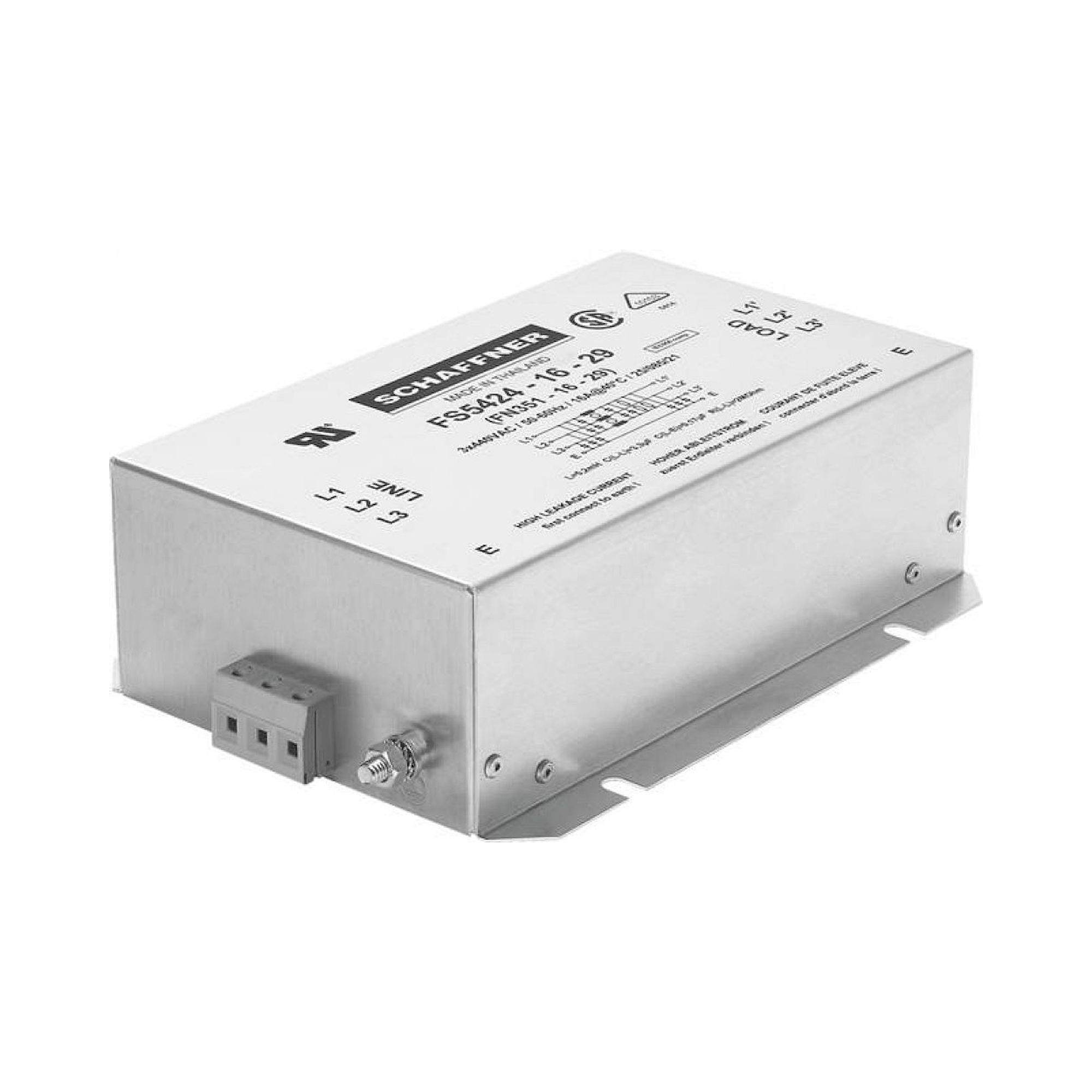

⚙ Mains filters MRC-NF-1 and MRC-NF-3 - single-phase and three-phase, for CMMP-AS controllers

⬡ Braking resistors CACR - 33, 67, 72, 100 Ohm, 500 W to 2.4 kW

🛡 Fieldbus adapters CAMC - PROFIBUS, DeviceNet, EtherCAT, EtherNet/IP, PROFINET

✦ Safety module CAMC-G-S1 - STO/SS1 safety function for CMMP-AS controller

Group	Type	Function
Motor cables	NEBM-M12G4-RS-...	4-pin, for EMMS servo motor

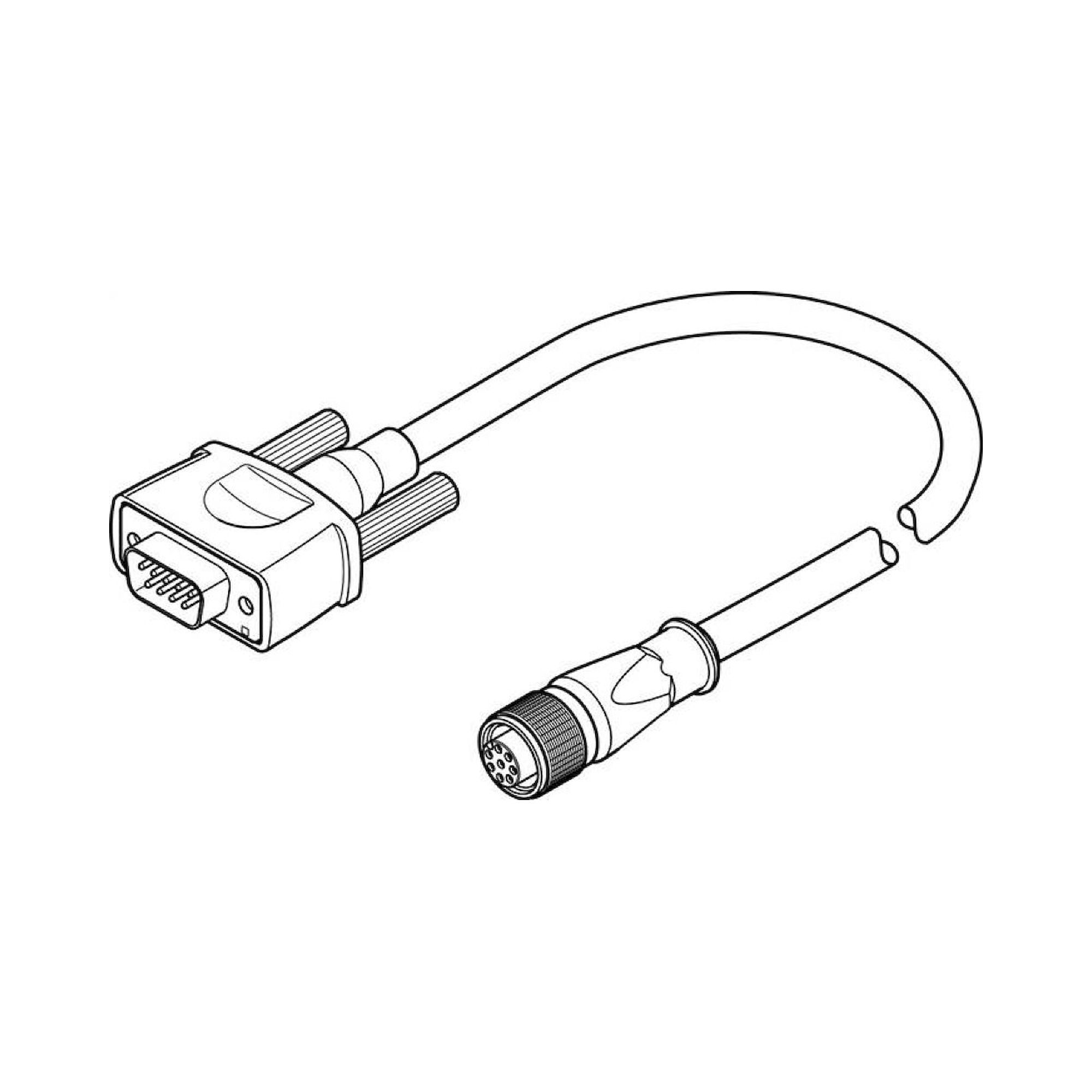

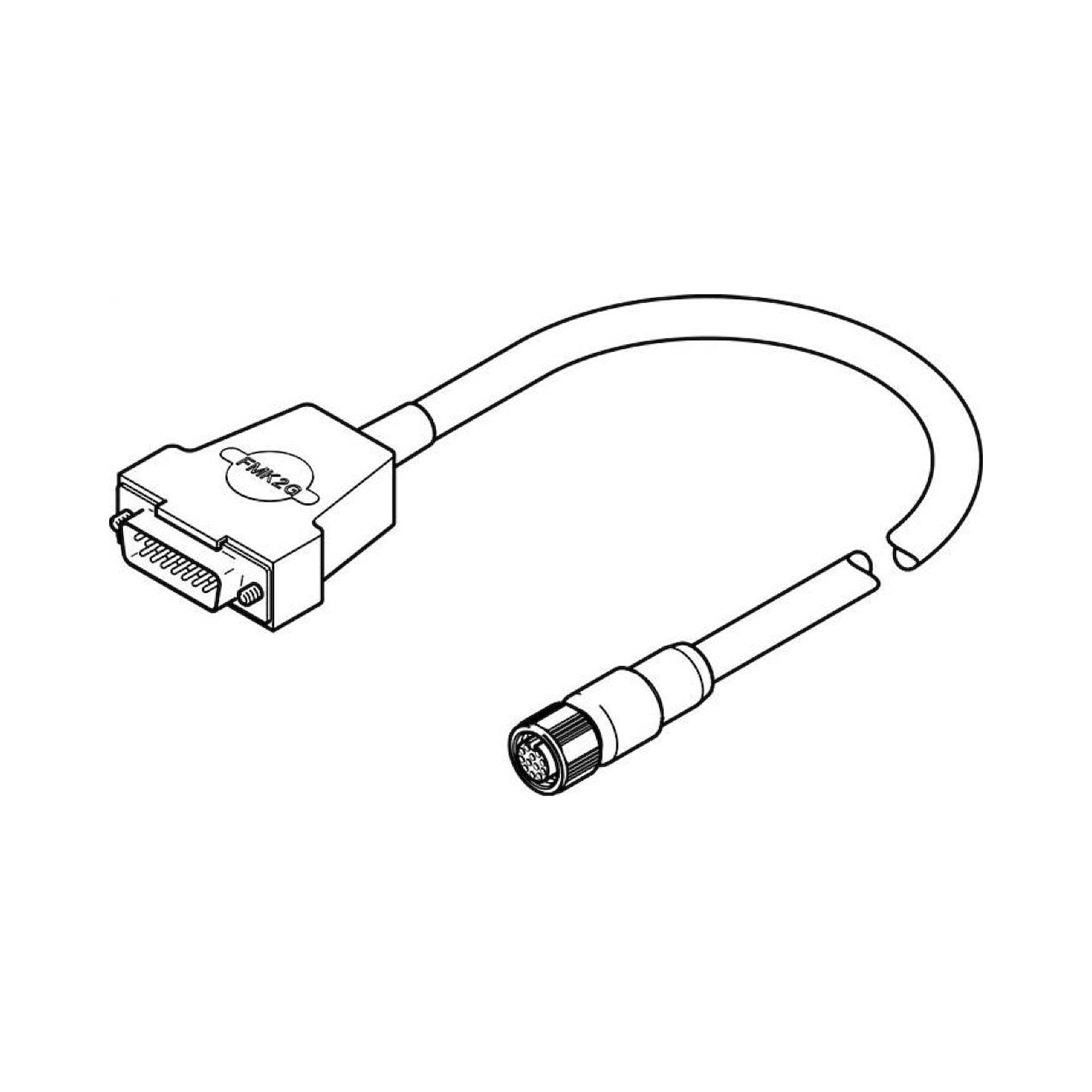

Encoder cables	NEBM-M12G8-E-..., NEBM-M12G12-RS-...	8/12-pin, incremental/absolute
Mains filter	MRC-NF-1-BSM-BSC, MRC-NF-3-BSM-BSC	Single-phase / three-phase

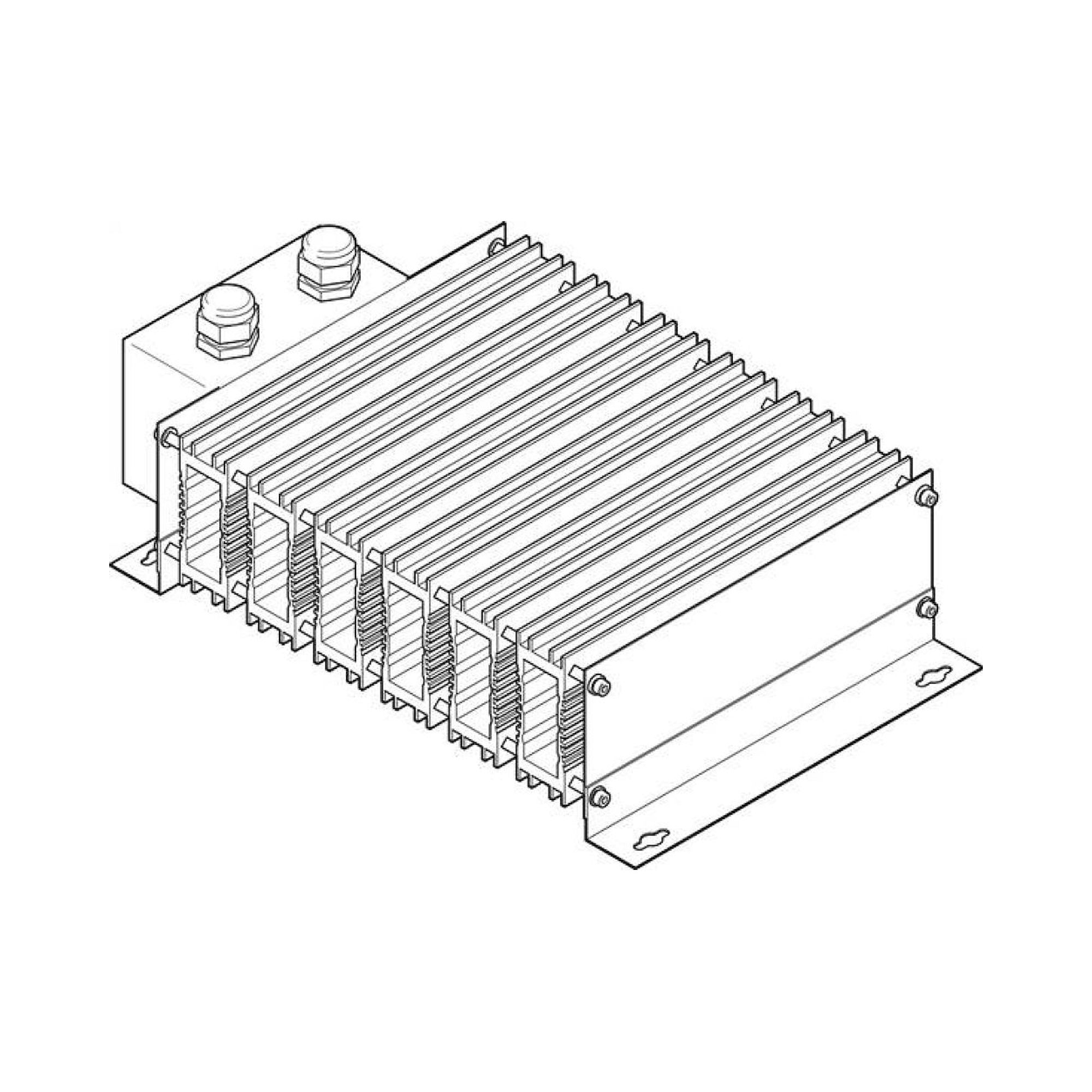

Braking resistor	CACR-KL2-33-W2400, CACR-LE2-100-W500	33/100 Ohm, 500/2400 W

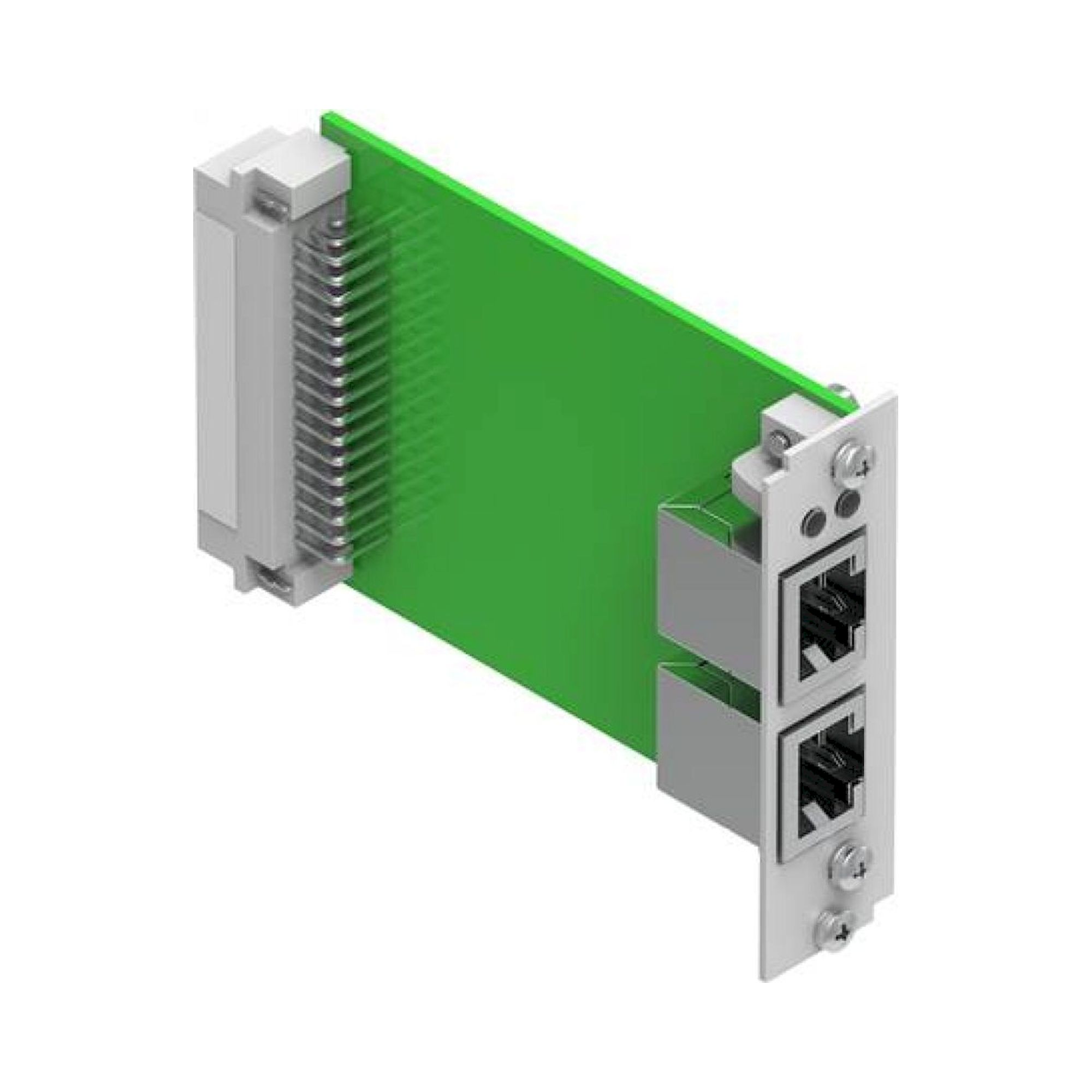

Fieldbus adapter	CAMC-DN, CAMC-PB, CAMC-EC, CAMC-F-EP/PN	DeviceNet, PROFIBUS, EtherCAT, PROFINET

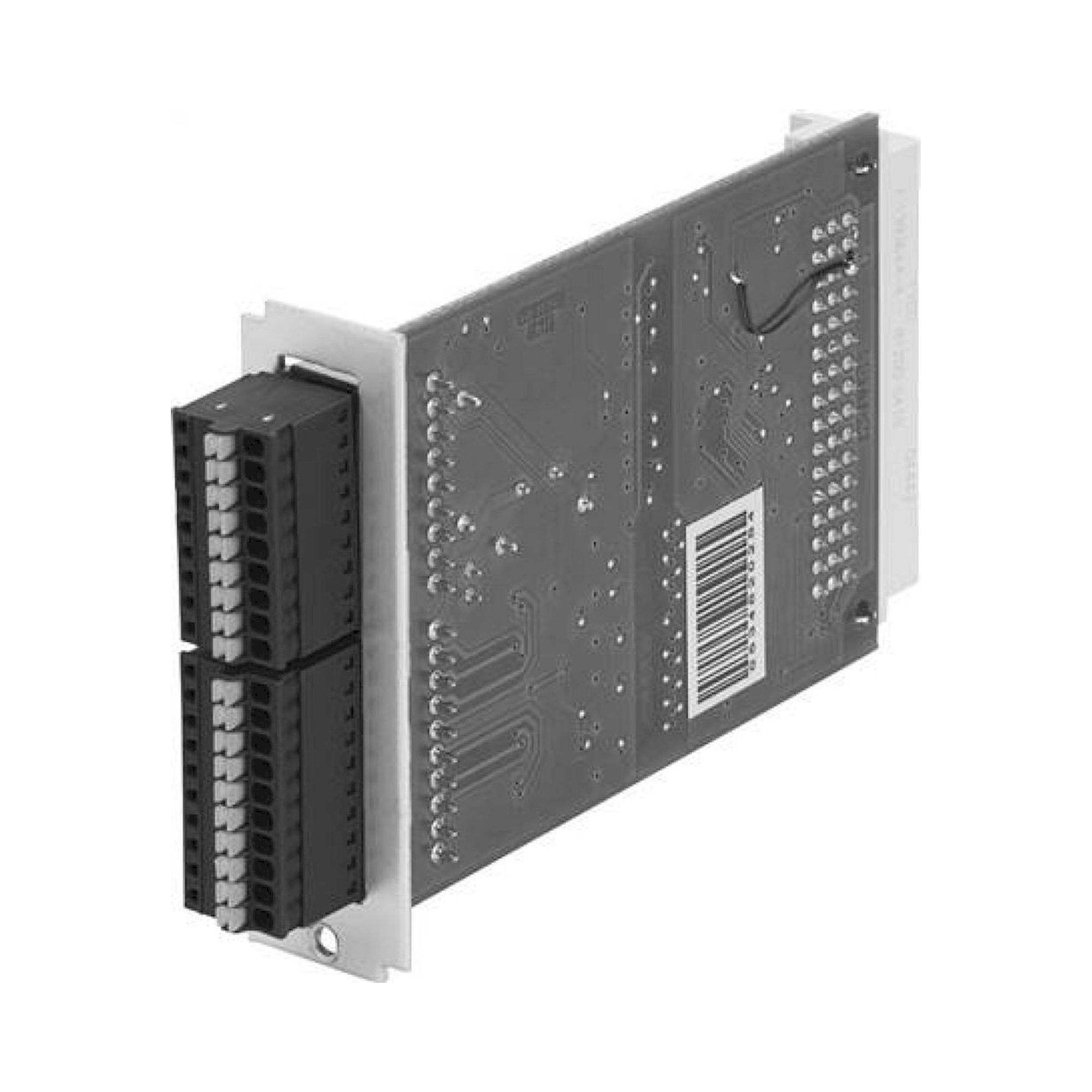

Digital interface	CAMC-D-8E8A	8 I/O for CMMP-AS
Safety module	CAMC-G-S1	STO/SS1 safety function
Memory card	CAMC-M-S-F10-V1	Parameter storage for CMMP-AS

Typical applications: System-compliant wiring of CMMP-AS and CMMT-AS axes to motor and encoder, EMC-compliant mains connection via MRC-NF filters, fieldbus integration into PROFINET/EtherCAT networks via plug-in card expansion, and retrofitting STO/SS1 safety functions via the CAMC-G-S1 module.
