Motors and controllers
Festo pneumatics
Festo motors and controllers are designed for electrical axis drive in automation technology. The product range includes servo and stepper motors from the EMMS series, EMGA-series gearboxes, external motor controllers CMMP-AS and CMMT-AS, and motors with integrated controllers EMCA. Position controllers CMSX complete the portfolio for pneumatic drive systems with electrical position feedback.
All drive components are coordinated for use with Festo motor controllers and support common fieldbus protocols including PROFIBUS, DeviceNet, EtherCAT, PROFINET and CANopen. Accessories cover encoder and motor cables, mains filters, braking resistors and fieldbus adapters for a system-compliant installation.

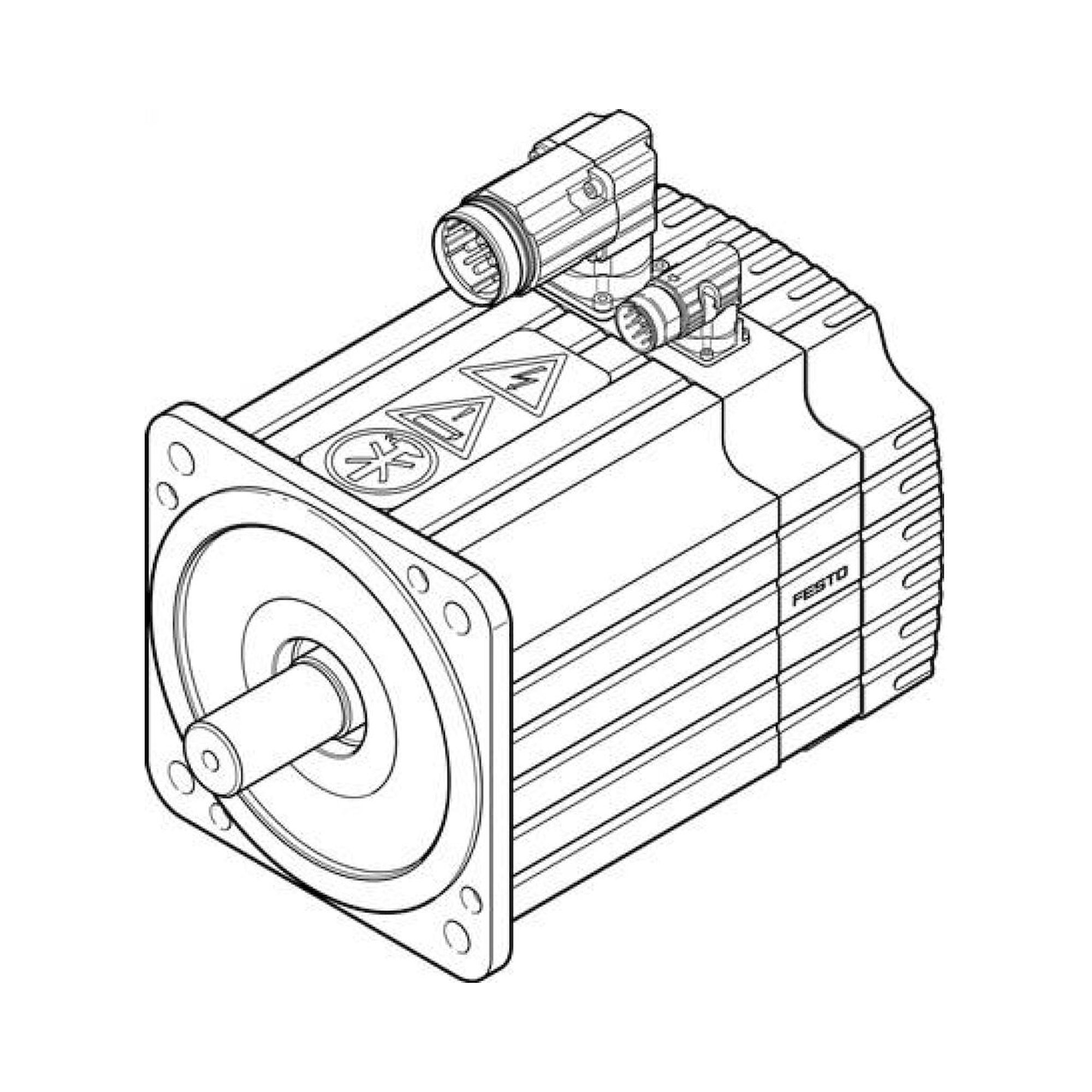

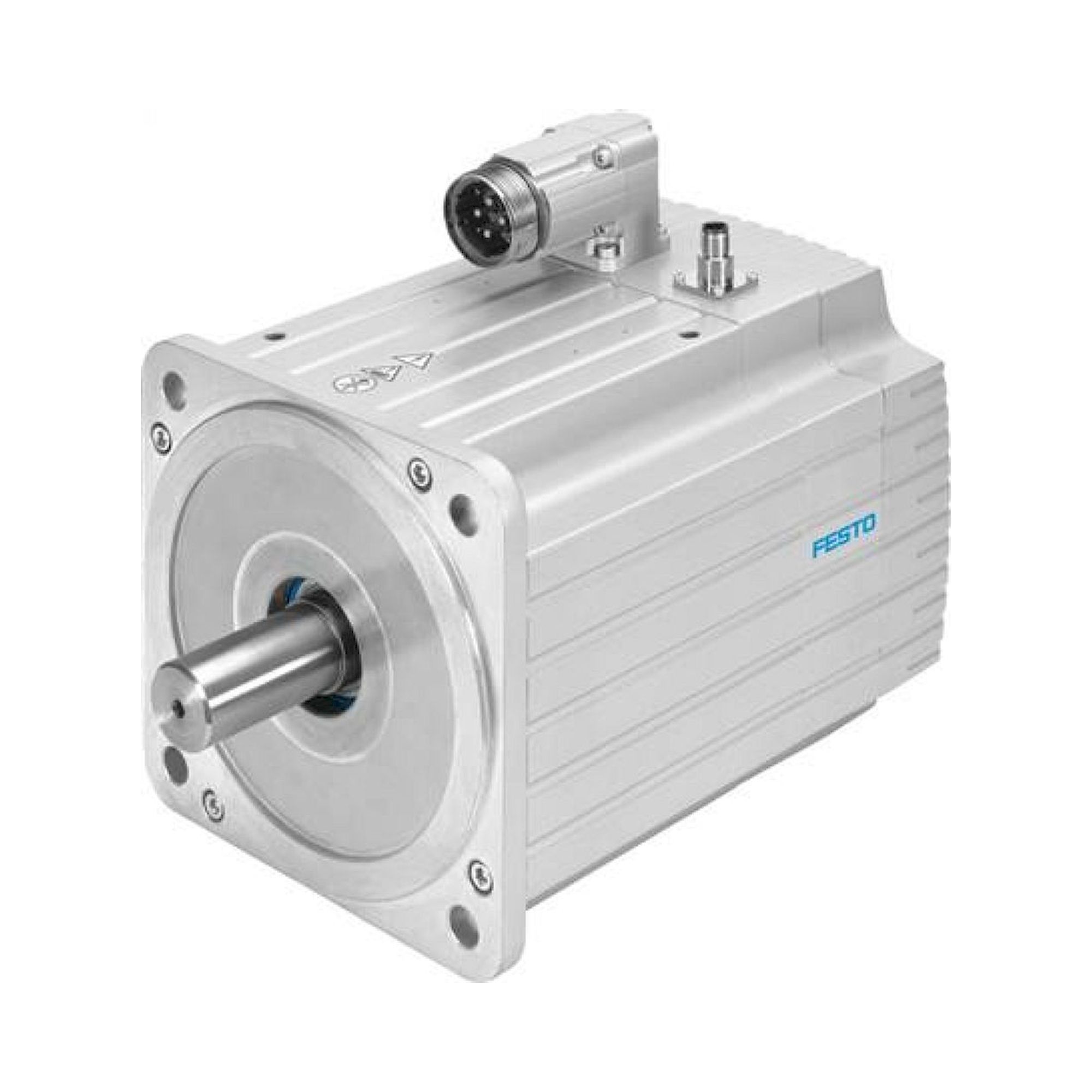

Servo motorsEMMS-AS series, flange sizes 55-190 mm
Stepper motorsEMMS-ST series, flange sizes 28, 42, 57, 87 mm
Motors with integrated controllerEMCA-EC-67, fieldbus CO/DIO/EP/PN/EC
GearboxEMGA planetary gearboxes, ratios i=3 and i=5
ControllerCMMP-AS, CMMT-AS, CMSX position controllers
Accessories for motors and controllersCables, mains filters, braking resistors, fieldbus adapters
| Component | Series | Key specification |
|---|---|---|
| Servo motor | EMMS-AS-55 to -190 | Flange 55-190 mm, brake -B, resolver -RS |
| Stepper motor | EMMS-ST-28 to -87 | Flange 28-87 mm, encoder -SE |
| Integrated drive | EMCA-EC-67 | EC motor + controller, 67 mm flange |
| Planetary gearbox | EMGA-40 to -160 | i=3 (G3) or i=5 (G5) |
| Motor controller | CMMP-AS-C2/C5/C10/C15 | 2, 5, 10, 15 A; 3-phase; M3 firmware |
| Motor controller | CMMT-AS-C2/C4 | 2, 4 A; EtherCAT or PROFINET |
| Position controller | CMSX-P-...-50A / -130A | Control valve, 4-20 mA signal |
Typical applications: Electrical axis drives in linear axes and gantry systems, gripper and positioning units with feedback, control valve positioning in process technology (CMSX), machining centres with combined pneumatic-electrical drives, and retrofit projects using Festo PROFINET/EtherCAT connectivity.
