Festo DGSL-25-150-Y3A (544053) Mini Slide
€118,601.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-544053
Manufacturer Nr.
DGSL-25-150-Y3A
Mini Slide
Frequently Bought Together
-
This Item:
€118,601.00Excl. 19% VAT , excl. Shipping Cost
-

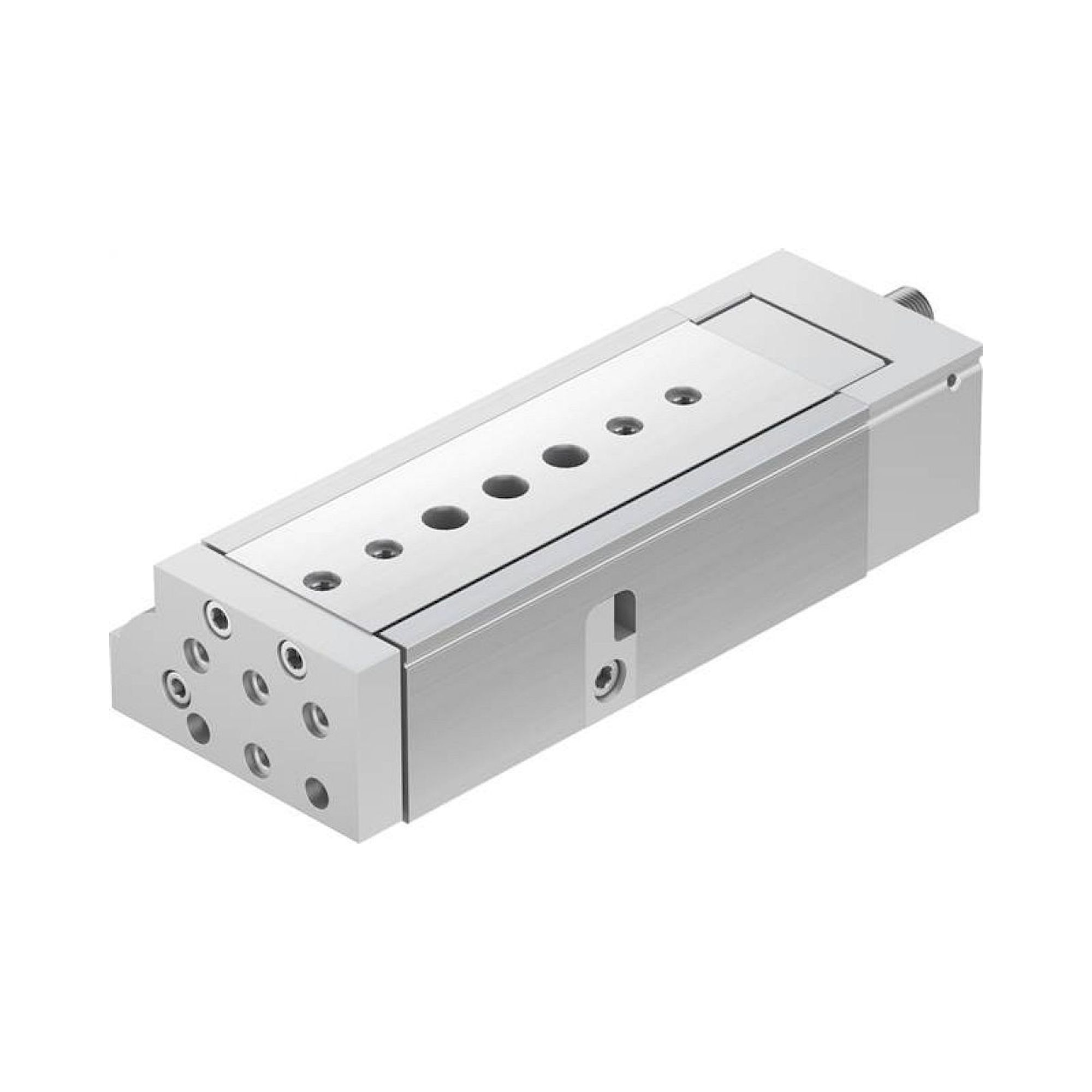

Festo DGSL-25-80-EA (570209) Mini Slide
€74,025.00Excl. 19% VAT , excl. Shipping Cost
-
Festo DGSL-25-50-Y3A (544050) Mini Slide
€88,348.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke [mm] | 150 |
| Alignable end position range / Length front [mm] | 111,0 |
| Alignable end position range / Length rear [mm] | 51,5 |
| Piston diameter | 32 mm |
| Operating mode actuator unit | Joch |
| Dampening | Y3: Shock absorber, progressive double-sided |
| installation position | arbitrary |
| Guide | Ball cage guide |
| Construction set up | Joch Kolben Kolbenstange Schlitten |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1 to 8 |
| Max. speed [m/s] | 0,8 |
| Repeatability | ±0.01 mm |
| Principle of operation | double acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 0 - No corrosion stressing |
| ambient temperature [°C] | 0 to 60 |
| Impact energy at the end positions [J] | 10,000 |
| Dampening length [mm] | 20,0 |
| Max. force Fy [N] | 4.800 |
| Max. force Fz [N] | 4.800 |
| Max. torque Mx [Nm] | 130 |
| Max. torque My [Nm] | 80,0 |
| Max. torque Mz [Nm] | 80,0 |
| Theoretical force at 6 bar, Return flow [N] | 415 |
| Theoretical force at 6 bar, flow [N] | 483 |
| Moving mass [g] | 2.102 |
| Product weight [g] | 5.500 |
| Alternative connections | See product drawing |
| Fastening type | With throughway bores |
| Pneumatic connection | G1/8 |
| Material information | Copper and PTFE-free RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | HNBR |
| Housing material | Aluminium wrought alloy |
| Piston rod material | High-alloyed stainless steels |
| Manufacturer Nr. | DGSL-25-150-Y3A |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568183967 |
| Weight | 6.000000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
