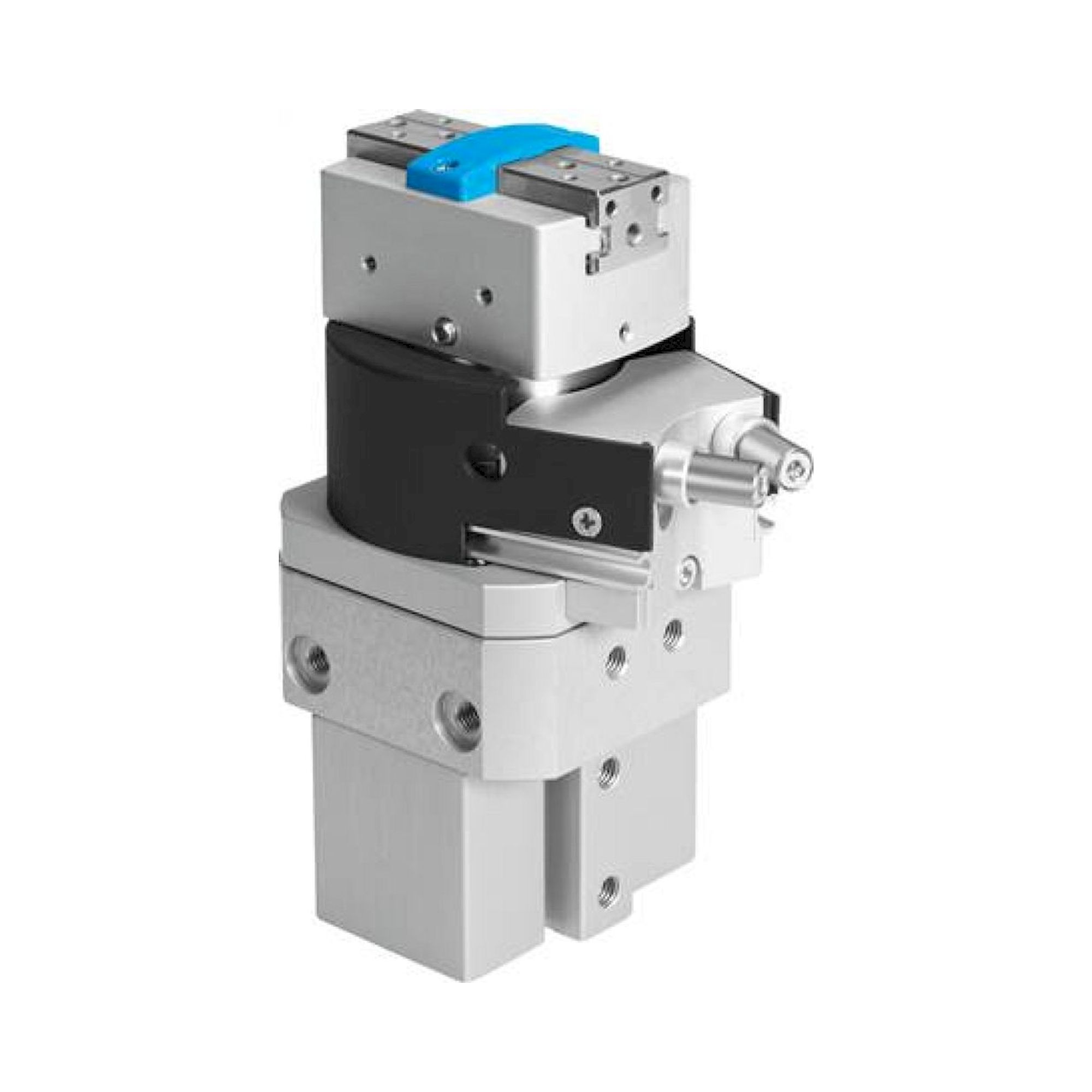

Gripper

Festo pneumatic grippers are precision parallel-jaw actuators designed for automated material handling and assembly operations in industrial automation systems. These pneumatic devices use compressed air to generate controlled gripping forces for picking, placing, and manipulating workpieces in manufacturing environments. The HGPL and HGPD series grippers are extensively deployed in automotive assembly lines, electronics manufacturing, packaging machinery, and robotic workcells where reliable part handling is critical. Industries including automotive, pharmaceuticals, food processing, and electronics rely on these grippers for high-speed pick-and-place operations, component insertion tasks, and quality inspection processes.

Selecting the appropriate Festo parallel gripper requires evaluating bore diameter, stroke length, gripping force, and mounting configuration for the specific application. The HGPL series offers bore sizes from 40mm to 63mm with stroke lengths ranging from 40mm to 150mm, while HGPD models provide 63mm and 80mm bore options. Operating pressure typically ranges from 2 to 8 bar, generating gripping forces between 45N and 785N depending on the model size. Critical selection factors include workpiece weight, required gripping force margin, cycle frequency, environmental conditions, and integration requirements with existing pneumatic control systems and robot interfaces.

Festo pneumatic grippers comply with ISO 15552 standards for pneumatic cylinder dimensions and ISO 5599 for valve mounting interfaces, ensuring compatibility with international automation systems. The grippers meet EN ISO 13849 safety requirements for pneumatic control systems and are designed according to ISO 4414 compressed air system standards. ATEX certification is available for specific models used in potentially explosive atmospheres, while IP65 protection class ratings ensure resistance to dust ingress and water jets in industrial environments. Additional compliance includes RoHS directive requirements and CE marking for European market conformity, supporting global deployment in regulated manufacturing environments.

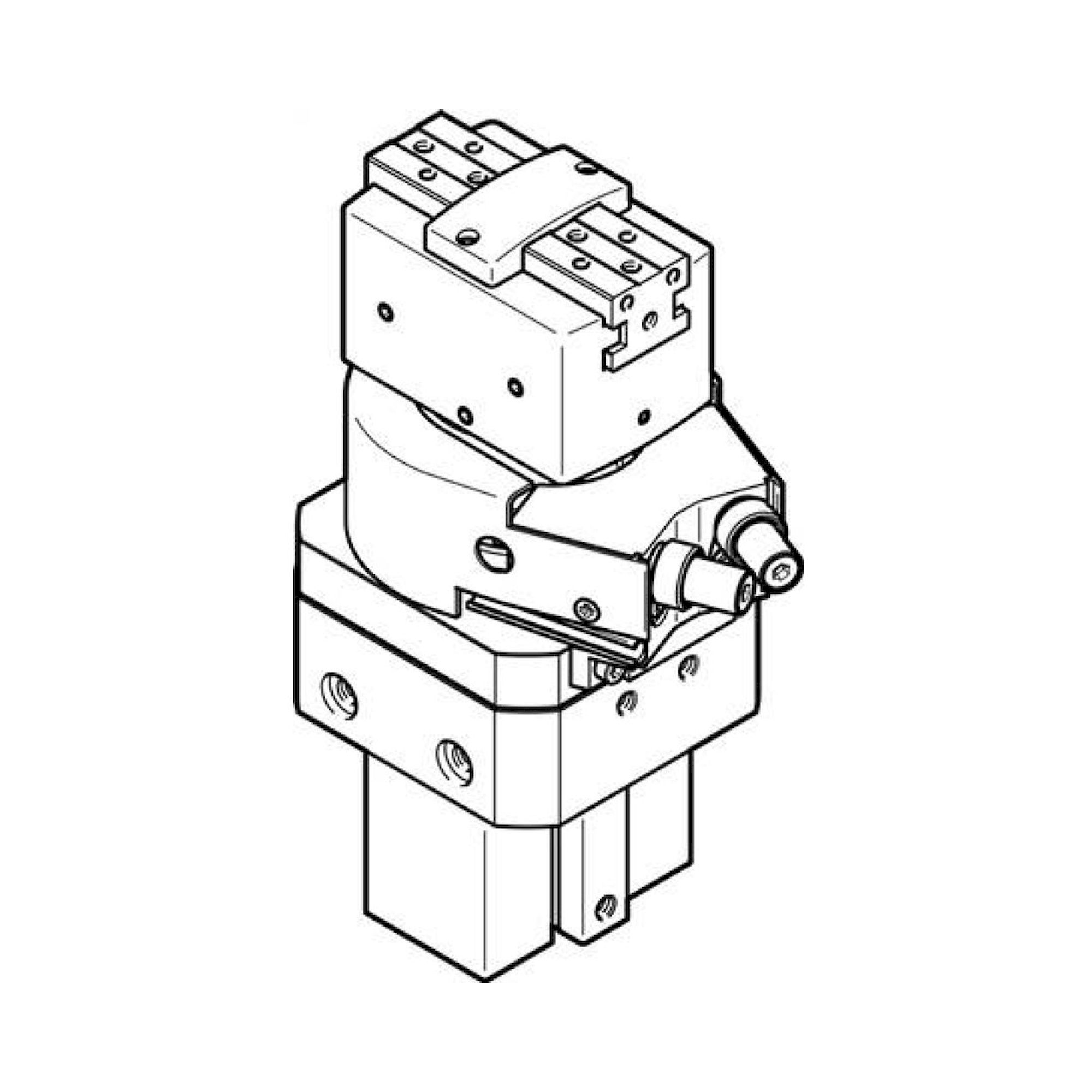

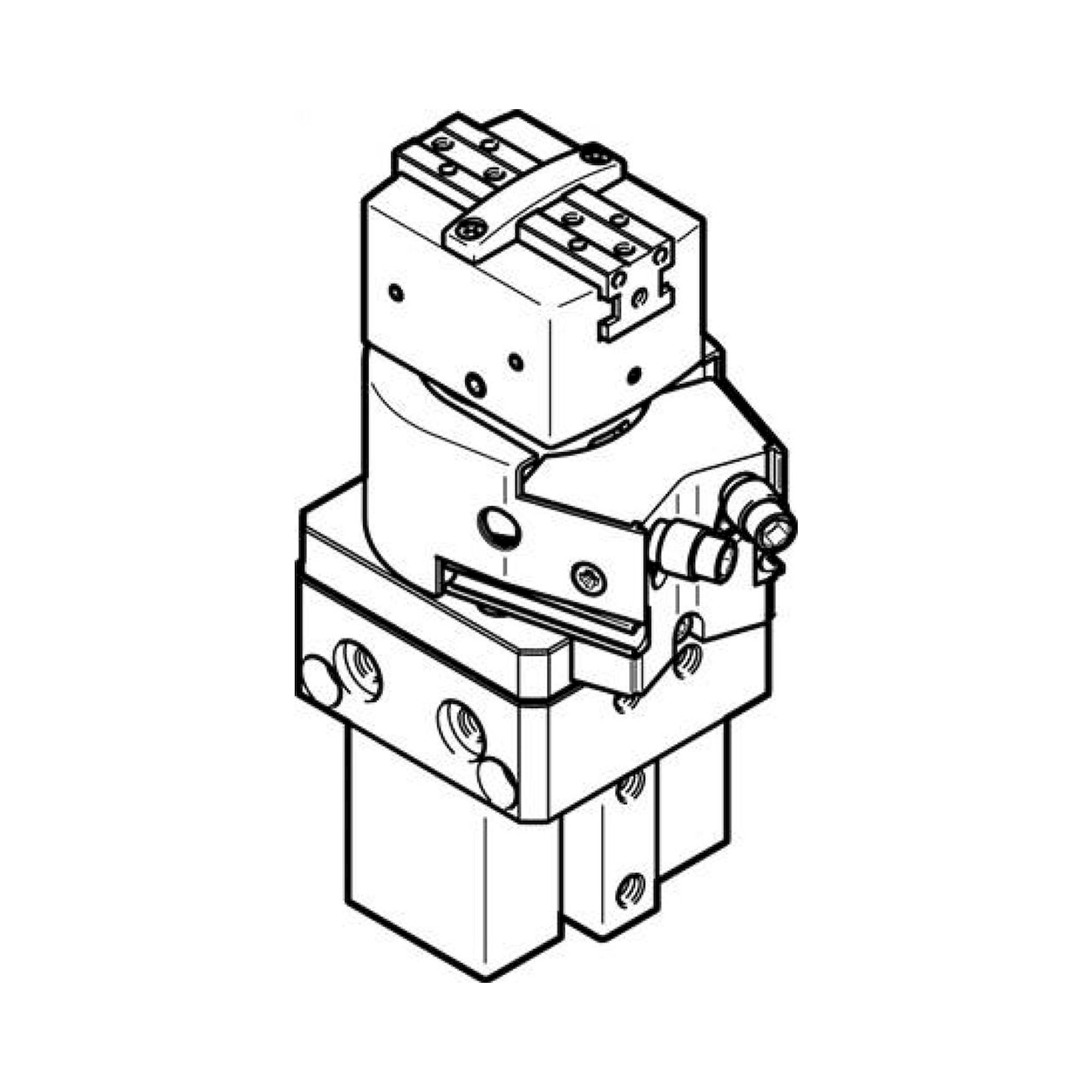

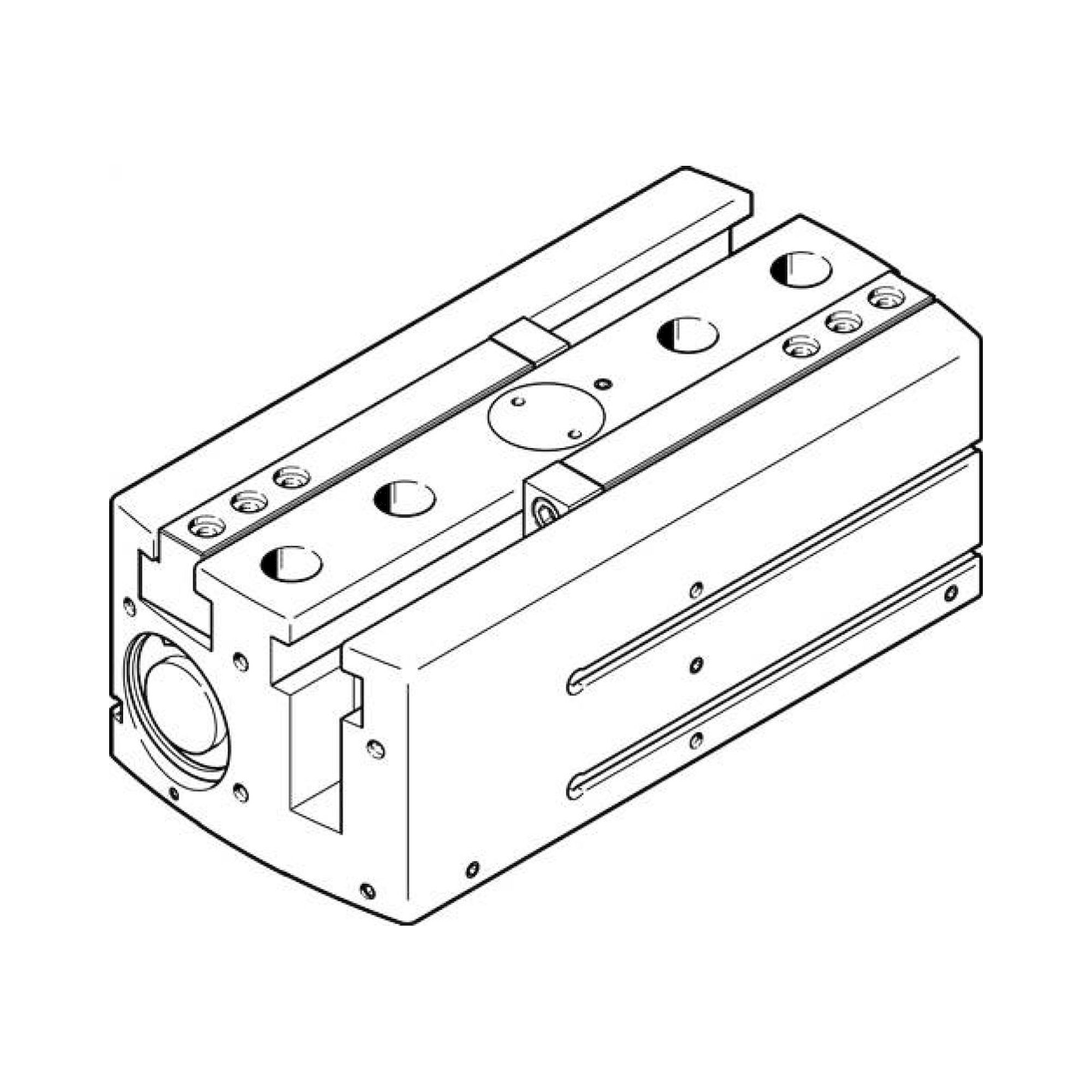

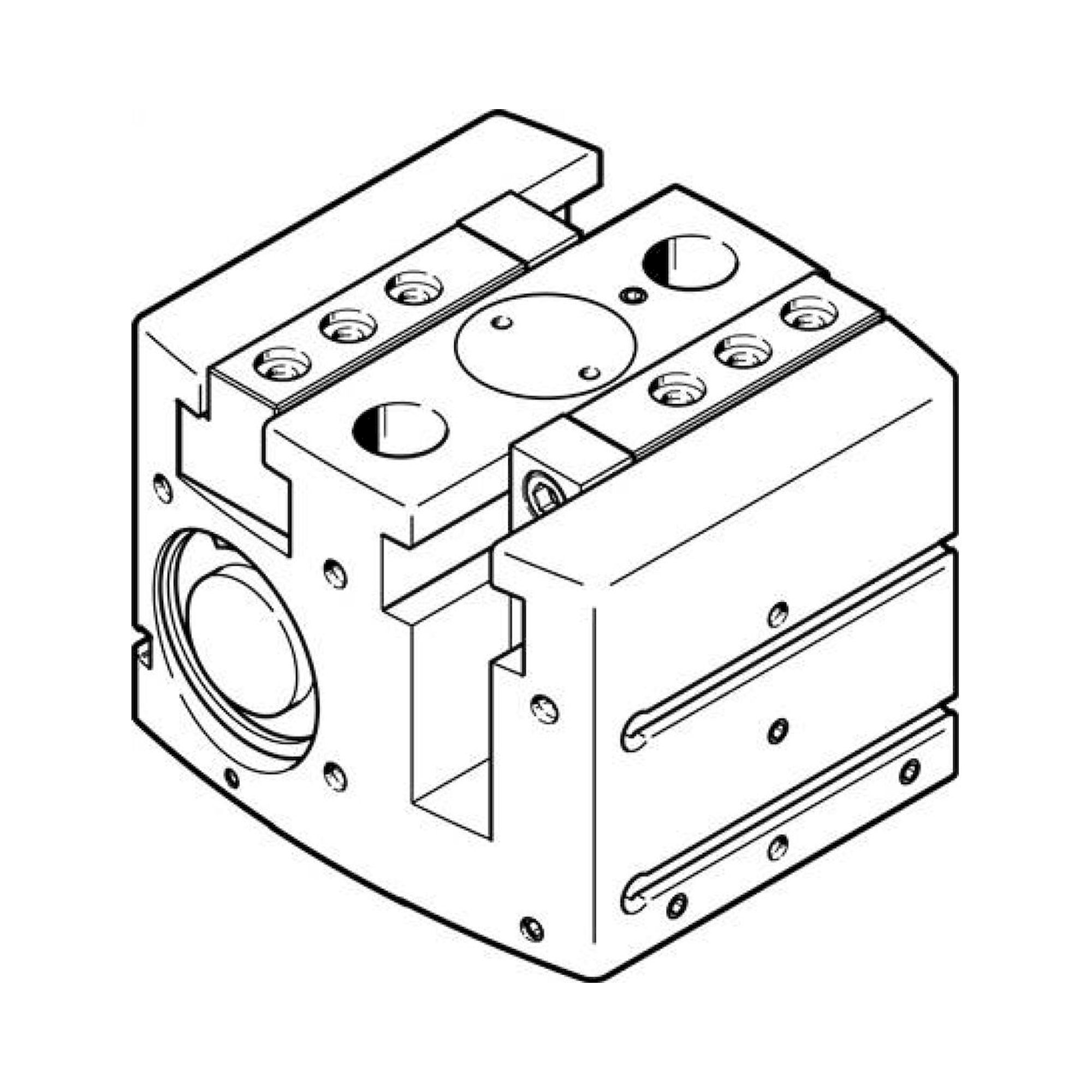

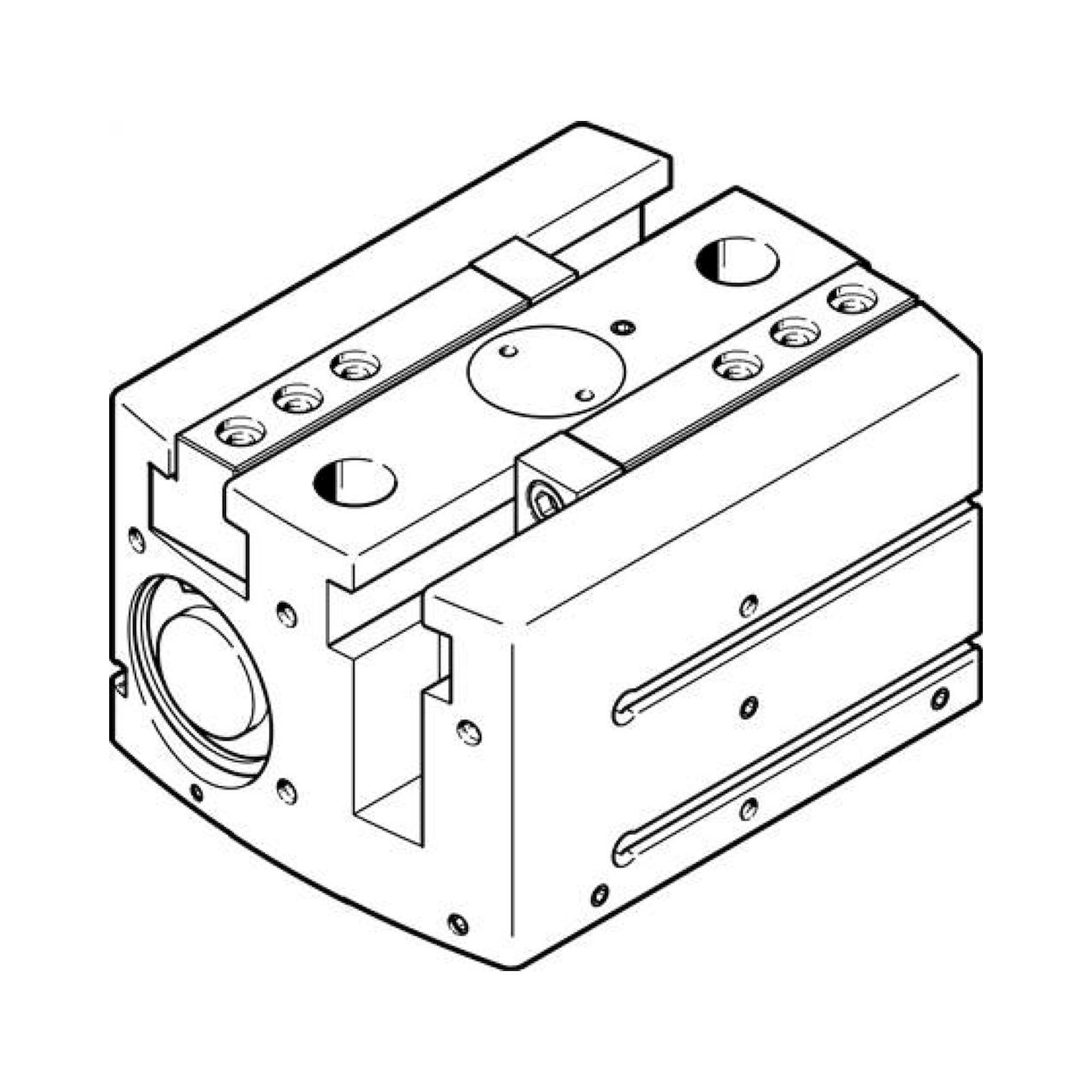

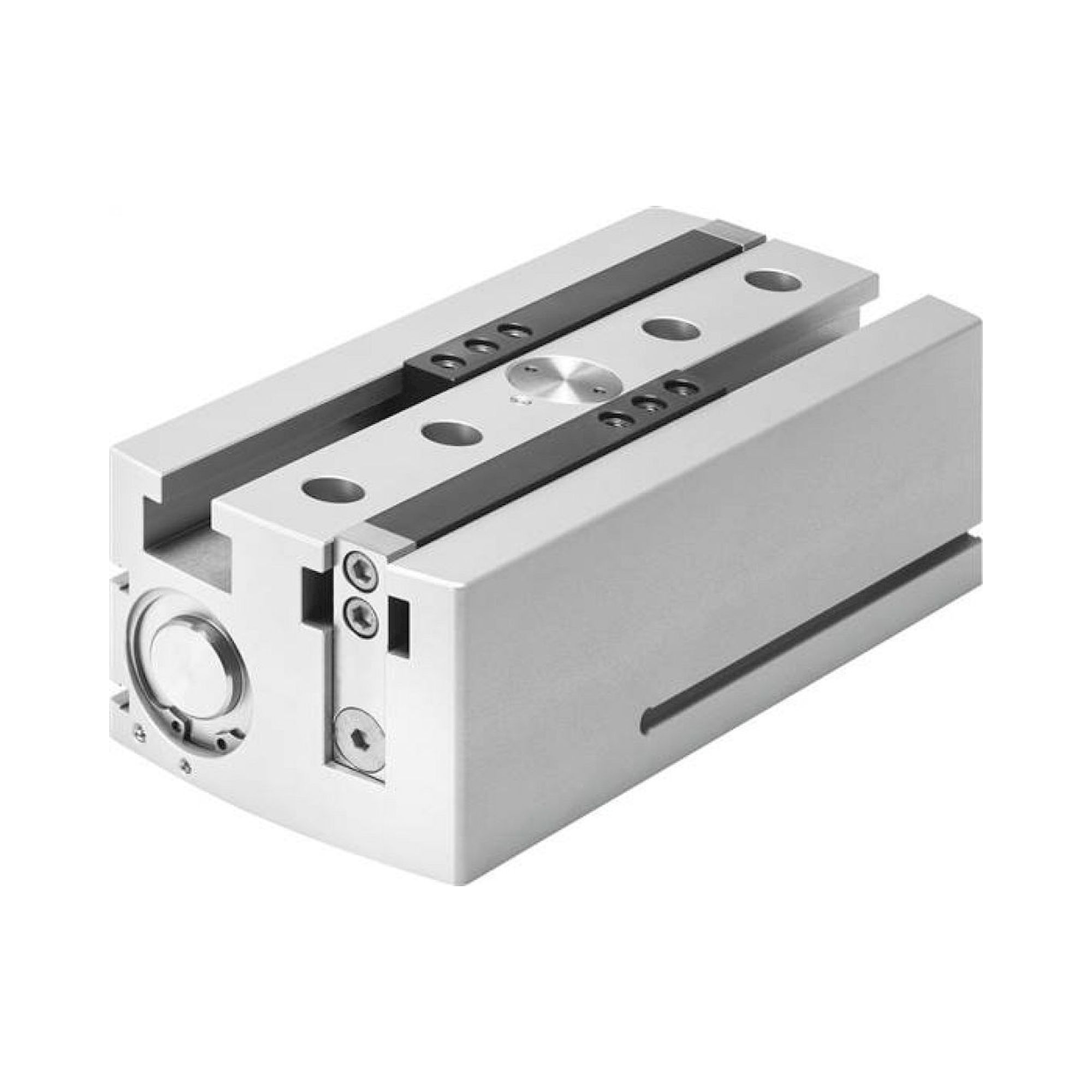

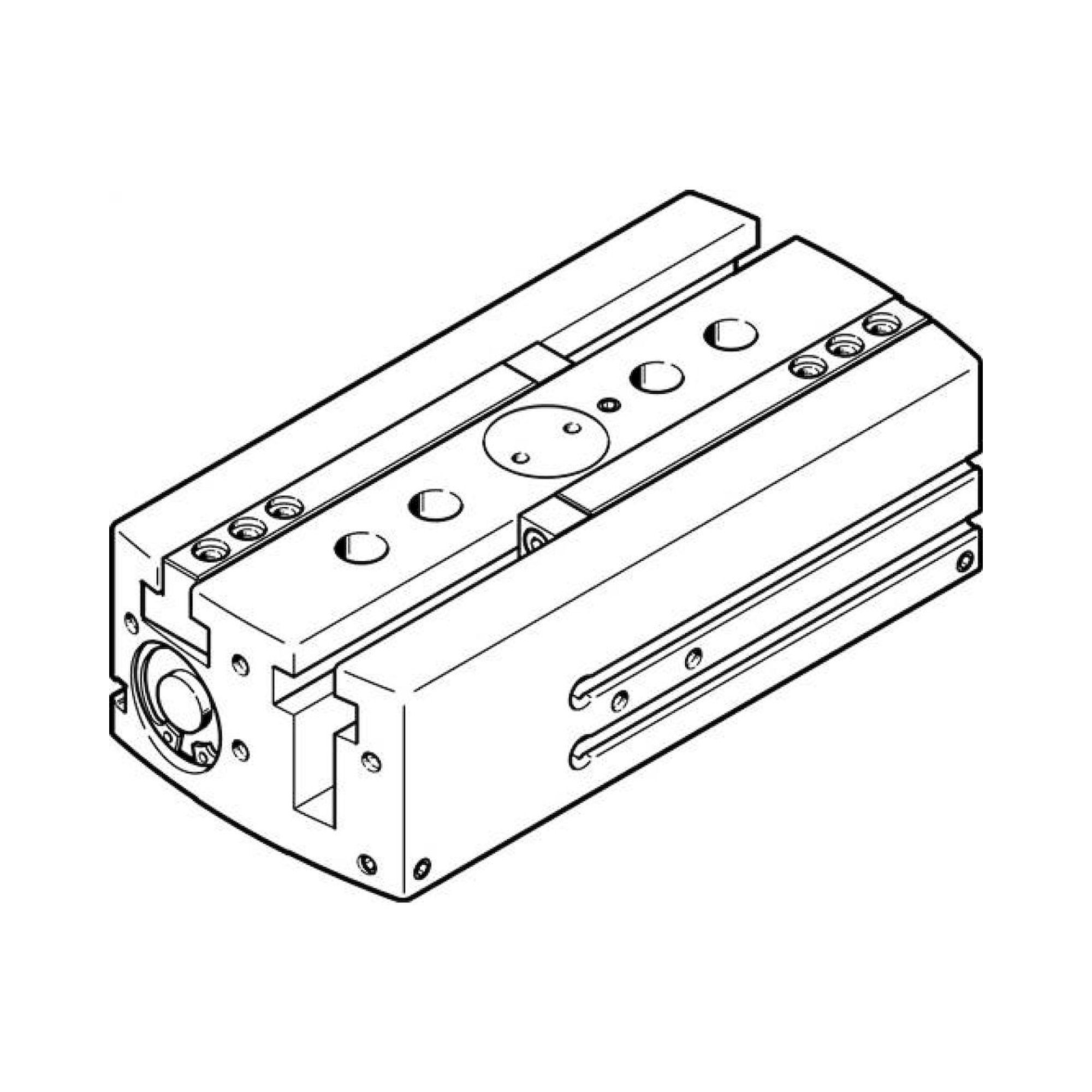

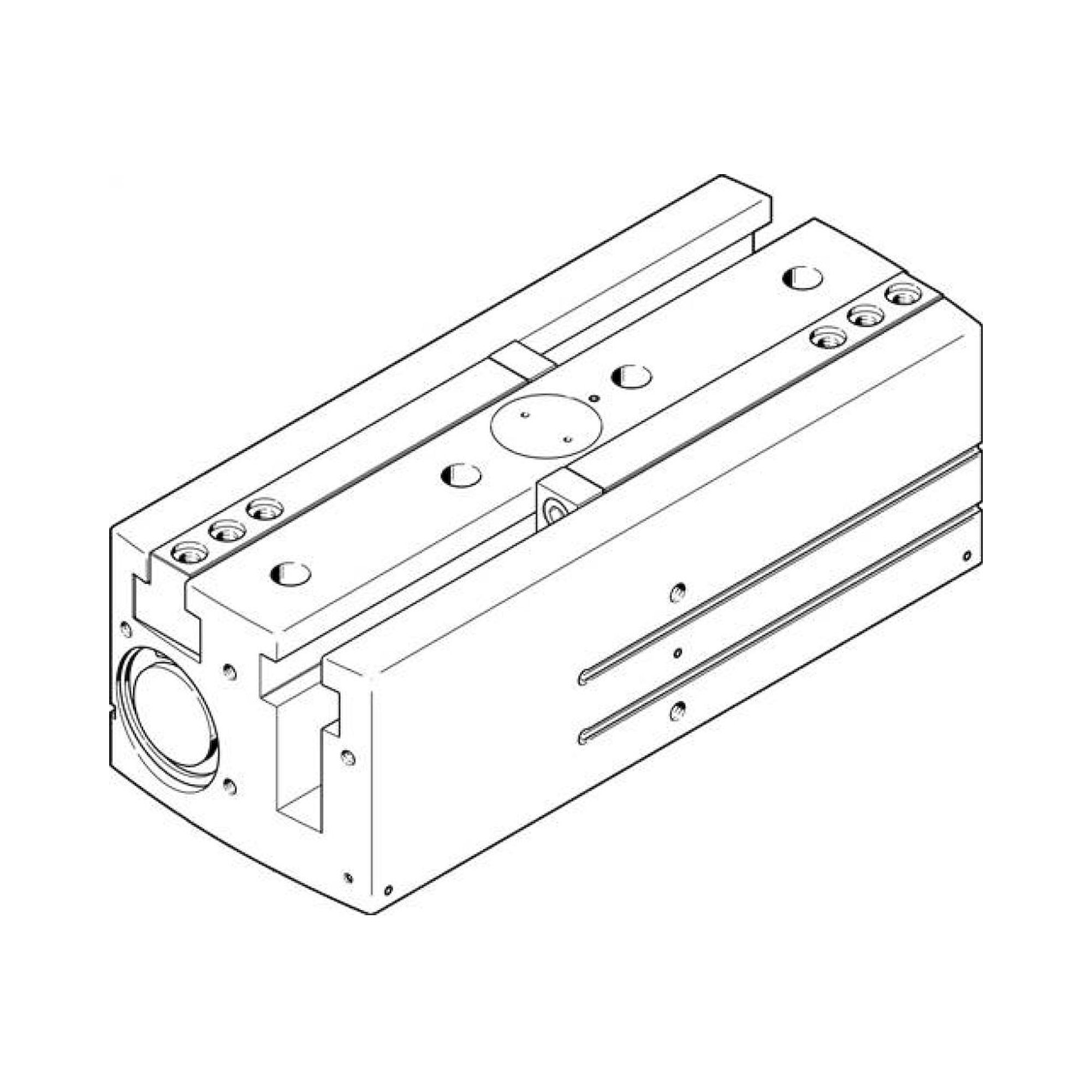

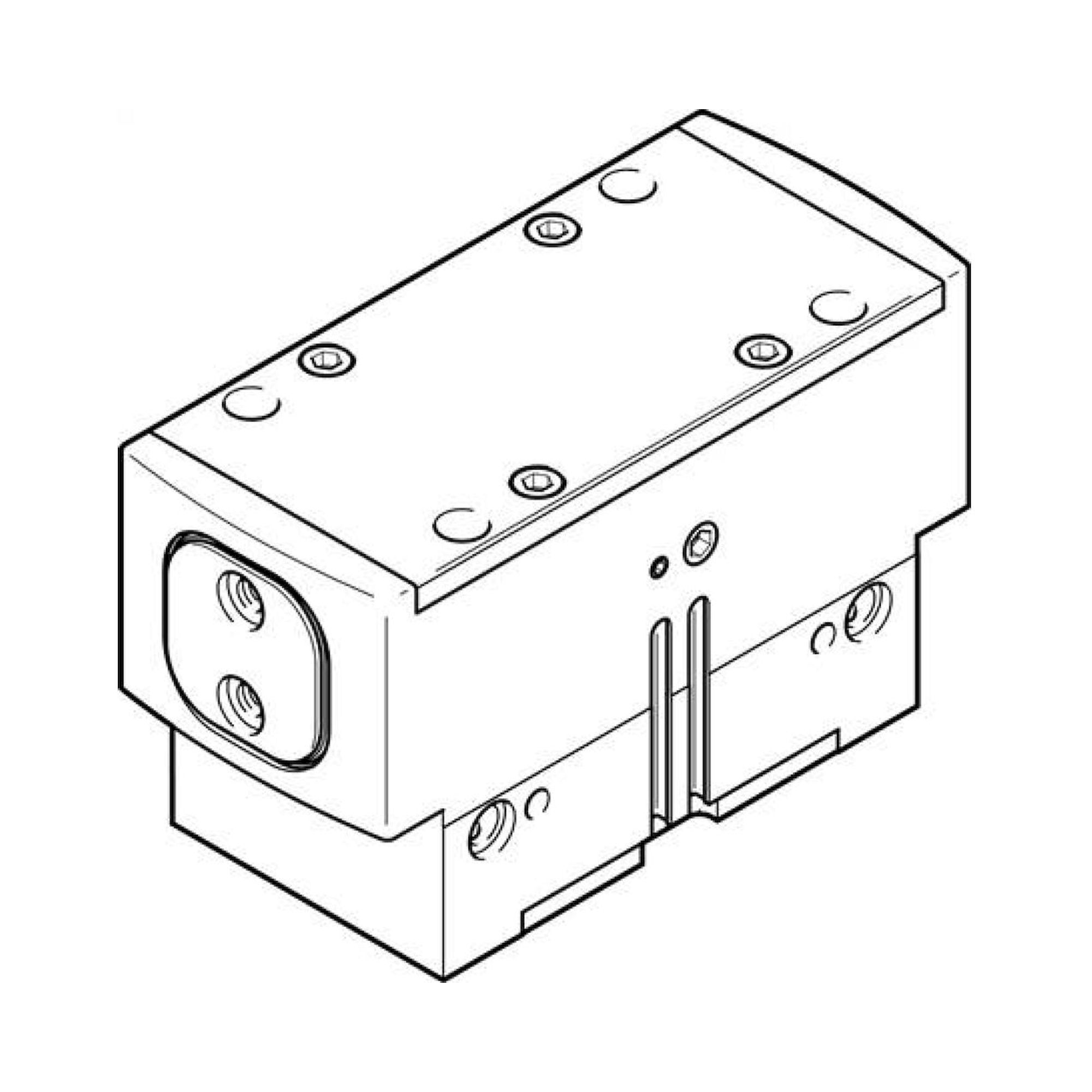

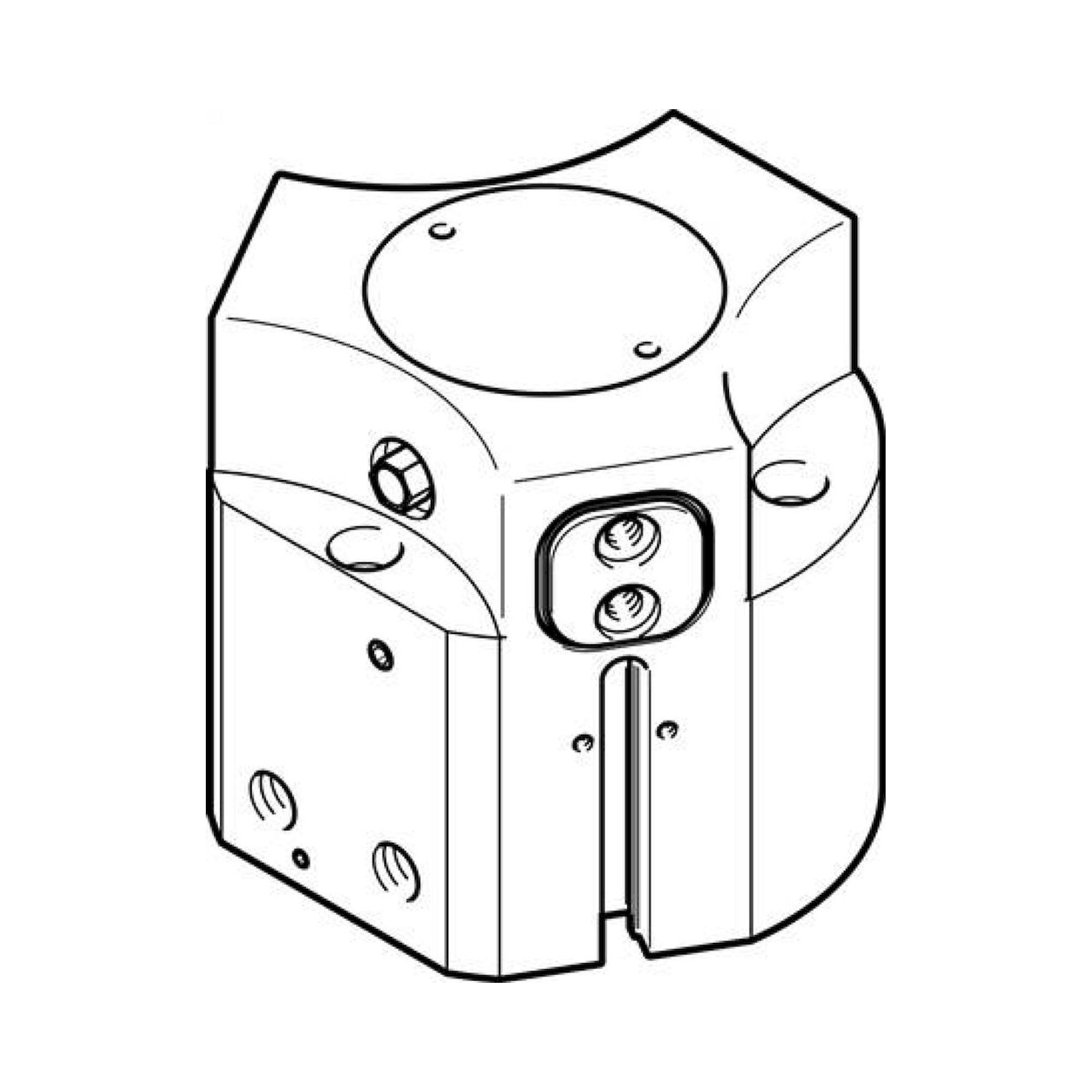

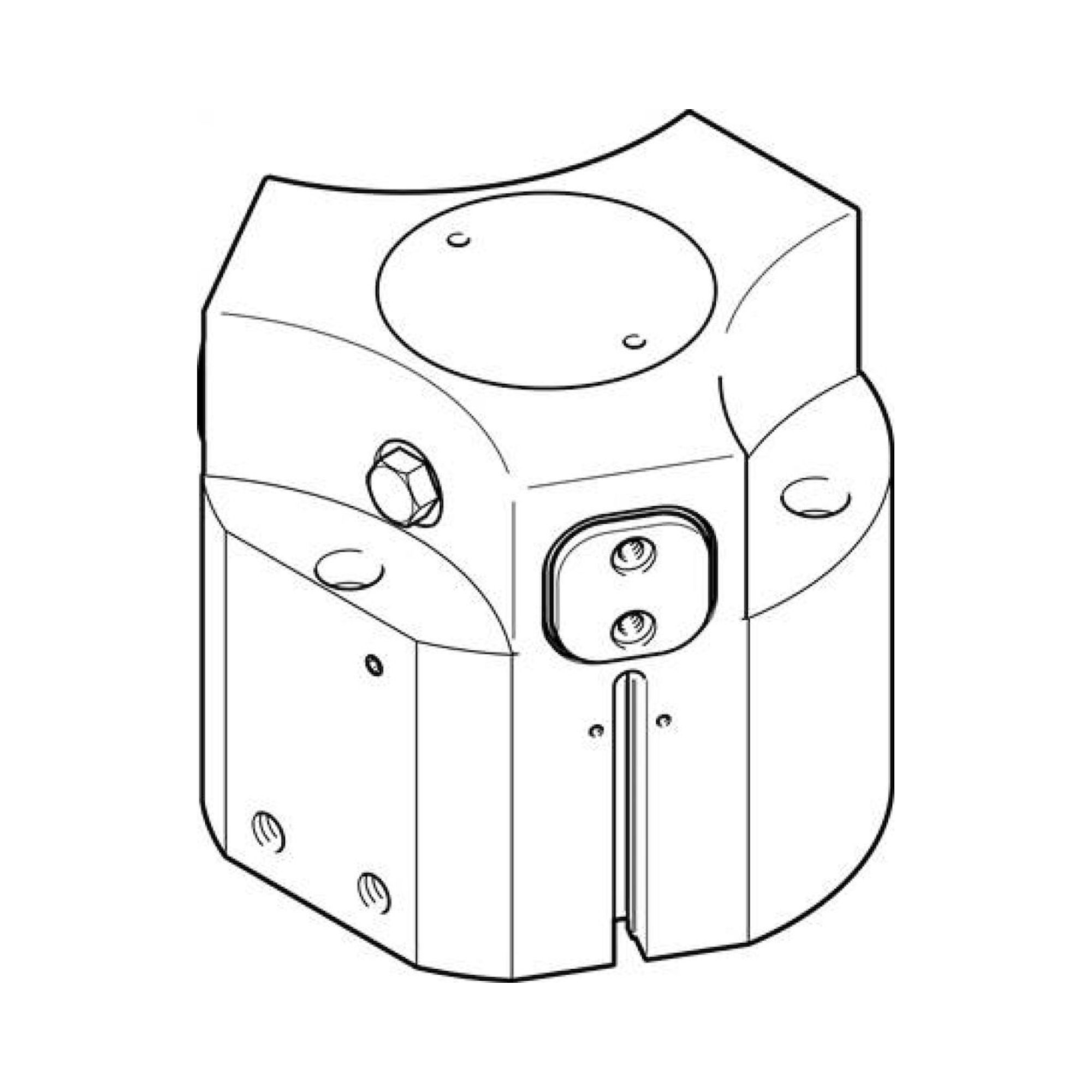

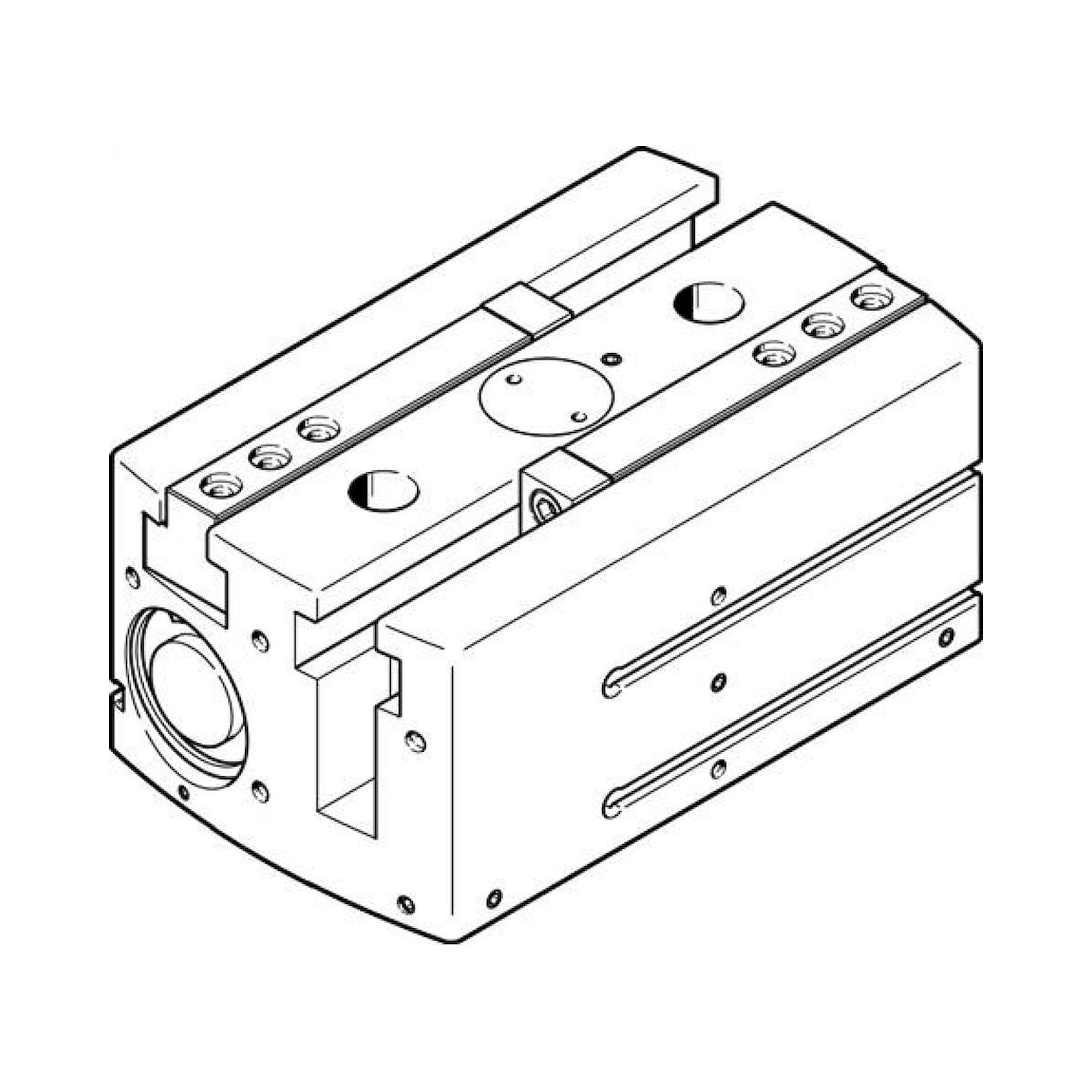

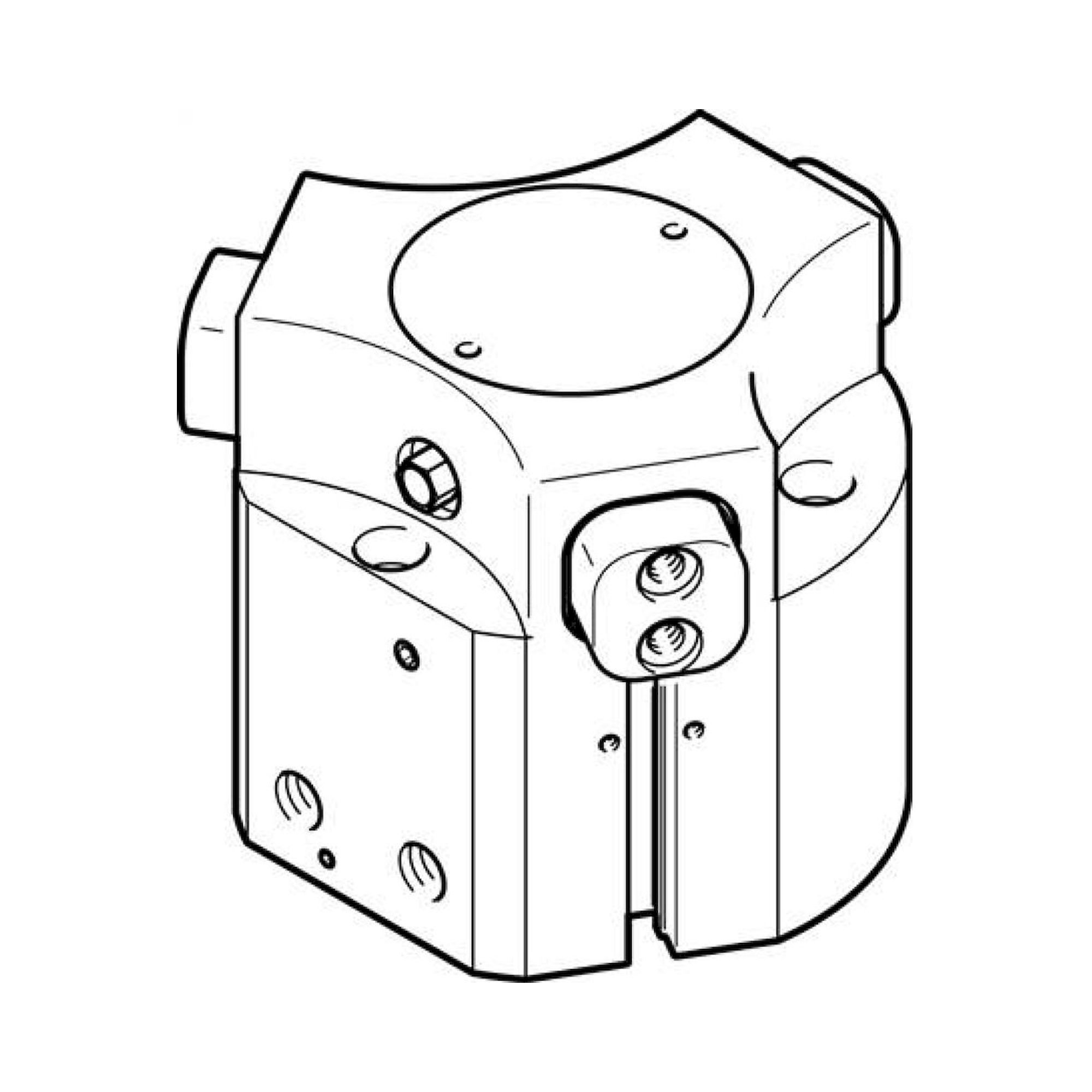

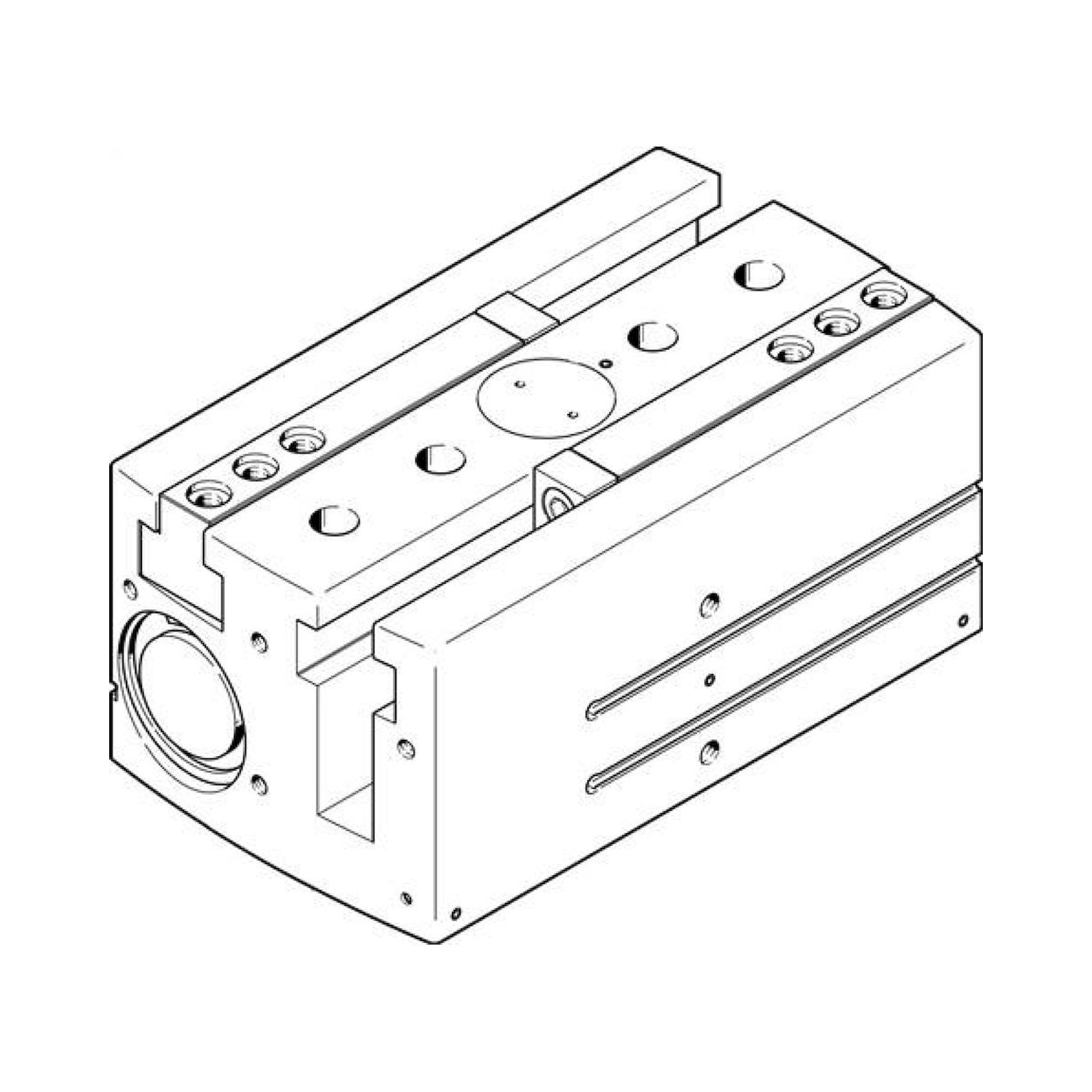

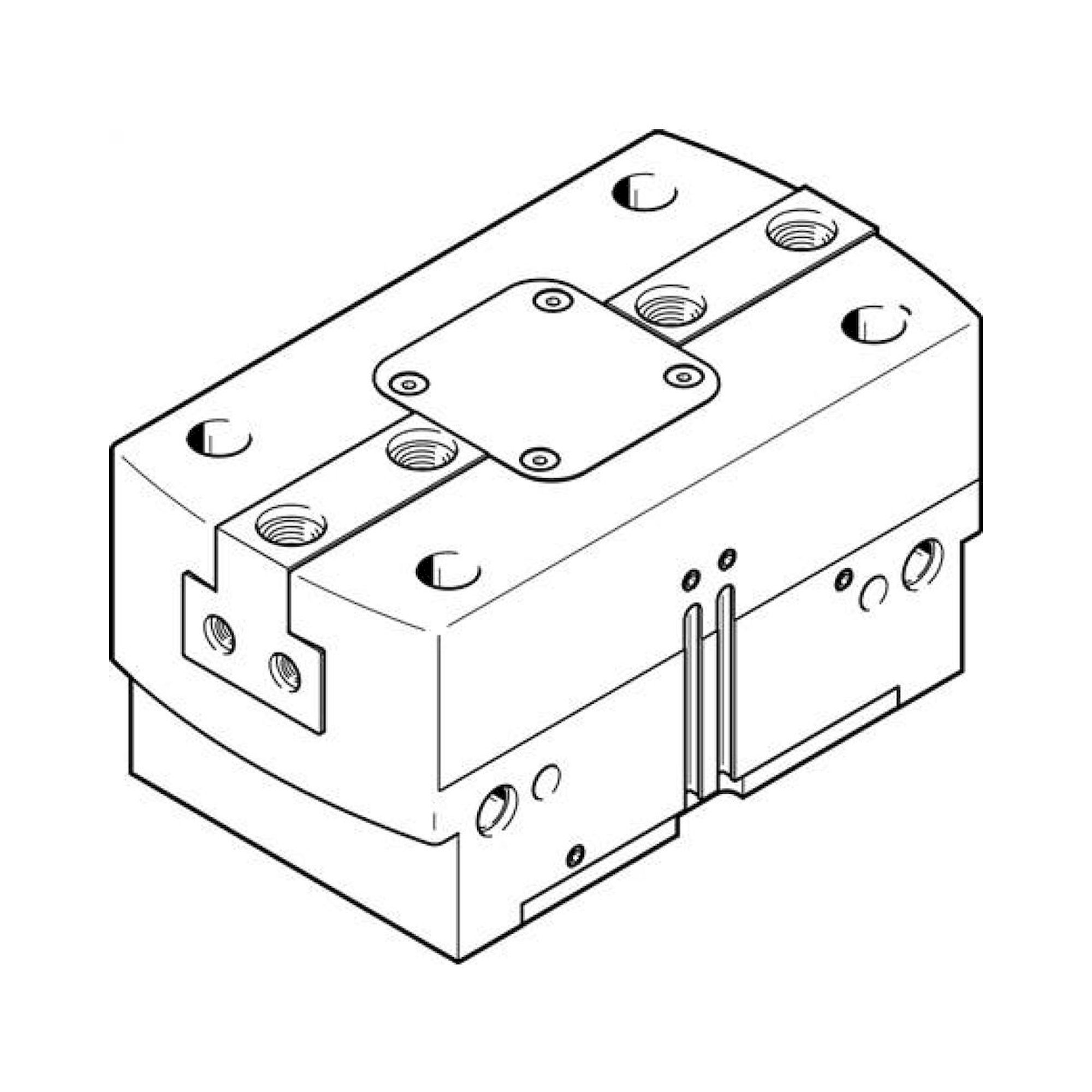

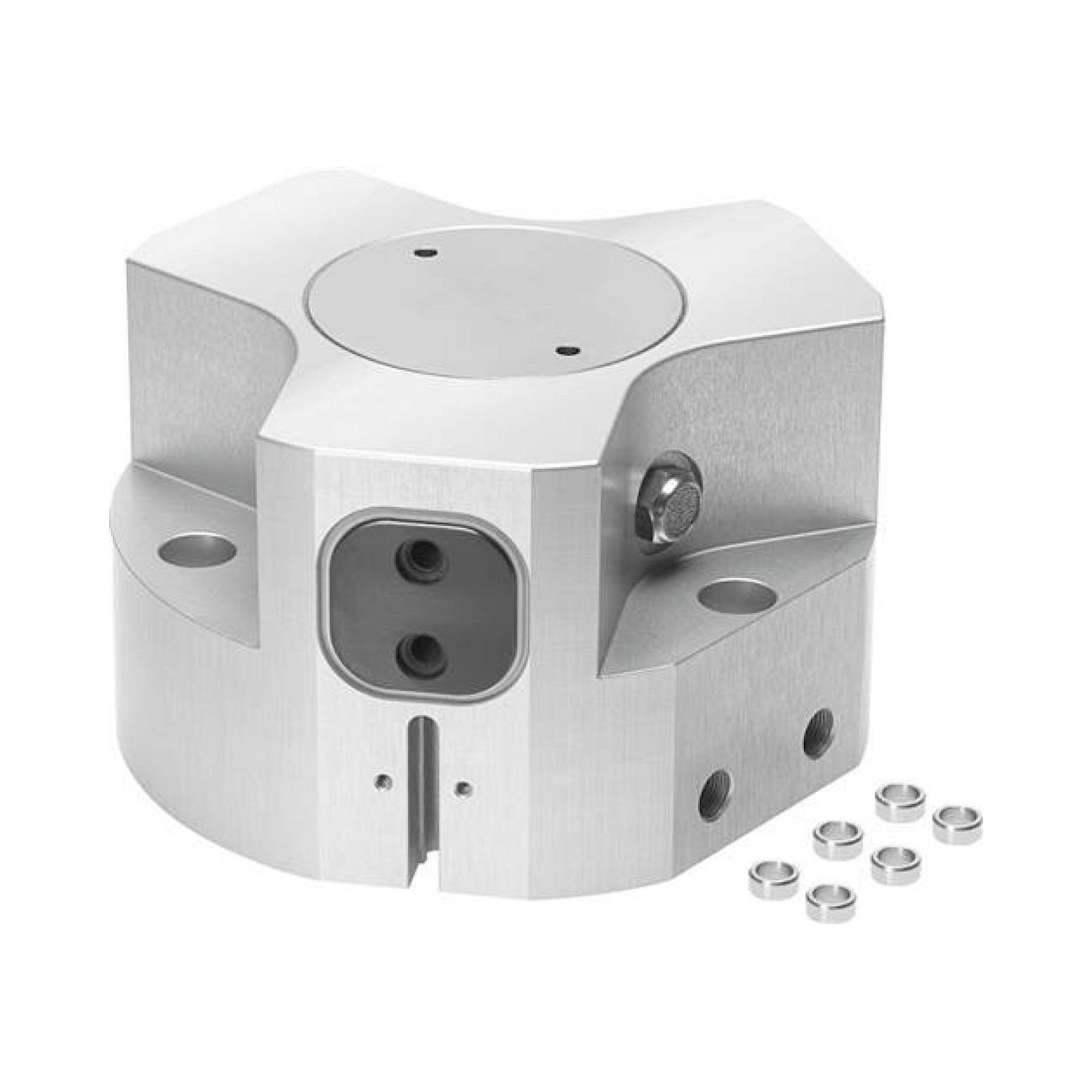

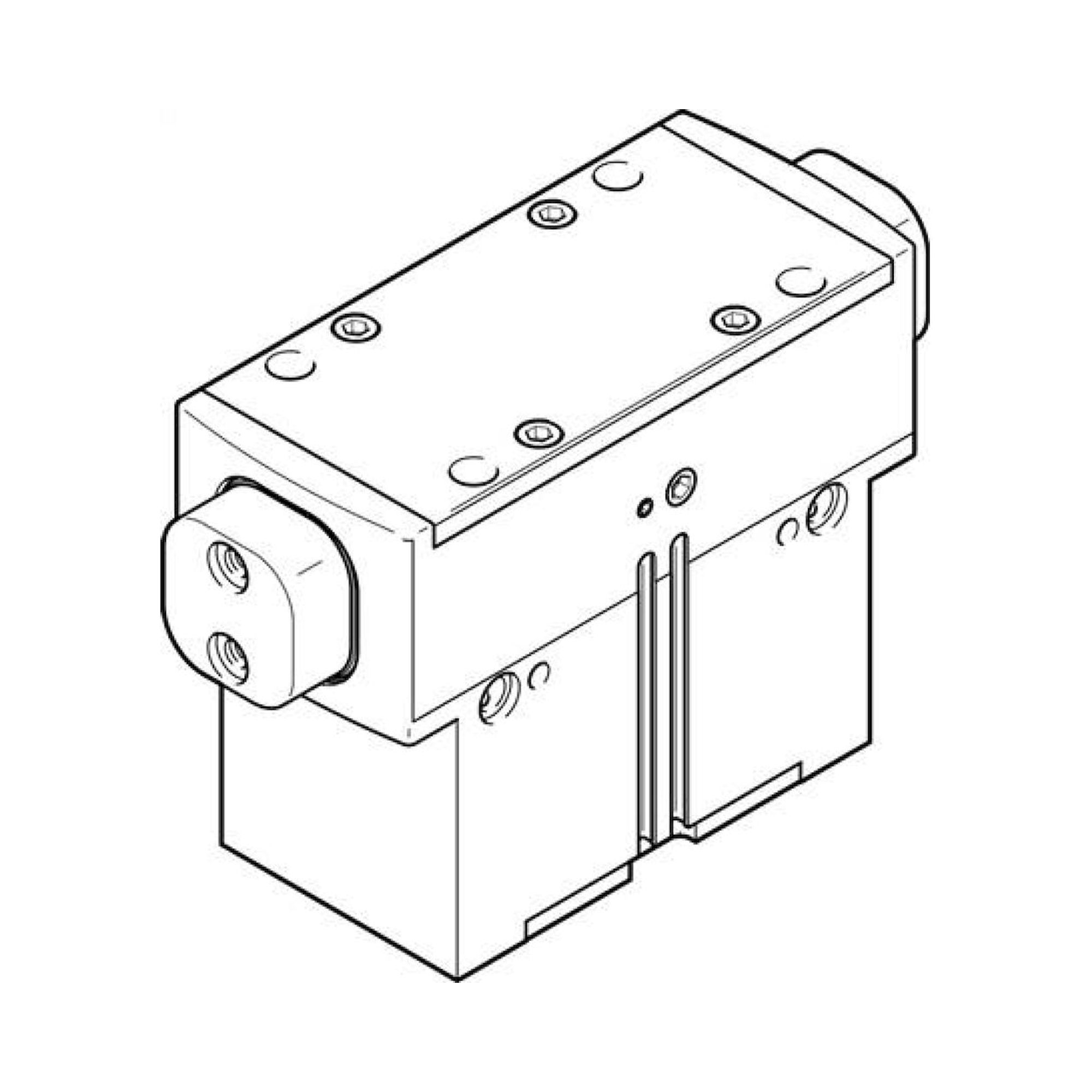

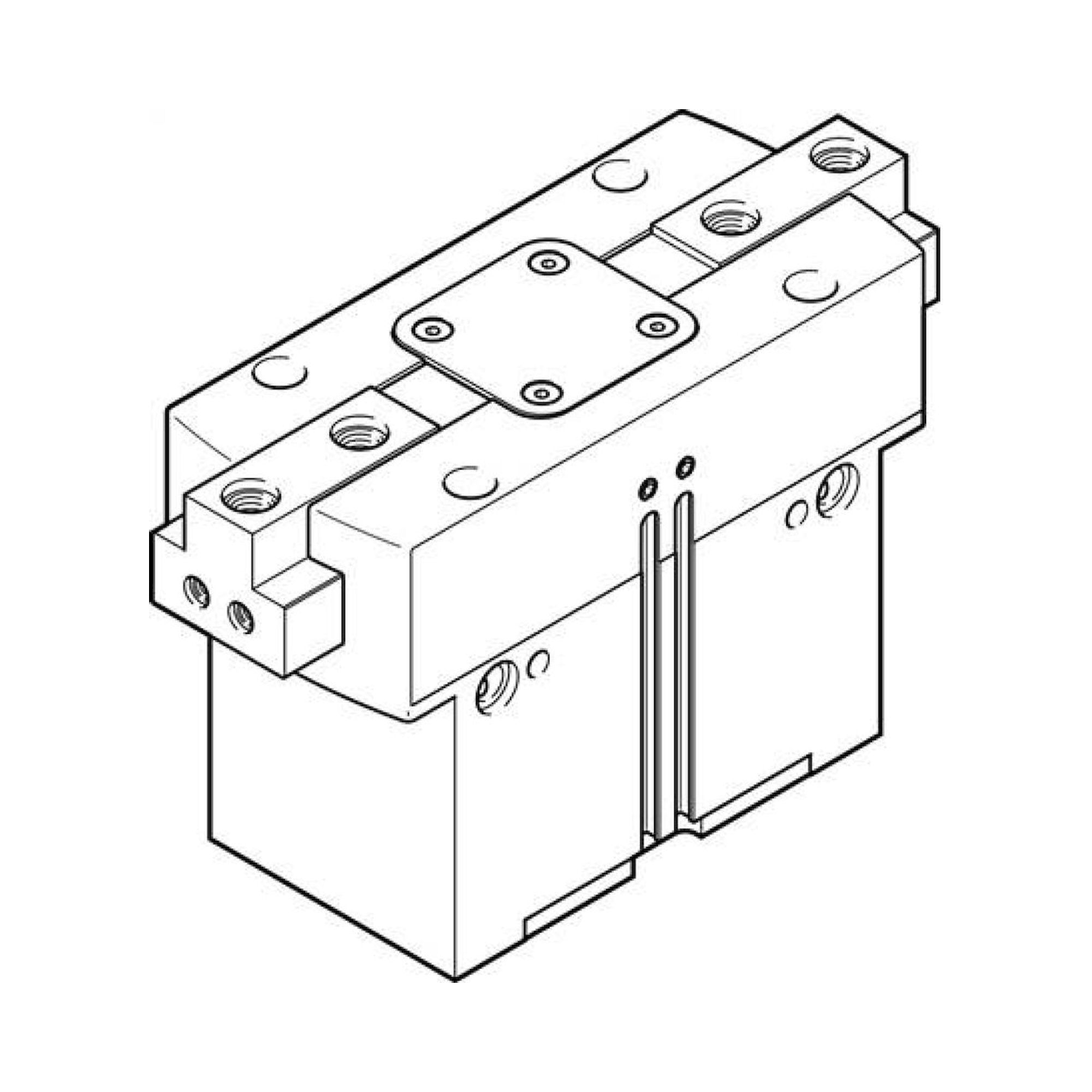

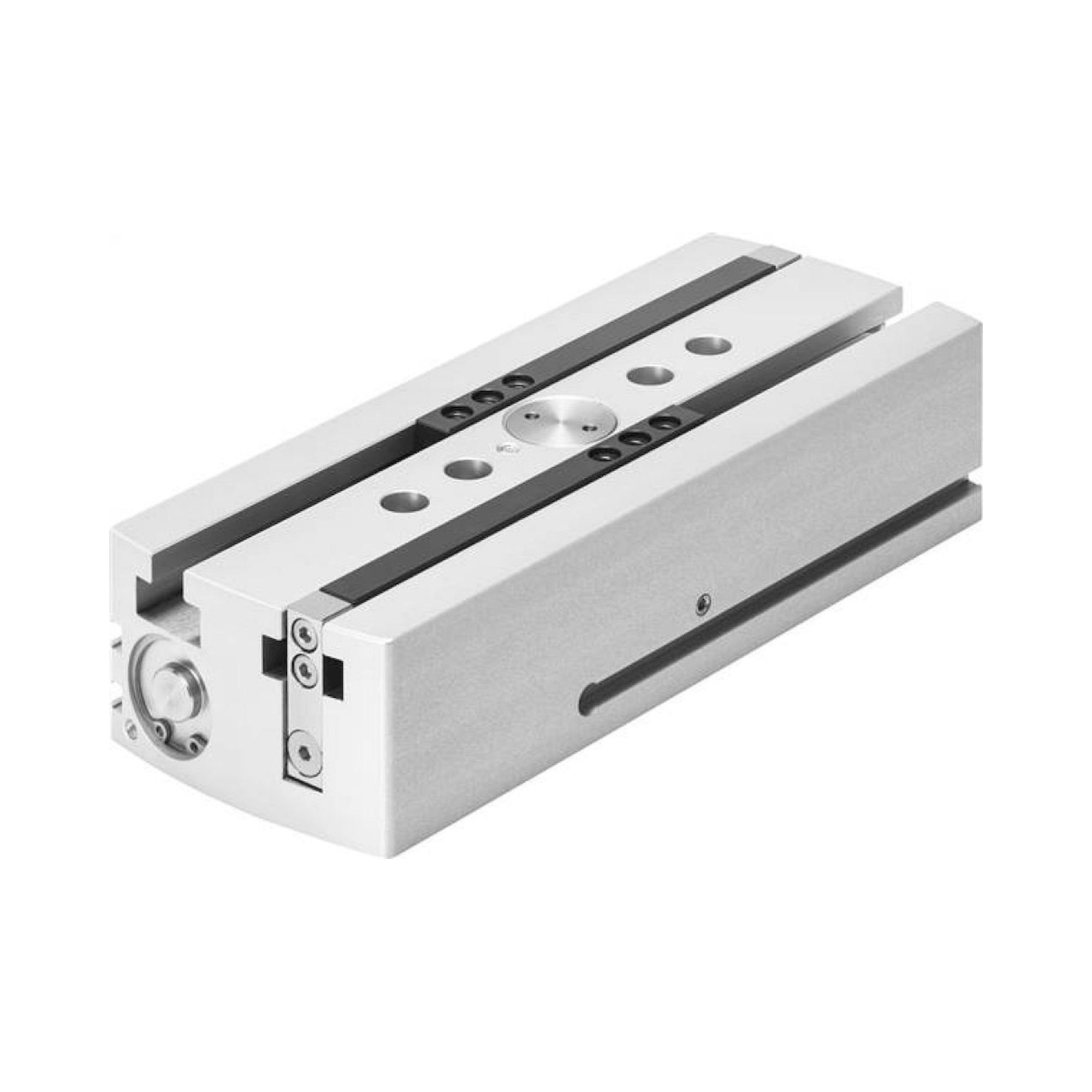

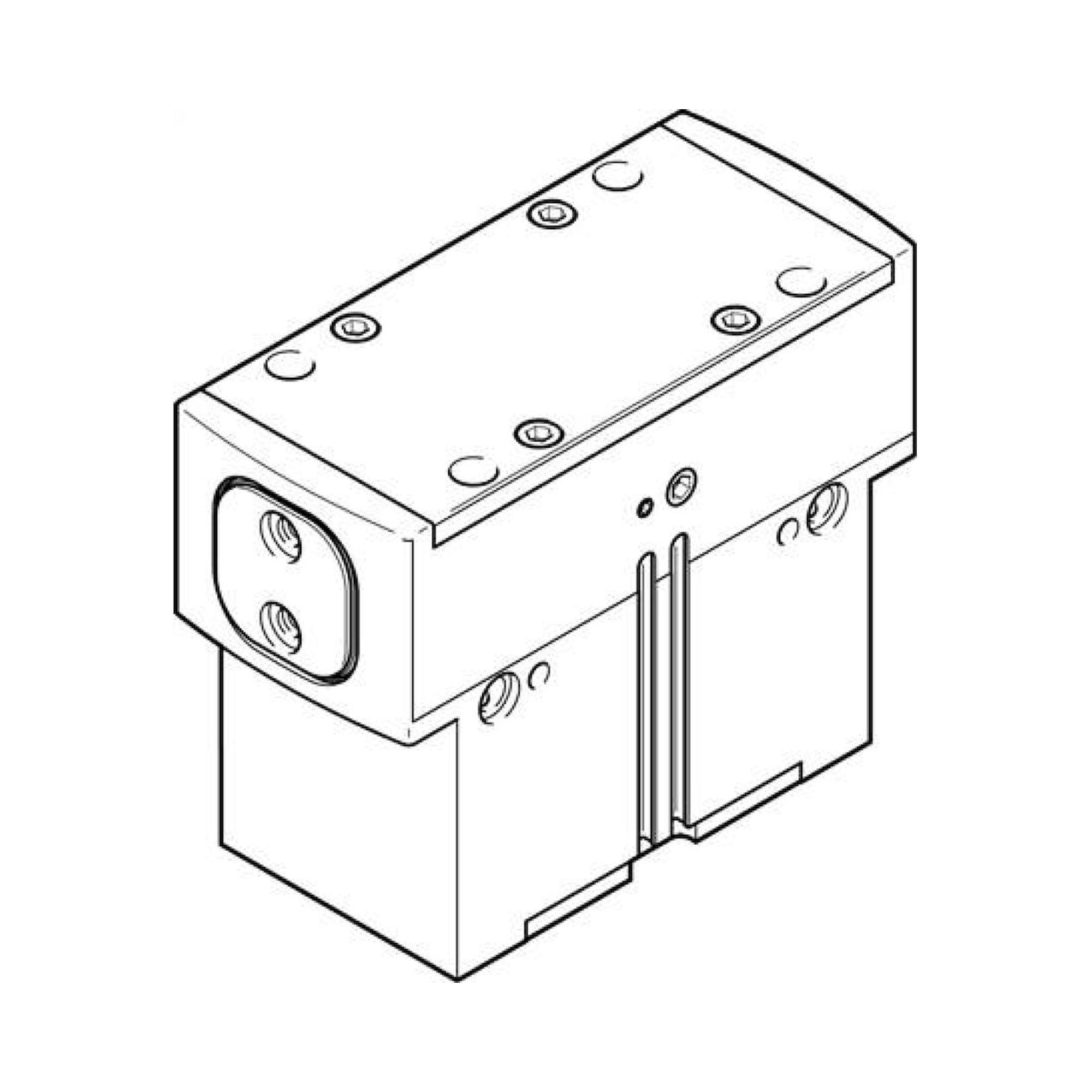

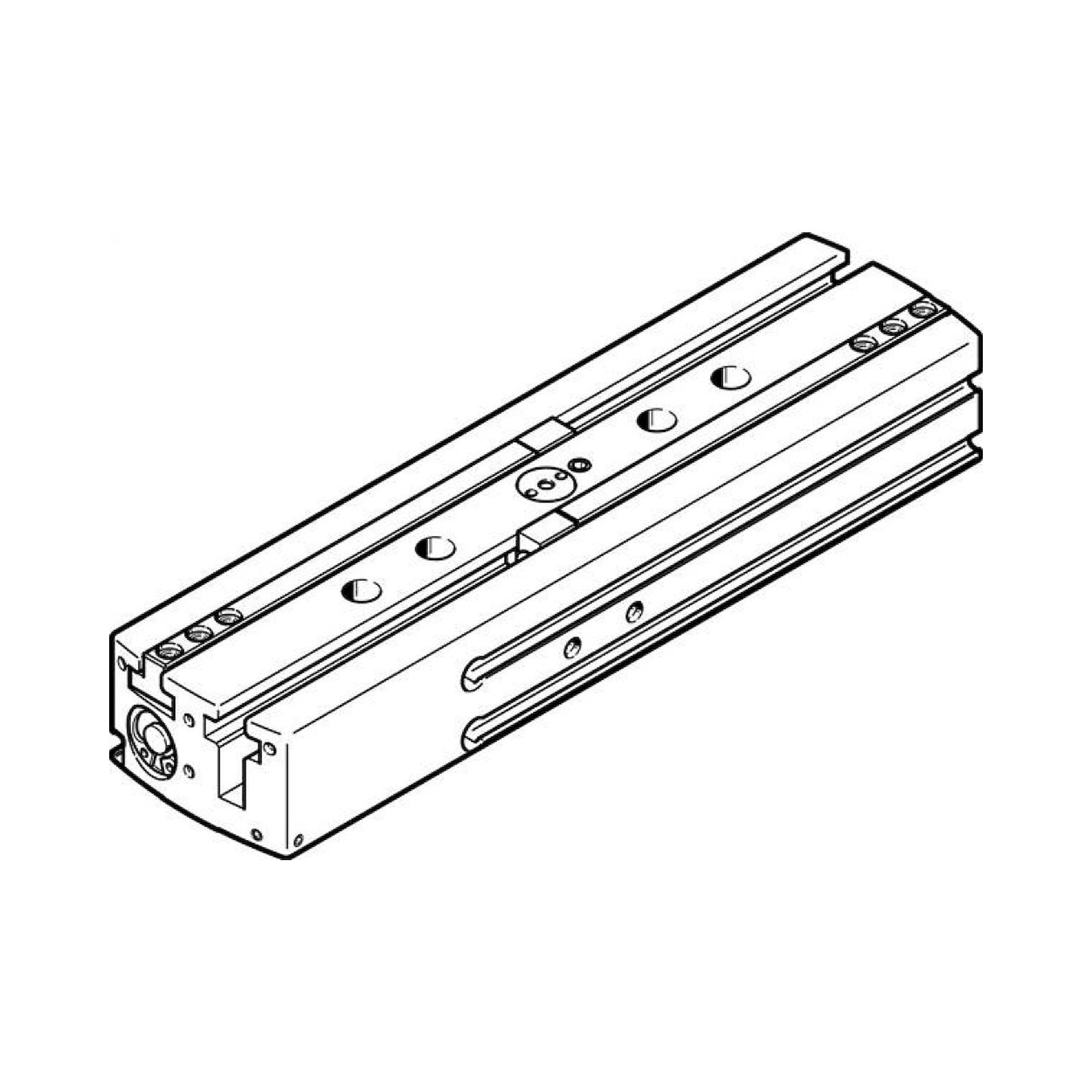

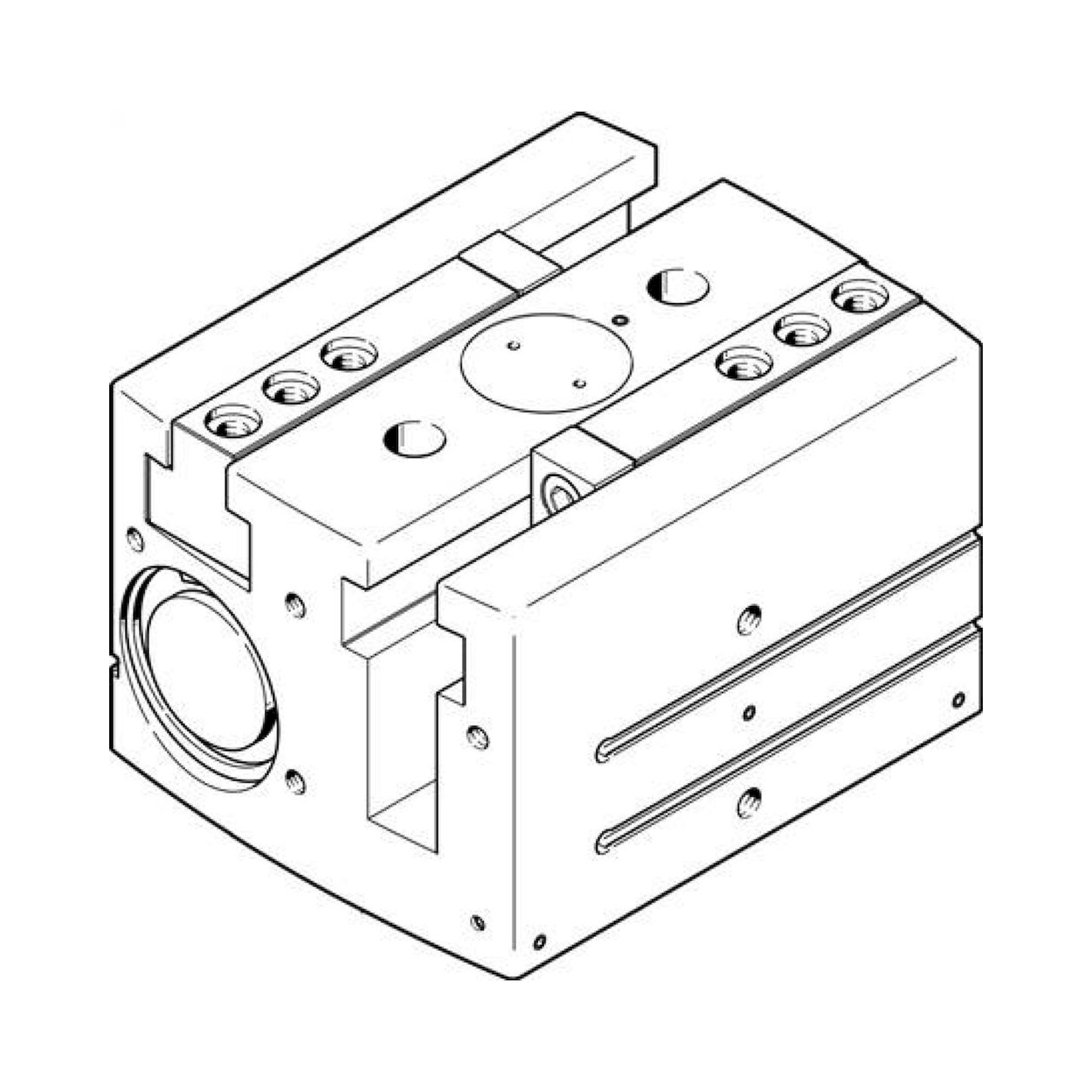

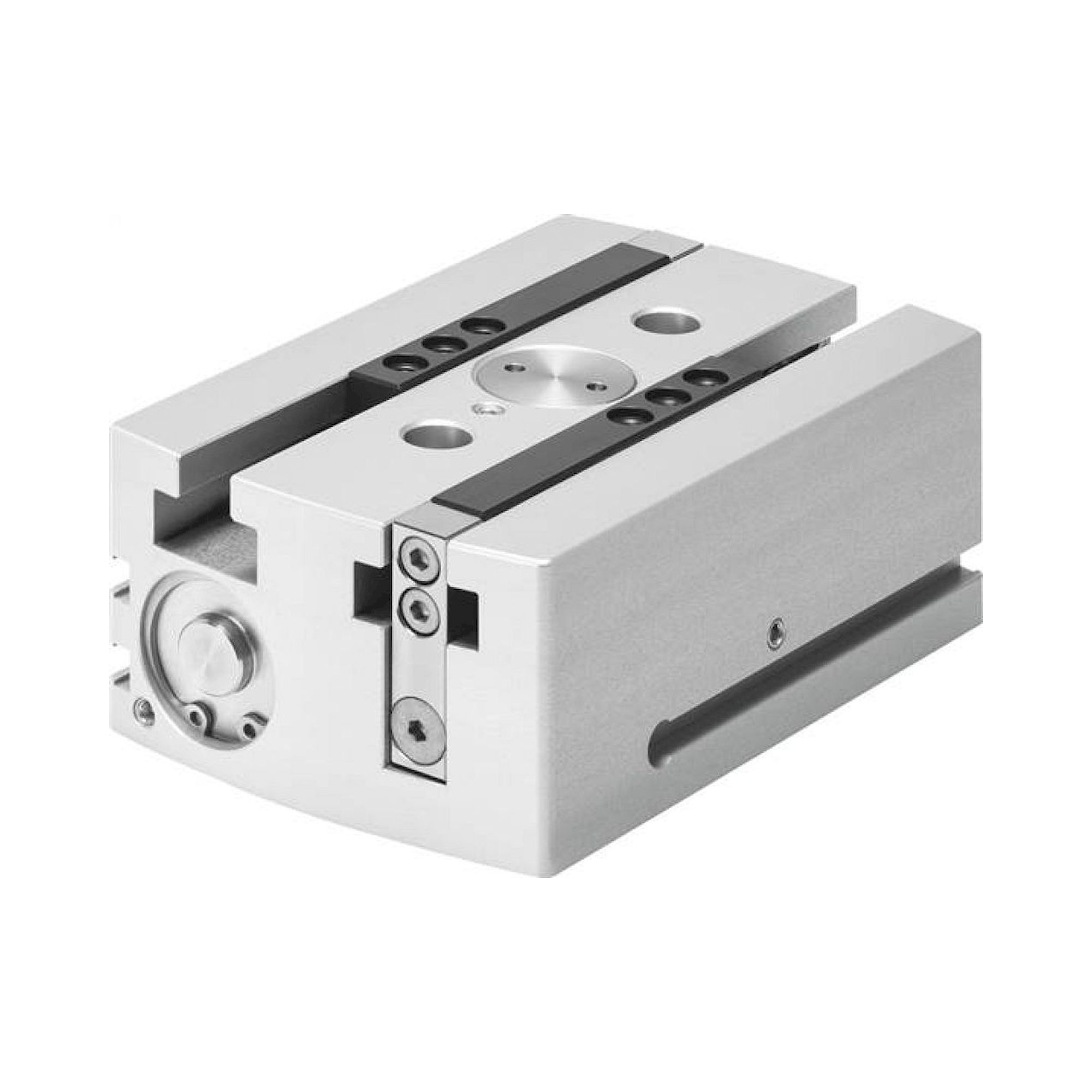

The HGPL series features long-stroke parallel grippers with stroke lengths from 40mm to 150mm, optimized for applications requiring extended jaw travel and larger workpiece accommodation. HGPD models are compact parallel grippers with shorter strokes, designed for space-constrained installations where high gripping force is needed in minimal mounting footprint. HGPL grippers include integrated position sensing options and external guide rods for enhanced precision, while HGPD variants offer optional proximity sensors (G1/G2 variants) for jaw position feedback. The HGPT series provides through-hole mounting capability for direct robot flange installation, differentiating it from the standard foot-mounted HGPL and HGPD configurations.

Festo pneumatic grippers require compressed air supply at 2-8 bar pressure with G1/8 or M5 pneumatic connections depending on the model series, and standard ISO 5599-1 valve mounting interfaces for control valve integration. The grippers feature standardized mounting holes compatible with DIN rail systems, T-slot profiles, and custom fixture plates, with M4 to M8 threaded connections based on gripper size. Electrical connectivity utilizes M8 or M12 circular connectors for integrated proximity sensors, supporting 10-30VDC supply voltage and PNP/NPN output configurations. System integration requires consideration of air consumption rates ranging from 0.15 to 1.2 liters per cycle and response times between 50-200 milliseconds for complete jaw travel.

Festo pneumatic grippers achieve IP65 protection class rating, providing complete dust protection and resistance to water jets from any direction, suitable for harsh industrial environments including washdown applications. Operating temperature range spans -20°C to +80°C for standard models, with extended temperature variants available for extreme conditions up to +150°C. Maximum operating pressure reaches 10 bar for emergency situations, though normal working pressure remains 2-8 bar for optimal service life. The grippers incorporate fail-safe spring return mechanisms and dual-channel proximity sensor options for SIL 2 safety applications according to EN ISO 13849, ensuring predictable behavior during power loss or emergency stops in automated systems.

Festo pneumatic grippers require preventive maintenance every 1-2 million cycles or annually under normal operating conditions, including inspection of seals, guide bushings, and jaw alignment for optimal performance. Service life typically exceeds 10 million cycles when operated within specified pressure and temperature ranges, with seal replacement intervals of 5-8 million cycles depending on duty cycle and environmental conditions. Monthly inspection should verify proper air supply filtration, check for external damage to guide rods and jaw surfaces, and confirm proximity sensor functionality where installed. Lubrication-free design eliminates routine oil service requirements, though air supply filtration to ISO 8573-1 class 7:4:4 standards ensures contamination-free operation and maximum component longevity in demanding industrial applications.
