Valve terminals
Festo pneumatics
Festo valve terminals are integrated valve banks in which multiple directional control valves are combined on a shared manifold with a central compressed-air supply and exhaust port. Electrical actuation is handled by modular electronics modules available for various fieldbus systems (DeviceNet, PROFIBUS, IO-Link, and others). The range also includes application-specific valve terminals of the VTOE dosing head series and a broad accessories programme of covers, input modules, and configuration elements.

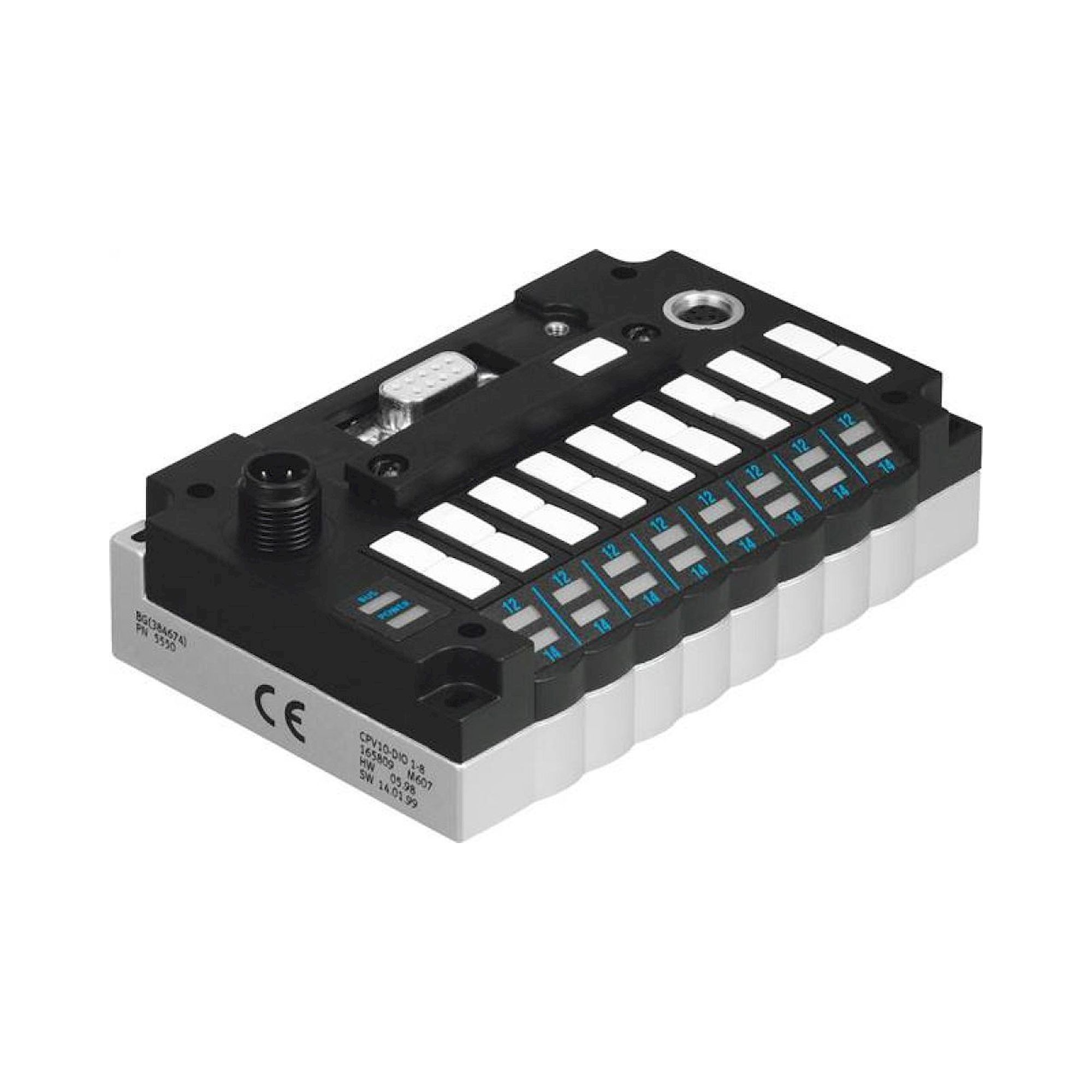

Electrical peripheryElectronics and input modules CP, M12 connections, covers
Application-specific valve terminalsDosing heads VTOE-D7/D8/D9, M22C holder, 8-way configuration
Accessories for valve terminalsMounting, configuration accessories, and expansion modules
| Product group | Typical items | Feature |
|---|---|---|

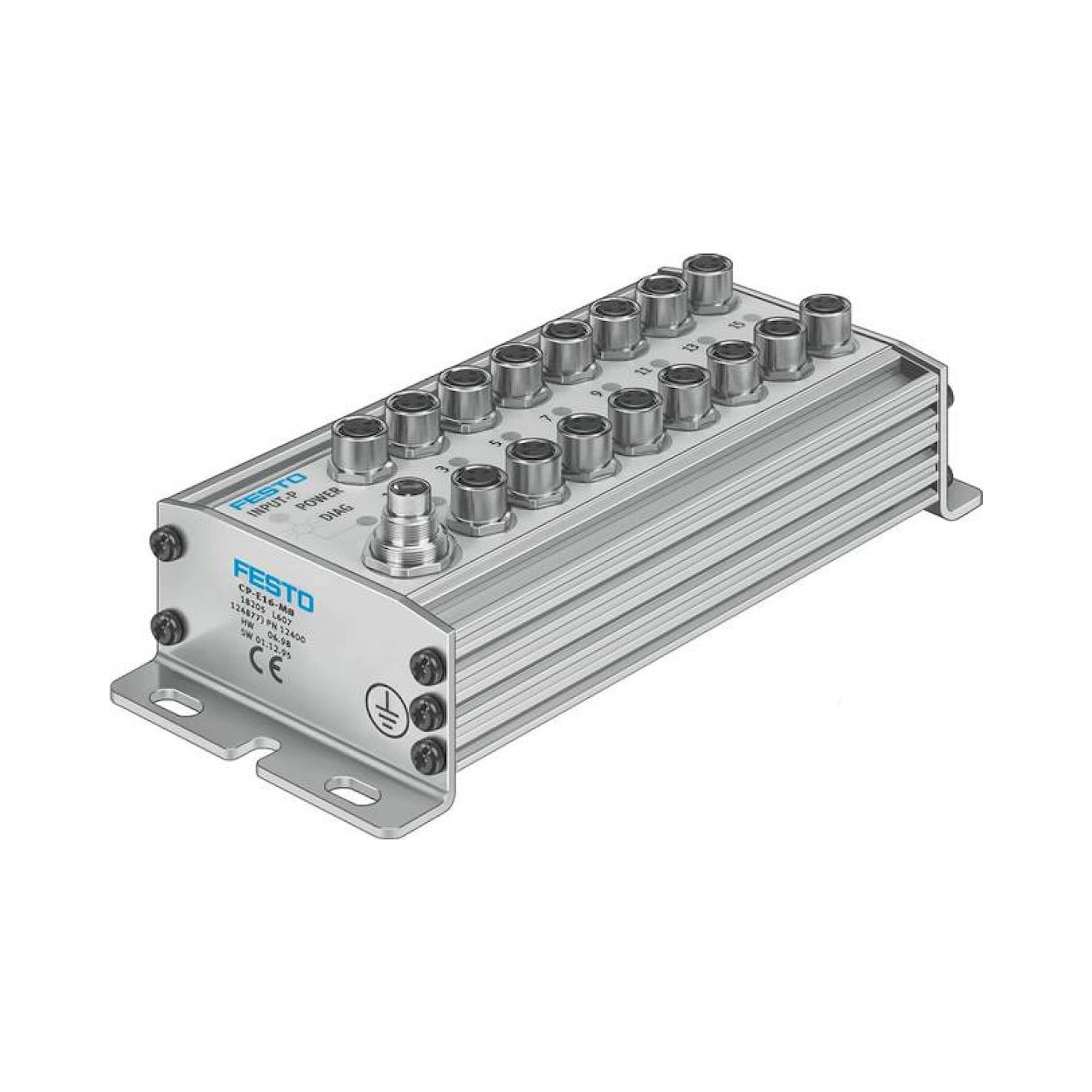

| Input modules | CP-E16-M12X2-5POL, CP-E16-M8 | 16 inputs, M12 5-pin or M8 |

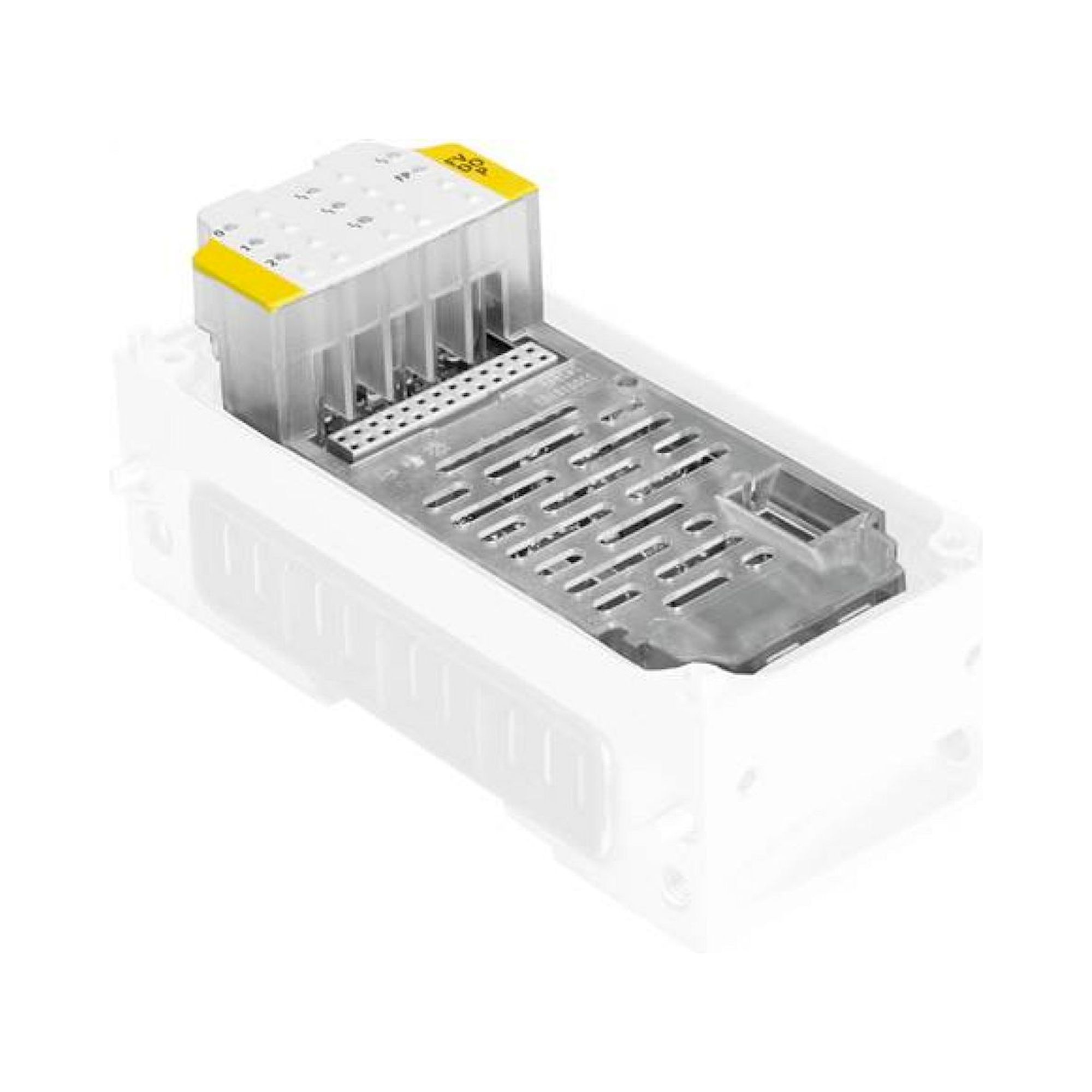

| Electronics modules | CP-A08-M12-5POL | 8 outputs, M12 5-pin |
| Covers | AK-RJ45, AK-SUB-9/15-B | Blanking covers for unused valve slots and interfaces |

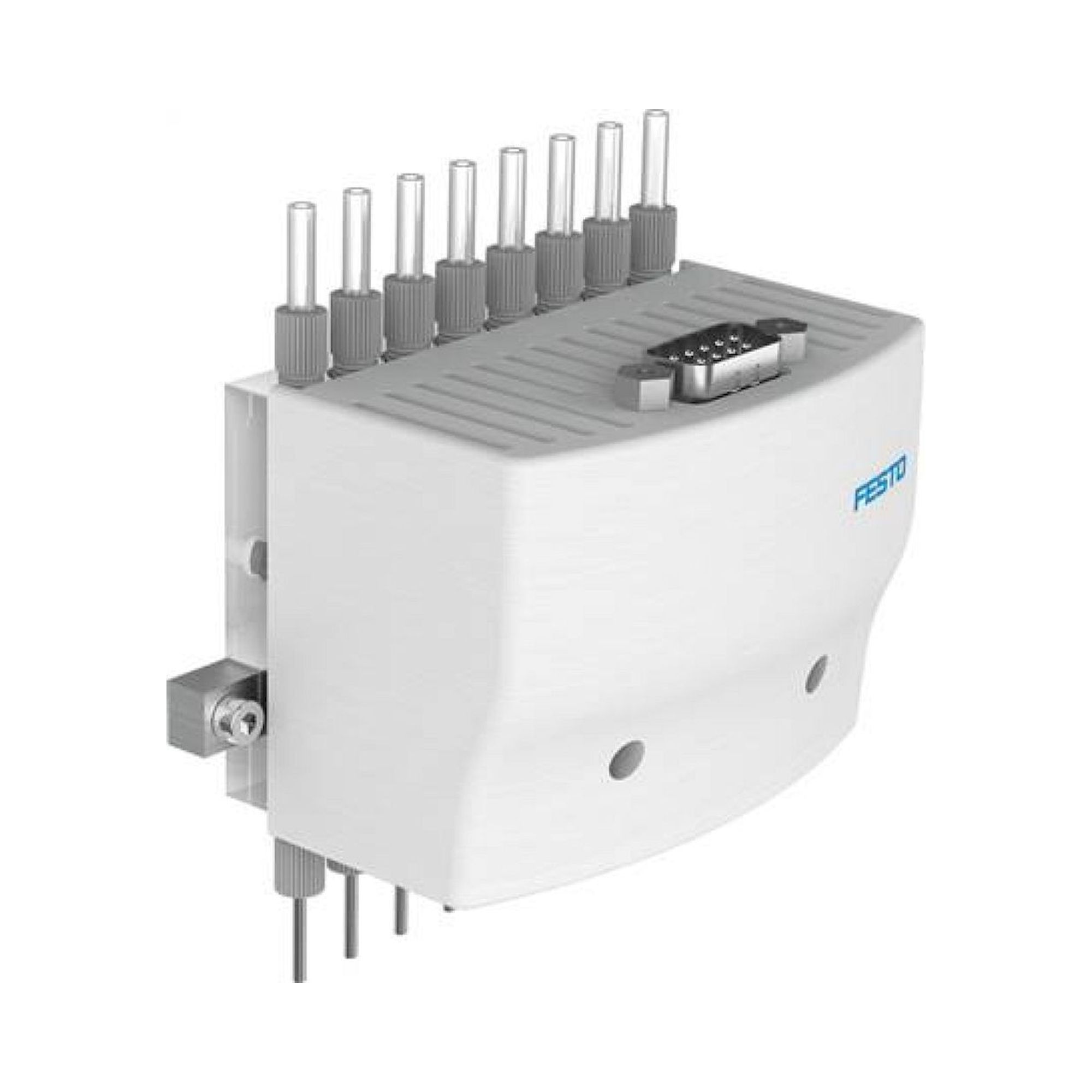

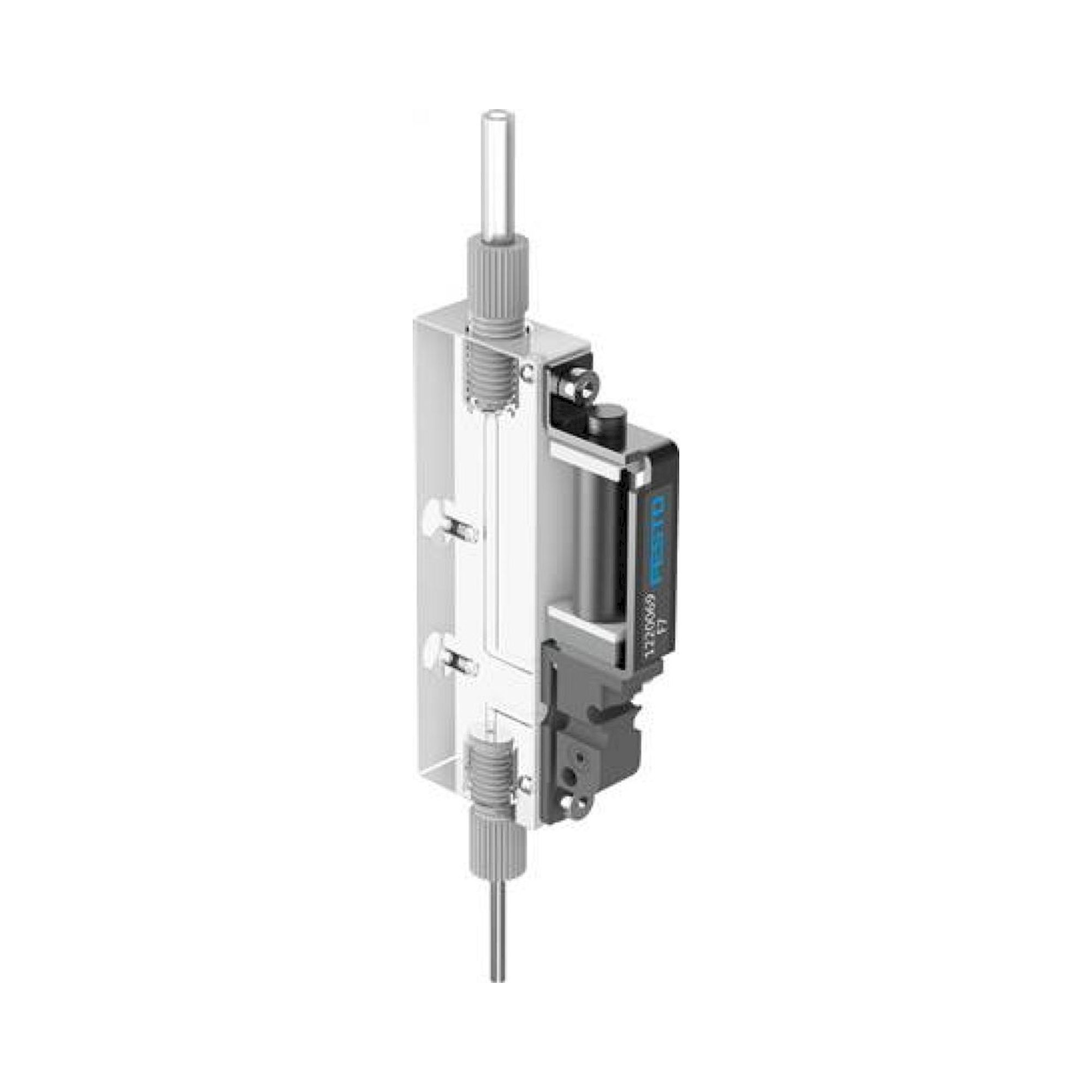

| Dosing heads | VTOE-D7/D8/D9-T3-M22C-08 | Application-specific, F/V variants (feed/vacuum) |
Typical applications: Centralised valve control in assembly and handling systems with multiple pneumatic actuators, fieldbus-integrated valve actuation in distributed automation networks, dosing processes in the chemical, pharmaceutical, and food industries with specialised VTOE dosing heads, and machine controls with compact design and reduced wiring effort.
