Magnetic valves VSNC
Standard control valves
Festo VSNC solenoid valves are compact standard valves with G 1/4 port, available in 5/2- and 5/3-way versions with M12 single connector. The VSNC-F and VSNC-FC ranges cover single- and double-actuated 5/2-way valves and 5/3 mid-exhaust valves in both monostable and bistable versions. Coil housings B52, P53C, P53U, and P53E are available for different switching functions.
G 1/4 pipe connection - compact valve for decentralised mounting, direct pipe fitting without manifold plate requirement
M12 single connector - standardised field connection, F8 connector variant for standard M12 socket
5/2 and 5/3-way valves - VSNC-F (single-actuated), VSNC-FC (mid-exhaust 5/3), VSNC-F-B52 (bistable)
Compact standard valve design - for applications where a valve terminal configuration is not required or possible
| Type | Function | Connector |
|---|---|---|

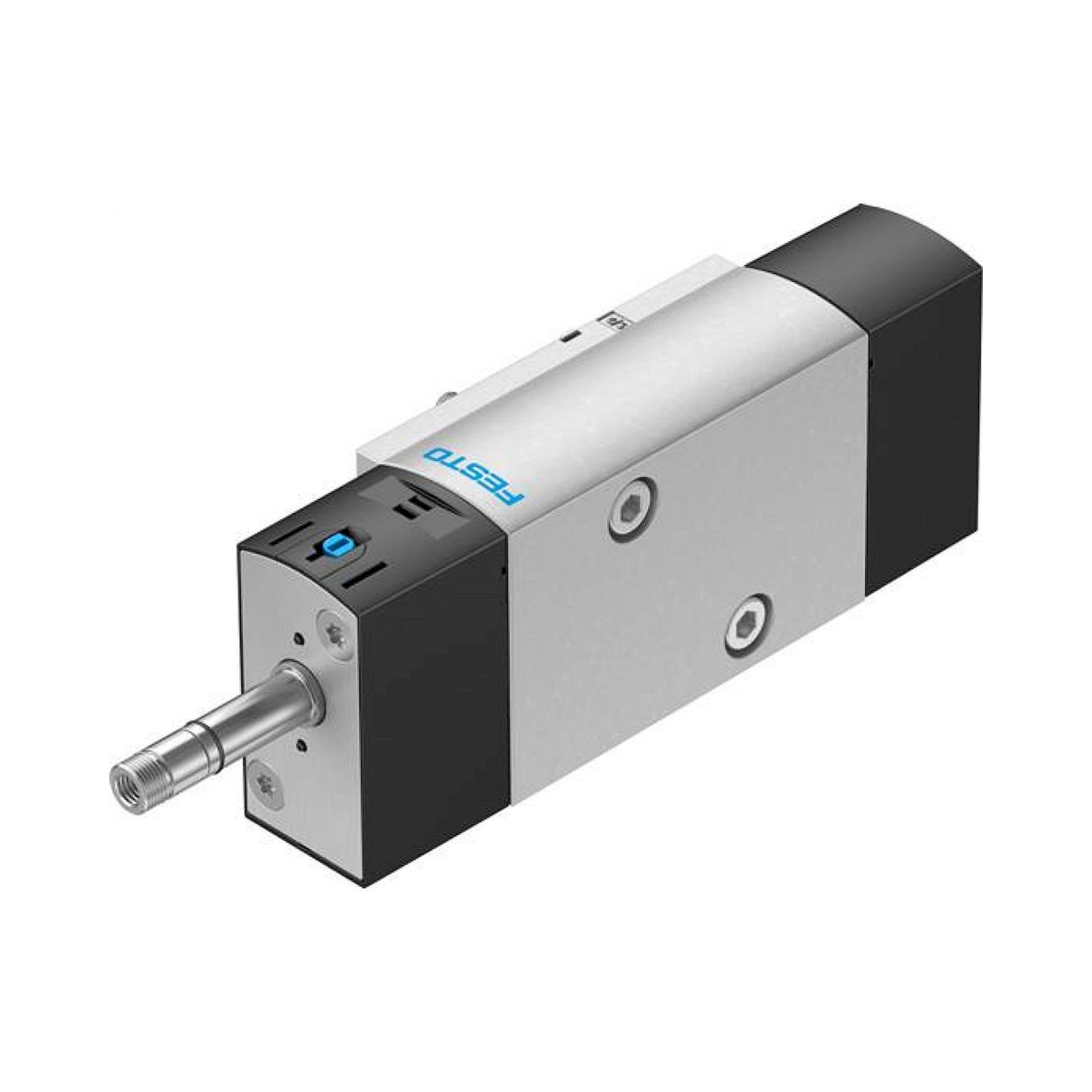

| VSNC-FC-M52-MD-G14-F8 | 5/2-way monostable | M12 F8 |
| VSNC-F-B52-D-G14-F8 | 5/2-way bistable | M12 F8 |

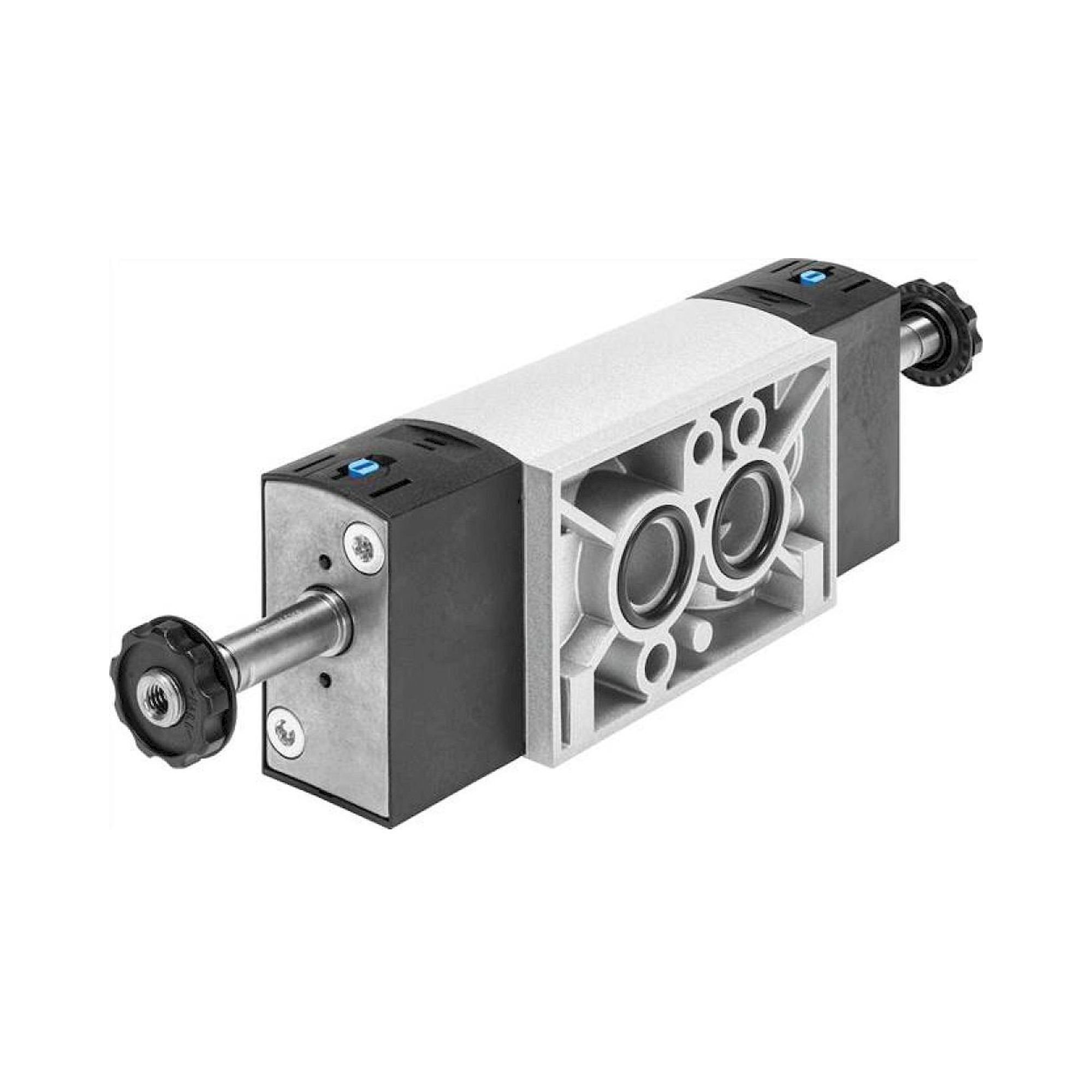

| VSNC-F-P53C-MD-G14-F8 | 5/3-way mid-exhaust | M12 F8 |
| VSNC-F-P53U-MD-G14-F8 | 5/3-way mid-pressurised | M12 F8 |
| VSNC-F-P53E-MD-G14-F8 | 5/3-way mid-closed | M12 F8 |
Typical applications: Single-cylinder controls with a direct G 1/4 pipe valve without a valve terminal, machines with few pneumatic axes and a decentralised wiring concept, retrofitting and expanding existing systems, and test benches and special solutions where a single standard valve with M12 field connection is sufficient.
