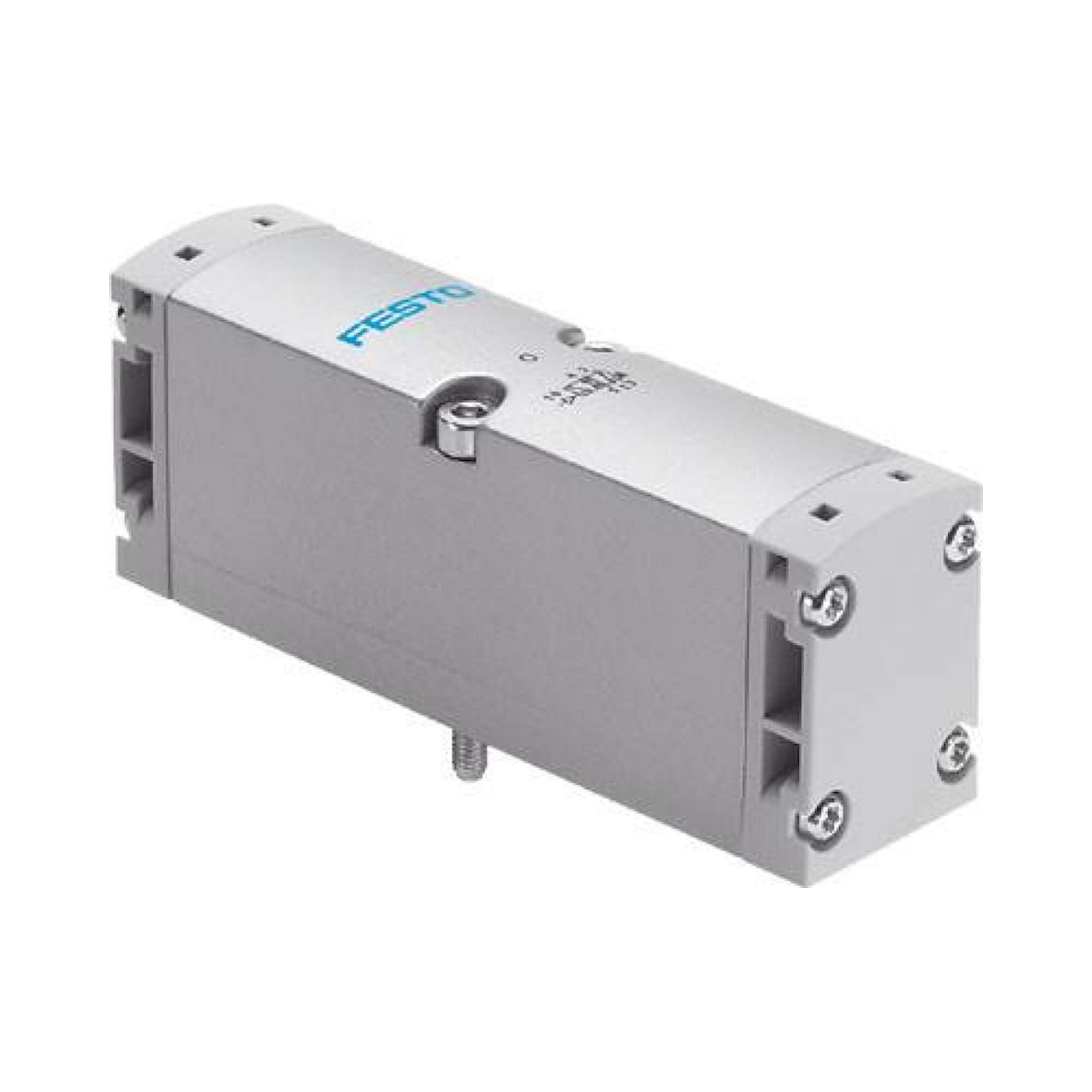

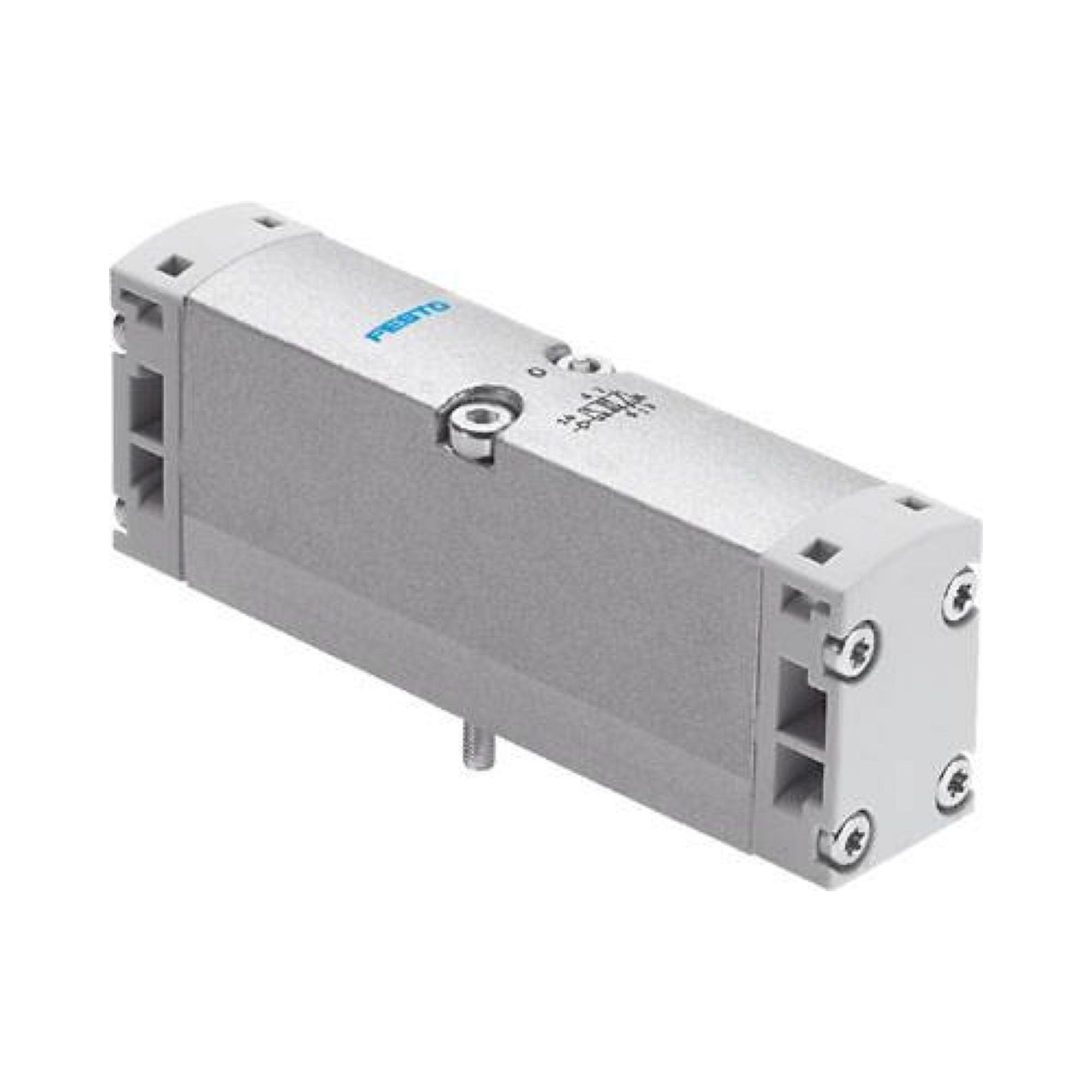

Standard valves VSPA

Festo VSPA standard directional control valves are pneumatically and electrically operated directional control valves designed for precise fluid flow control in industrial automation systems. These valves serve as fundamental components in manufacturing automation, packaging machinery, automotive assembly lines, and material handling systems where reliable air flow direction control is critical. The VSPA series enables automated control of pneumatic actuators, cylinders, and other air-powered devices through electrical or pneumatic pilot signals. Industries including automotive manufacturing, food processing, pharmaceutical production, and general machinery manufacturing rely on these valves for process automation and production line control applications.

Selection of Festo VSPA pneumatic valves depends on actuation type, port configuration, and flow capacity requirements specific to the pneumatic system design. The VSPA-B series offers both A1 and A2 actuation variants, with T32 models providing different flow characteristics compared to P53 and D52 configurations for varying application demands. Port size selection between M52, B52, and specialized connection types like T32C, T32H, and T32U determines flow capacity and system compatibility. Operating pressure range typically spans 2 to 10 bar for standard pneumatic applications, while media compatibility covers compressed air according to ISO 8573-1 class specifications. Electrical actuation variants require 24V DC control signals, while pneumatic pilot versions operate with compressed air pilot pressure of 2.5 to 8 bar.

Festo VSPA directional control valves comply with ISO 5599-1 standards for pneumatic valve interface dimensions and ISO 4401 mounting patterns where applicable to ensure industry-standard compatibility. The valves meet EN 60204-1 electrical safety requirements for industrial machinery applications and conform to ISO 8573-1 compressed air quality standards for media specifications. ATEX certification applies to specific VSPA variants designed for potentially explosive atmospheres in zones requiring intrinsically safe pneumatic components. Additional compliance includes RoHS directive 2011/65/EU for restricted substance regulations and EMC directive 2014/30/EU for electromagnetic compatibility in industrial environments. Quality management follows ISO 9001 standards throughout the manufacturing process to ensure consistent performance and reliability.

Festo VSPA valve variants differ primarily in actuation method, port configuration, and flow capacity as indicated by their model designations after VSPA-B. The A1 and A2 suffix codes distinguish between single-acting spring return and double-acting pneumatic actuation types, affecting response characteristics and control flexibility. Port configurations include T32C, T32H, and T32U for different connection types, while P53C, P53E, and P53U variants offer alternative flow paths and mounting options. The M52-A and M52-M designations indicate different pilot valve configurations for pneumatic actuation, with D52 and B52 variants providing specific flow characteristics for distinct application requirements. Each variant maintains the same robust construction while optimizing performance for specific pneumatic system architectures and control strategies.

Festo VSPA valves require ISO 5599-1 compliant valve manifold mounting with proper torque specifications of 2.5 Nm for manifold bolts to ensure leak-tight installation. System compatibility demands compressed air supply filtered to ISO 8573-1 class 7:4:4 or better, with operating pressure maintained between 2 and 10 bar for optimal performance. Electrical connections utilize standard M12 or cable connections depending on model variant, requiring 24V DC control voltage with current consumption typically below 200 mA per solenoid. Pneumatic pilot versions need separate pilot air supply at 2.5 to 8 bar pressure, delivered through 4mm or 6mm pneumatic tubing connections. Ambient temperature range spans -10°C to +60°C for standard applications, with specialized variants available for extended temperature ranges in harsh industrial environments.

Festo VSPA pneumatic valves typically achieve IP65 protection rating against dust ingress and water jets, making them suitable for industrial environments with moderate contamination exposure. Operating temperature range extends from -10°C to +60°C for standard variants, with specialized high-temperature versions available for applications up to +80°C ambient conditions. Maximum operating pressure reaches 10 bar for pneumatic supply lines, while pilot pressure specifications range from 2.5 to 8 bar depending on valve configuration and actuation type. Electrical safety compliance includes protection class II insulation for 24V DC solenoid variants, with overcurrent protection recommended at 2A per valve circuit. The valves maintain functional safety characteristics suitable for SIL 1 applications when integrated with appropriate safety control systems and regular inspection protocols according to EN ISO 13849-1 machinery safety standards.

Festo VSPA pneumatic valves require quarterly inspection of pilot air filters and annual lubrication point service to maintain optimal performance throughout their designed service life of 10 million switching cycles. Preventive maintenance includes monthly visual inspection for external leakage, pilot air pressure verification, and electrical connection integrity checks for solenoid-operated variants. The robust valve construction enables continuous operation for 2-3 years between major service intervals under normal industrial conditions with proper air preparation according to ISO 8573-1 specifications. Seal replacement typically occurs every 5-7 years depending on operating pressure, cycle frequency, and media quality, with complete valve overhaul recommended after 8-10 years of service. Critical applications require documented maintenance logs and annual flow capacity testing to verify performance within ±5% of nominal specifications for quality assurance compliance.
