Standard valves ISO 15218 (CNOMO)
Standard control valves
Festo standard valves to ISO 15218 (CNOMO) are directional control valves that meet the CNOMO connection standard prevalent in the automotive industry, satisfying the requirements of major vehicle manufacturers and their suppliers. The MDH series provides 3/2-way valves as pilot valves in voltage versions 24 V DC, 110 V AC, and 230 V AC, as well as a combined 24 VDC/42 VAC version. The Ex series MGXDH-3/2 is suitable for use in potentially explosive atmospheres.
| Type | Voltage | Function |
|---|---|---|
| MDH-3/2-24DC | 24 V DC | 3/2-way pilot valve, CNOMO standard |

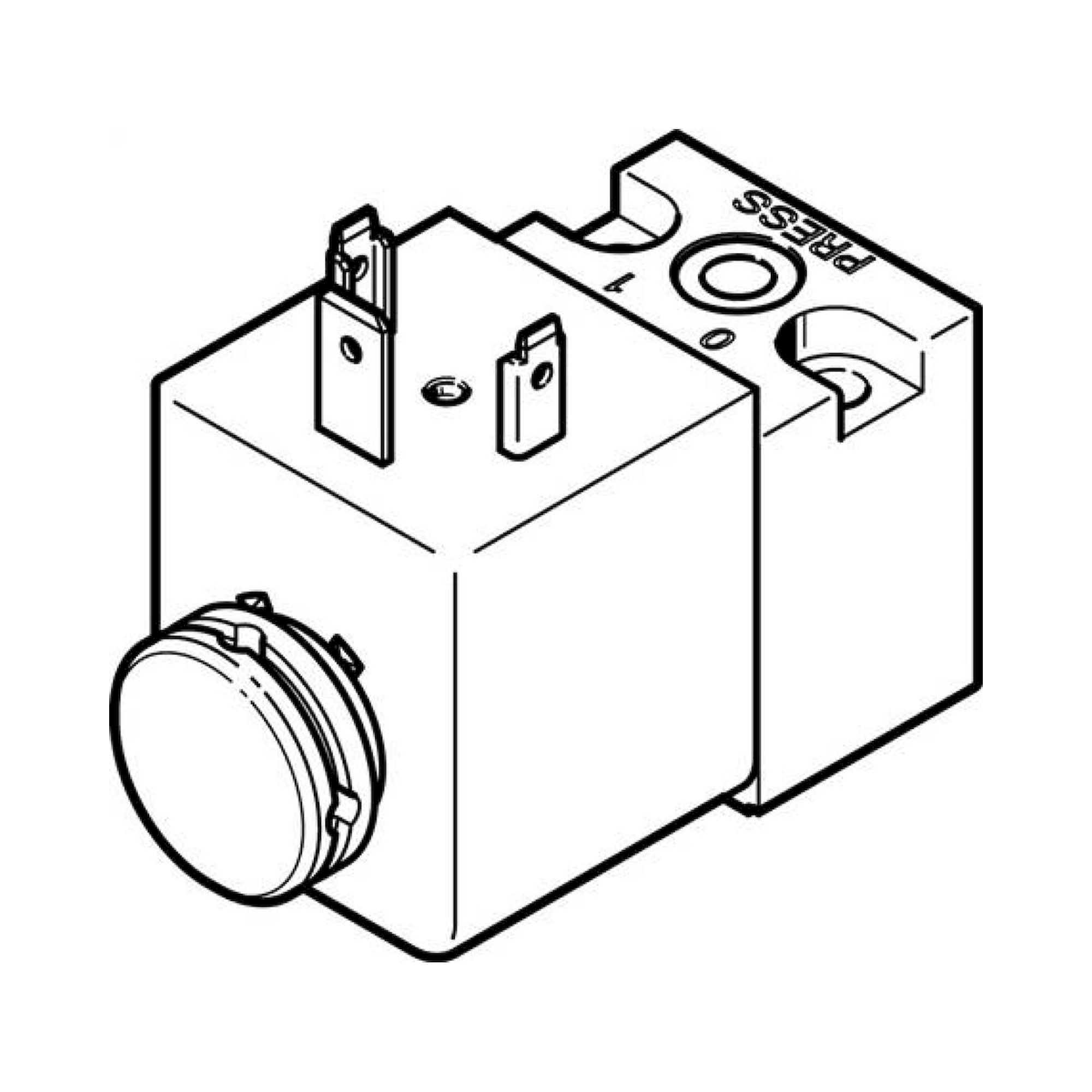

| MDH-3/2-110VAC | 110 V AC | 3/2-way pilot valve, CNOMO standard |
| MDH-3/2-230VAC | 230 V AC | 3/2-way pilot valve, CNOMO standard |
| MDH-3/2-24VDC/42VAC | 24 V DC / 42 V AC | Combined voltage for mixed supply networks |

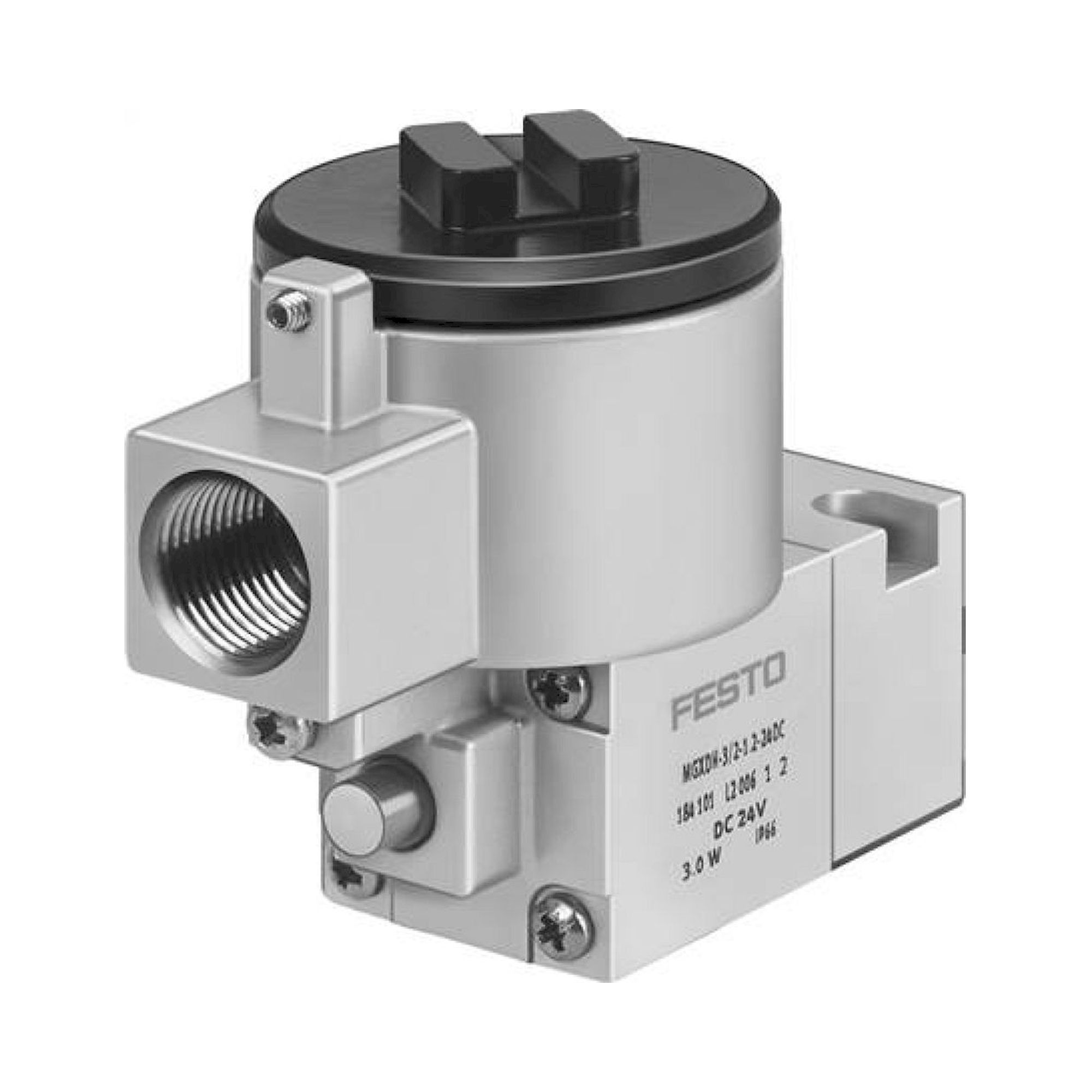

| MGXDH-3/2-1.2-110AC-EX | 110 V AC | Ex version, zone II |
Typical applications: Body-in-white and assembly lines at vehicle manufacturers with CNOMO valve terminal standards, press controls and fixtures in automotive production, installations with mixed supply voltages (24 V DC and 42/110/230 V AC), and welding lines in Ex zones using the MGXDH-EX series.
