YPC solenoid valves

Valves

YPC solenoid valves are compact pneumatic directional control valves for 24 V DC and AC control voltages, designed for automation lines with high cycle rates. The SF1000 to SF6000 series cover 3/2-way (NC/NO), 5/2-way and 5/3-way circuits with M 5 port, available as individual valves or on manifold strips MF1500 to MF6500 with 2 to 10 stations. Seal kits (REP) and blanking plates (BLK) are available for all manifold strip series to ensure serviceability during ongoing operation.

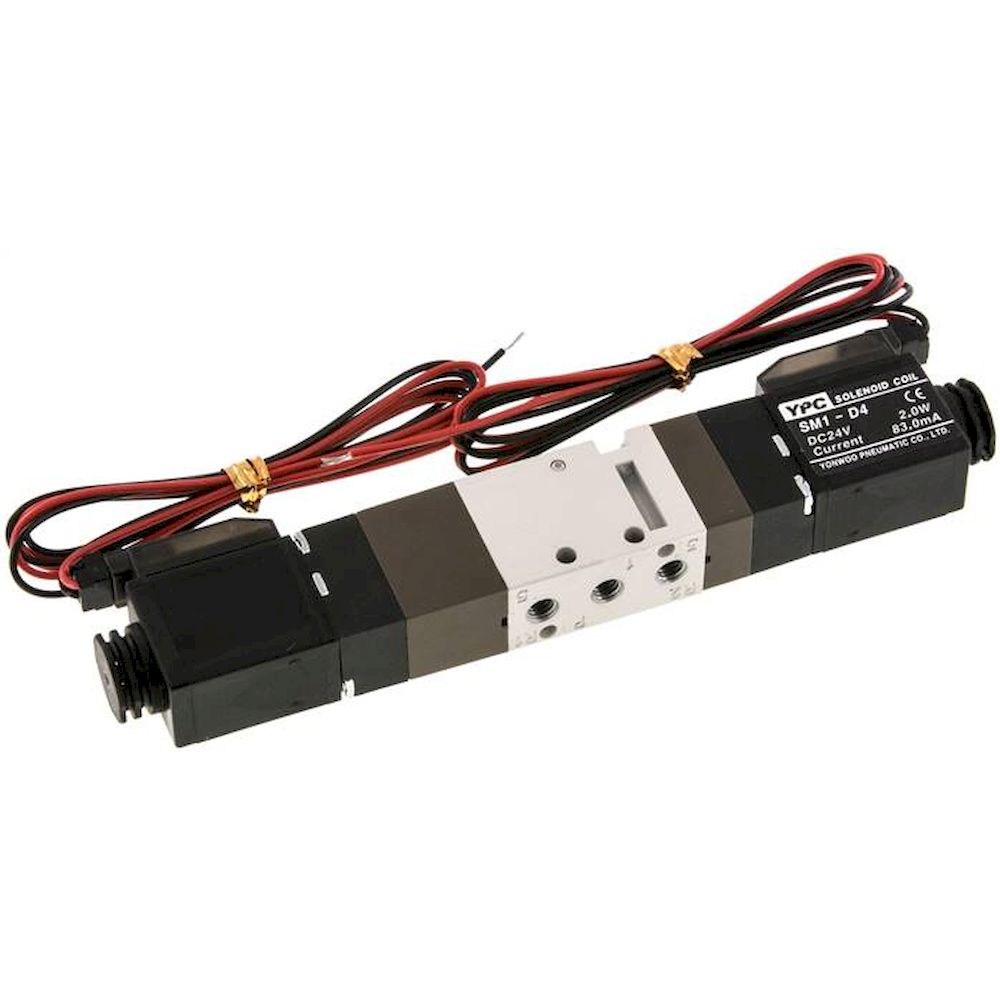

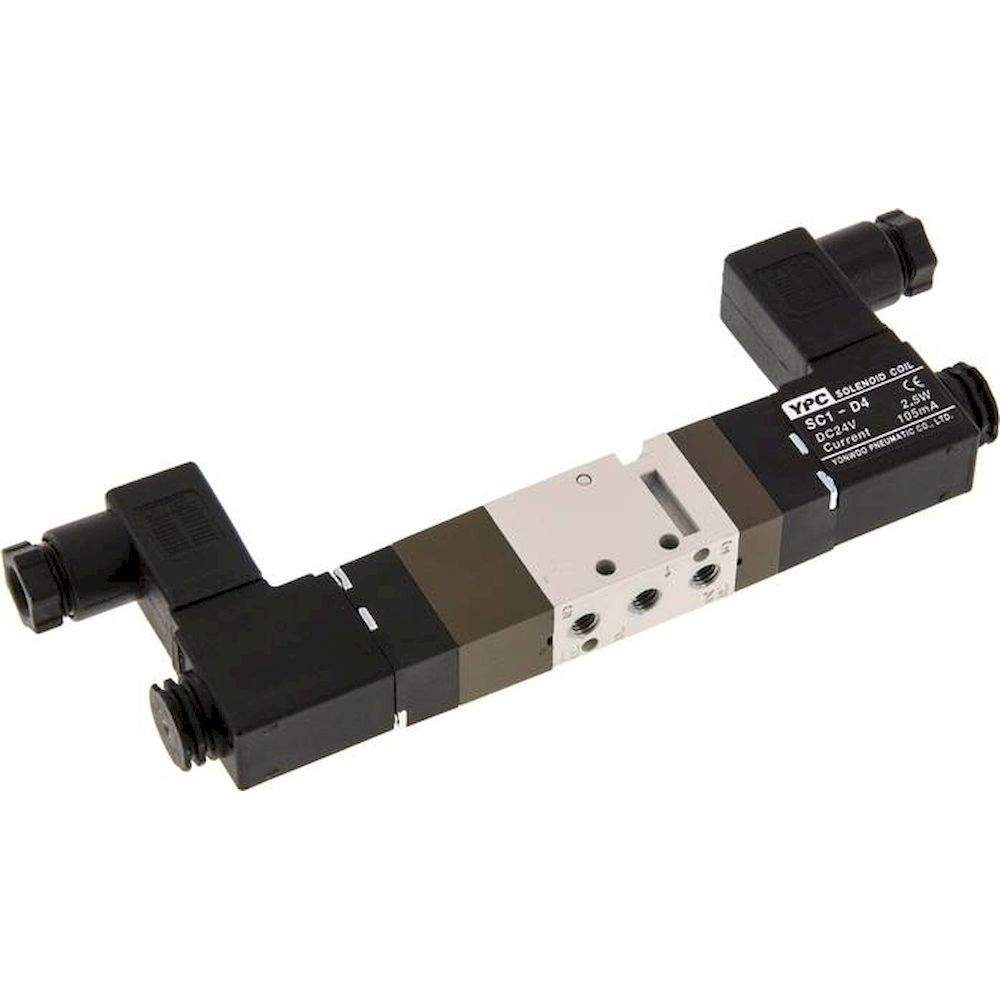

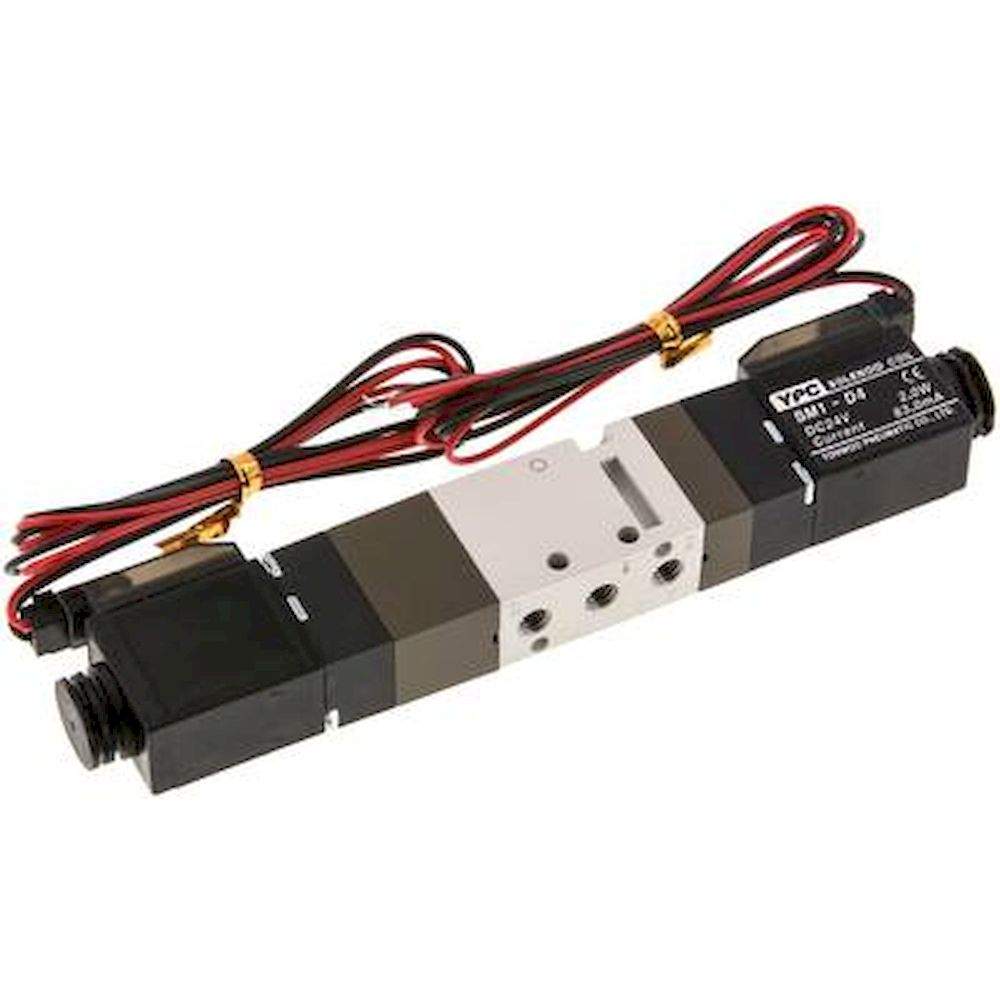

⚙ SF1000 series (M 5, 24 V DC) - 3/2-way NC/NO, 5/2-way spring return and impulse, 5/3-way mid-pressure

⚡ Manifold strips MF1500 - MF6500 - 2 to 10 stations, matching respective SF valves (SF1000, SF5000, SF6000)

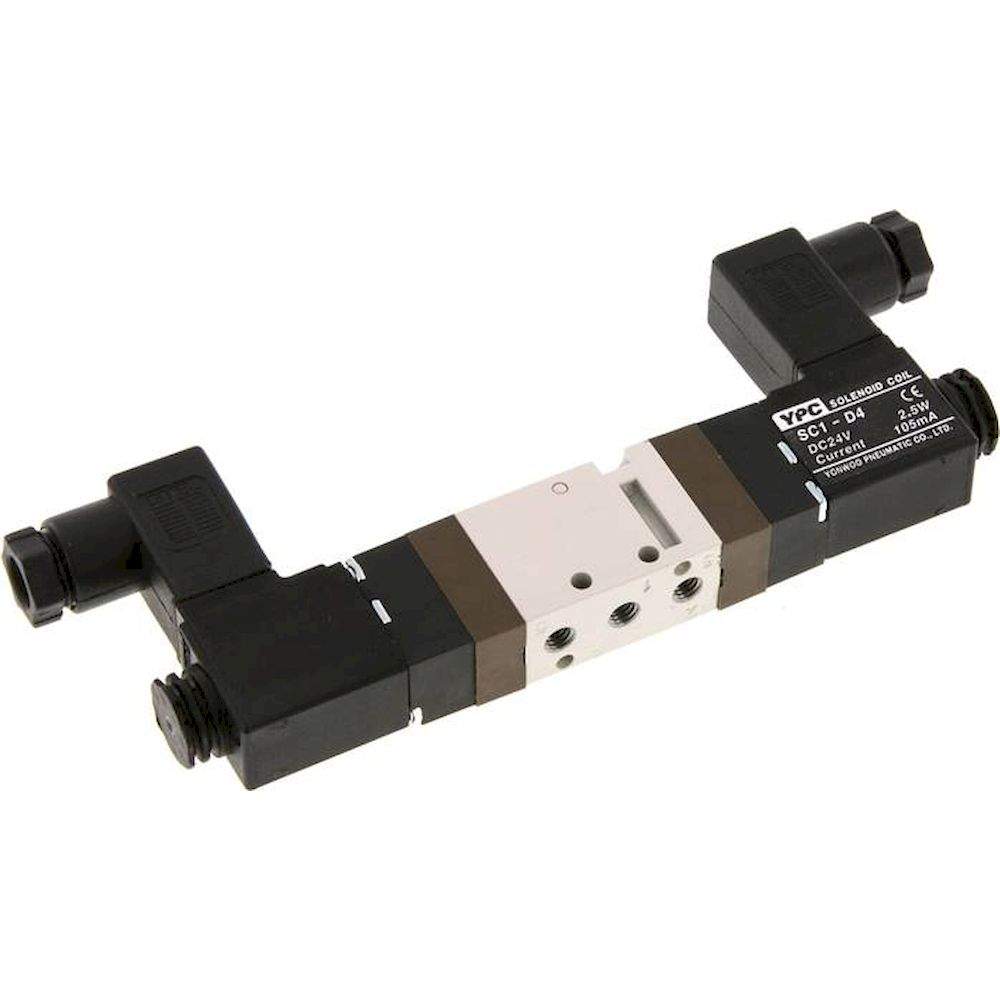

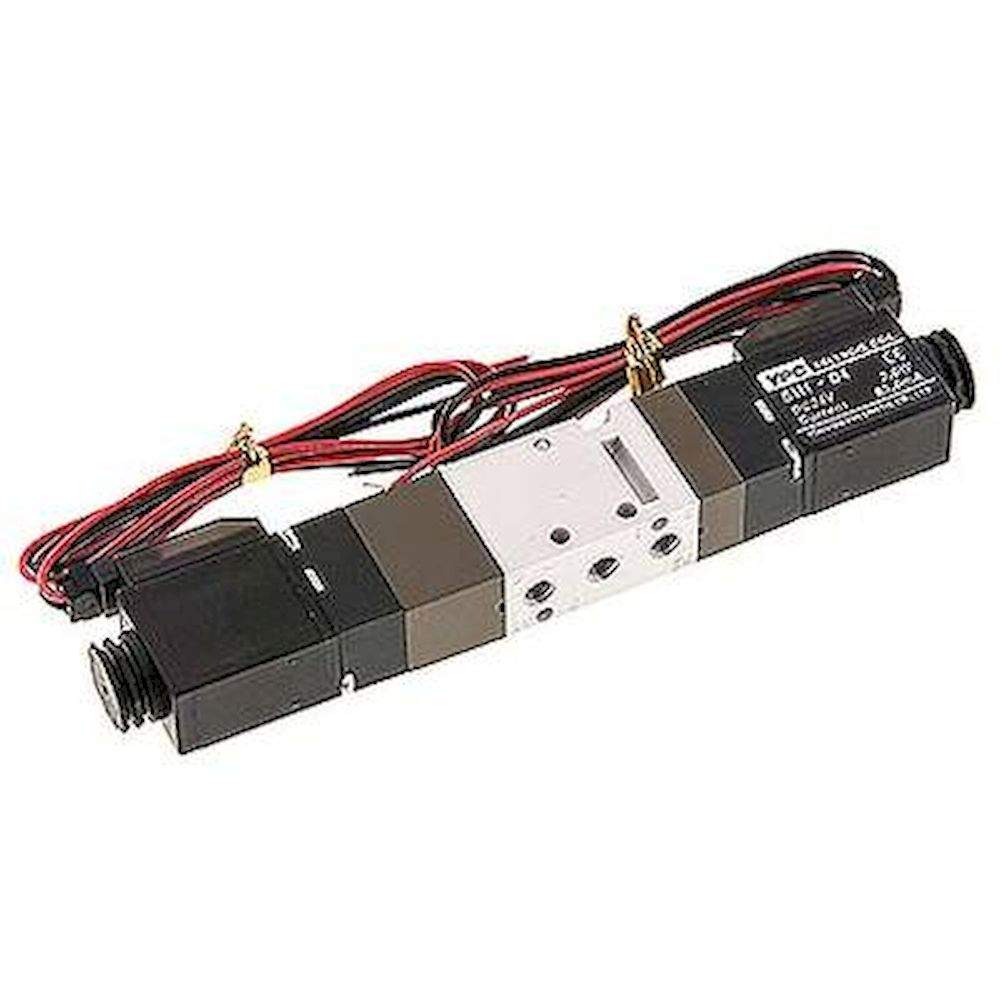

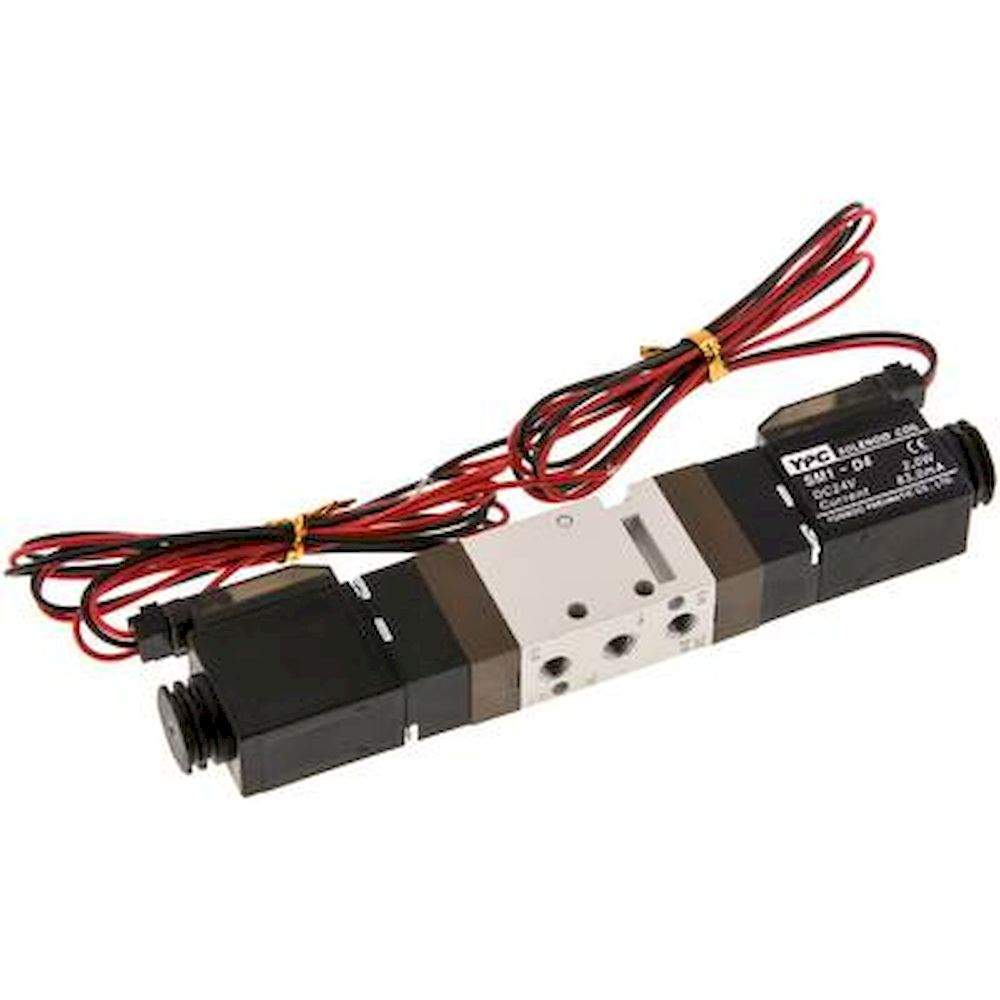

✓ Impulse and spring return valves - SF1200 IPSM-D4 (impulse), SF1601/SF1701 (NC/NO), SF1503 (5/3 mid-pressure)

📦 Maintenance accessories - seal kit REP and blanking plate BLK for MF1300, MF1500, MF3500, MF5500, MF6300, MF6500

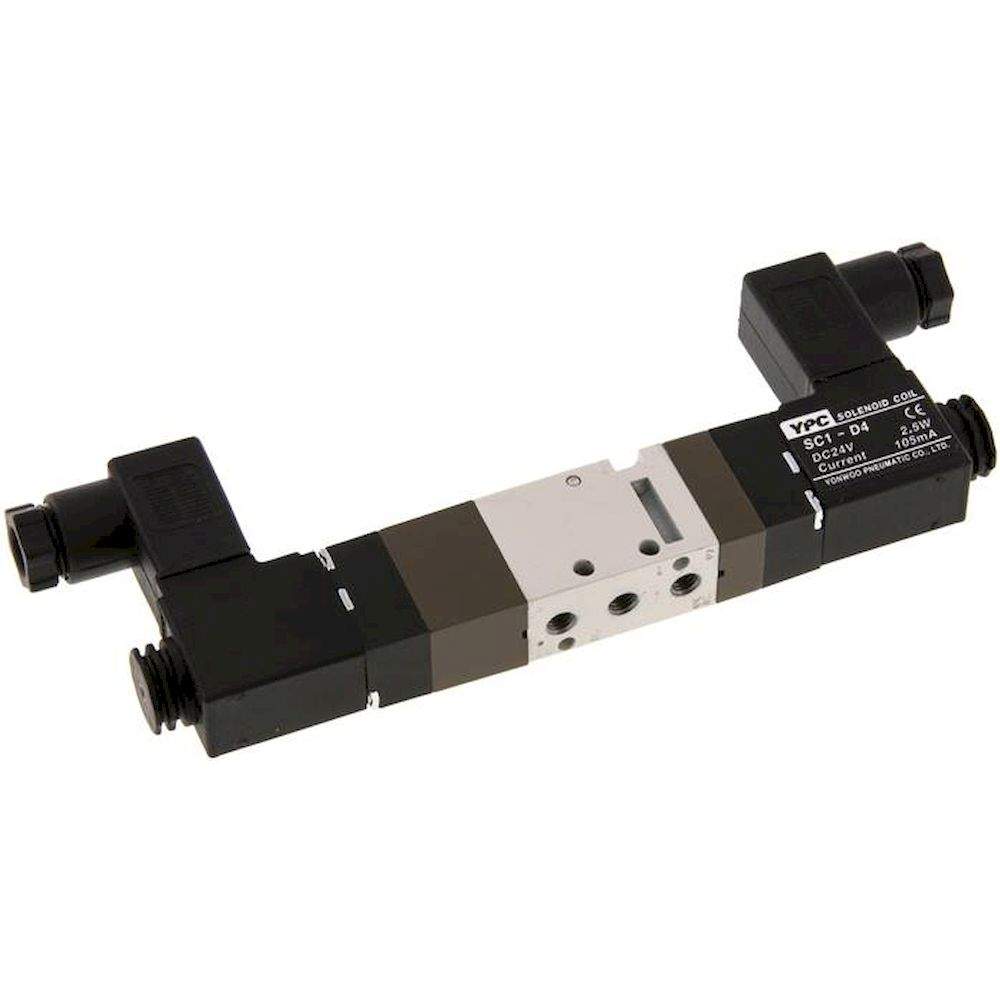

⛤ Voltage options - 24 V DC standard (IPSM-D4), 115 V AC and 24 V AC available (IPSC-A1/A4)

Manifold strip	Compatible with	Stations	Accessories
MF1500	SF1000 series	2, 4	MF1500-REP, MF1500-BLK
MF3500	SF3000 series	-	MF3500-REP
MF5500	SF5000 series	2, 4, 6, 8, 9, 10	MF5500-REP, MF5500-BLK

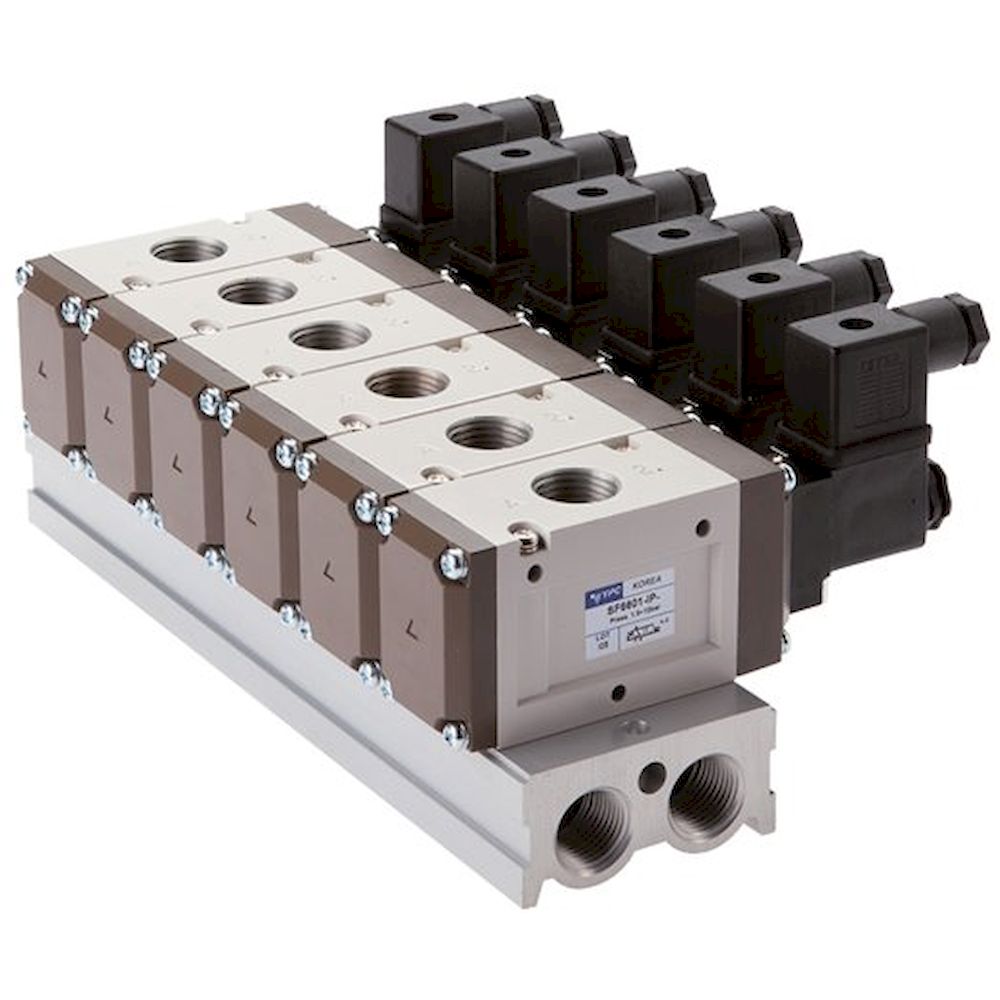

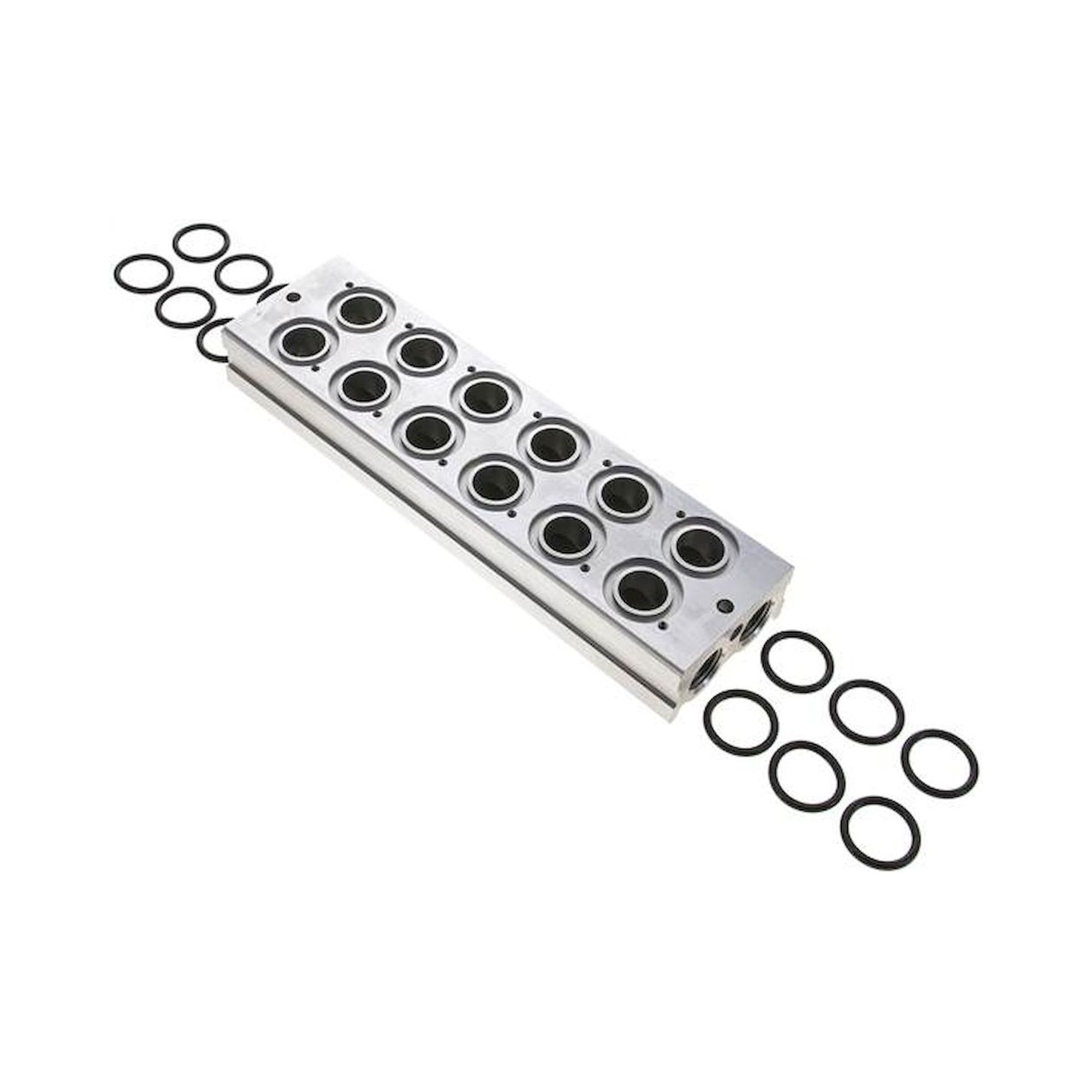

MF6300	SF6000 series	-	MF6300-REP

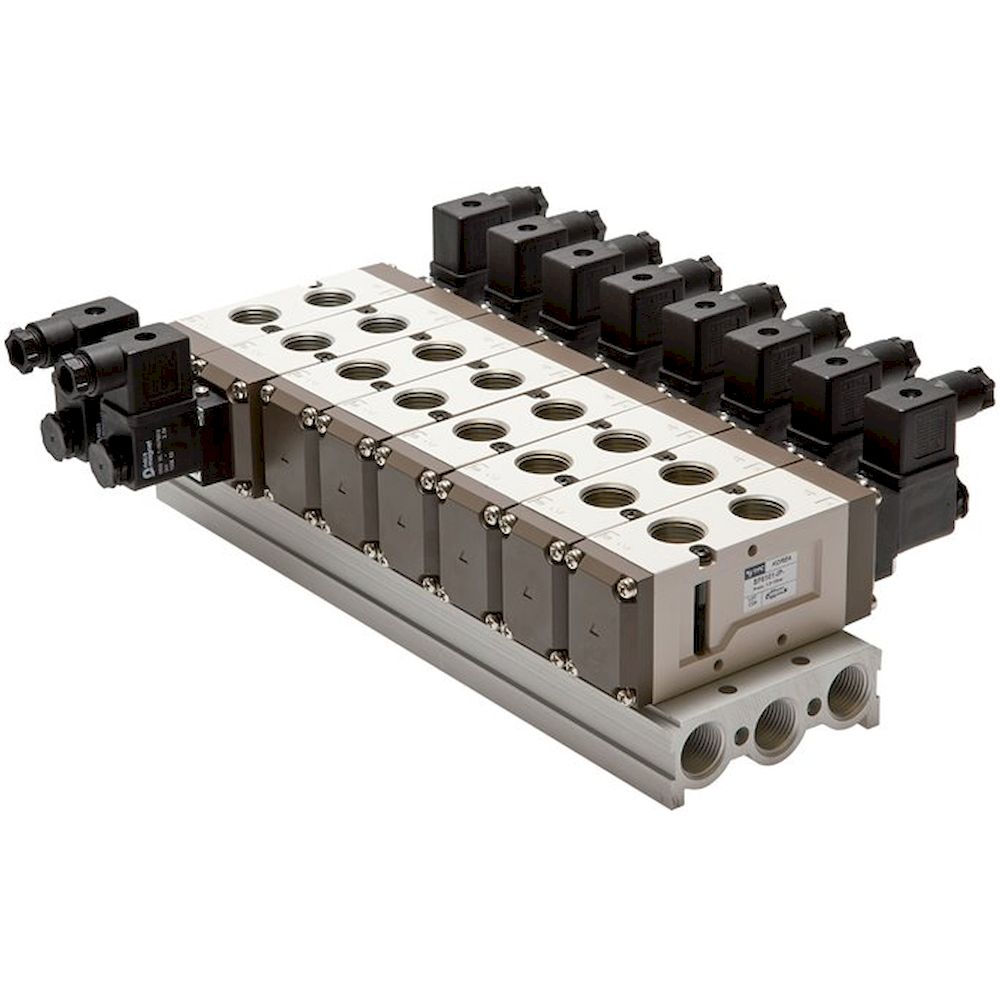

MF6500	SF6000 series	2, 4, 6, 8, 10	MF6500-REP, MF6500-BLK

Typical applications: Series cylinder control in assembly and packaging systems, pneumatic gripper and clamping fixtures with multiple circuits, manifold-mounted control blocks for space-saving installation in machine control cabinets, and retrofit or replacement projects for existing valve blocks with M 5 port.
