Banjo bolt valves
Valves

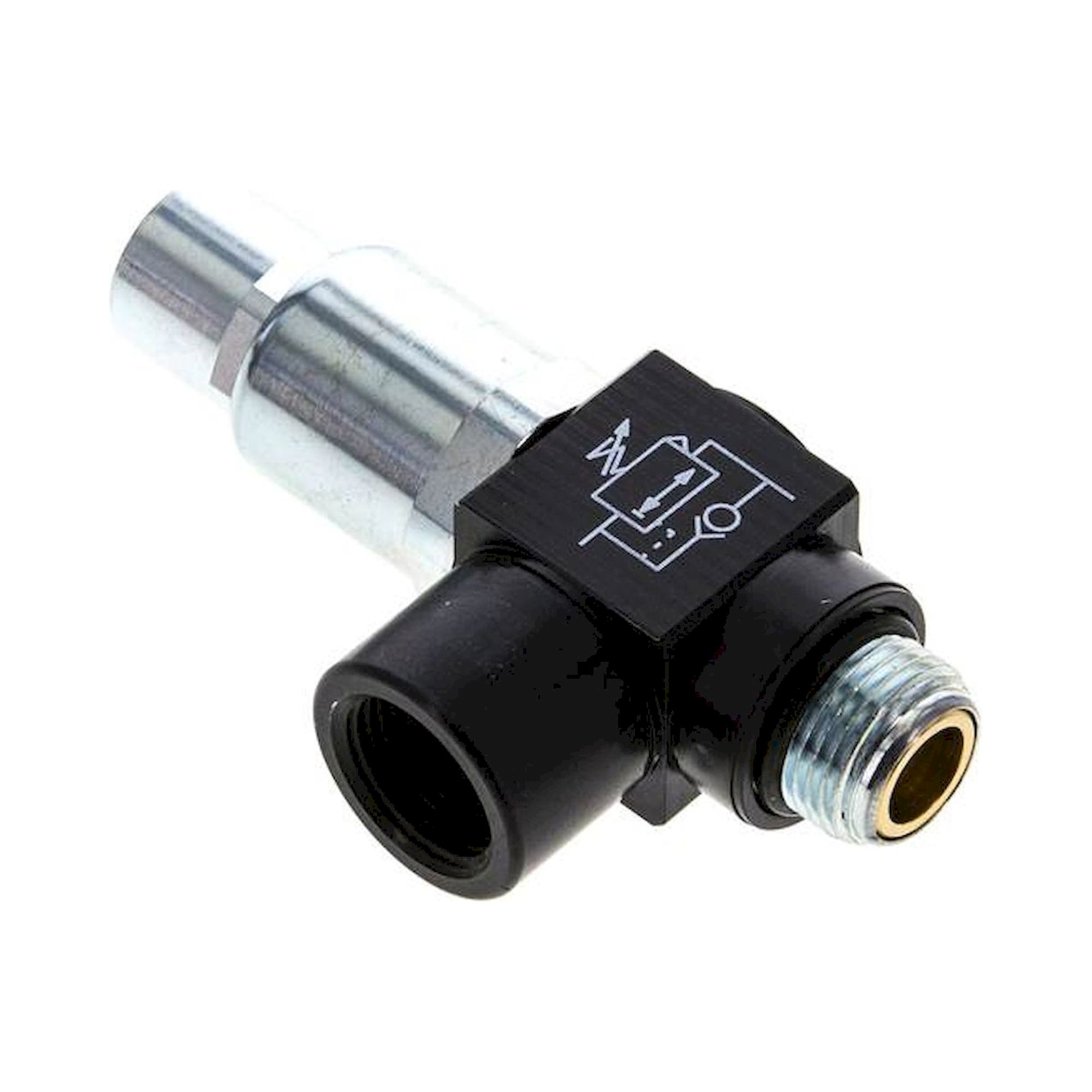

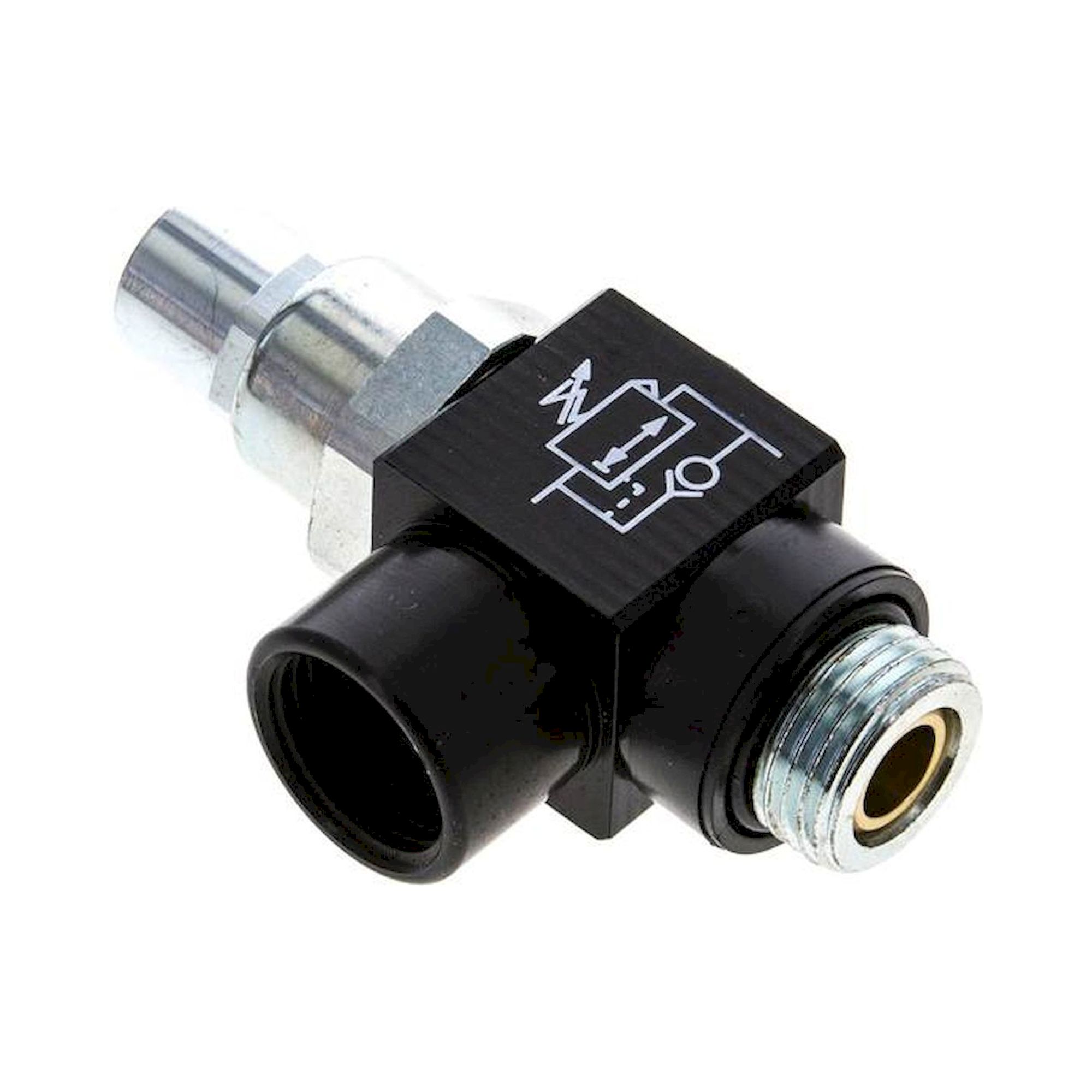

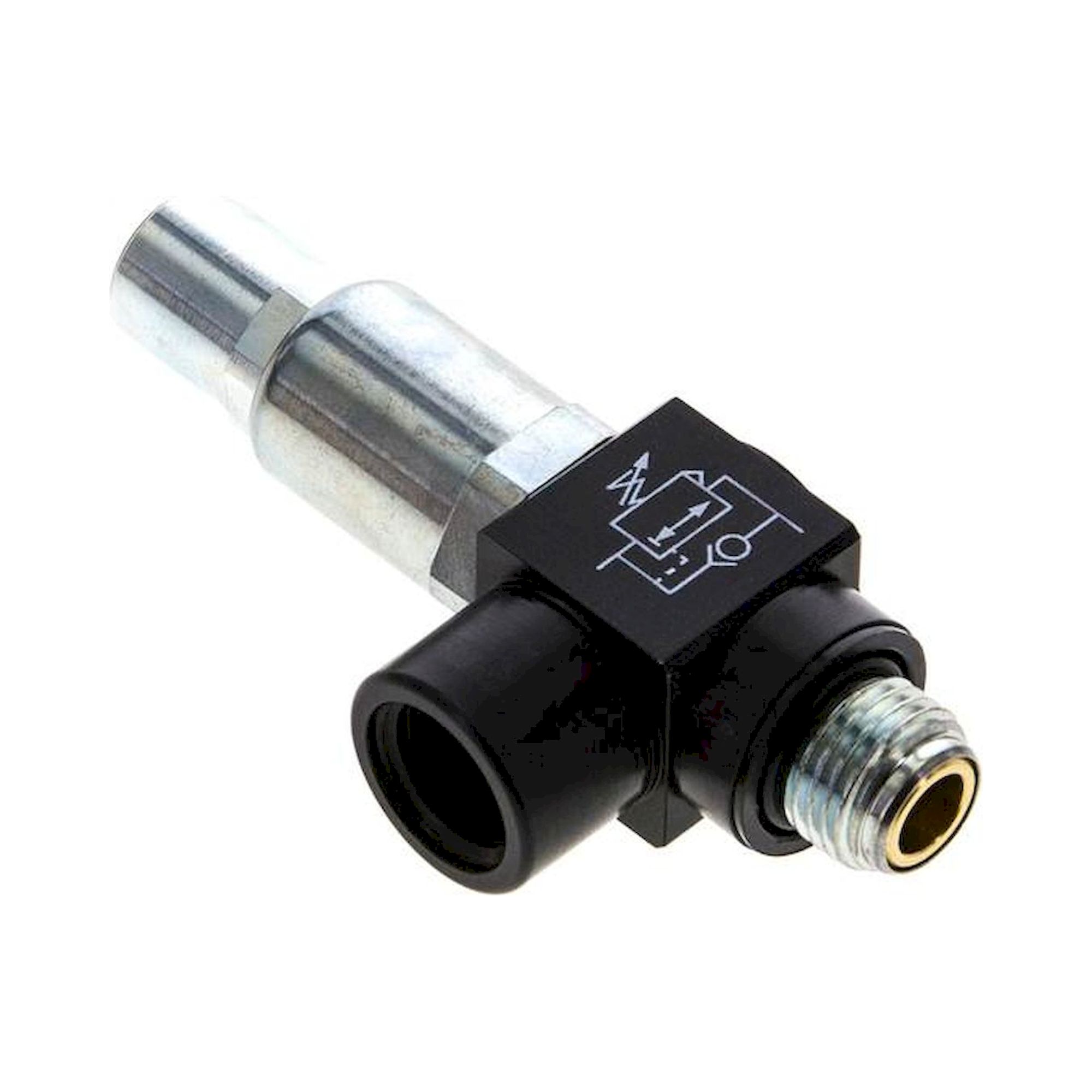

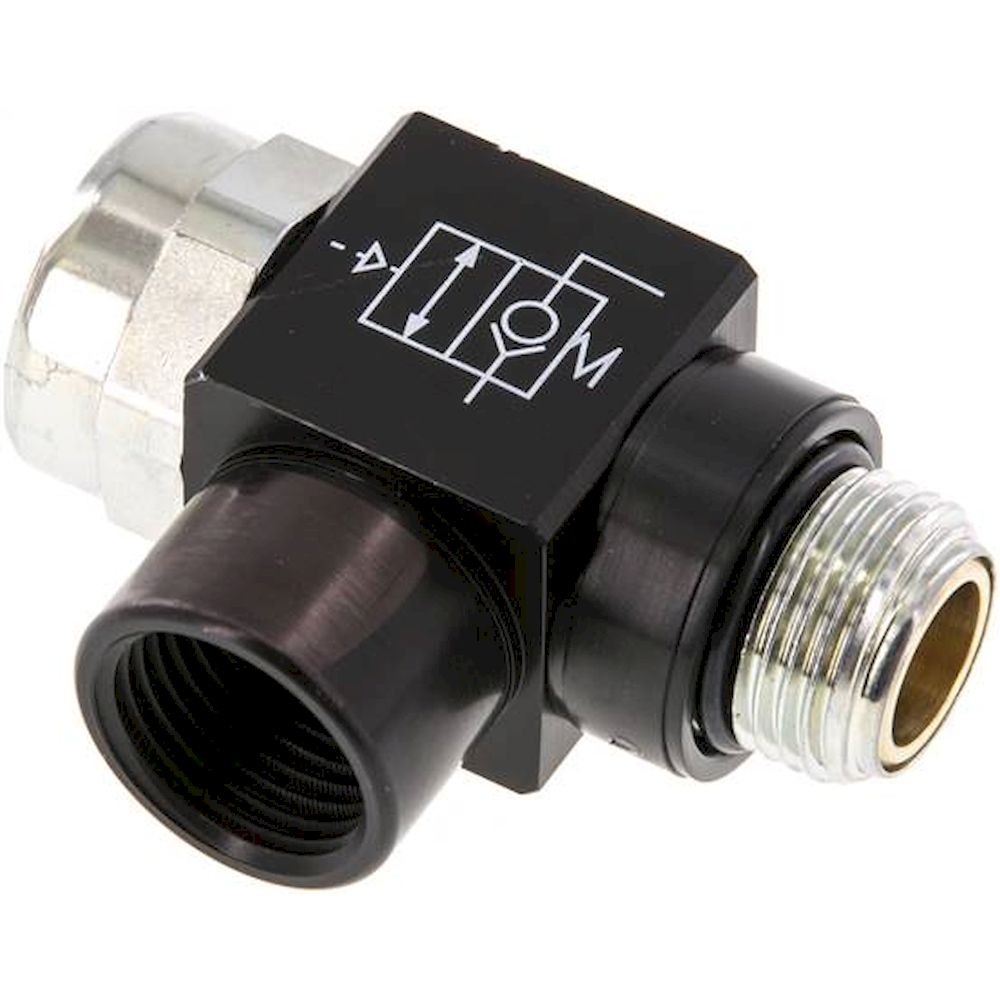

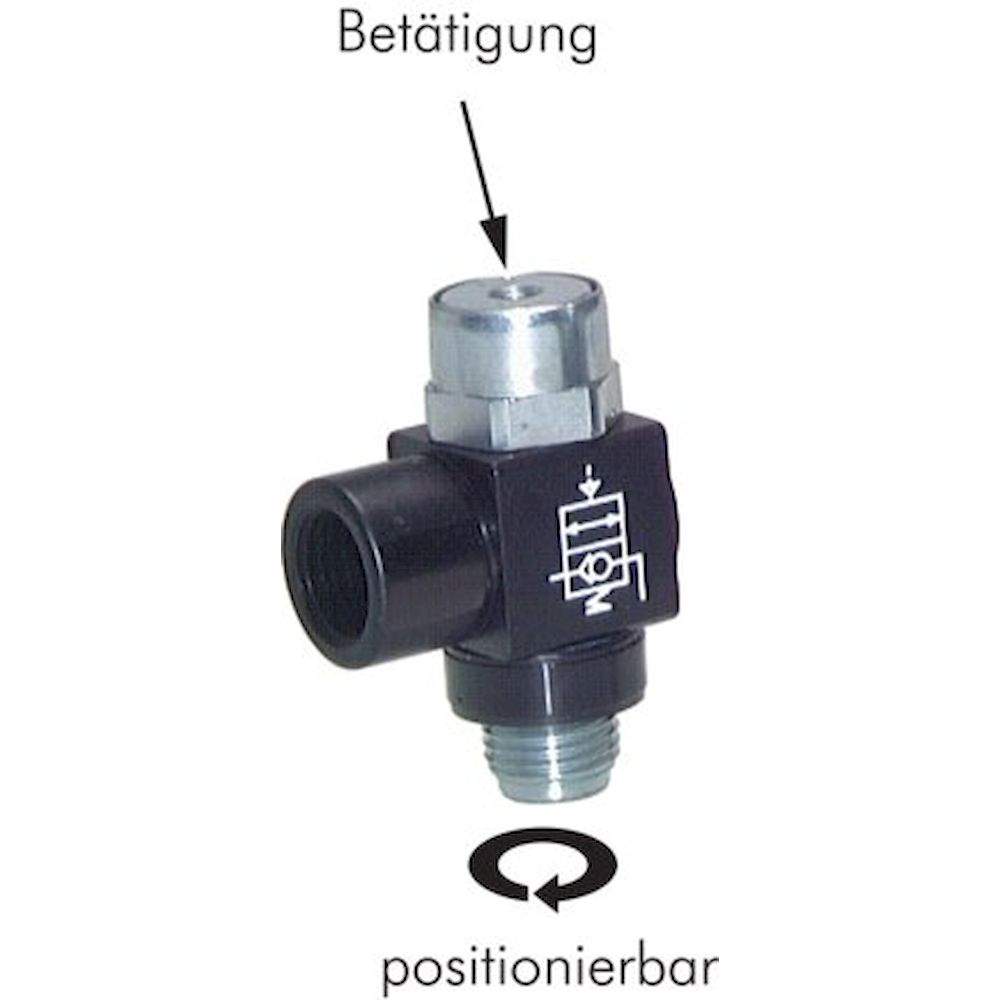

Hollow screw valves combine the function of a pipe fitting with a switching or throttle valve and can be screwed directly into line connections. The extensive range includes toggle valves (KO 3/2-way NC, K 4/2-way), hollow screw solenoid valves MH/MHO/MHZ/MHZO with 2/2 to 3/2-way function (NC, NO, double-acting), signal fittings PPL/PPM/PPE with pneumatic or electrical signal output, and air-saving valves RSV. Port sizes range from M 5 and G 1/8" to G 1/4", with tube connections 4-8 mm.
| Type | Function | Port | Signal |
|---|---|---|---|
| PPL 18, PPL 14 | Fitting with pneumatic signal | G 1/8", G 1/4" internal thread | Pneumatic |
| PPM 18, PPM 14, PPM 38 | Fitting with pneumatic signal | G 1/8", G 1/4", G 3/8" push-in | Pneumatic |
| PPE 18, PPE 14 | Fitting with electrical signal | G 1/8", G 1/4" | Electrical (changeover) |

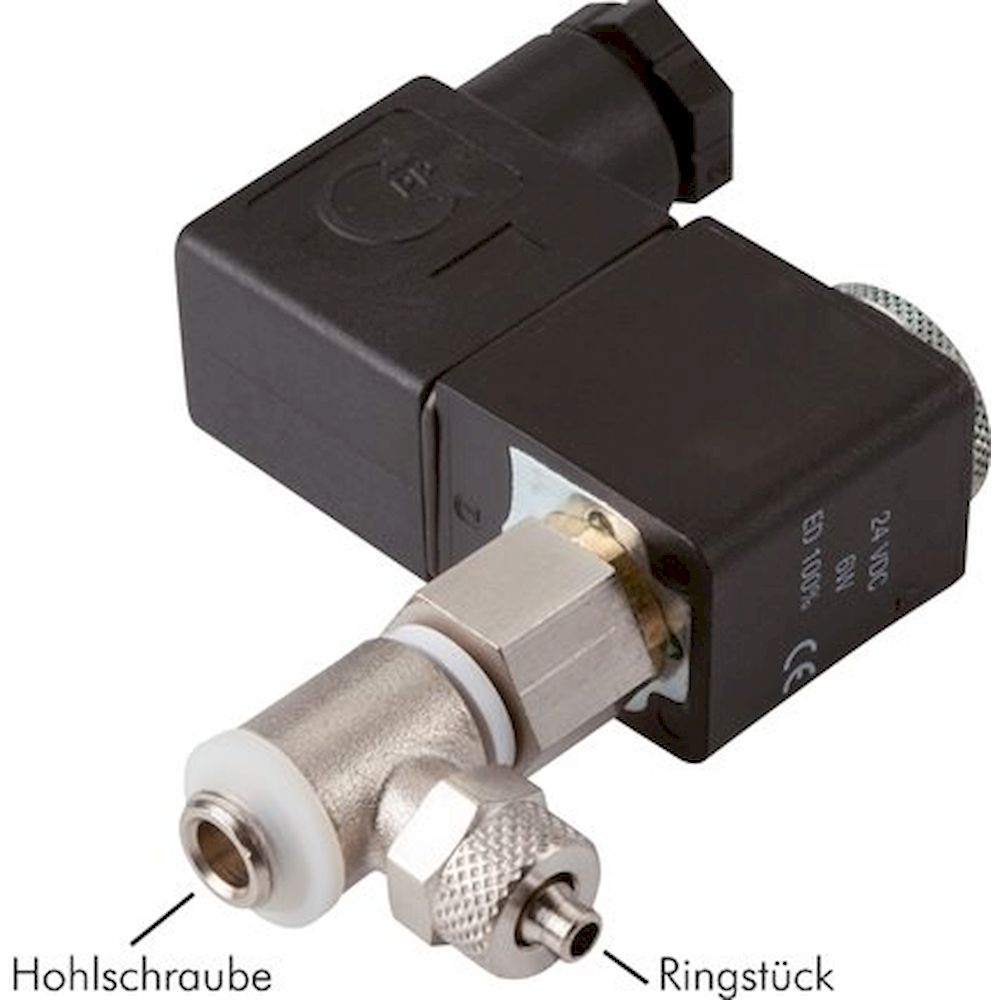

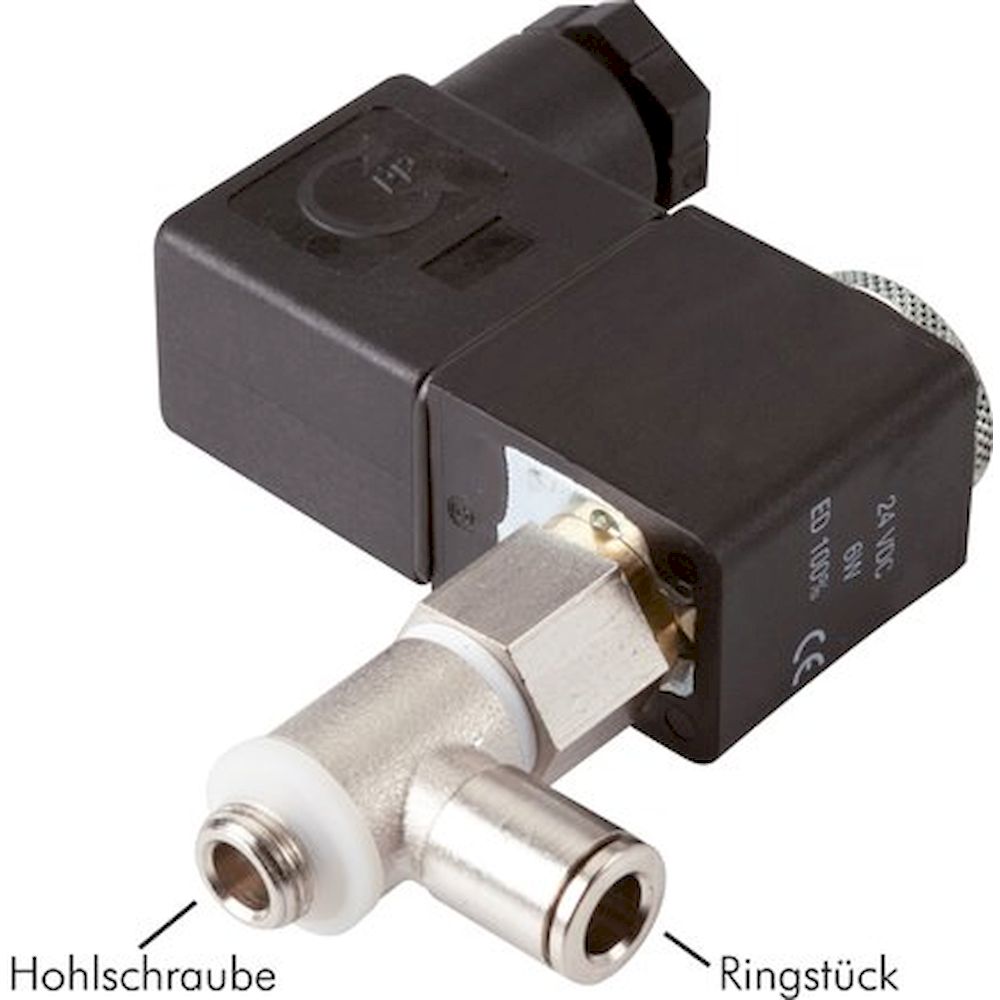

| MHZ/MHO/MHZO xxx 24V | 2/2-way NO, 3/2-way NC/NO | G 1/8"-4/6/8 mm | 24 V DC |
| MHZ/MHO/MHZO xxx 115V | 2/2-way NO, 3/2-way NC/NO | G 1/8"-4/6/8 mm | 115 V AC |

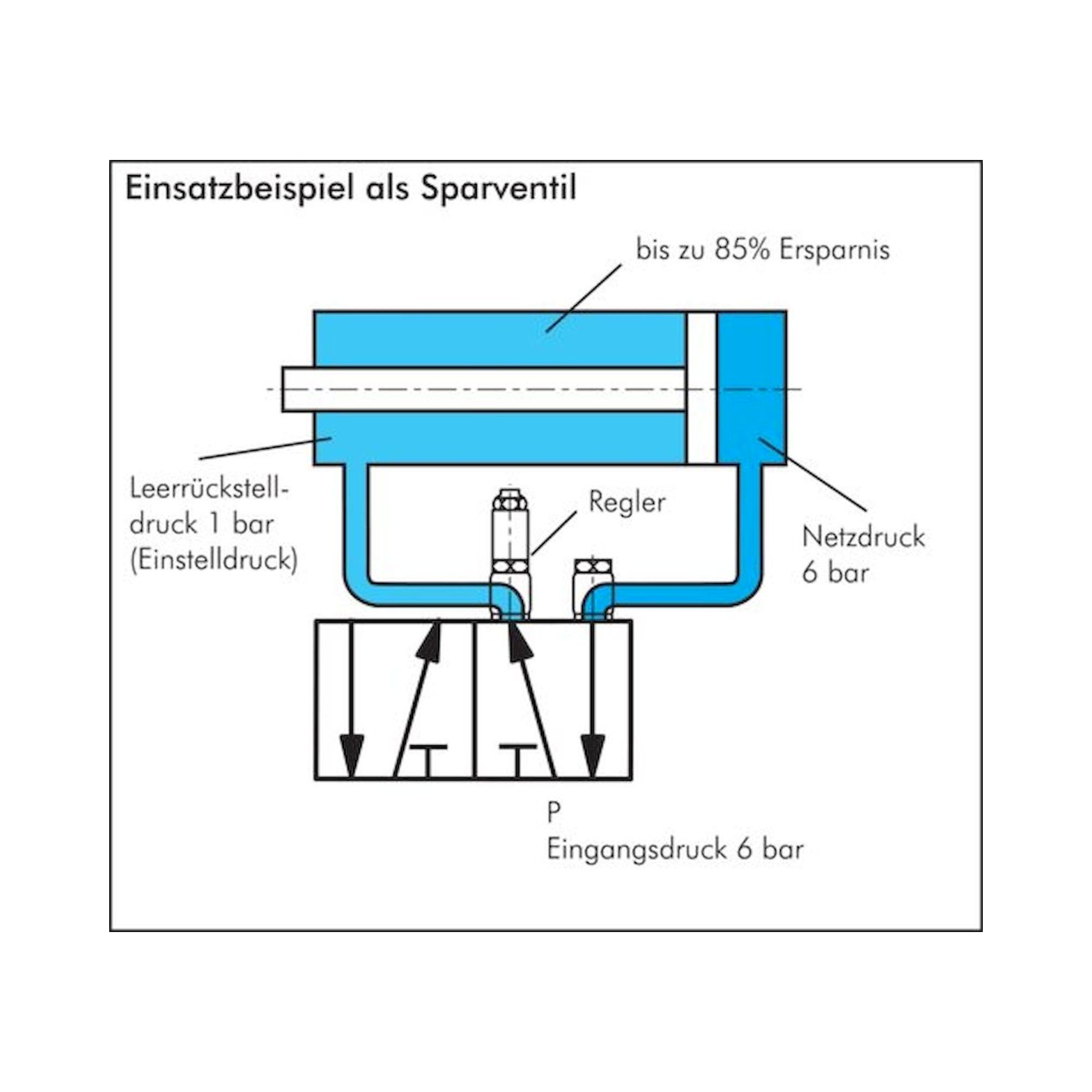

Typical applications: Direct integration into pipe connections as shut-off and safety valves, cylinder piston position sensing via signal fittings (PPL/PPM/PPE), manual pneumatic actuation on control plates and distribution blocks, and energy-saving exhaust control with RSV air-saving valves in cylinder applications.
