Pneumatic logic valves link compressed air signals according to Boolean AND and OR principles without electrical auxiliaries, implementing elementary control logic directly in the pneumatic circuit. The Airtec and Standard (B) series range covers AND valves AN (M 5, G 1/8"), OR valves OR (3 mm PK to G 1/4"), signal interrupters SU, time delay valves VZ with delay times from 0.25 s to 300 s, and quick exhaust valves SV with replaceable FKM membranes. Pneumatic counters (PIZ 6-digit addition counter, PEZ 5-digit preset counter) complete the logic programme.
| Function | Series | Port | Feature |
|---|---|---|---|
| AND | AN 18, AN 25 / AN 18 B, AN 25 B | G 1/8", M 5 | Precision and Standard |

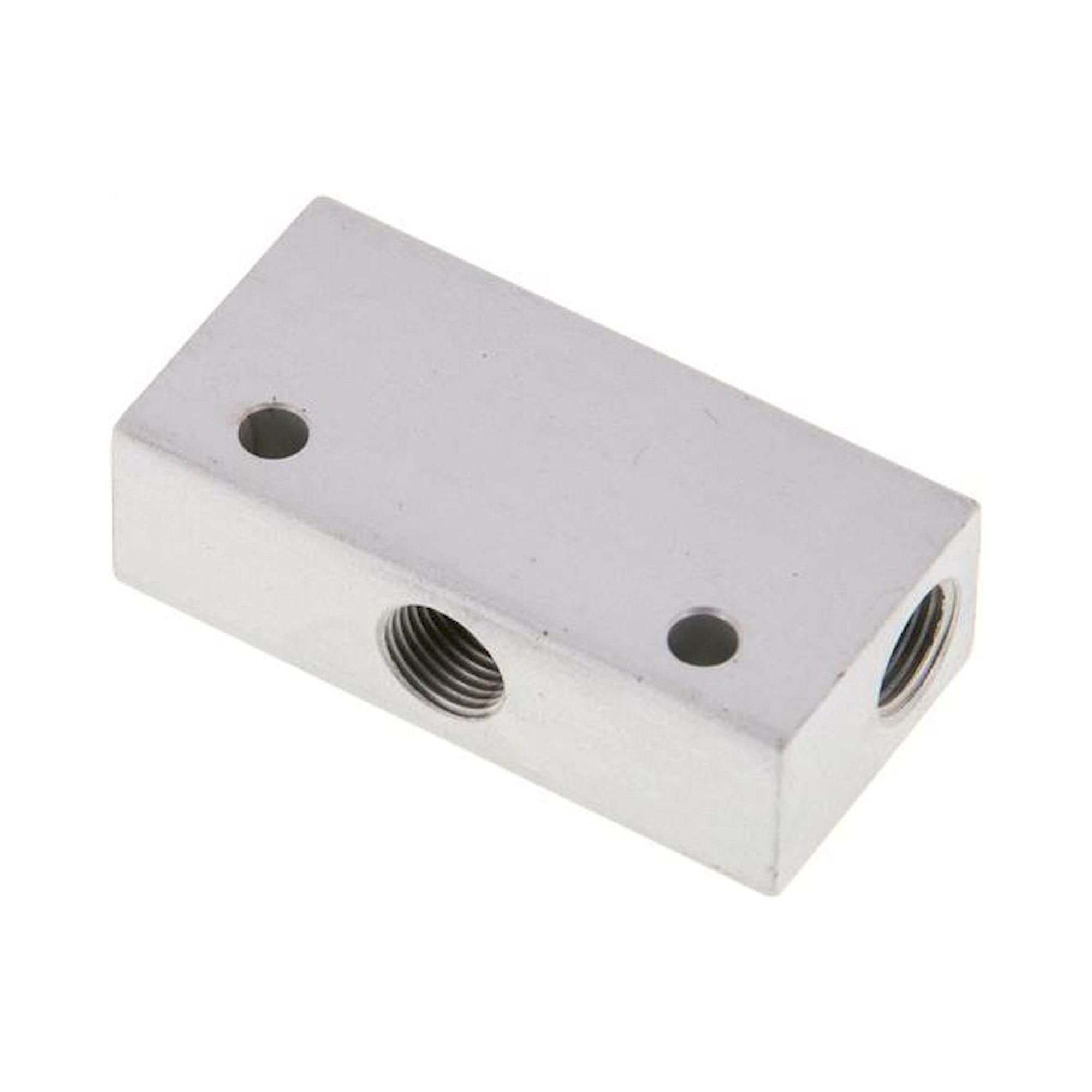

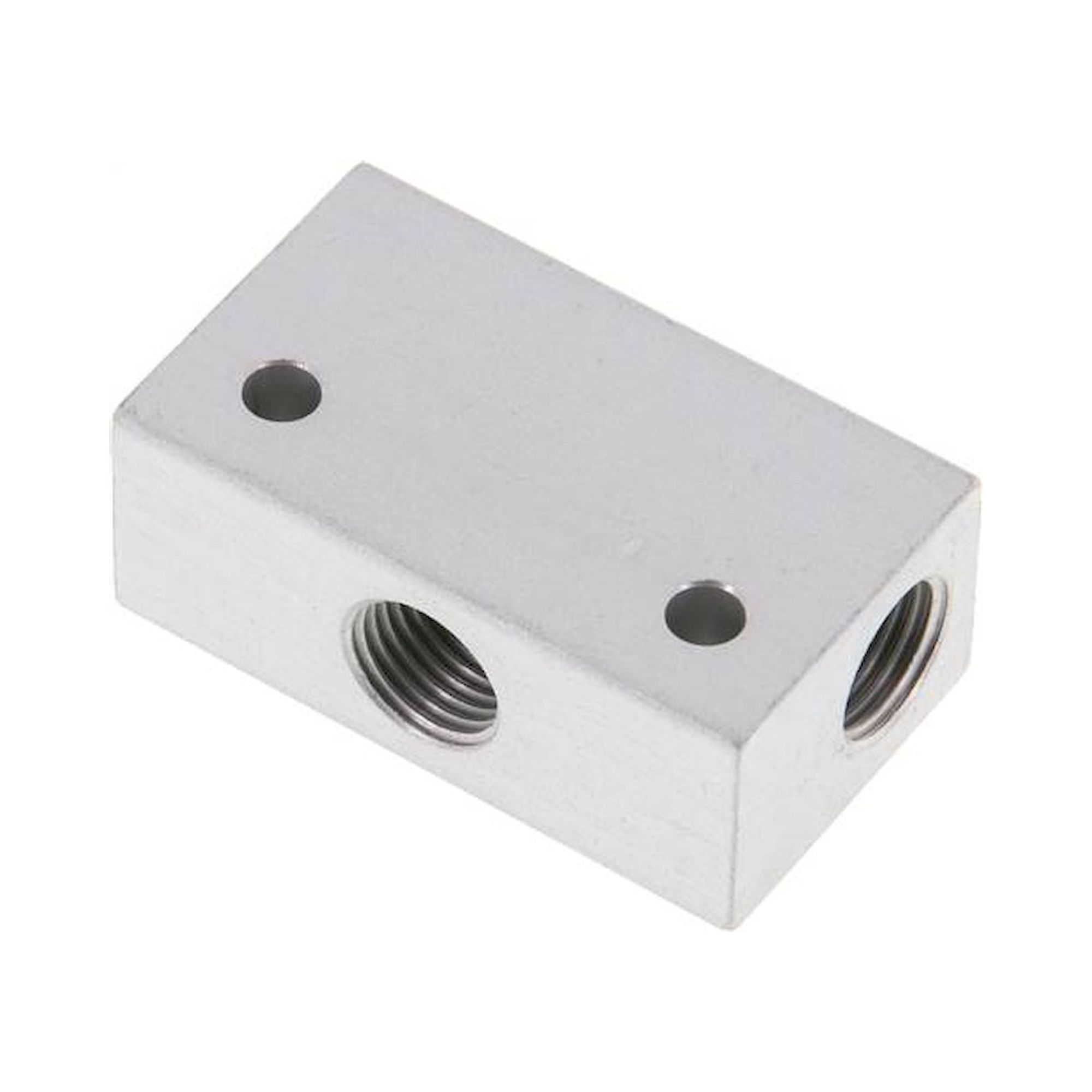

| OR | OR 03, OR 04 / OR 18, OR 25 / OR 14 B, OR 18 B | 3/4 mm PK, G 1/8", G 1/4" | PK push-in for small tubes |
| Signal interrupt | SU 18, SU 25 / SU 18 310 B | G 1/8", M 5 | Interrupt on pressure drop |
| Time delay | VZ 25, VZ 18 / VZ 18 512 B, VZ 18 513 B | M 5, G 1/8" | 0.25-300 s adjustable |

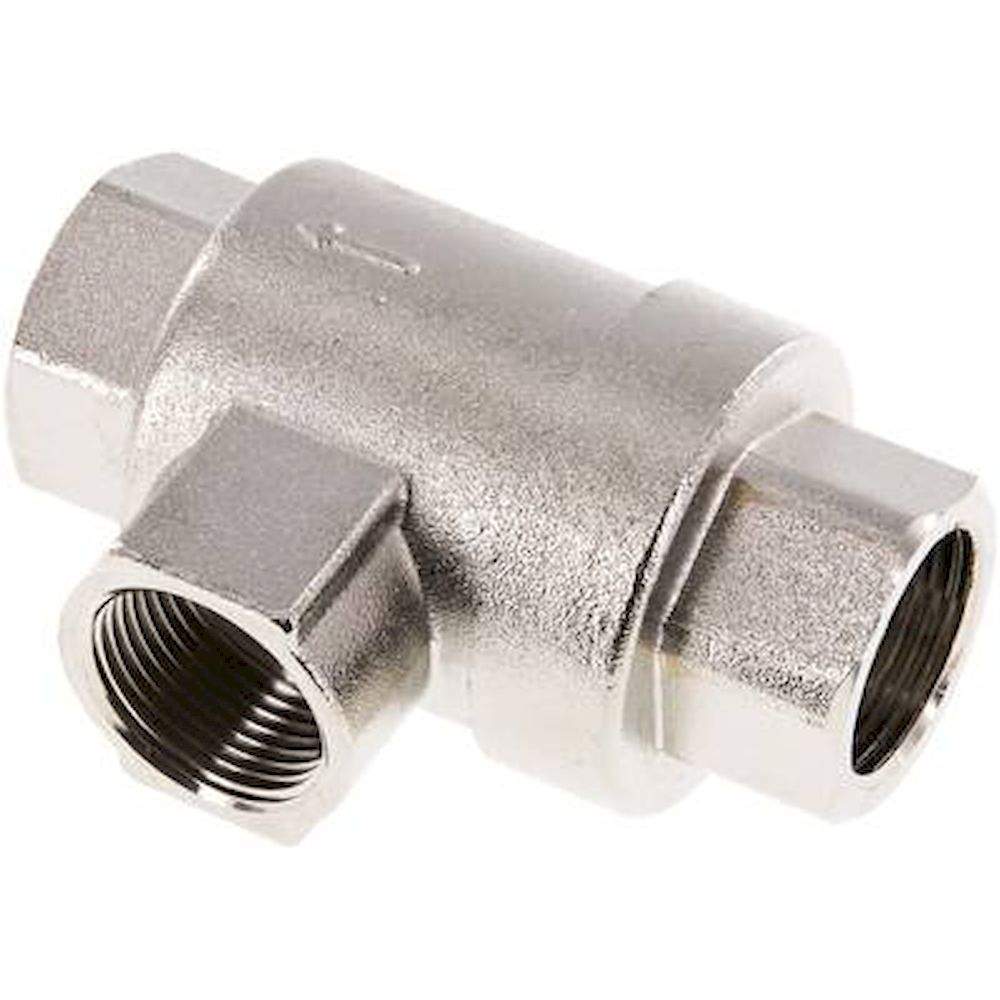

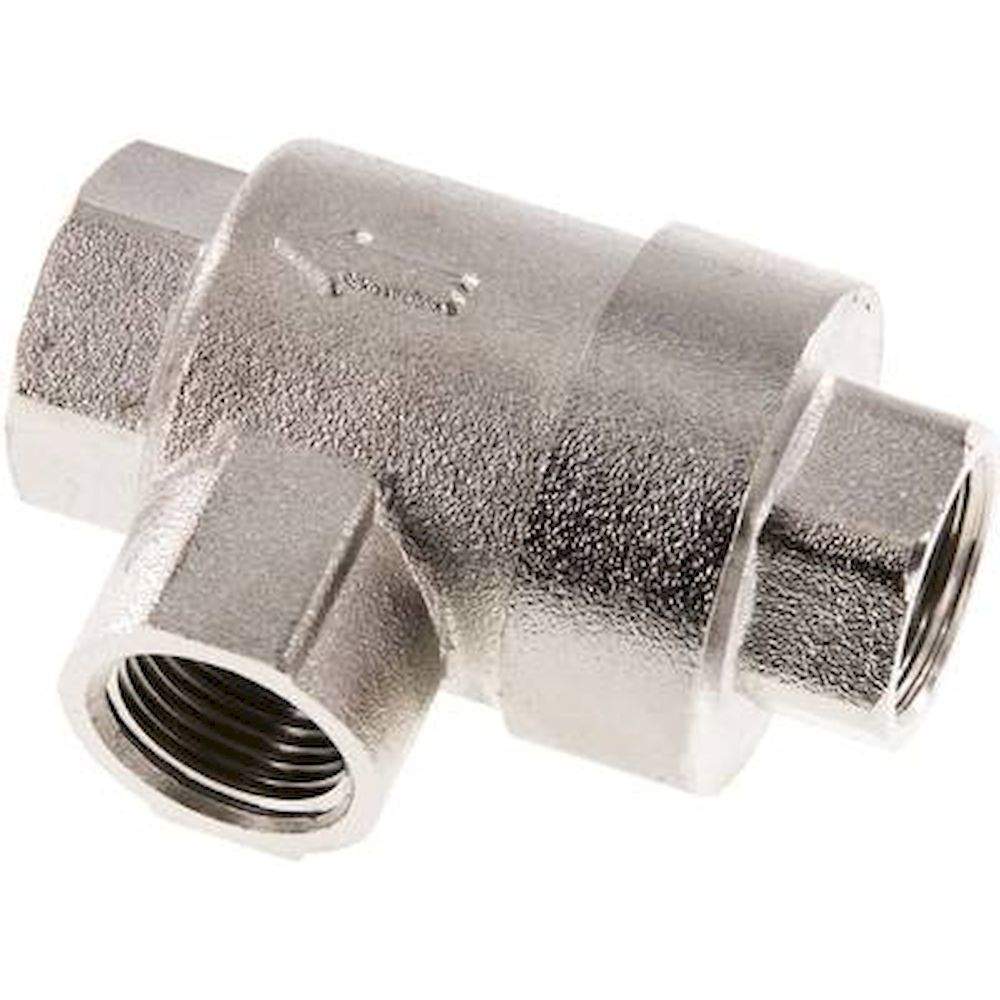

| Quick exhaust | SV 18, SV 12, SV 34, SV 1438 | G 1/8"-G 3/4" | FKM membrane, replaceable |

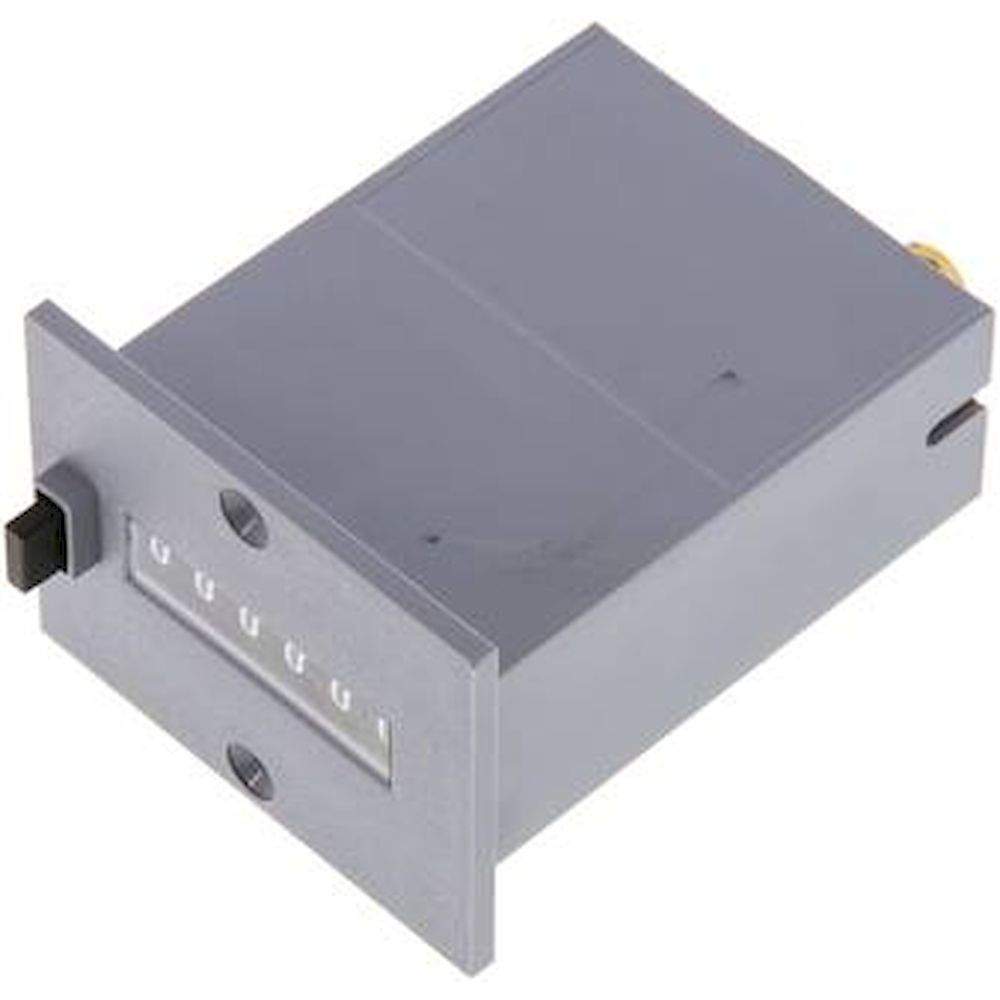

| Counting | PIZ (6-digit), PEZ (5-digit) | Pneumatic | Purely pneumatic operation |
Typical applications: Pneumatic sequence controls without PLC in potentially explosive atmospheres, cascade circuits for sequential cylinder movements, safety interlocks via AND-linking of multiple pressure signals, time-delayed hold and release functions (VZ), and pneumatic piece counting in production (PIZ/PEZ).
-
- VZ 25 310/300. 3/2-Wege Zeitventil, 20 - 300 Sekunden, M 5€450.38Excl. 19% VAT , excl. Shipping Cost

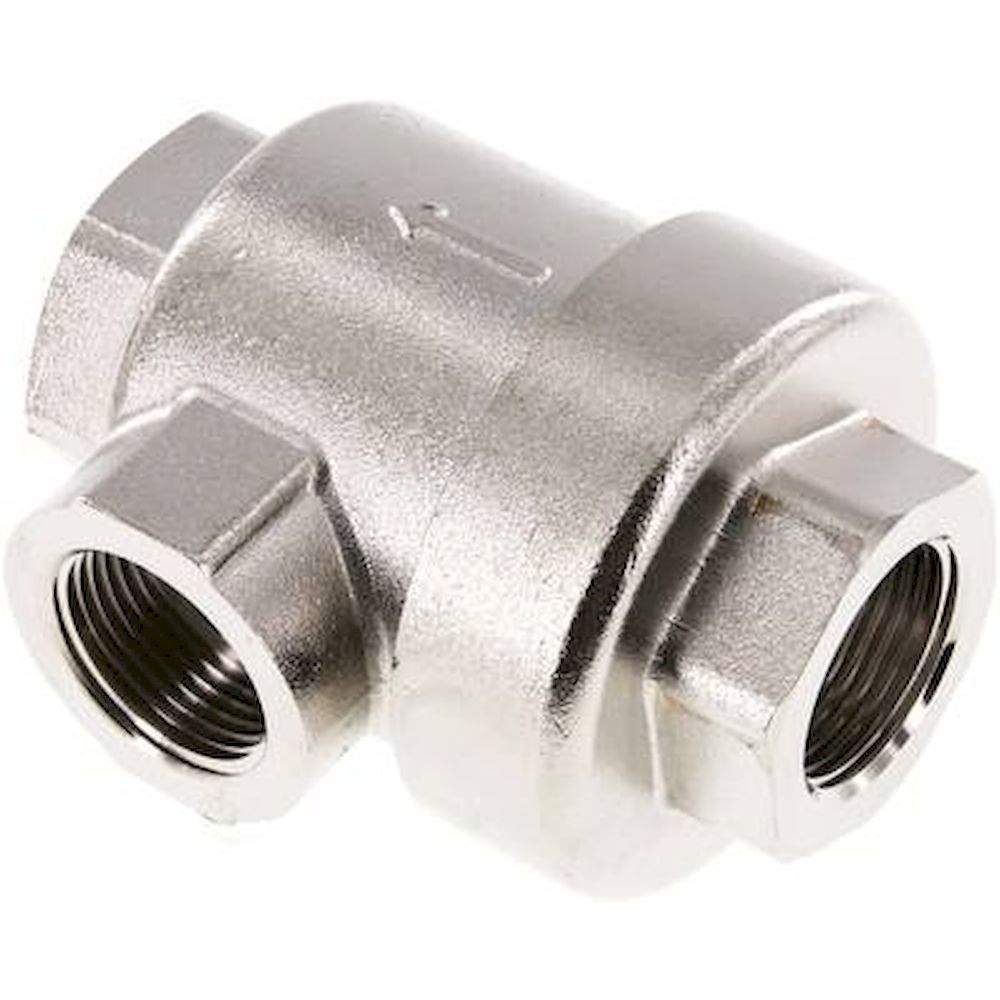

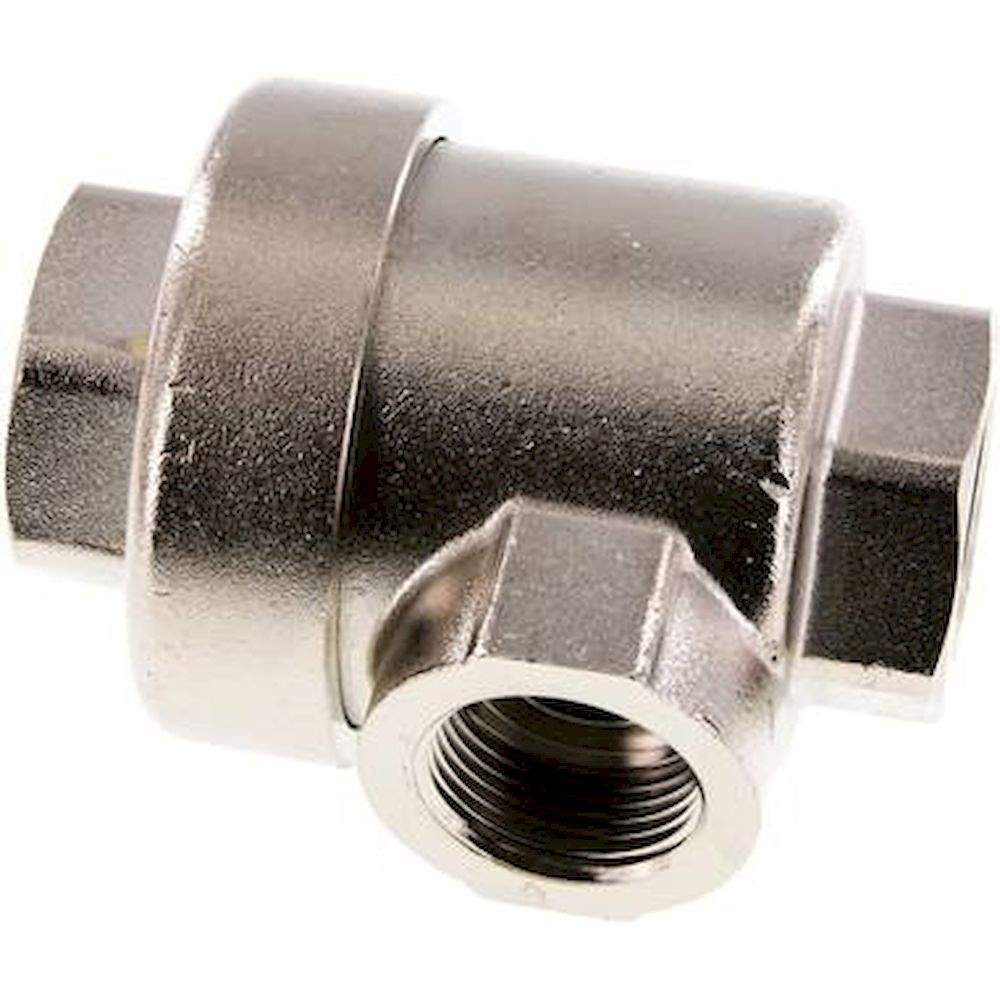

- SV 10-V. Schnellentlüftungsventil G 1", Standard mit FKM-Dichtung€185.88Excl. 19% VAT , excl. Shipping Cost
-
-

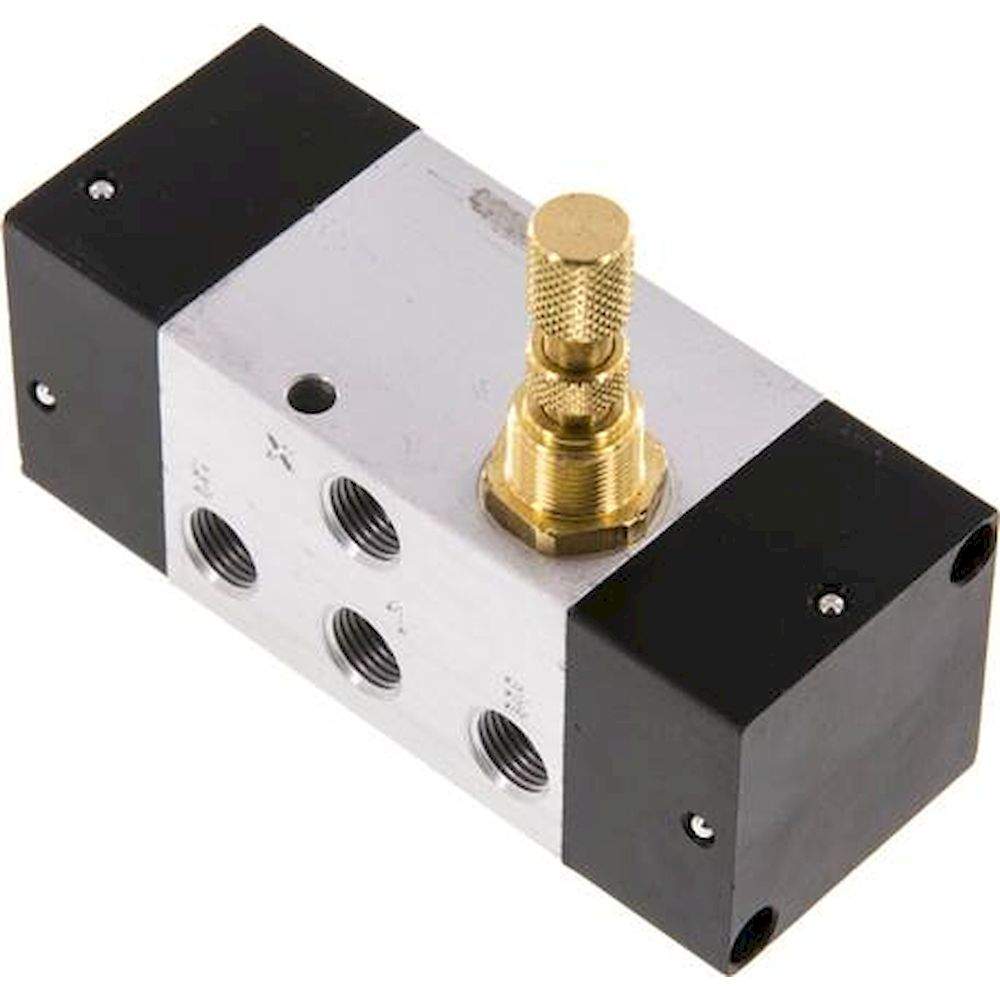

- VZ 18 512 B. 5/2-Wege Zeitventil, 1 - 10 Sekunden, Reaktion verzögert€85.82Excl. 19% VAT , excl. Shipping Cost

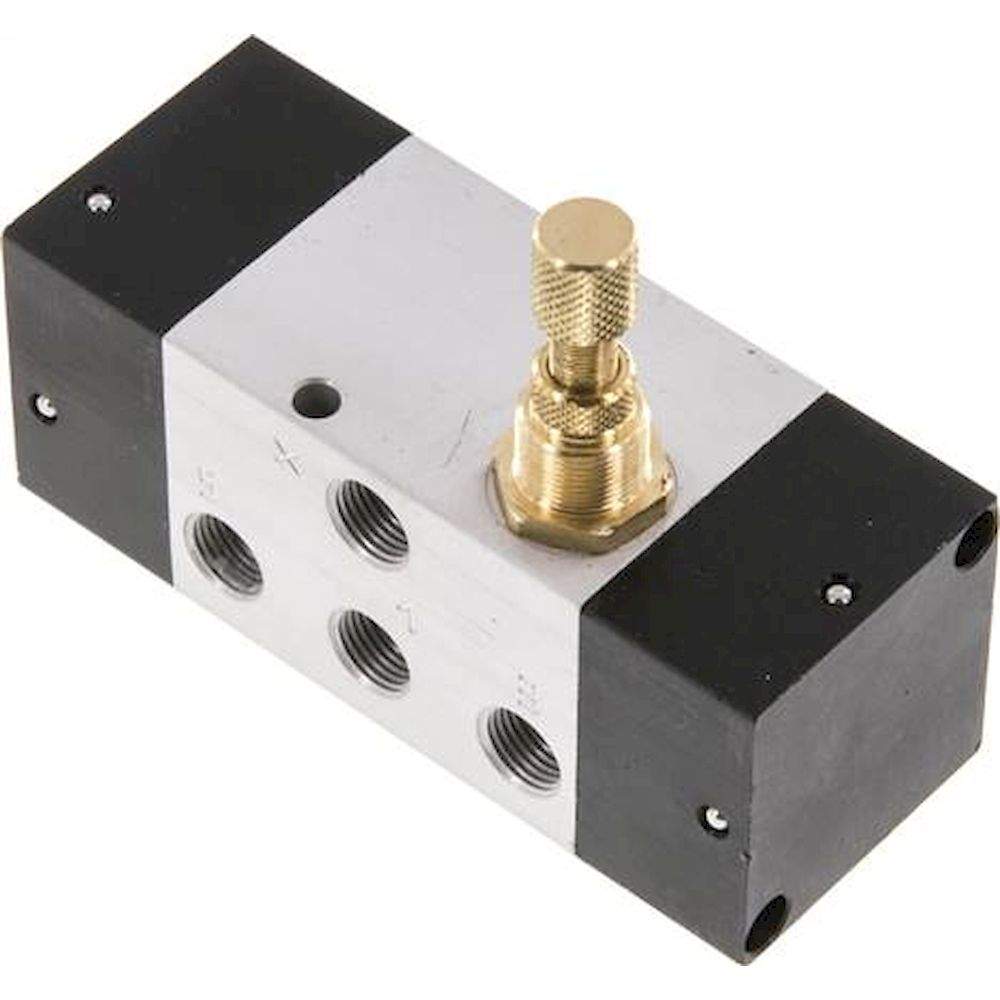

- VZ 18 513 B. 5/2-Wege Zeitventil, 1 - 10 Sekunden, Rücksetzen verzögert€82.88Excl. 19% VAT , excl. Shipping Cost
- Airtec SU 18 310. Signalunterbrecher G 1/8", Baureihe Präzision€63.07Excl. 19% VAT , excl. Shipping Cost
- Airtec SU 25 310. Signalunterbrecher M 5, Baureihe Präzision€52.30Excl. 19% VAT , excl. Shipping Cost

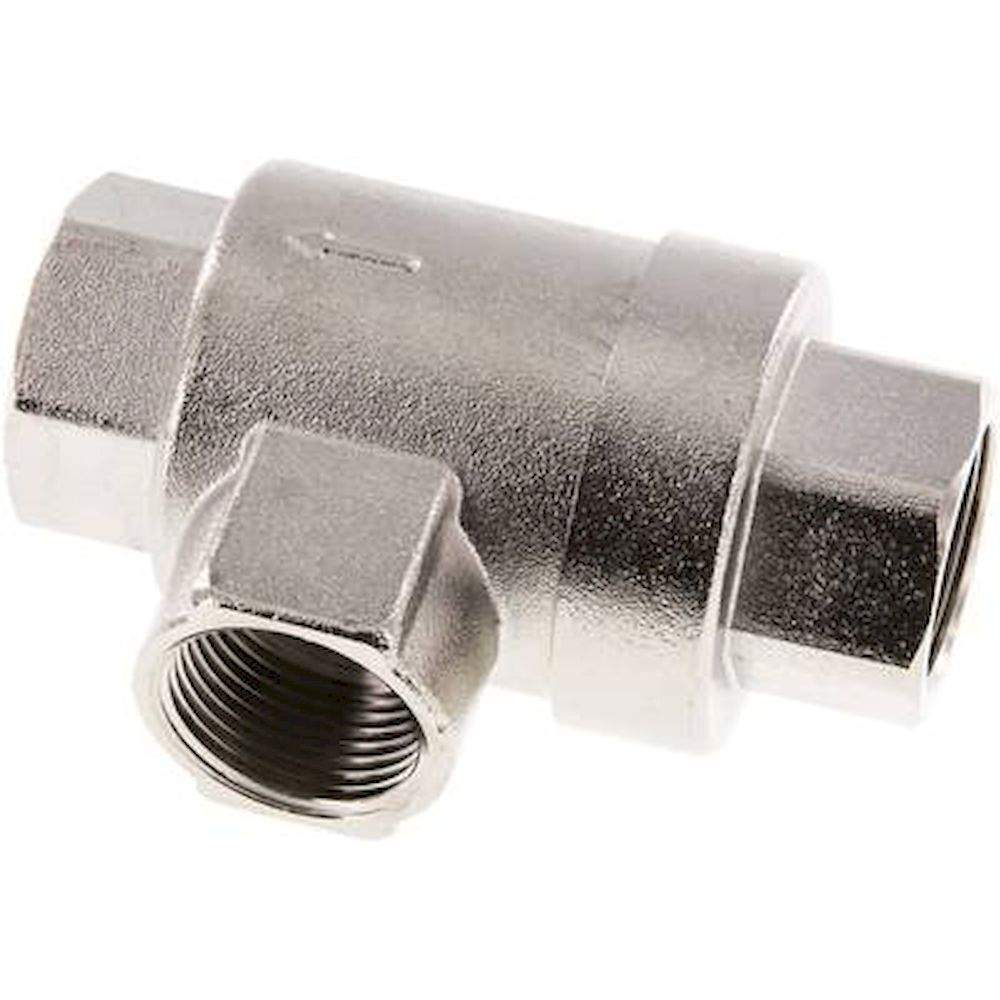

- SV 34-V. Schnellentlüftungsventil G 3/4", Standard mit FKM-Dichtung€50.79Excl. 19% VAT , excl. Shipping Cost

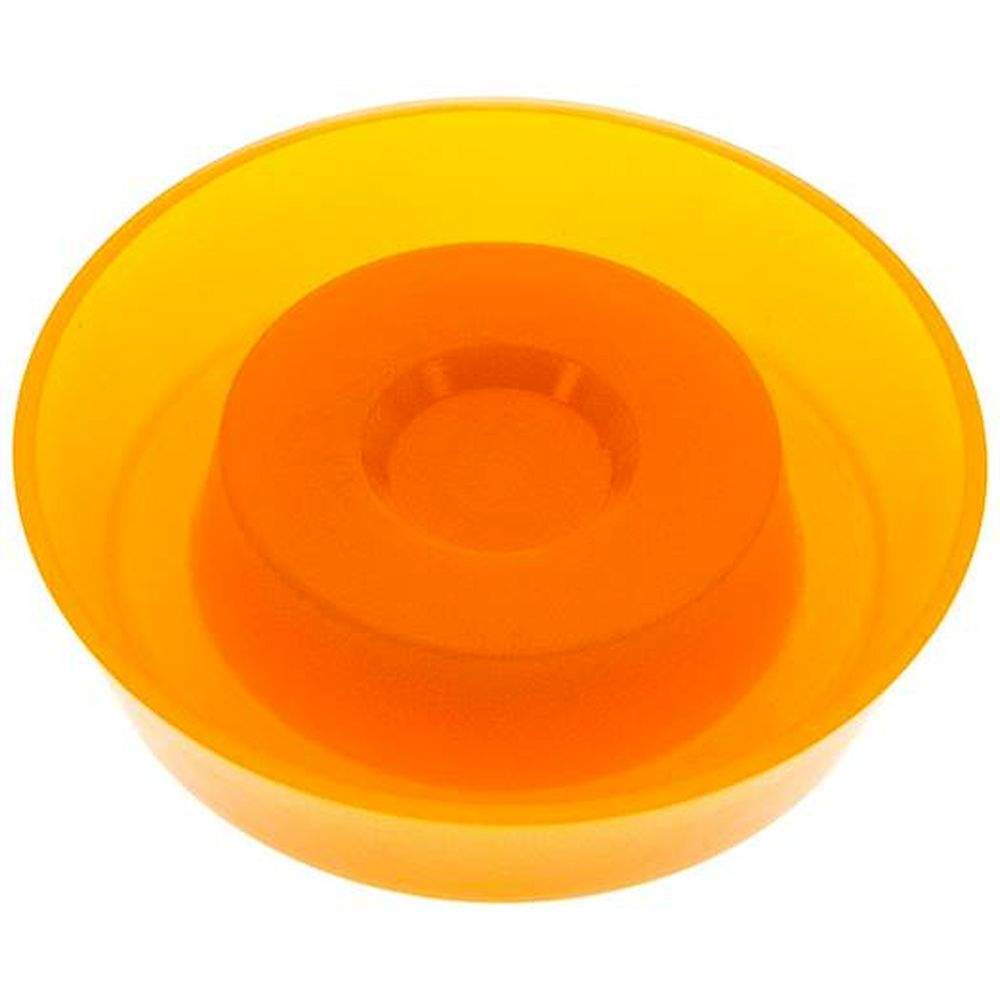

- SV 10 MEMBRANE. Schnellentlüftungsventil , Ersatzmembrane (Standard)€44.59Excl. 19% VAT , excl. Shipping Cost
-
- SV 12-V. Schnellentlüftungsventil G 1/2", Standard mit FKM-Dichtung€39.12Excl. 19% VAT , excl. Shipping Cost
- SU 18 310 B. Signalunterbrecher G 1/8", Baureihe Standard€34.21Excl. 19% VAT , excl. Shipping Cost
-
-

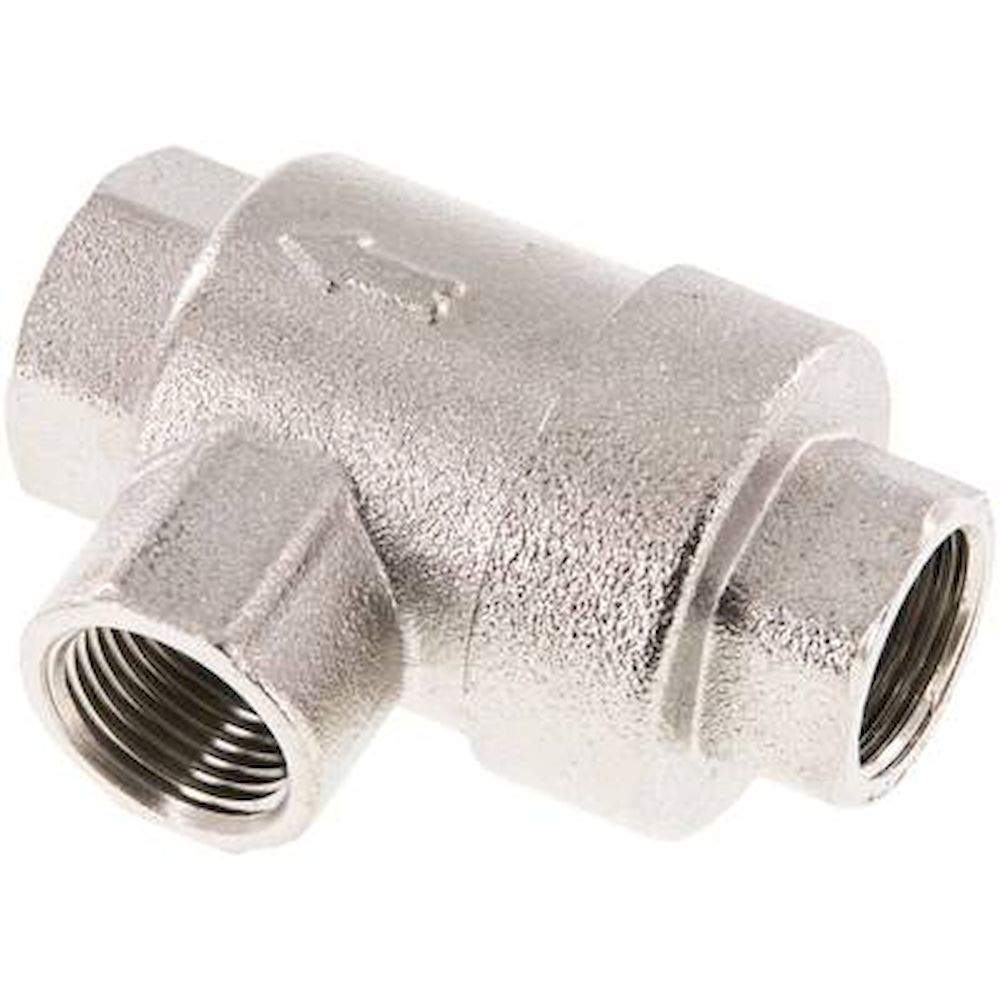

- SV 38-V. Schnellentlüftungsventil G 3/8", Standard mit FKM-Dichtung€26.07Excl. 19% VAT , excl. Shipping Cost
-

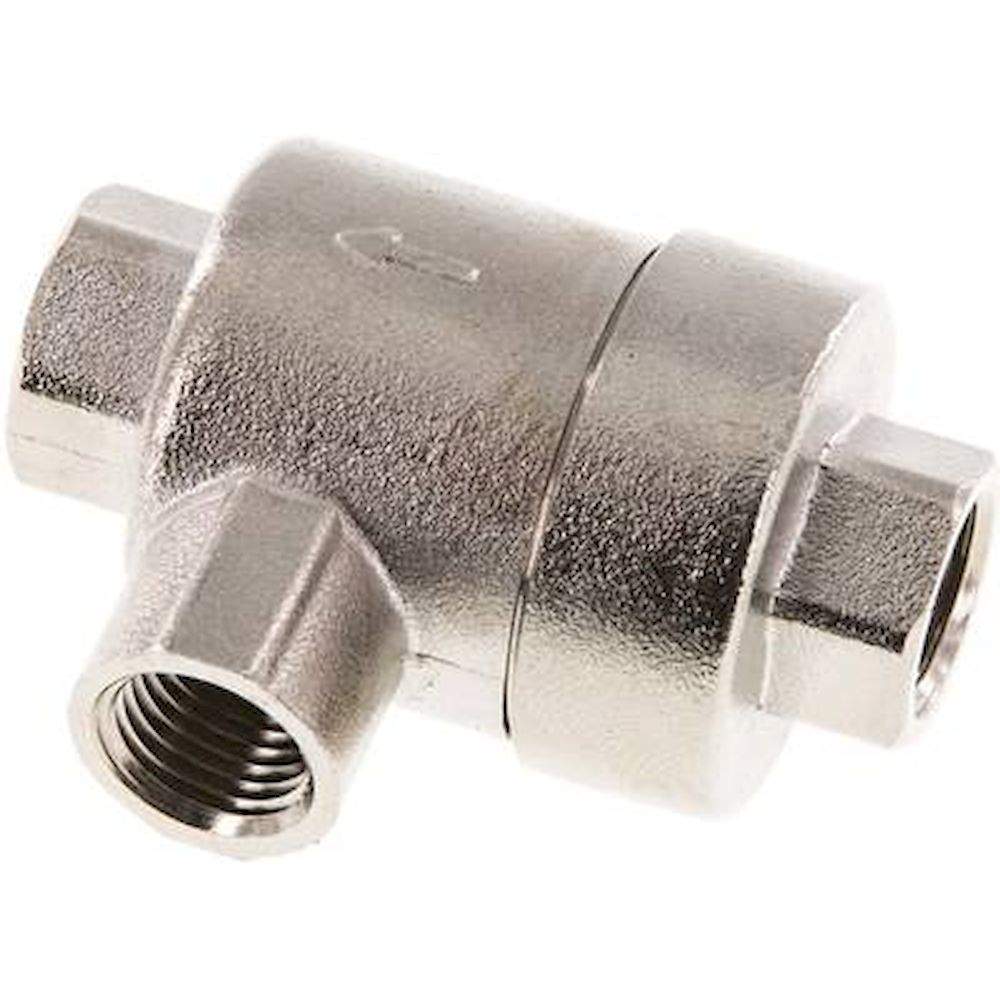

- SV 14-V. Schnellentlüftungsventil G 1/4", Standard mit FKM-Dichtung€21.83Excl. 19% VAT , excl. Shipping Cost
-
- SV 18-V. Schnellentlüftungsventil G 1/8", Standard mit FKM-Dichtung€19.60Excl. 19% VAT , excl. Shipping Cost
-
-
-
