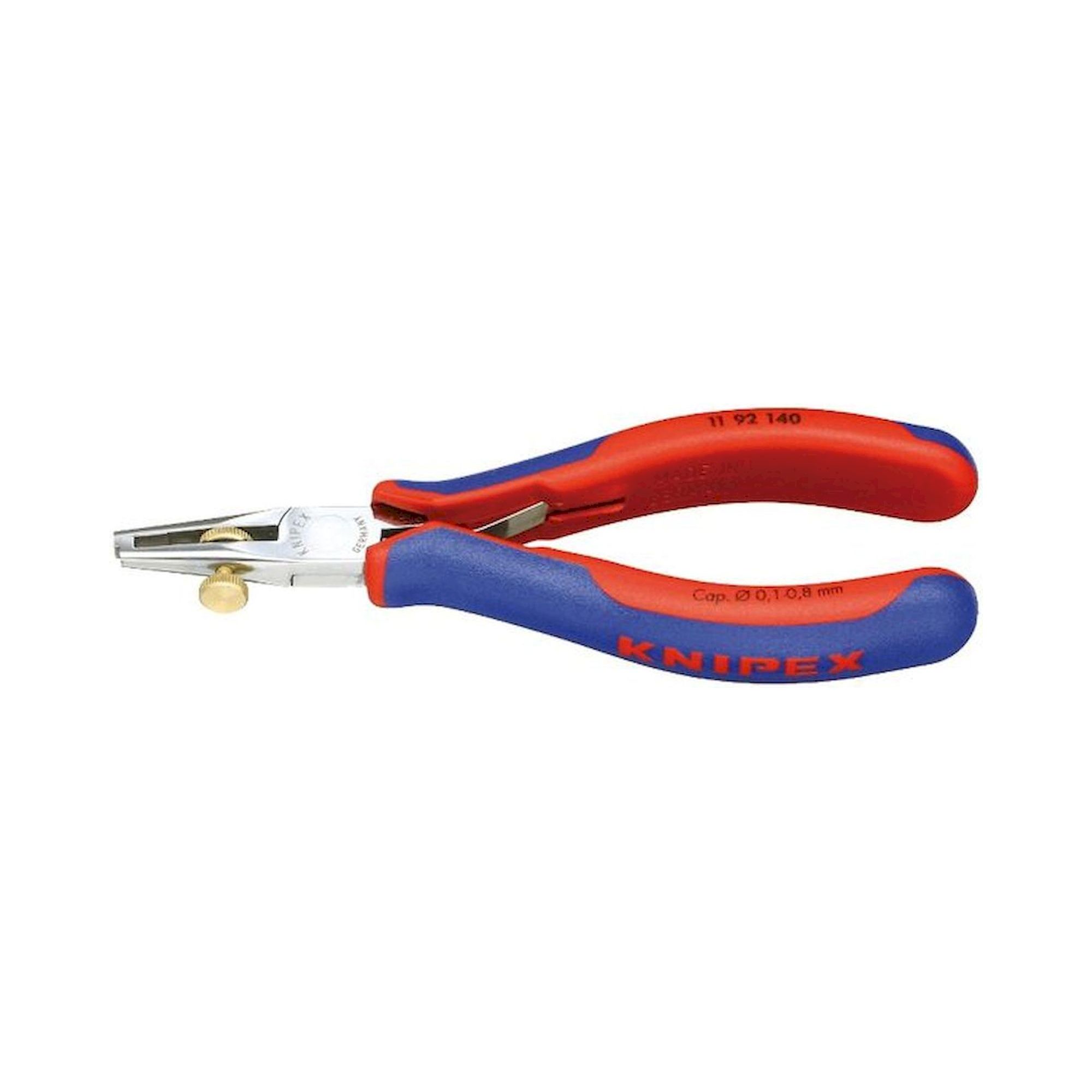

Electronics insulation stripper with opening spring, conductors 0.1 to 0.8 mm dia., 140 mm - Knipex 11 92 140

With strands of 0.1 mm dia. a cutting edge set too deep leaves no room for error, the conductor simply tears off. The 11 92 140 electronics insulation stripper covers exactly this fine range from 0.1 to 0.8 mm and is set precisely to each wire by knurled screw and lock nut.

Benefits

• For solid, stranded and fine stranded conductors with plastic or rubber insulation from 0.1 to 0.8 mm conductor diameter.
• Easy adjustment to the required solid or stranded wire diameter by knurled screw and lock nut, the setting is kept across the whole batch.
• Opening spring for fast work, the plier springs open by itself after every cut.
• The mirror polish together with a fine oil film provides good rust protection. No chrome flakes come loose that could cause circuit faults.
• Slim format of 140 mm at 70 g, comfortable for longer sessions at the assembly bench.

Areas of use

Electronics production, repair and rework of printed circuit boards, precision mechanics, laboratory, measuring technology and prototyping. It makes sense wherever thin hook-up wires and fine strands have to be stripped without nicking the conductor.
