Karl workbenches

Workplaces TriMax

Karl TriMax is an electrically height-adjustable workstation system available as Light, Comfort and Premium. All table frames use a spindle lift system with two lifting columns in clear anodised aluminium on a jet black C-foot frame (RAL 9005) and are operated via a desk panel with memory keys. TriMax Light adjusts from 760 to 1160 mm with a load rating of 3000 N, Comfort and Premium from 745 to 1145 mm with 4000 N. The frames take table tops from 1200x800 to 2000x1000 mm, have an integrated earthing system and are available in standard or ESD versions.

High-pressure laminate table tops (30 mm) come in light grey to EN 438-2, as ESD high-pressure laminate dissipative to IEC 61340-5-1 and with an ergonomic bar edge, along with maple table tops with black edge banding. Options include cable feed-throughs Ø 80 mm, a cut-out for a socket module or profile cut-outs for the vertical struts. The vertical struts of Comfort and Premium carry storage shelves, power supply strips with WINSTA connectors, vertical insert plates and monitor, tablet and notebook holders. Cable trays with privacy screen, corner table tops, LED workstation lights and wooden mobile pedestals complete the workstation.

283 items
1 manufacturer
Net prices plus VAT

View as Grid view List view

Show

per page

Buying guide

How to choose Workplaces TriMax

What matters when choosing: properties, comparison and typical applications.

Technical features

⚙ Drive - electric, spindle lift system with 2 lifting columns, 400 mm stroke, programmable end positions

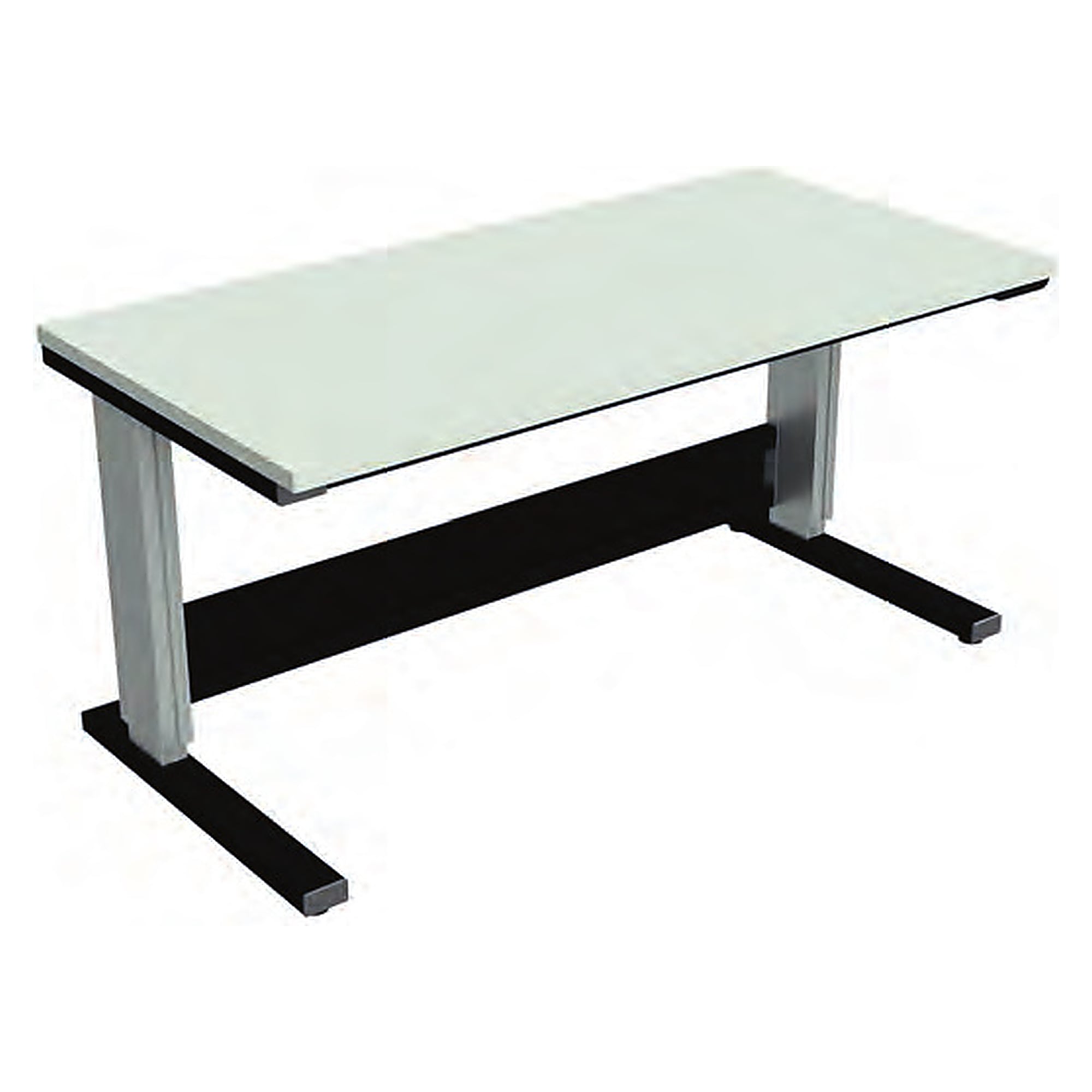

↕ TriMax Light - 760 to 1160 mm, 3000 N, 20 mm/s, 3 memory keys, synchronous operation of up to two table frames

✓ TriMax Comfort and Premium - 745 to 1145 mm, 4000 N, 12 mm/s, 4 memory keys, synchronous operation of several table frames

⬡ Vertical struts - Comfort 40x140x842 mm with continuous brush strip, Premium 140x140x846 mm with operating side angled at 45 degrees for insert plates

📦 Electrics - power supply strips in sheet-metal housing with WINSTA connectors, up to 25 A / 400 V with internal fuse, vertical insert plates for Schuko, CEE 16 A, RJ45 CAT 6, USB-C, 24 V DC and compressed air

⚙ ESD version - table frames, table tops, wooden storage shelves and mobile pedestals also available as ESD variants, ESD high-pressure laminate dissipative to IEC 61340-5-1

Selection overview by version

Feature	TriMax Light	TriMax Comfort	TriMax Premium
Height adjustment range (mm)	760-1160	745-1145	745-1145
Load rating per table frame	3000 N	4000 N	4000 N
Lifting speed	20 mm/s	12 mm/s	12 mm/s
Memory keys	3	4	4
Table top format (mm)	1200-2000 x 800	1200-2000 x 800 and 1000	1200-2000 x 800 and 1000

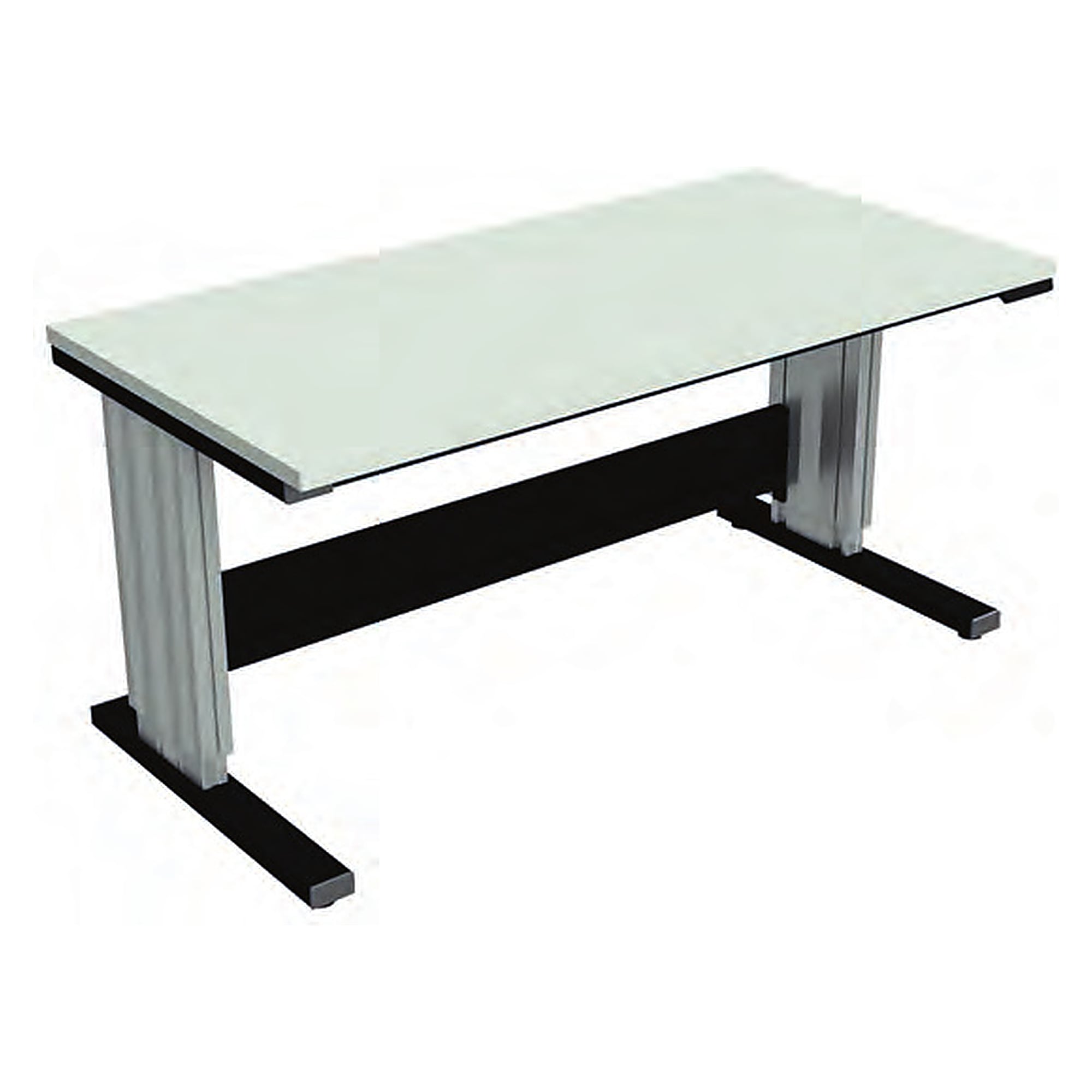

ESD table frame	Yes	Yes	Yes, depth 1000 mm
Vertical struts	-	40x140x842 mm, brush strip	140x140x846 mm, for insert plates
Storage shelf	-	steel, conductive powder-coated, depth 320 or 450 mm	wood 30 mm, depth 320 or 450 mm, standard, ESD or ergonomic bar edge
Power supply	Evoline socket insert, round or square	power supply strip, usable width 900 mm at 1200 mm table width	power supply strip, usable width 800 mm at 1200 mm table width

Typical applications

Typical applications: assembly and inspection workstations used alternately sitting and standing or by people of different heights, ESD-protected workstations in EPAs of electronics manufacturing and repair with ESD table frame and ESD high-pressure laminate, test and laboratory stations supplied with power, data and compressed air via power supply strip and insert plates, and corner workstations with a corner table top and several table frames in synchronous operation.
