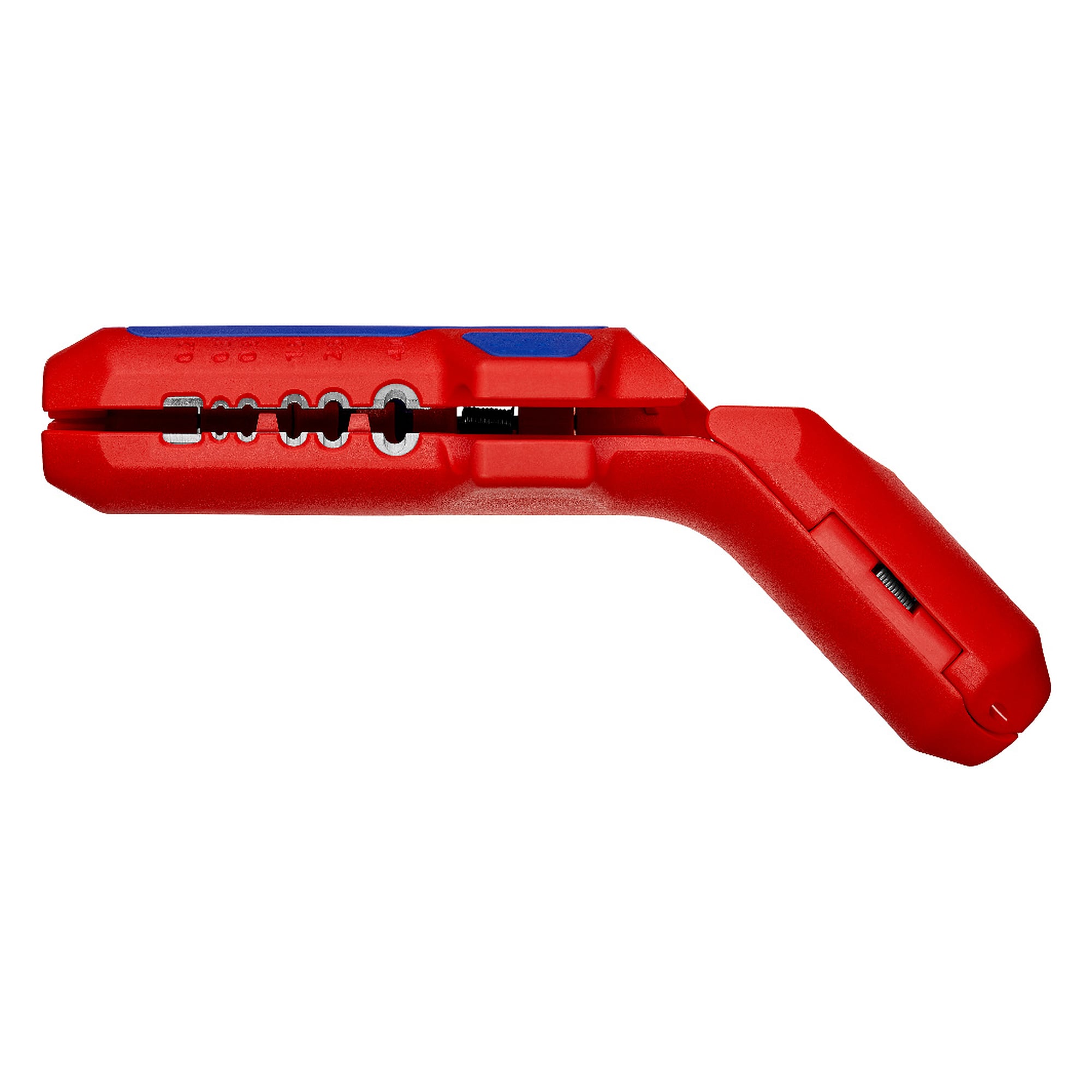

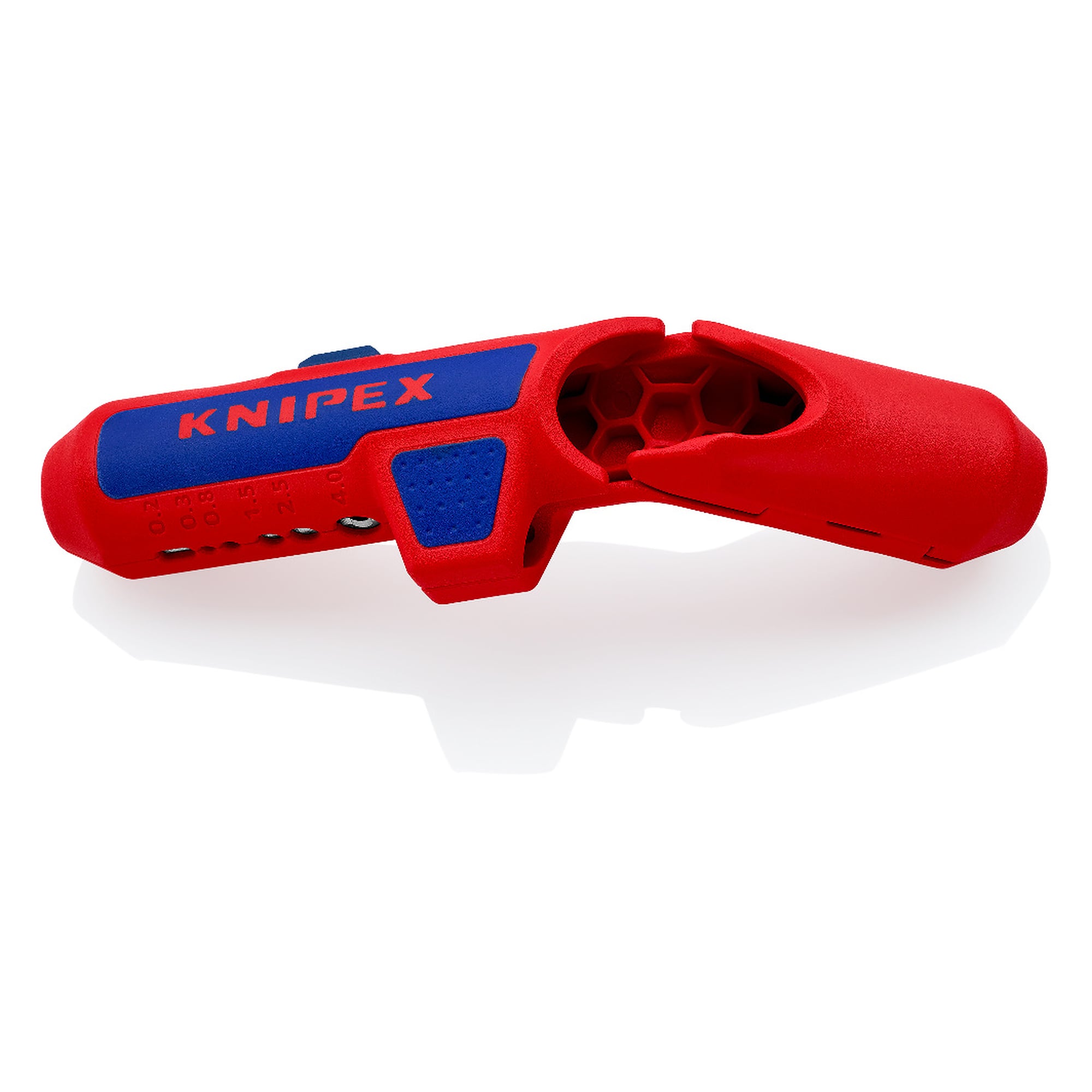

ErgoStrip universal stripping tool for right-handed use, round, data and coax cables, 135 mm - Knipex 16 95 01 SB

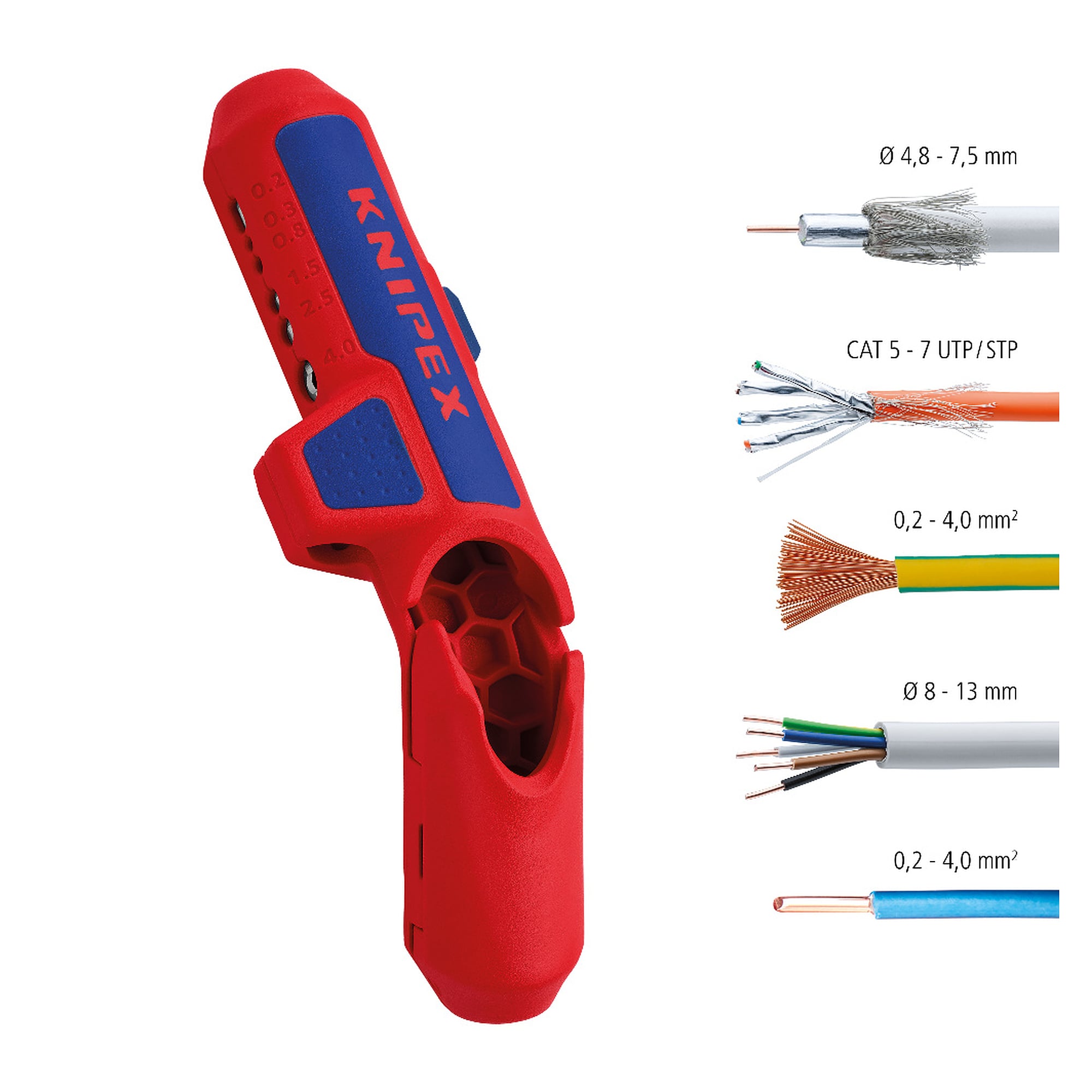

The ErgoStrip strips round and damp-proof cables from Ø 8.0 to 13.0 mm, opens coax cables from Ø 4.8 to 7.5 mm and data cables of categories CAT 5 to 7 and strips conductors and stranded wire from 0.2 to 4.0 mm². The pistol grip guides the hand while cutting, pulling and slitting, and the version is for right-handed use. Length 135 mm at 75 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
On site NYM installation cable, network cable and coax cable alternate, and reaching for a separate tool for each of them costs time. The ErgoStrip 16 95 01 SB covers all three cable types in one device, from round cable Ø 8.0 to 13.0 mm through coax cable Ø 4.8 to 7.5 mm to twisted pair data cable of categories CAT 5 to 7.
Benefits
- For fast and precise stripping of all common round and damp-proof installation cables, for example NYM cable 3 x 1.5 mm² up to 5 x 2.5 mm², as well as data and coax cables.
- Ergonomic pistol grip design for easy cutting, stripping and longitudinal cutting of the sheath, version for right-handed use.
- Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm², location ridges simplify the insertion of single wires.
- Conical, slimmed down tool ends for better access in confined areas.

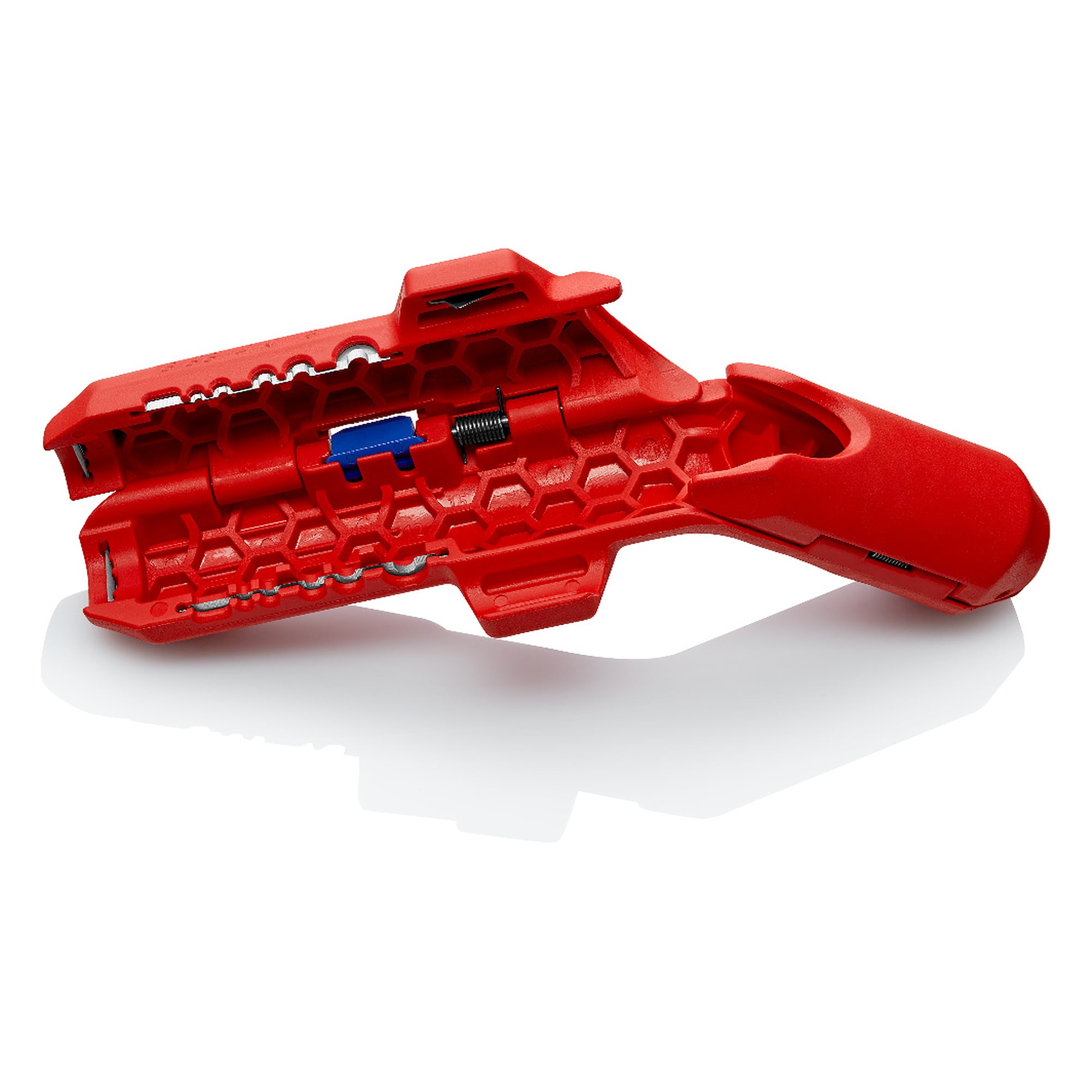

- Opening aid for easy insertion of coax and data cable, plus opening spring and locking device.
- Multi-component design with a soft plastic zone for a secure grip, overall length 135 mm at 75 g.
Areas of use
Electrical installation, network and data technology, satellite and aerial work as well as service jobs in which installation, data and coax cables are assembled in turn.
Standards and conformity
The manufacturer does not state a tool standard for this product. According to the manufacturer the tool contains substances of very high concern under REACH. The RoHS directive does not apply.
Technical data
| EAN | 4003773079927 |
|---|---|
| Weight | 75 g |
| Dimensions | 135 x 85 x 38 mm |
| Stripping capacity round cable (diameter) | Ø 8 - 13 mm |
| Stripping capacity conductors and stranded wire | 0.2 - 4.0 mm² |
| Stripping capacity coax cable (diameter) | Ø 4.8 - 7.5 mm |
| Stripping capacity data cable | CAT 5 - 7, twisted pair (UTP/STP) |
| Stripping capacity | Ø 8.0 - 13.0 mm |
| REACH conformity | contains SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 16 95 01 SB |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 38 mm |
| Width | 85 mm |
| Overall length [mm] | 135.000000 |
