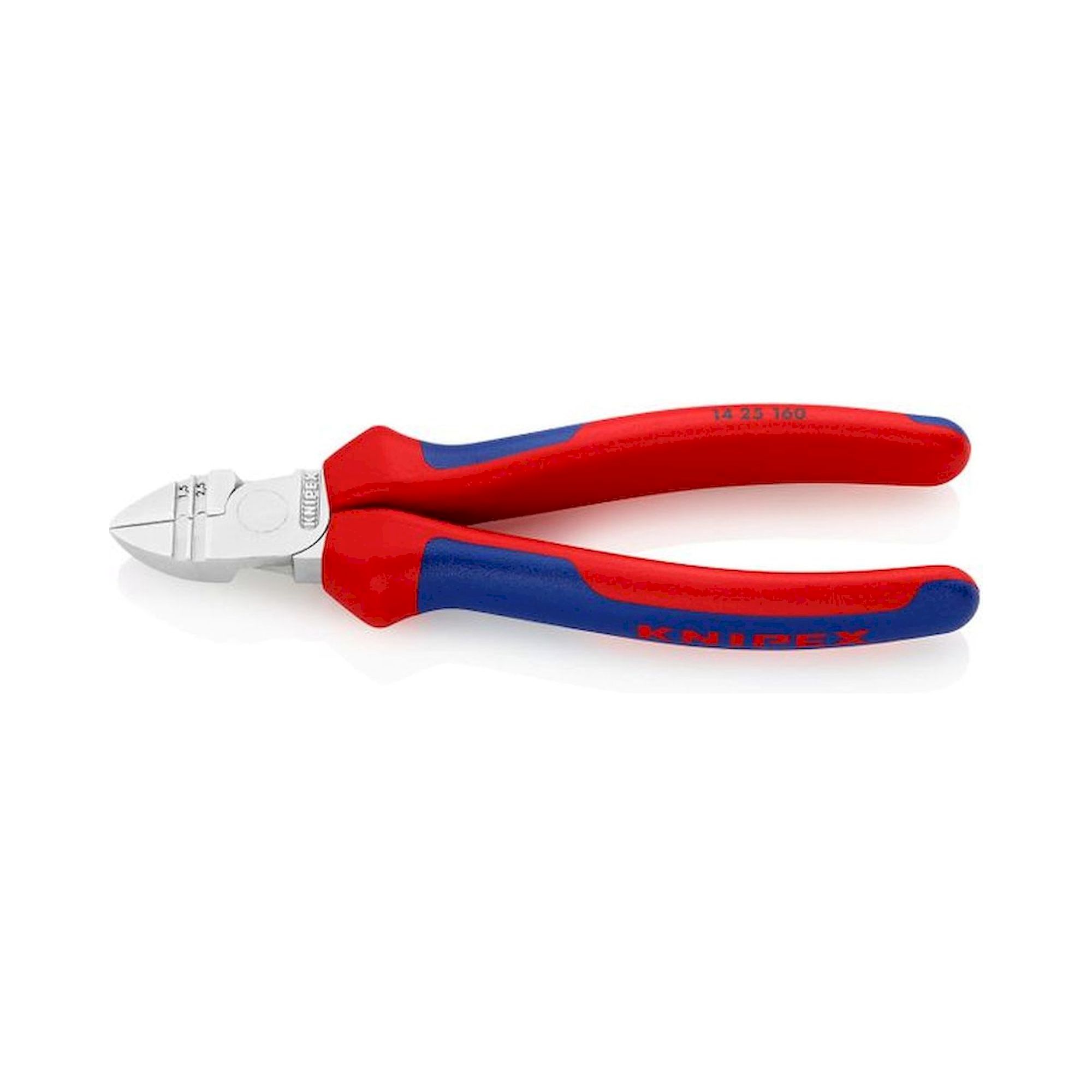

Chrome plated diagonal insulation stripper, comfort handles, 60 HRC blades, 160 mm - Knipex 14 25 160
This chrome plated diagonal insulation stripper cuts NYM cable up to 5 x 2.5 mm² and strips conductors of 1.5 and 2.5 mm² precisely. The high leverage joint keeps the effort low and the induction-hardened blades reach about 60 HRC. At 160 mm long the tool weighs 224 g and carries comfort handles made of three ergonomic components.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Cutting and stripping alternate constantly when NYM cables are terminated. The chrome plated diagonal insulation stripper 14 25 160 covers both in one 160 mm tool and cuts cable up to 5 x 2.5 mm².
Benefits
- Long cutting edge for clean cuts, high cutting capacity due to the high leverage joint.
- Precision stripping holes for single conductors of 1.5 and 2.5 mm², matching AWG 16 and 14.
- Convenient cutting of NYM cables up to 5 x 2.5 mm².
- Long tips for fine cutting work, also in confined areas.
- Induction-hardened precision blades with a cutting edge hardness of about 60 HRC.
- Chrome plated version with comfort handles made of three ergonomic components and two KNIPEXtend interfaces.
Areas of application
Electrical installation and control cabinet assembly, fitting of luminaires, switches and sockets, service on existing systems. Wherever NYM cables are cut to length and conductors of 1.5 or 2.5 mm² are stripped.
Standards and conformity
The pliers contain no substances of very high concern under REACH. The RoHS directive is not applicable to this product.
Technical data
| EAN | 4003773028697 |
|---|---|
| Pliers | chrome plated |
| Head | chrome plated |
| Handles | with comfort handles |
| Weight | 224 g |
| Dimensions | 160 x 56 x 20 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity, soft wire (diameter) | Ø 2.5 mm |
| Cutting capacity, medium-hard wire (diameter) | Ø 1.5 mm |
| Stripping capacity in square millimetres | 1.5 / 2.5 mm² |
| AWG | 16 / 14 |
| Weight | 0.224000 |
| Manufacturer | Knipex |
| Manufacturer Nr. | 14 25 160 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 20 mm |
| Width | 56 mm |
| Overall length [mm] | 160.000000 |
