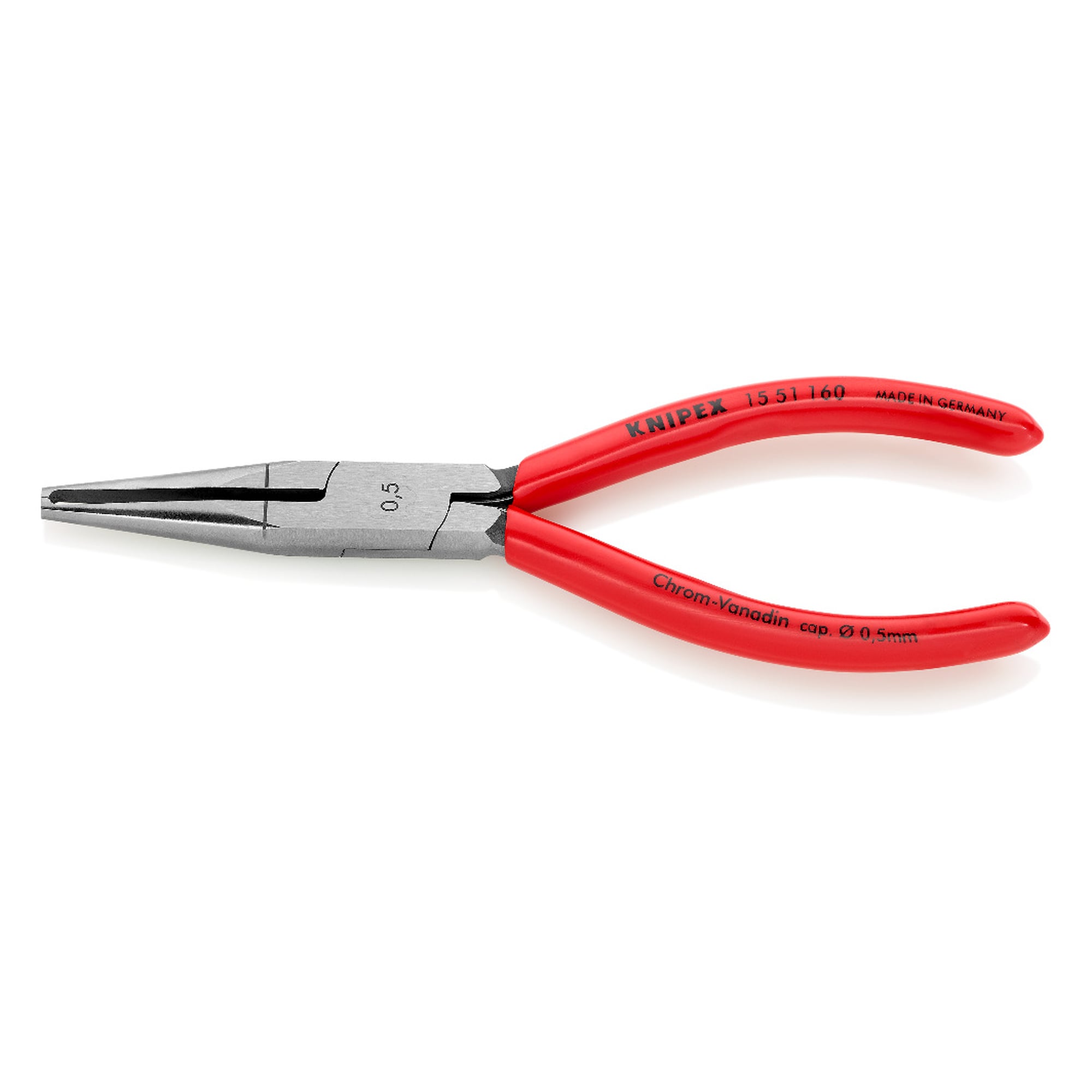

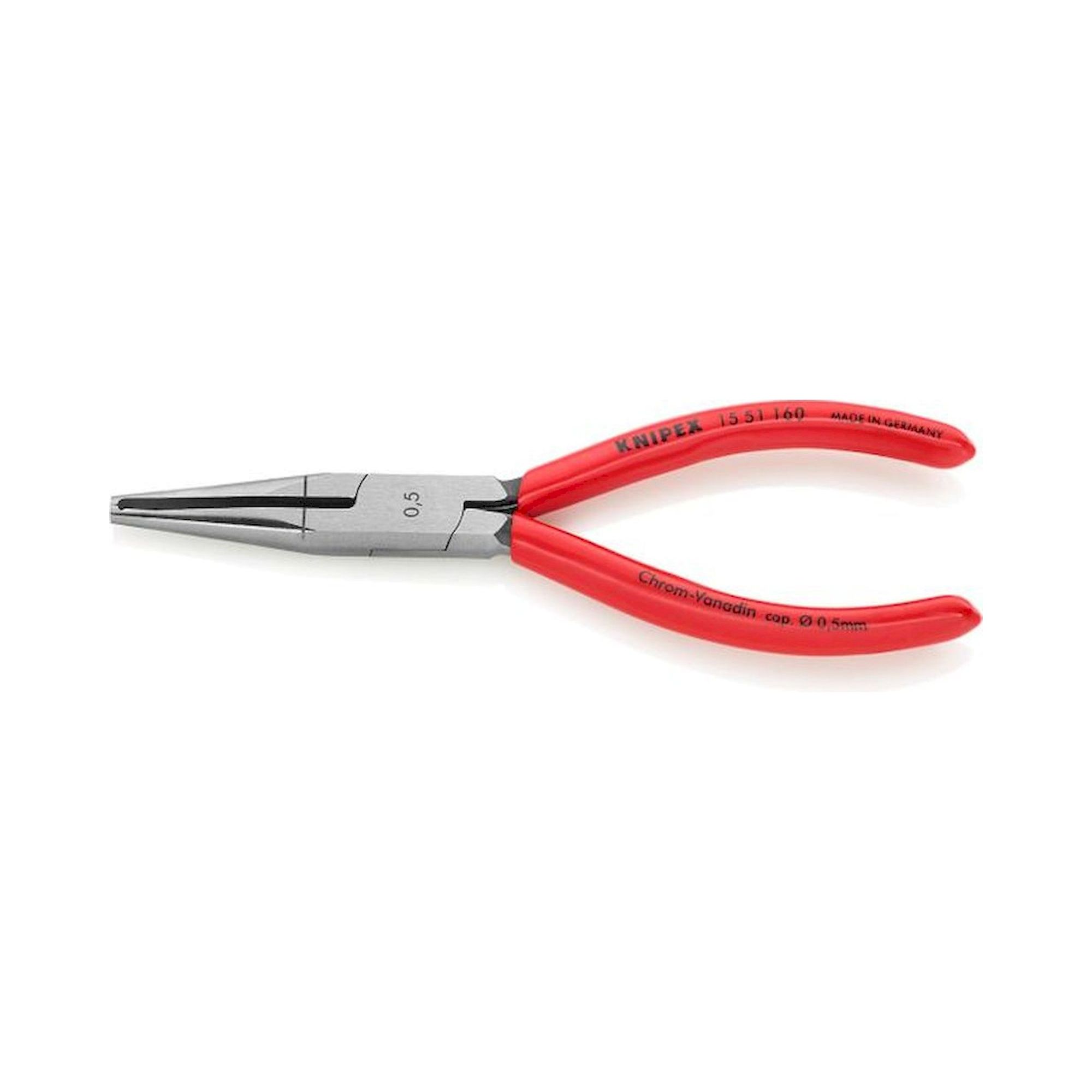

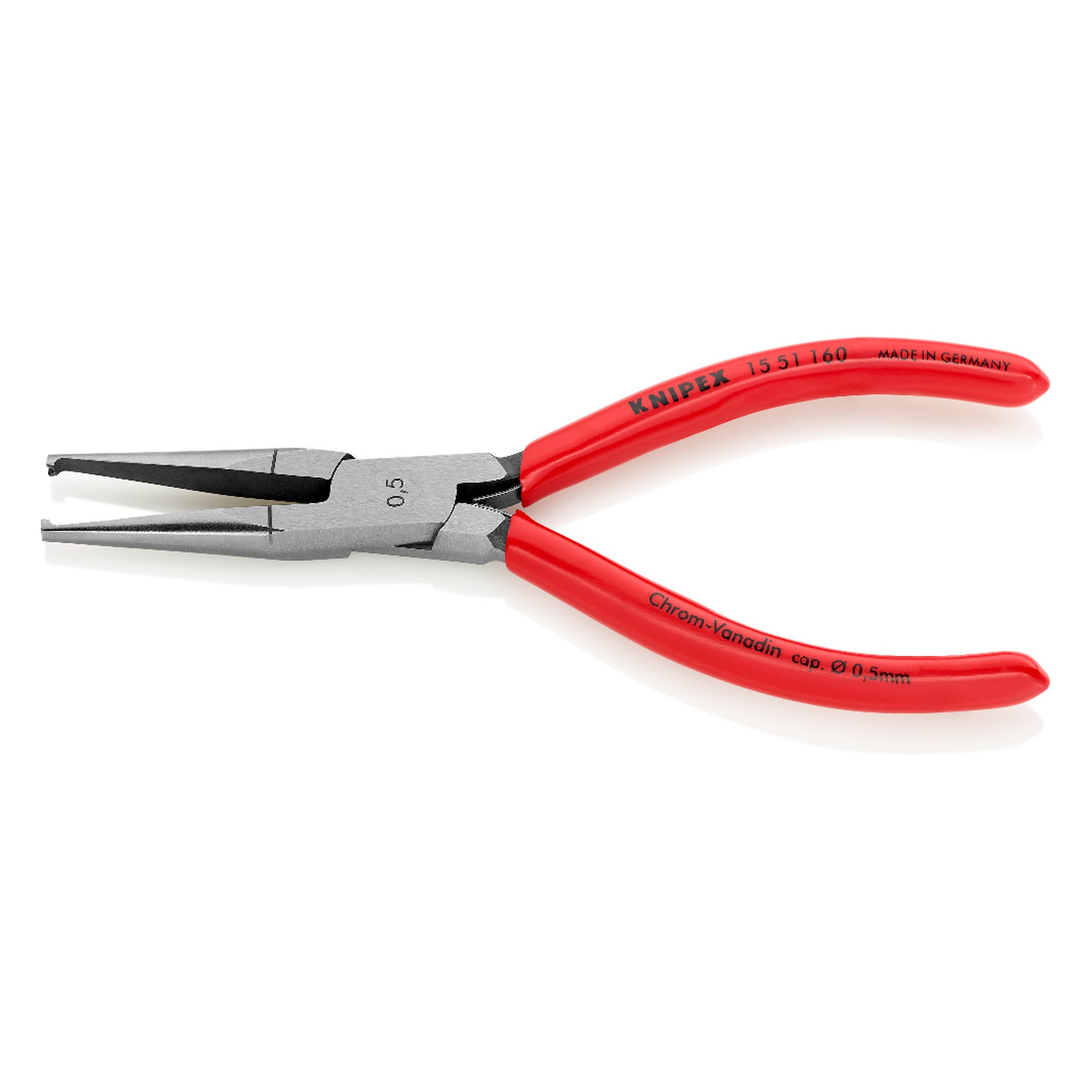

Insulation Stripper for Ø 0.5 mm with fixed stripping prism and opening spring, 160 mm - Knipex 15 51 160
This insulation stripper removes the insulation from thin cables with a wire diameter of 0.5 mm. The stripping prism is matched exactly to this diameter and is not adjustable, so the conductor is not nicked when the insulation is pulled off. At 101 g and 160 mm the pliers stay light in the hand, and the opening spring returns them after every step.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Thin conductors react badly to a tool that closes too far. The insulation stripper 15 51 160 therefore works with a stripping prism fixed to Ø 0.5 mm and weighs only 101 g at a length of 160 mm.
Benefits
- For stripping thin cables with a wire diameter of 0.5 mm.

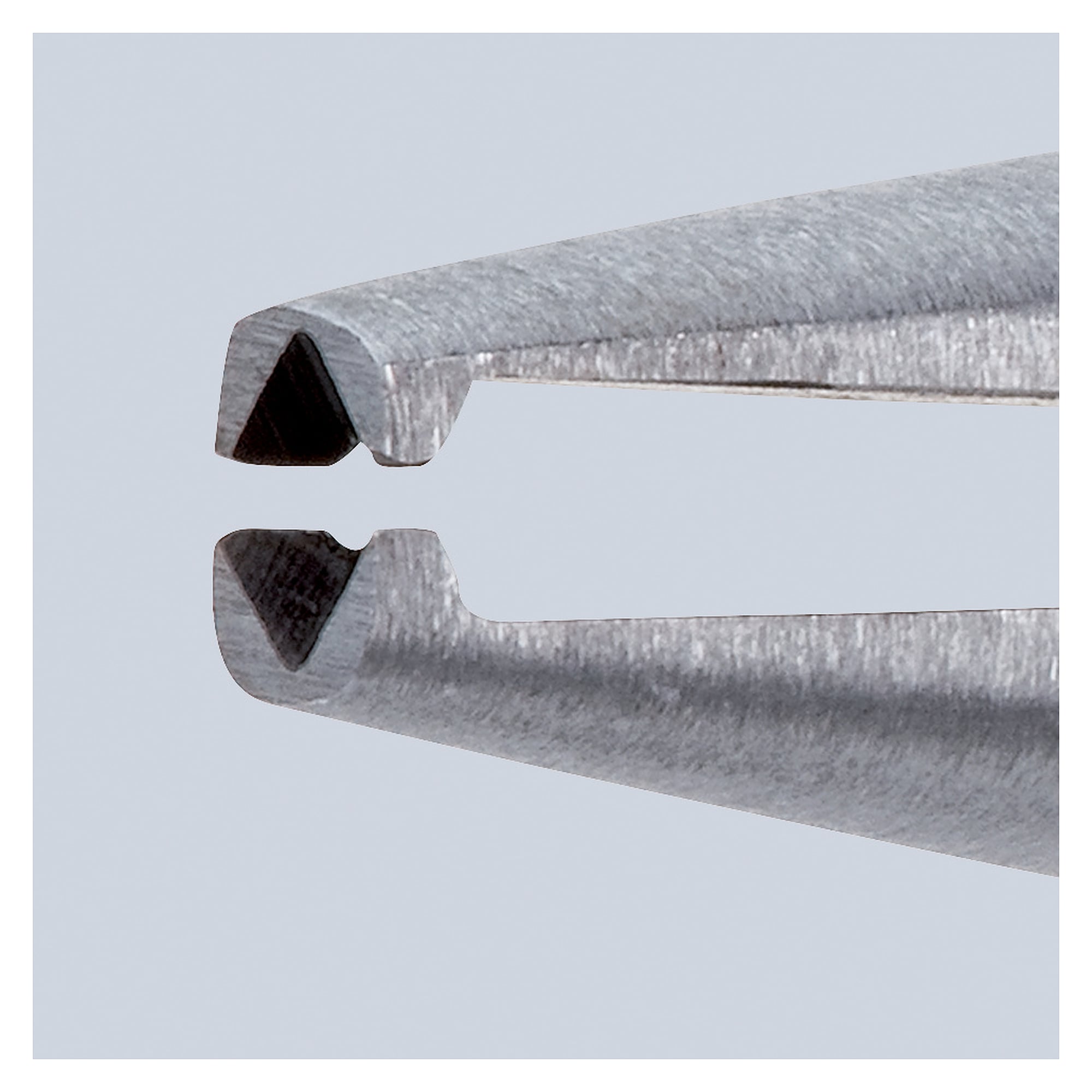

- Precise stripping prism matched to one wire diameter and not adjustable, so there is no wrong setting in daily use.
- Opening spring returns the pliers to the starting position after every step.
- Polished head and plastic coated handles, total weight 101 g at a length of 160 mm.
Areas of application
Precision mechanics, electronics production, device and control cabinet assembly as well as repair work in which conductors with a wire diameter of 0.5 mm are prepared.
Standards and conformity
The pliers contain no substances of very high concern under REACH. The RoHS directive is not applicable to this product.
Technical data
| EAN | 4003773044451 |
|---|---|
| Head | polished |
| Handles | plastic coated |
| Weight | 101 g |
| Dimensions | 160 x 69 x 12 mm |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Stripping capacity (diameter) | Ø 0.5 mm |
| Manufacturer | Knipex |
| Manufacturer Nr. | 15 51 160 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 12 mm |
| Width | 69 mm |
| Overall length [mm] | 160 |
