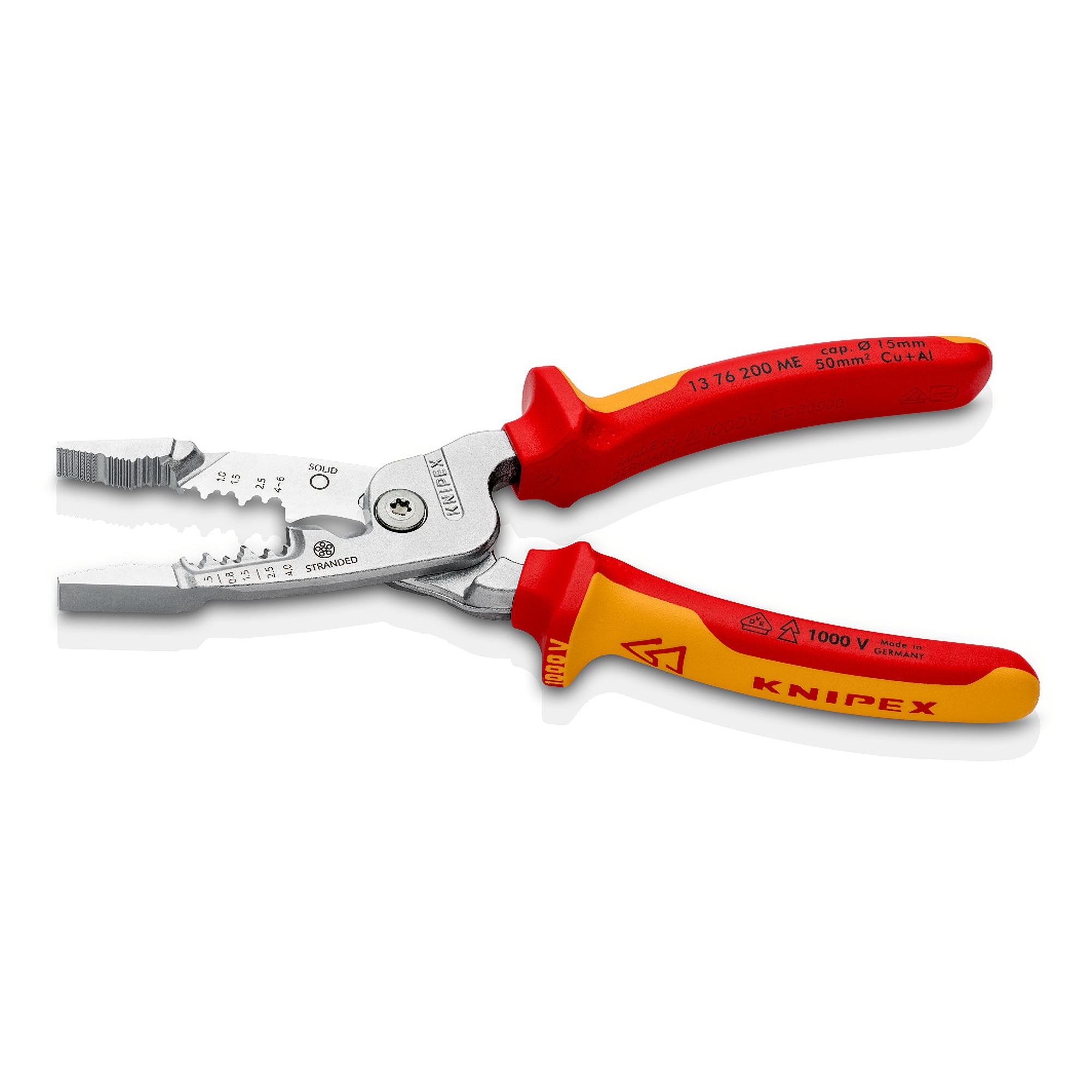

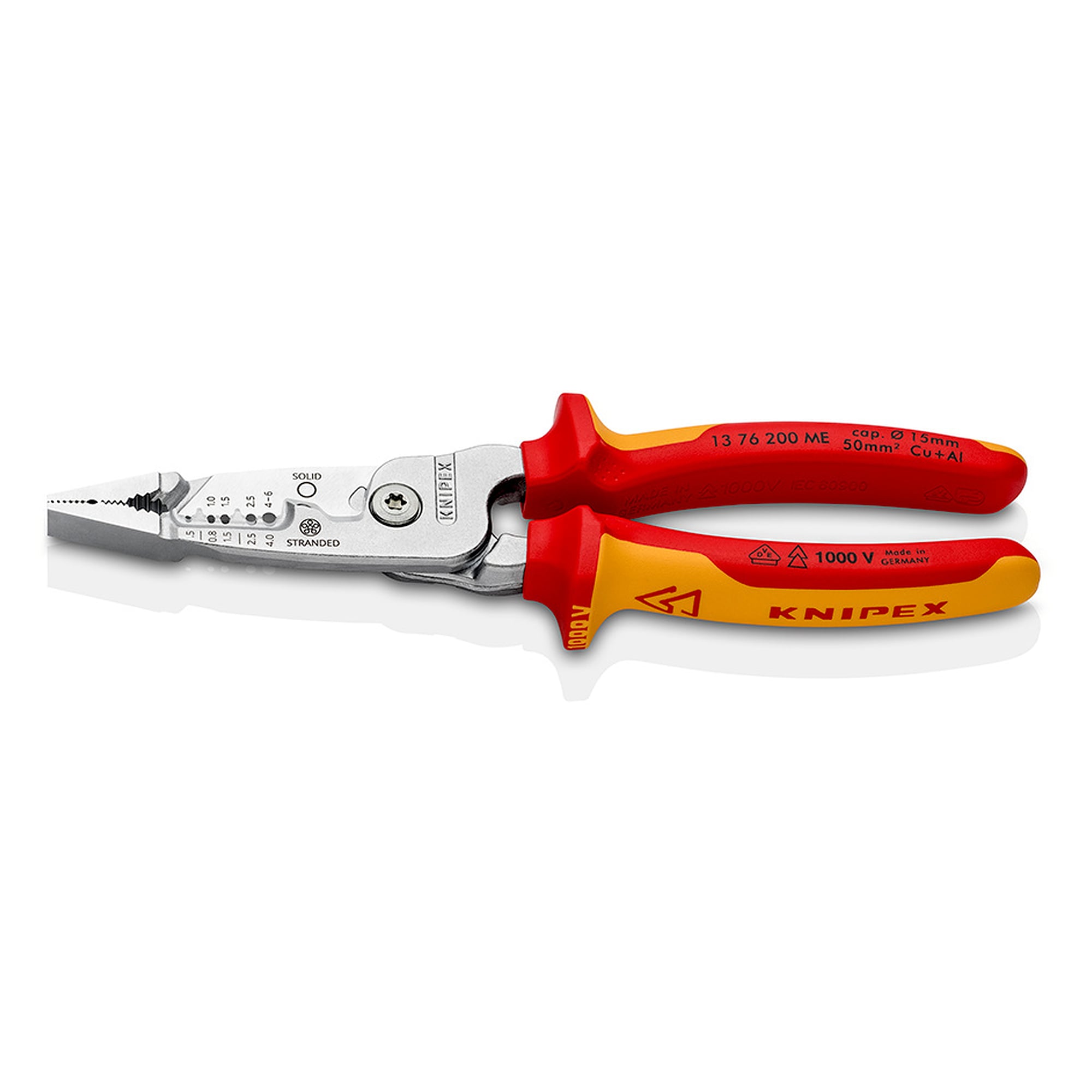

WireStripper multi-function electrician's pliers, metric version, VDE insulated 1000 V, 200 mm - Knipex 13 76 200 ME

Anyone working on live installations needs a tool that carries the insulation required by the standard and still covers several work steps. The insulated multi-function electrician's pliers in the metric version are tested to DIN EN 60900 and IEC 60900 for 1000 V and strip solid conductors from 0.75 to 6 mm² as well as fine-stranded conductors from 0.5 to 4 mm².

Benefits

• Insulated with multi-component sleeves and VDE tested, therefore approved for work on live parts up to 1000 V.

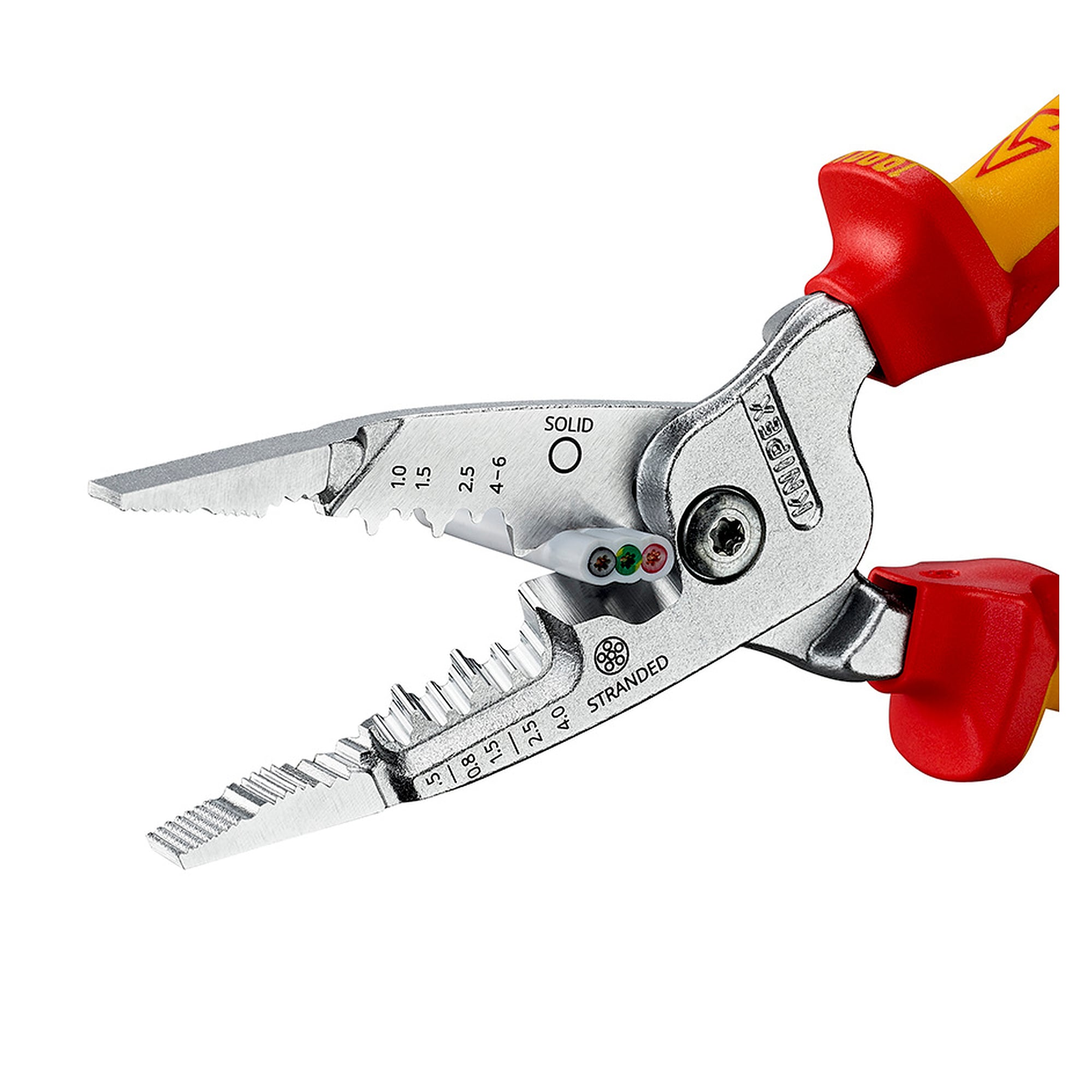

• Wide capacity range thanks to precision-ground stripping profiles, 0.75 to 6 mm² solid and 0.5 to 4 mm² fine-stranded.

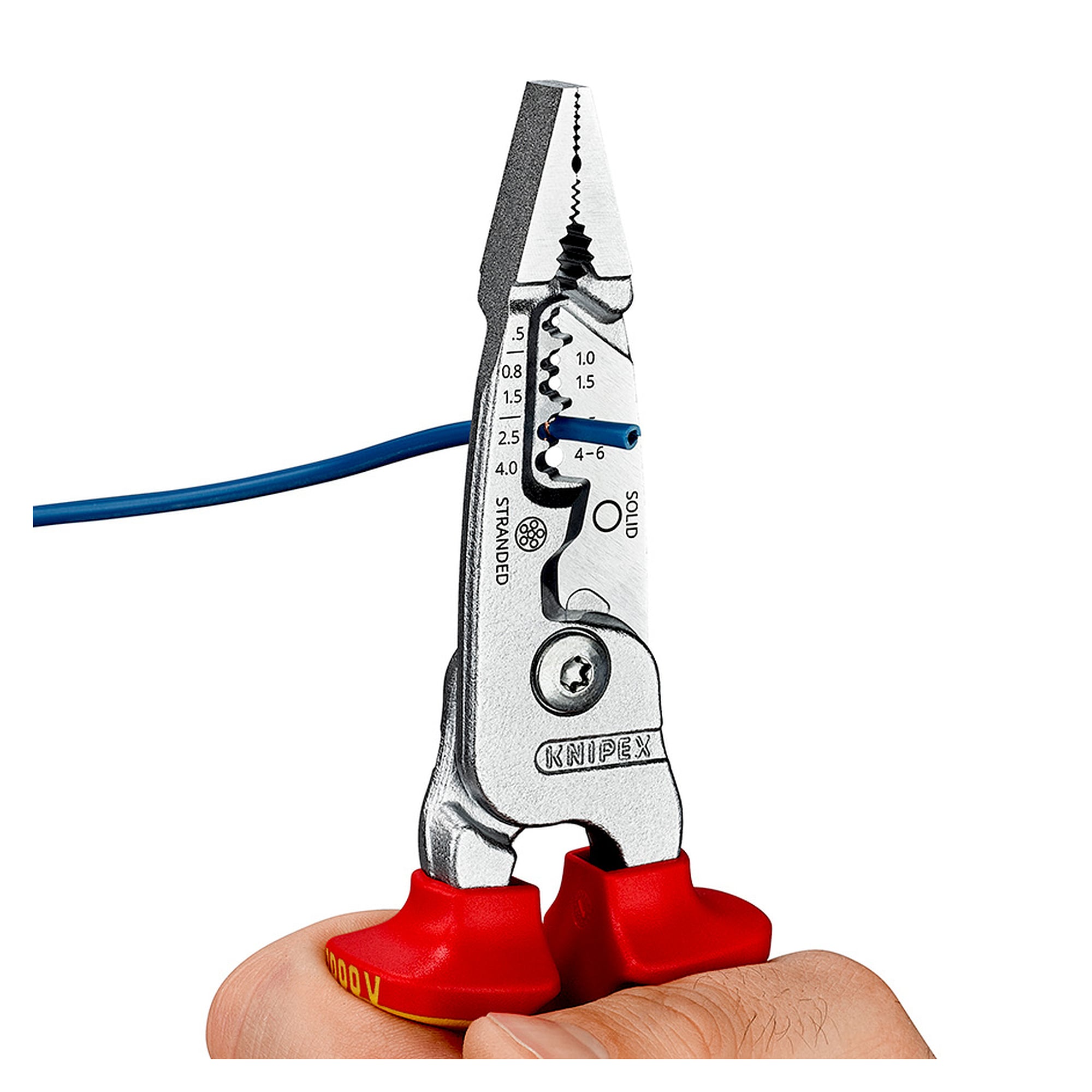

• Location ridges guide the conductor straight into the matching profile, which avoids rework on nicked cores.
• The cutting geometry makes multi-core copper and aluminium cables up to 15 mm in diameter easier to cut, flat cables in particular.
• Hybrid design, as flat as needle-nose pliers and as wide as combination pliers, giving high stability with good accessibility.
• Wide cross-hatched gripping surfaces for twisting wires, a milled groove for small work pieces, a gripping hole for round material and a pronounced outer edge for deburring conduits.

Technical data

Areas of use

Electrical installation and maintenance on systems up to 1000 V, control cabinet and distribution board assembly, service work on existing installations. Wherever VDE testing is mandatory and there is little room for several tools, these pliers cover stripping, cutting and twisting in one hand.

Standards and conformity

The pliers are tested to DIN EN 60900 and IEC 60900 and approved for work on live parts up to 1000 V. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply.
