PUR Profiled Foam AS35 Dissipative, Pink, 553 x 353 mm, 15 mm - A1-ESD EP0705123

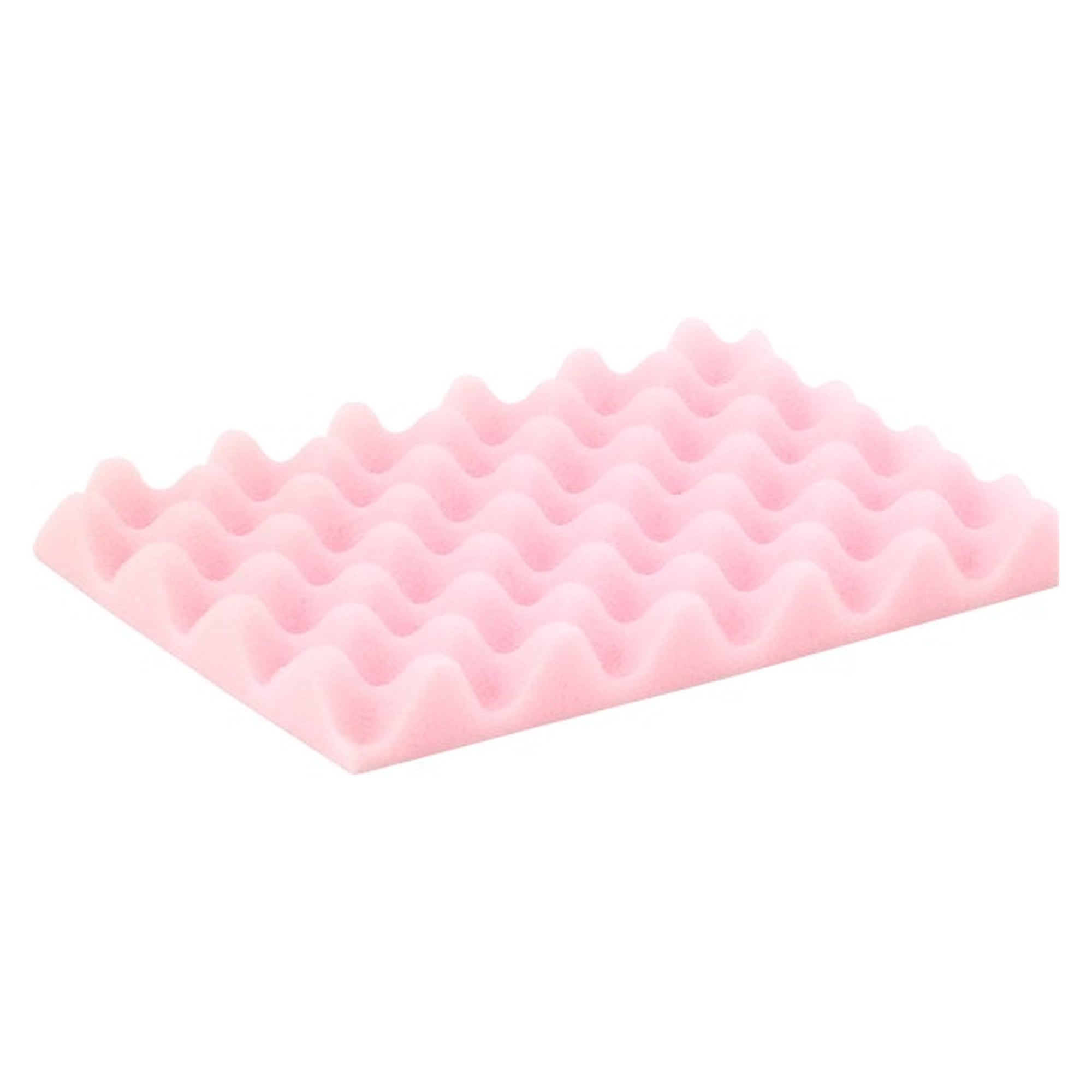

A flat insert cushions a part but does not hold it. This sheet, cut to 553 x 353 mm, has a nubbed surface, so the part beds itself between the nubs instead of wandering. The foam is set up dissipative at 10E7 to 10E11 ohm and at 15 mm is thick enough for taller packages to sink in.

Benefits

• Nubbed surface, the part sits between the nubs and shifts less while being carried or stacked.
• Resistance of 10E7 to 10E11 ohm, the support stays dissipative and stores no charge.
• 15 mm thickness, enough travel for components with protruding leads.
• Soft grade, the nubs give way and do not press into sensitive surfaces.
• Cut to 553 x 353 mm, a full-surface insert for cartons and containers in this format.
• Pink colour, immediately distinguishable from insulating packaging foam at the packing bench.

Technical data

Application

Typical uses are a retaining base layer in ESD containers for in-house transport, a top layer over assemblies already loaded, and a rest at the test bench inside the EPA where units under test must not roll away.

Note on the range

The profiled 15 mm version comes in several sheet sizes. This article is the 553 x 353 mm sheet.
