Grounding module with 1x DK10 and 2x banana socket

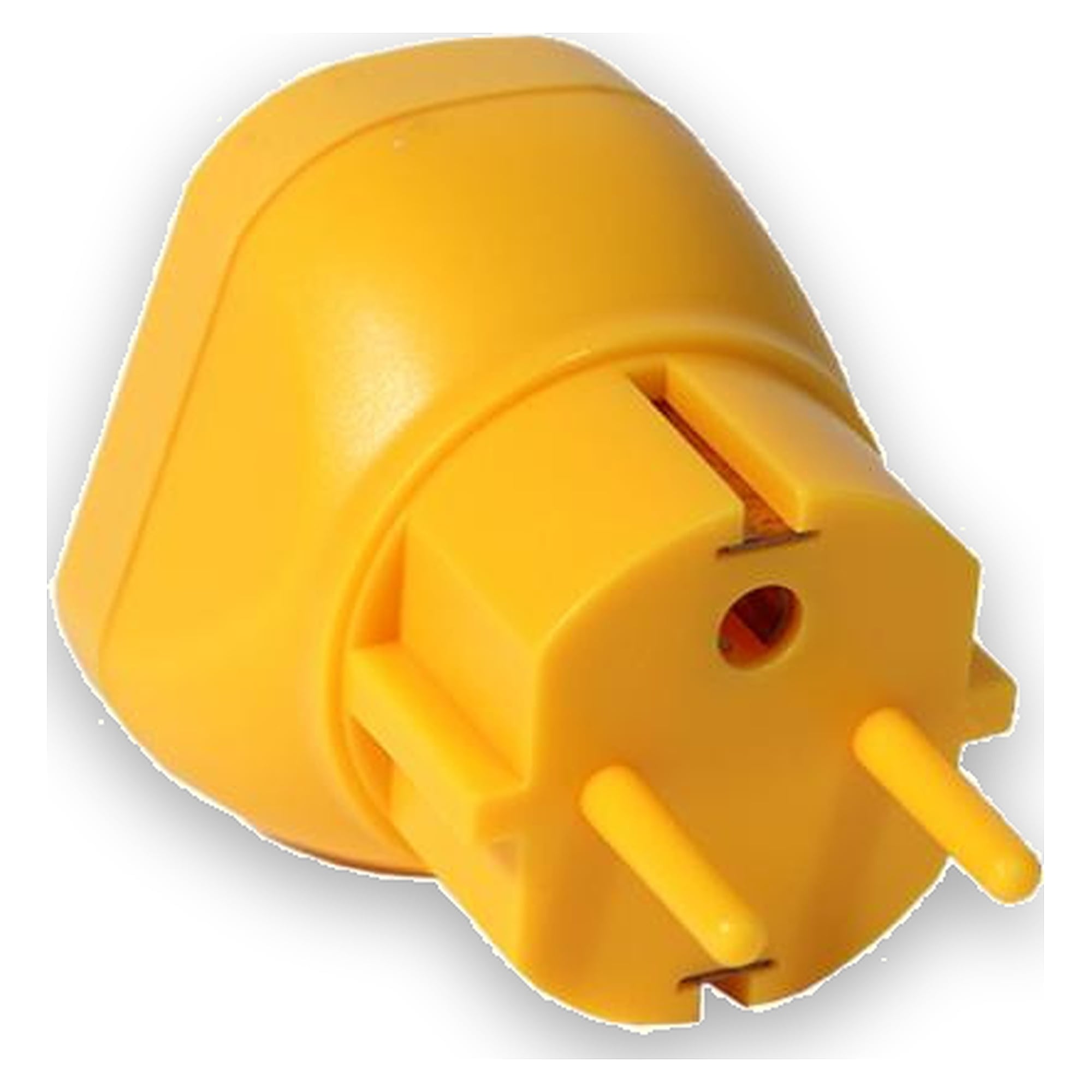

Grounding module with one 10 mm snap and two banana plug connections, connected via a Euro plug. Each connection is protected by its own 1 MΩ safety resistor and ensures personnel-safe dissipation.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The grounding module combines one 10 mm snap with two 4 mm banana plug connections and so links different ESD grounding cords to the protective earth. It connects to the socket via a Euro plug, and each output is dissipated separately through 1 MΩ.
Benefits
- one 10 mm snap connection plus two banana plug connections
- a dedicated 1 MΩ safety resistor on each connection
- connection via a Euro plug
- flexible combination of snap and banana connectors
Application
For the combined grounding of snap and banana connectors at EPA workstations.
Standards
Suitable for building ESD protected areas to IEC 61340-5-1.
Technical data
| Connections | 1 x 10 mm snap (DK), 2 x banana plug (4 mm) |
|---|---|
| Safety resistor | 1 MΩ per connection |
| Mains connection | Euro plug |
| Weight | 0.1 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0101013 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
