Ionising bar A924IPS, short range, integrated power supply, 24 V DC, IP66, length 480 mm

Static charge on parts attracts dust and can damage sensitive electronics before they reach the next station. The A924IPS ionising bar neutralises these charges at close range, at a distance of 20 to 200 mm. At 480 mm long, it fits on grippers, inside assembly cells and above narrow conveyor sections where there is little space next to the tooling. The power supply sits inside the bar itself, which runs on 24 V DC via a 4-pin M8 connector.

Benefits

• No separate high-voltage unit: The integrated power supply saves cabinet space and high-voltage cabling, only 24 V DC at max. 500 mA is required.
• Slim profile: 22 mm wide and 32 mm high, fixed with a T-slot bracket.
• Replaceable emitters: Sharp titanium tips that are swapped out when worn.
• Built for harsh conditions: IP66 protection against dust and water jets, housing made of flame-retardant ABS plastic (FR).

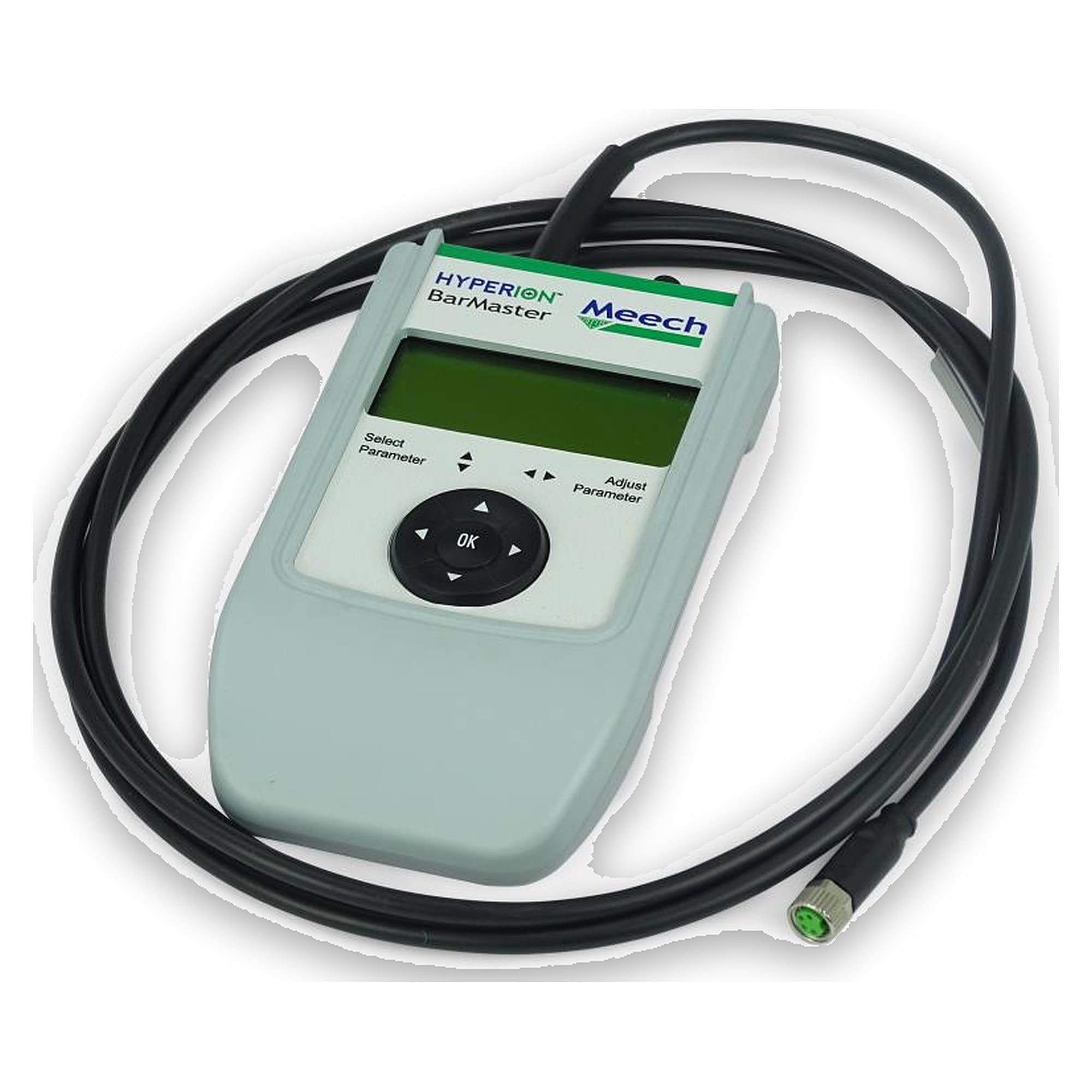

• Adjustable and monitored: The BarMaster control unit (EP0402043) adjusts output and clean-pin alarm settings, the SmartControl monitor (EP0402044) is the alternative.

Applications

The 480 mm length suits single stations in electronics manufacturing: above pick-and-place grippers, at test stations, in assembly cells and on short transfer sections. There the bar discharges components and assemblies just before the next handling step. Where the distance to the object is at the upper end of the range, the air connection helps carry the ions to the workpiece. For wider conveyors the series is available in other lengths.
