Ionising air gun IG200, 24 V, compressed air, self-balancing ±15 V

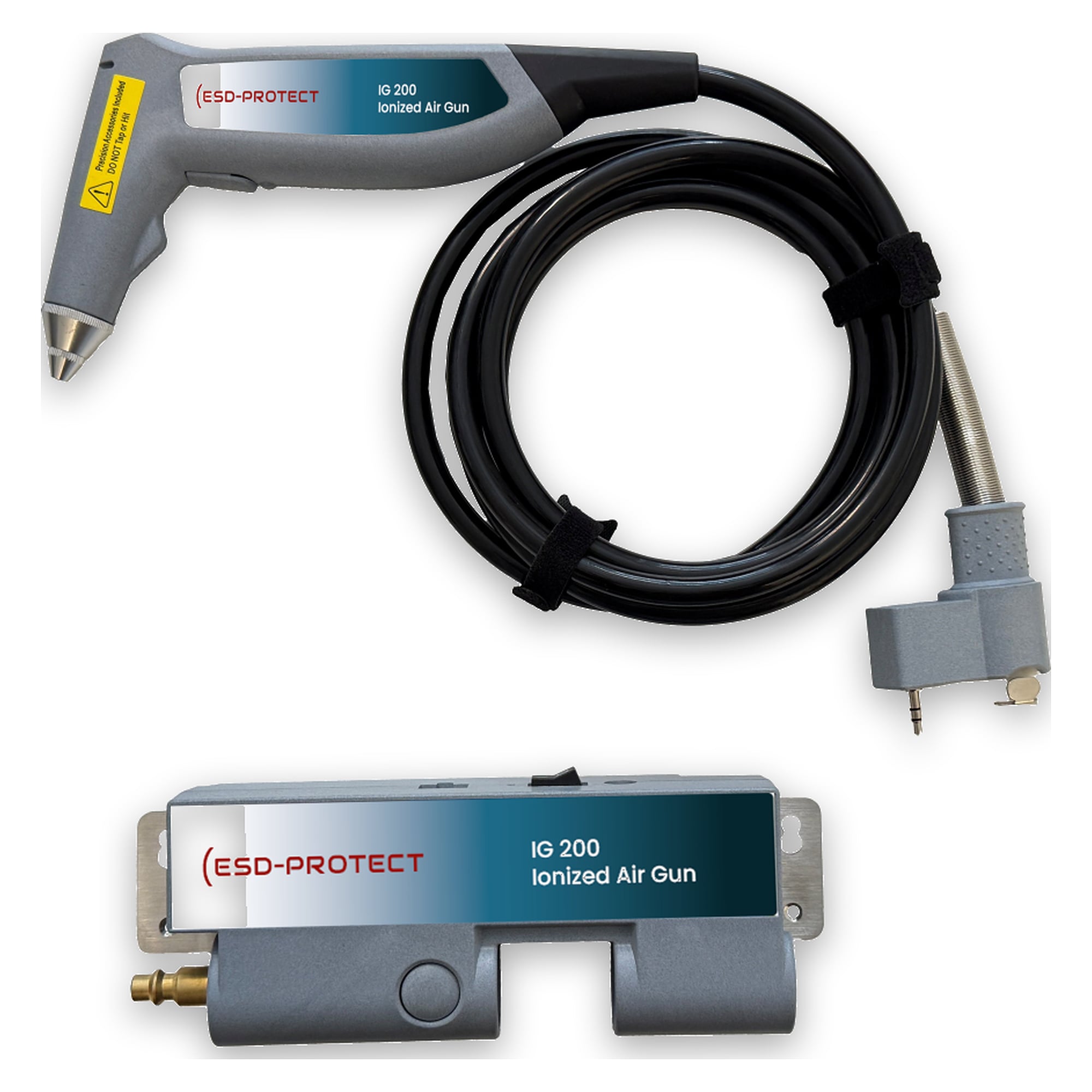

Ergonomic 24 V ionising air gun with 2.5 m hose and IsoStat technology for fast discharge and cleaning of components. Self-balancing ±15 V offset voltage and a built-in 0.01 µm fine filter ensure clean, controlled ionisation.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

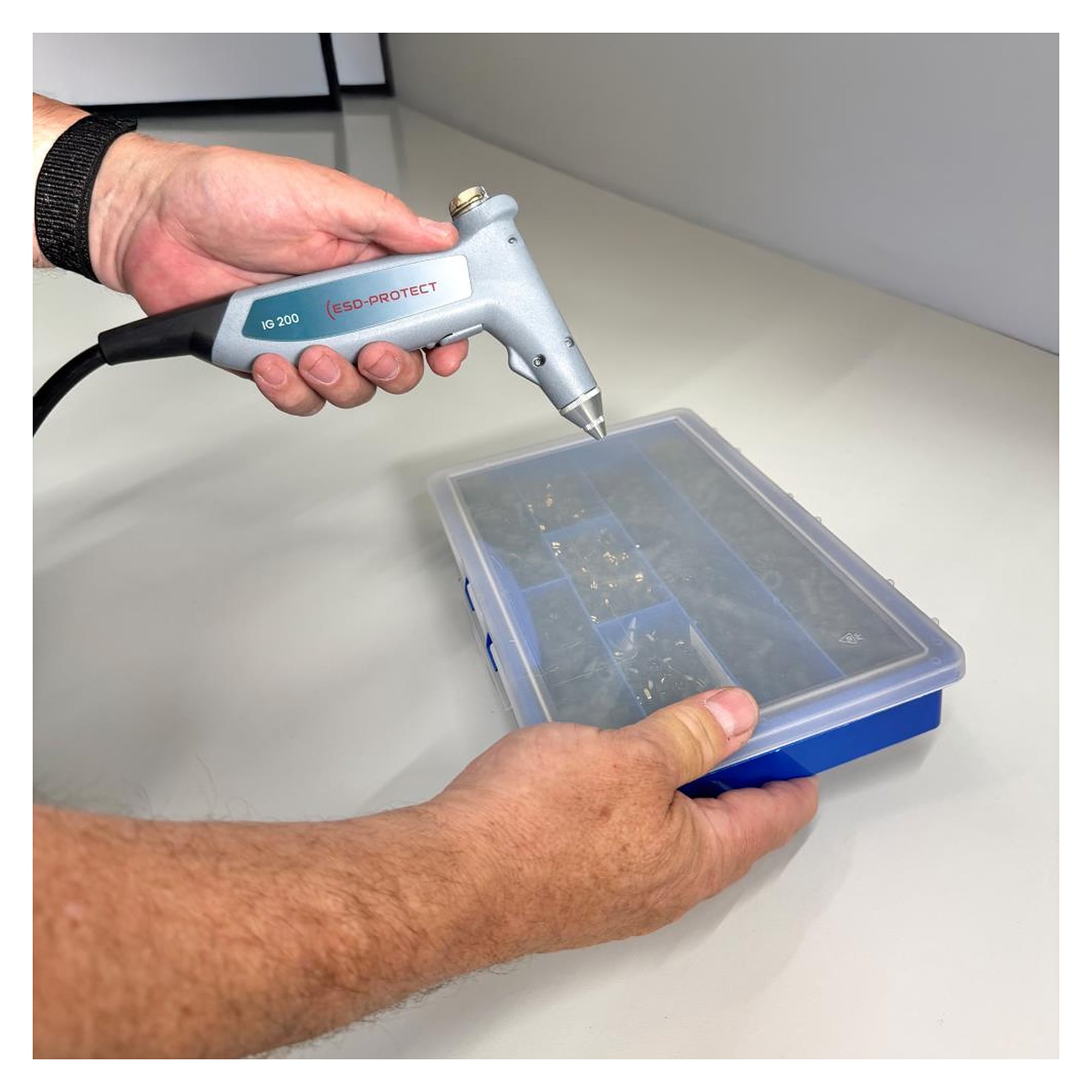

The IG200 ionising air gun discharges and cleans electrostatically charged components with a directed jet of compressed air. The ergonomic gun body in dissipative material sits securely in the hand, while the lightweight hose and low-voltage power cable allow free movement at the workstation.
Benefits
- Strong blow-off performance with IsoStat technology for fast discharge and dust removal
- Self-balancing ±15 V offset voltage for a stable ion balance
- Dissipative housing material for use in the EPA area
- Built-in 0.01 µm fine filter in the console for clean compressed air
- Low ozone generation below 0.05 ppm
Applications
- Discharge and blow-off of PCBs, housings and optical components
- Cleaning at assembly, test and packaging stations
Standards and compliance
Suitable for use in EPA areas per IEC 61340-5-1.
Technical data
| Operating voltage | 24 V (low voltage), power adapter included |
|---|---|
| Self-balancing offset voltage | ±15 V |
| Maximum pressure | 7.0 bar |
| Ozone generation | below 0.05 ppm |
| Hose length | 2.5 m |
| Fine filter | 0.01 µm (integrated in the console) |
| Gun dimensions | 203 x 25 x 110 mm (L x W x H) |
| Console dimensions | 220 x 42 x 76 mm (L x W x H) |
| Material | dissipative plastic |
| Weight | 1.25 kg |
| Manufacturer | A1-ESD |
| Manufacturer Nr. | EP0403022 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Sales unit | 1 Stück |
| Height | 110 |
| Width | 25 |
| Depth | 203 |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
