Flat hood DN50, rectangular, 330 x 240 mm, flange -050, variant 001 - Alsident 1-503324-050-001

Name: Flat hood DN50, rectangular, 330 x 240 mm, flange -050, variant 001 - Alsident 1-503324-050-001
Brand: Alsident
SKU: AL-1-503324-050-001
Price: 145.16 EUR
Availability: InStock

Alsident ✓ Original product Brand new Made in Denmark

Variant 001 of the flat 330 x 240 mm PETG hood with flange code -050 for Alsident System 50. For repair and test benches where fumes spread over a wide area and the hood should stand flat behind the work.

Net

€145.16

excl. VAT

Item AL-1-503324-050-001

Manufacturer no. 1-503324-050-001

Question about this item

Datasheet (PDF) 3 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

At repair and test benches the hood should stand behind the device and stay out of the way. The flat hood in variant 1-503324-050-001 with 330 x 240 mm can be set vertically or tilted and captured 90% in position B at 200 mm in the manufacturer test.

Benefits

Flat design that fits behind the work
90% capture efficiency in position B at 200 mm (manufacturer)
Transparent PETG for a view of the workpiece
Reinforced edges and solvent resistance

Specifications

Applications

Repair and test benches in electronics
Rework on large assemblies
Podiatry and beauty workplaces with light vapours

Compatibility and scope of delivery

Fits Alsident System 50 extraction arms (50 mm tube)
Supplied with spigot

Technical data

Manufacturer part no.	1-503324-050-001
Type	flat hood, rectangular
System	Alsident System 50 aluminium (AL)
Tube diameter	50 mm

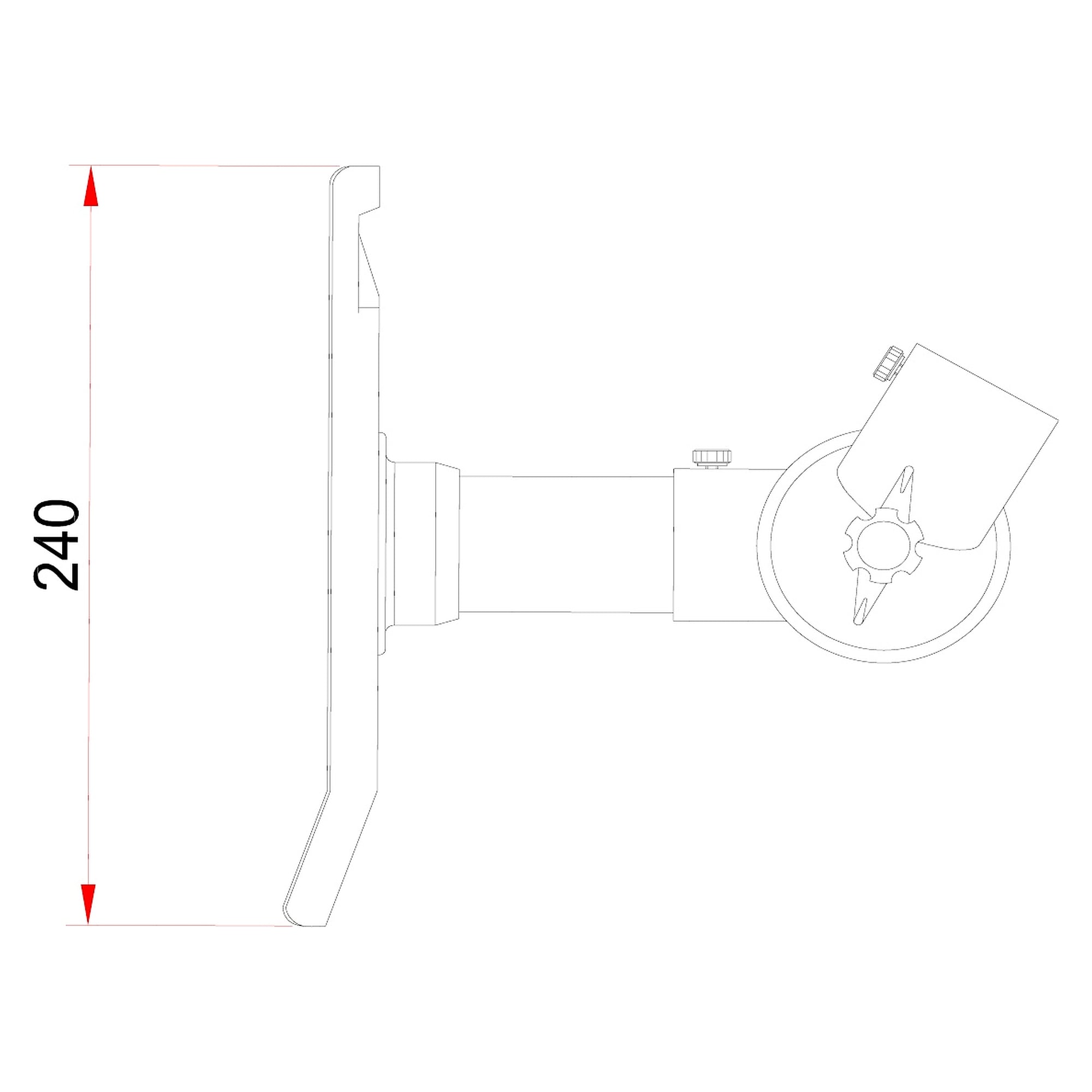

Hood size	330 x 240 mm
Hood material	transparent PETG
Spigot	anodised aluminium, 10 µm
Flange	code -050 (black per manufacturer), variant 001
Capture efficiency	up to 94% (position A, 200 mm distance)
Max. air temperature	80 °C (PETG)
ESD-safe	no
Sales unit	1 piece
Weight	1.5 kg
Manufacturer	Alsident
Manufacturer Nr.	1-503324-050-001
HS-Code	84149000
GPSR manufacturer information	Alsident system A/S Finlandsvej 10 DK-8450 Hammel www.alsident.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Denmark
Colour	Black
Compatible with	Alsident System 50
