This zirconium oxide ceramic trimmer blade adjusts spindle resistors and potentiometers via a 2.4 x 0.8 mm cross profile without slipping. It is 32 mm long, antimagnetic, and weighs just 1 g, suited for ESD-protected areas of electronics manufacturing.

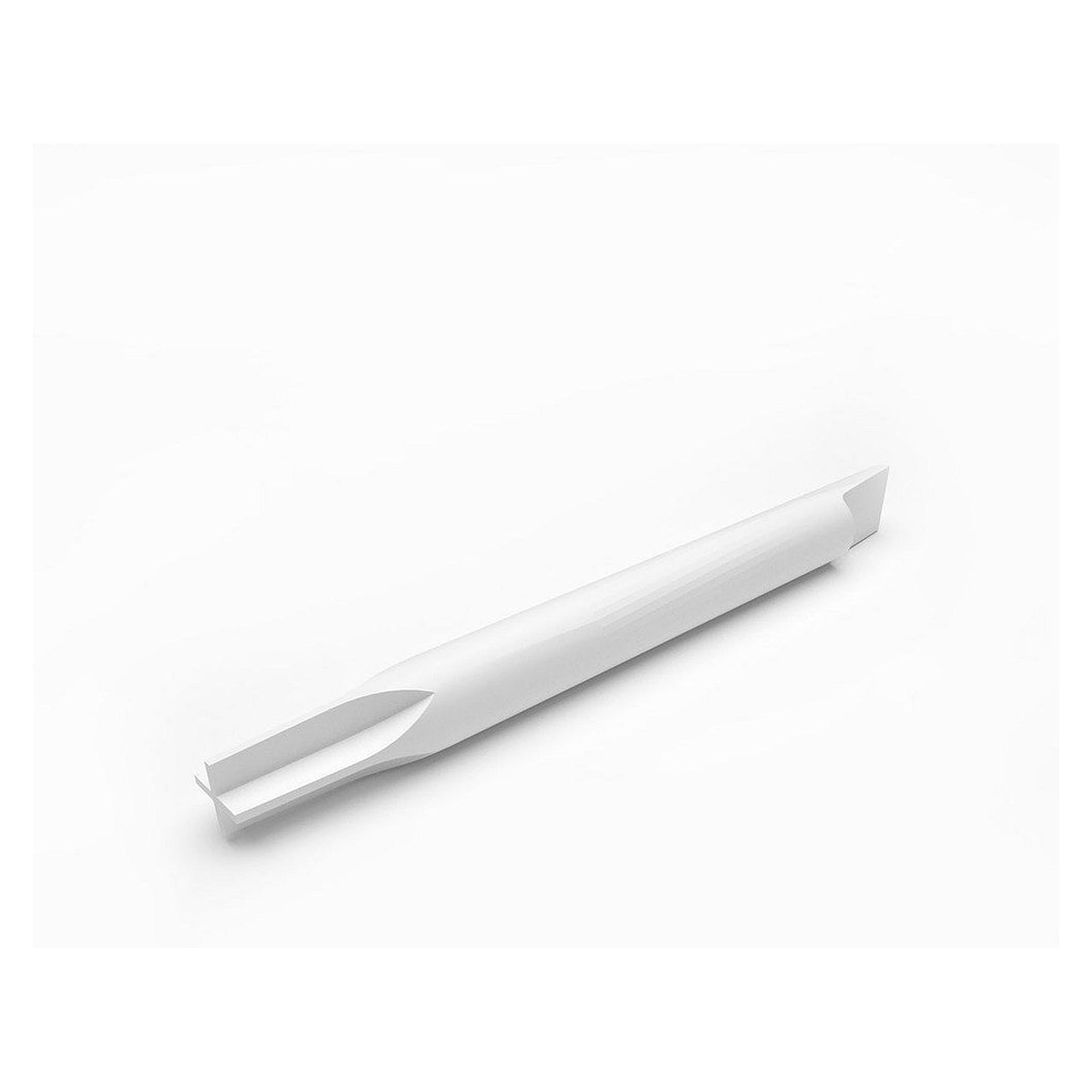

Ceramic Trimmer Blade Cross 2.4 x 0.8 x 32 mm for Potentiometers - Bernstein 1-767
BERNSTEIN
Original product
Net price (excl. VAT)
€16.64
Item
BS-1-767
Manufacturer no.
1-767
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.1-767
EAN4250838501125
Customs tariff number69091900
ConditionNew
Article
BS-1-767
Frequently Bought Together
-
This Item:
€16.64
-
Ceramic Trimmer Screwdriver Slot Blade 2.5x0.7x20 mm with ESD Handle - Bernstein 1-856
€17.04
-
Ceramic Adjusting Screwdriver Cross-Recess PH00, Blade Length 20 mm - Bernstein 1-865
€18.42
Total price
Trimmer potentiometers with a cross-shaped slot need a blade whose profile matches the width and thickness of that slot exactly. The Bernstein 1-767 trimmer blade, made of zirconium oxide ceramic with a 2.4 mm wide, 0.8 mm thick cross profile, fills the slot with a precise fit.
Advantages
- zirconium oxide ceramic with a flexural strength of 800 N/mm² for low-wear continuous use
- fully antimagnetic, does not affect coil properties during adjustment
- 2.4 x 0.8 mm cross profile for a precise fit in the trimmer slot
- light weight of 1 g reduces stress on the trimmer shaft
- electrically insulating material protects sensitive circuits
Technical Data
| Feature | Value |
|---|---|
| Purpose | Adjusting spindle resistors and potentiometers |
| Blade shape | Cross |
| Blade length | 32 mm |
| Blade diameter | 3 mm |
| Blade width | 2.4 mm |
| Blade thickness | 0.8 mm |
| Material | zirconium oxide, technical ceramic |
| Property | antimagnetic |
| Overall length | 32 mm |
| Weight | 1 g |
Application
- fine adjustment of cross-slotted spindle trimmers after PCB assembly
- service and readjustment of electrical equipment when components drift with age
- use in ESD-protected areas of electronics production
Standards and Shipping Data
- EAN 4250838501125
- Customs tariff number 69091900
- Country of origin Germany
| ESD version | TEC |
|---|---|
| Manufacturer Nr. | 1-767 |
| Manufacturer | Bernstein |
| EAN | 4250838501125 |
| Weight | 0.001000 |
| Lenght | 32 |
| HS-Code | 69091900 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
