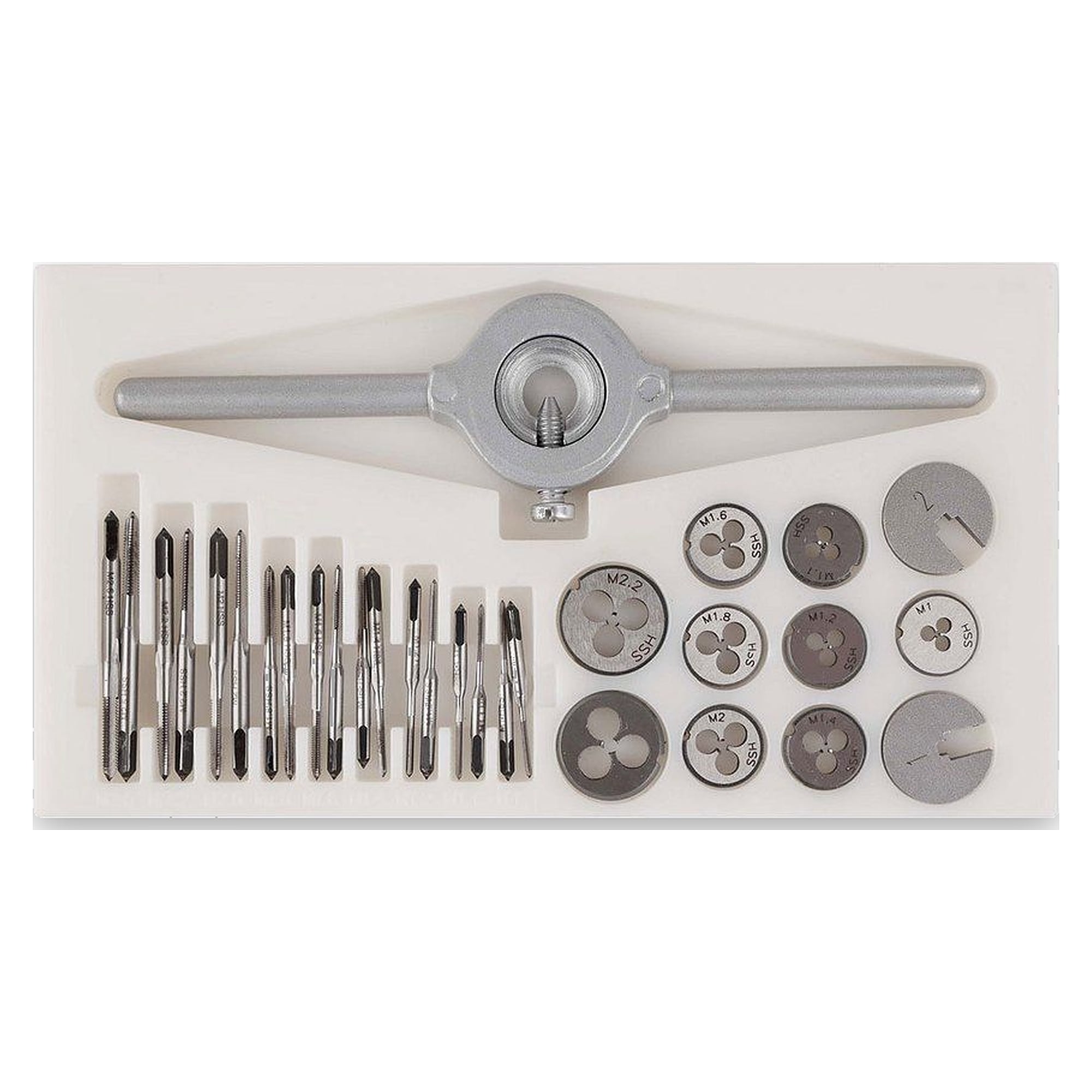

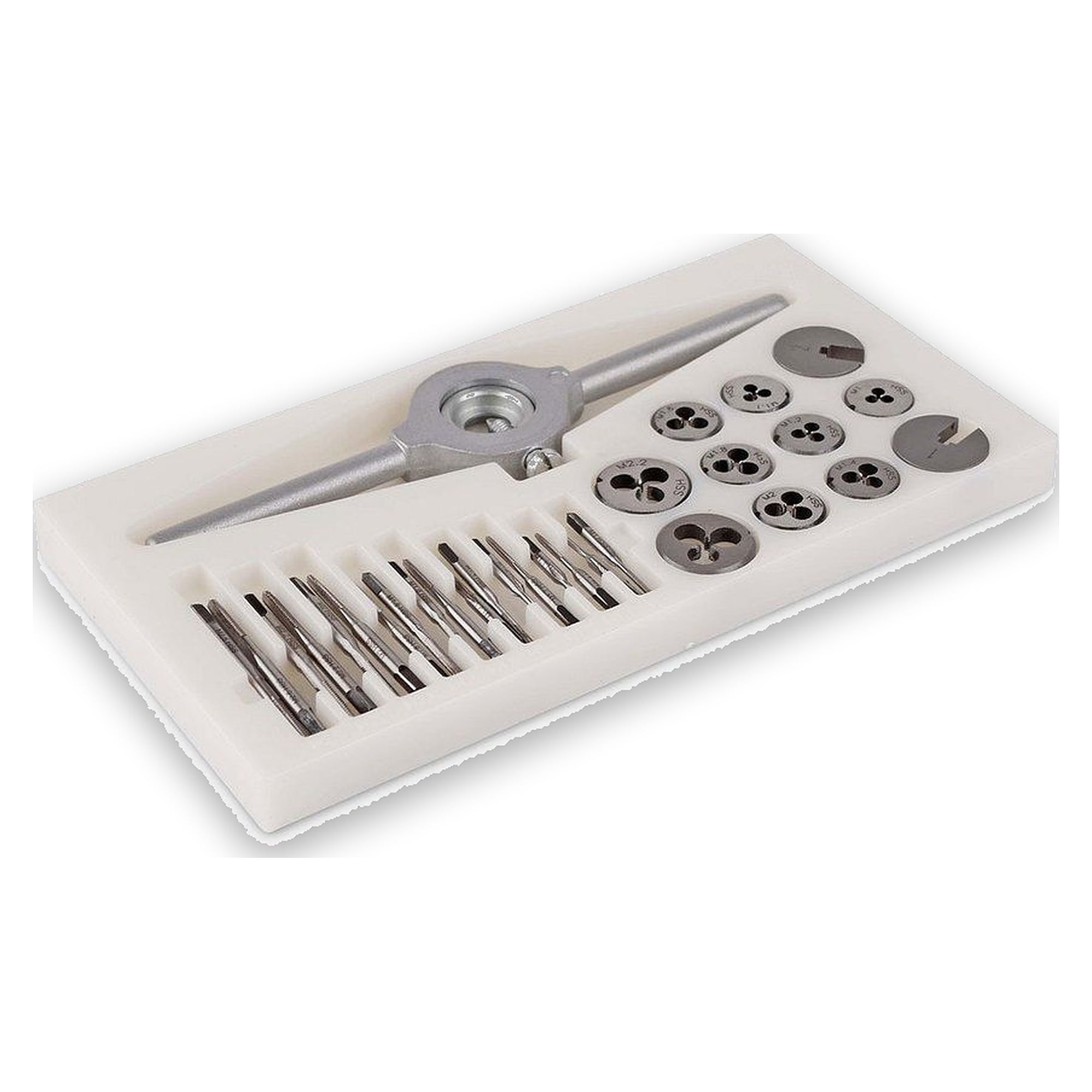

Miniature Tap and Die Set 30 Pieces M1.0 to M2.5 in HSS with Storage Box - Bernstein 2-800

For the smallest threads in precision mechanics, the miniature tap and die set 2-800 covers sizes from M1.0 to M2.5 with a pre-cutter and a finish cutter for each tap. The 18 taps and 9 dies in ground high-speed steel are suitable for unalloyed and low-alloy steels up to 800 N/mm² strength, malleable cast iron and non-ferrous metals.

Advantages

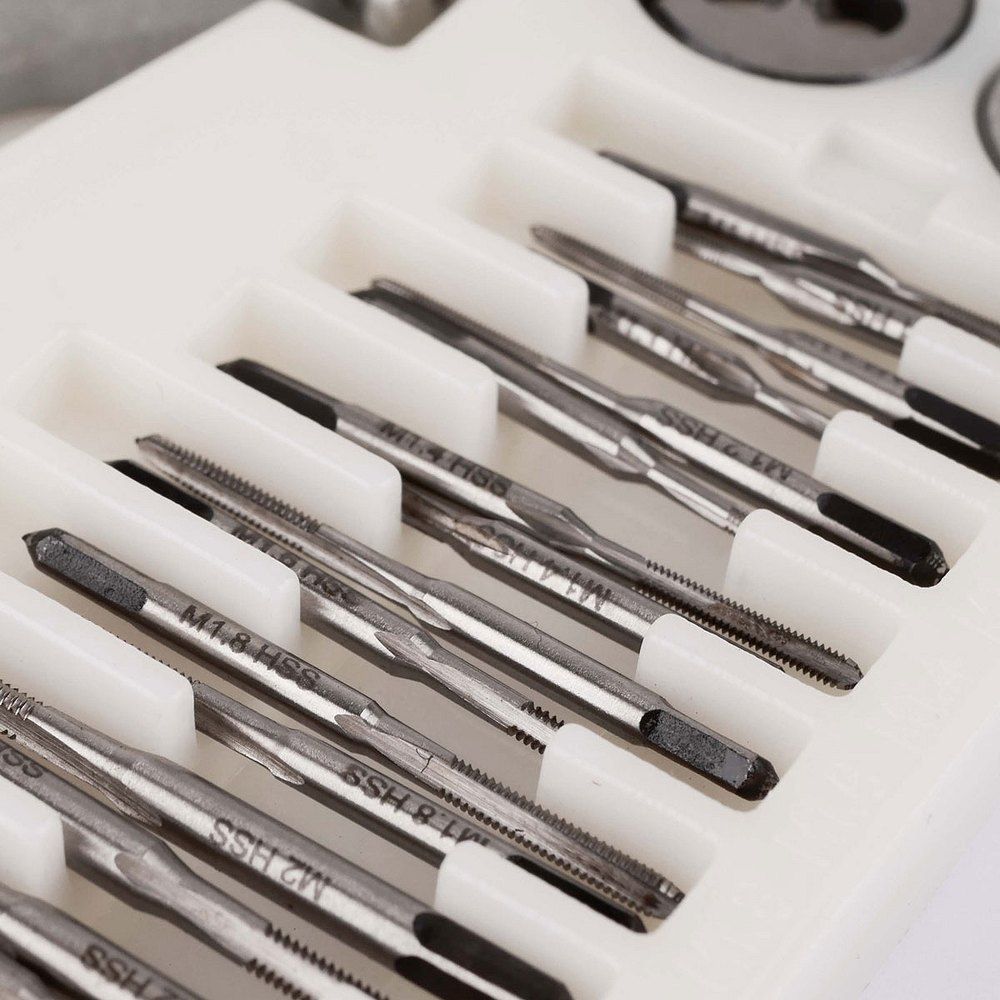

• 18 taps with a pre-cutter and a finish cutter each for clean threads from M1.0 to M2.5

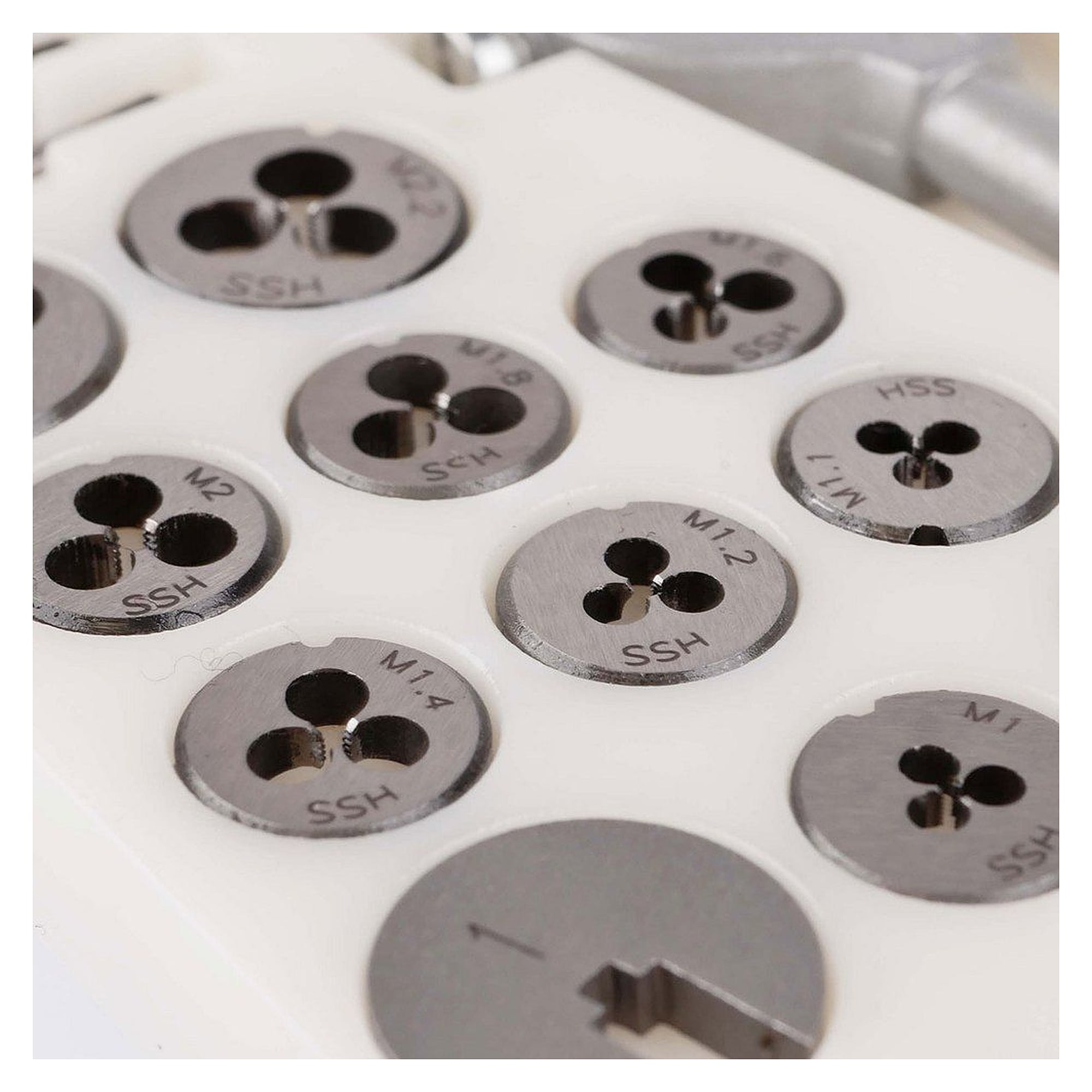

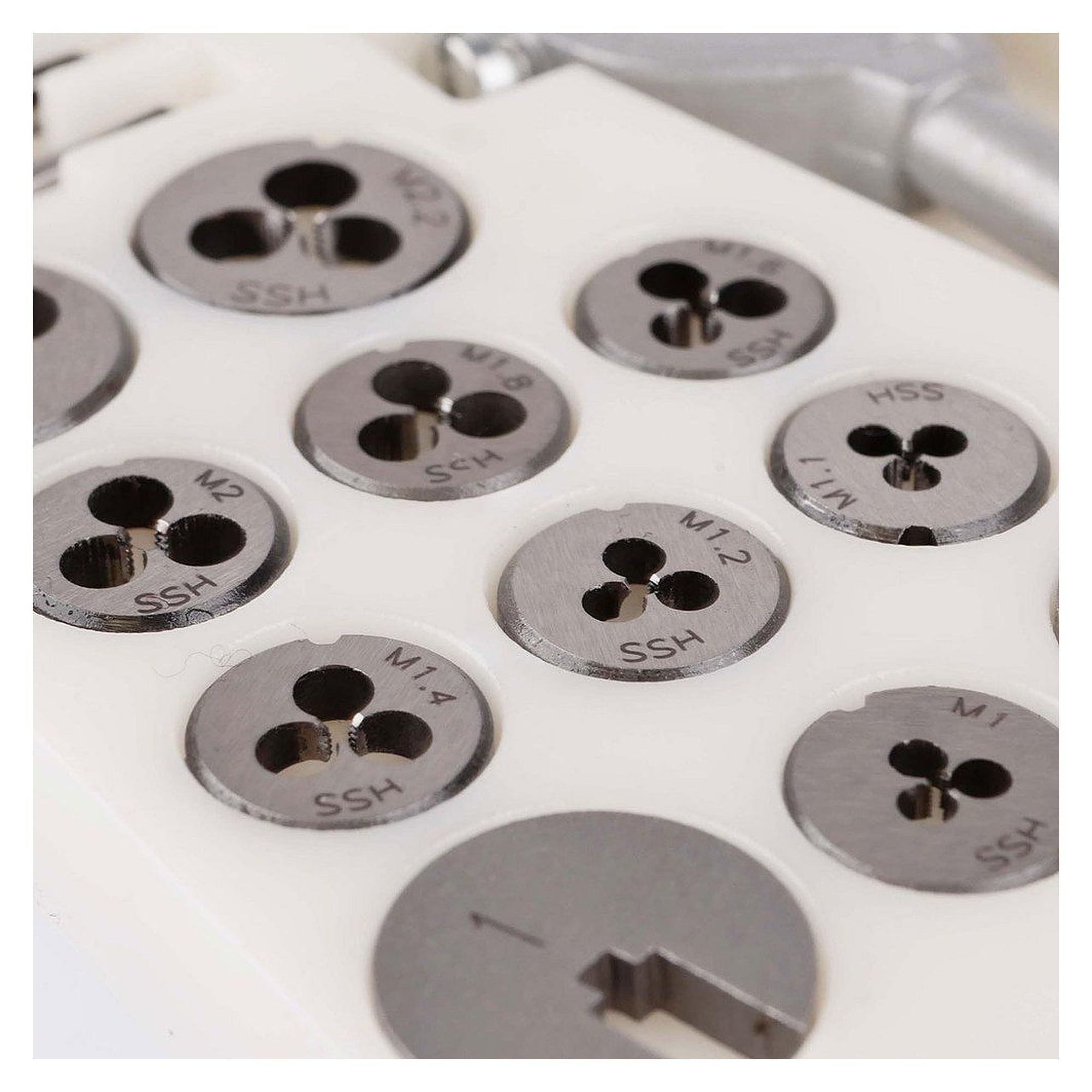

• 9 matching dies in the same sizes for external thread work
• Die holder with two reducing rings also clamps the taps securely
• Ground high-speed steel (HSS) rated for steels up to 800 N/mm², malleable cast iron and non-ferrous metals
• Practical storage box measuring 150 x 85 x 15 mm keeps the toolbox organized

Technical Data

Application

• Electronics production with very small components and correspondingly fine threads
• Watchmaking and model making, where standard taps are too large
• Machining unalloyed and low-alloy steels, malleable cast iron and non-ferrous metals up to 800 N/mm² strength

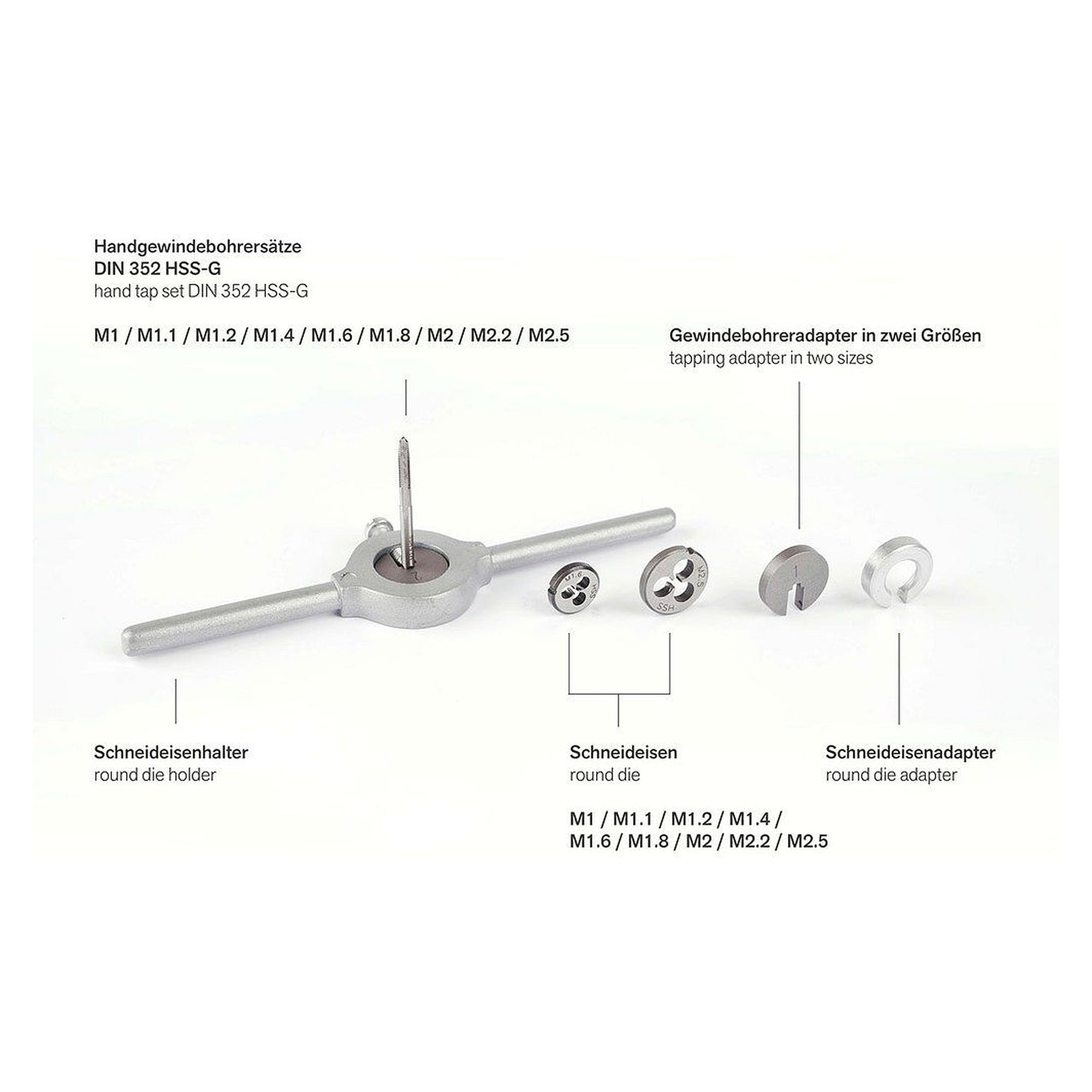

Scope of Delivery

• 2x each hand taps (HGB) M1.0 - 1.1 - 1.2 - 1.4 - 1.6 - 1.8 - 2.0 - 2.2 - 2.5
• 1x each dies M1.0 - 1.1 - 1.2 - 1.4 - 1.6 - 1.8 - 2.0 - 2.2 - 2.5
• 1x die holder
• 2x tap wrenches

Standards and Delivery Data

• EAN 4250838515504
• Customs tariff number 82051000
• Country of origin China
