This 5-piece ESD personal grounding set safely dissipates electrostatic charge from people and meets the safety requirements for wrist grounding according to BGFE. It comprises a 500 x 400 mm dissipative workplace pad with a surface resistance of 10^8 ohm, a wrist strap and a highly elastic spiral cable.
ESD Personal Grounding Set 5 pcs with Wrist Strap and 500x400 mm Table Mat - Bernstein 9-354
BERNSTEIN
Original product
Net price (excl. VAT)
€73.04
Item
BS-9-354
Manufacturer no.
9-354
IEC 61340-4-1
Konformitätserklärung
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.9-354
EAN4250838511698
Customs tariff number39269097
ConditionNew
Article
BS-9-354
Frequently Bought Together
-
This Item:
€73.04
-
ESD Screwdriver Bit Set 47 pcs for Smartphone, Tablet and PC Repair - Bernstein 4-910
€62.82
-
ESD Tool Holder VARIO tronics for Pliers and Tweezers, Dissipative - Bernstein 5-090-0
€23.06
Total price
People working at electrostatically protected workplaces must be able to safely dissipate their own body charge. This 5-piece set combines a dissipative workplace pad with 10^8 ohm surface resistance, a wrist strap and matching grounding accessories.
Advantages
- foldable workplace pad 500 x 400 x 0.5 mm, dissipative at 10^8 ohm
- adjustable wrist strap with silver-plated synthetic fibres, allergy-free
- meets the requirements for wrist grounding according to BGFE
- highly elastic spiral cable 2.4 m for a large range of movement
- grounding cable with 2 press buttons for connection to a grounding plug
Technical Data
| Feature | Value |
|---|---|
| Content | see parts list |
| Workplace pad | foldable, 500 x 400 x 0.5 mm |
| Color / dissipation mat | black, 10^8 ohm to DIN IEC 61340-4-1 |

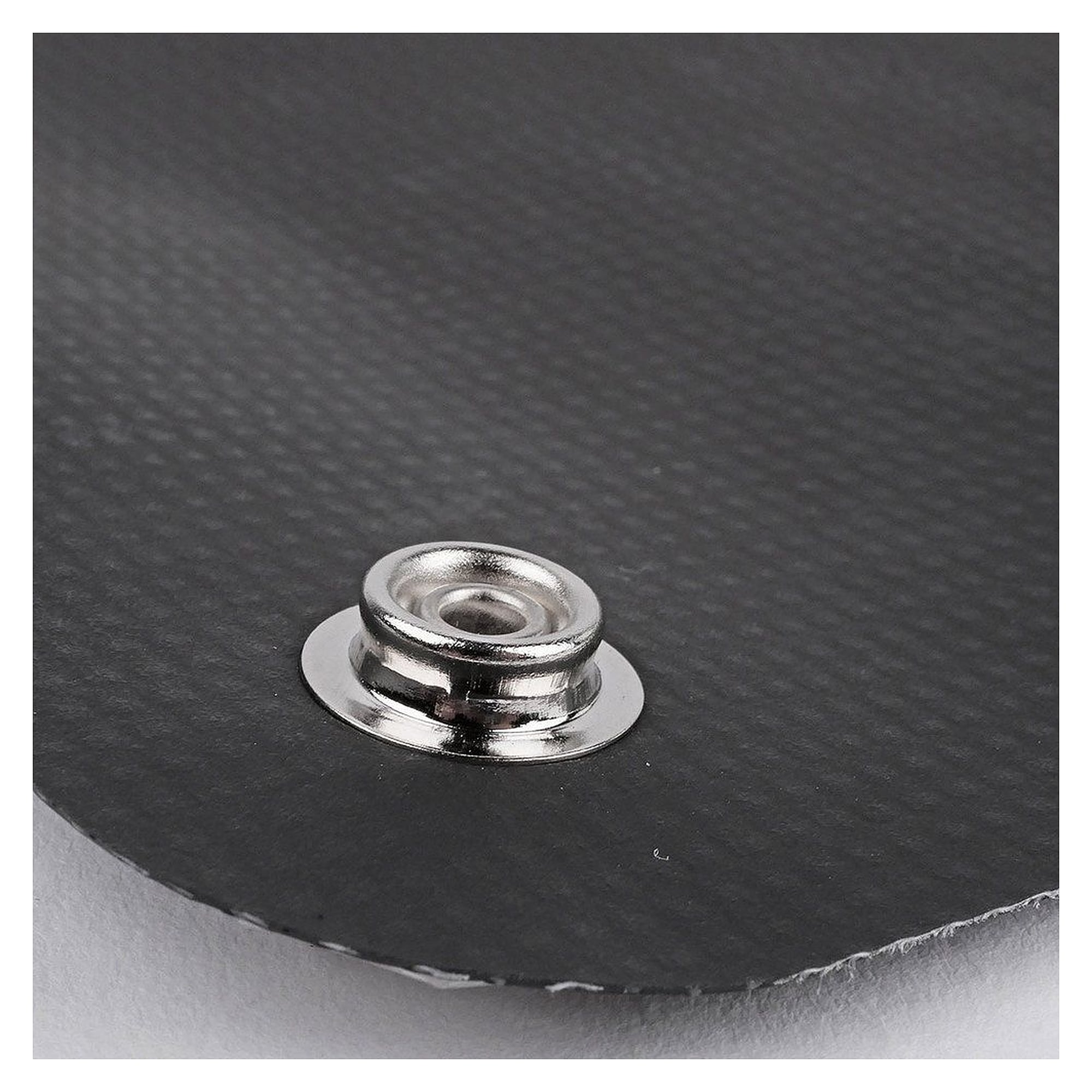

| Mat connection | 2x 10 mm press buttons |
| Wrist strap | adjustable, silver-plated fibres, allergy-free |
| Safety standard | BGFE wrist grounding |
| Spiral cable | 2.4 m, highly elastic |
| Grounding cable | 1.5 m with 2 press buttons |
| Grounding cable connection | to grounding plug |
| Weight | 160 g |
Application
Wrist grounding as a safe method to dissipate electrostatic charge from people. The wristband ensures close skin contact, the spiral cable connects it electrically to the earthing point, approved up to 250 VAC. Store dry only, machine wash up to 30 degrees Celsius with mild detergent, ESD protection is retained for about 30 wash cycles.

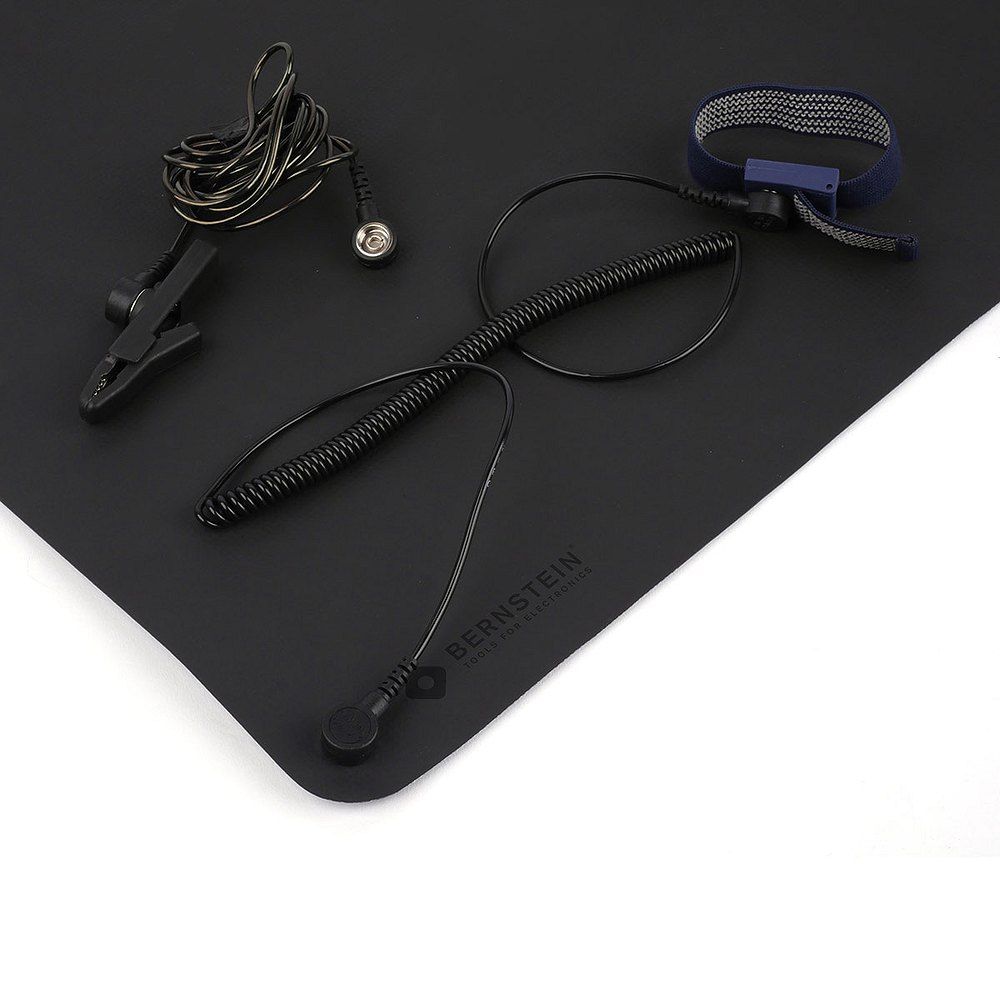

Scope of Delivery
- 9-354-100 ESD table mat 500x400x0.5 mm

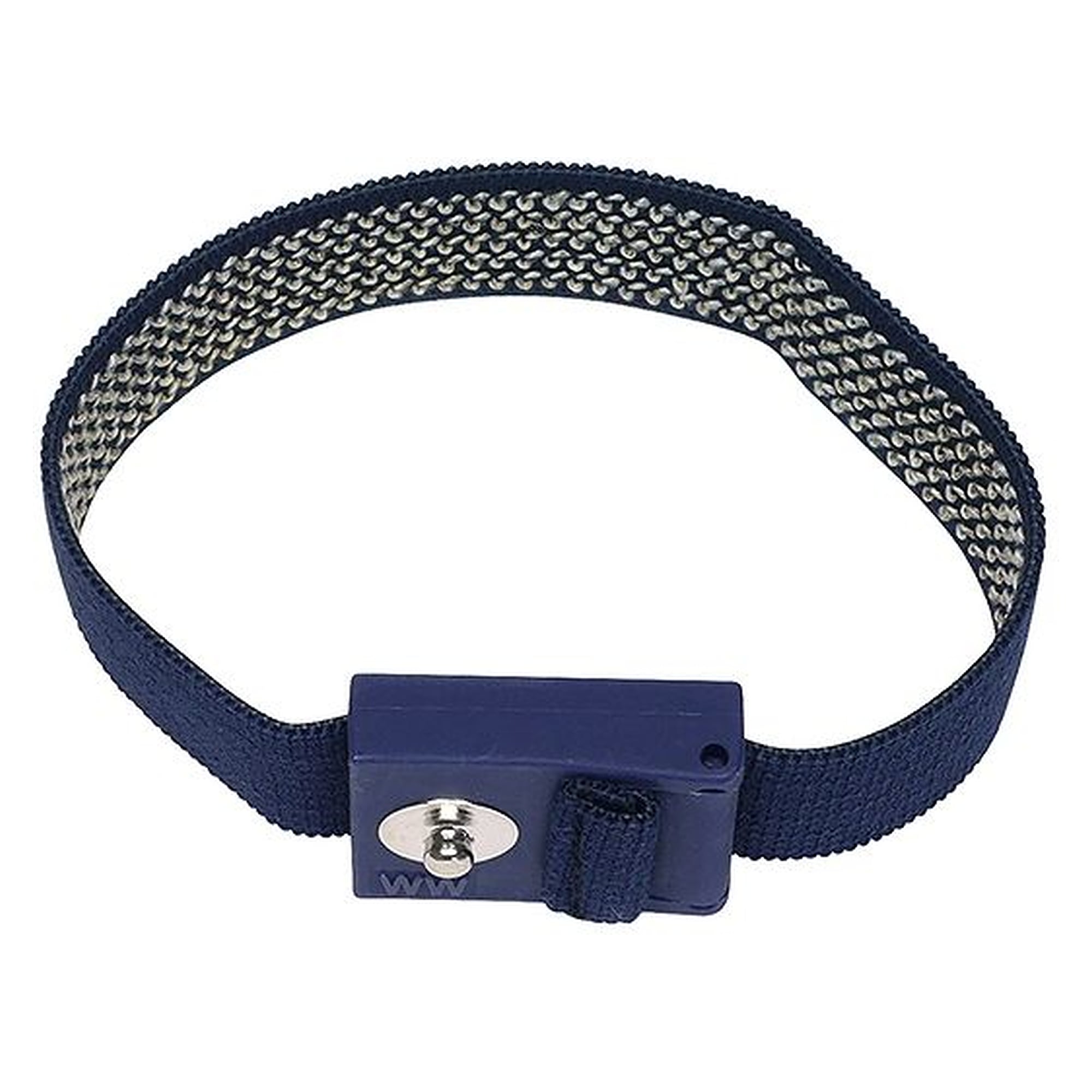

- 9-342-1 ESD contact bracelet blue
- 9-342-2 ESD spiral cord for bracelet, 70 to 200 cm

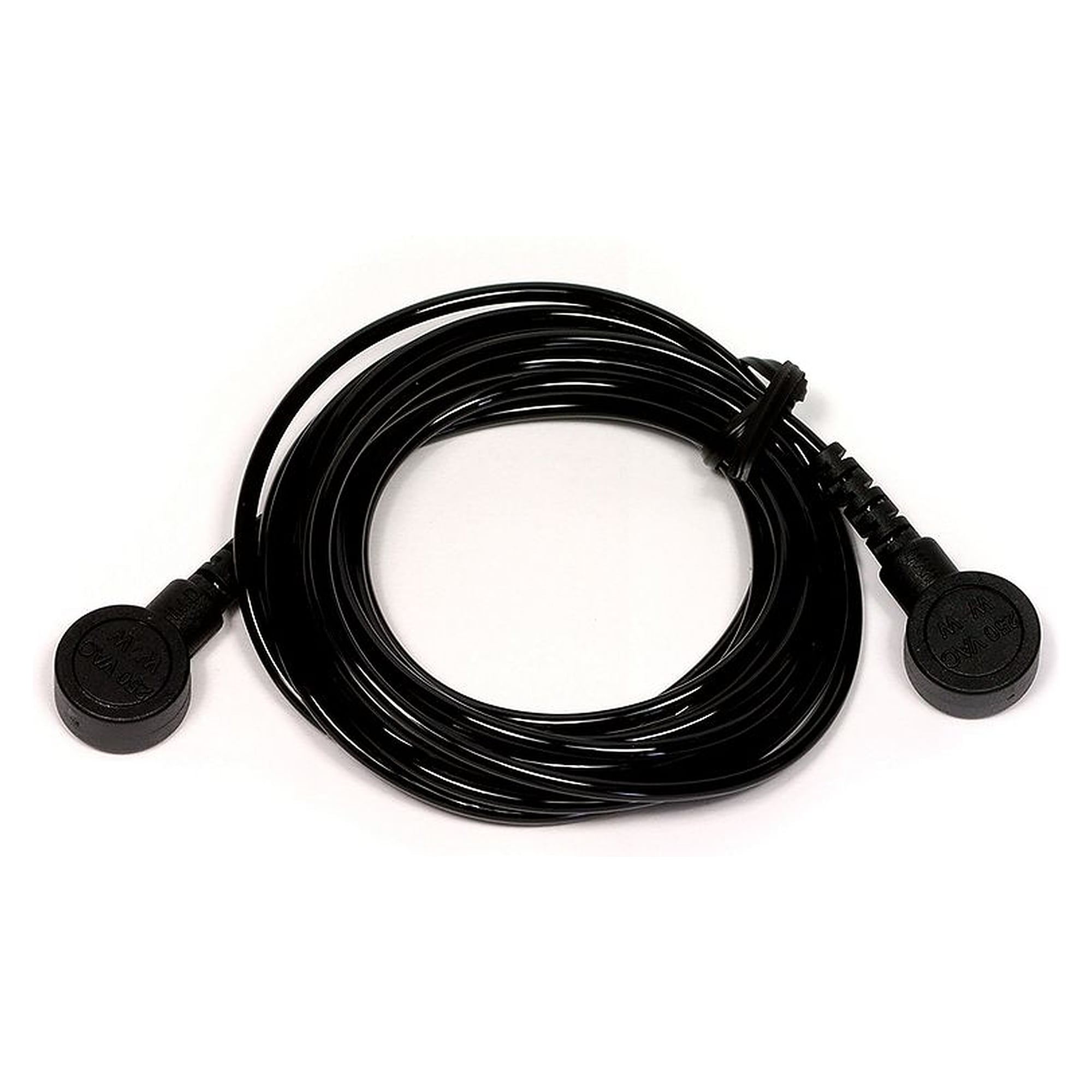

- 9-343-1 ESD grounding cable 1 MOhm, 1800 mm, 2 press buttons 10/10 mm

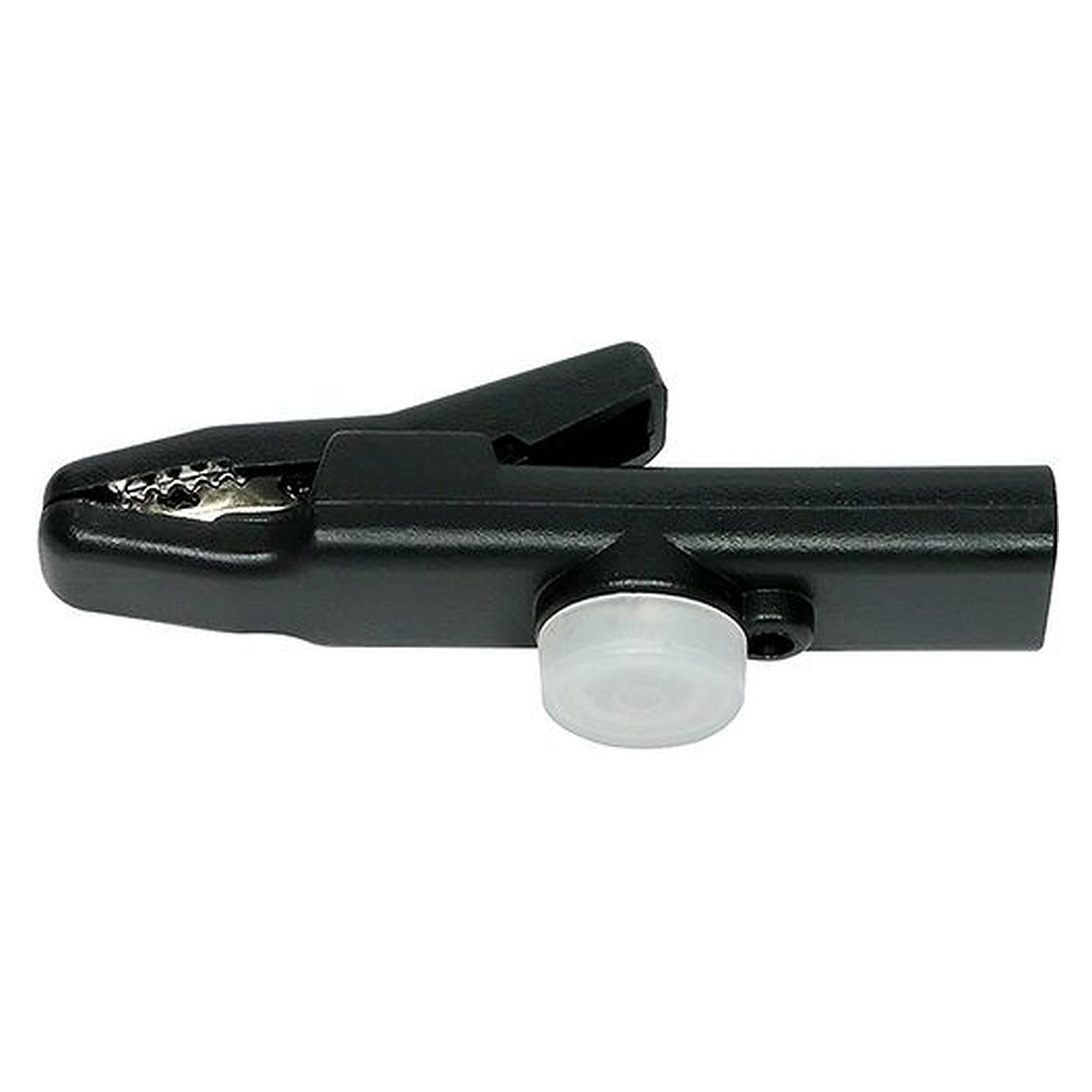

- 9-353 ESD crocodile clip
Standards and Delivery Data
- DIN IEC 61340-4-1, DIN 54345-1, DIN 53482 mat
- DIN EN 1876-1 cold resistance, NFP 92507 class M2 flame behavior
- BGFE wrist grounding
- EAN 4250838511698
- Customs tariff number 39269097
- Country of origin Taiwan
| Norm | DIN 53482, DIN 54345-1, DIN EN 1876-1 |
|---|---|
| Certification | IEC 61340-4-1 |
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 9-354 |
| Manufacturer | Bernstein |
| EAN | 4250838511698 |
| Weight | 0.160000 |
| Height | 3 |
| Lenght | 3 |
| HS-Code | 39269097 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
