This zirconium oxide ceramic trimmer blade adjusts spindle resistors and potentiometers via a PH000 Phillips profile without slipping. It is 32 mm long, antimagnetic, and weighs just 1 g, suited for ESD-protected areas of electronics manufacturing.

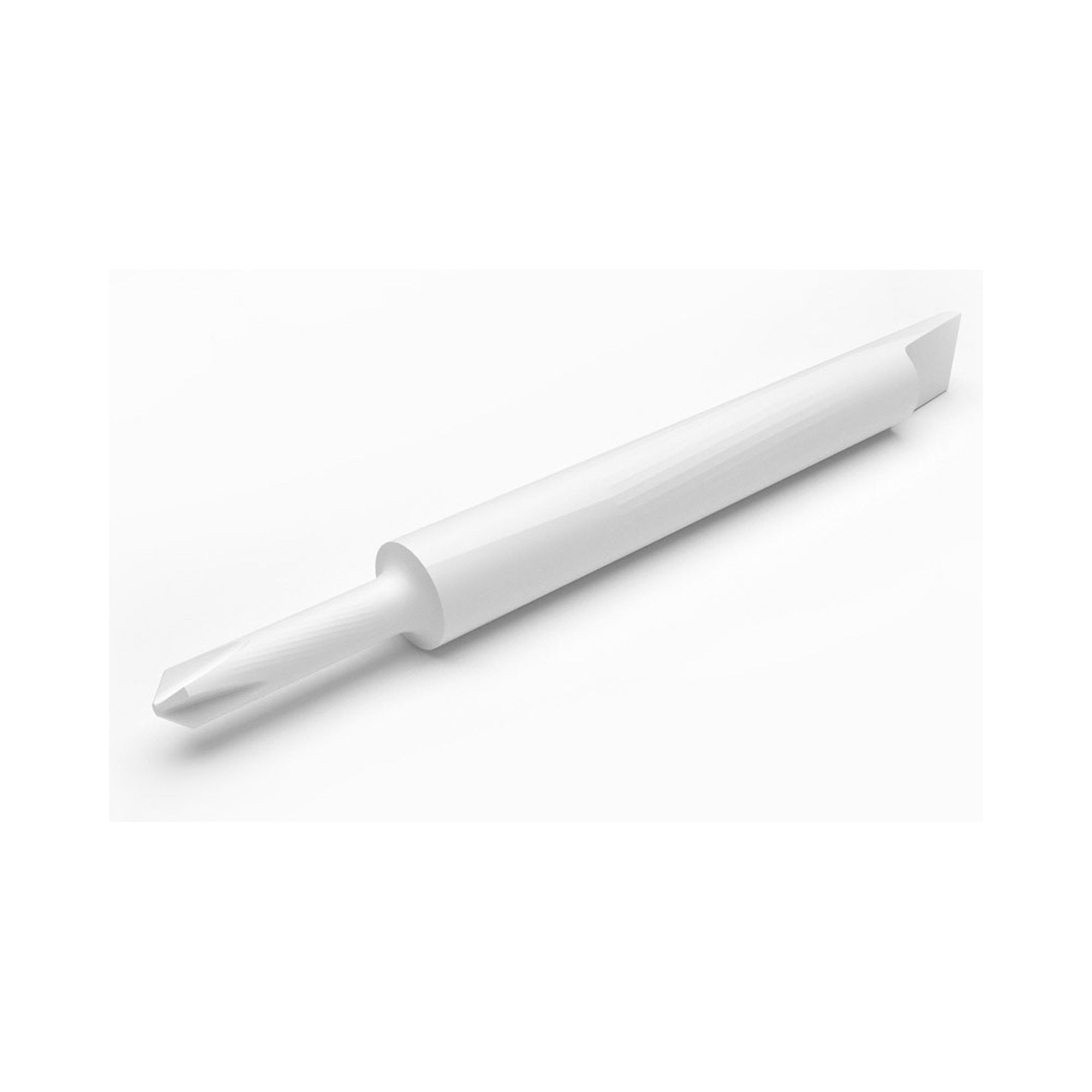

Ceramic Trimmer Blade Phillips PH000 for Potentiometers - Bernstein 1-764
BERNSTEIN Original product
Net price (excl. VAT)
€16.64
Item BS-1-764
Manufacturer no. 1-764
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.1-764
EAN4250838501095
Customs tariff number69091900
ConditionNew
Article
BS-1-764
Frequently Bought Together
PH000 Phillips-drive trimmer potentiometers need a precisely matching tip so the recess does not wear out during adjustment. The Bernstein 1-764 trimmer blade, made of zirconium oxide ceramic with a PH000 profile, seats centered and slip-free.
Advantages
- zirconium oxide ceramic with a flexural strength of 800 N/mm² for low-wear continuous use
- fully antimagnetic, does not affect coil properties during adjustment
- PH000 cross-recess profile for a centered, slip-free grip in the trimmer
- light weight of 1 g reduces stress on the trimmer shaft
- electrically insulating material protects sensitive circuits
Technical Data
| Feature | Value |
|---|---|
| Purpose | Adjusting spindle resistors and potentiometers |
| Blade shape | Cross-recess |
| Blade length | 32 mm |
| Blade diameter | 3 mm |
| Blade size | PH 000 |
| Material | zirconium oxide, technical ceramic |
| Property | antimagnetic |
| Overall length | 32 mm |
| Weight | 1 g |
Application
- fine adjustment of Phillips-head spindle trimmers after PCB assembly
- service and readjustment of electrical equipment when components drift with age
- use in ESD-protected areas of electronics production
Standards and Shipping Data
- EAN 4250838501095
- Customs tariff number 69091900
- Country of origin Germany
| Manufacturer Nr. | 1-764 |
|---|---|
| Manufacturer | Bernstein |
| EAN | 4250838501095 |
| Weight | 0.001000 |
| HS-Code | 69091900 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
