ESD Ball Joint Vise SPANNFIX for Screwing On, Dissipative - Bernstein 9-215-ESD
The ESD ball joint vise SPANNFIX bolts onto the workbench through four 9 mm holes and holds with 1470 N clamping force at a 70 mm clamping width. The dissipative ESD powder coating (10^7 to 10^8 ohm) and ESD plastic jaws make it suitable for electrostatically protected areas.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

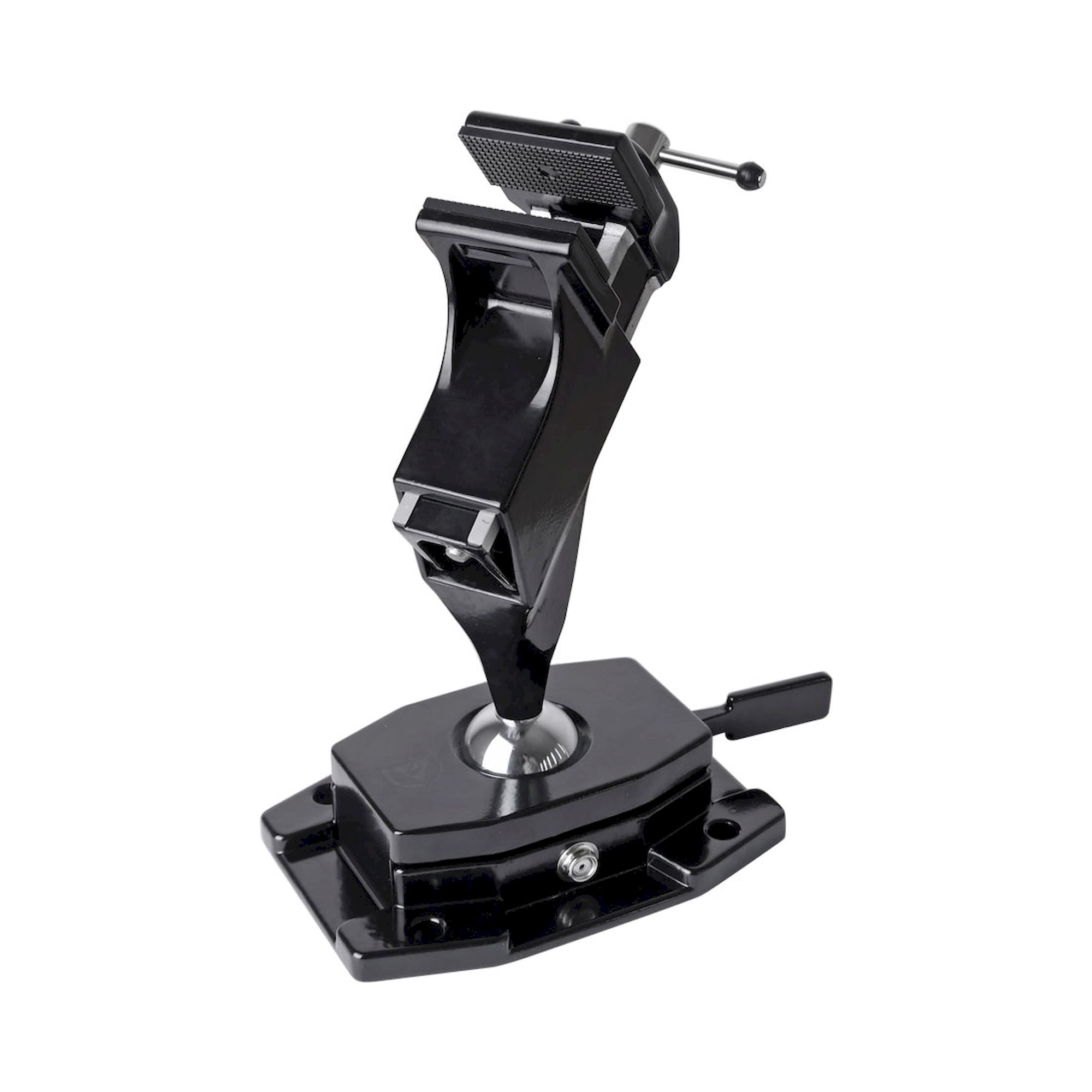

Permanently fitted ESD workstations need a vise that is both firmly mounted and dissipative. The ESD ball joint vise SPANNFIX bolts onto the workbench through four 9 mm holes and holds with 1470 N clamping force at a 70 mm clamping width.
Advantages
- 360° rotatable, steplessly lockable ball head for free adjustment of the working height
- Tilt angle of ± 45° for work in front of or above the table
- Dissipative black ESD powder coating at 10^7 to 10^8 ohm for EPA-suitable workstations

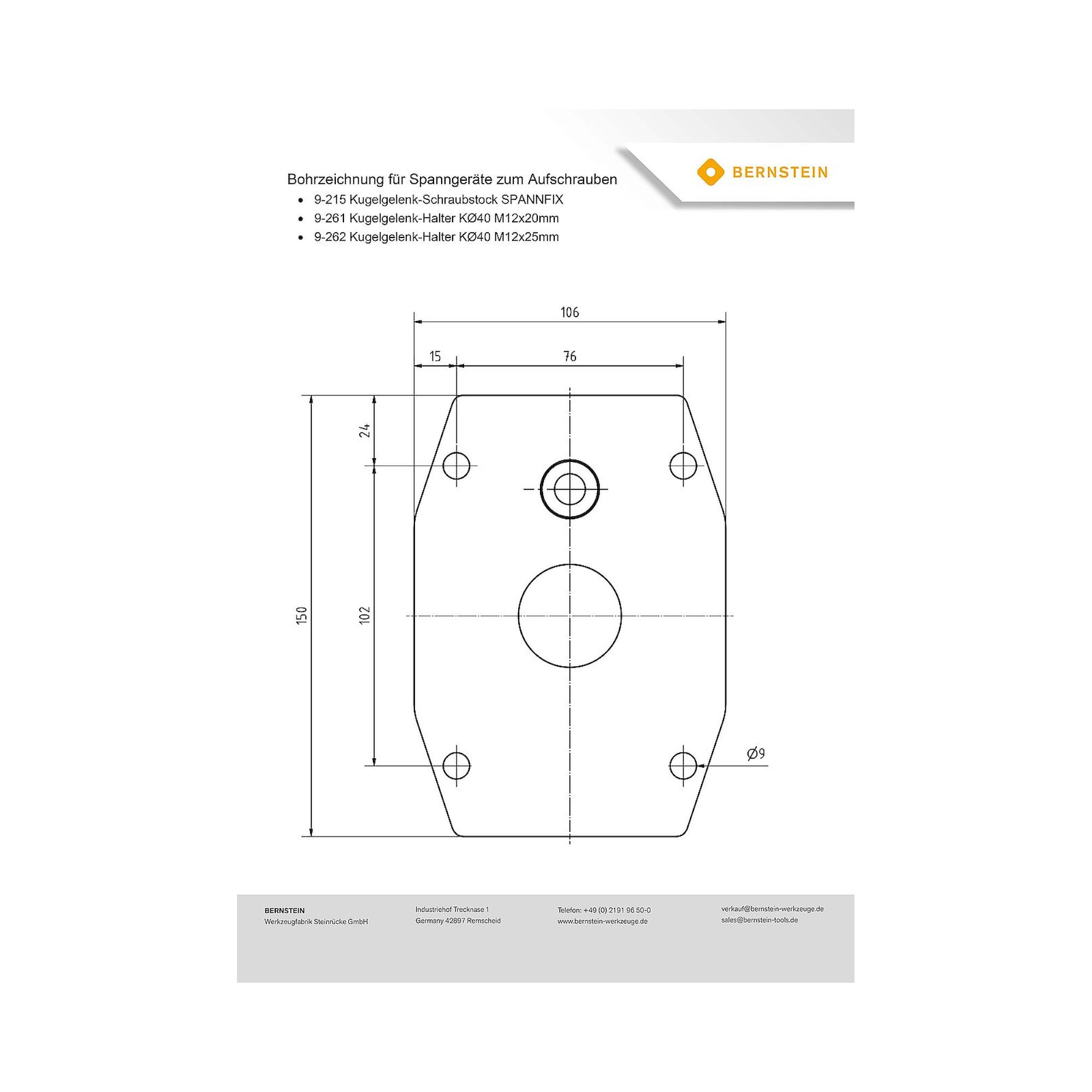

- Solid screw-on mounting via a 150 x 106 mm base plate with four 9 mm holes
- 50 mm ESD plastic jaws with grip, spare jaws 9-900-E50-ESD available in pairs
Application

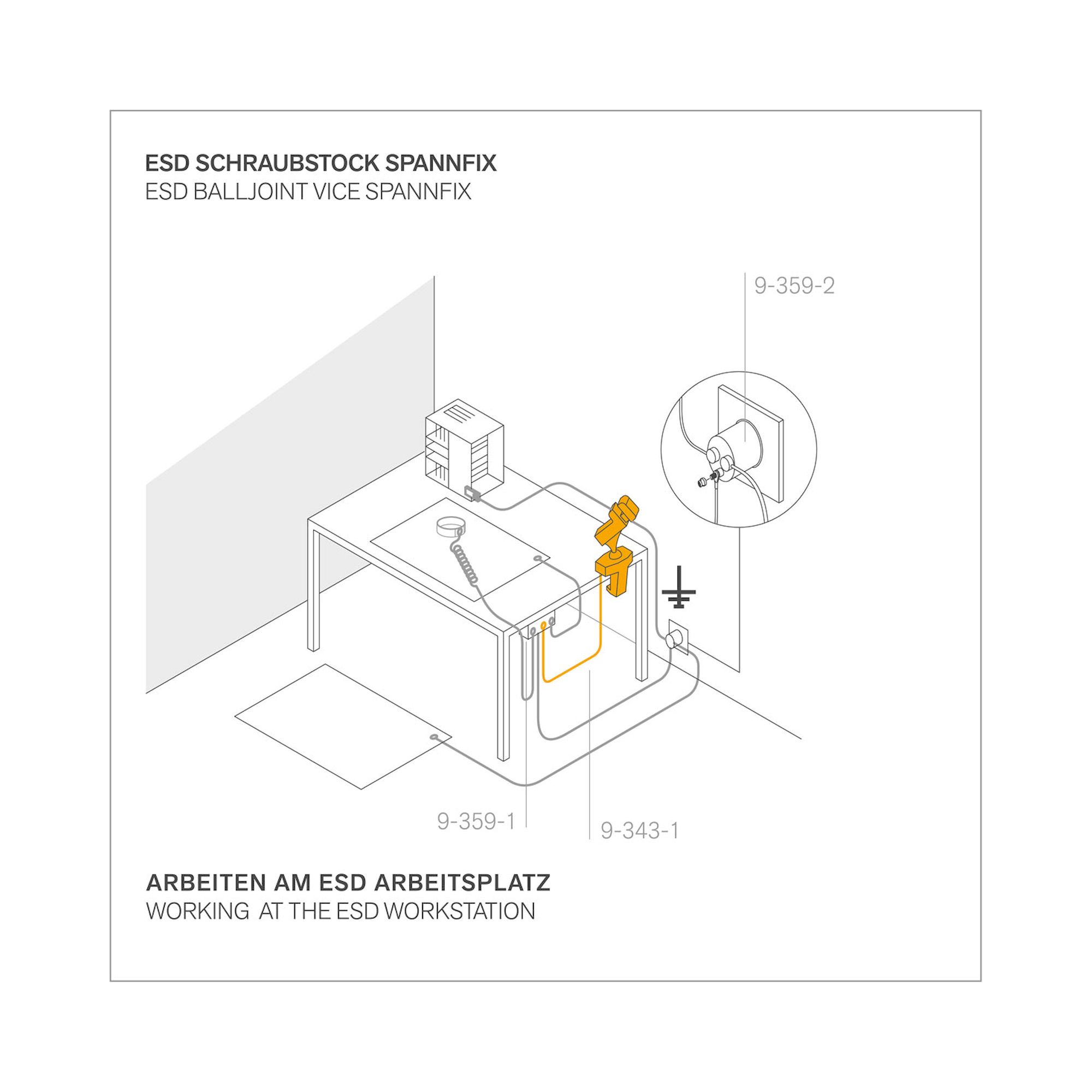

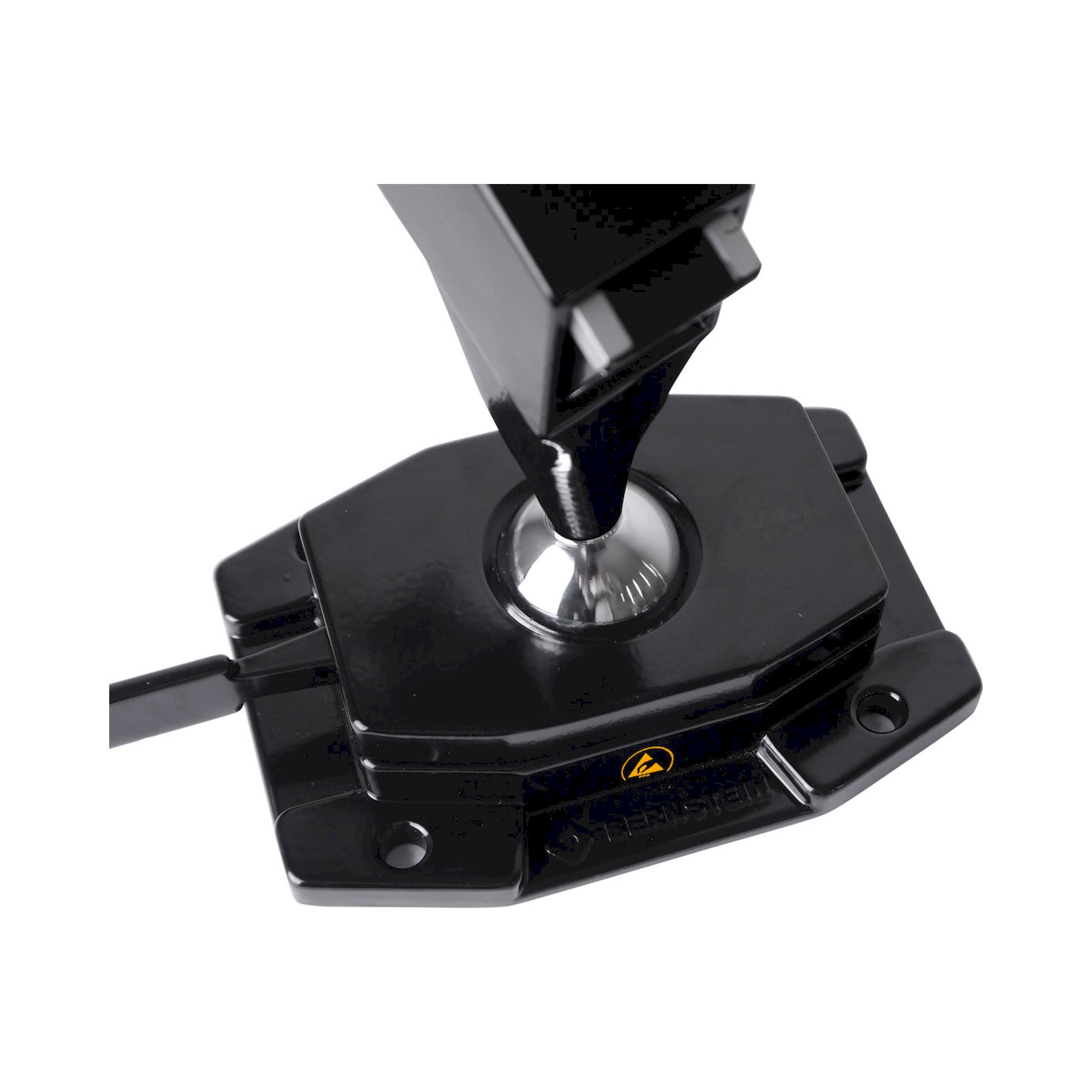

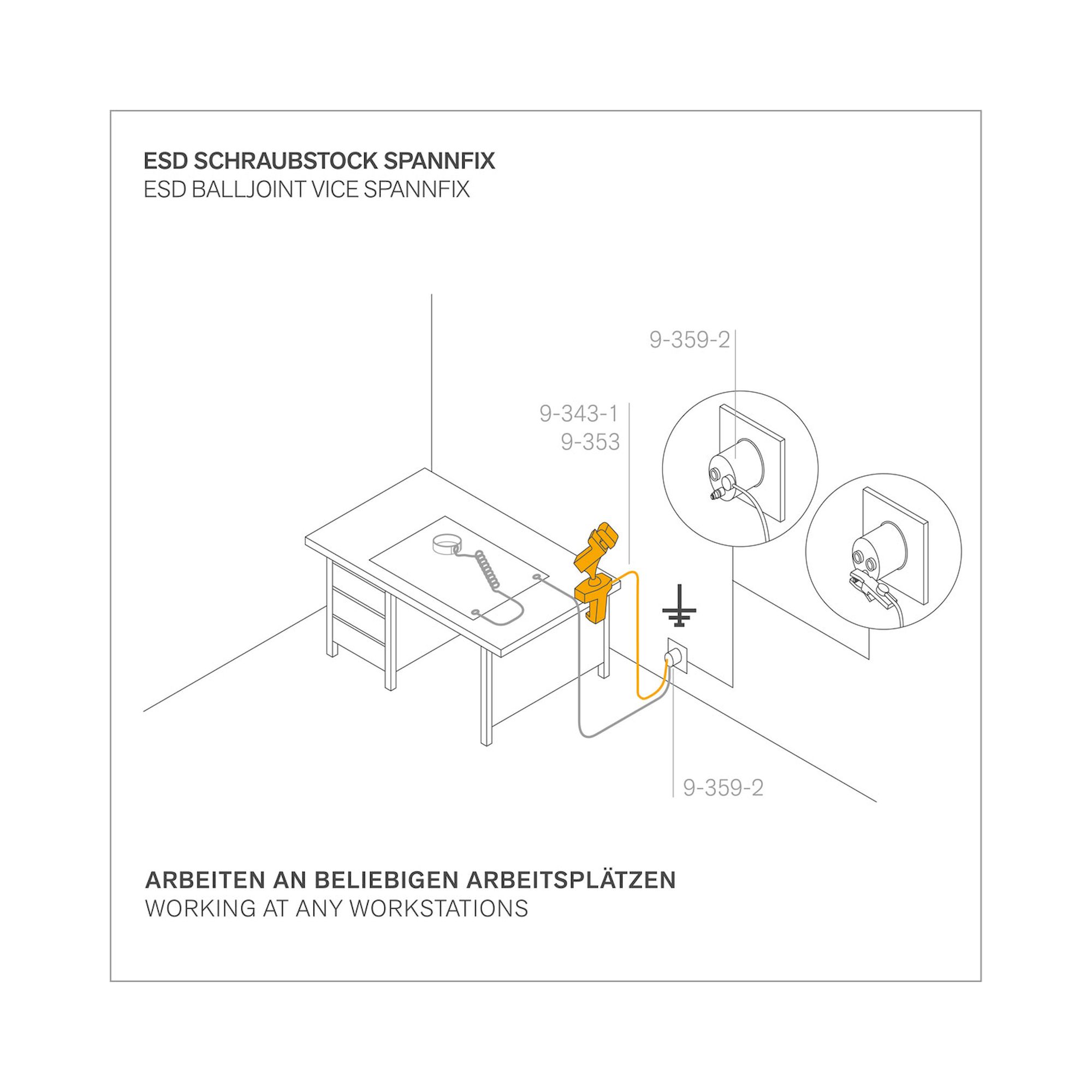

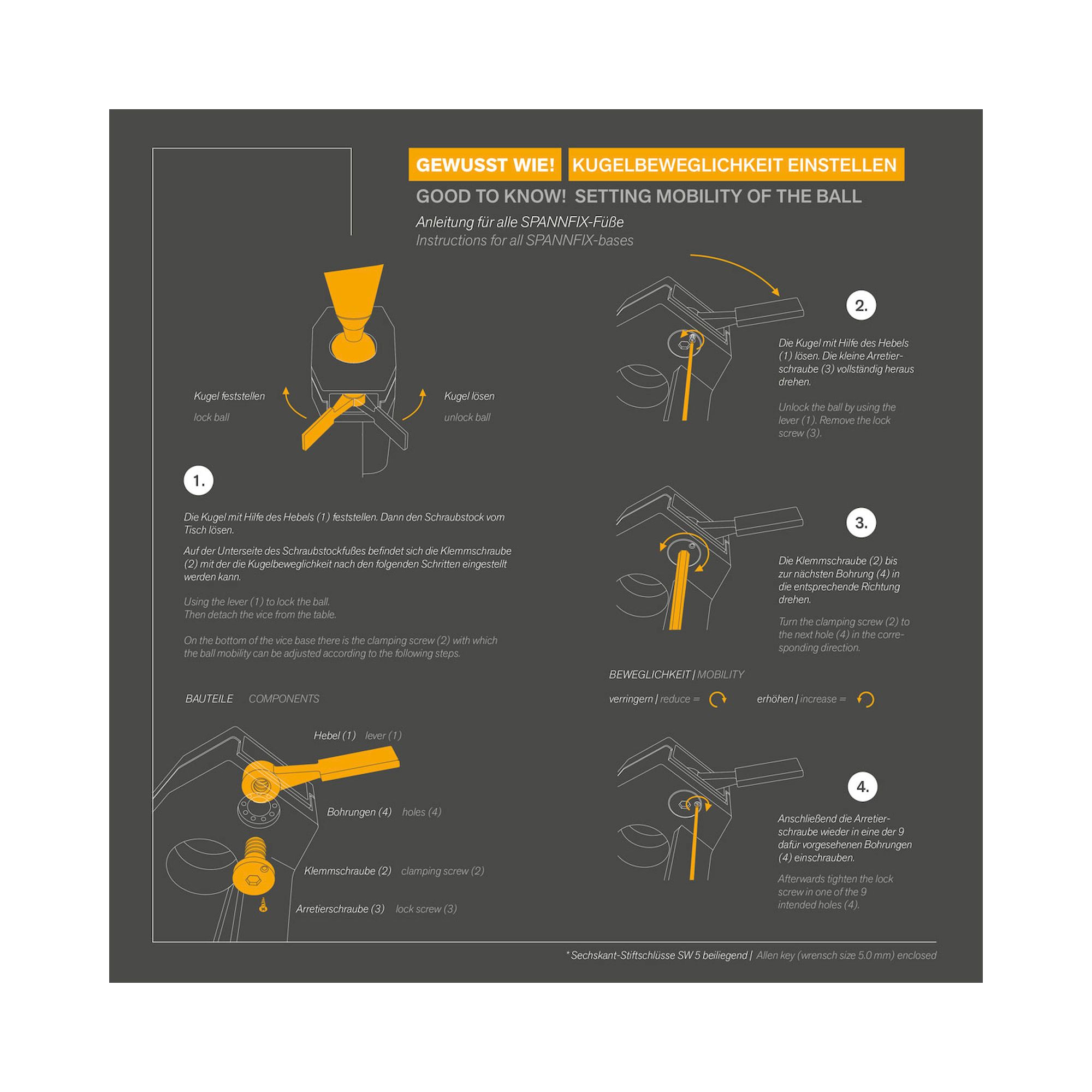

Suitable for drilling, sawing, grinding, milling and cutting while standing at ESD workstations and ESD protected areas. The base plate connects to the grounding point via a 10 mm push button, and an adjusting screw at the lower ball seat sets the movement from loose to very firm.
Standards and Delivery Data
- EPA suitable for electrostatically protected areas
- EAN 4250838529334
- Customs tariff number 82057000
- Country of origin Germany
Technical data
| Feature | Value |
|---|---|
| Ball joint | Rotatable 360°, steplessly lockable quick release, Made in Germany |
| Mounting | Screw-on, base plate 150 x 106 mm, 4 through-holes x 9 mm |
| Jaws | 50 mm ESD plastic jaws with grip |
| Clamping width | 70 mm |
| Clamping depth | 38 mm |
| Clamping force | 1470 N |
| Tilt angle | ± 45° |
| Accessories | Spare jaws Art. 9-900-E50-ESD (pair) |
| Material | Cast aluminum with black ESD powder coating, dissipative 10^7 to 10^8 ohm |
| Dimensions | approx. 220 x 180 x 115 mm |
| Weight | 1310 g |
| Maximum torque | ball dia. 40 mm approx. 24 Nm, ball dia. 60 mm approx. 100 Nm |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-215-ESD |
| EAN | 4250838529334 |
| HS-Code | 82057000 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
