Bernstein 9-253-ESD. ESD circuit board holder for screwing on (M12x1.5)

Images are examples, some edited with AI. The technical data are authoritative. AI notice

ESD Circuit Board Holder Adjustable 25 to 270 mm, Dissipative, for M12x1.5 - Bernstein 9-253-ESD

Name: ESD Circuit Board Holder Adjustable 25 to 270 mm, Dissipative, for M12x1.5 - Bernstein 9-253-ESD
Brand: Bernstein
SKU: BS-9-253-ESD
Price: 86.29 EUR
Availability: InStock

Bernstein ✓ Original product Brand new Made in Deutschland

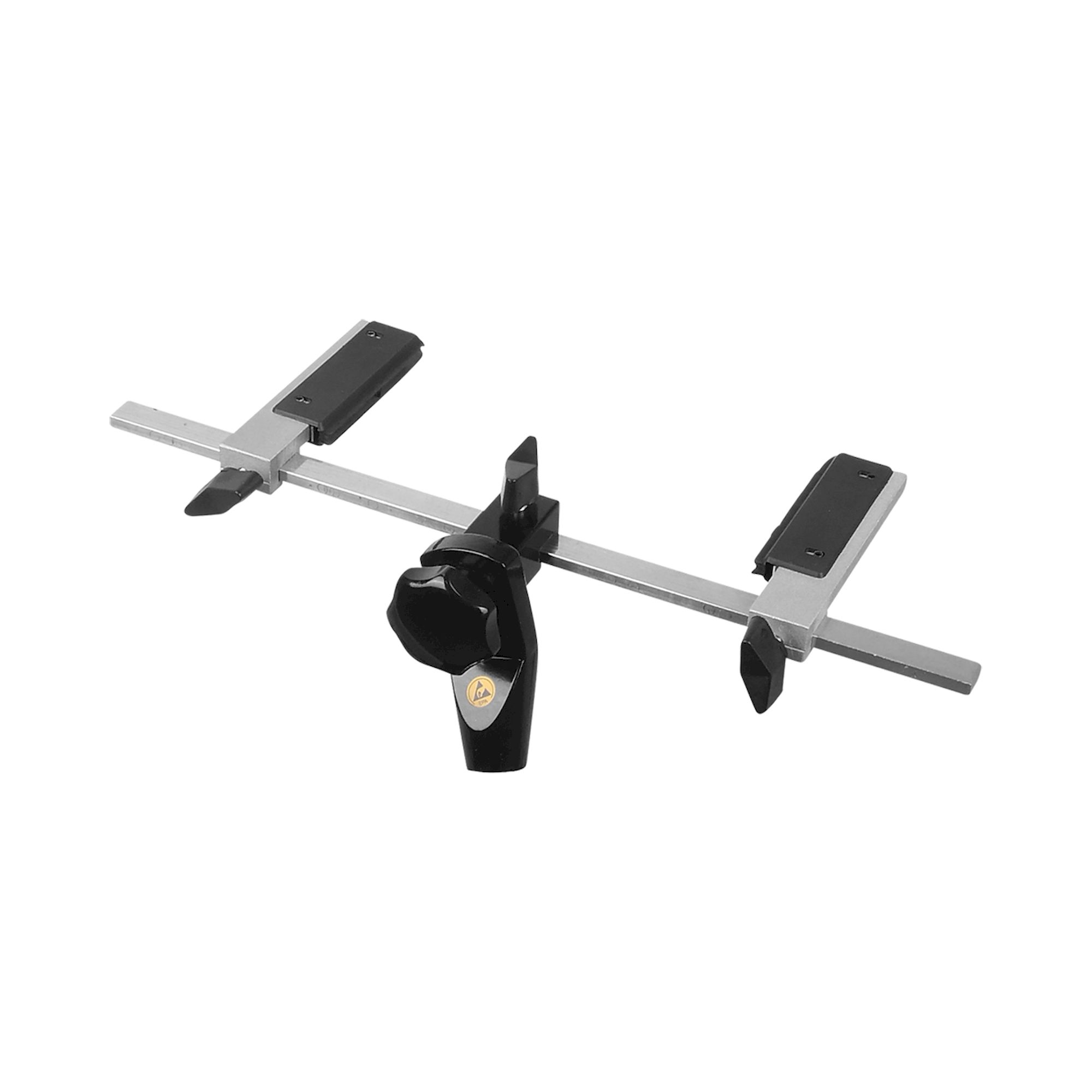

The ESD circuit board holder 9-253-ESD secures PCBs in a stable assembly frame with adjustable, rotatable, spring-loaded holders, adjustable from 25 to 270 mm. The black ESD powder coating with 10^7 to 10^8 ohm resistance is suitable for electrostatic protected areas.

Net

€86.29

excl. VAT

Item BS-9-253-ESD

Manufacturer no. 9-253-ESD

Question about this item

Datasheet (PDF) 23 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

Assembling complex circuit boards requires the PCB to be held securely and without pressure marks. The ESD circuit board holder 9-253-ESD clamps boards in a stable assembly frame with adjustable, rotatable, spring-loaded holders and adjusts from 25 to 270 mm.

Benefits

Adjustable and rotatable holders adapt to different board sizes, adjustable 25 to 270 mm.
Spring-loaded PCB holders protect sensitive components and solder joints during clamping.
Black ESD powder coating with a resistance of 10^7 to 10^8 ohm for EPA areas.
Precision ball joint rotatable 360 degrees with steplessly lockable quick release.
Combination of steel, plastic, and cast aluminum provides a stable, lightweight build.

Application

Clamping and holding printed circuit boards during assembly.
Securing complex assemblies for soldering and testing at the ESD workstation.
Combination with ball-joint holder 9-251-ESD and adapter 9-255-ESD.

Standards and Delivery Data

EAN 4250838511384
Customs tariff number 82057000
Country of origin Germany

Technical data

Feature	Value
Connection thread	M12 x 1.5 mm
Suitable for	9-251-ESD in connection with 9-255-ESD
Adjustment range	25 mm to 270 mm
Holders	Adjustable and rotatable, spring-loaded
Materials	Steel, plastic, cast aluminum with black ESD powder coating
Dissipative resistance	10^7 to 10^8 ohm
Overall dimensions	approx. 310 x 120 x 30 mm
Weight	280 g
Manufacturer	Bernstein
Manufacturer Nr.	9-253-ESD
EAN	4250838511384
HS-Code	82057000
GPSR manufacturer information	BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de
Condition of article	New
Article authenticity	Original product
ESD version	ESD (antistatic)
