The ESD grounding mat 9-360-0 protects tables, shelves or floors with a solder-resistant surface at a resistance of 10^6 to 10^7 ohm, measuring 900 x 610 x 1.5 mm. Two 10 mm press buttons connect it to the grounding point, with 9-359-1 or 9-359-2 as recommended connections.
ESD Grounding Mat Black for Table, Shelf and Floor, 900 x 610 x 1.5 mm - Bernstein 9-360-0
BERNSTEIN Original product
Net price (excl. VAT)
€60.64
Item BS-9-360-0
Manufacturer no. 9-360-0
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.9-360-0
EAN4250838528863
Customs tariff number40082190
ConditionNew
Article
BS-9-360-0
Frequently Bought Together
The ESD grounding mat 9-360-0 creates a solder-resistant, electrostatically conductive pad for tables, shelves or floors and dissipates charge in a controlled way through its defined resistance.
Advantages
- Resistance 10^6 to 10^7 ohm, back side conductive at 10^3 to 10^4 ohm
- Solder-resistant, heat-resistant and abrasion-resistant surface, halogen-free
- Wear-resistant and permanently elastic for daily workshop use
- Large 900 x 610 x 1.5 mm area suitable for table, shelf or floor
- Two 10 mm press buttons for direct ground connection
Technical Data
| Feature | Value |
|---|---|
| Application | Suitable for table, shelf or floor |
| Resistance | 10^6 to 10^7 ohm (back side 10^3 to 10^4 ohm) |
| Material | Top and back side black electrostatically conductive synthetic rubber |
| Connection | 2 press buttons 10 mm for ground connection |
| Properties | Solder-resistant, heat-resistant, abrasion-resistant, halogen-free, wear-resistant, permanently elastic |
| Abrasion | 130 mm³ at 5 N load |
| Hardness | 80 Shore A |
| Impression test | 0.1 mm |
| Temperature range | Up to +60 °C |
| Dimensions | 900 x 610 x 1.5 mm |
| Weight | 1000 g |
Application

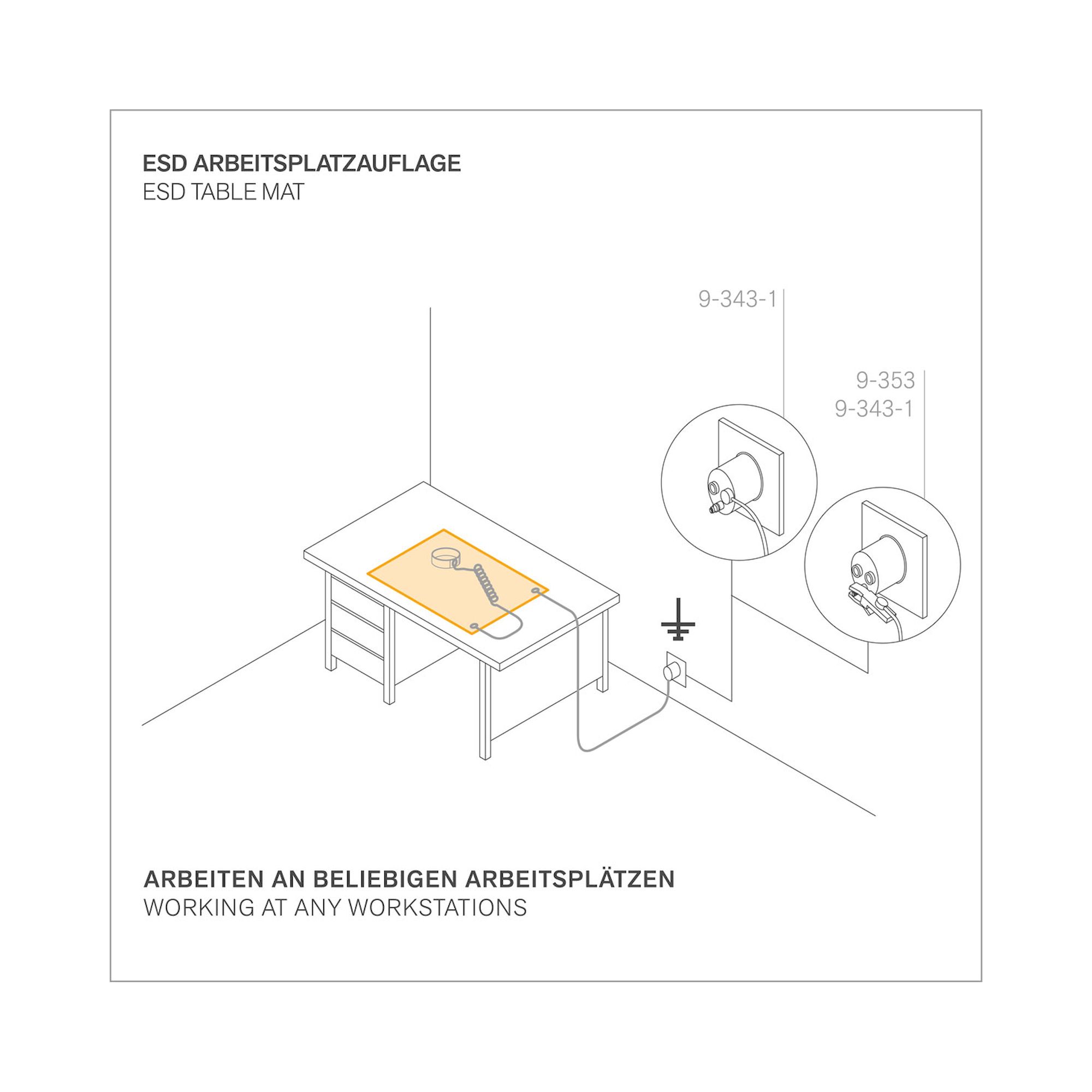

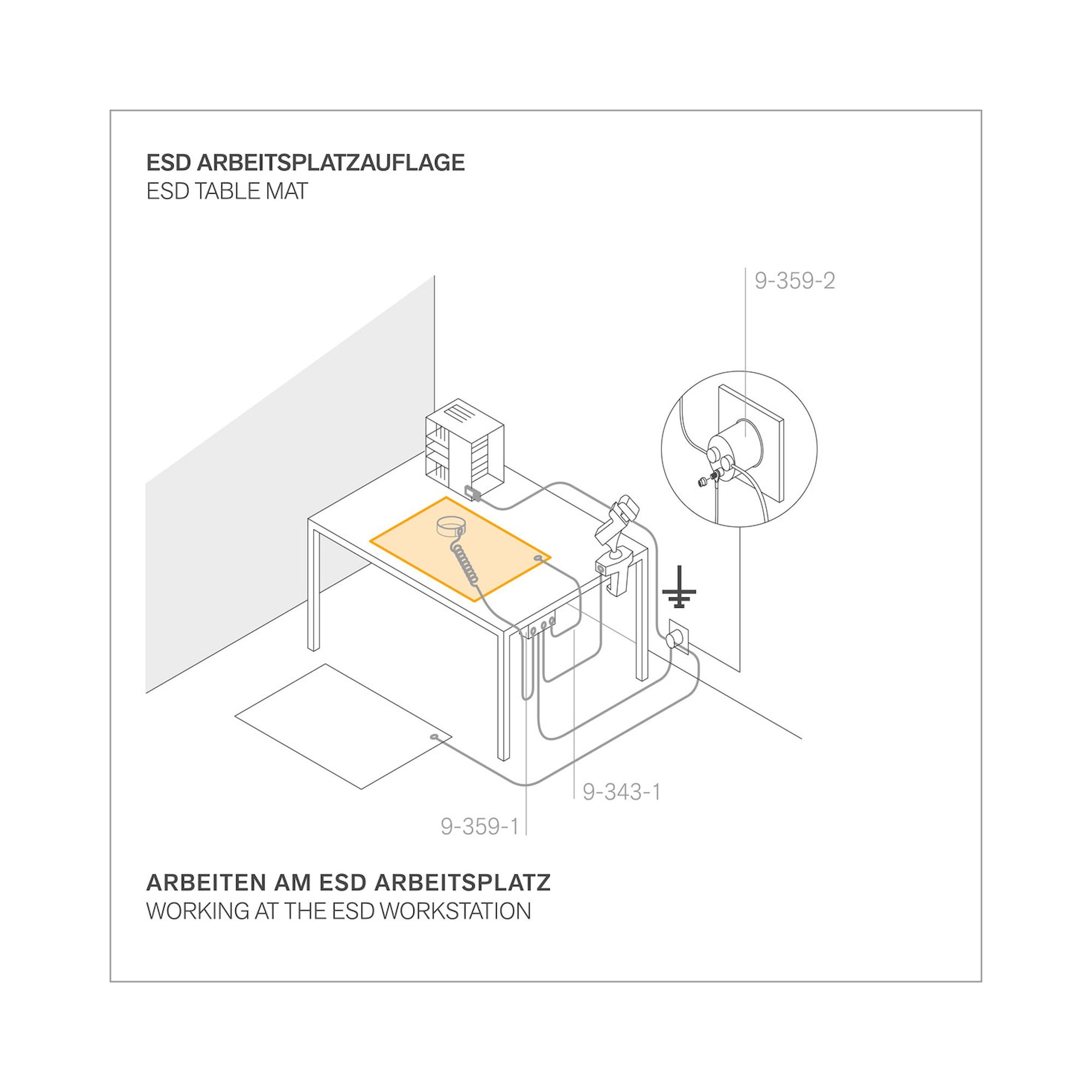

As a workplace pad for SMD and THT assembly, and wherever a table, shelf or floor needs permanent grounding. The recommended connection is the earth bonding point 9-359-1 or the earth bonding plug 9-359-2 with the grounding cable 9-343-1.
Standards and Supply Data
- Meets DIN EN 61340-5-1
- EPA suitable for electrostatically protected areas
- EAN 4250838528863
- Customs tariff number 40082190
- Country of origin Taiwan
| ESD version | ESD (antistatic) |
|---|---|
| Manufacturer Nr. | 9-360-0 |
| Manufacturer | Bernstein |
| EAN | 4250838528863 |
| Weight | 1.000000 |
| Colour | Black |
| HS-Code | 40082190 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
