ESD Personal Grounding Set 5 Pieces with Earth Bonding Plug for EU Socket - Bernstein 9-360-A
The ESD personal grounding set 9-360-A pairs the solder-resistant 900 x 610 x 1.5 mm grounding mat with a yellow wrist strap, coiled cord and earth bonding plug for the EU socket, giving a plug-in ready personal grounding setup. The mat's resistance ranges from 10^6 to 10^7 ohm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

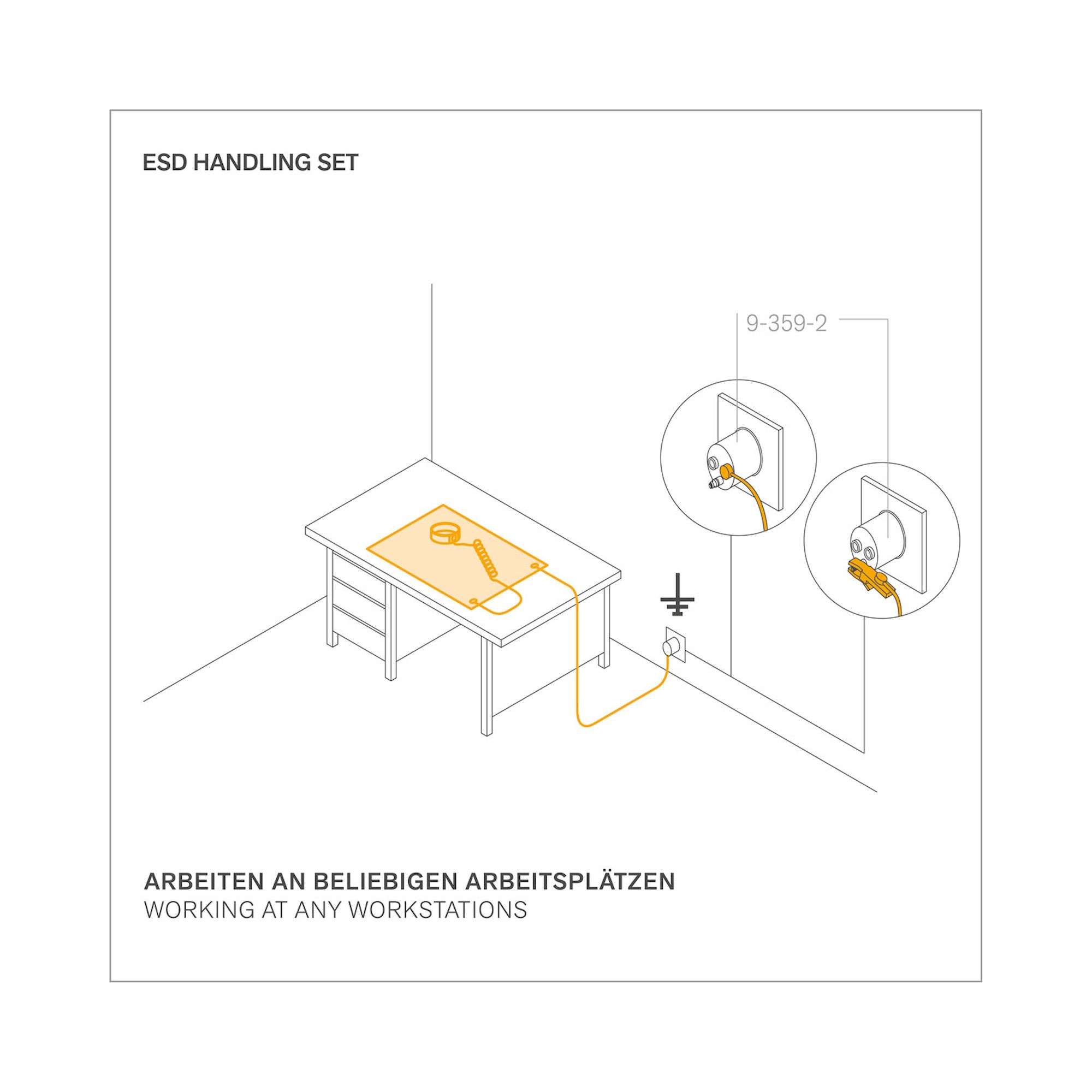

Anyone who wants to set up personal grounding without fixed wiring, straight at the wall socket, chooses the set 9-360-A: grounding mat, yellow wrist strap and earth bonding plug 9-359-2 form a plug-in ready wrist grounding system tested to DIN EN 61340-5-1.
Advantages
- Solder-resistant, heat-resistant workplace pad made of black electrostatically conductive synthetic rubber, measuring 900 x 610 x 1.5 mm
- Mat resistance 10^6 to 10^7 ohm, back side conductive at 10^3 to 10^4 ohm
- Adjustable yellow wrist strap with woven silver-plated plastic fibers, allergy-free
- Coiled cord with a safety resistance of 1 MOhm on each connection side, approved up to 250 VAC
- Earth bonding plug 9-359-2 for direct connection to any EU socket
Application
For a complete, plug-in ready personal grounding workstation in SMD and THT production, when grounding should run directly from an EU wall socket.
Standards and Supply Data
- Meets DIN EN 61340-5-1
- EPA suitable for electrostatically protected areas
- EAN 4250838528900
- Customs tariff number 39269097
- Country of origin Taiwan
Technical data
| Feature | Value |
|---|---|
| Content | See parts list |
| Application | ESD safe protection and workplace support for SMD/THT assembly |
| Resistance | 10^6 to 10^7 ohm (back side 10^3 to 10^4 ohm) |
| Material | Top and back side black electrostatically conductive synthetic rubber |
| Connection | 2 press buttons 10 mm for ground connection |
| Properties | Solder-resistant, heat-resistant, abrasion-resistant, halogen-free, wear-resistant, permanently elastic |
| Dimensions | 900 x 610 x 1.5 mm |
| Weight | 1072 g |
| Manufacturer | Bernstein |
| Manufacturer Nr. | 9-360-A |
| EAN | 4250838528900 |
| HS-Code | 39269097 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Condition of article | New |
| Article authenticity | Original product |
| ESD version | ESD (antistatic) |
| Certification | IEC 61340-5-1 |
Scope of delivery
- 9-360-0 ESD grounding mat black 900 x 610 x 1.5 mm
- 9-341-1 ESD contact bracelet yellow
- 9-341-2 ESD coiled cord for bracelet, highly elastic, 70 to 200 cm, yellow
- 9-344-1 ESD grounding cable 1 MOhm, 1800 mm, 1 press stud 10 mm and eyelet 4 mm
- 9-359-2 ESD earth bonding plug 2 x 10 mm and M5 connection
