This black ESD grounding mat made of dissipative synthetic rubber measures 610 x 450 x 1.5 mm and achieves a resistance of 10^6 to 10^7 ohm. It is solder-resistant, heat-resistant and suits table, shelf or floor use in the EPA per DIN EN 61340-5-1.
ESD Grounding Mat Black 610 x 450 x 1.5 mm for Table, Shelf and Floor - Bernstein 9-366-0
BERNSTEIN
Original product
Net price (excl. VAT)
€45.45
Item
BS-9-366-0
Manufacturer no.
9-366-0
ESD · IEC 61340-5-1
Konformitätserklärung
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.9-366-0
EAN4250838529471
Customs tariff number40082190
ConditionNew
Article
BS-9-366-0
Frequently Bought Together
For SMD and THT assembly at solder-resistant workstations, the black ESD grounding mat measuring 610 x 450 x 1.5 mm with a resistance of 10^6 to 10^7 ohm provides reliable dissipation of electrostatic charge.
Advantages
- Resistance of 10^6 to 10^7 ohm, back side additionally conductive at 10^3 to 10^4 ohm
- Solder-resistant, heat-resistant and abrasion-resistant for daily workshop use
- Wear-resistant and permanently elastic while remaining halogen-free
- 2 press buttons 10 mm for a reliable ground connection
Technical Data
| Feature | Value |
|---|---|
| Resistance top side | 10^6 to 10^7 ohm |
| Resistance back side | 10^3 to 10^4 ohm |
| Material | electrostatically dissipative synthetic rubber, top and back black |
| Connection | 2 press buttons 10 mm |
| Properties | solder-resistant, heat-resistant, abrasion-resistant, halogen-free, wear-resistant, permanently elastic |
| Dimensions | 610 x 450 x 1.5 mm |
| Weight | 500 g |
Application

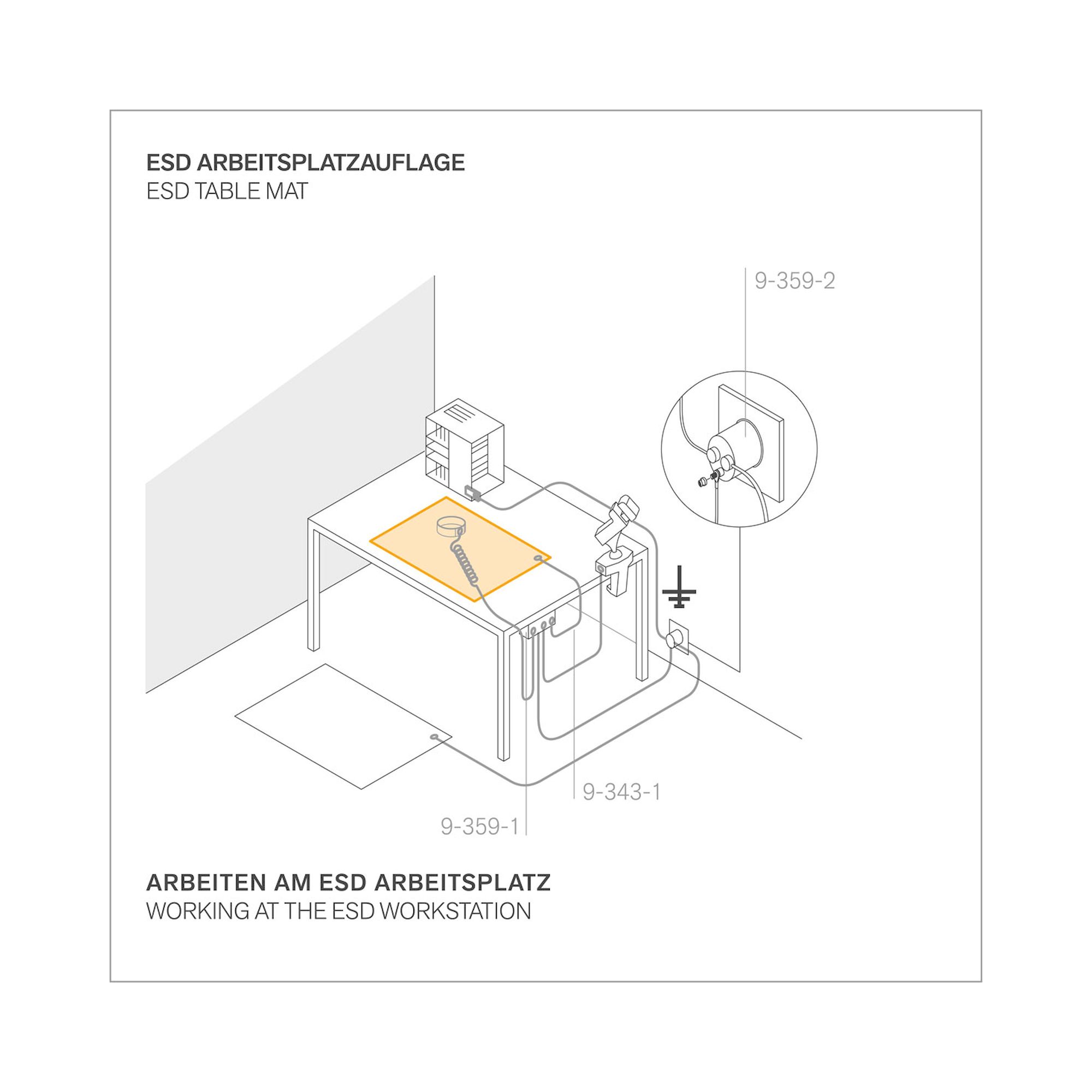

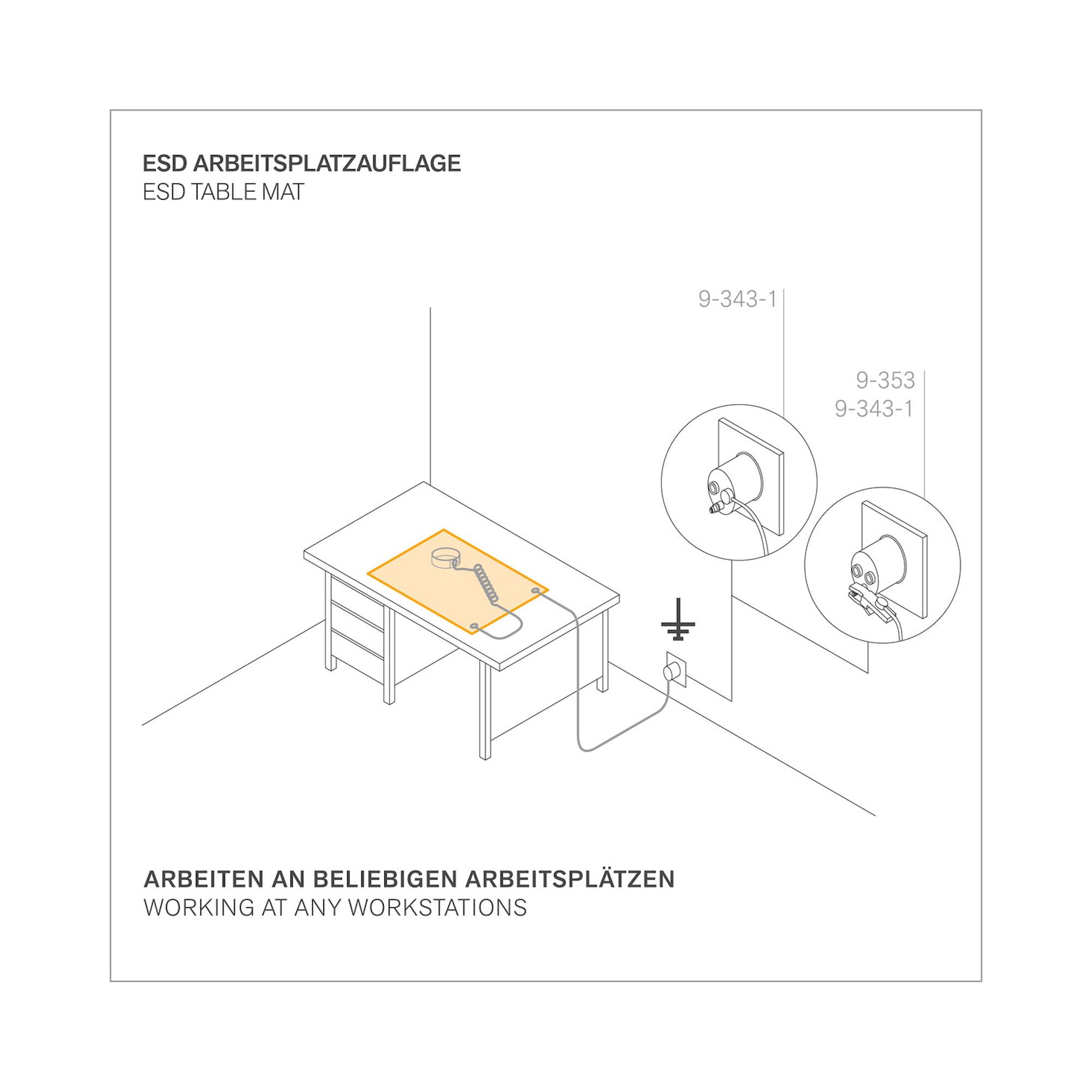

As a table, shelf or floor mat in electrostatic protected areas (EPA), particularly for SMD/THT assembly and soldering work. For connection, the earthing module 9-359-1 or the earthing plug 9-359-2 with the grounding cable 9-343-1 (1 megohm, 1.8 m) is recommended.
Standards and Delivery Data
- Meets DIN EN 61340-5-1, EPA suitable
- EAN 4250838529471
- Customs tariff number 40082190
- Country of origin Taiwan
| Certification | IEC 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 9-366-0 |
| Manufacturer | Bernstein |
| EAN | 4250838529471 |
| Weight | 0.500000 |
| Colour | Black |
| HS-Code | 40082190 |
| GPSR manufacturer information | BERNSTEIN Werkzeugfabrik Industriehof Trecknase 1 DE-42897 Remscheid www.bernstein-werkzeuge.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
